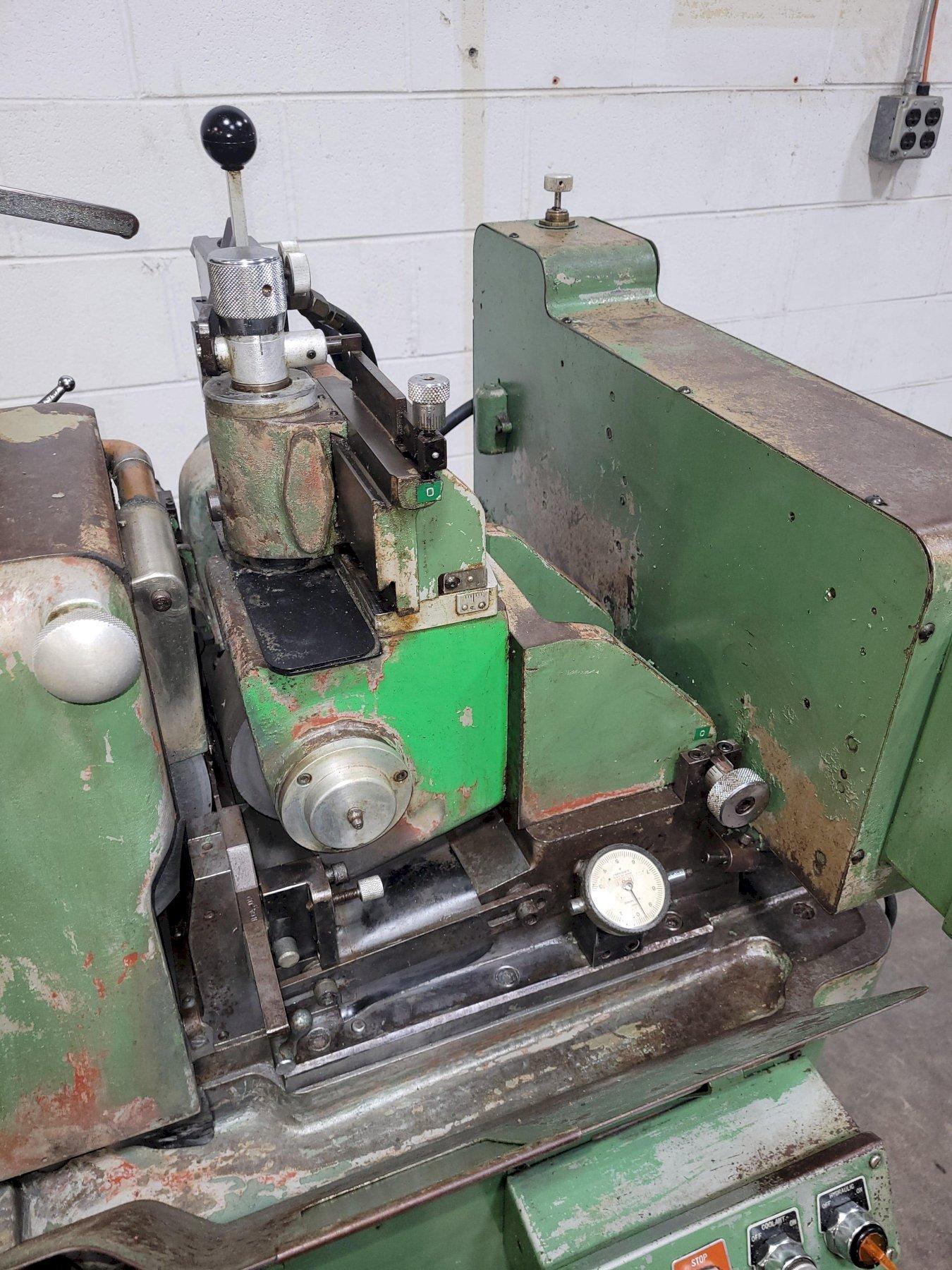

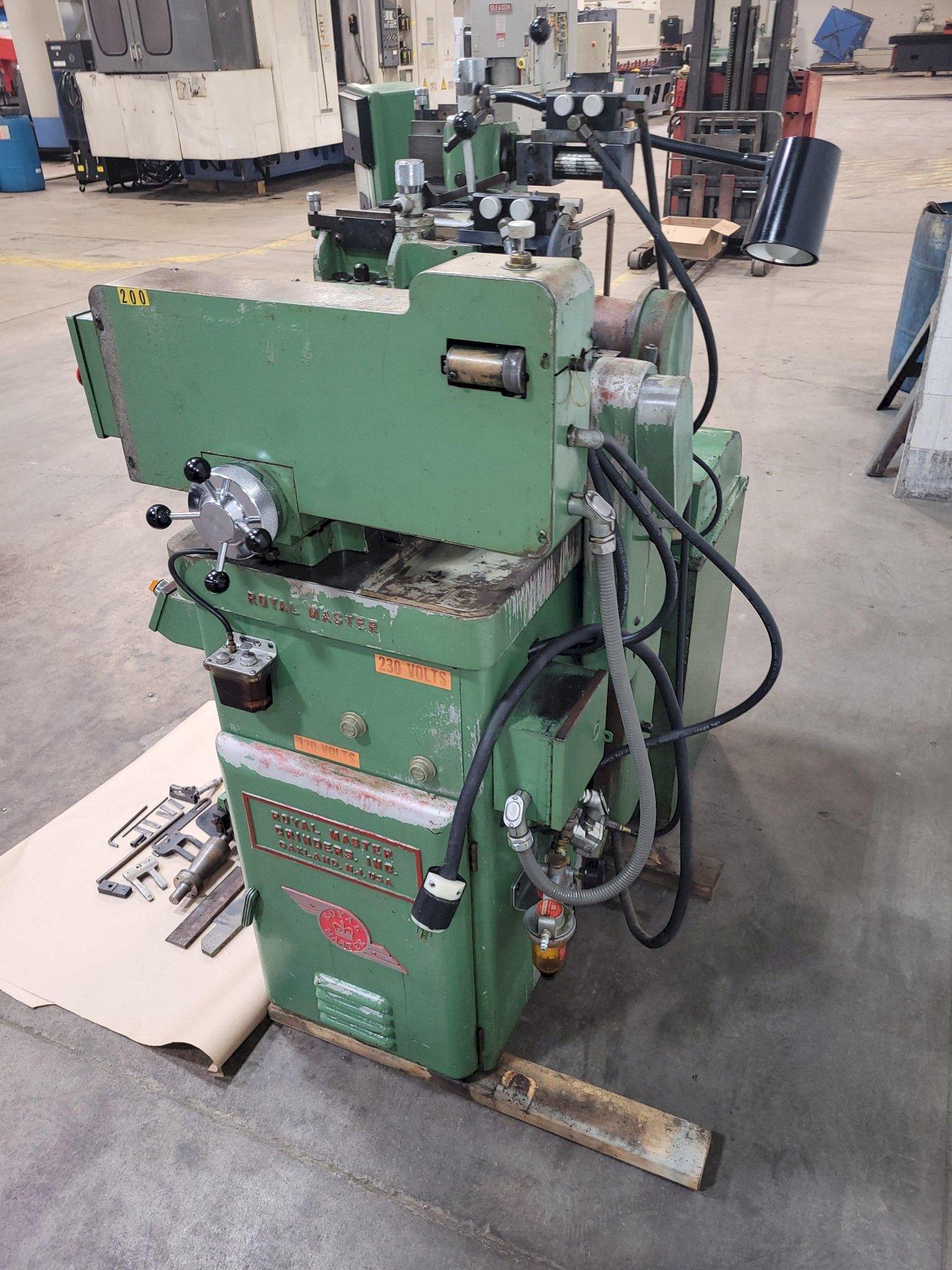

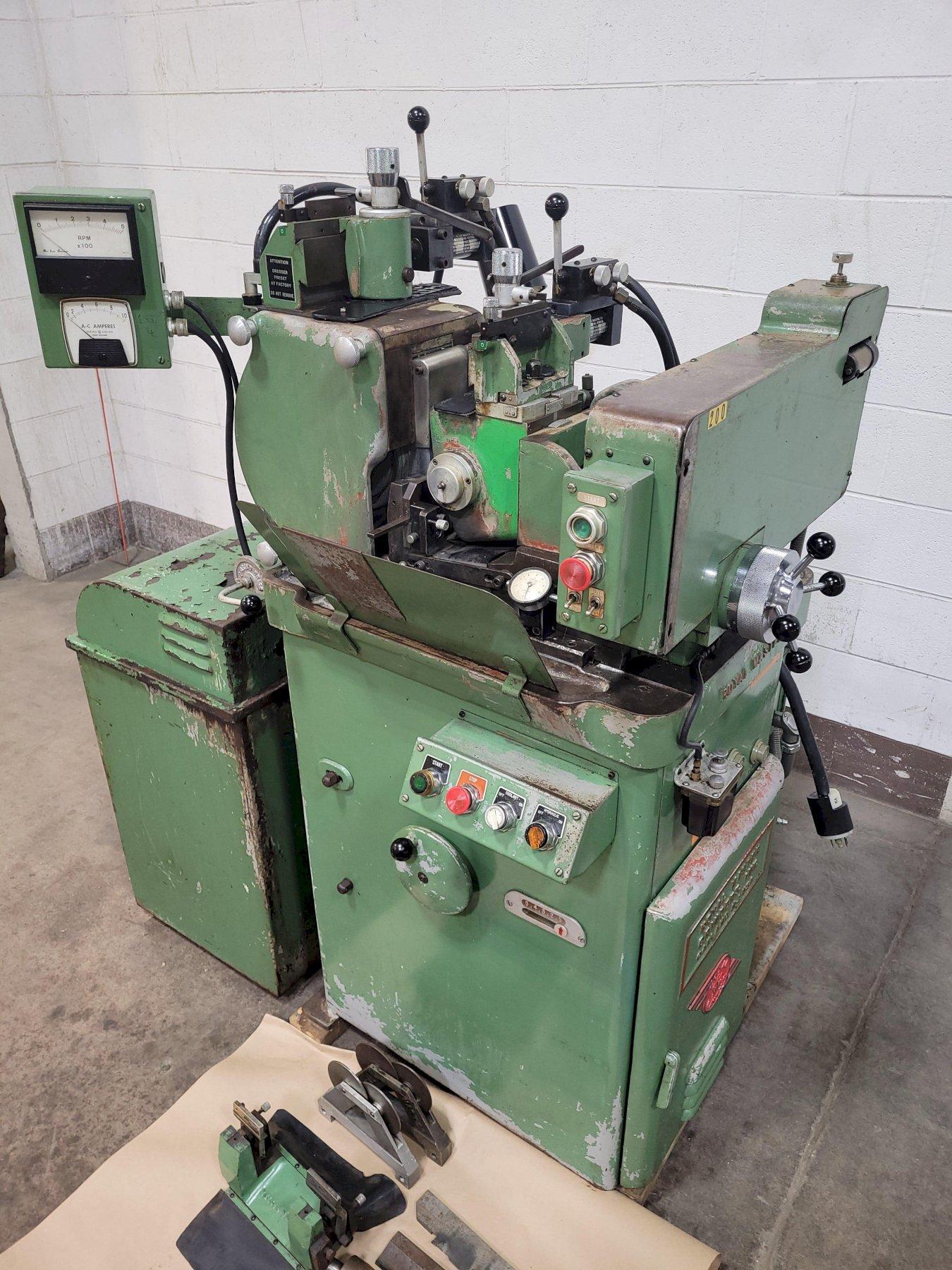

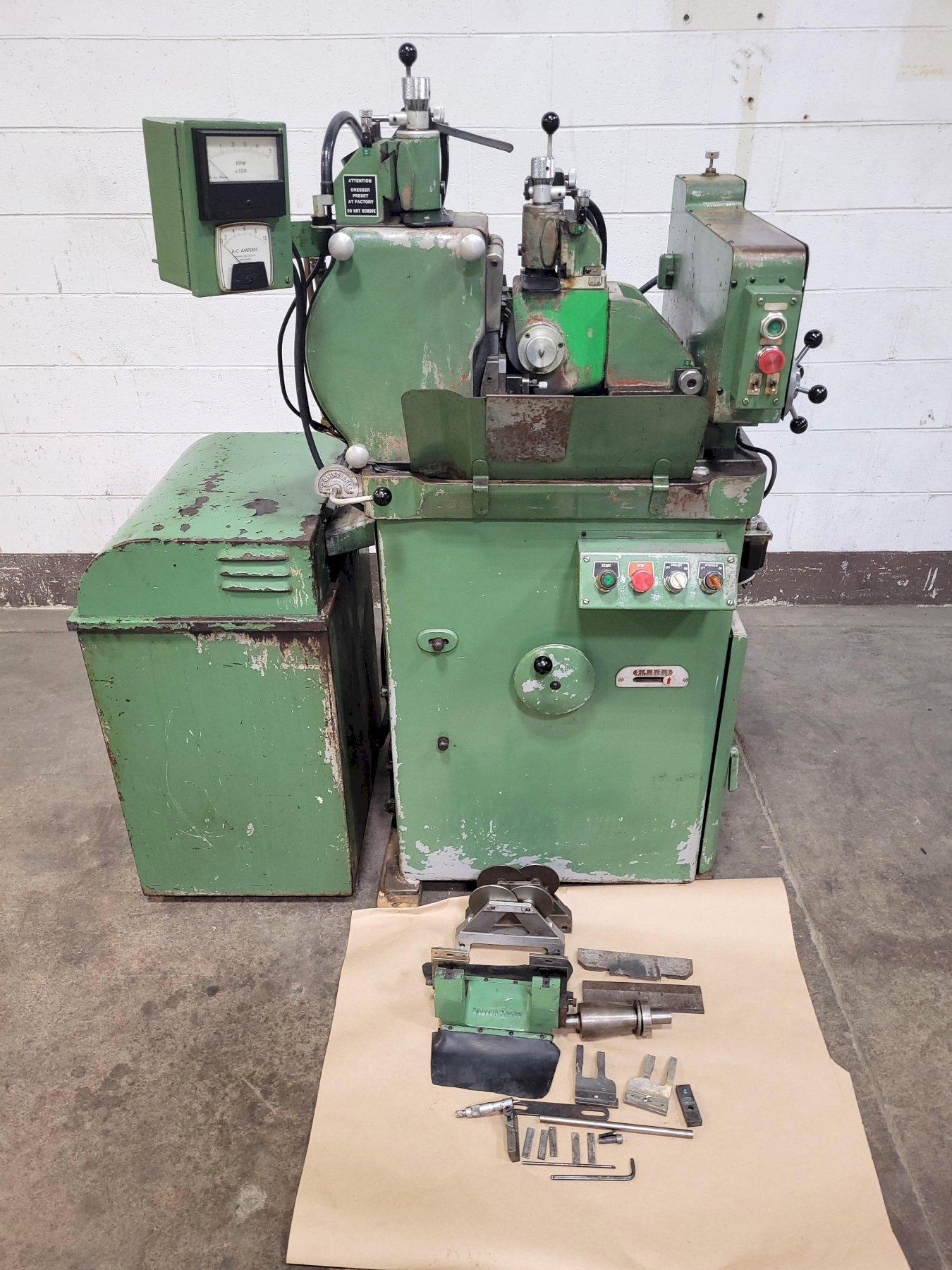

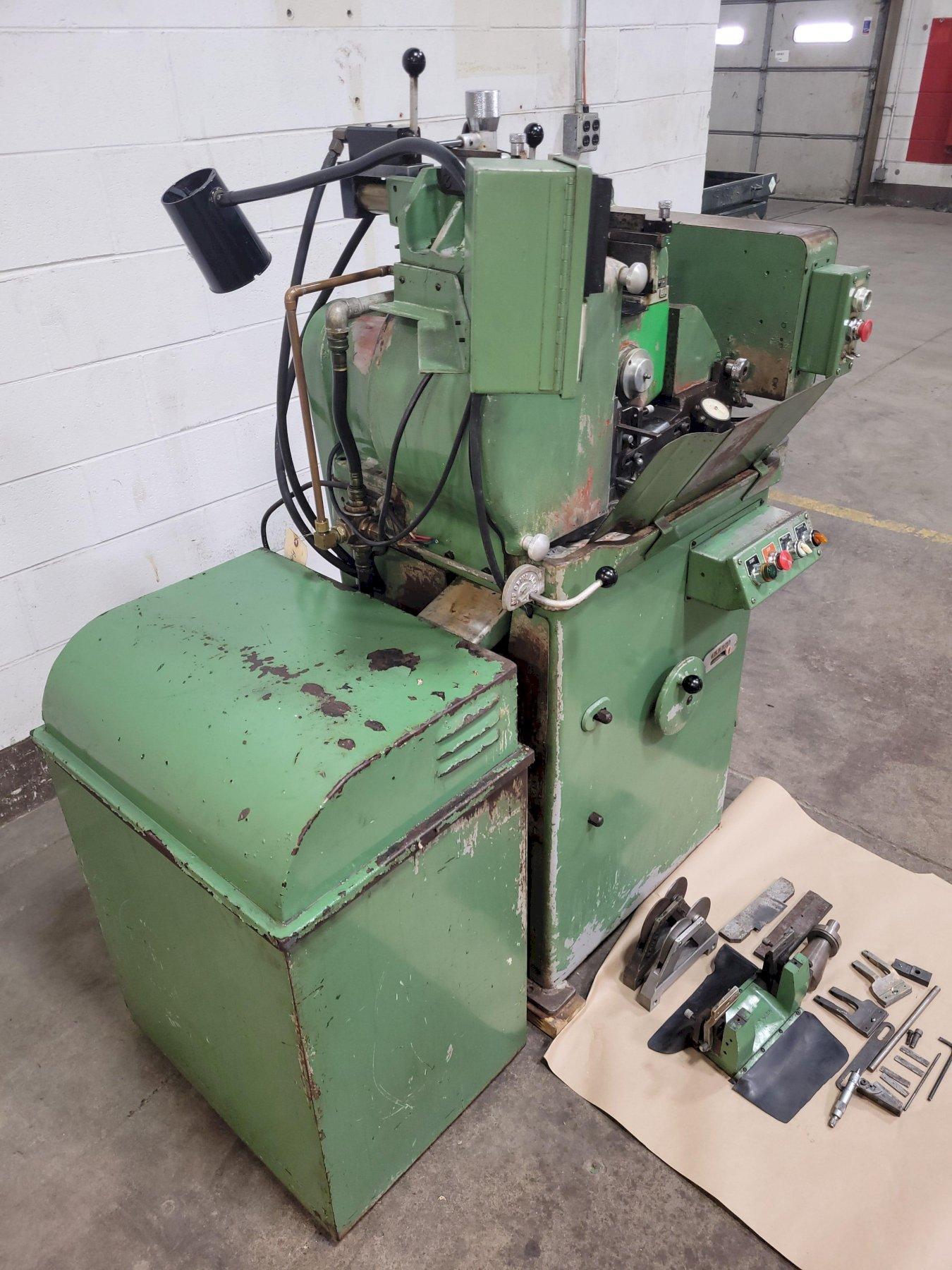

ROYAL MASTER MODEL TG-12X3 PRECIS-O-MATIC CENTERLESS GRINDER

Manufacturer

ROYAL MASTER

Category

Grinding Machines

Type

GRINDERS, BELT, CENTERLESS

Stock

G1576

Model

TG-12X3

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Grinding Capacity Diameter - .004 - 1.5" Diameter
Size of Grinding Wheel - 3” Wide x 5” Bore
Diameter of the Grinding Wheel – Maximum - 12”
Diameter of the Grinding Wheel – Minimum - 10”
Size of the Regulating Wheel - 3" Wide x 1” Bore
Diameter of the Regulating Wheel – Maximum - 6"
Diameter of the Regulating Wheel – Minimum - 4"
Grinding Wheel Spindle Speed Rate - 2040 RPM
Regulating Wheel Spindle Speed Rates (Variable) - 25-480 RPM
Main Spindle Drive Motor - 7.5 HP
Electrics - 3/60/230V
Approximate Weight - 2,500 Lbs.


EQUIPPED WITH:
Automatic Infeed Unit.

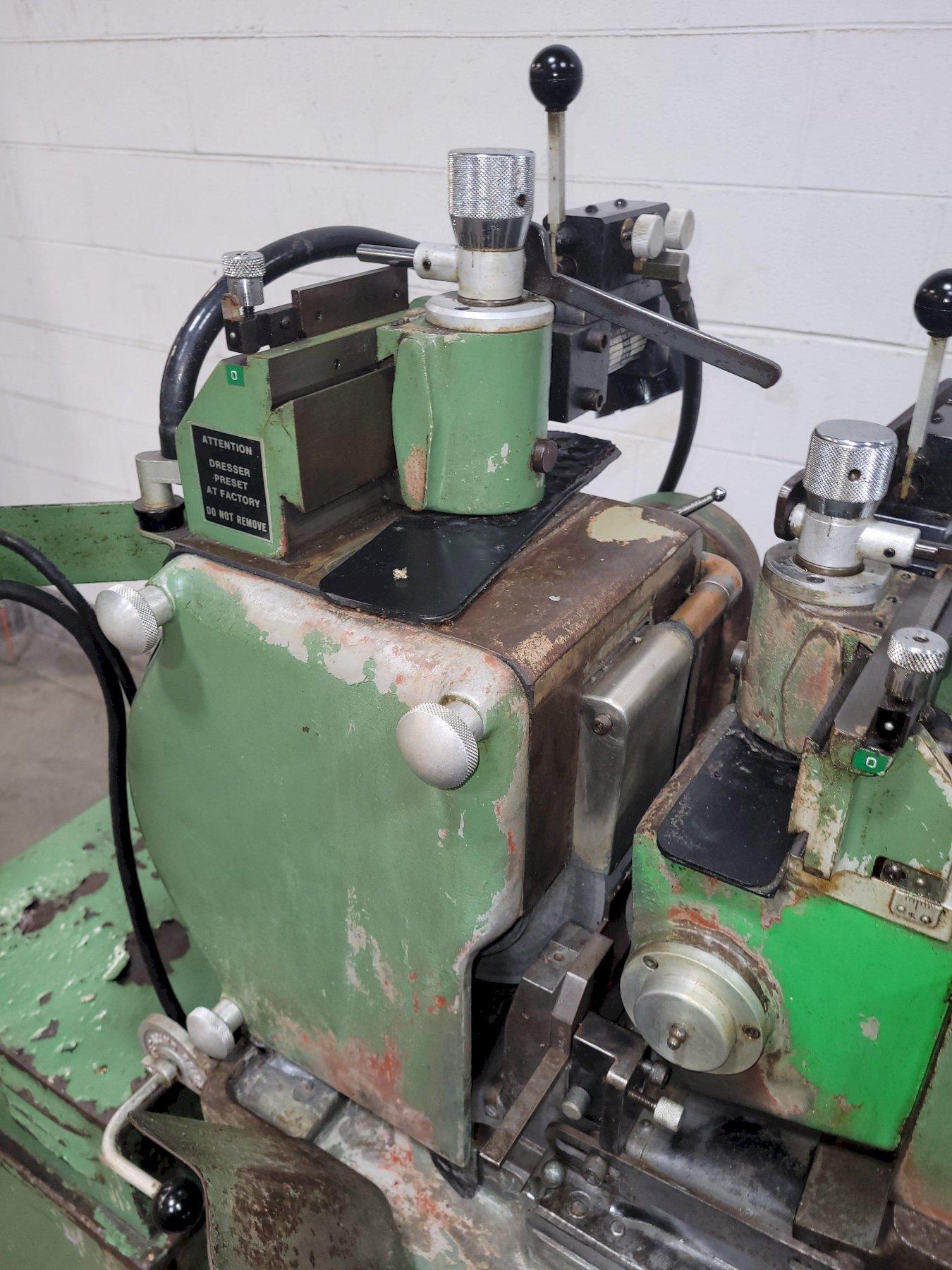

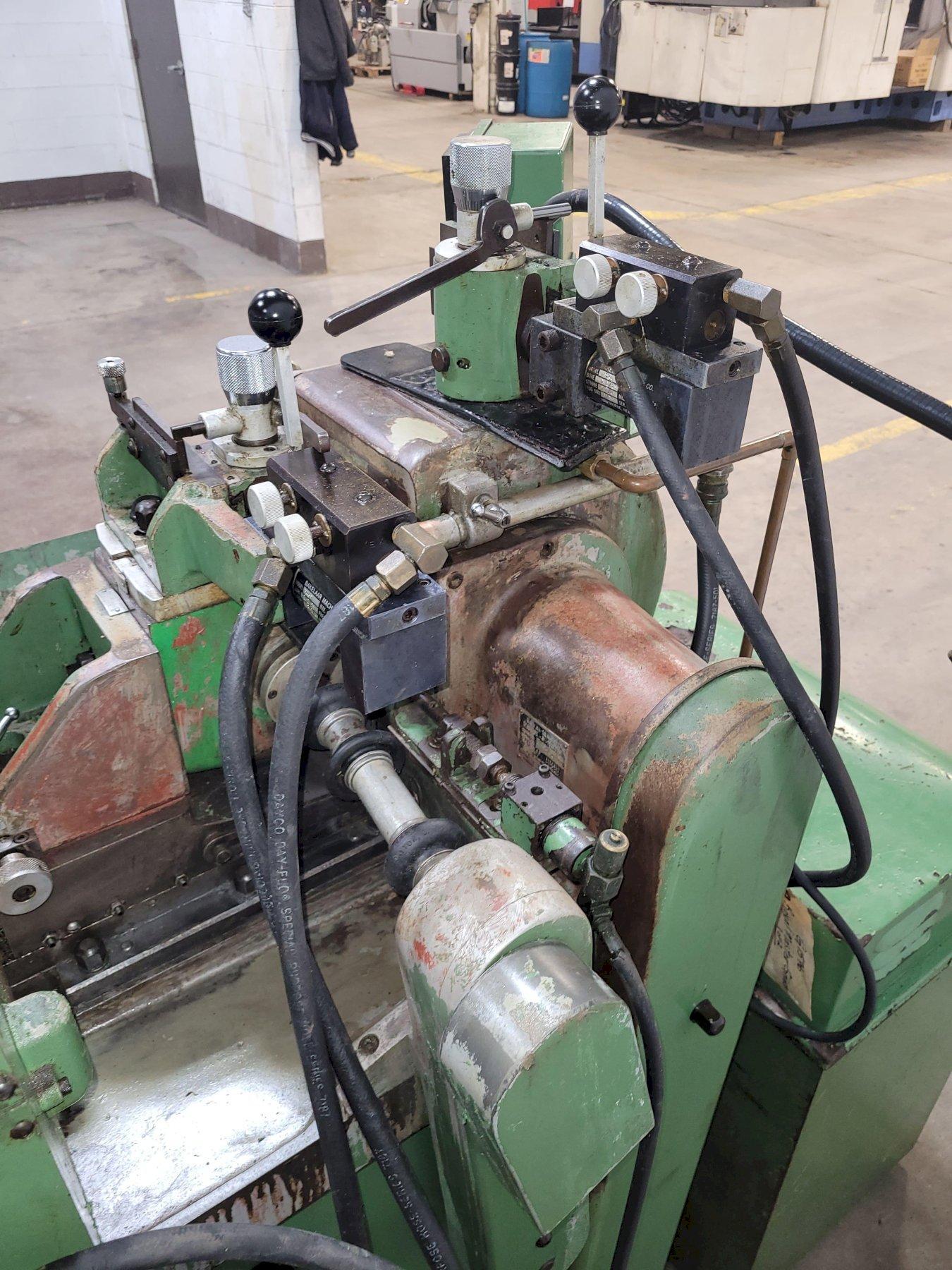

Hydraulic Single Point Diamond Dresser for both the Grinding and Regulating Wheels.

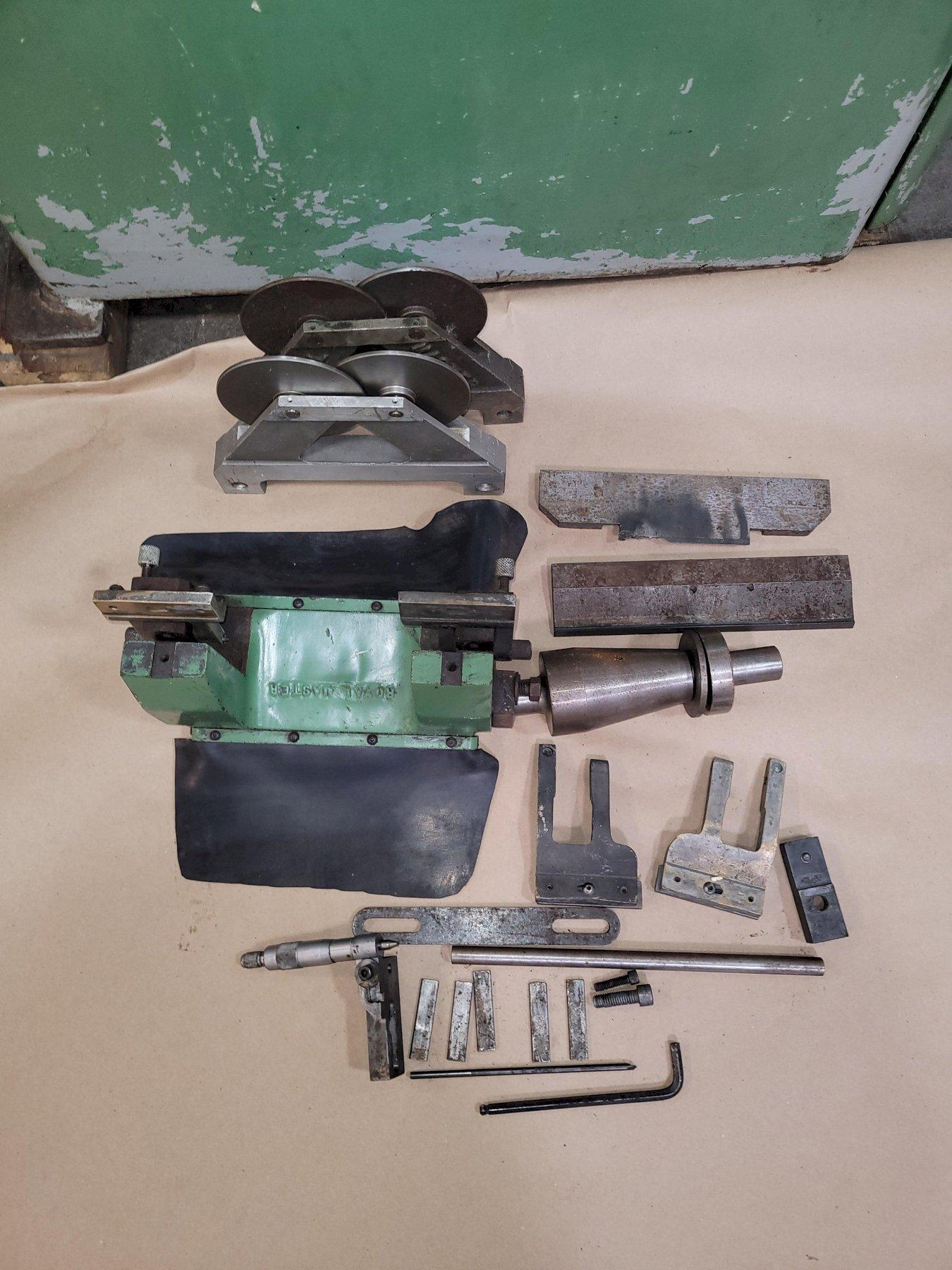

In-Feed Work Rest with Ejector.
Through feed Work Rest.
Lubrication System.

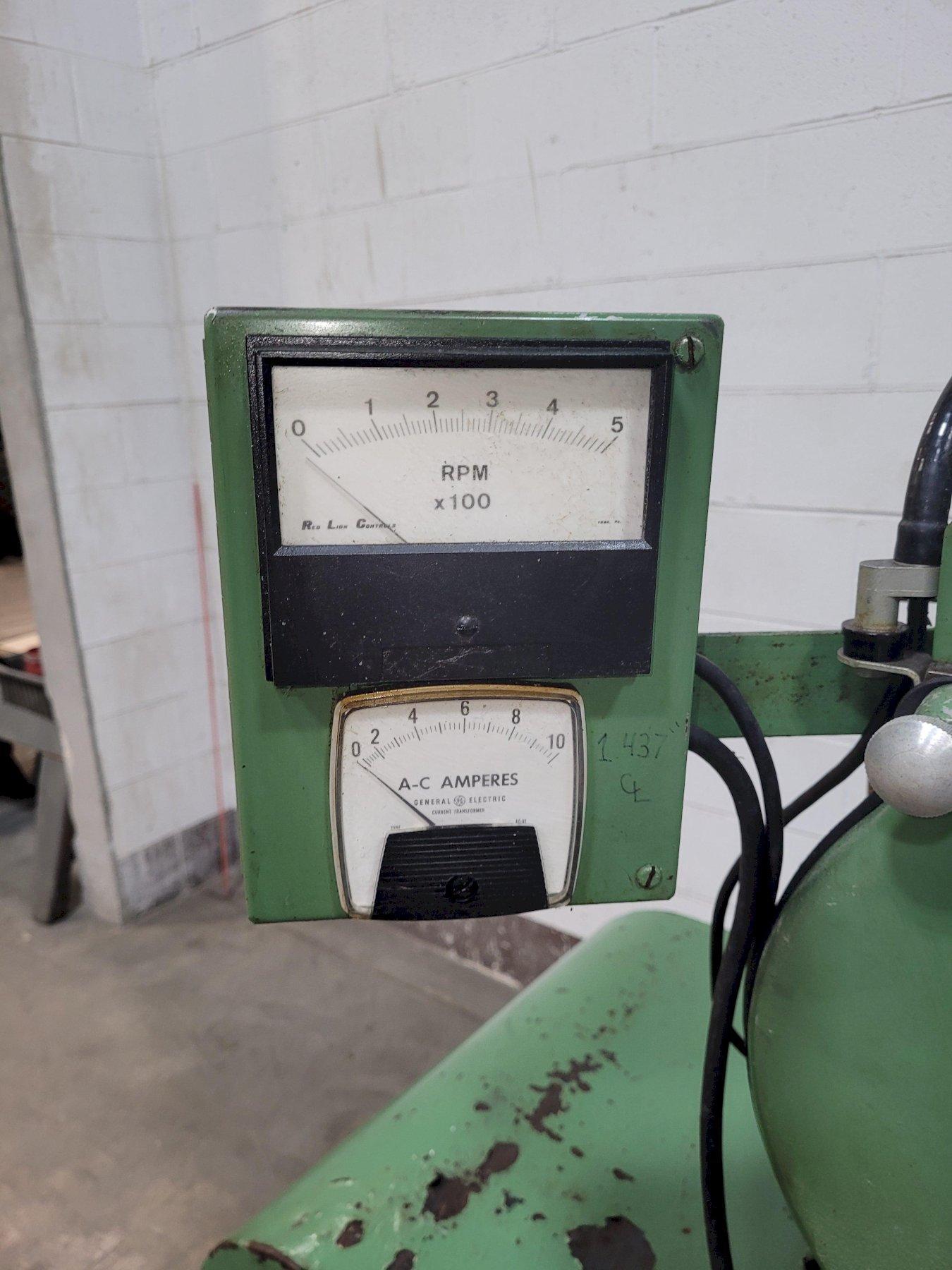

LED Regulatory Wheel Speed Display.
Load Meter.

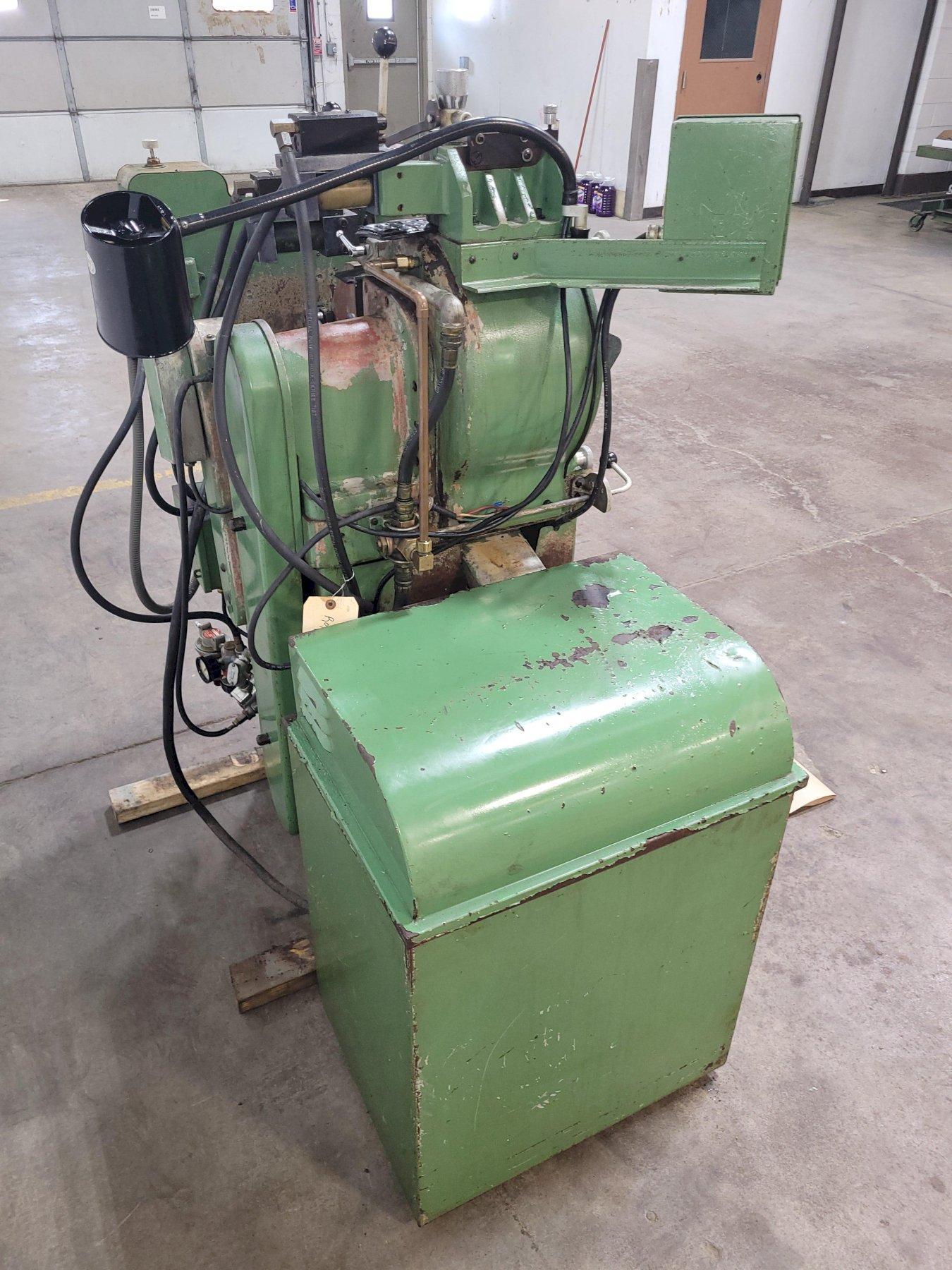

Royal Master Waterfall Coolant Tank on Casters.
Dial Indicator for Infeed.
Worklight.
