Parpas Diamond, Heidenhain 640i CNC, 5-Axis, X-87", Y-57", Z-39", 2-Axis Head, 20K RPM, 24 ATC, 2017 #43516

Manufacturer

PARPAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43516

Model

Diamond

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43516

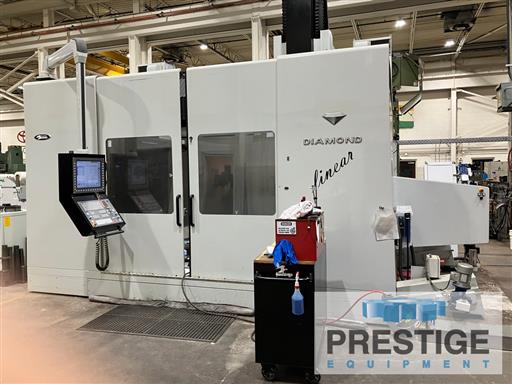

Parpas Diamond 5 Axis Linear Gantry Type Vertical Machining Center

FEATURES:
Heidenhain TNC 640i

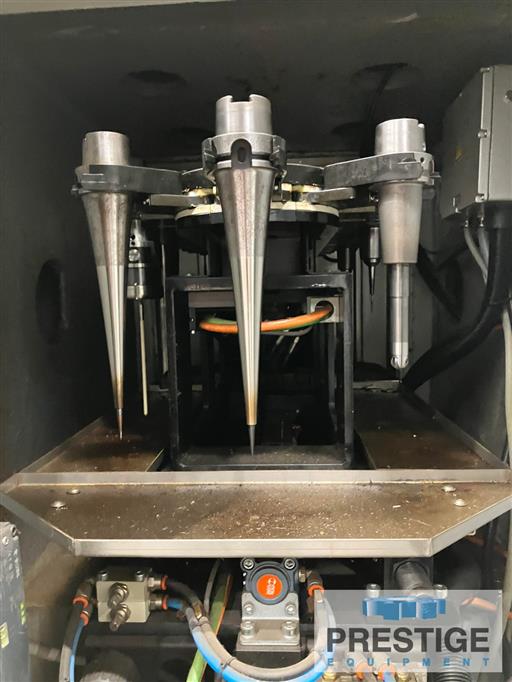

24-Station Automatic Tool Changer
Coolant around the spindle 450 PSI
Air around the spindle 100 PSI
Radio touch probe M&H
Tool laser pre-setter Blum
Chiller Unit
Linear Drives & Motors
HVAC Controlled Gantry, Parpas Patent

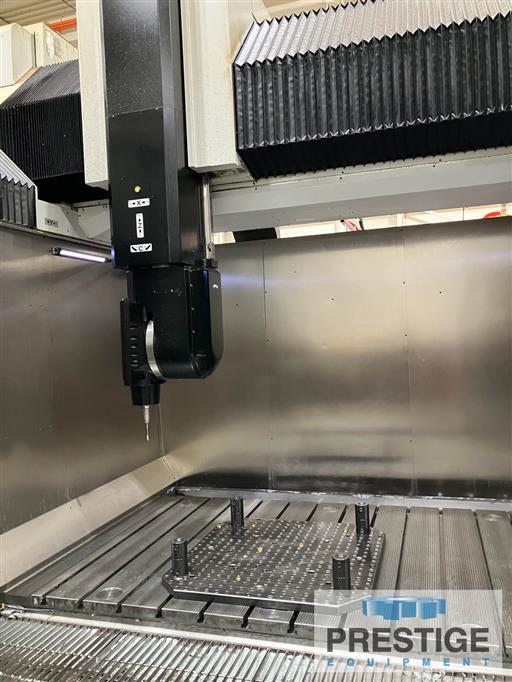

5-Axis Dual Torque Motor Driven Liquid Cooled Head
Parpas Patented Long-Life High Speed Spindle Model MTS-29.92
with HSK-63-A Tool Holder. 20,000 RPM


SPECIFICATIONS:
Longitudinal Travel X-Axis ............ 87"
Head Travel, Y Axis ................... 59"
Ram Travel, Z axis .................... 39"
Spindle Nose to Table, Vertical ....... 48.6"
T-Slotted Table Dimension ............. 91" x 63"
Clearance Between The Columns ......... 106"
5-Axis Head Pivot Value ............... 12.99"
X and Y Axes Feed Rates ............... 3149" IPM
Z Axis Feed Rate ...................... 3149" IPM
Linear Motors ......................... All 3 Axis
Machine Footprint ..................... 204" x 156" x 192"

5-Axis Milling Head:
Continuous Indexing Head
A & C Axis ............................ (TOE-29 Head)
Ram C-Axis Range ...................... +/- 370°
Head A-Axis Range ..................... +/- 105°
A & C Axis Head Positioning Increment . 0.001° Each Axis
Spindle Speed ......................... 20,000 RPM
Power (continuous) .................... 29 kW
Constant power range .................. 3,000 -20,000 RPM
Spindle torque ........................ 92Nm S1, 117Nm S6
Spindle taper ......................... HSK-63-A


EQUIPPED WITH:
Heidenhain TNC-i640 CNC Control
24-Station Automatic Tool Changer
Coolant around the spindle 450 PSI
Air around the spindle 100 PSI
Radio touch probe M&H
Tool laser pre-setter Blum
Chiller Unit
Linear Drives & Motors
HVAC Controlled Gantry, Parpas Patent
5-Axis Dual Torque Motor Driven Liquid Cooled Head
Parpas Patented Long-Life High Speed Spindle Model MTS-29.92
with HSK-63-A Tool Holder. 20,000 RPM
Remote Hand Held Pendent with Electronic Hand-wheel included.
19” Large Format Hi-Res Monitor
Stainless Steel and LED Lighting inside the Working Cabin.
BLUM Tool Laser Pre-setter System and with Tool Family Software.
Digital Measuring Touch Probe
Flood Coolant System External to the Spindle
Through-Tool High Pressure Coolant 735-PSI
Paper Tray Coolant Filtration System (Losma)
Water Gun for chips (wash down)
Oil Skimmer
Air/Coolant Tool Cooling with Switching (through the spindle and around)

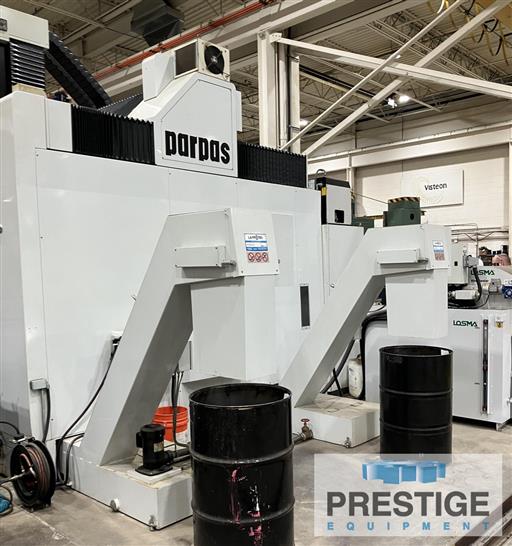

Dual Front & Back of Table Chip Conveyor System
Tele-service
Kinematic option without calibration sphere
Machine 3D model (for the simulator)
(2) Chip Conveyors

Note:
Additional 12.99" or 6.49" Per Side can be reached on the X & Y Axis
by rotating C-Axis with Head in the Vertical Position.

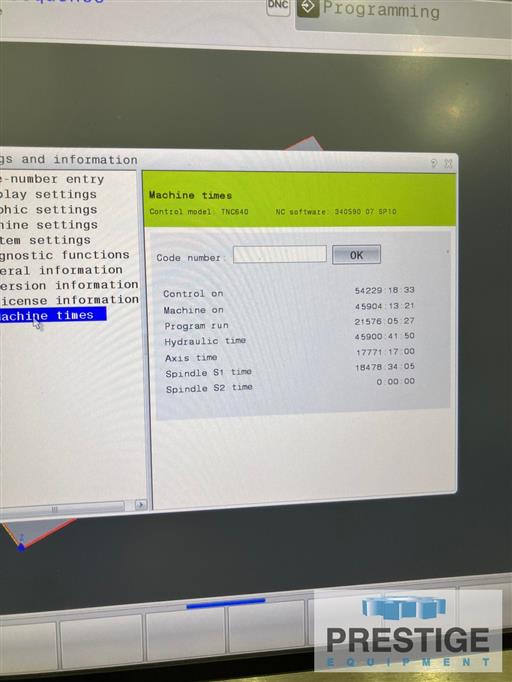

Hours:
Approx. 17,000 Cutting Hours

No Video Available
