Zimmerman FZ-30 5-Axis Gantry, X-159", Y-92", Z-49", 25,000 RPM, Nutating Head 16-ATC, Heidenhain 530i, 2010, #43543

Manufacturer

ZIMMERMANN

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43543

Model

FZ-30

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43543

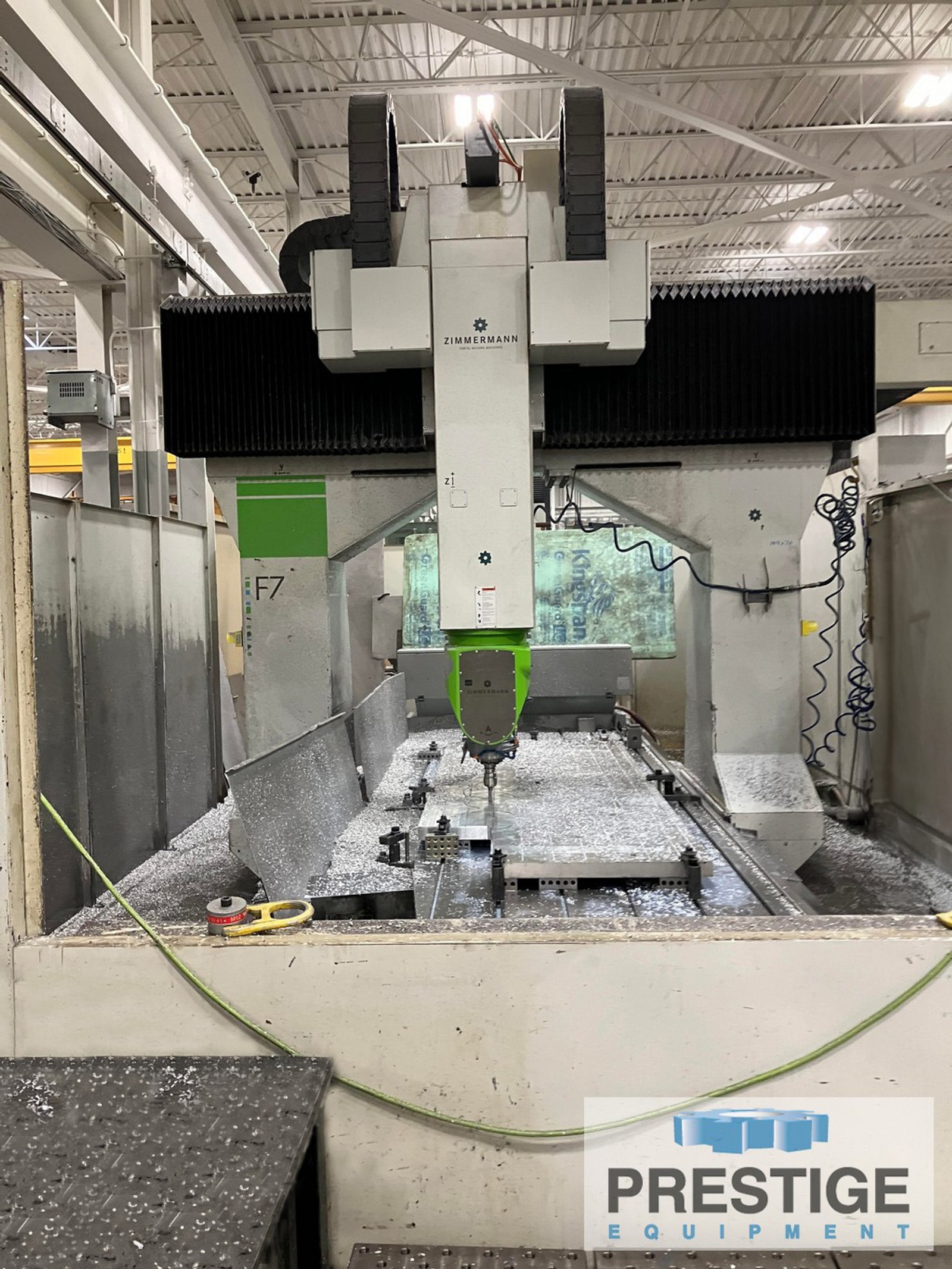

ZIMMERMAN FZ-30 5-AXIS CNC BRIDGE MILL

CAPACITY:
TABLE SIZE ........................... 196" x 78"
TABLE LOAD CAPACITY ................... 66,000 Lbs.
LONGITUDINAL TRAVEL ................... 159"
CROSS TRAVEL .......................... 92.8"
RAM VERTICAL TRAVEL ................... 49"
SPINDLE SPEEDS ........................ 25,000 RPM max.
SPINDLE DRIVE ......................... 53 HP
SPINDLE TAPER ......................... HSK 63A

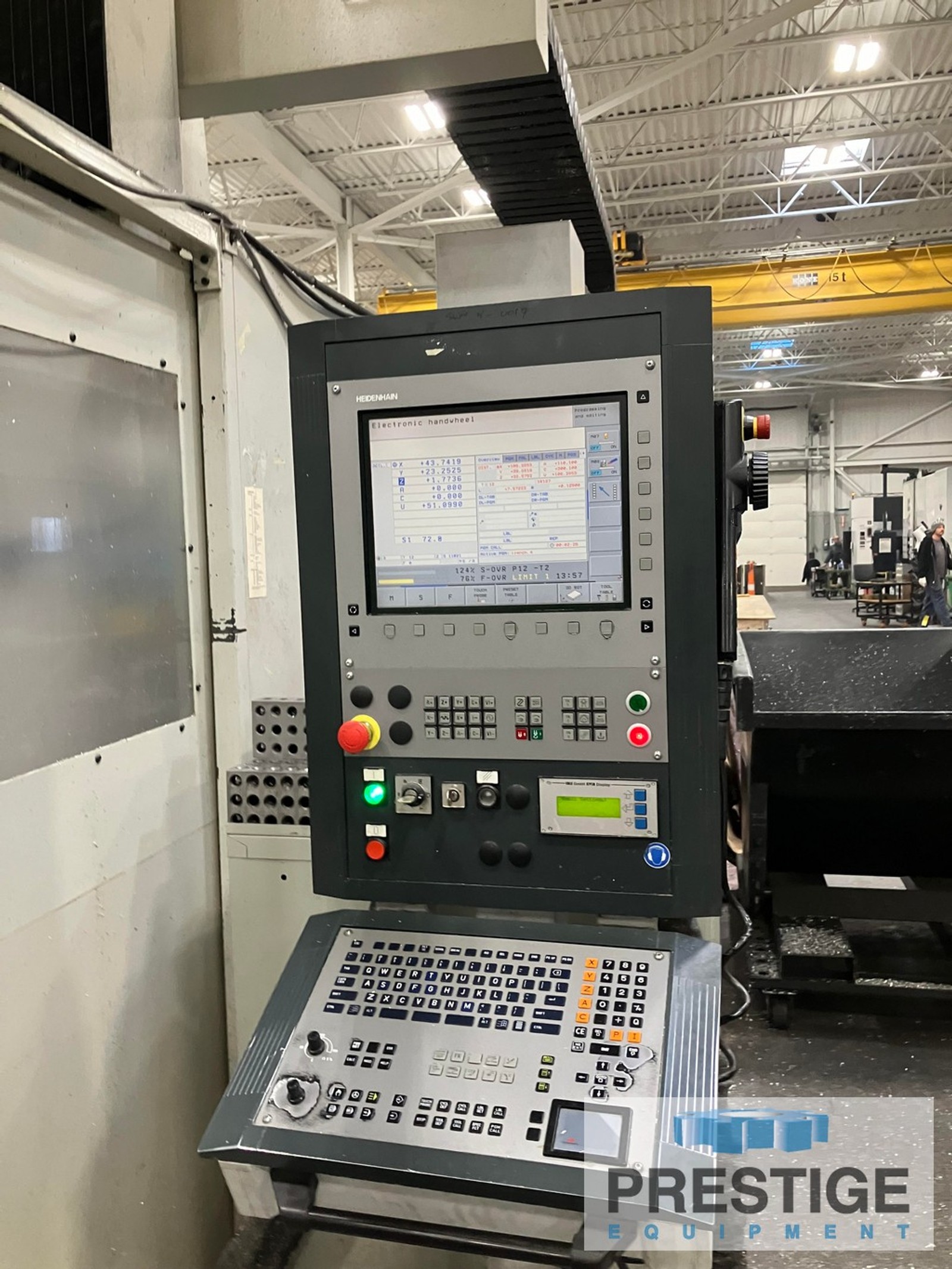

CONTROL TYPE .......................... HEIDENHAIN TNC 530i
SWIVEL RANGES, A AXIS ................. +95 deg./ -125 deg./ +/- 110 deg.
SWIVEL RANGES, C AXIS ................. +/- 360 deg.
FEED RATED X,Y,Z AXIS ................. 787 IPM
PERFORMANCE TORQUE:
TORQUE A AXIS ......................... 800Nm
TORQUE C AXIS ......................... 800Nm


EQUIPPED WITH:
AXIS CLAMPING HYDRAULIC
C AXIS CLAMPING SPRING LOADED
TOOL CHANGER 16 ATC RACK TYPE
AIR OVER MIST COOLANT

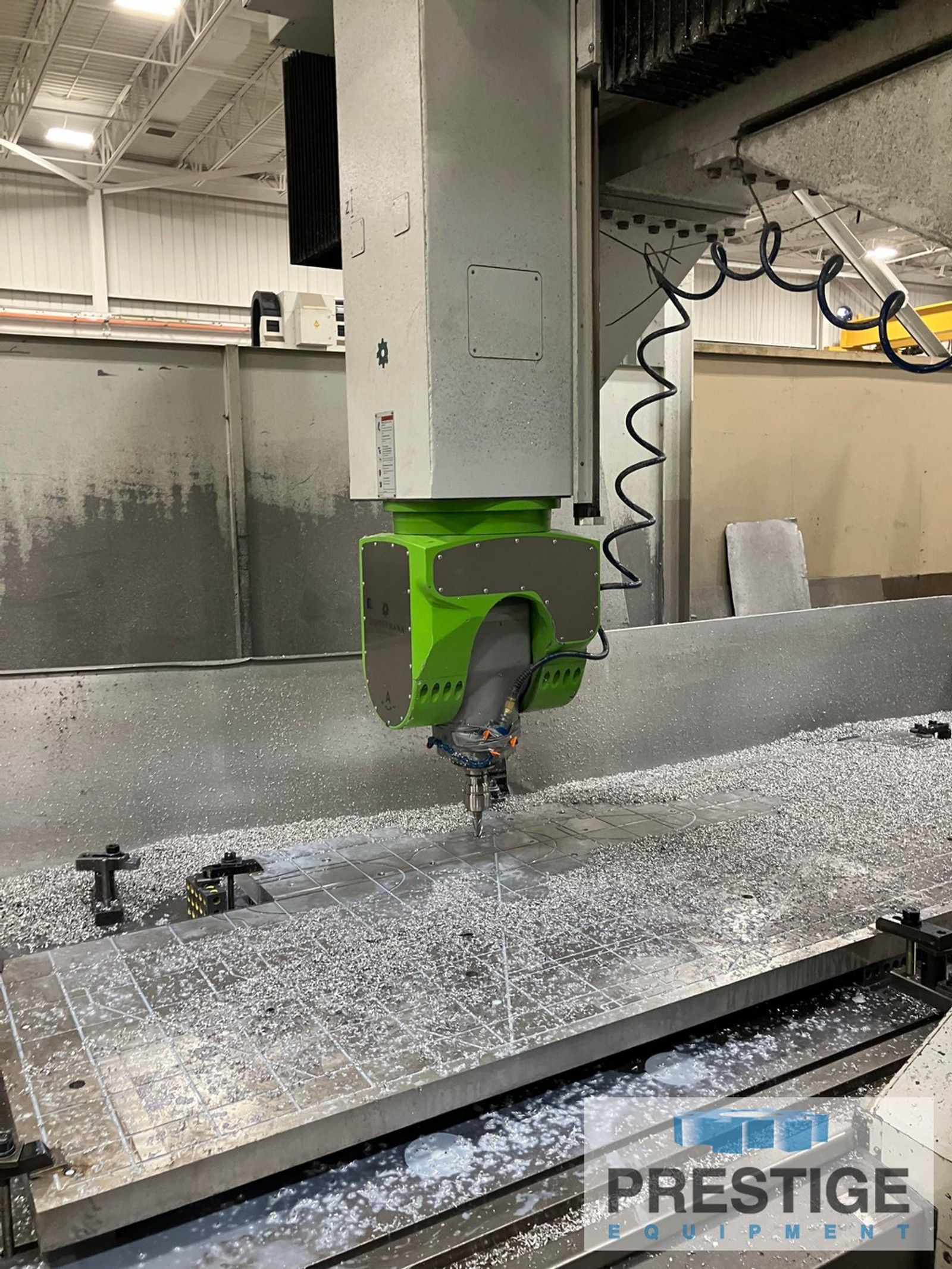

TRUE 5 AXIS HEAD MACHINING
