FPT Dino, Heidenhain 640i CNC, 5-Axis, X-157", Y-98", Z-51", 2-Axis Head, 22K RPM, 60 ATC, 2020, #43347

Manufacturer

FPT

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43347

Model

Dino Spin

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43347

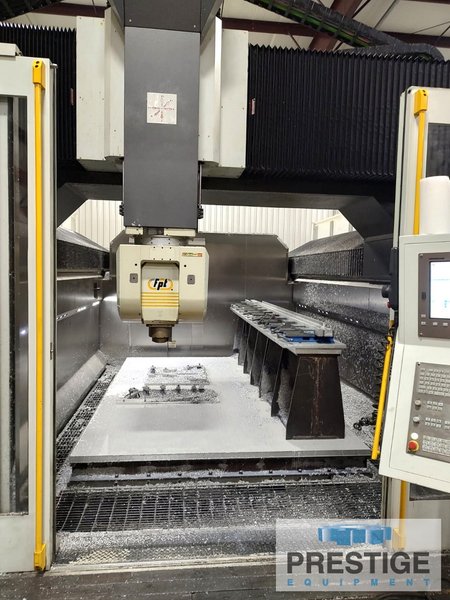

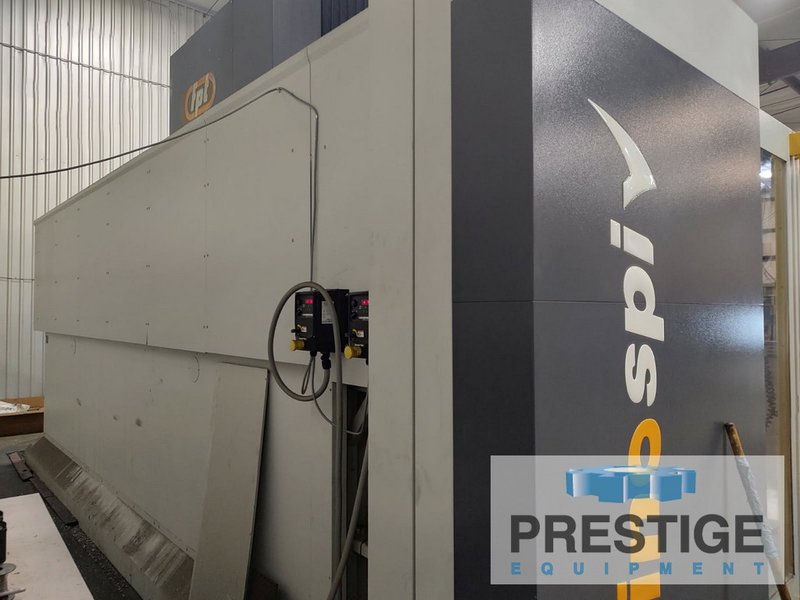

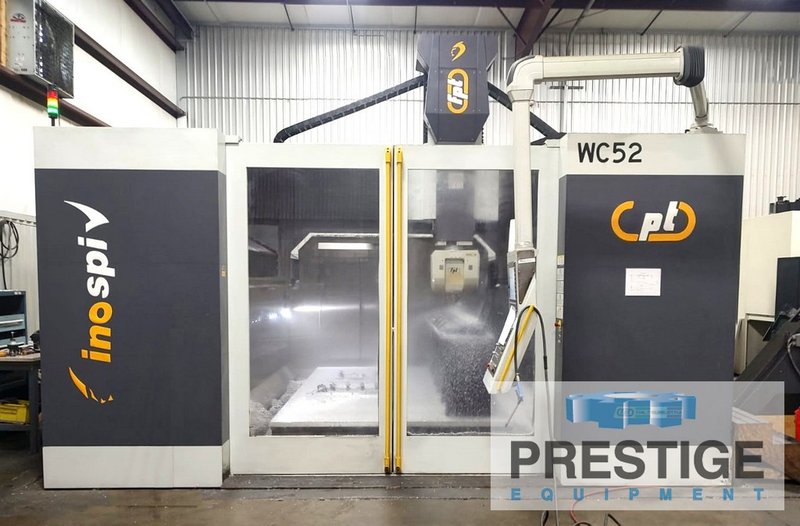

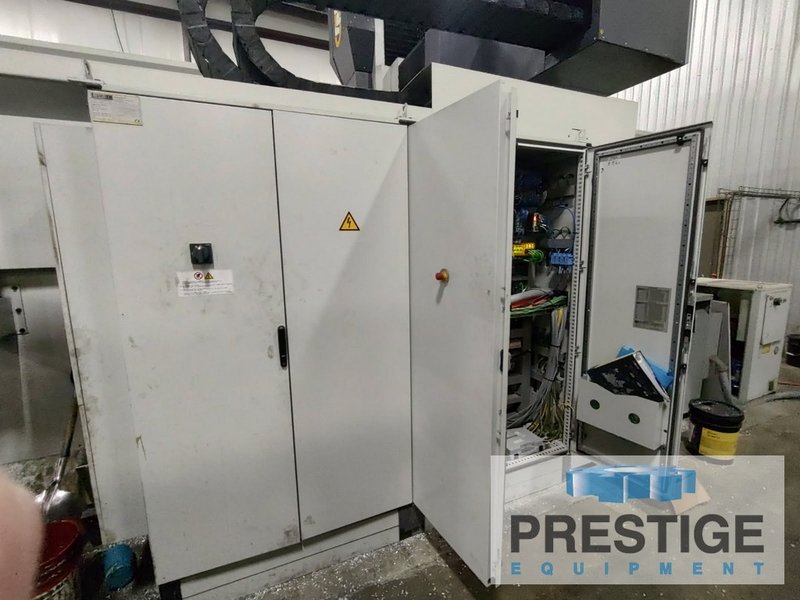

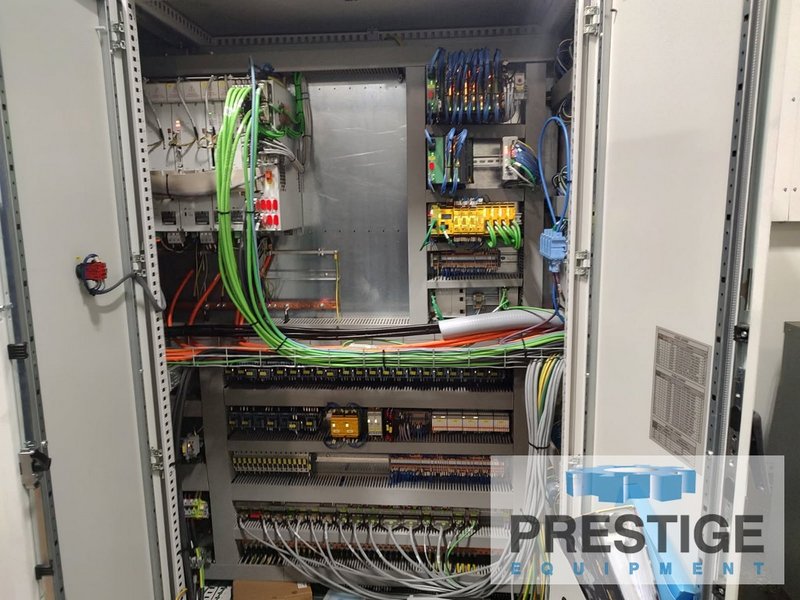

FPT Dino Spin 5-Axis CNC Gantry Mill

FEATURES:

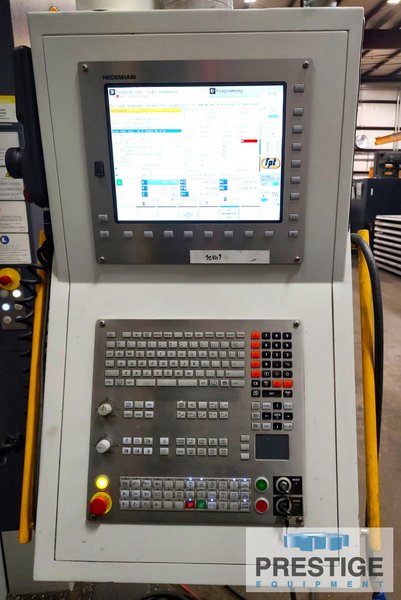

Heidenhain TNC 640 CNC Controls
2-Axis "Electro Spindle" Programmable Swivel Head
Through Spindle Coolant
60-Position Automatic Tool Changer

CAPACITY:
X-Axis Travel ......................... 98.42"
Y-Axis Travel ......................... 137.79"
Z-Axis (Ram Stroke) ................... 51.18"
C Axes, Swivel ........................ +/- 270 Degrees
A-Axis, Swivel Range .................. +/- 115 Degrees
Table Size ............................ 98.42" x 137.79"
Spindle Speeds ........................ 22,000 RPM
Spindle Taper ......................... HSK-A63
Spindle Drive Motor ................... 59 HP / 73 HP
Feeds ................................. 1574 IPM

EQUIPPED WITH:

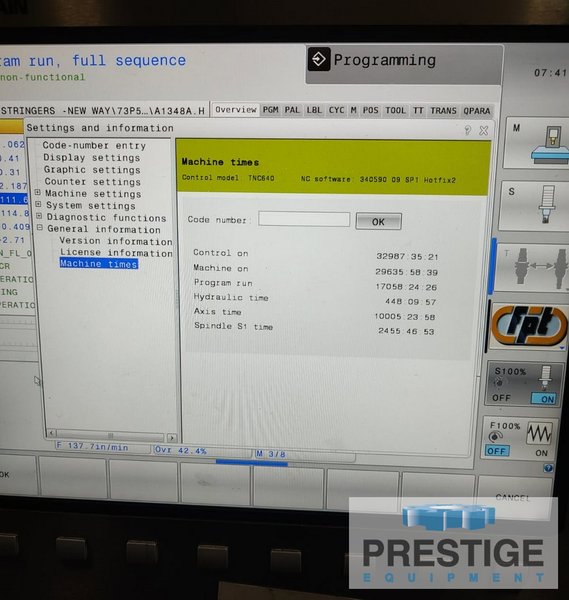

Heidenhain TNC 640 5-Axis CNC Control
2-Axis "Electro Spindle" Programmable Swivel Head
60-Position Automatic Tool Changer
Through Spindle Coolant
Chip Conveyor
Compressed Air Thru Spindle
Full Guarding Enclosure

Control Details:
Dynamic RTCP Software
RAM: 4 GByte
32 Gbyte Hard disk with min 21 Gbyte program memory
Input resolution and display step:
Linear axes up to 0,1 µm
Angular axes up to 0,0001°
Input range:
max +/- 99999,9999 mm (+/-3937 in.) or +/- 99999,9999°
Interpolation:
Circular interpolation in 3 axes with rotated working plane
Helical interpolation: superimposition of circular and linear path
Linear in 5 axis (version subject to export license)
Block processing time:
0,5 ms (3D straight line without radius compensation)
Axis feedback control
Position loop resolution: signal period of the position encoder/1024
cycle time of position controller: 200 µs
cycle time of speed controller: 200 µs
current controller cycle time: min. 100 µs
Data interfaces:
1 x RS-232-C
2 x Ethernet 1000BaseT (Twisted Pair Ethernet)
1 x frontal USB 2.0
4 x rear USB 3.0

Note:
Inspect In Plant Under Power!

No Video Available
