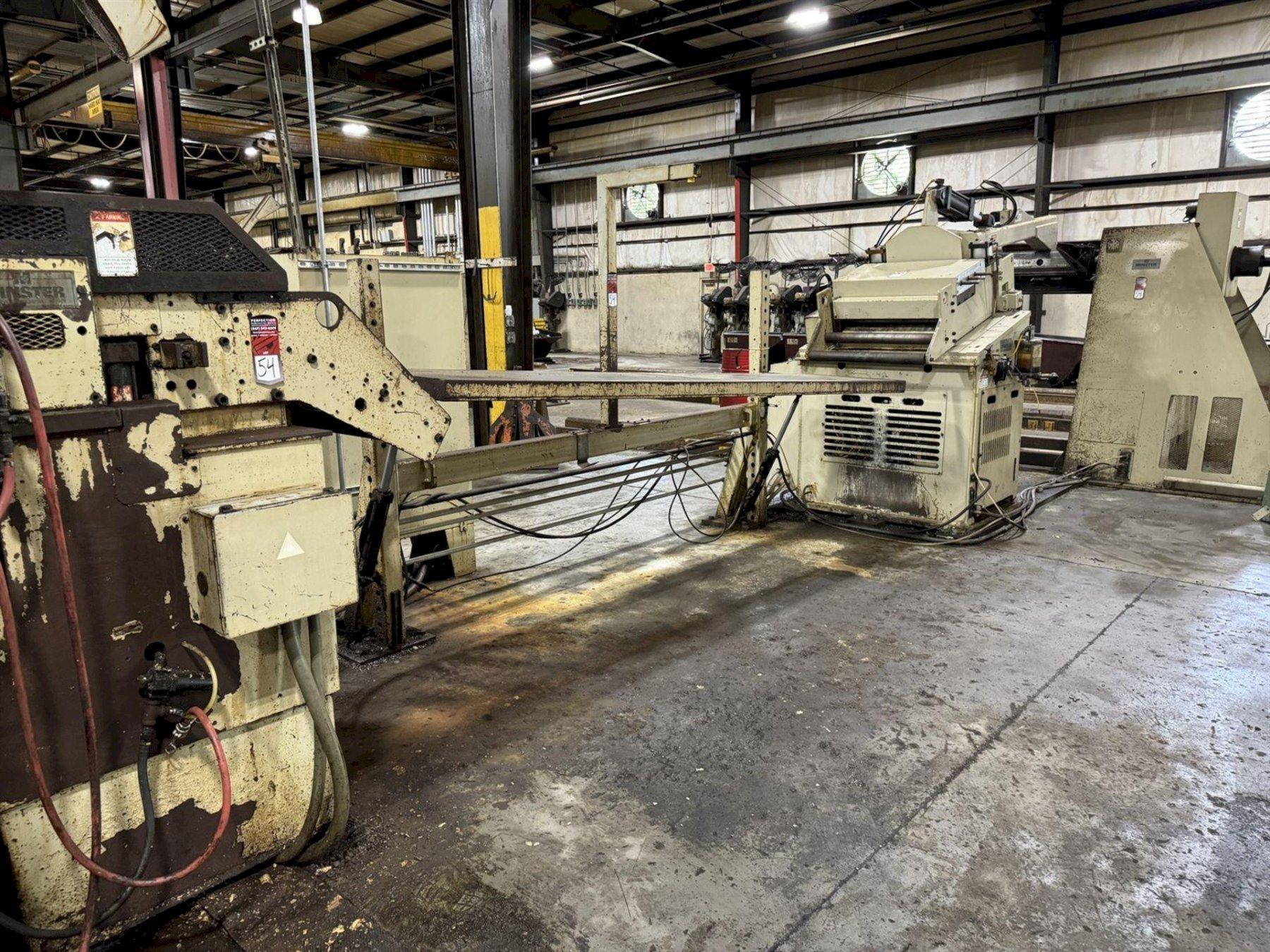

15,000 lbs. x 26" Wide Minster Conventional Servo Coil Feed Line, Year 1997

Manufacturer

MINSTER

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2890

Model

MR15-26S / MSH30-26-7 / MEF5-26S

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 15000 pounds
Coil Width - 26 inches
Coil Thickness - .140 inches


Standard Specifications
15,000 lbs. Maximum Coil Weight
26" Maximum Coil Width
.140" Material Thickness at Full Width
.350" x 5" Wide Maximum Material Thickness
.020" to .350" Thickness Capacity
20-24" I.D. Range
72" Capacity Coil Outside Diameter
40-1200 IPM Line Speed

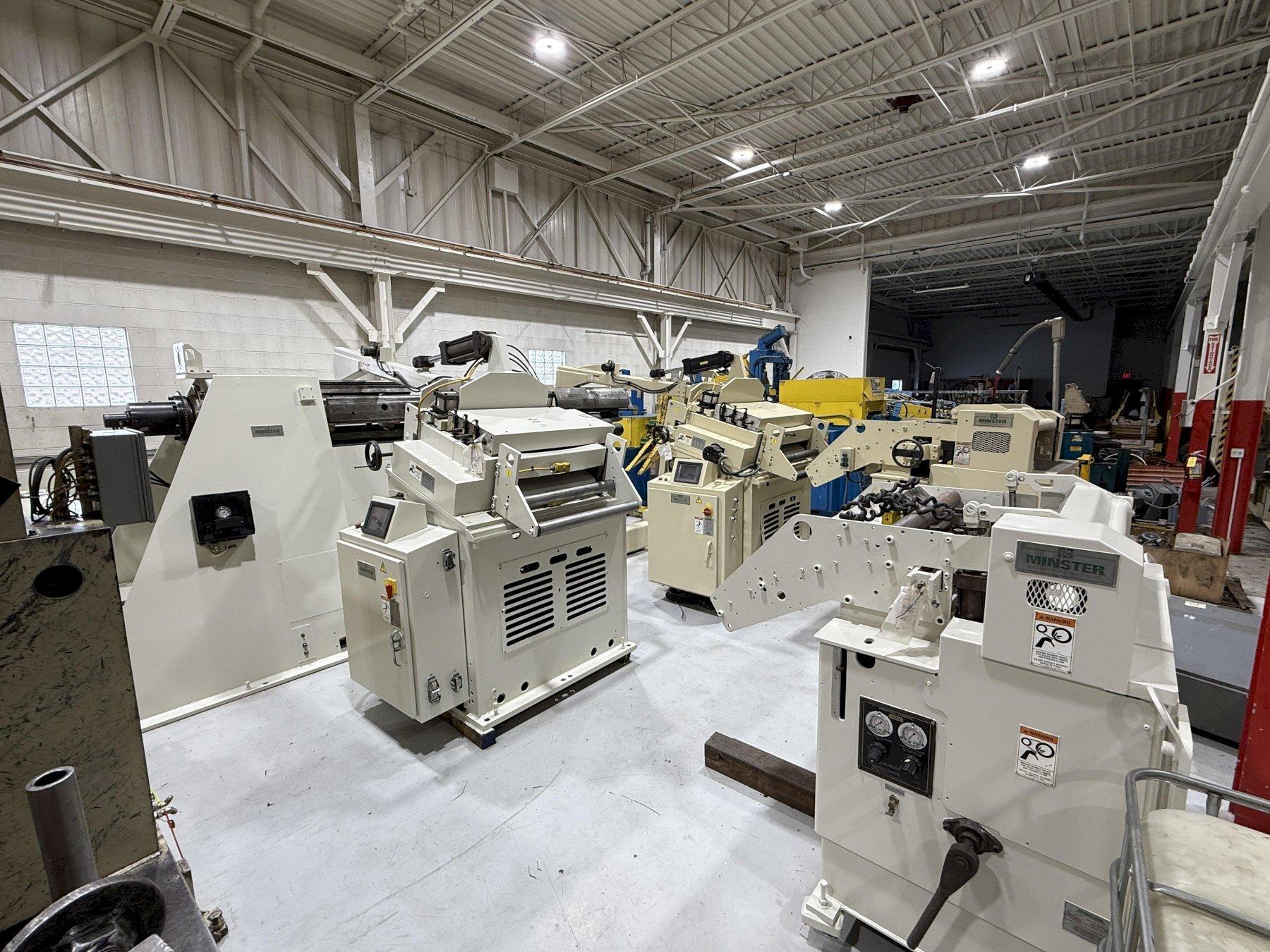

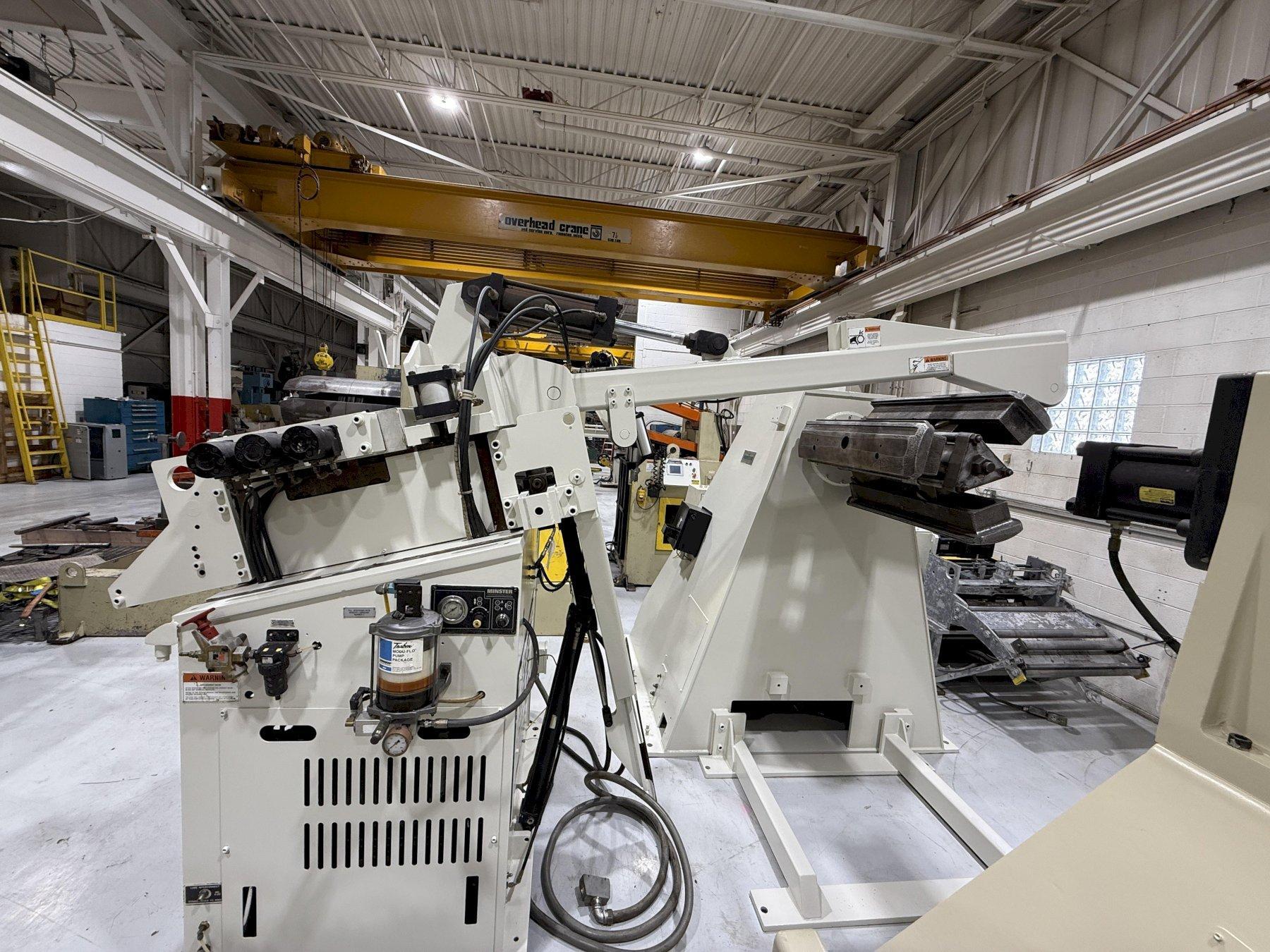

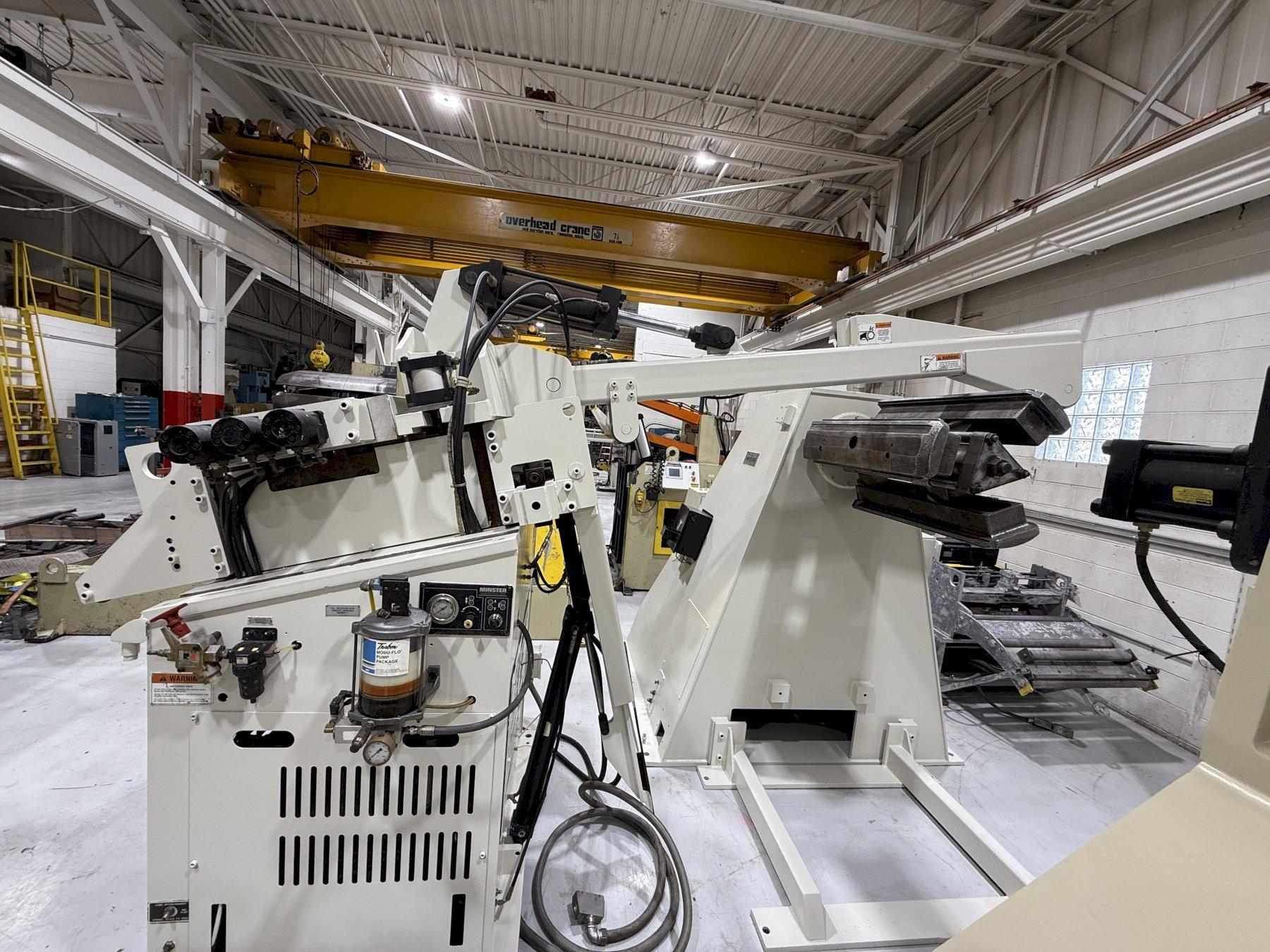

Minster Conventional Coil Feed Line Consisting of:

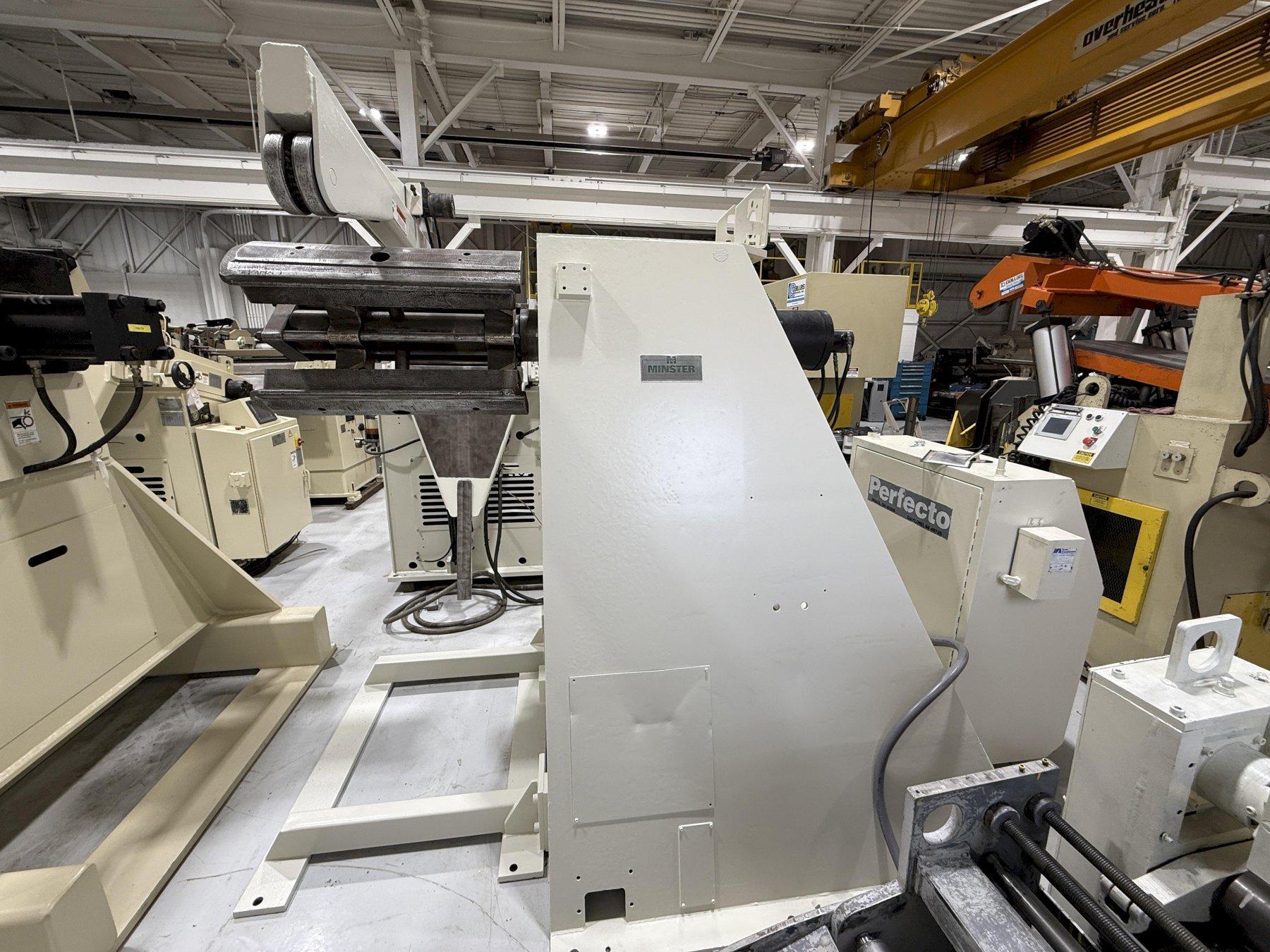

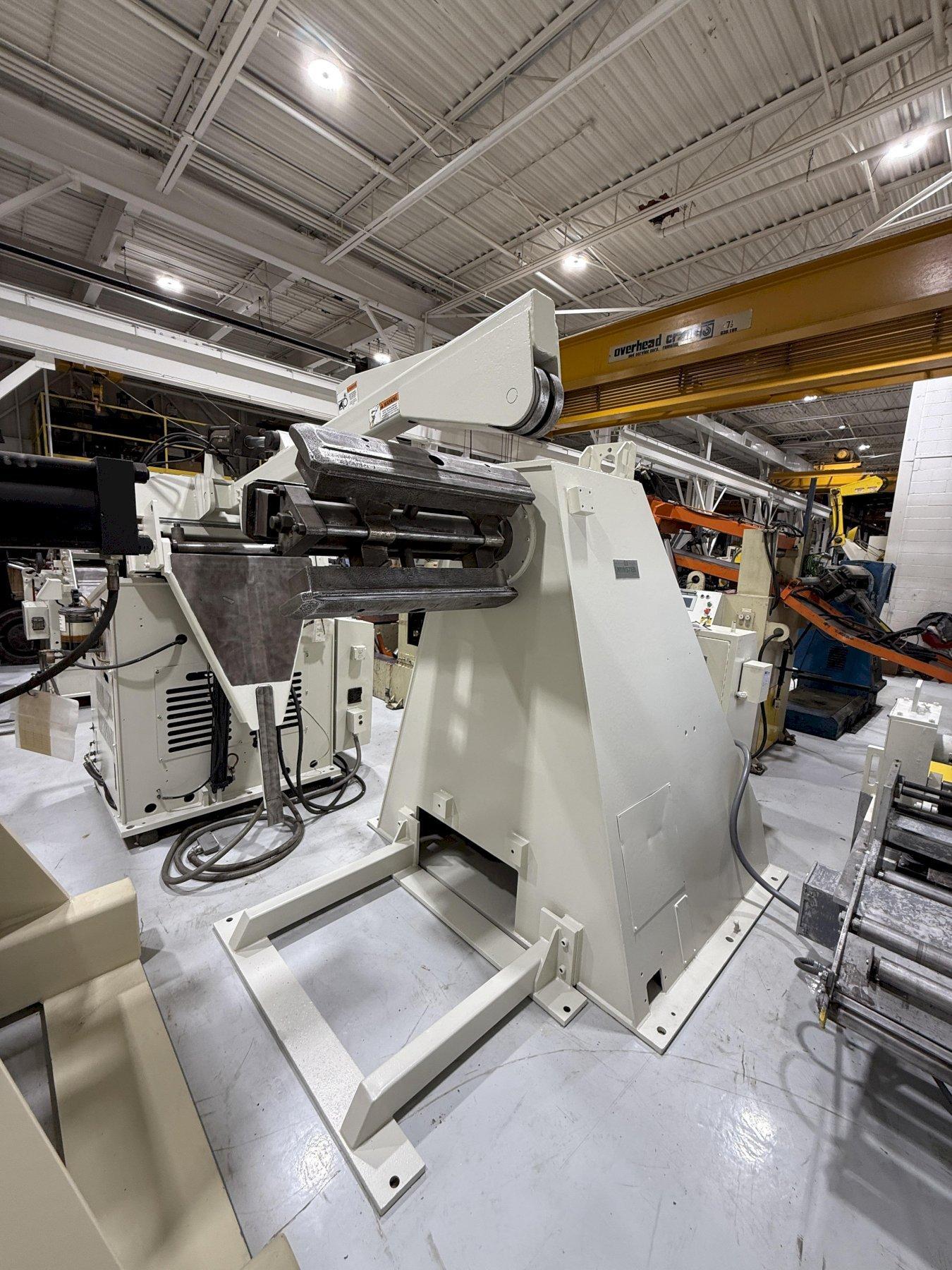

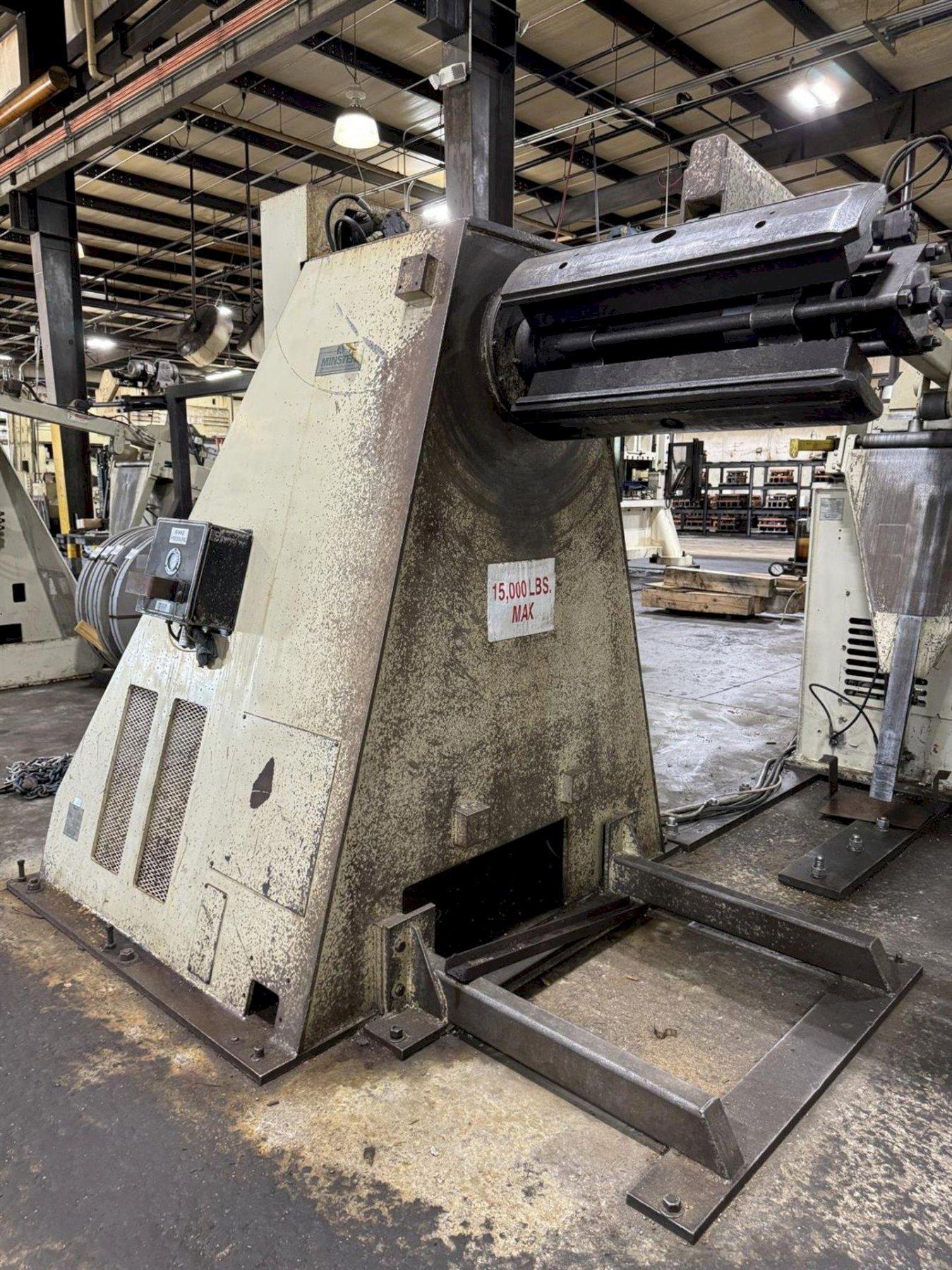

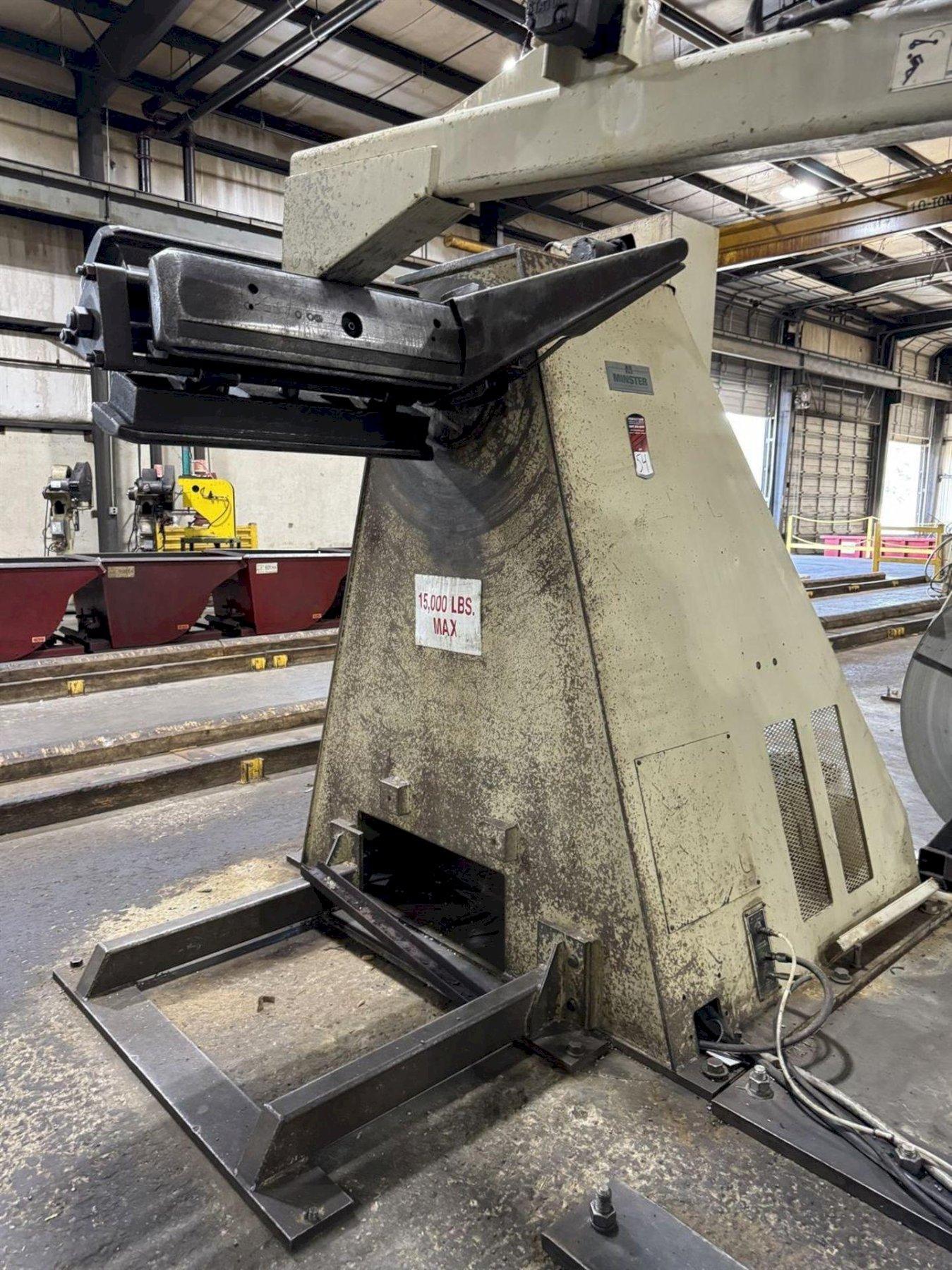

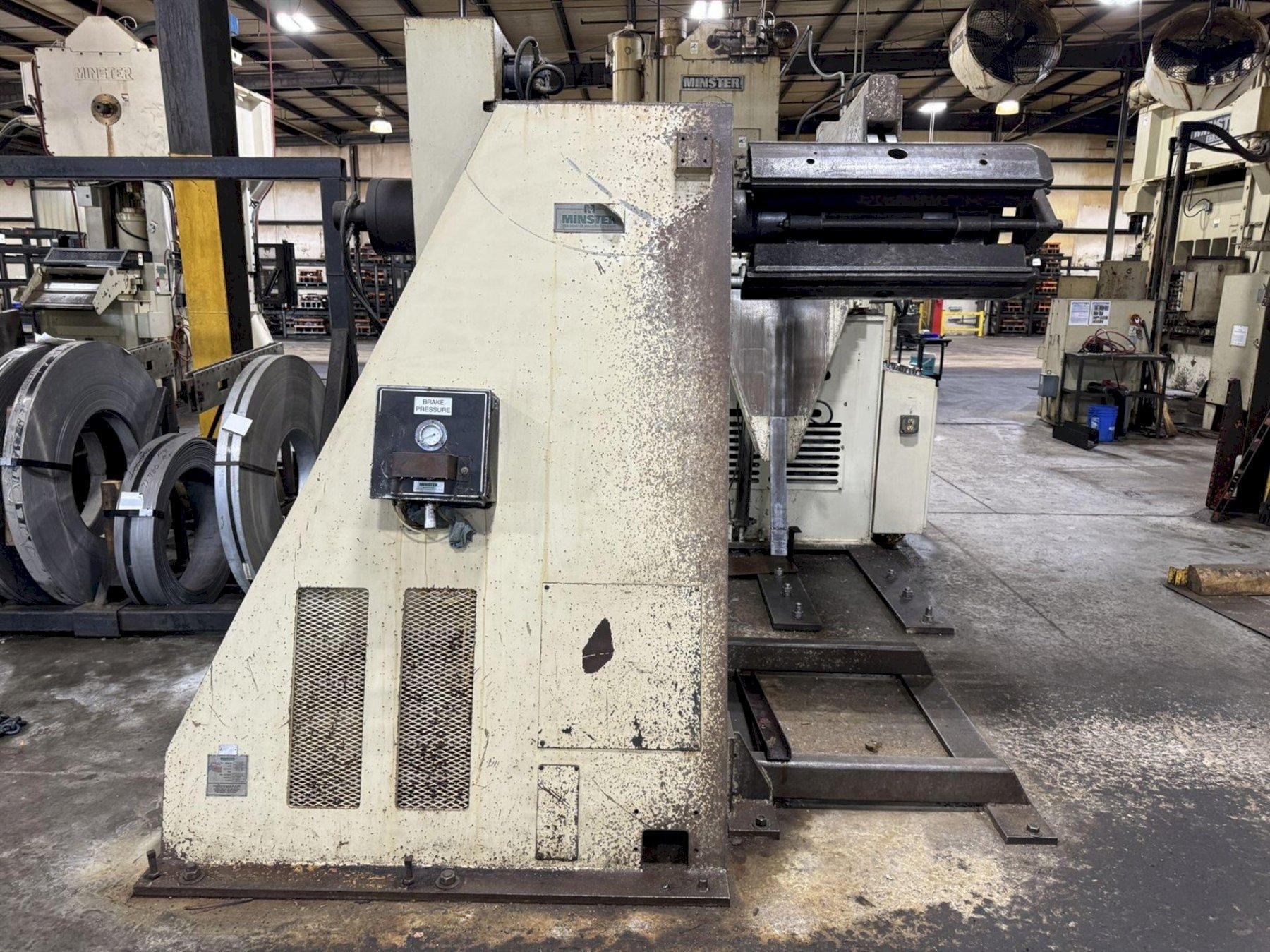

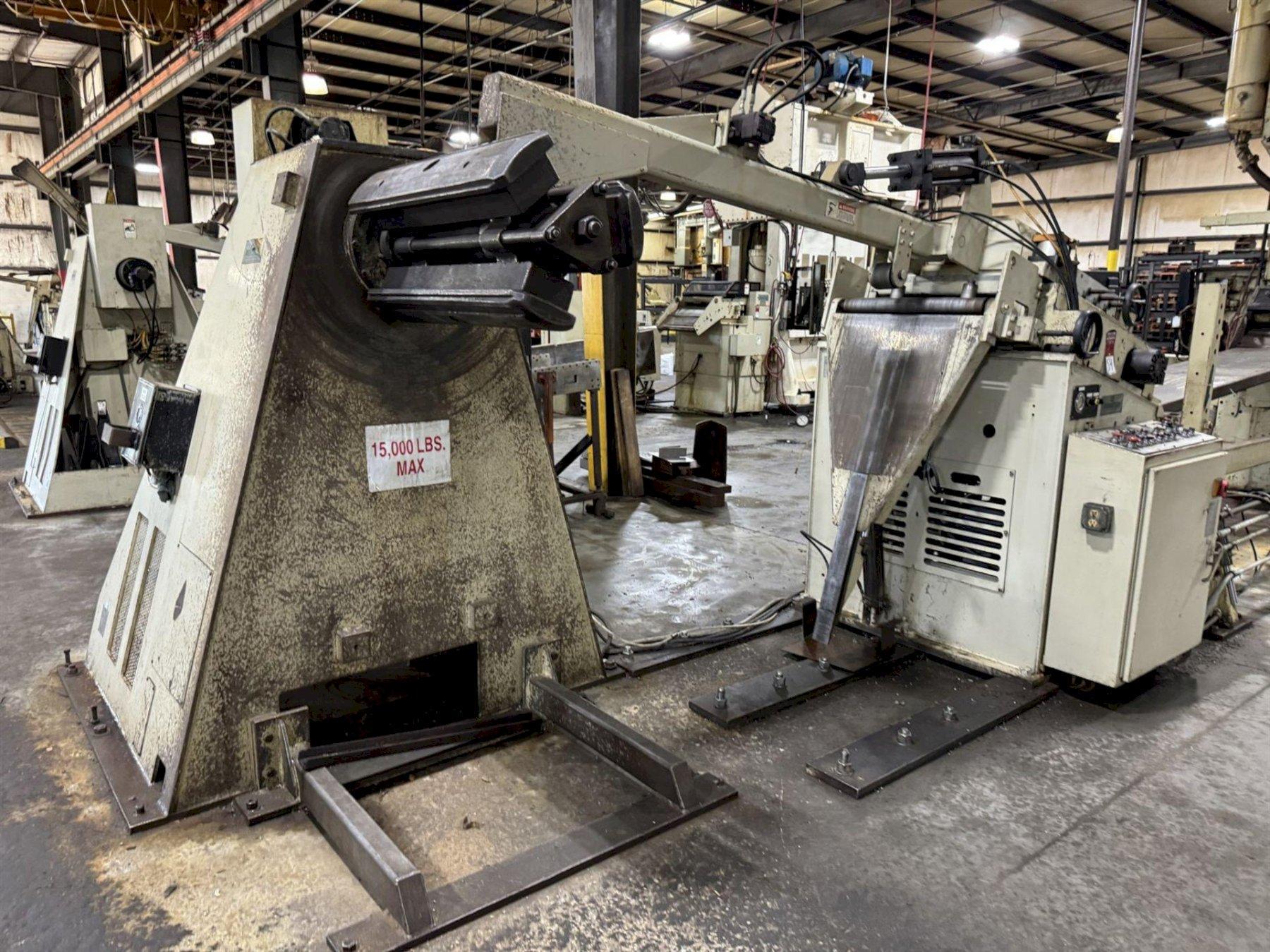

Minster Coil Reel Model MRH15-26S
Serial Number - 13-50814
Three Leaf Mandrel with Coil Keeper Arms
Hydraulic Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Threading Drive for Jog Forward / Reverse

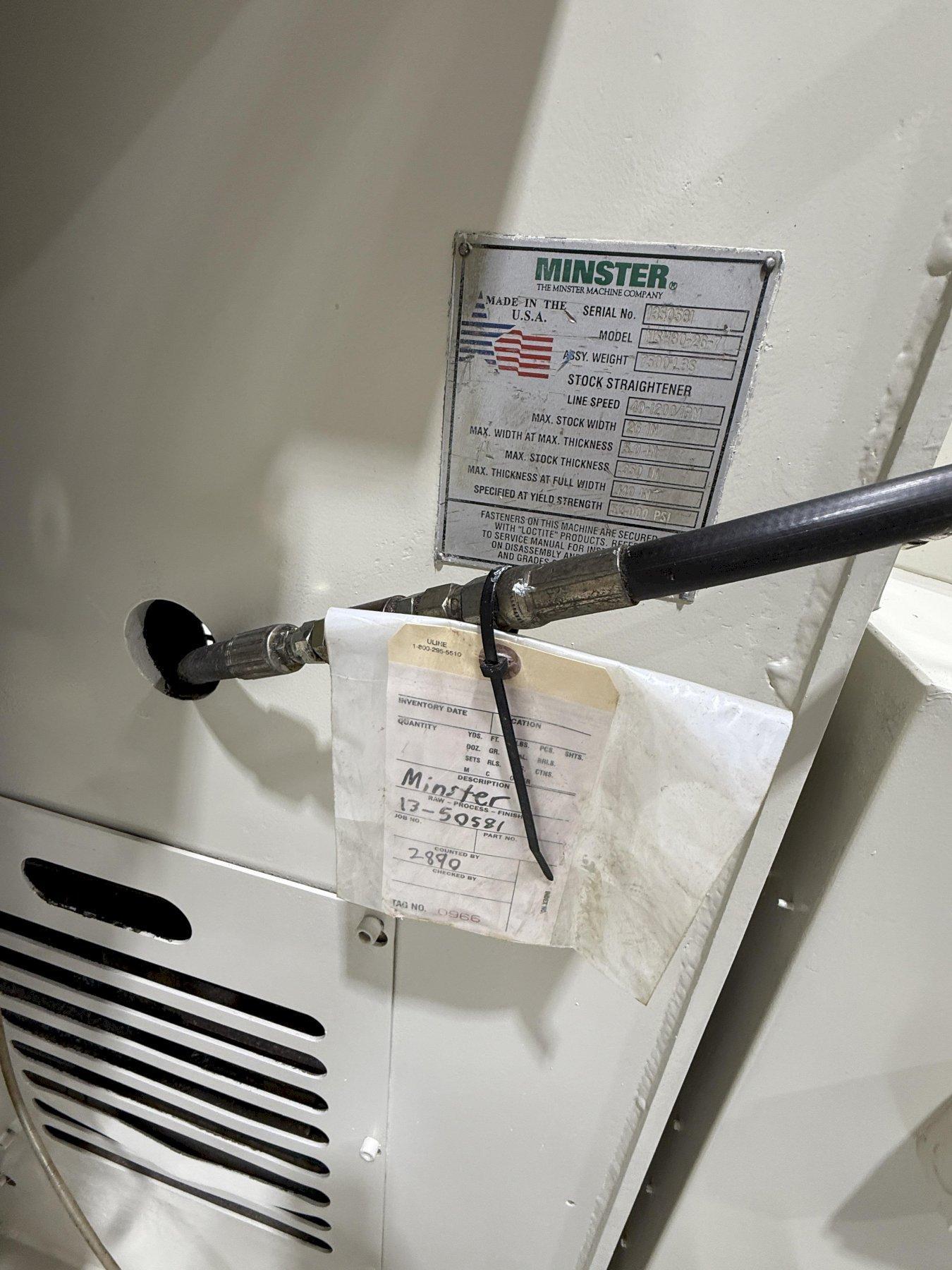

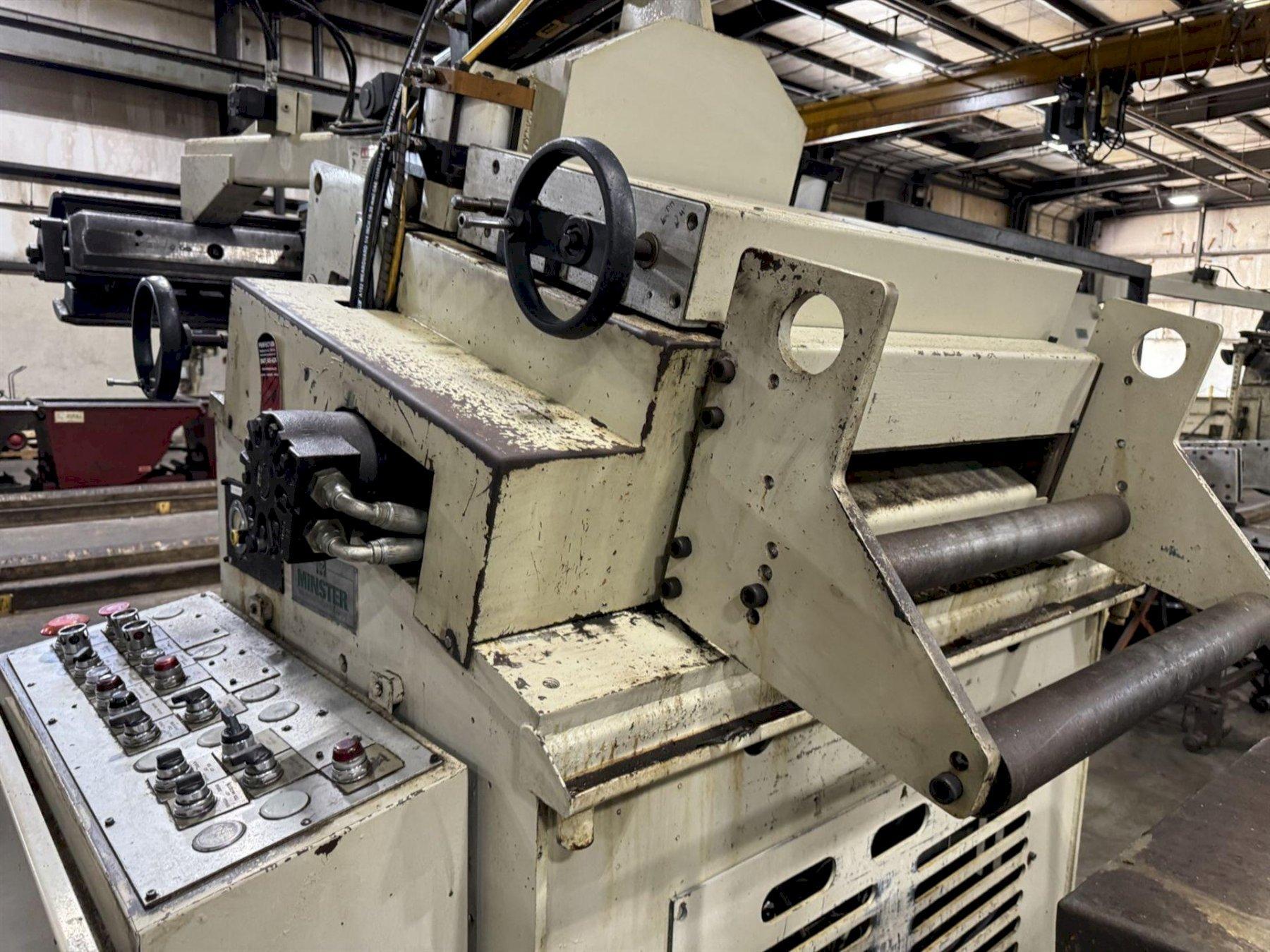

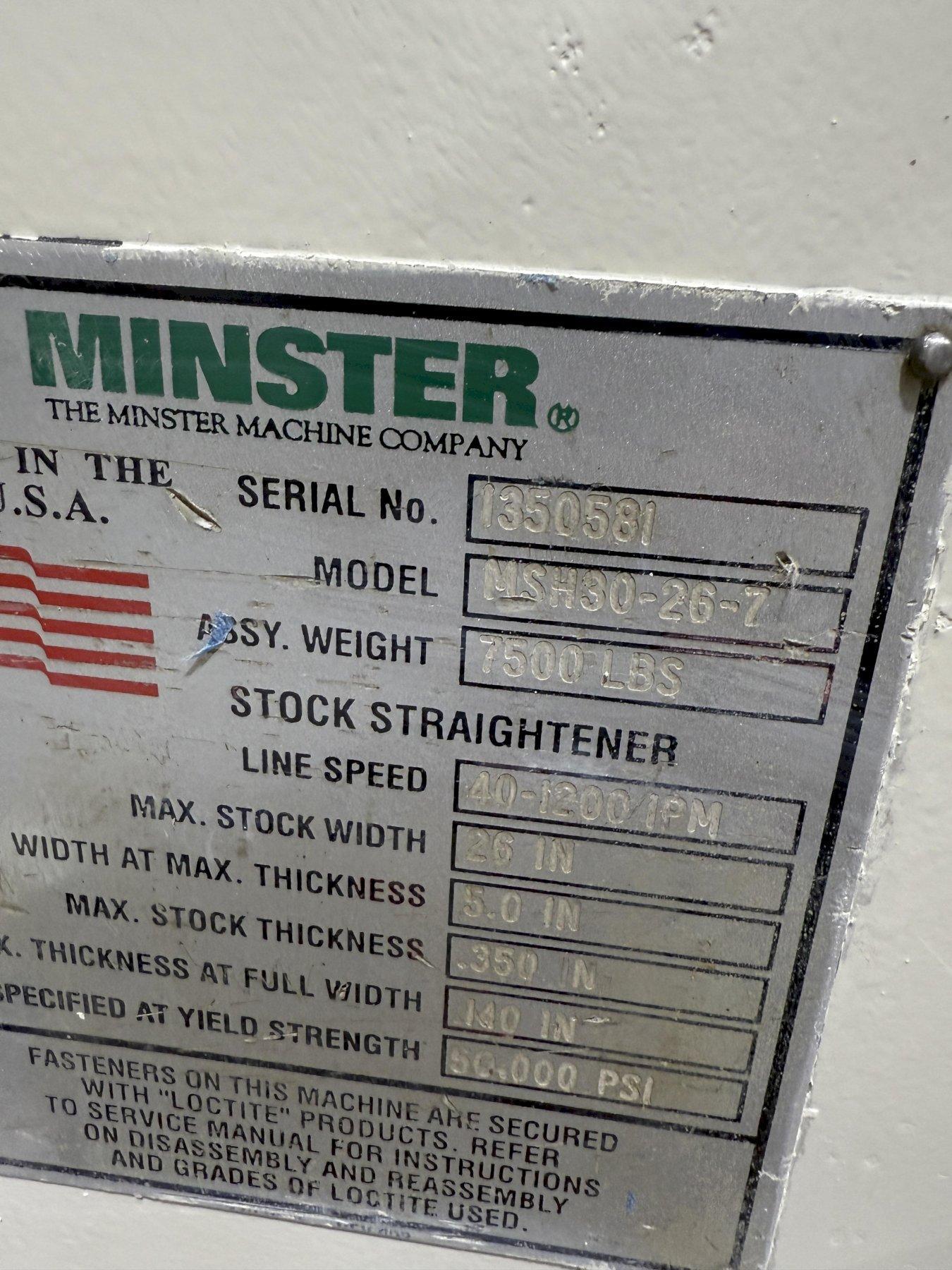

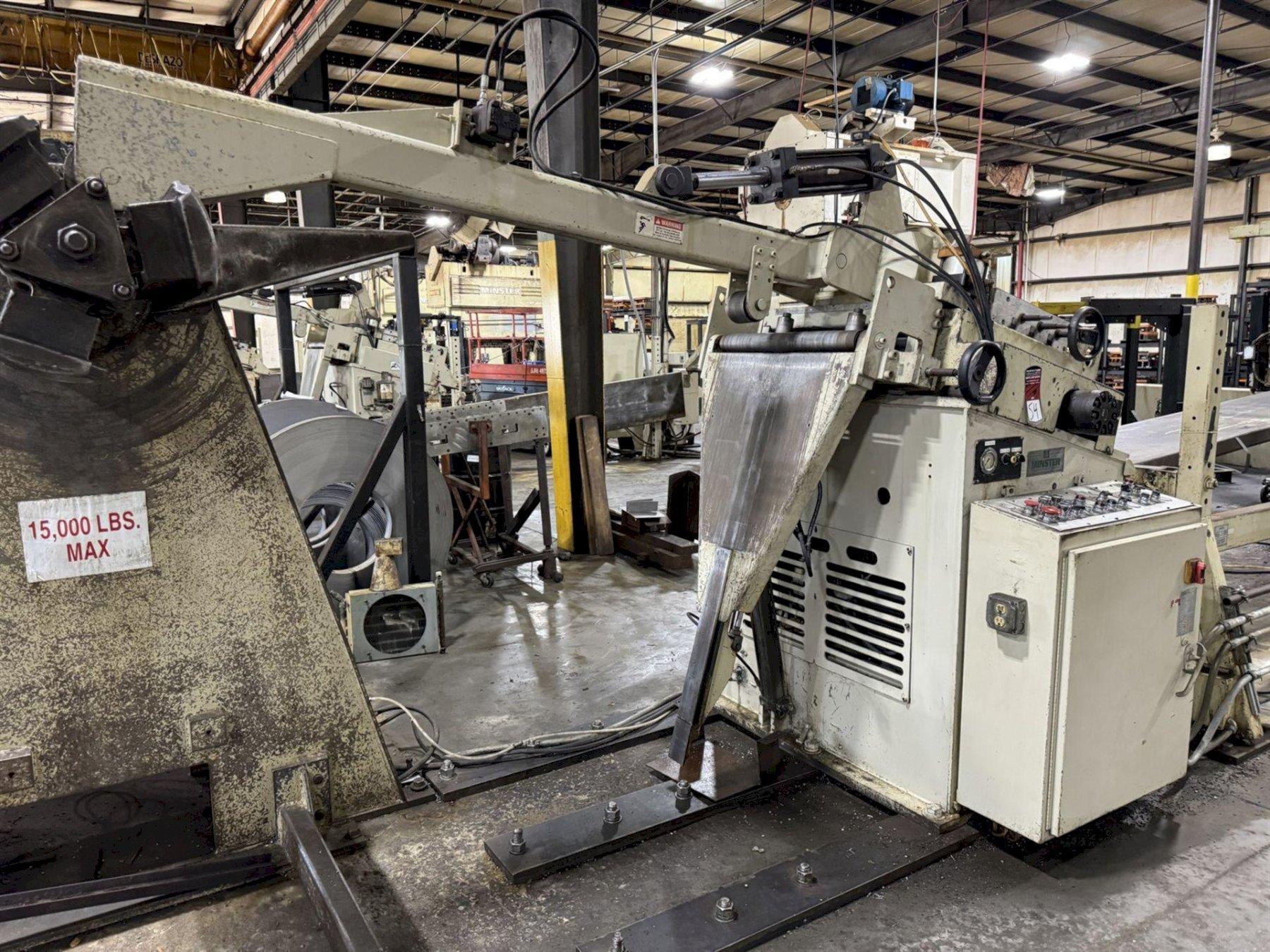

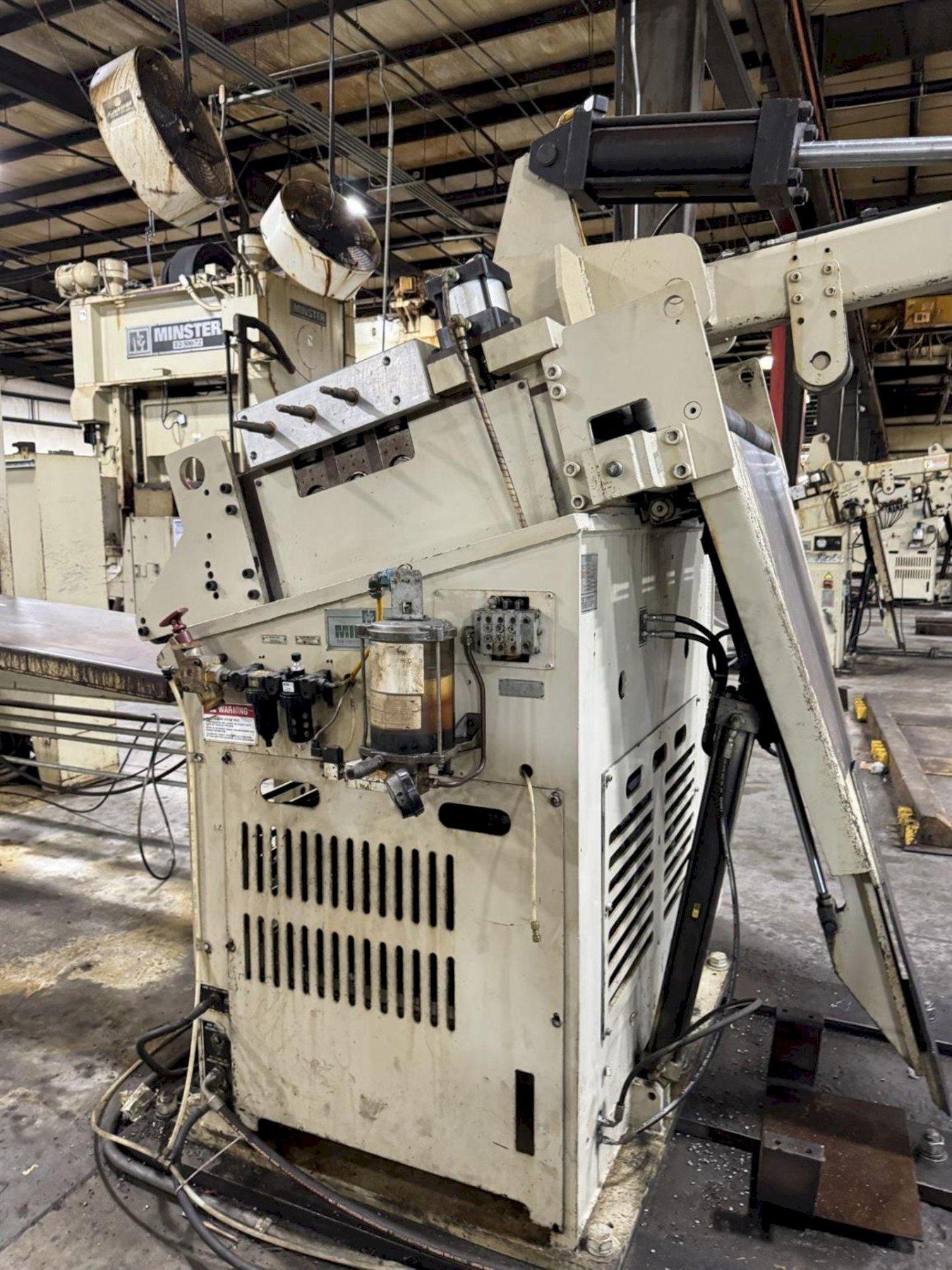

Minster Powered Straightener Model MSH-30-26-7
Serial Number - 13-50581
Seven Powered Straightening Rolls x 3" Diameter
Entry Pinch Roll Assembly x 5" Diameter
Motorized Upper Straightening Roll Adjustment
Air Operated Upper Pinch Roll Adjustment
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Coil End De-bender Roll
40-1200 IPM Line Speed
Exit Cascade Loop Support Rollers
Variable Speed Drive
Operator's Control Station
Jog Forward and Reverse with Pendant Remote
End of Stock Sensor
Auto / Run Cycle
Variable Speed Loop Controls

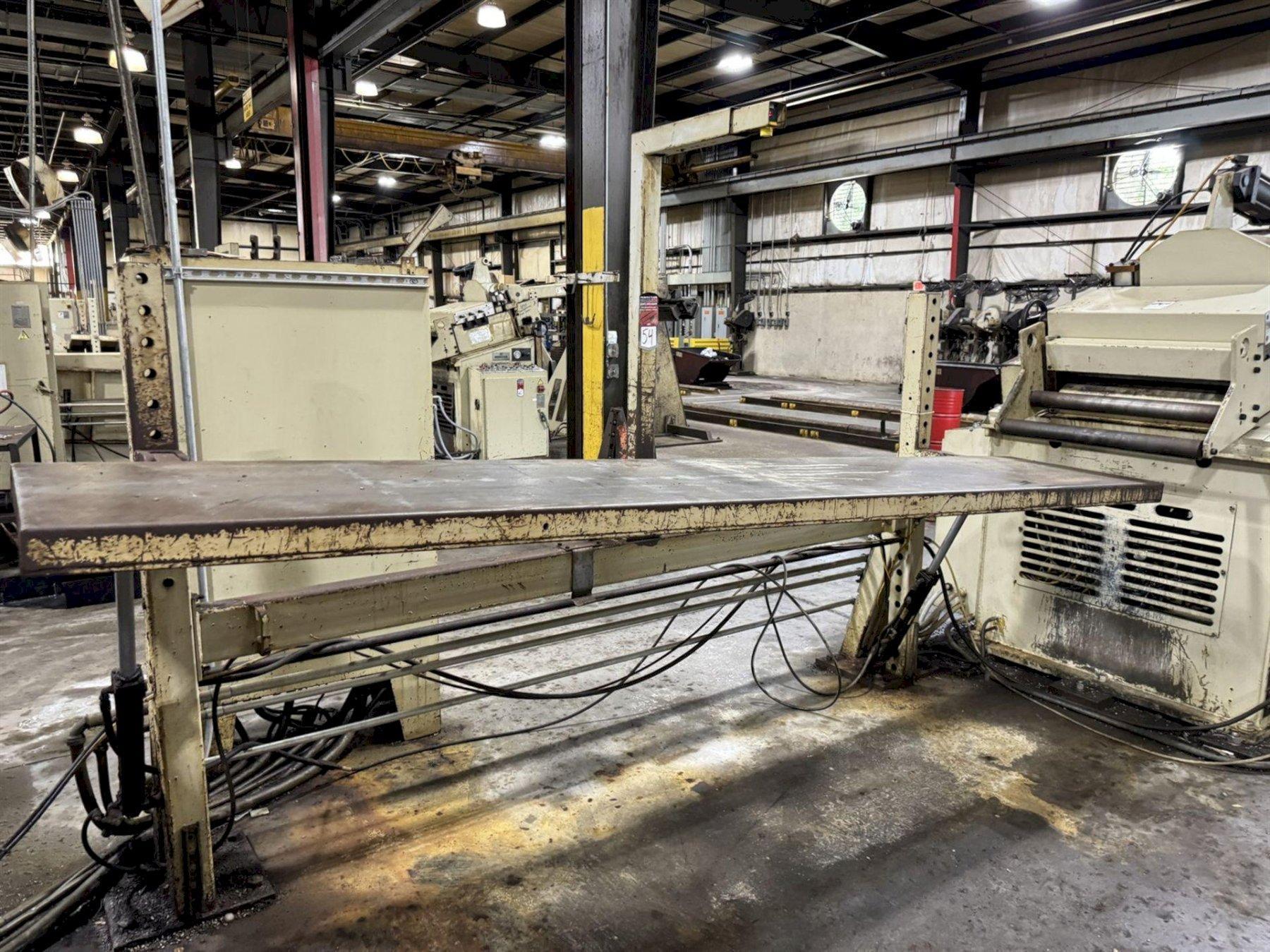

Minster Threading Table Model MTT-12-32-S
Serial Number - 13-81277
Air Actuated
144" Length of Table
32" Maximum Stock Width
Bomb Bay Type

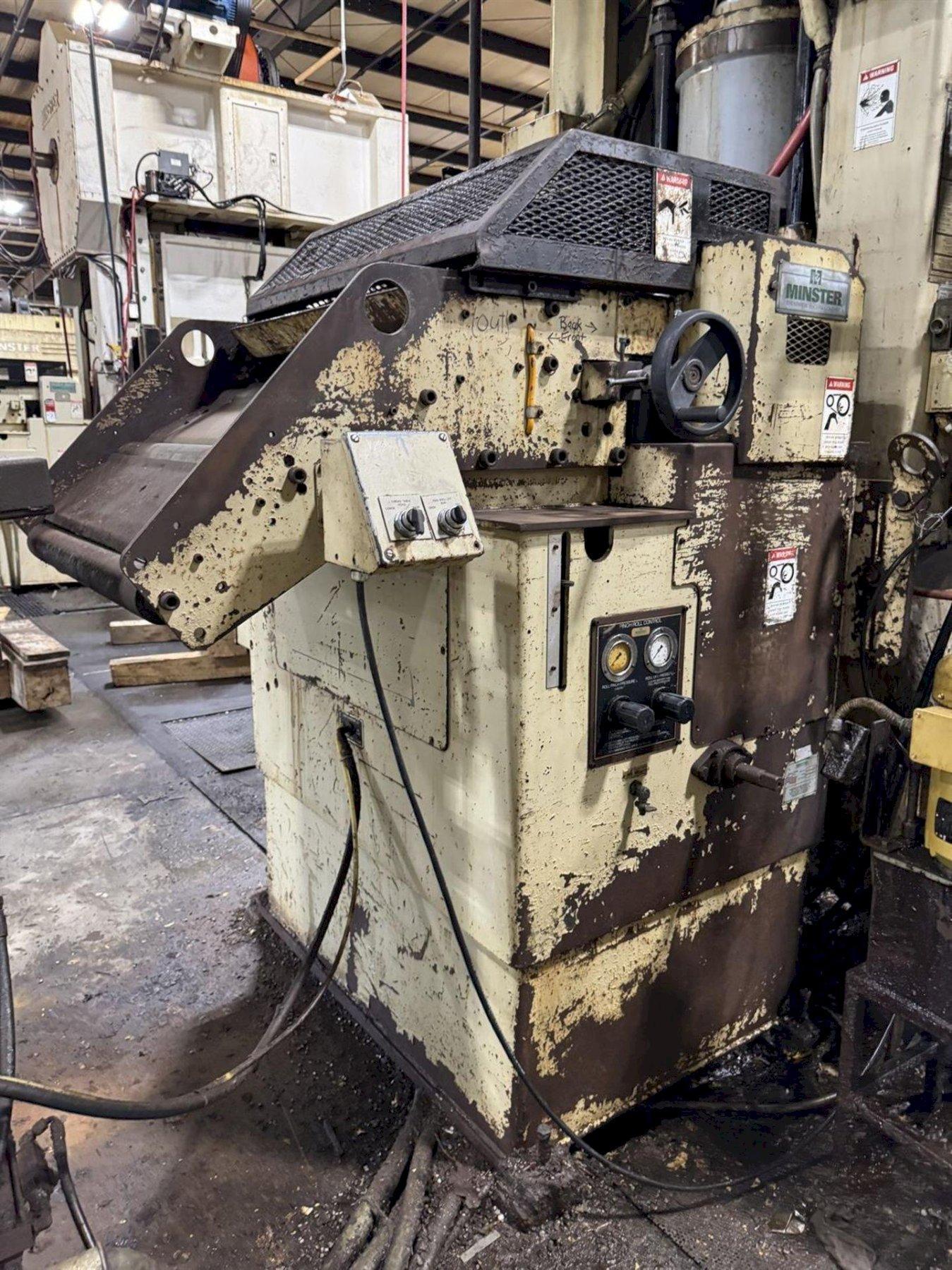

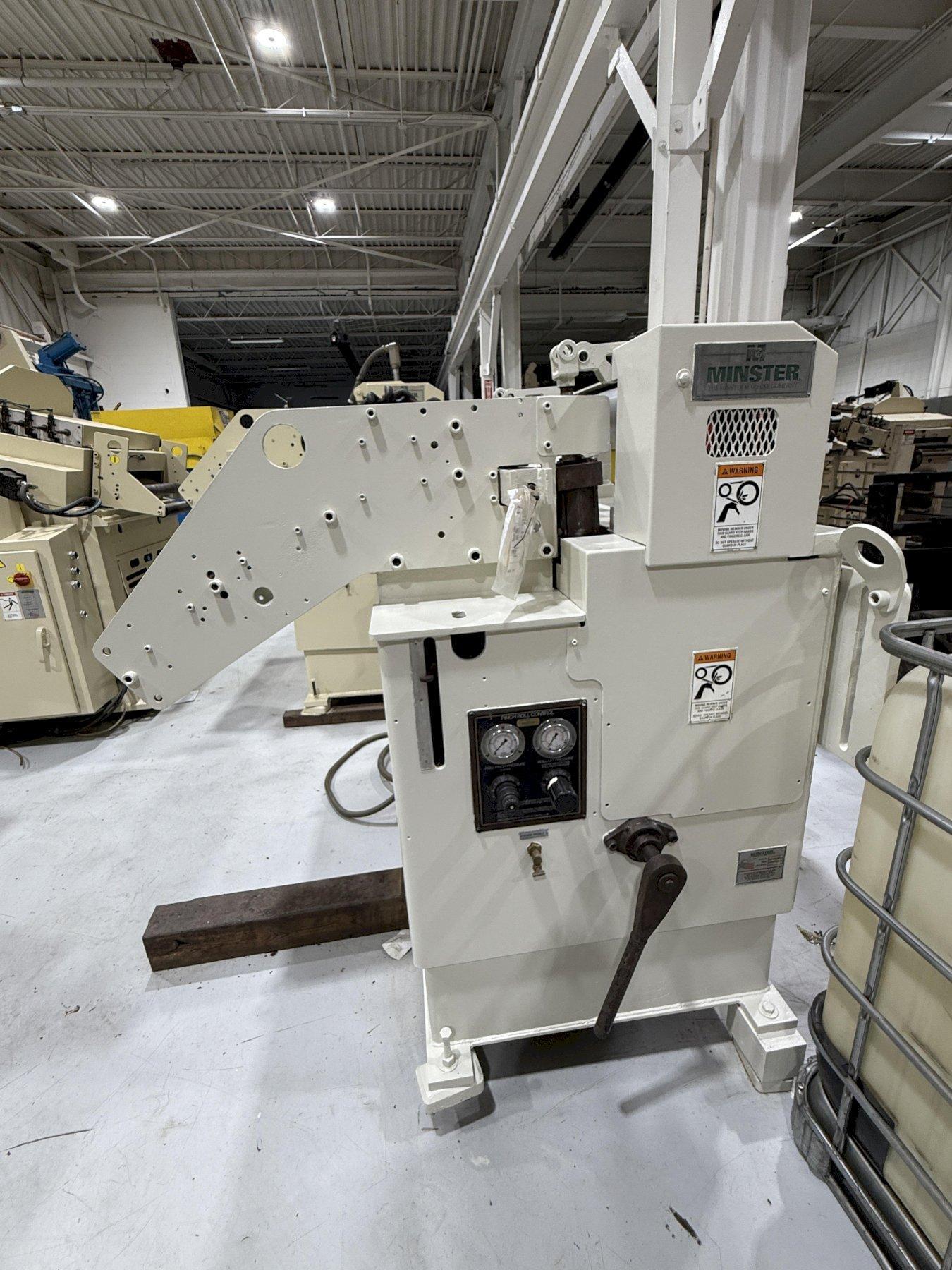

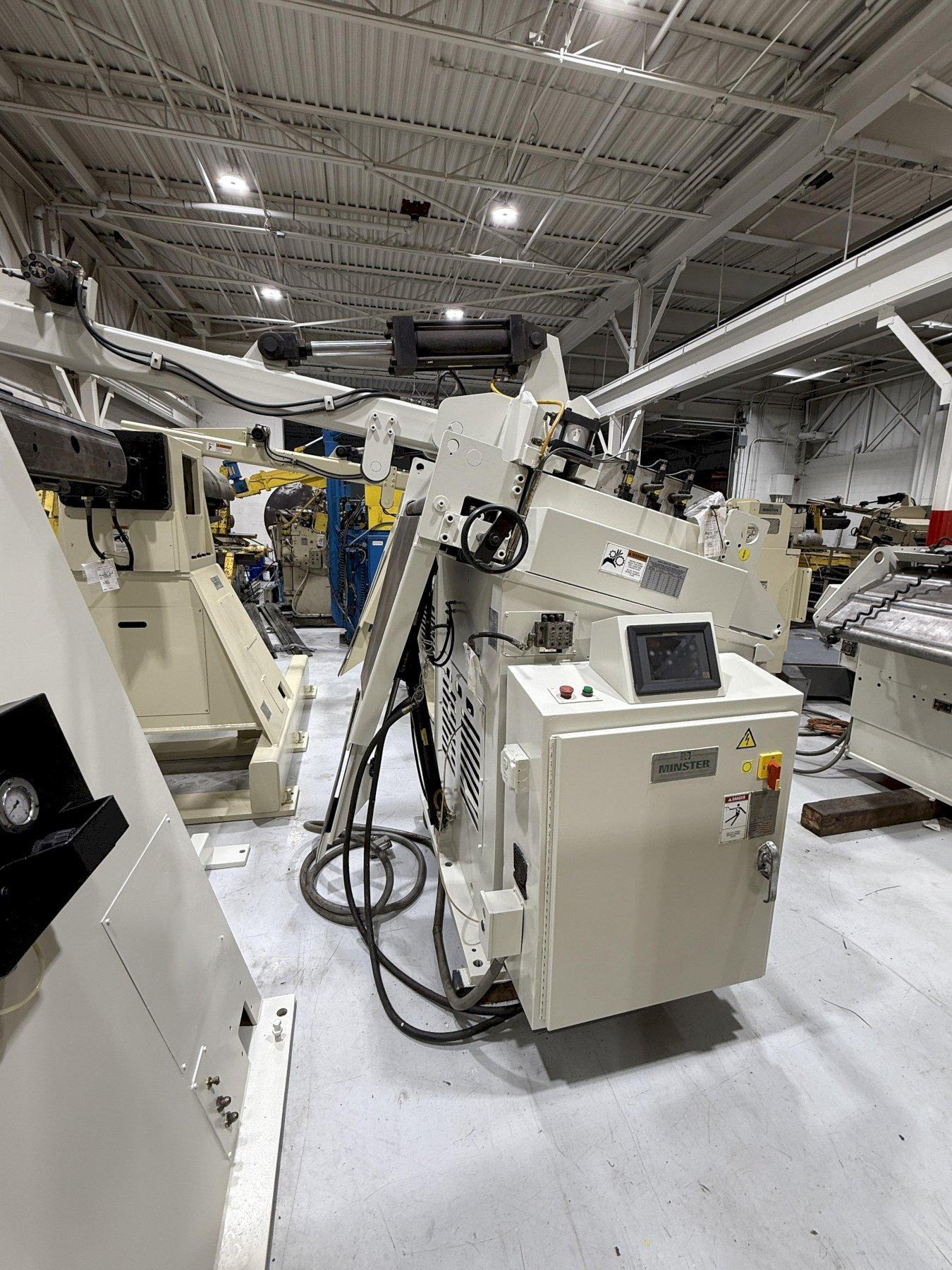

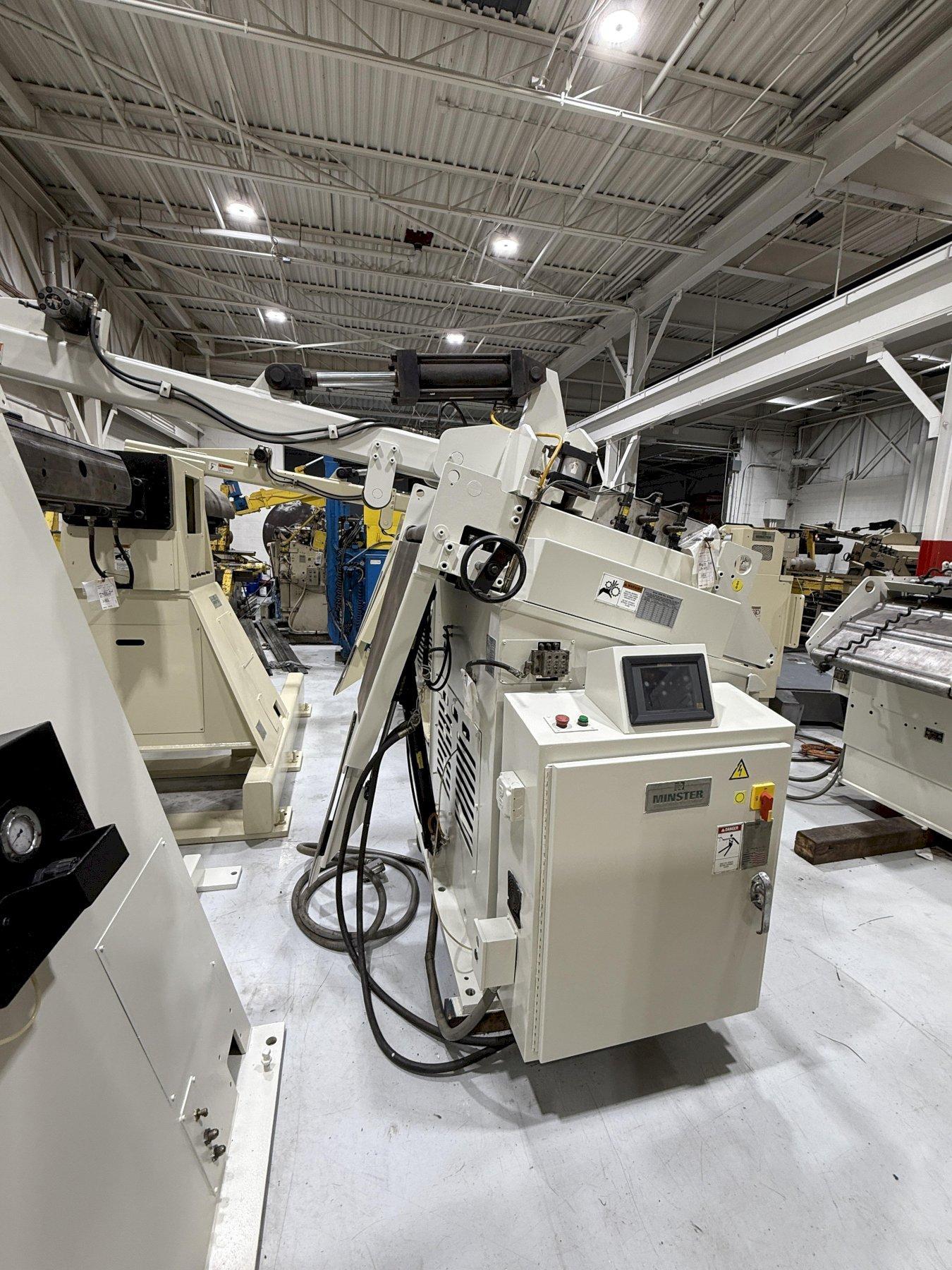

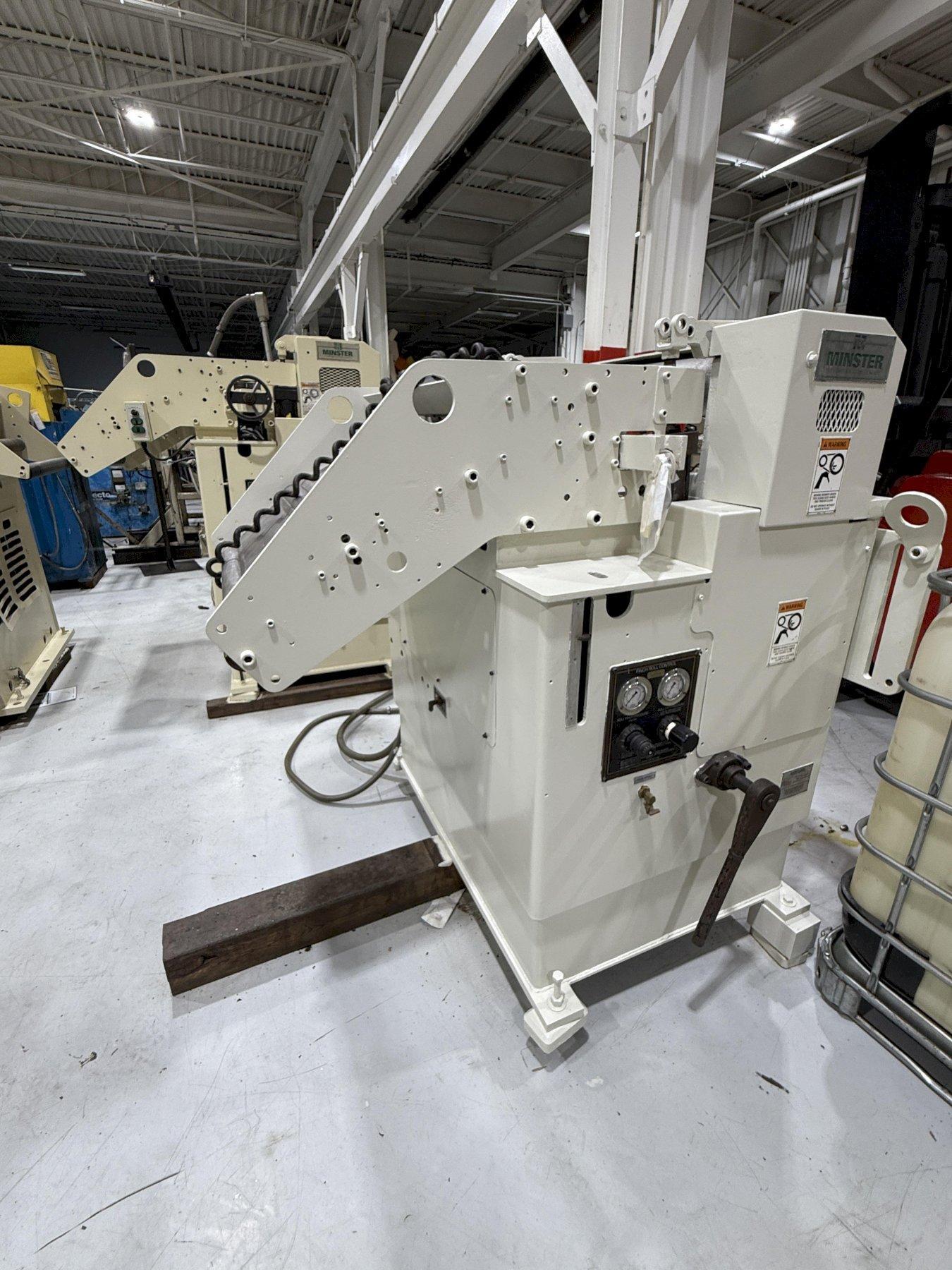

Minster Single Roll Servo Feed Model MEF5-26S
Serial Number - 15-50877
26" Maximum Coil Width
5.392" Feed Roll Diameter
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Centralized lubrication points
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment

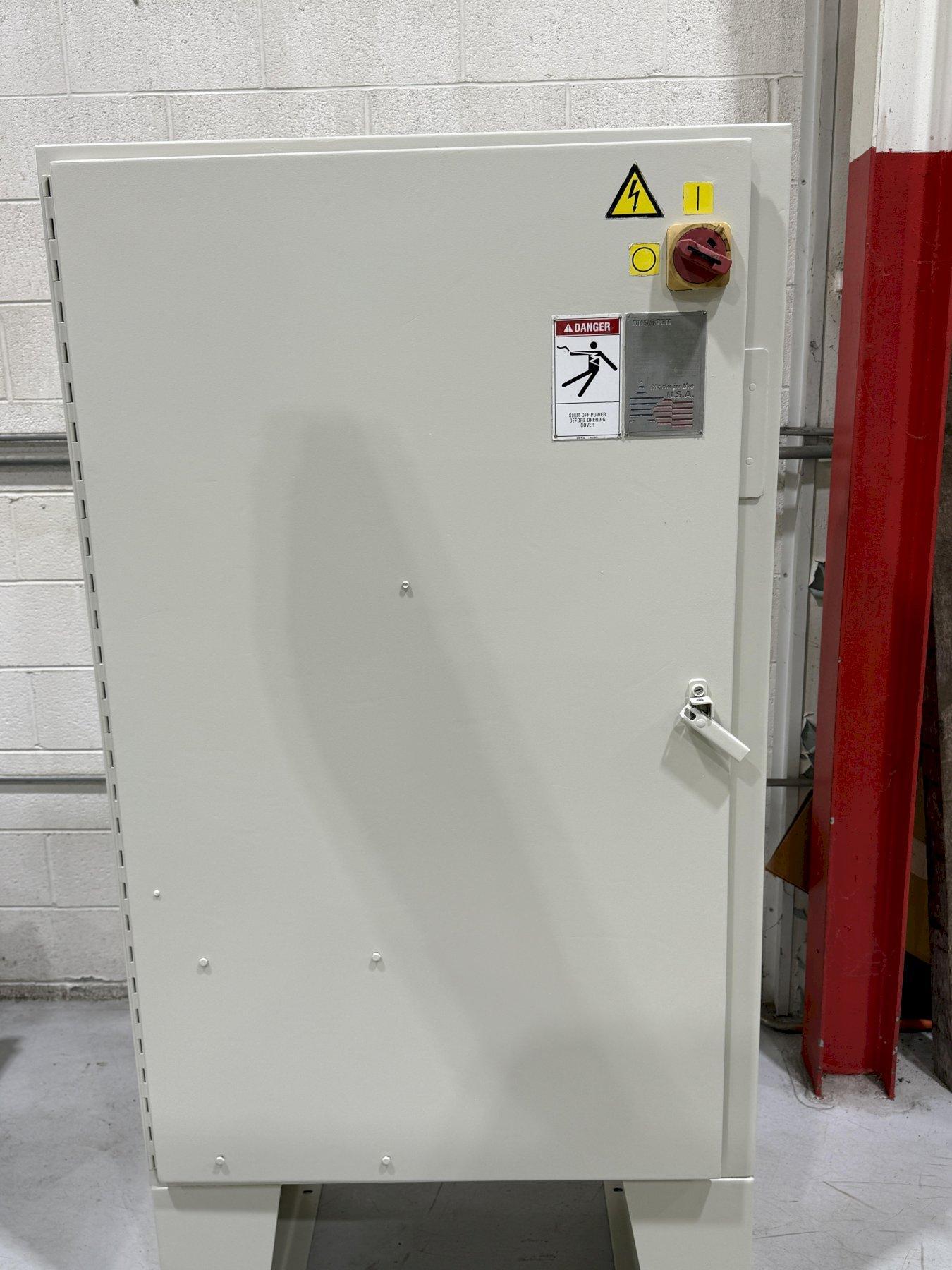

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt

This 15,000 lbs. x 26" Minster Conventional Coil Feed Line Can Be Seen Under Power Upon Request.
