24,000 lbs. x 32" Width Minster Coil Reel and Minster Powered Straightener, Model#MRH20-38S & M

Manufacturer

MINSTER

Category

Coil Processing Equipment

Type

COIL REELS & STRAIGHTENERS (Combination)

Stock

2889

Model

MRH20-38S & MSH30-32-7

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 24000 pounds
Coil Width - 32 inches
Coil Thickness - .156 inches


Standard Specification

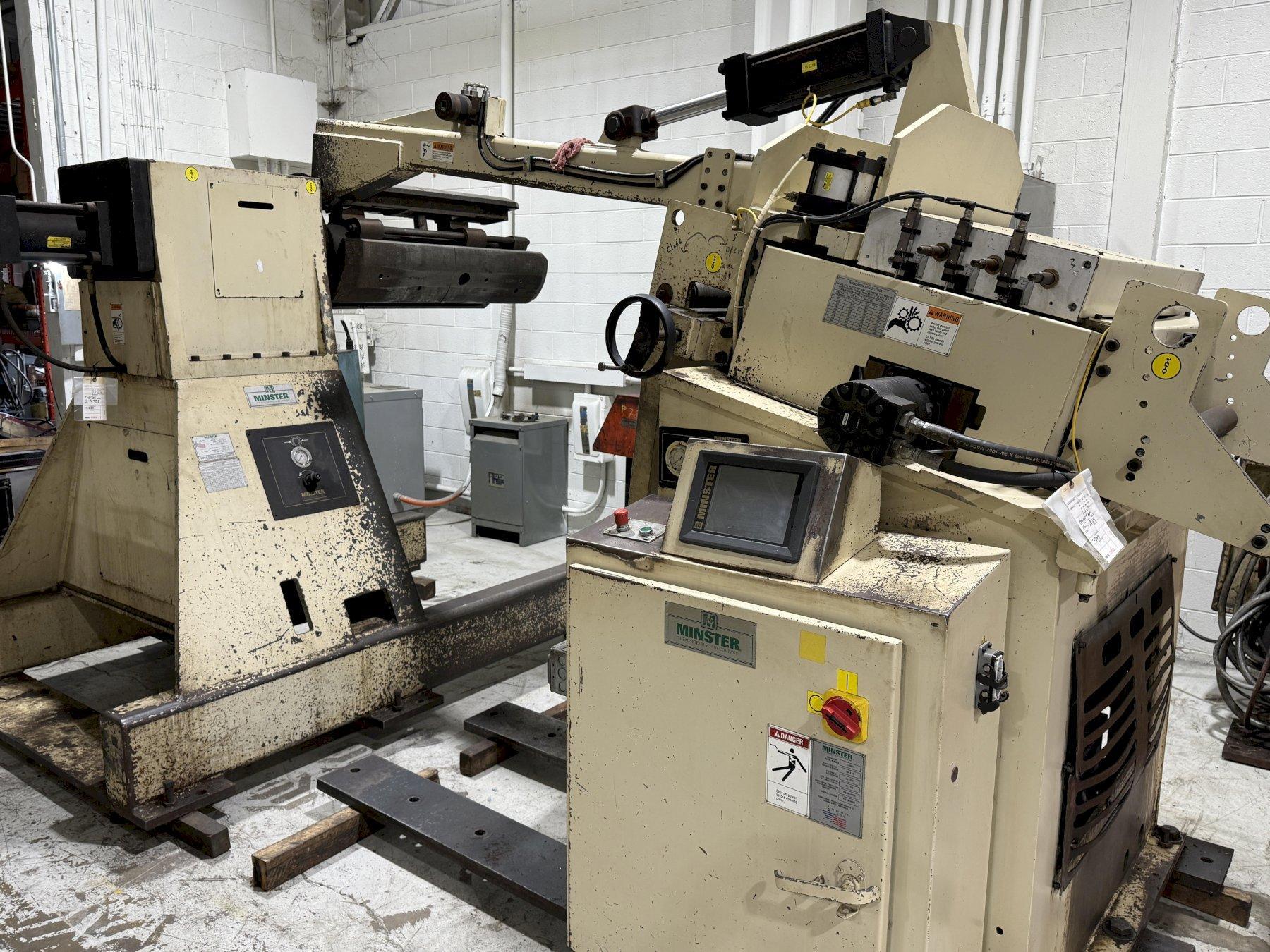

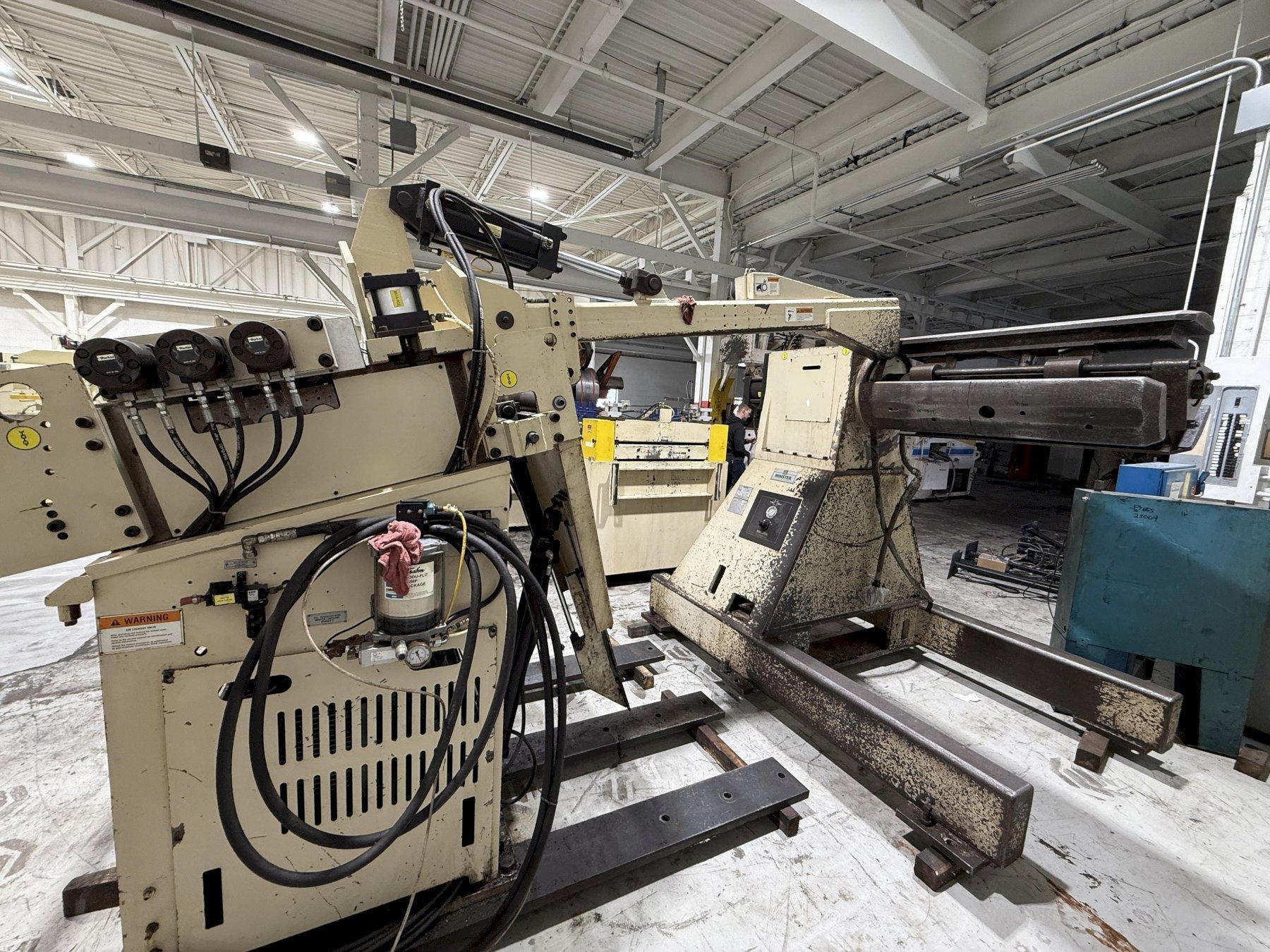

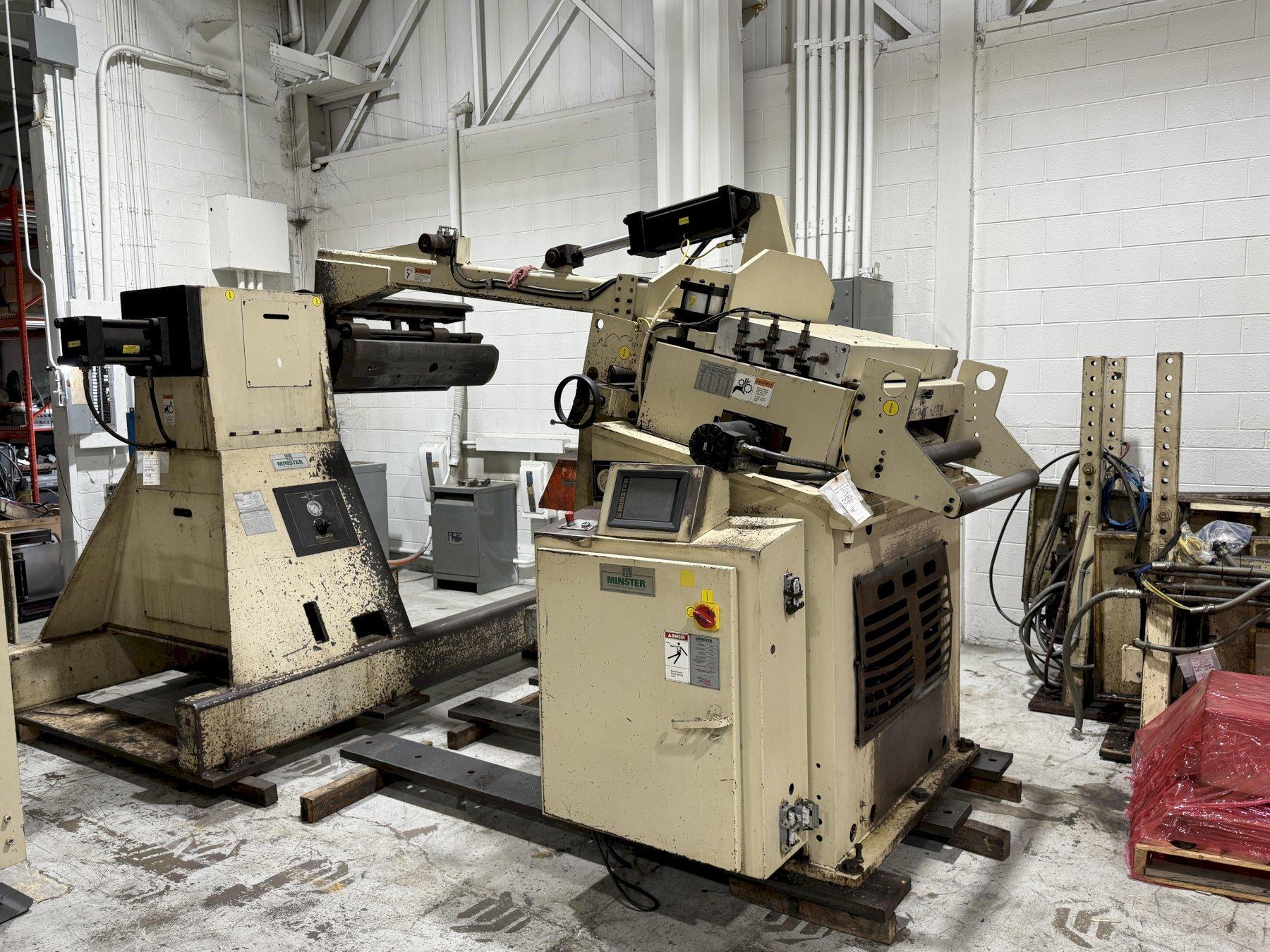

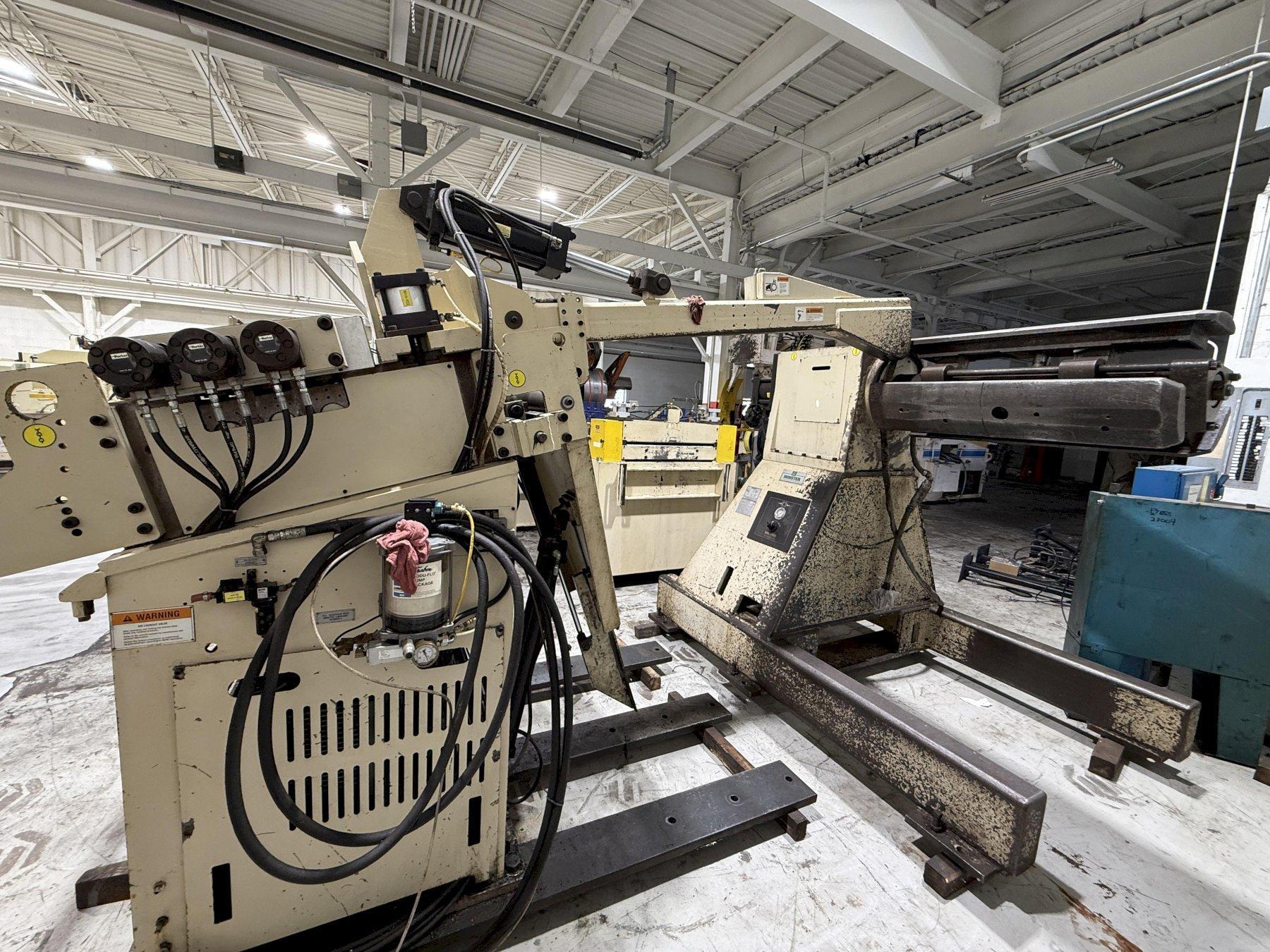

Minster Coil Reel and Minster Power Straightener
24,000 lbs. Coil Weight Capacity
32" Maximum Coil Width
.156" Material Thickness @ Full Width
.315" Maximum Thickness @ 5" coil Width
Line Speed 40-1200 in/min
20-24" I.D. Range
72" Coil O.D.

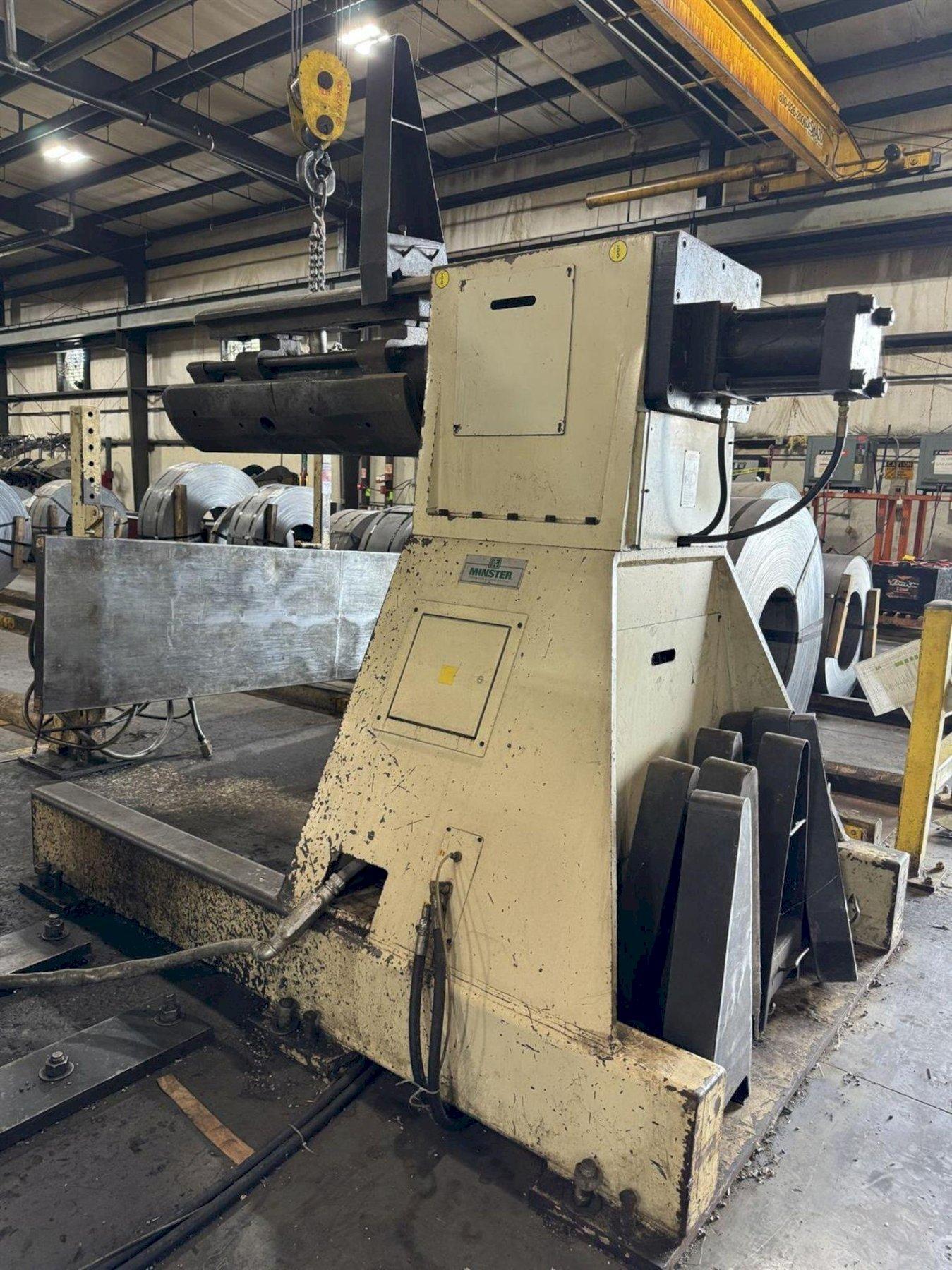

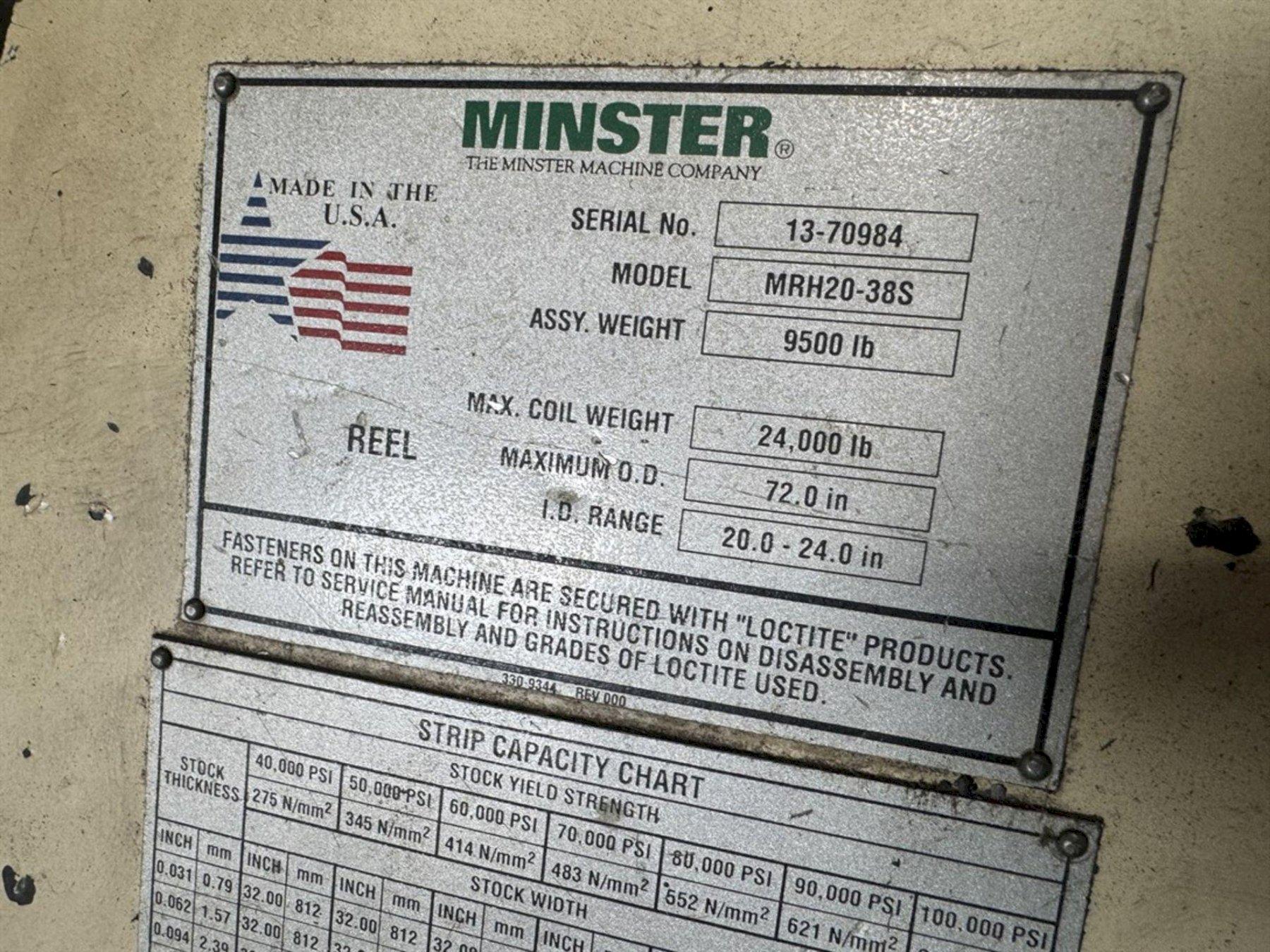

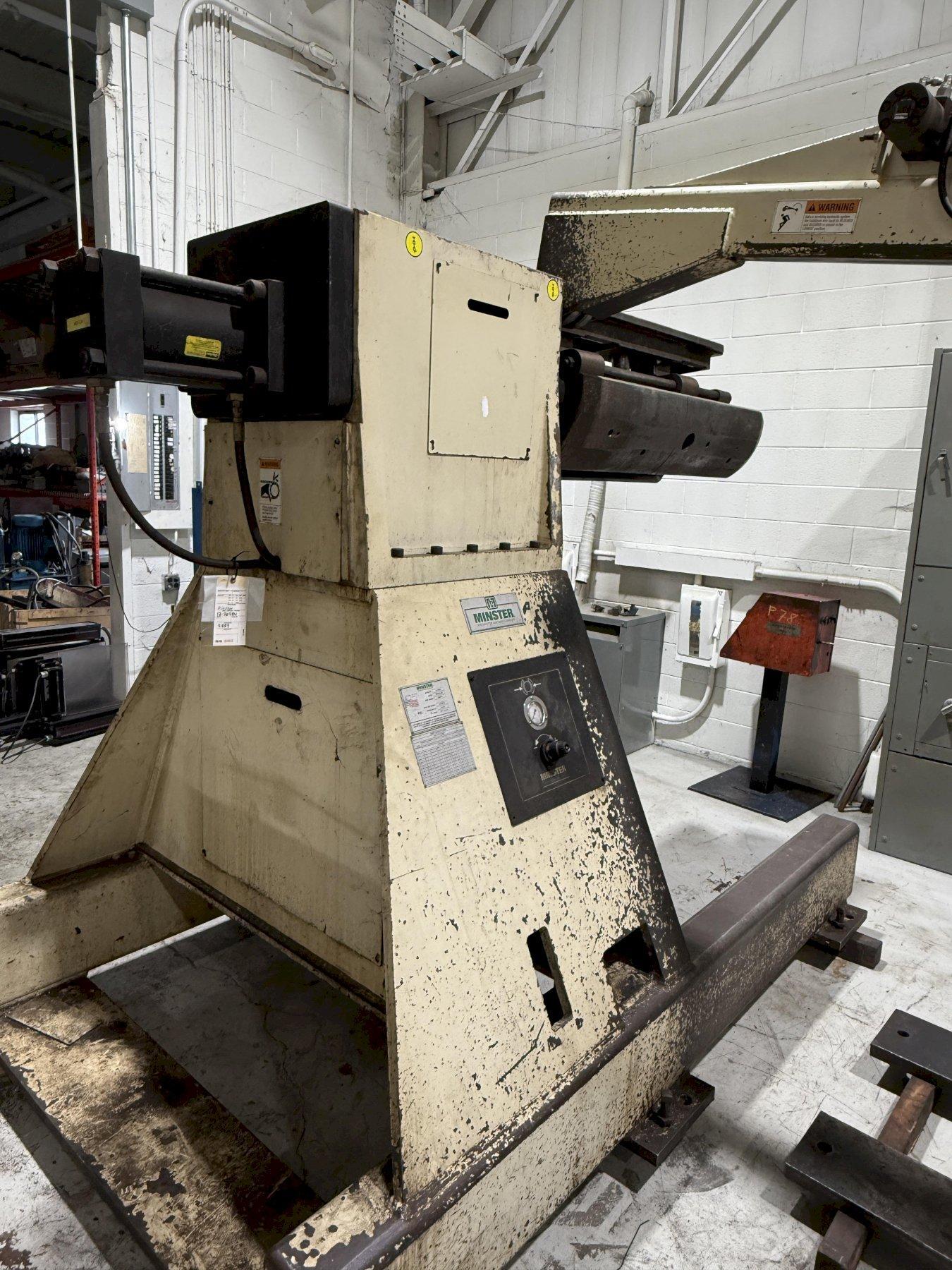

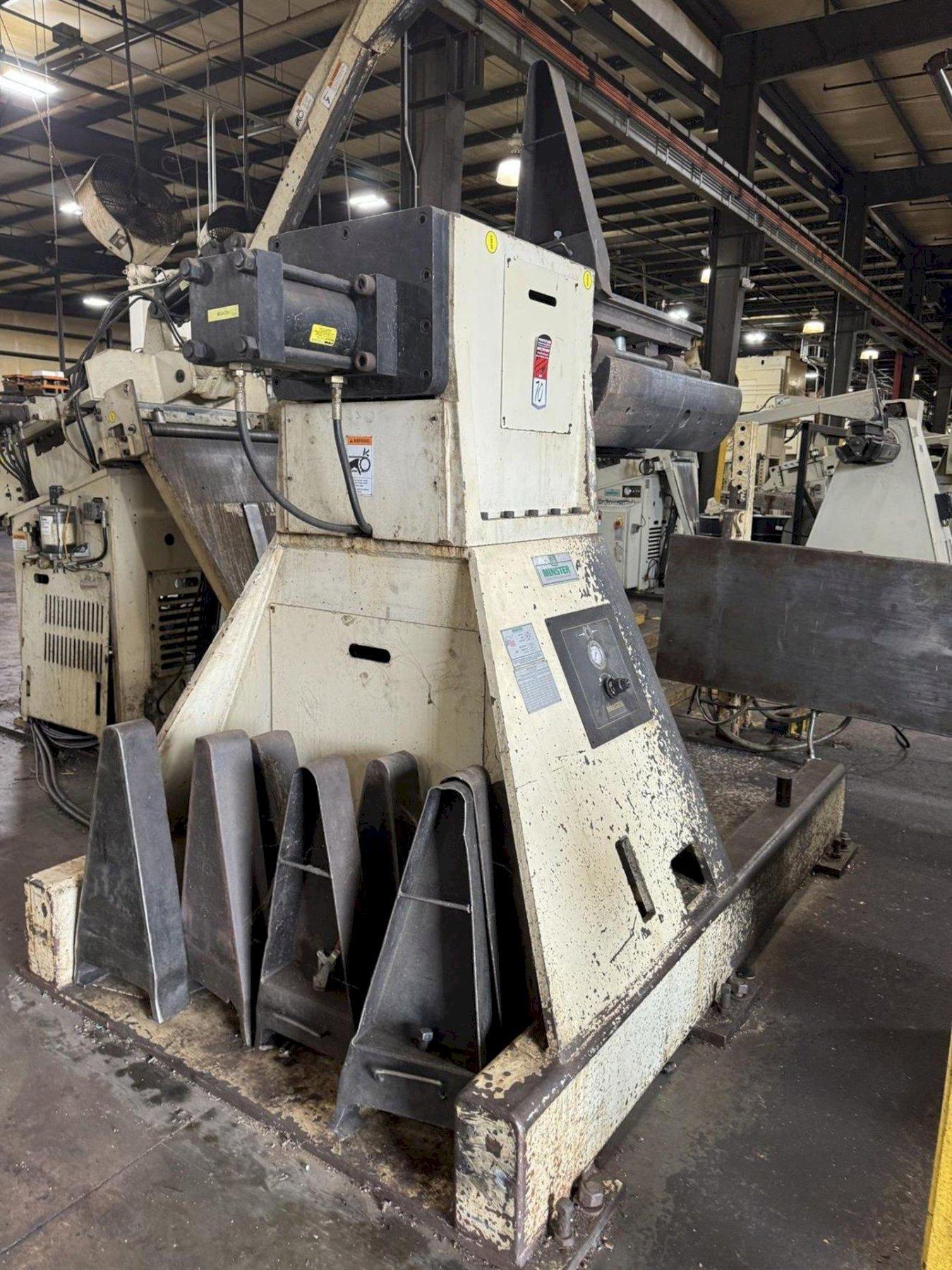

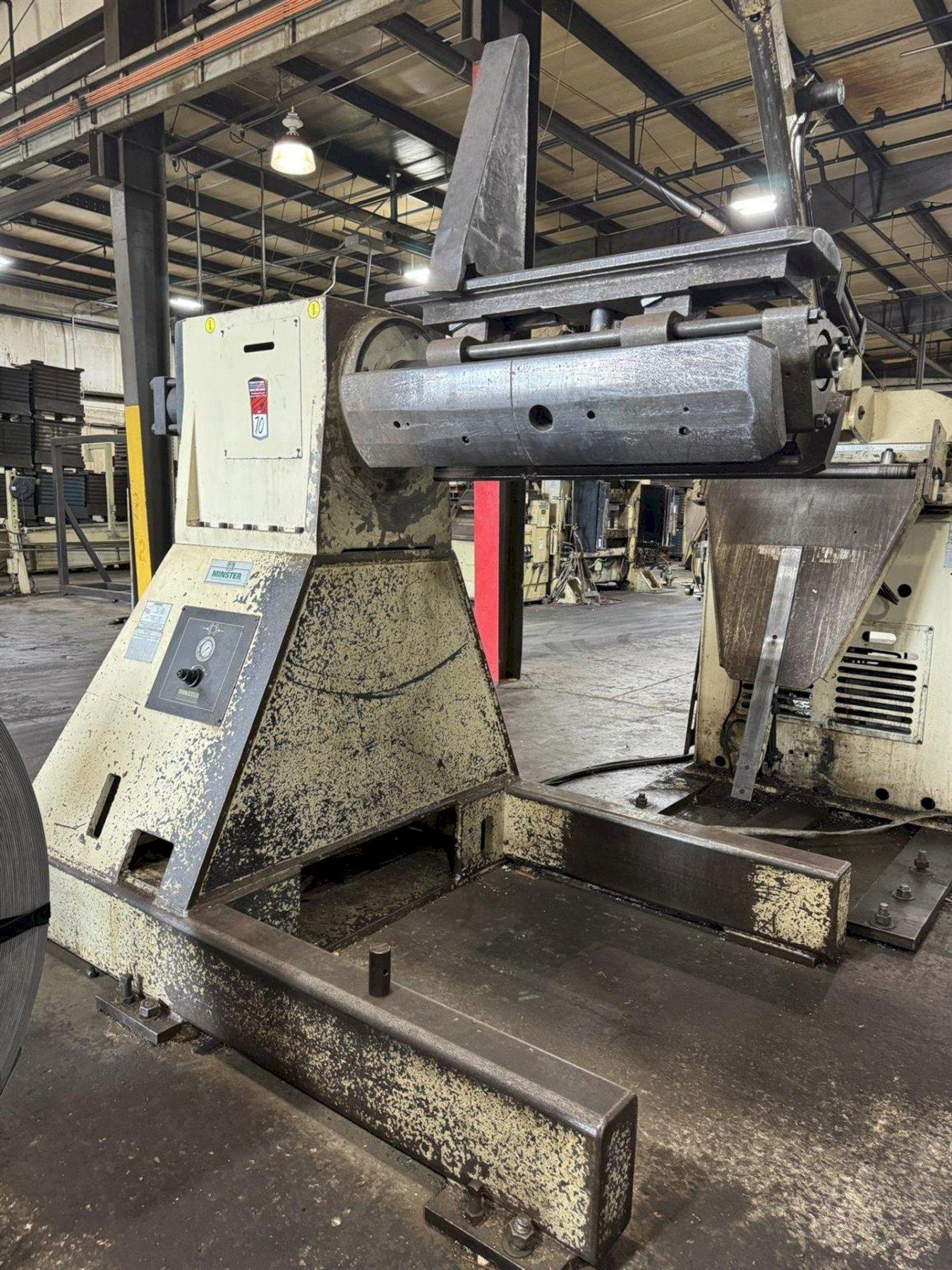

Minster Coil Reel Model MRH20-38S
Serial Number 13-70984

Three Leaf Mandrel with Coil Keeper Arms
Hydraulic Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Threading Drive for Jog / Forward / Reverse

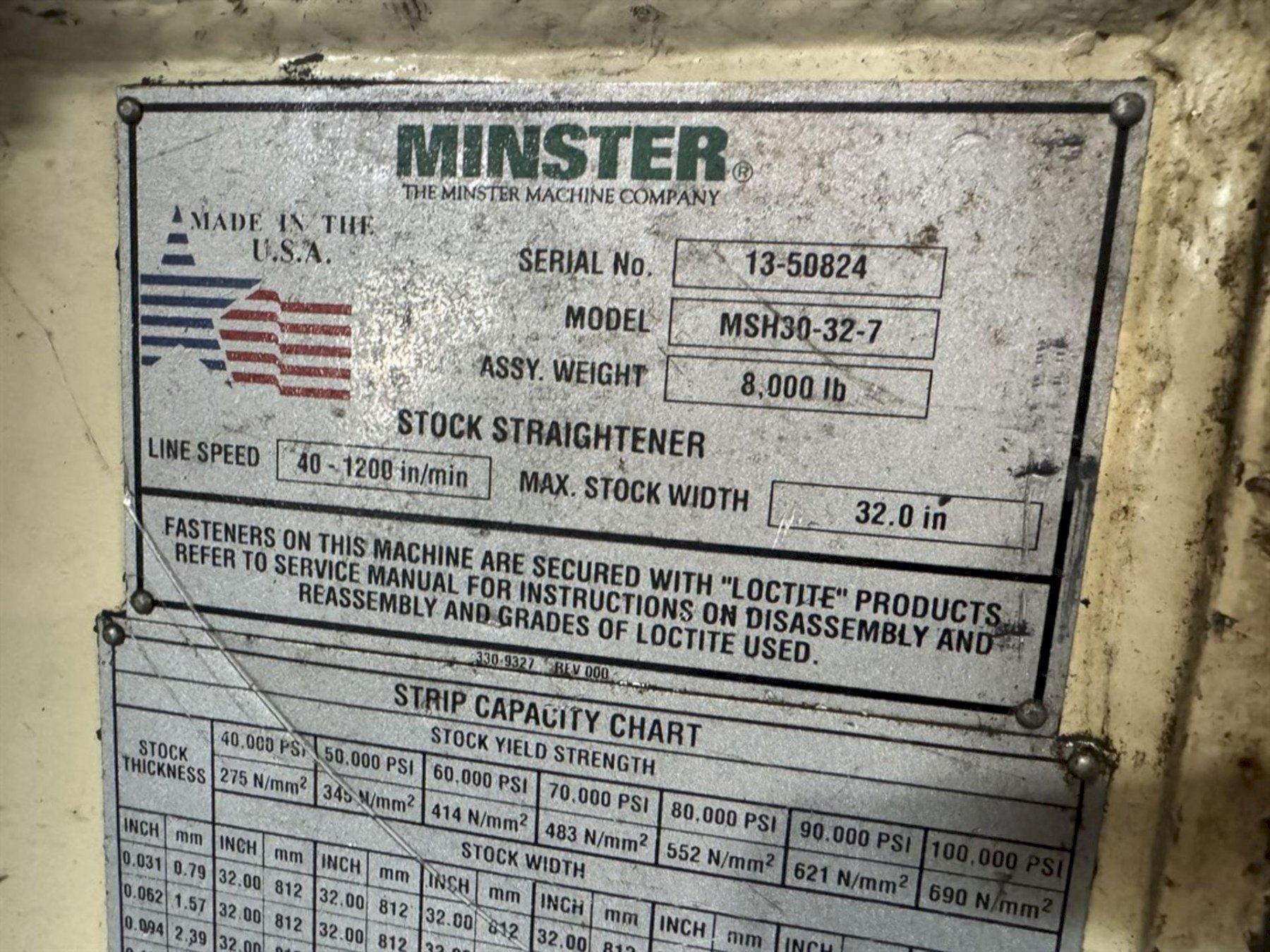

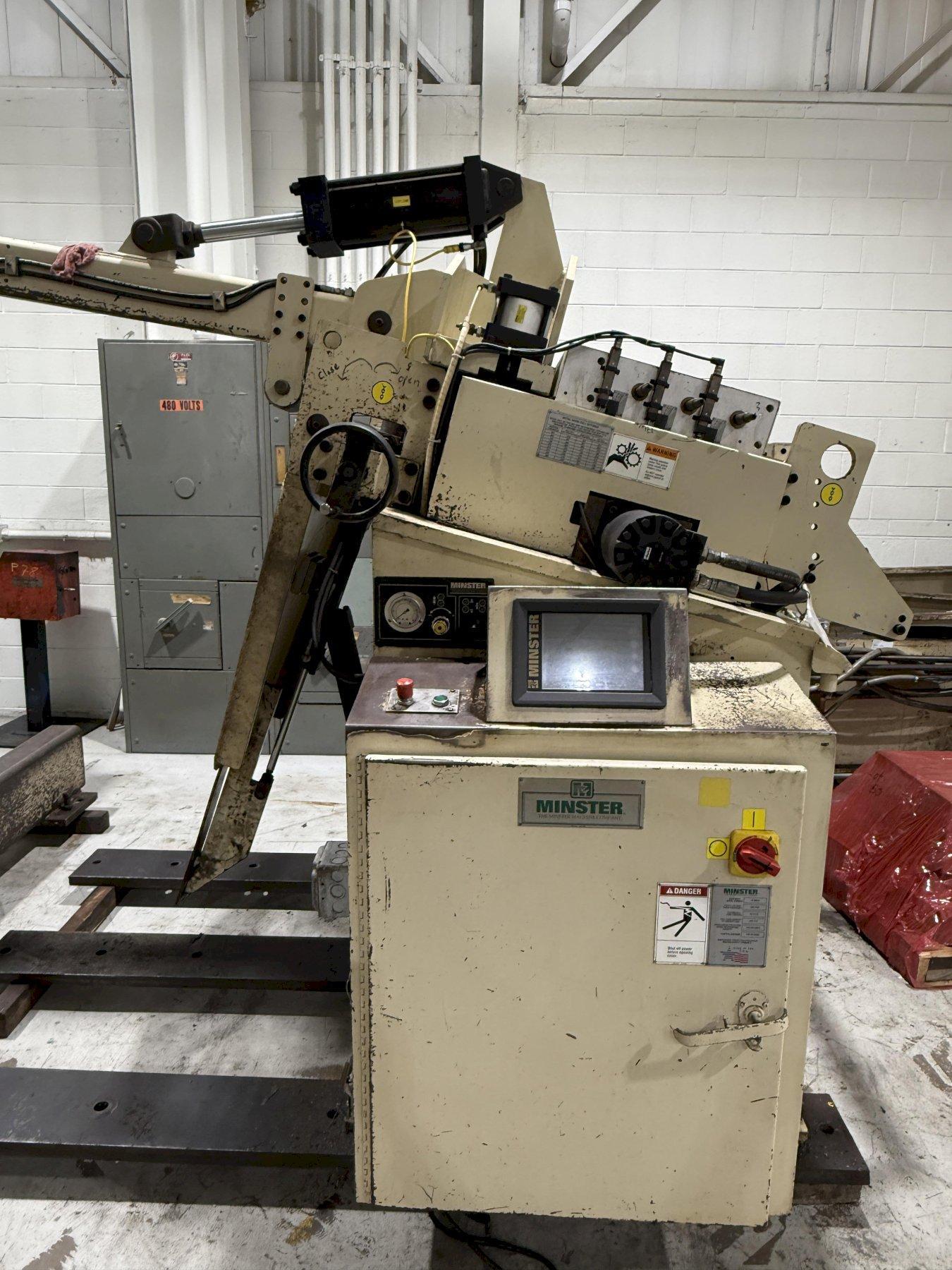

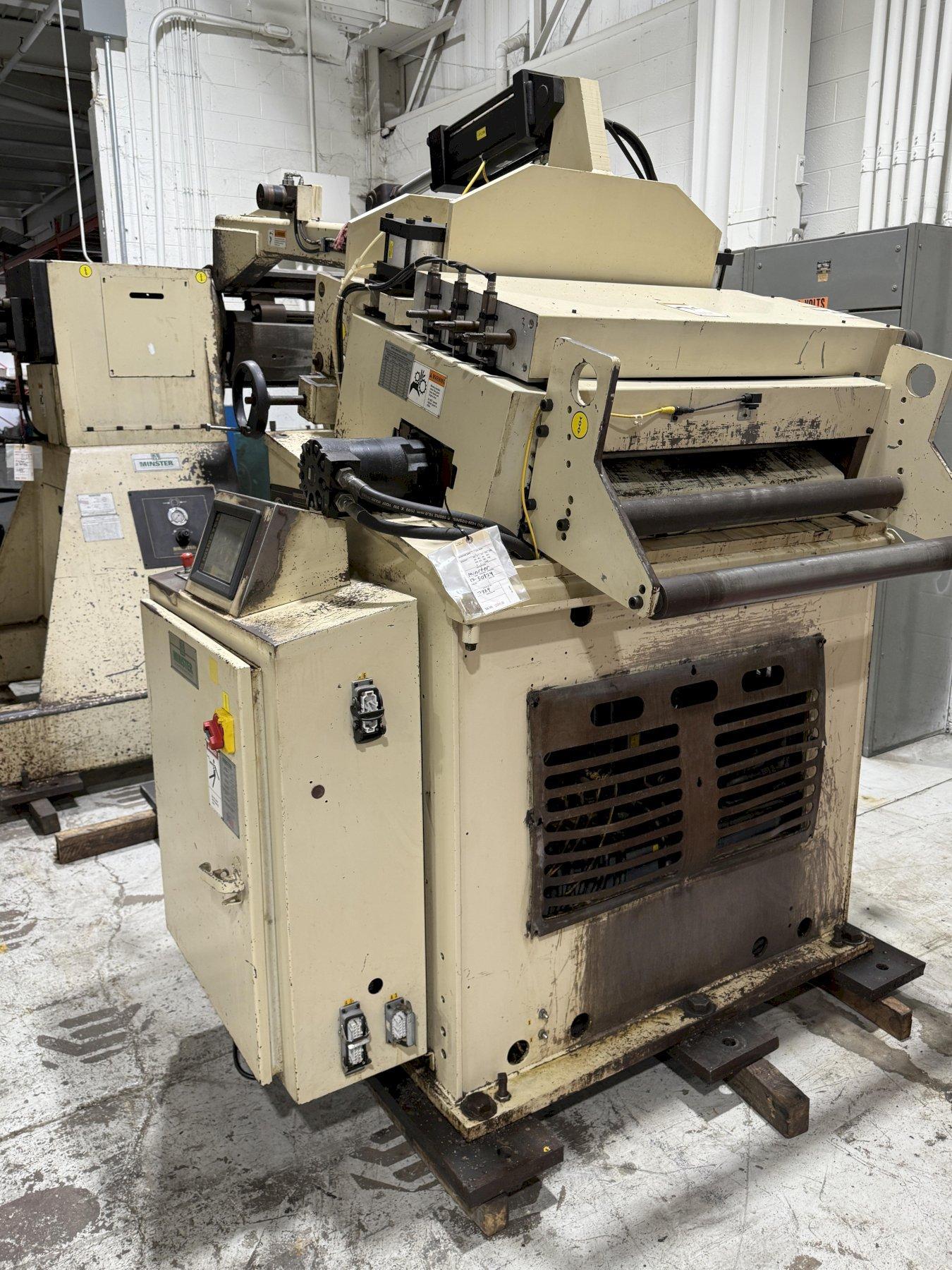

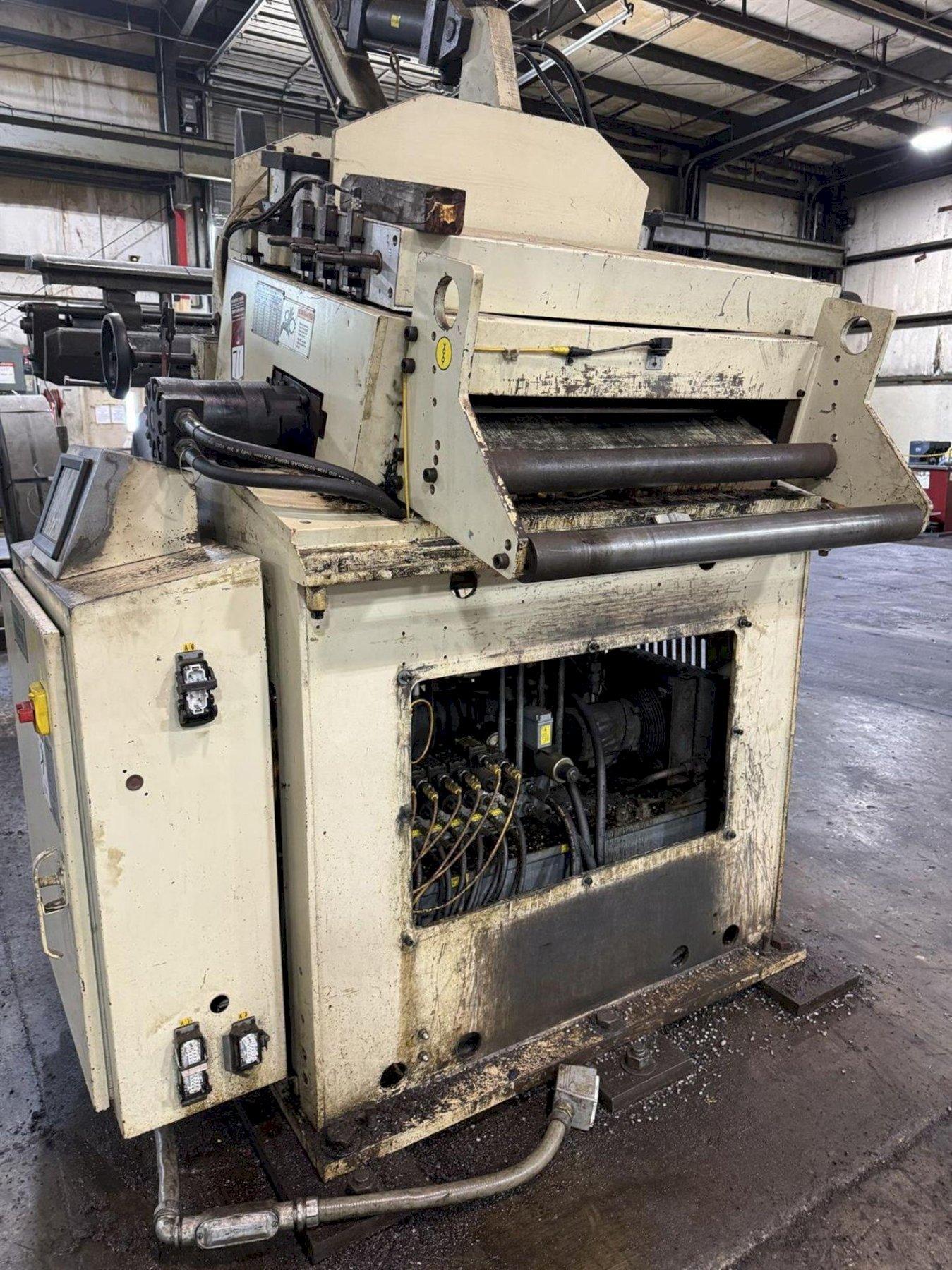

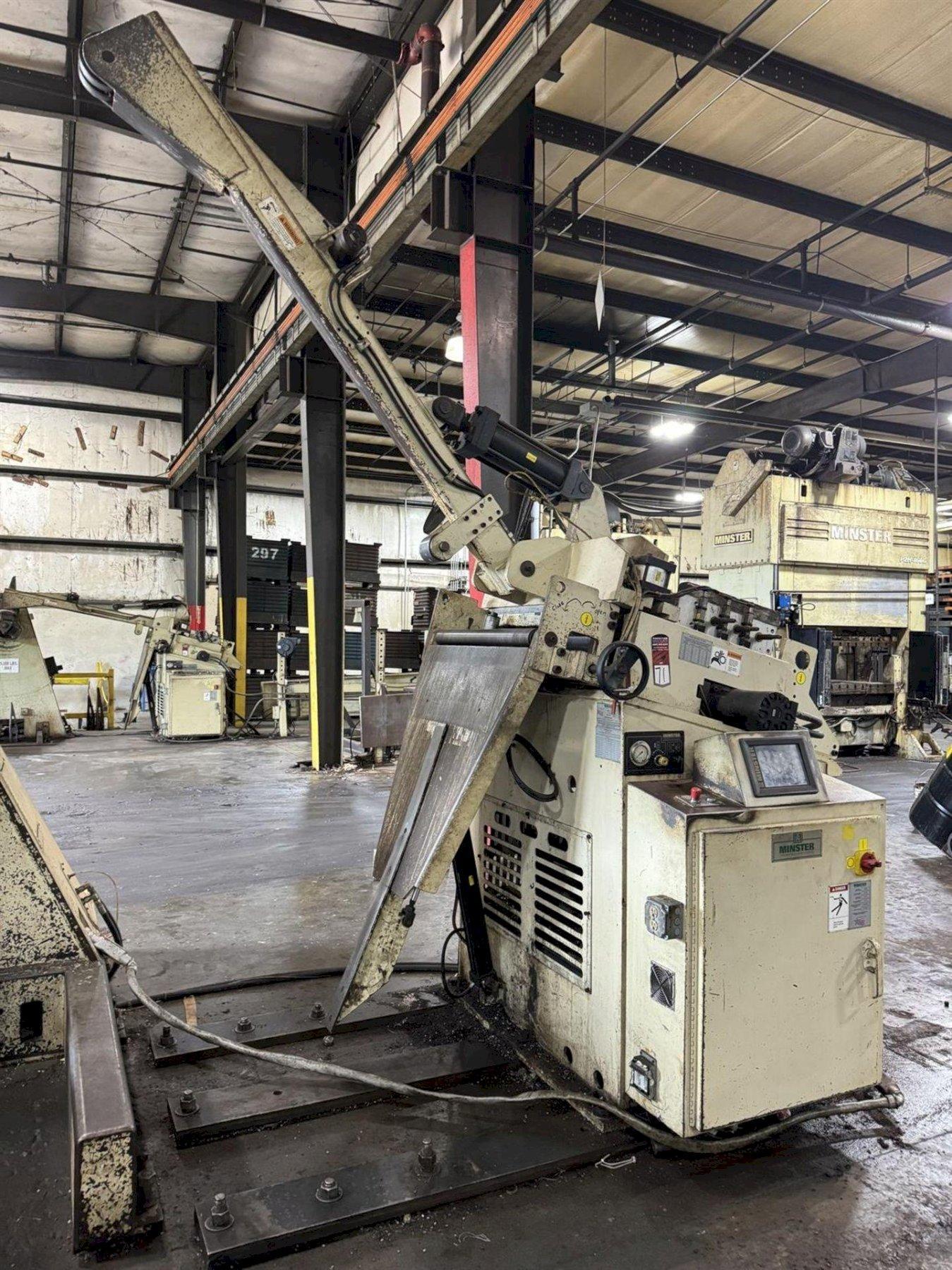

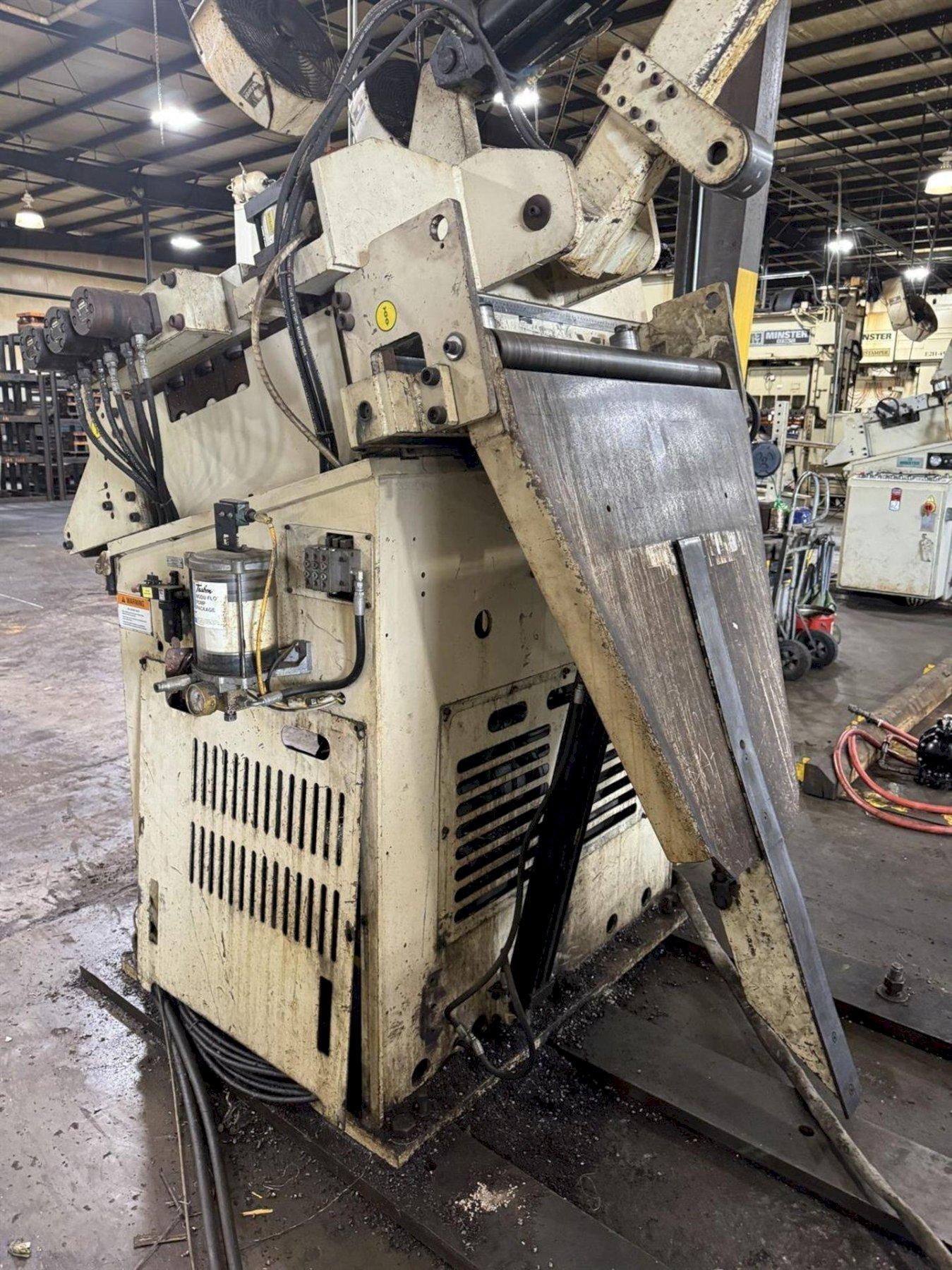

Minster Powered Straightener Model MSH-30-32-7

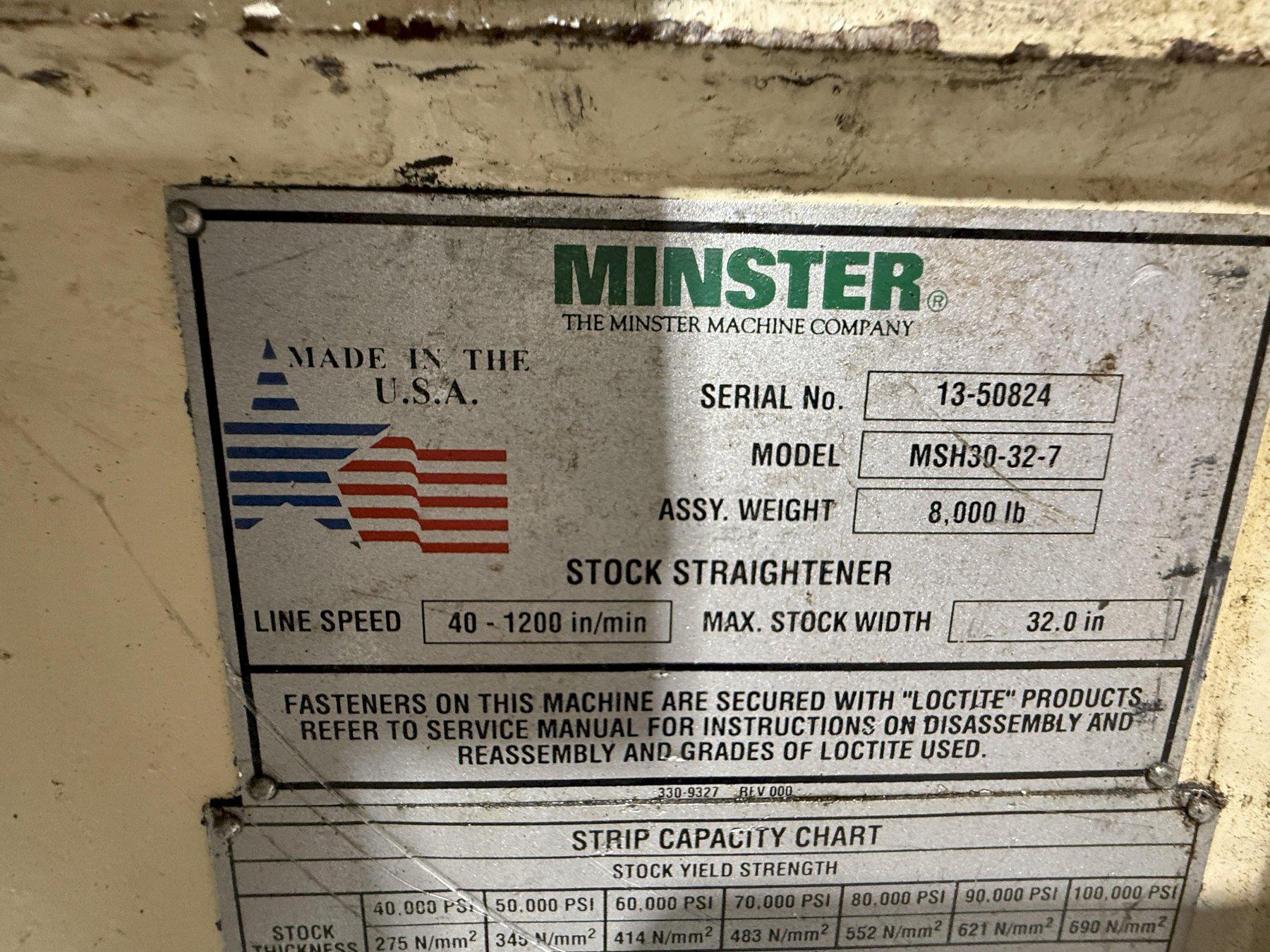

Serial Number 13-50824

Seven Powered Straightening Rolls x 3" Diameter
Entry Pinch Roll Assembly x 5" Diameter
Motorized Upper Straightening Roll Adjustment
Air Operated Upper Pinch Roll Adjustment
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Coil End De-bender Roll
Exit Cascade Loop Support Rollers
Variable Speed Drive

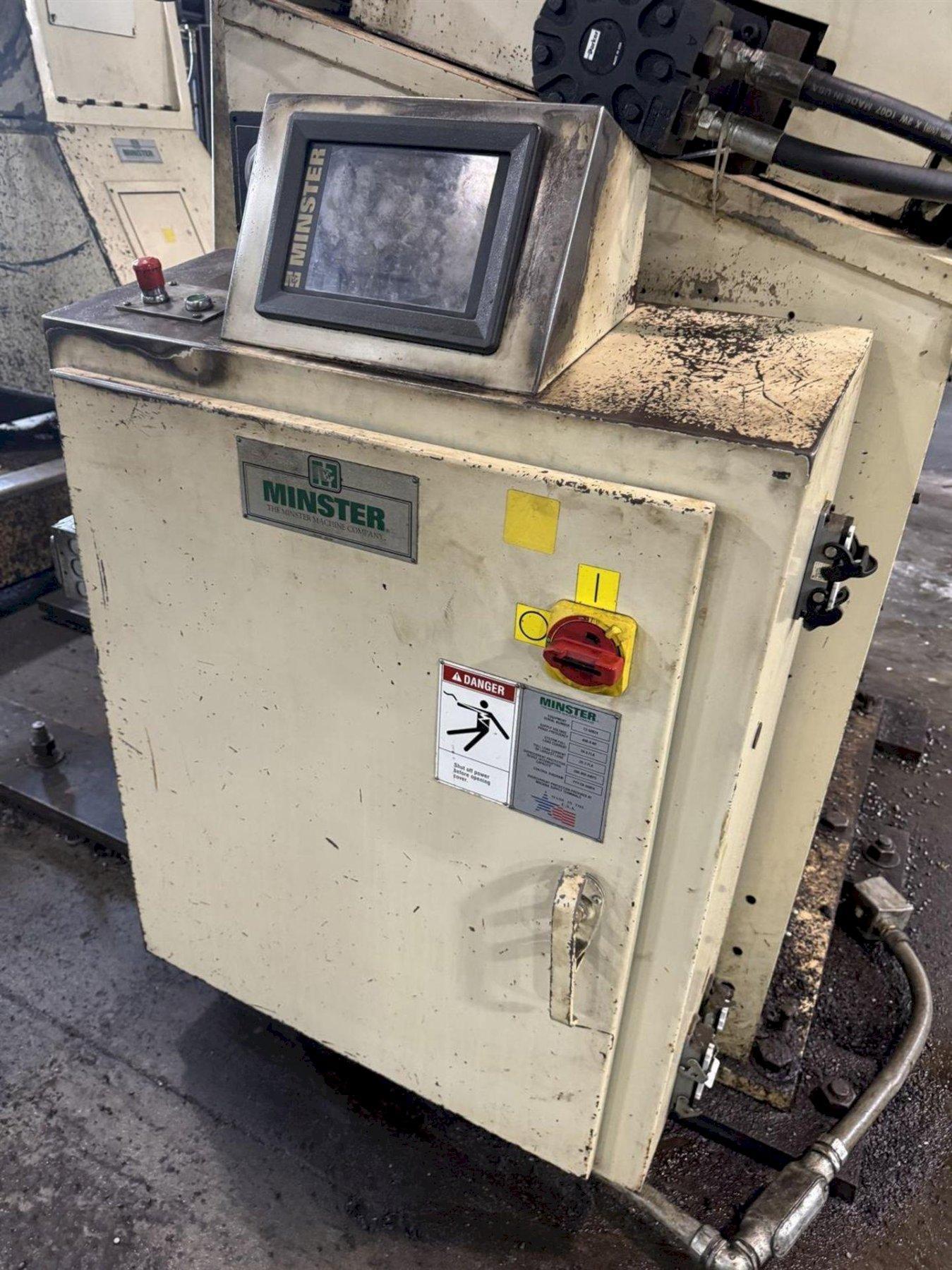

Operator's Control Station
Jog Forward and Reverse with Pendant Remote
End of Stock Sensor
Auto / Run Cycle
Variable Speed Loop Controls

Minster Threading Table Model MTT-12-32-S
Serial Number 13-81430

Air Actuated
144" Length of Table
32" Maximum Stock Width
Bomb Bay Type

Can be seen under in the S & G Press and Machinery Livonia Michigan Warehouse Upon Request.

Minster Coil Feed Equipment for Metal Stamping
