Ercolina CE70H3 Angle Bending Roll, 3" x 3" x 3/8", Touch Pad Control, Tooling, New 2008, #43529

Manufacturer

ERCOLINA

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

43529

Model

CE70H3

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43529

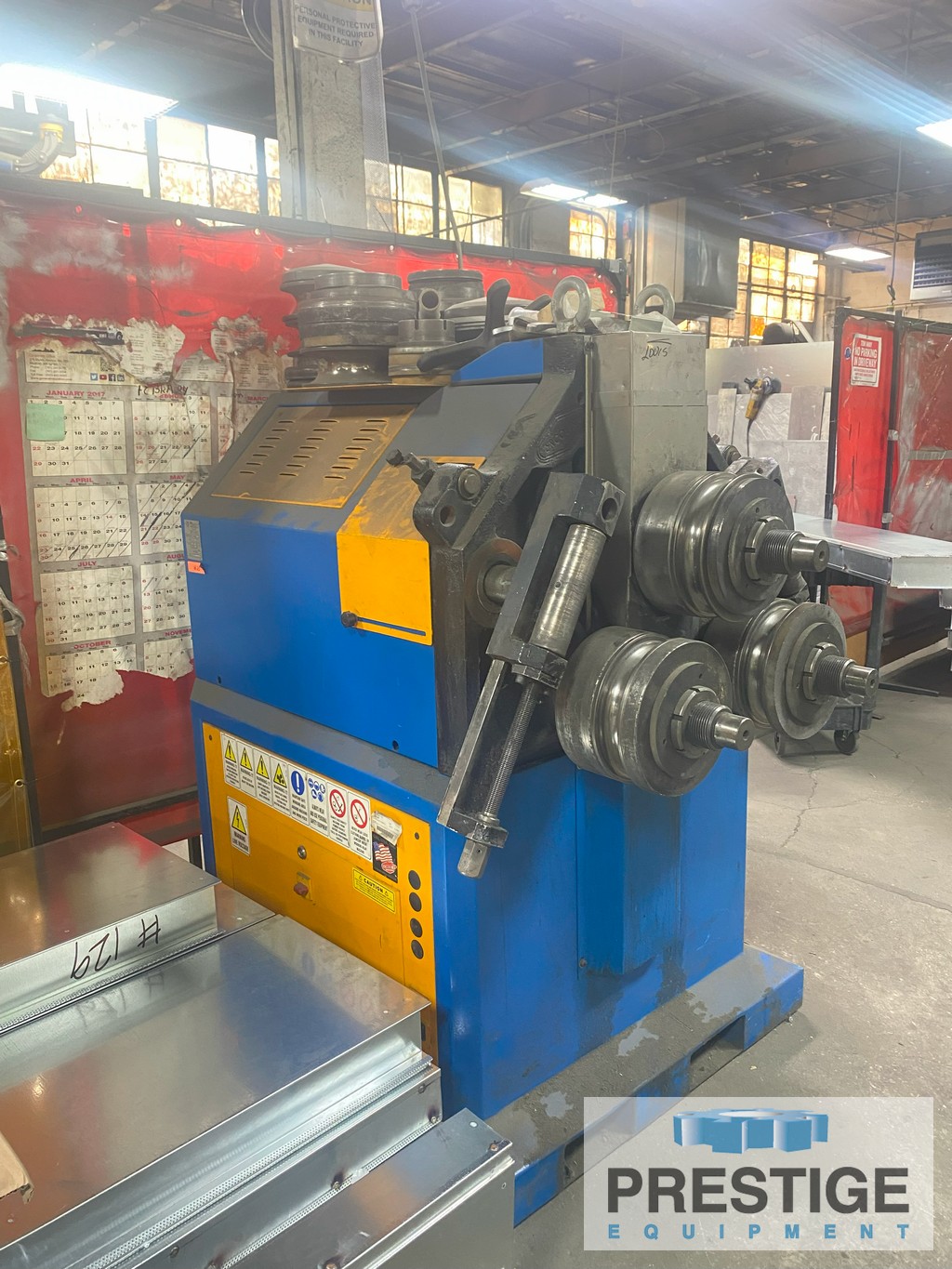

Ercolina CE70H3 Angle Bending Roll

FEATURES:
Touchpad Controls with Digital Center Roll Positioning
In-Line Direct Drive Roll Shaft System with Motor and Brake on Each Shaft
Control Tower with Low Voltage Controls and Foot Pedal
Three Axis Hydraulic Twist Correction System for Angle Iron "Leg-In" Applications

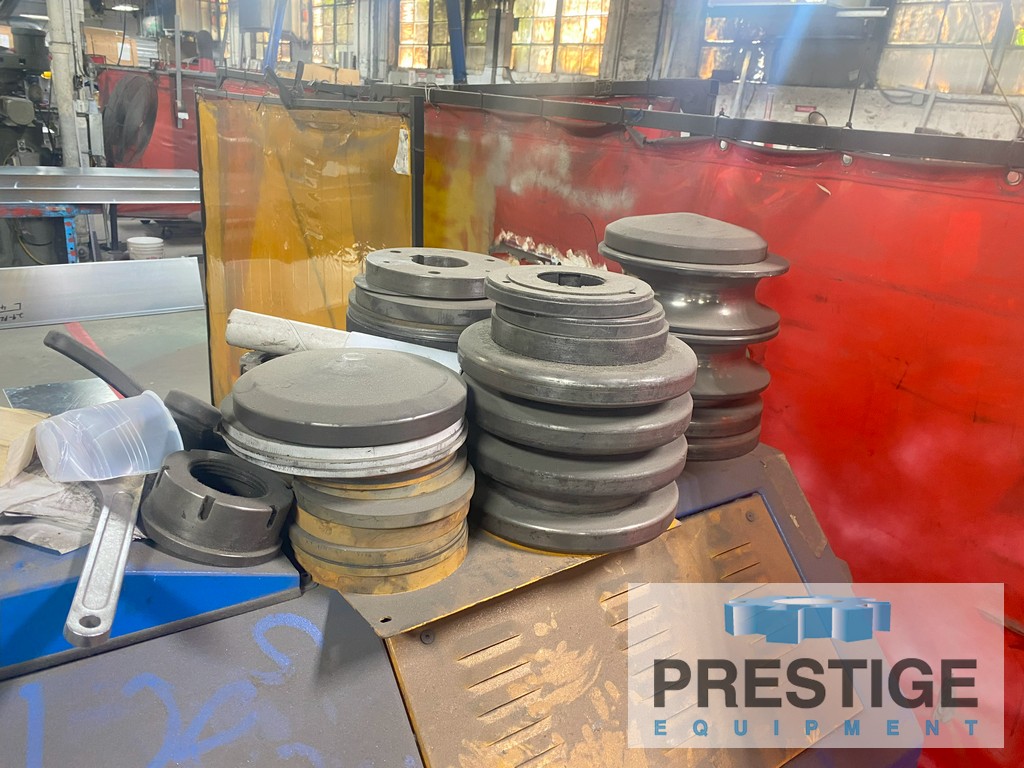

Universal Tooling

SPECIFICATIONS:
Pipe (Max.)............................ 3" Sch. 40
Angle (Max.)........................... 3" x 3" x 3/8"
Tube (Max.) ........................... 3.5"-.216 Wall
Roll Shaft Diameter ................... 2.75"
Center Roll Positioning ............... 16 Tons
Shaft Speed ........................... 8 RPM
Distance Between Shafts ............... 15"
Approximate Dimensions ................ 54" x 43" x 57"
Approximate Weight .................... 2,860 Lbs.

EQUIPPED WITH:
Touchpad Controls with Digital Center Roll Positioning
In-Line Direct Drive Roll Shaft System with Motor and Brake on Each Shaft
Control Tower with Low Voltage Controls and Foot Pedal
Three Axis Hydraulic Twist Correction System for Angle Iron "Leg-In" Applications
Universal Tooling
220/3/60

NOTE:
Inspect In Plant Under Power
