Summit SC3200 VBM, 118" Table, 129" Swing, 90.5" U.R, 1-92 RPM, L/R Ram, S.H, 75HP, 1980, #43534

Manufacturer

SUMMIT

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

43534

Model

SC 3200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43534

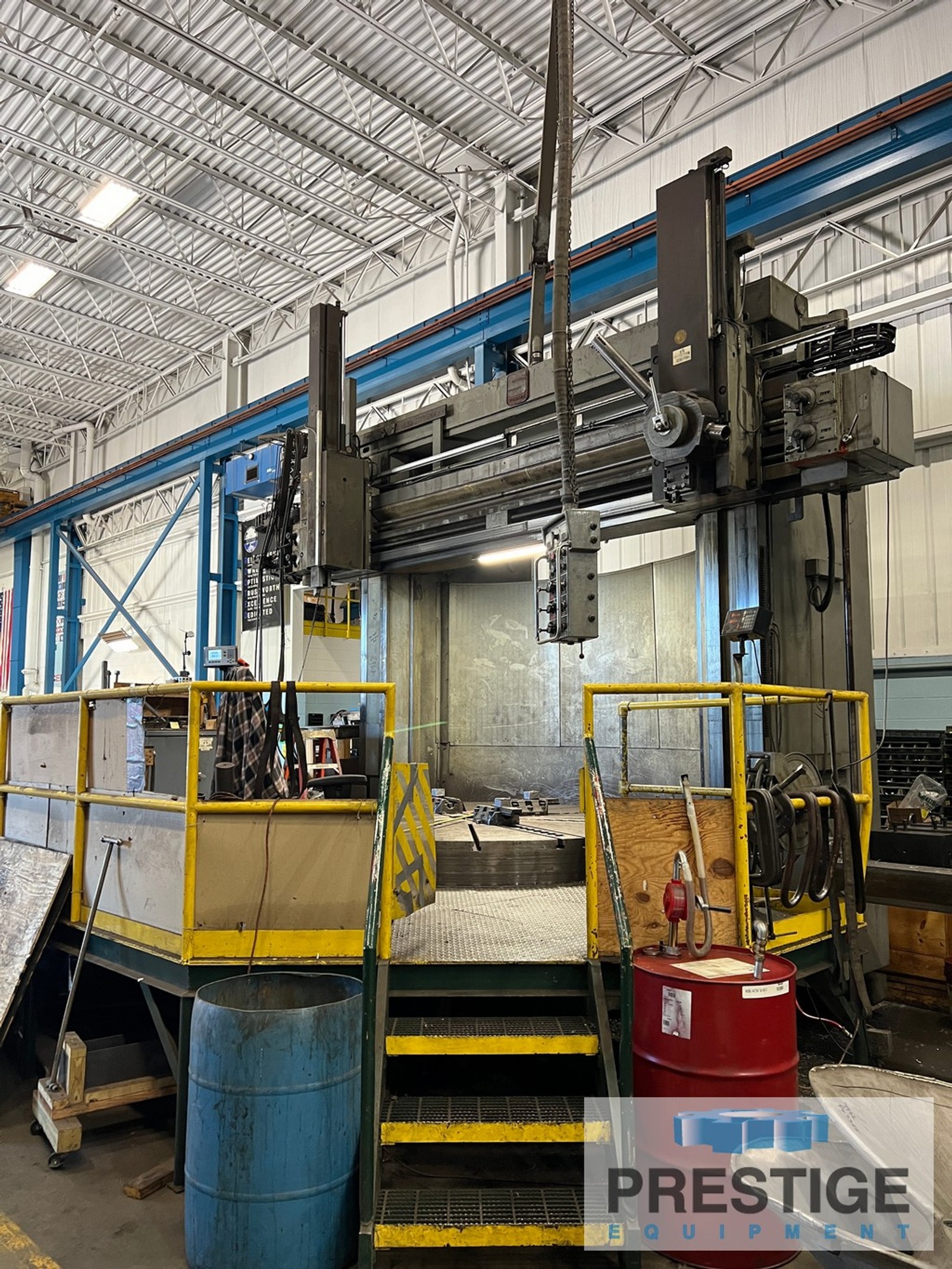

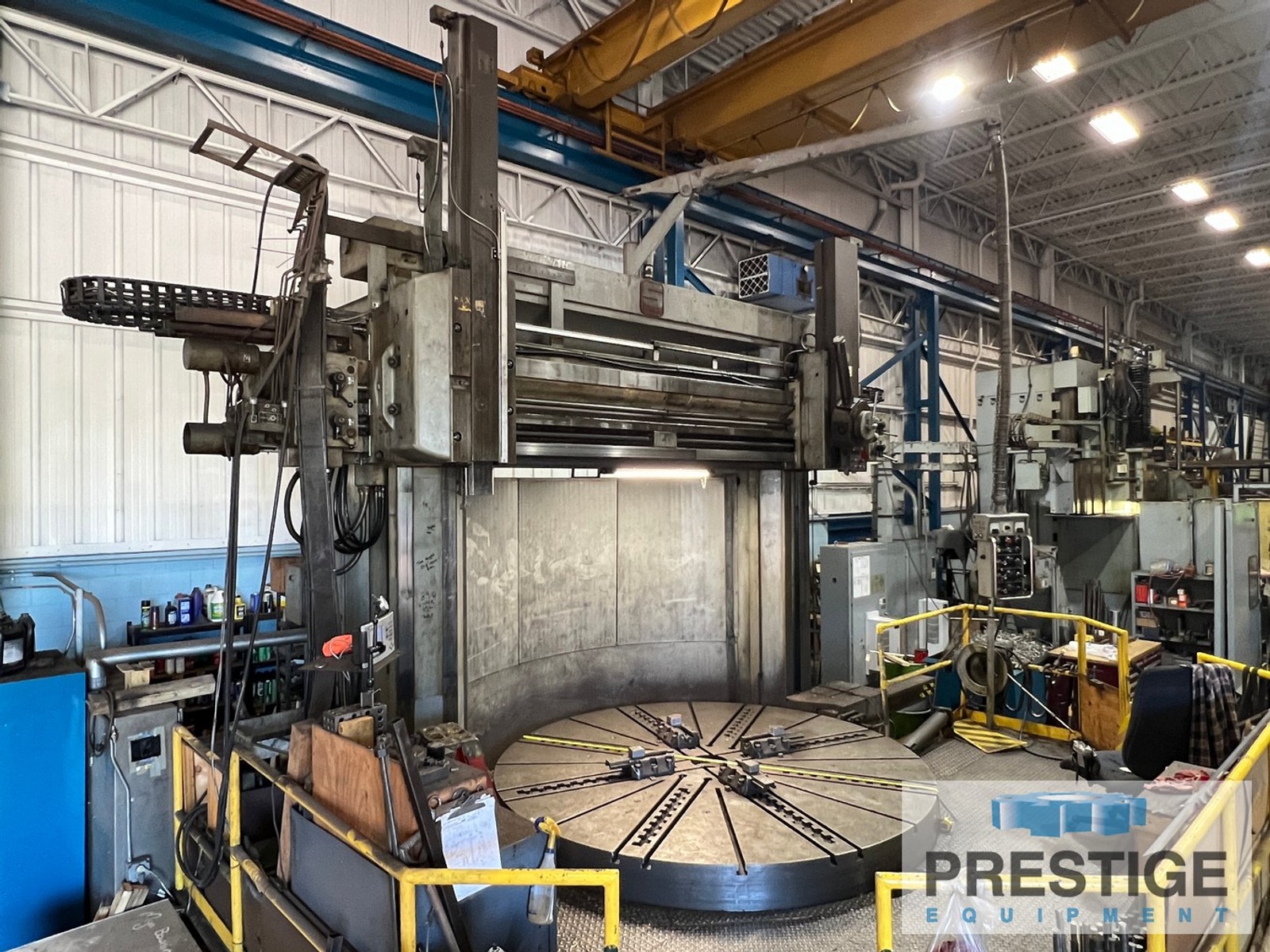

Summit 120" Vertical Boring Mill

FEATURES:

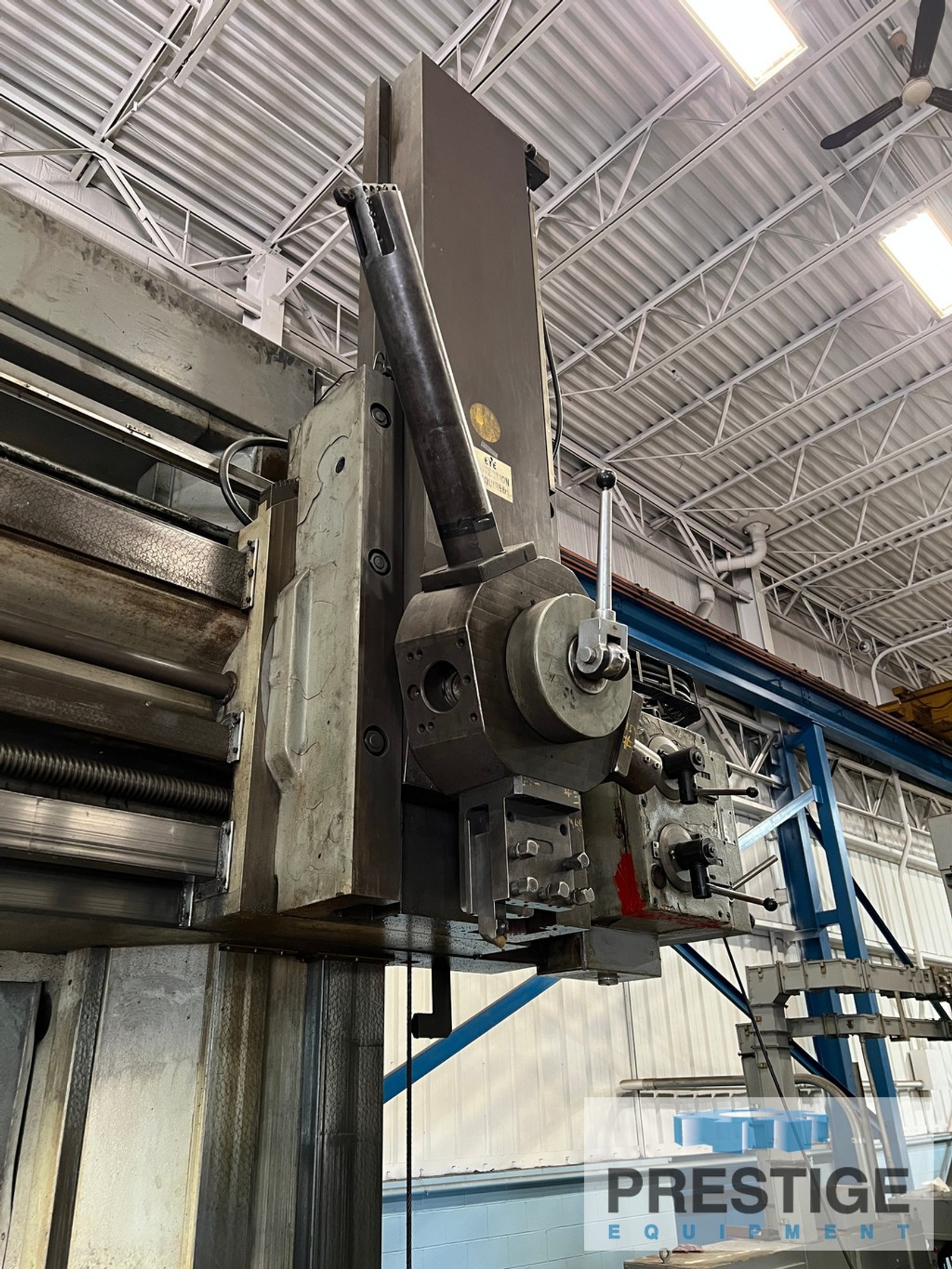

Swivel Left Hand Ram Head
Swivel Right Hand Turret
Right Hand Side Head

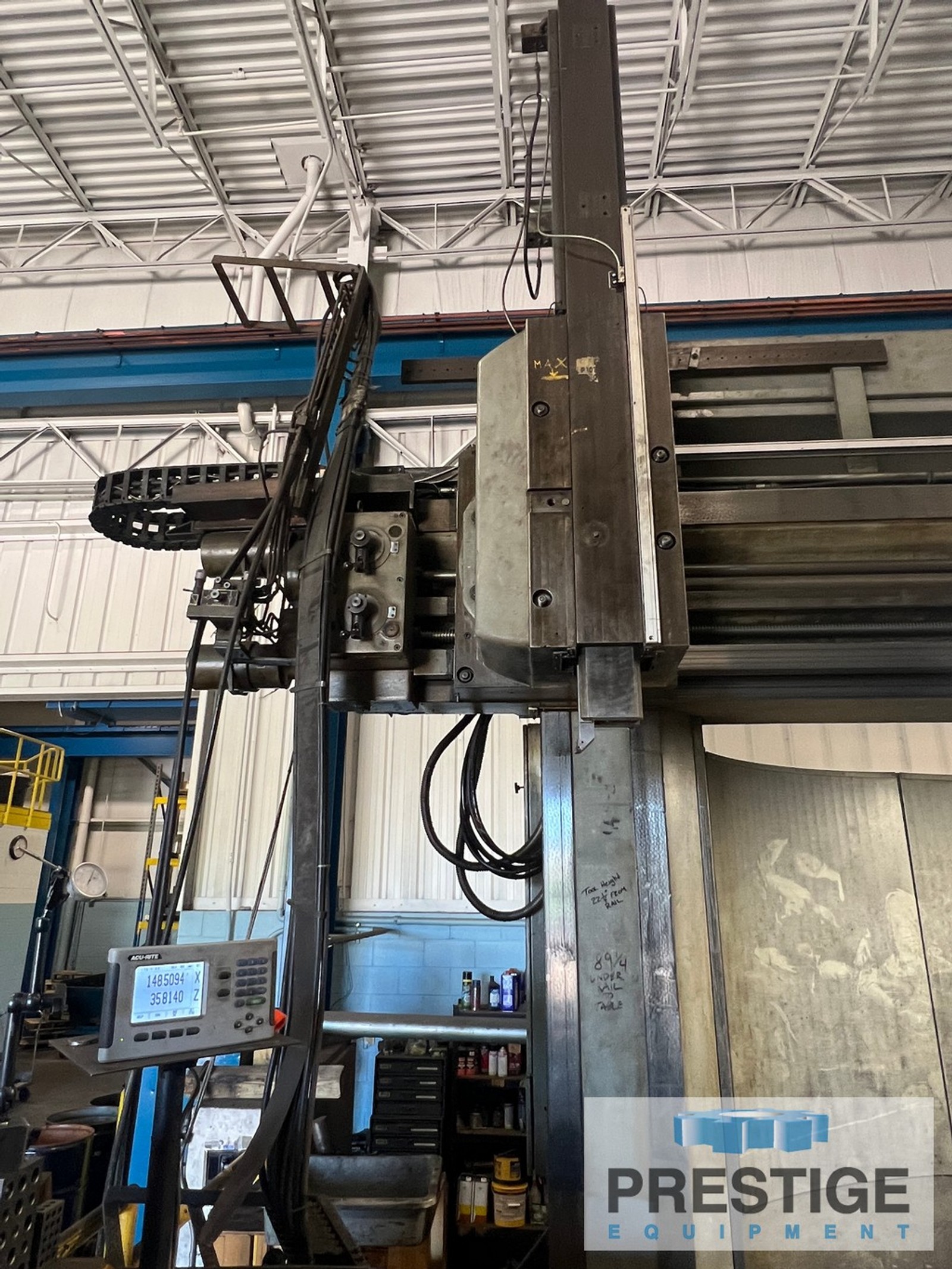

Full Pendant Control

SPECIFICATIONS:

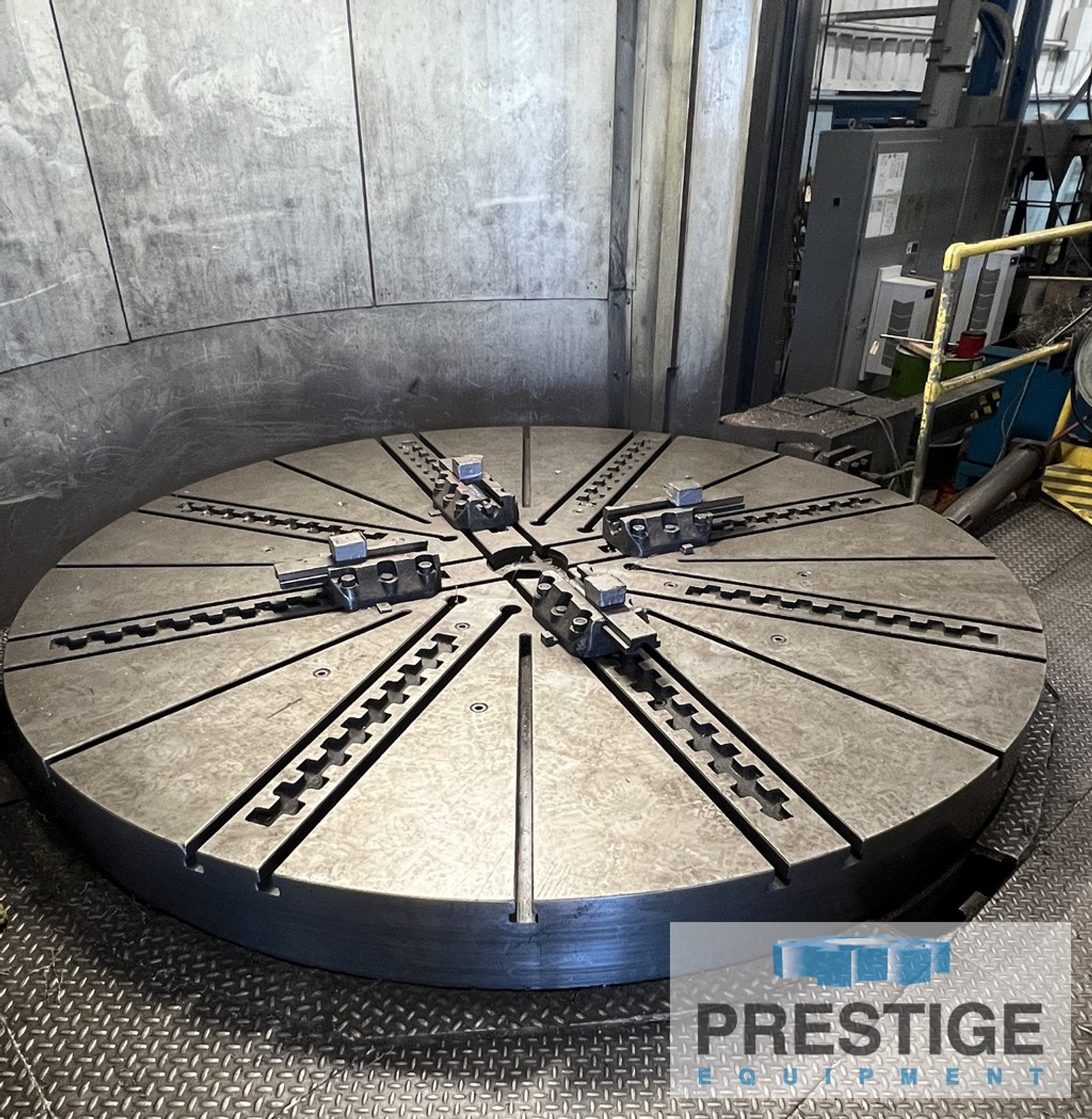

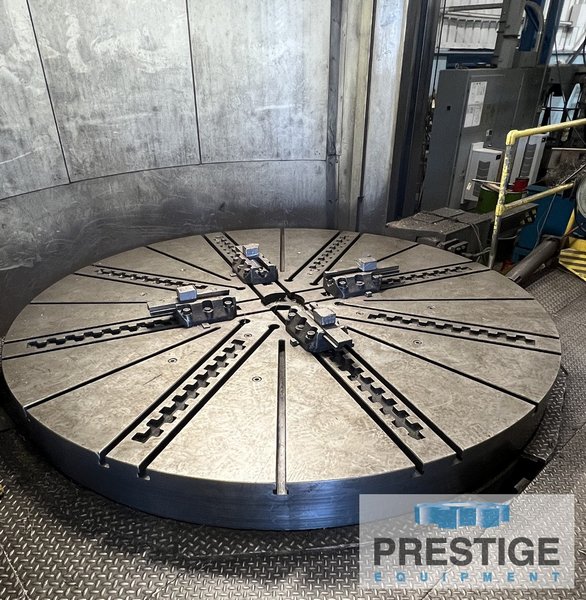

Table Diameter ........................ 118.11"
Max. Swing Capacity w/ Vertical Head .. 129"
Maximum Swing with Side Head .......... 124"
Maximum Turning Height on Table ....... 90.5"
Minimum from Rail to Top of Table ..... 12.5"
Maximum from Rail to Top of Table ..... 90"
Maximum Work Piece Weight ............. 40,000 Lbs.
Turret Stroke ......................... 30"
Ram Stroke ............................ 47.25"
Swivel of Each Vertical Head .......... 35 R - 35 L
Table Speeds(Inf Variable) ............ 1-92 RPM
Feeds (16) ............................ .002-.200 IPM
Rapid Traverse ........................ 118 IPM
Approximate Dimensions ................ 208" x 220"
Overall Height ........................ 212"
Approximate Weight .................... 105,000 Lbs.

EQUIPPED WITH:

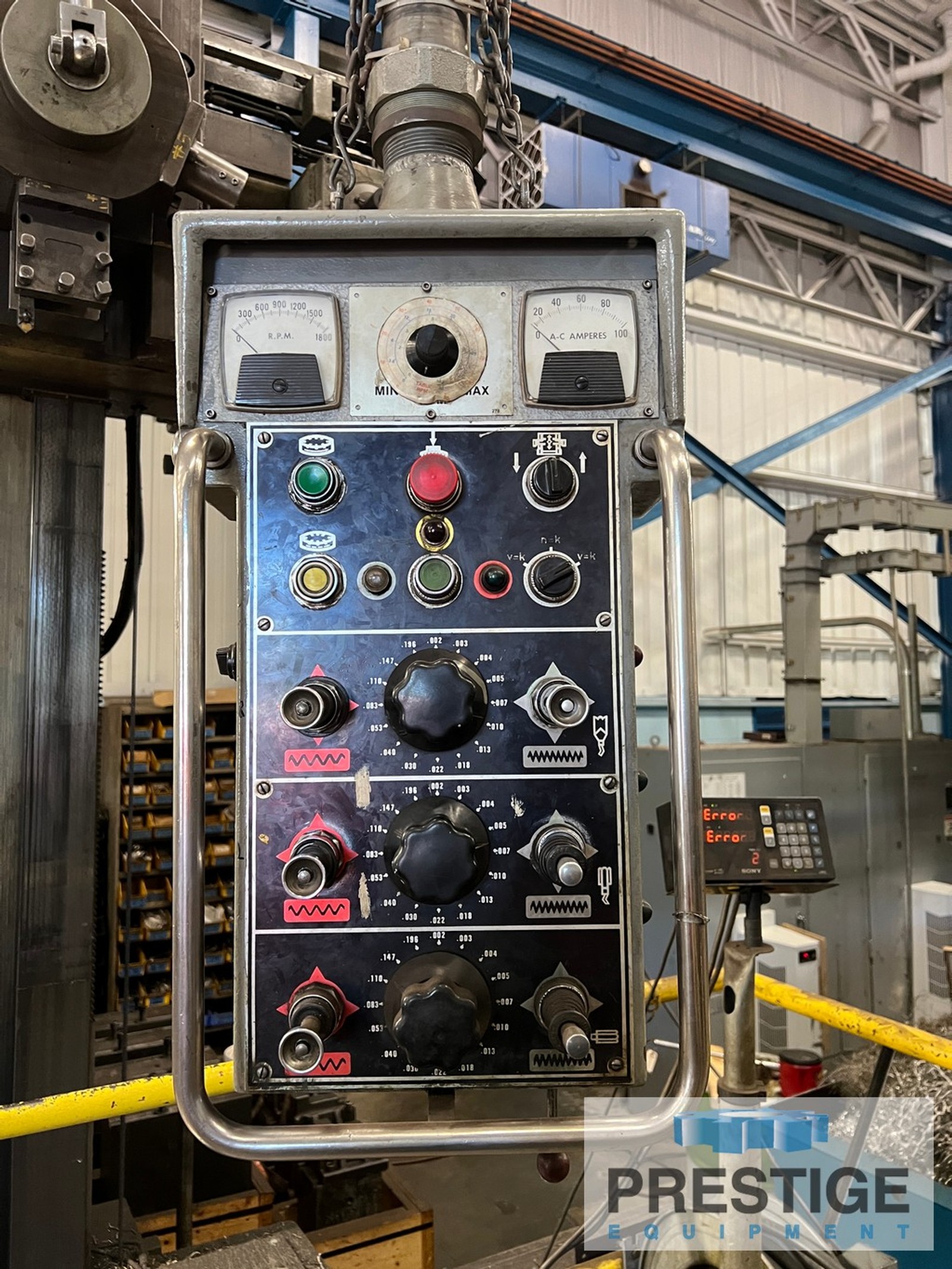

Full Pendant Controls
Right Hand (5) Position Turret
Left Hand Ram

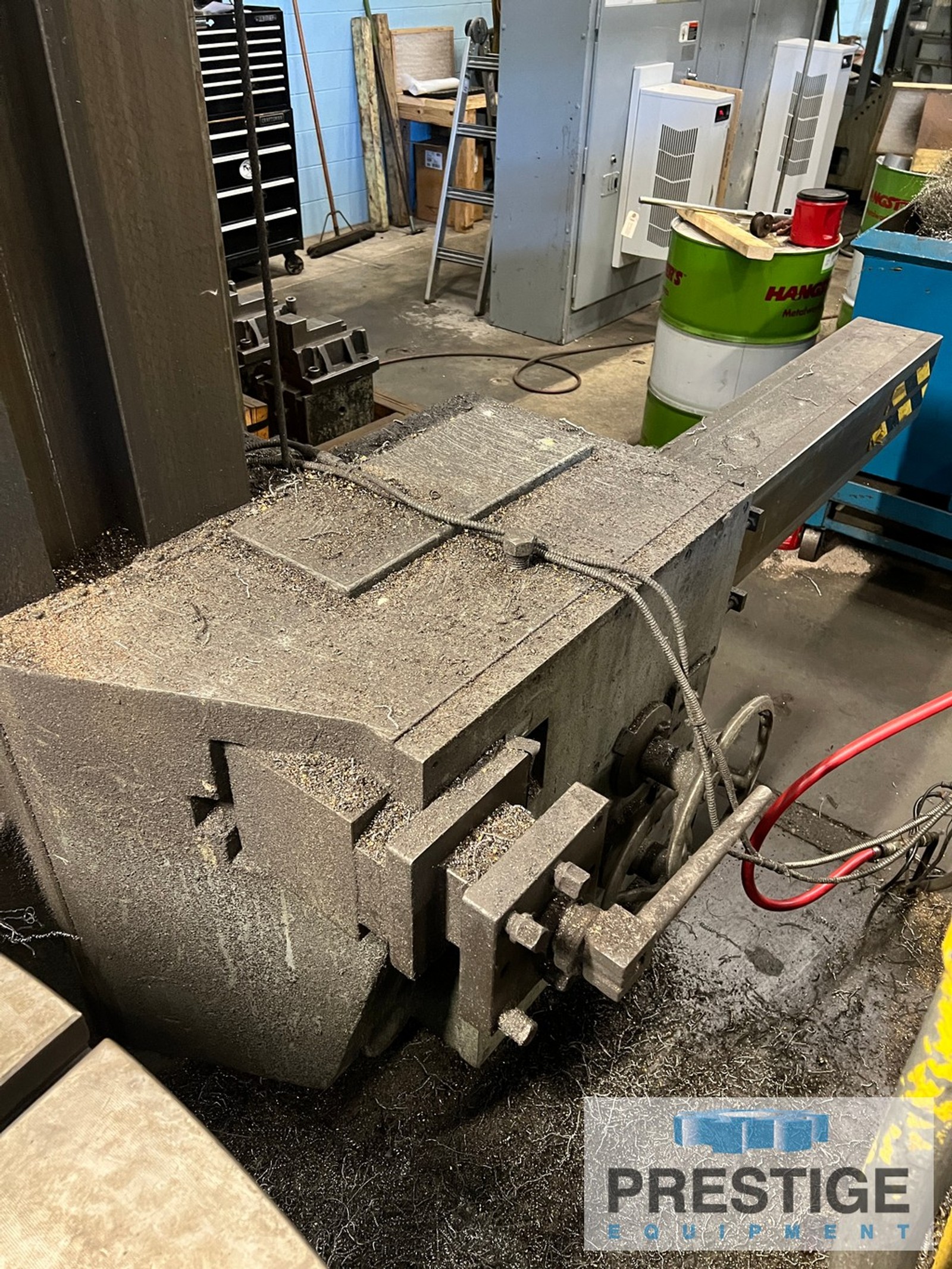

Side Head
75 HP Table Motor

NOTE:
Inspect In Plant Under Power
