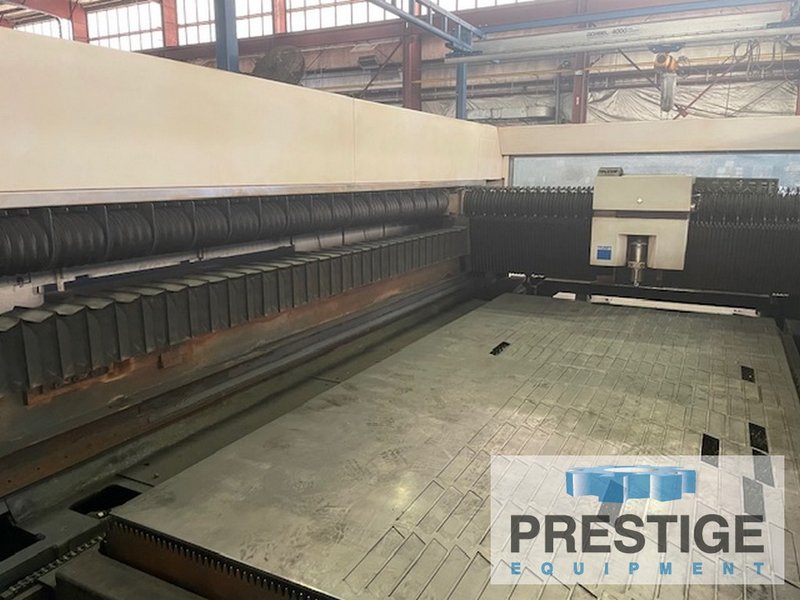

Trumpf Trulaser 3030 5000 Watt, 5' x 10', Siemens 840D, Auto Pallet Changer, Chiller, Dust Collector, 2013, #43515

Manufacturer

TRUMPF

Category

Laser Cutting

Type

LASERS

Stock

43515

Model

Trulaser 3030

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43515

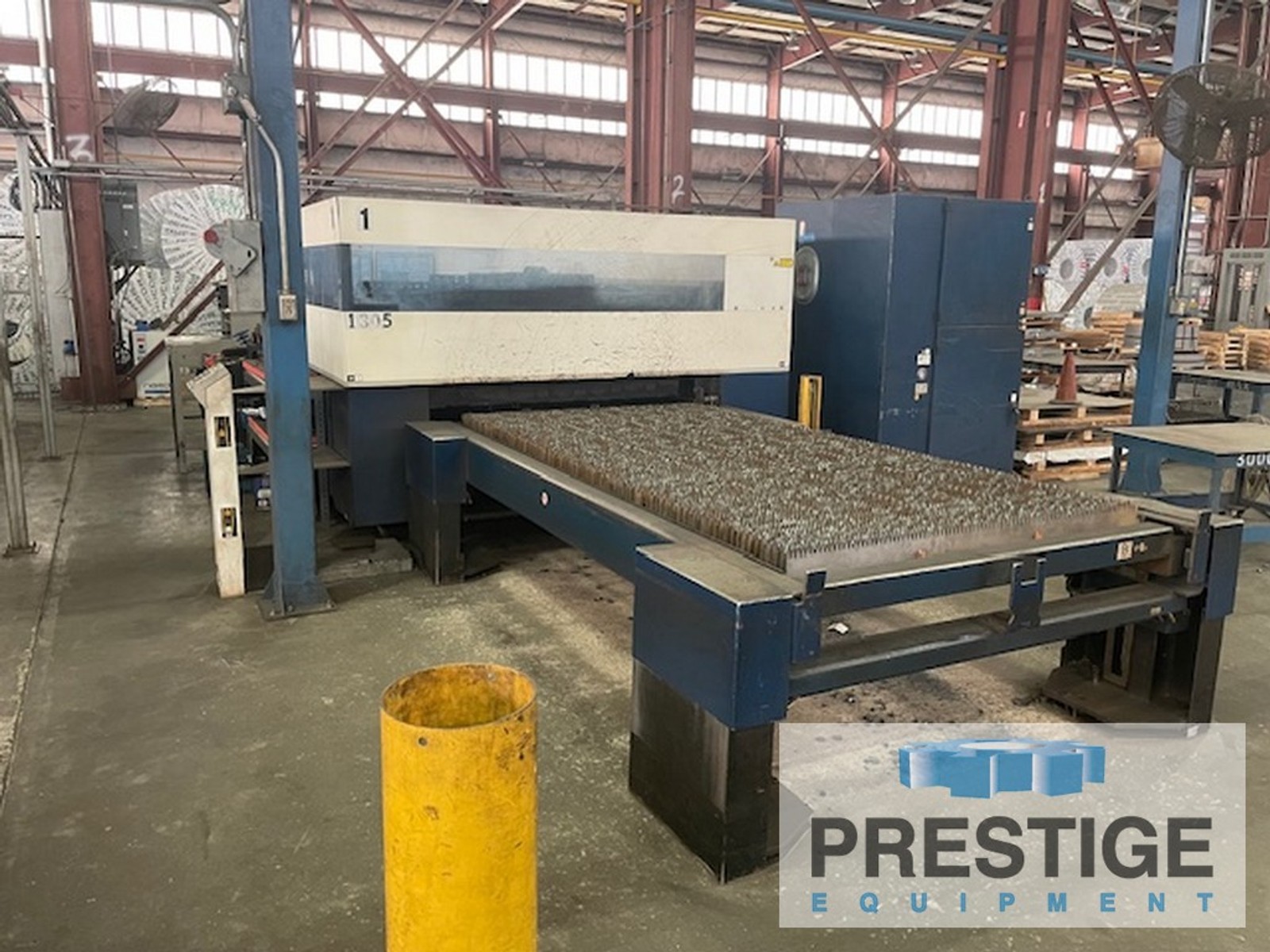

Trumpf Trulaser 3030 5000 Watt CNC Flying Optic Laser

FEATURES:
Siemens 840D CNC Control

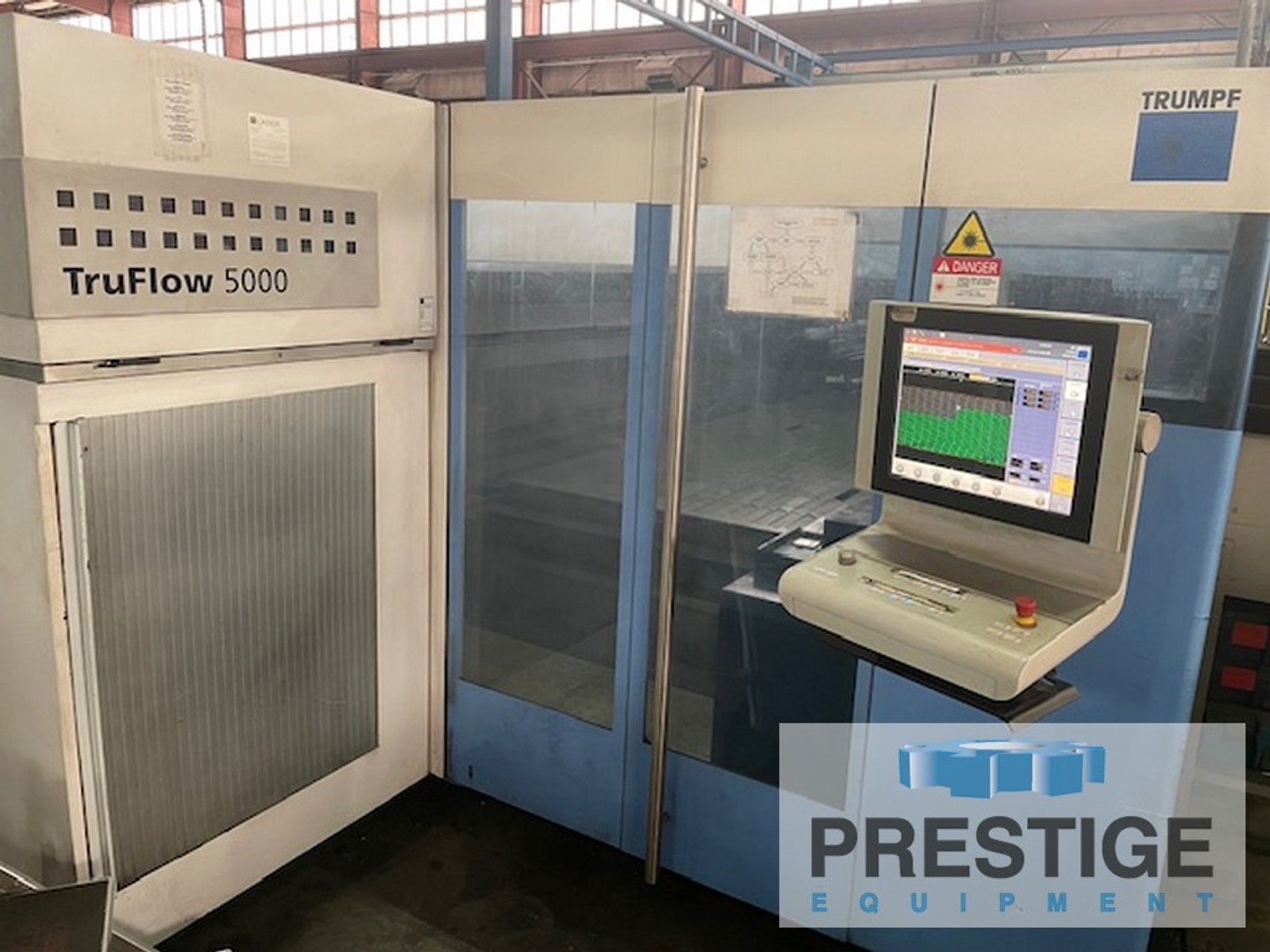

TruFlow 5000 Resonator
Automatic Pallet Shuttle System

CAPACITY:
Laser Output .......................... 5000 Watt
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 60"
Z-Axis Travel ......................... 5"
Max. Work Piece Weight ................ 1,981 Lbs
Max. Material Thickness, Mild ......... 1"
Max. Material Thickness, Stainless..... 0.80"
Max. Material Thickness, Aluminum ..... .47"
Max. Positioning Speed (Simultaneous).. 5,511 IPM
Machine Weight ........................ 25,300 LBS

EQUIPPED WITH:
Siemens 840D CNC Control

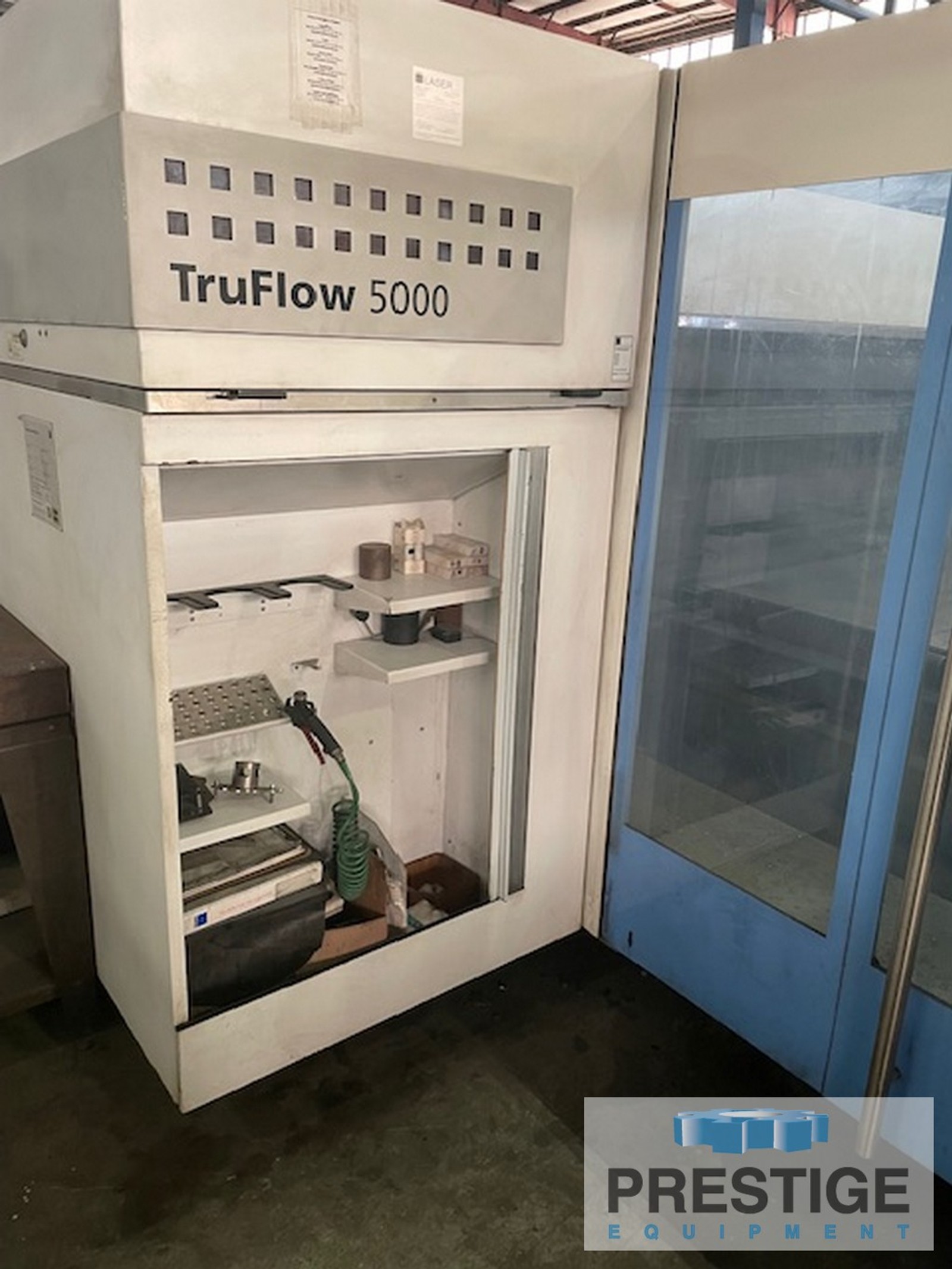

TruFlow 5000 Resonator
Automatic Pallet Shuttle System

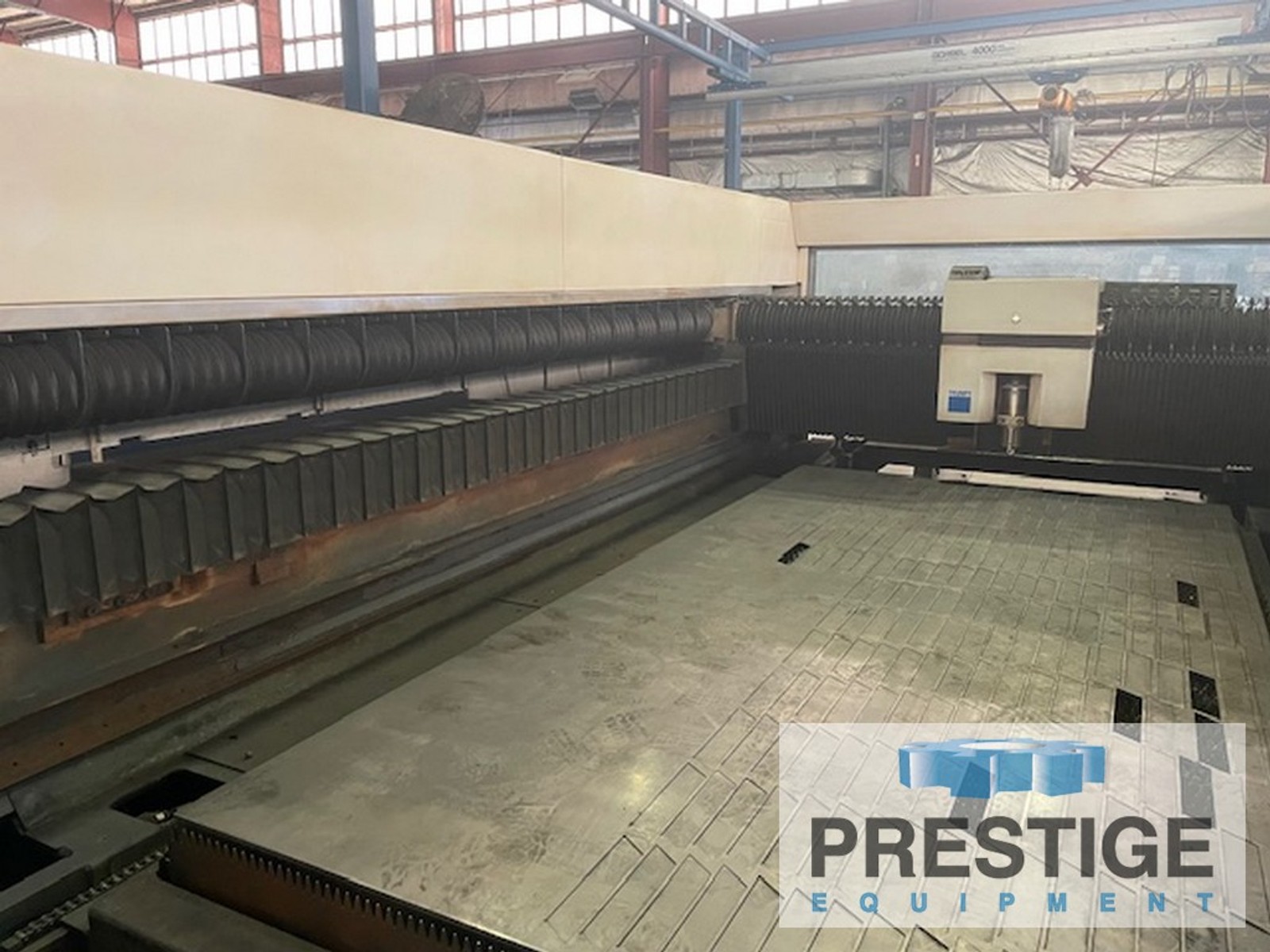

Non-Contact Cutting Head

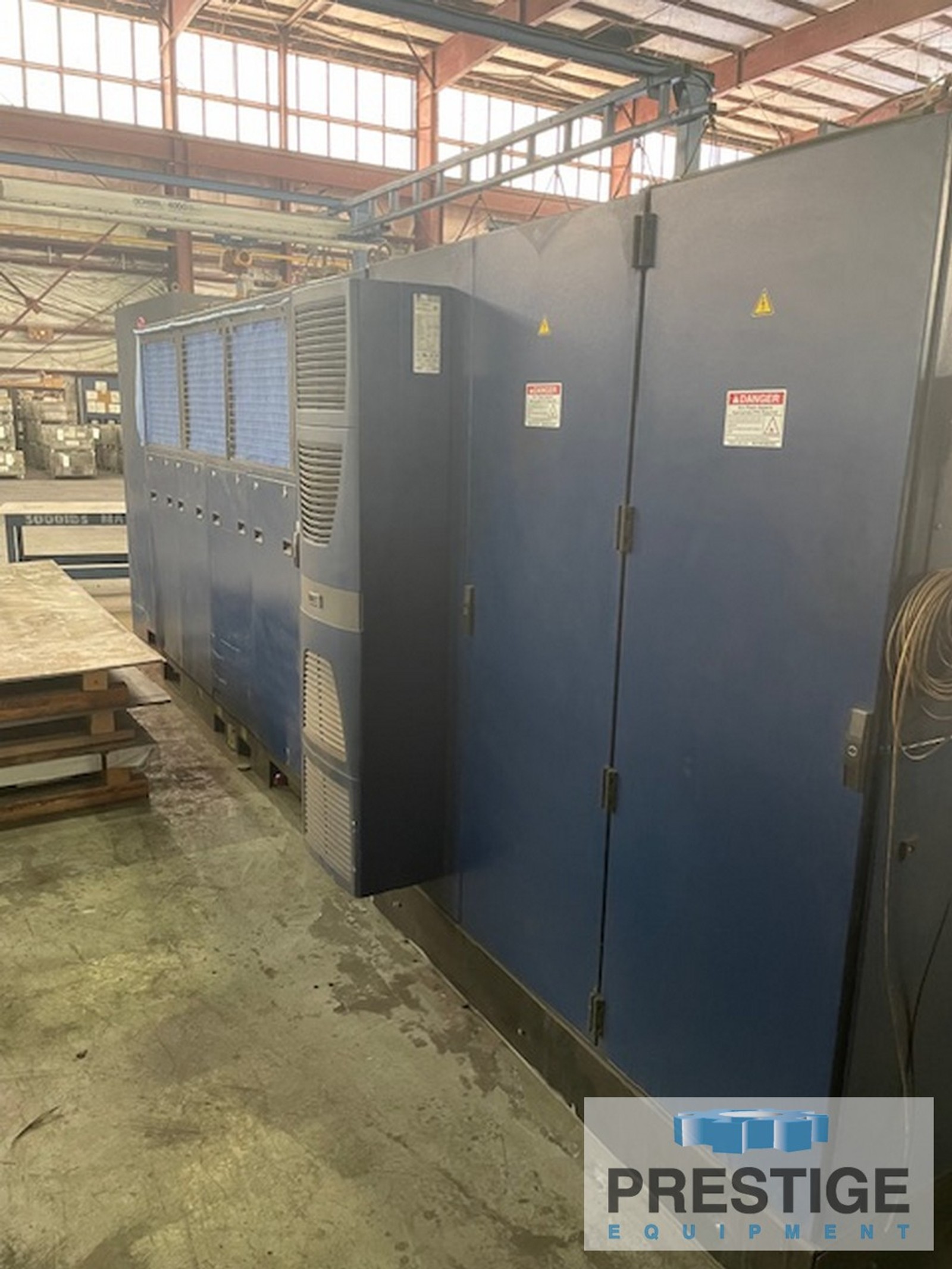

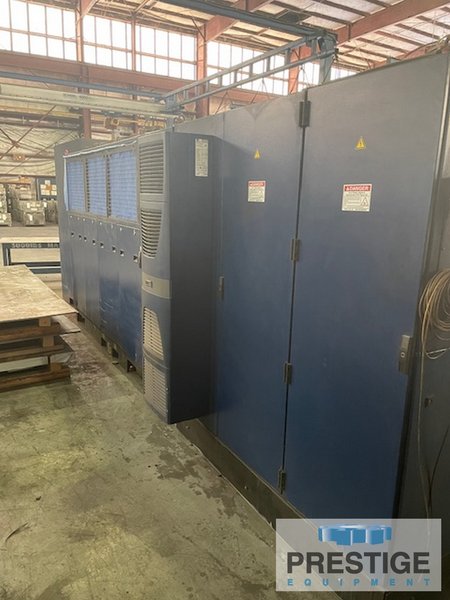

Chiller
Dust Collector

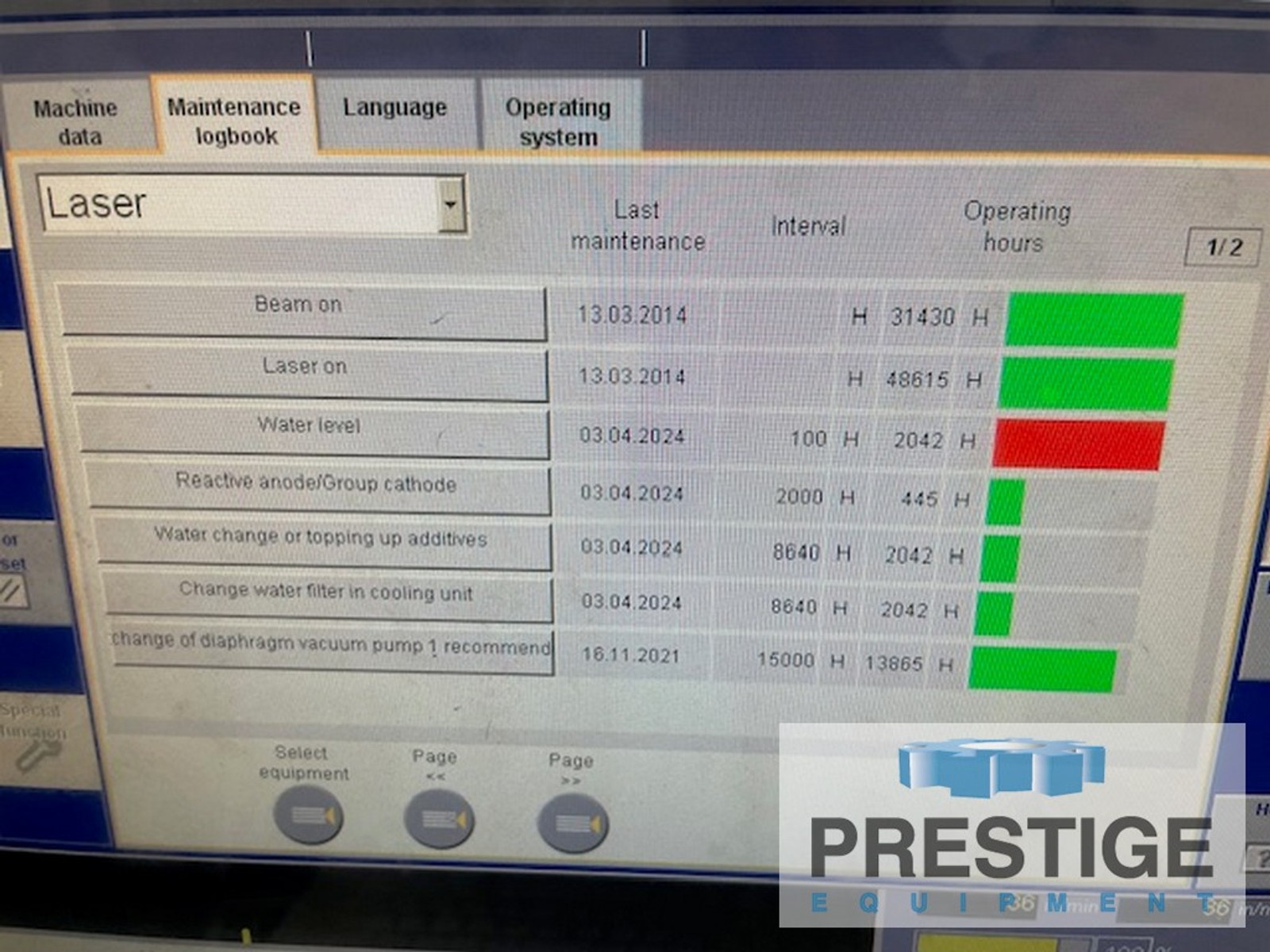

HOURS:
31,430 Beam on Hours

NOTE:
New Vaccum Pump 4/22/24. Inspect Under Power In Plant
