5.3" Hyundai Wia KBN-135C, X-118", Y-78", Z-27.5", W-63", 2,500 RPM, 78" x 70" R.Tab, Fanuc 31iA CNC, 2014, #43505

Manufacturer

HYUNDAI WIA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43505

Model

KBN-135C

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43505

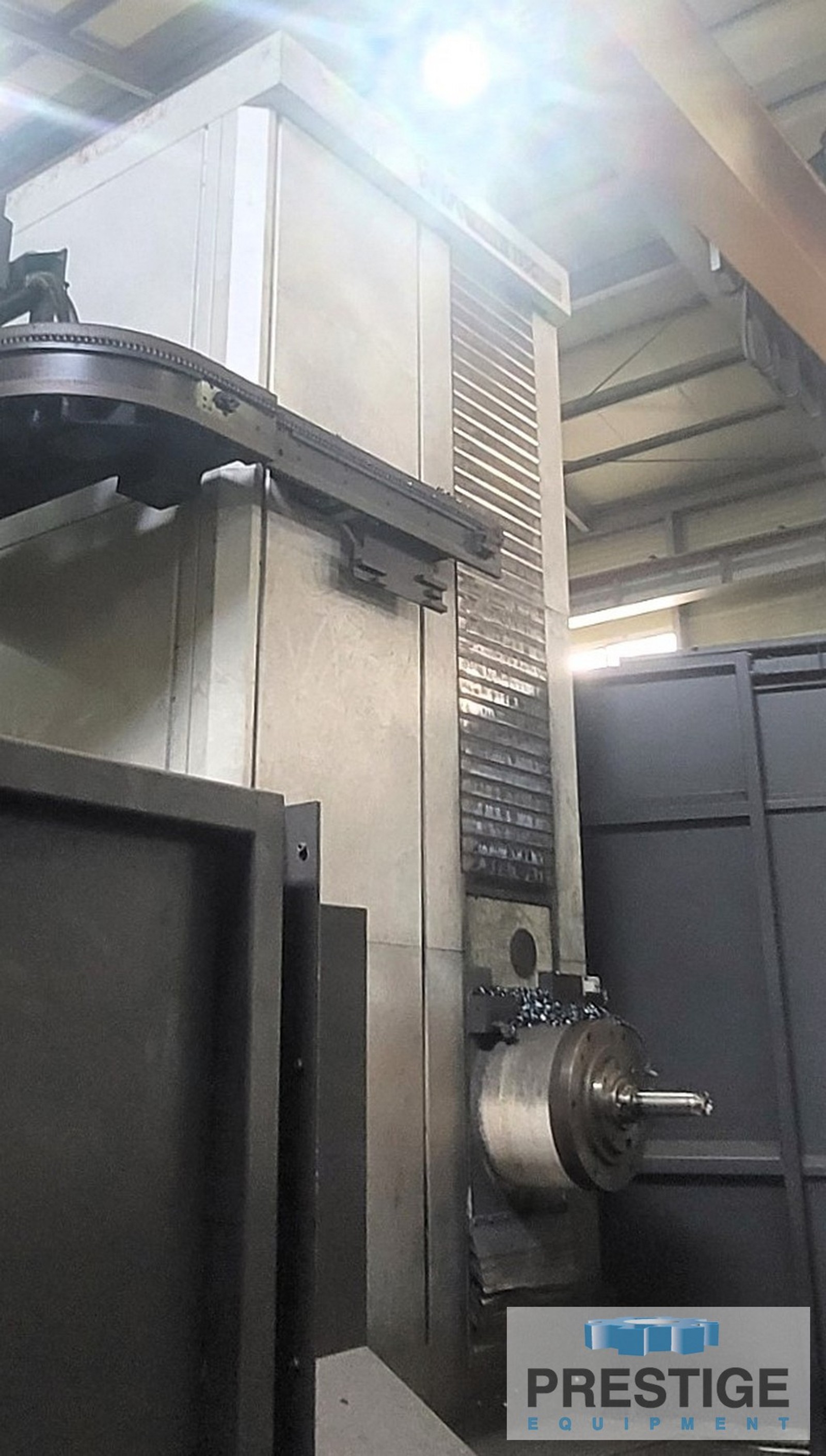

5.3" Hyundai Wia KBN-135C CNC Table Type Horizontal Boring Mill

FEATURES:

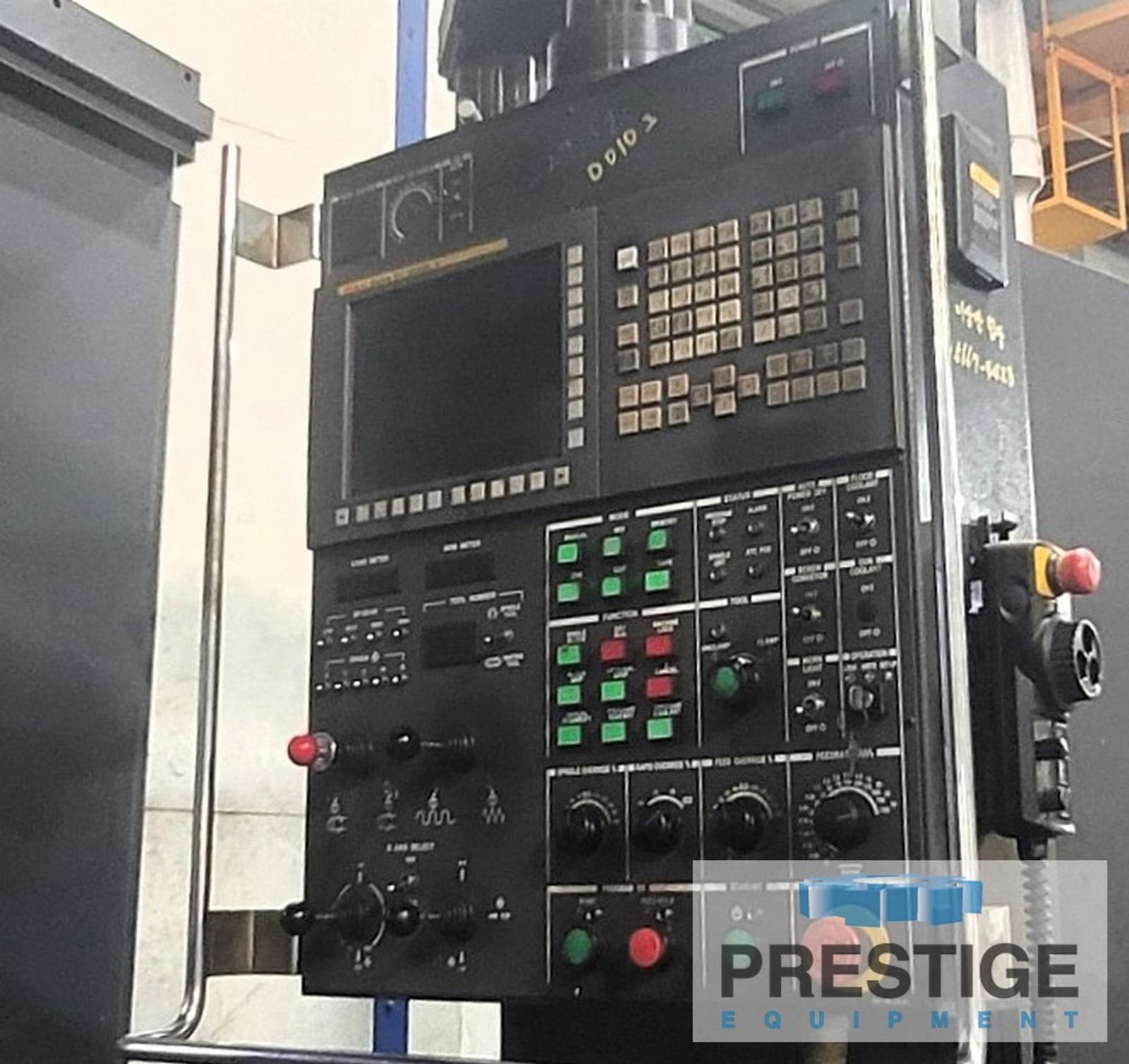

Fanuc 31iA CNC Control

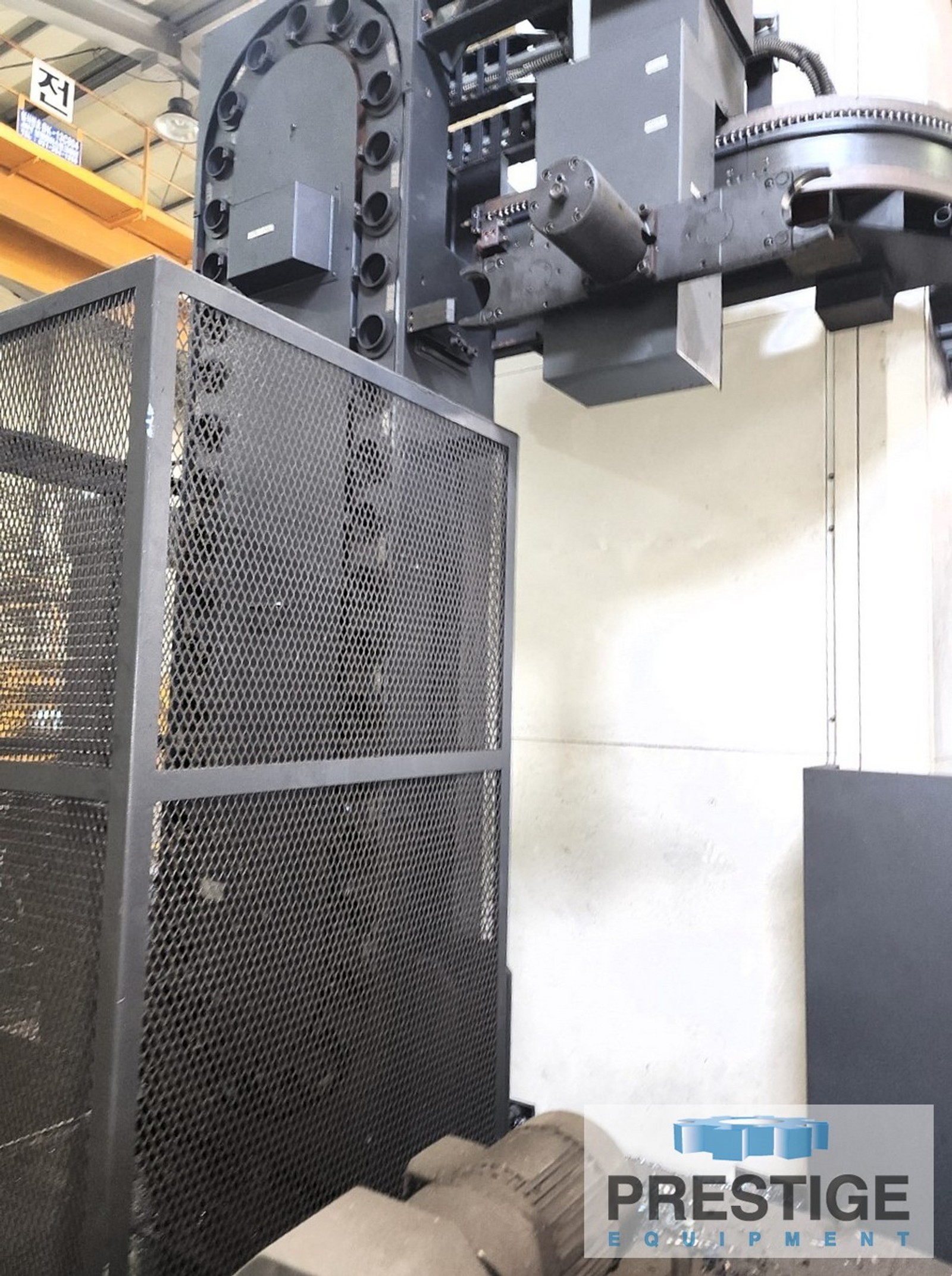

40-Station Automatic Tool Changer
Full B-Axis Contouring

SPECIFICATION:
Spindle Diameter ...................... 5.3"
X-Axis Travel ......................... 118.11"
Y-Axis Travel ......................... 78.74"
Z-Axis Travel ......................... 27.55"
W-Axis Travel ......................... 62.99"
B-Axis Rotation ....................... .001°

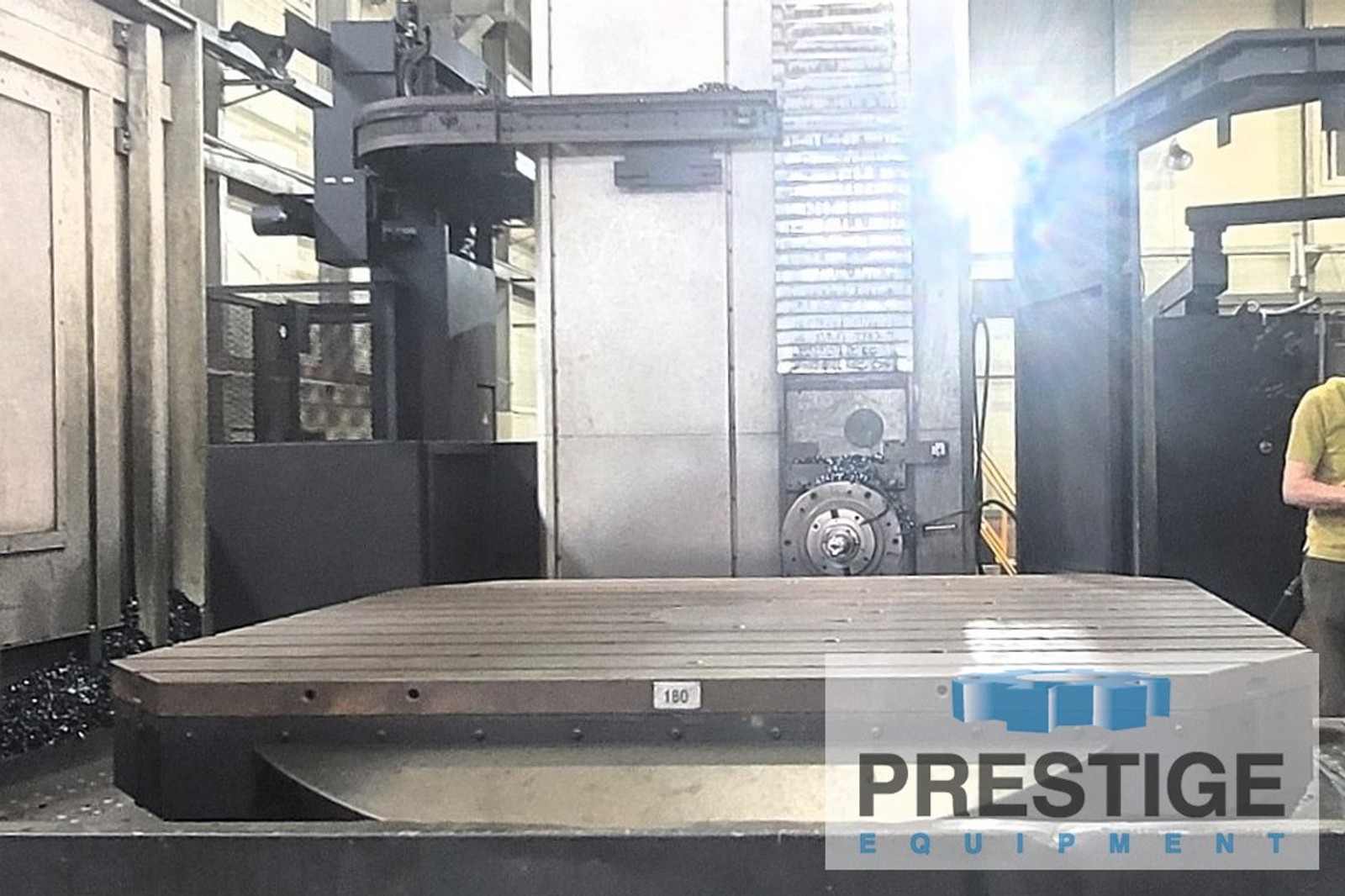

Table Dimensions ...................... 78.74" x 70.86"
Table Weight Capacity ................. 33,000 Lbs
Spindle Speed ......................... 2,500 RPM
Spindle Motor ......................... 29 HP

EQUIPPED WITH:
Fanuc 31iA CNC Control
40-Station Automatic Tool Changer
Full B-Axis Contouring
29 HP Spindle Motor
Table Enclosure
Scales
Chip Conveyor
