Trumpf TruBend 5130 8-Axis, 143 Ton, 127" OA, 106" BH, 6-Axis B.G., Upper/Lower Clamping, Crowning, #43499

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43499

Model

TruBend 5130

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43499

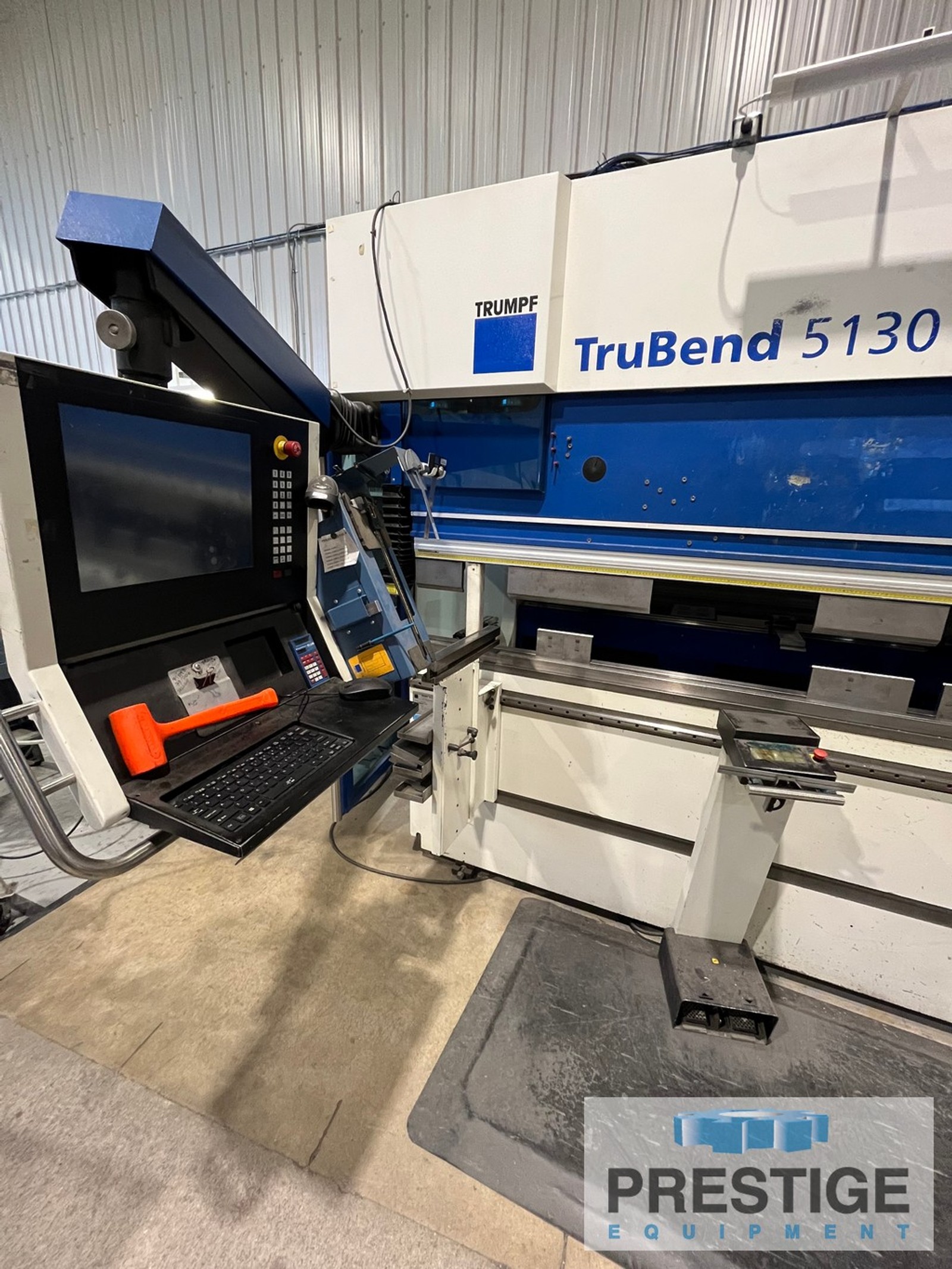

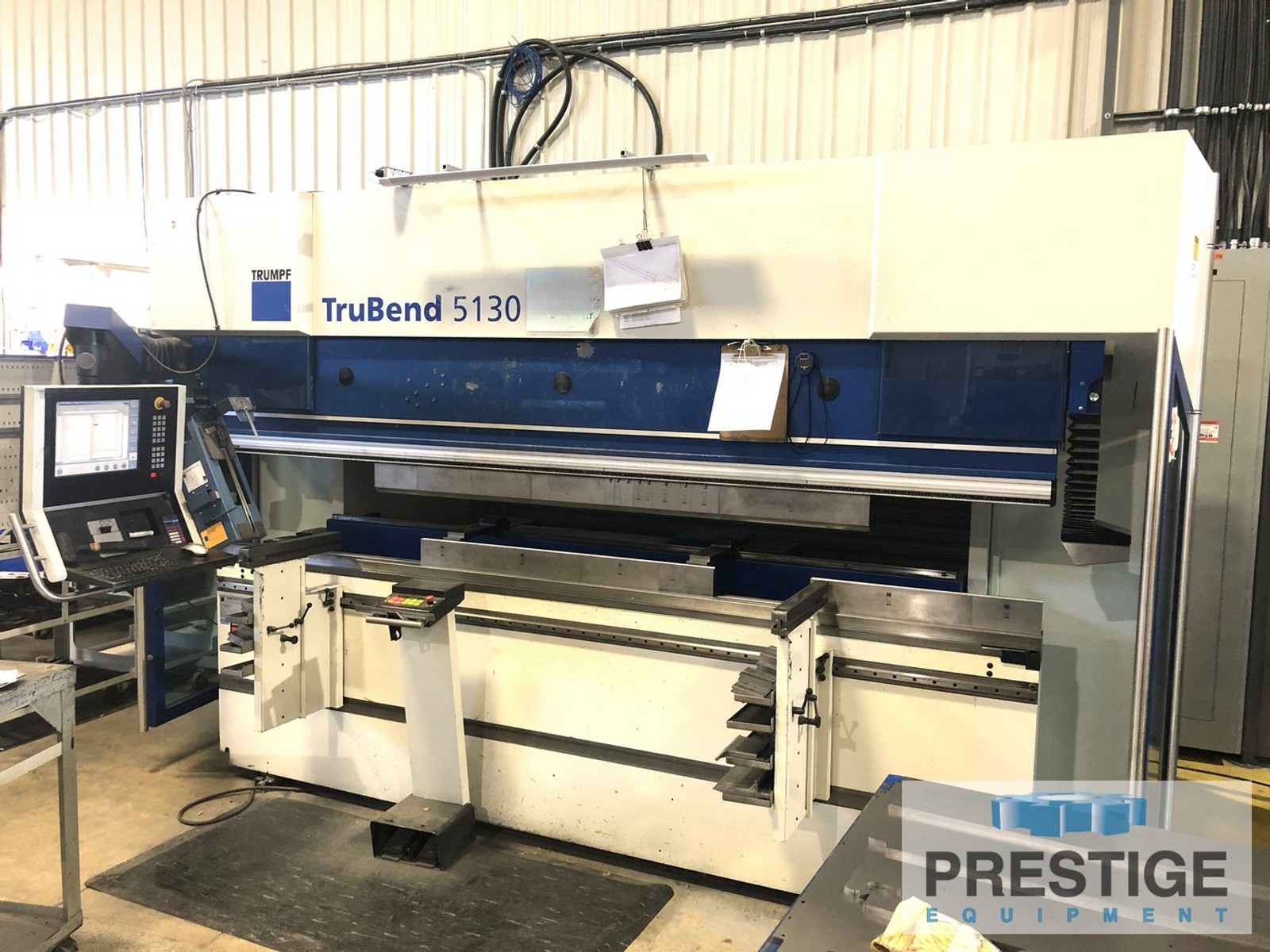

Trumpf TruBend 5130 6-Axis CNC Hydraulic Press Brake

FEATURES:

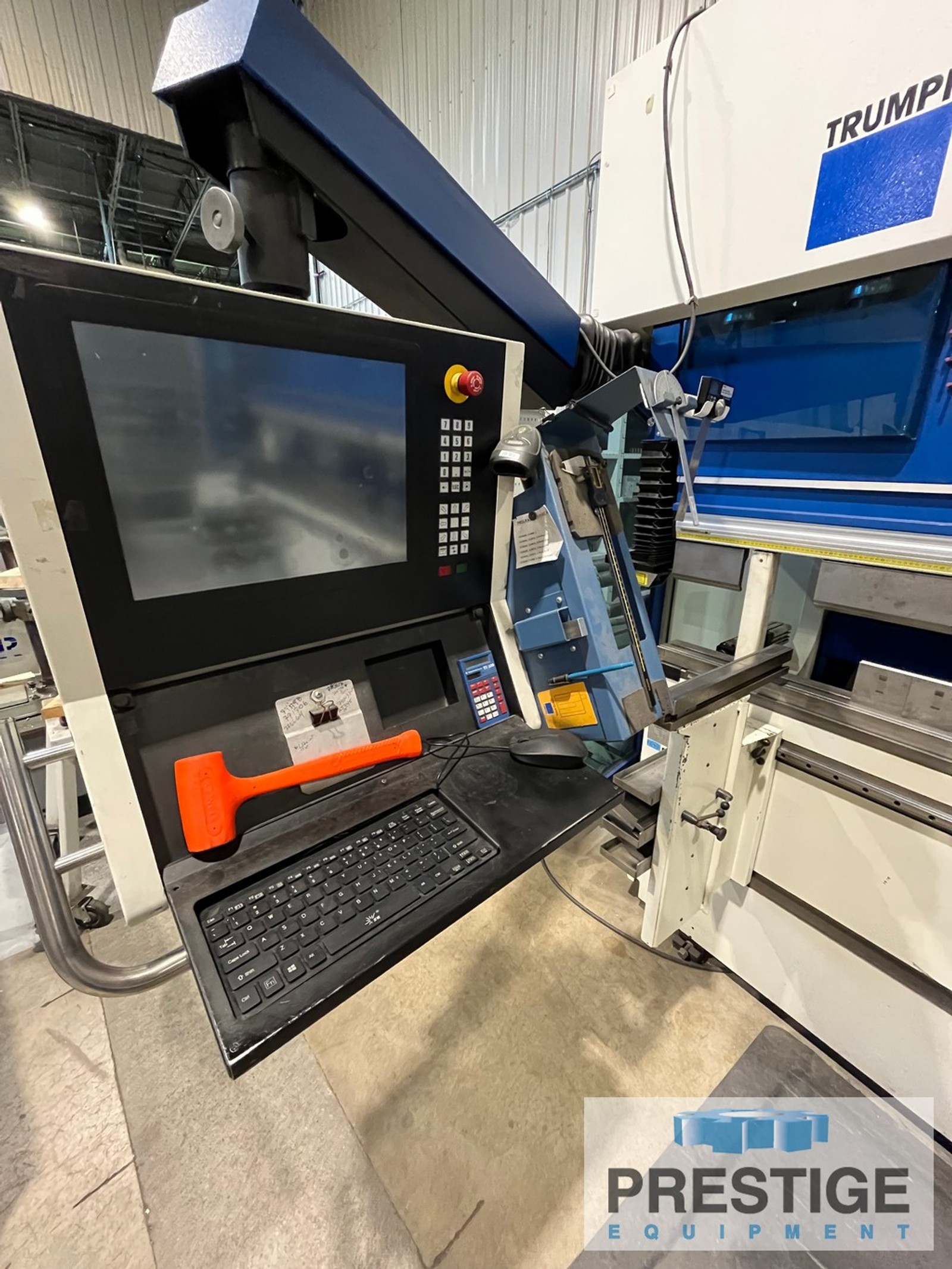

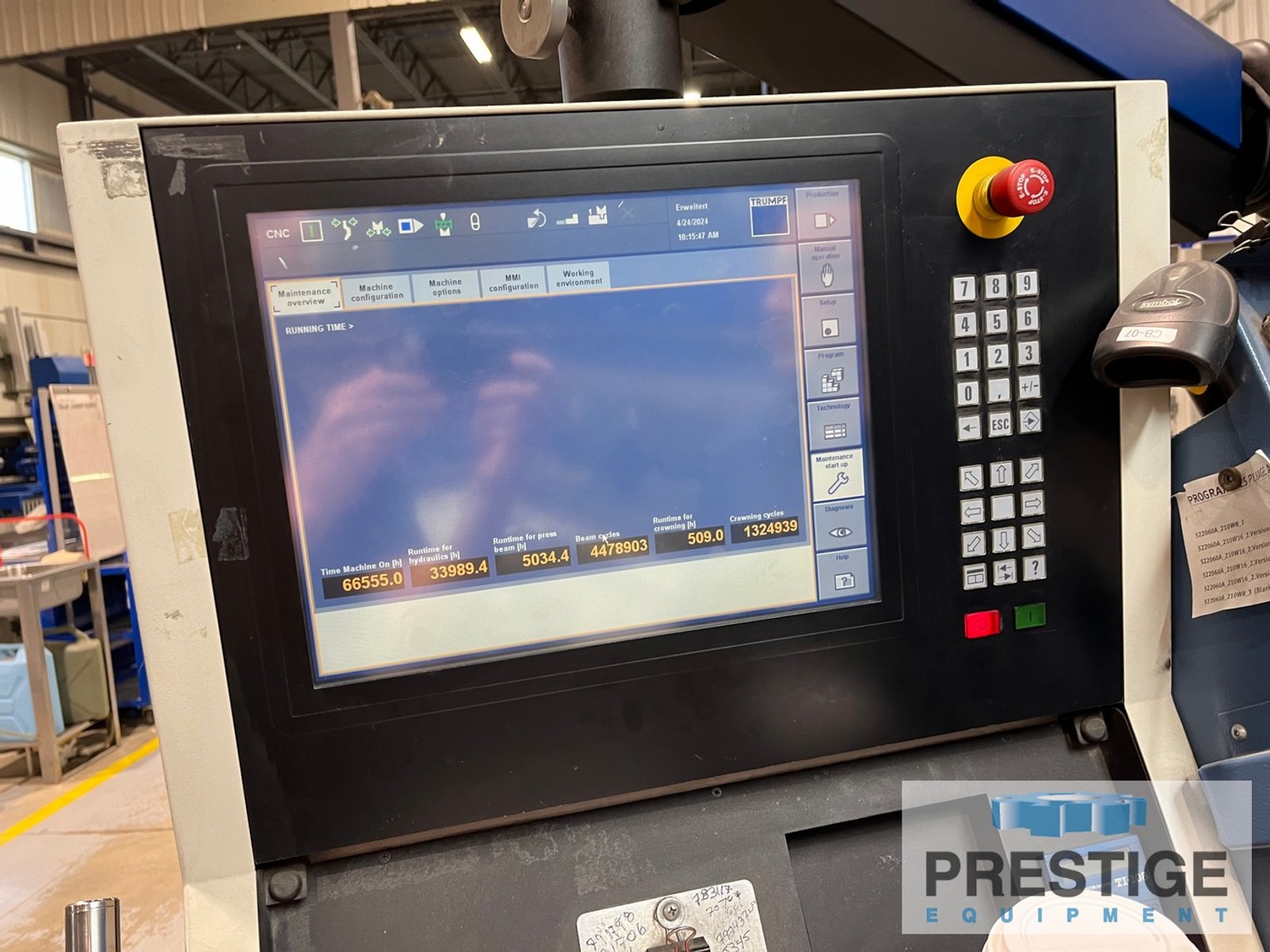

Trumpf CNC Press Brake Control

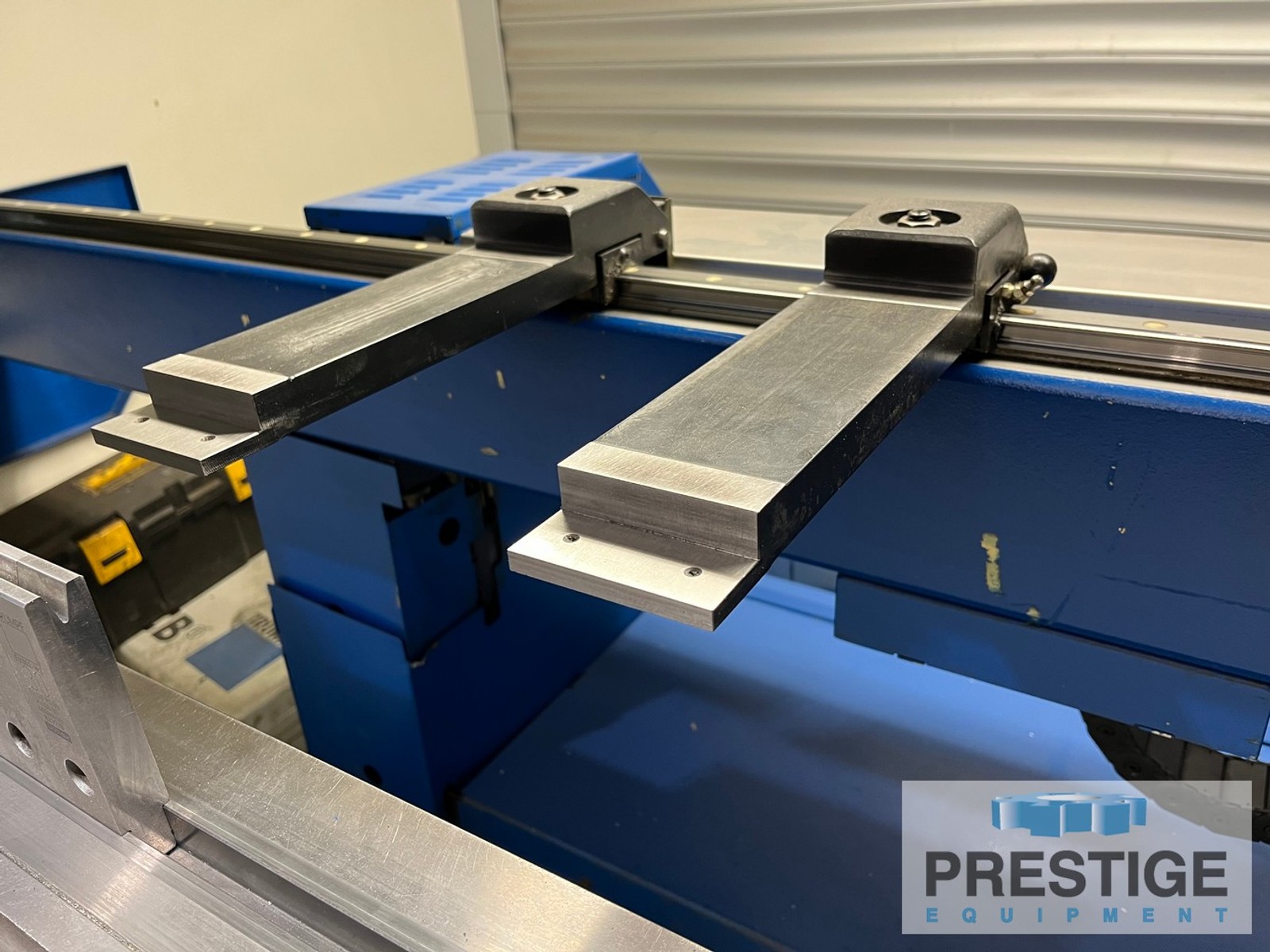

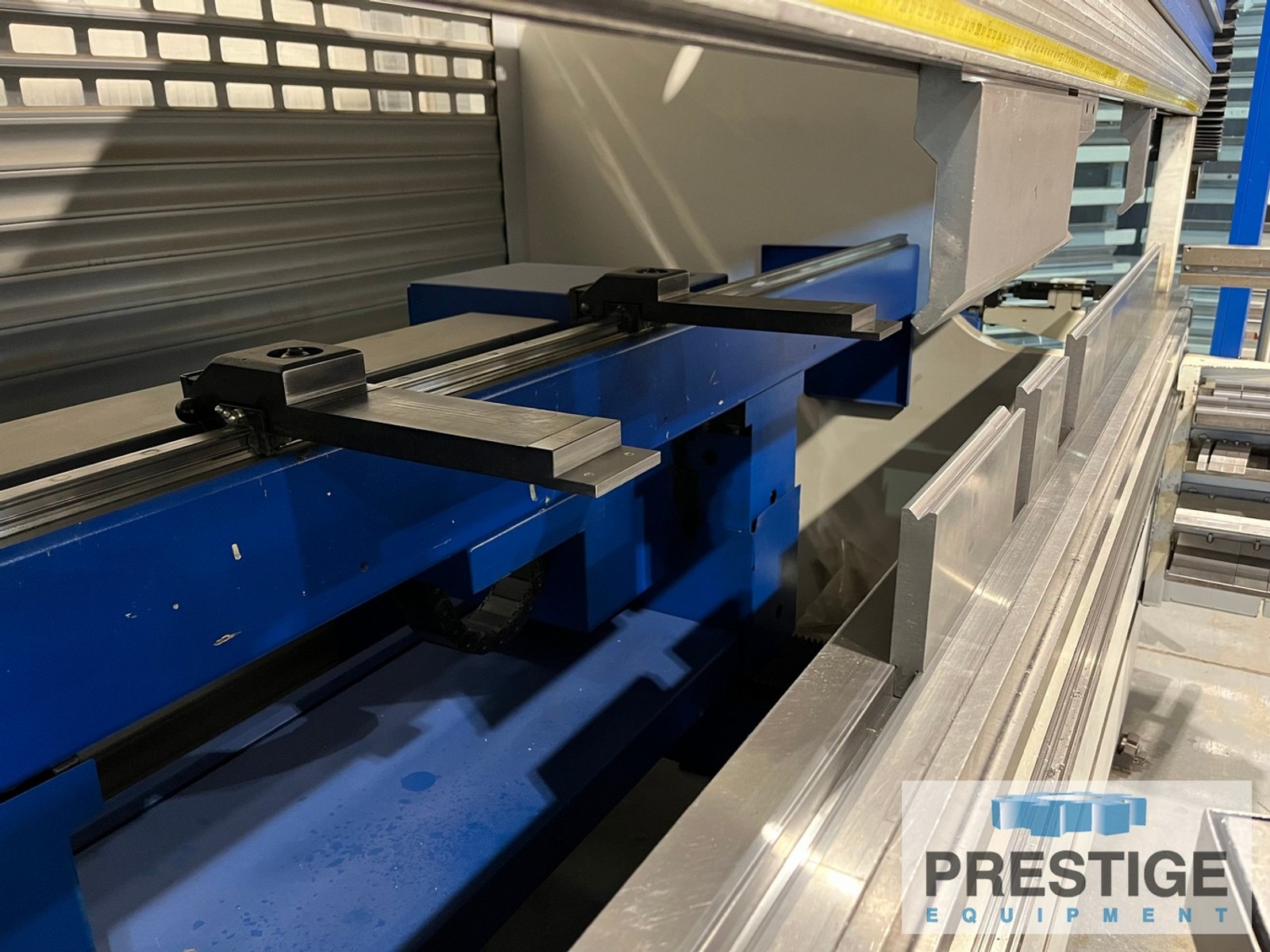

4-Axis CNC Back Gauge, R1,R2,X1,X2,Z1,Z2

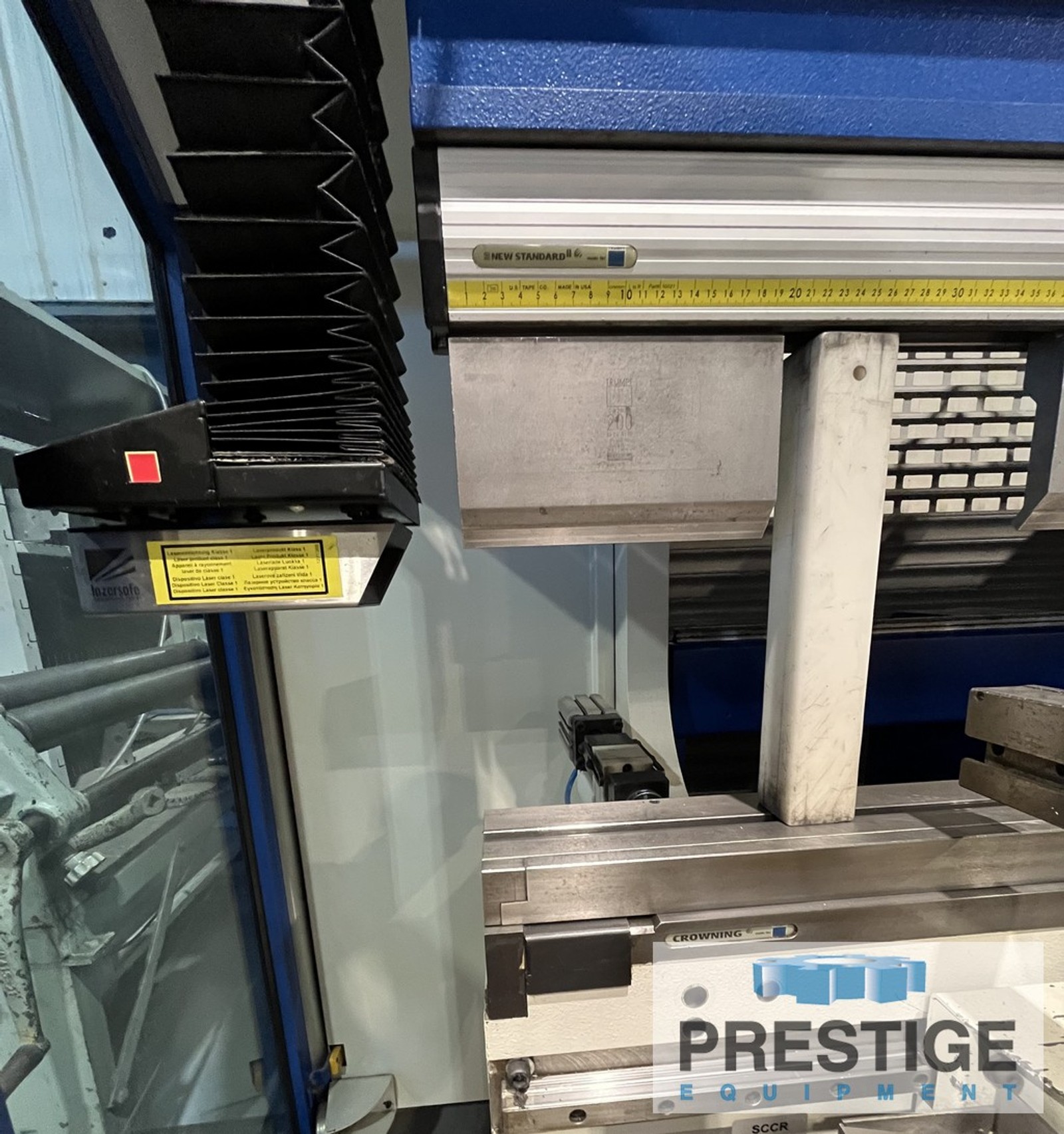

CNC Programmable Crowning
Upper & Lower Hydraulic Clamping
CNC I-Axis

CAPACITY:
Tonnage Capacity ...................... 143 Tons
Maximum Bending Length ................ 127"
Distance Between Housings ............. 106"
Stroke Length ....... ................ 8.46"
Throat Depth .......................... 16.50"
Travel In X-Axis ...................... 24"
Travel In R-Axis ...................... 10"
Operating Speed in X-Axis ............. 2362 IPM
Operating Speed in Y-Axis ............. 520 IPM
Operating Speed in R-Axis ............. 780 IPM
Operating Speed in Z-Axis ............. 2362 IPM
Weight ................................ 24,034 Lbs.

EQUIPPED WITH:
Trumpf CNC Press Brake Control
4-Axis CNC Back Gauge, R,X,Z1,Z2
CNC Programmable Crowning
Upper & Lower Hydraulic Clamping
CNC I-Axis
ACB Angle Sensor Tool
Safety Light Curtain
(2) Sheet Supports

NOTE:
Inspect In Plant Under Power
