Cincinnati Gilbert Macrocenter, 120", Y-98", 1500 RPM, 60" x 120" Table, 30,000 Lb. Capacity, Fanuc OM CNC, #43520

Manufacturer

CINCINNATI GILBERT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43520

Model

Macrocenter

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43520

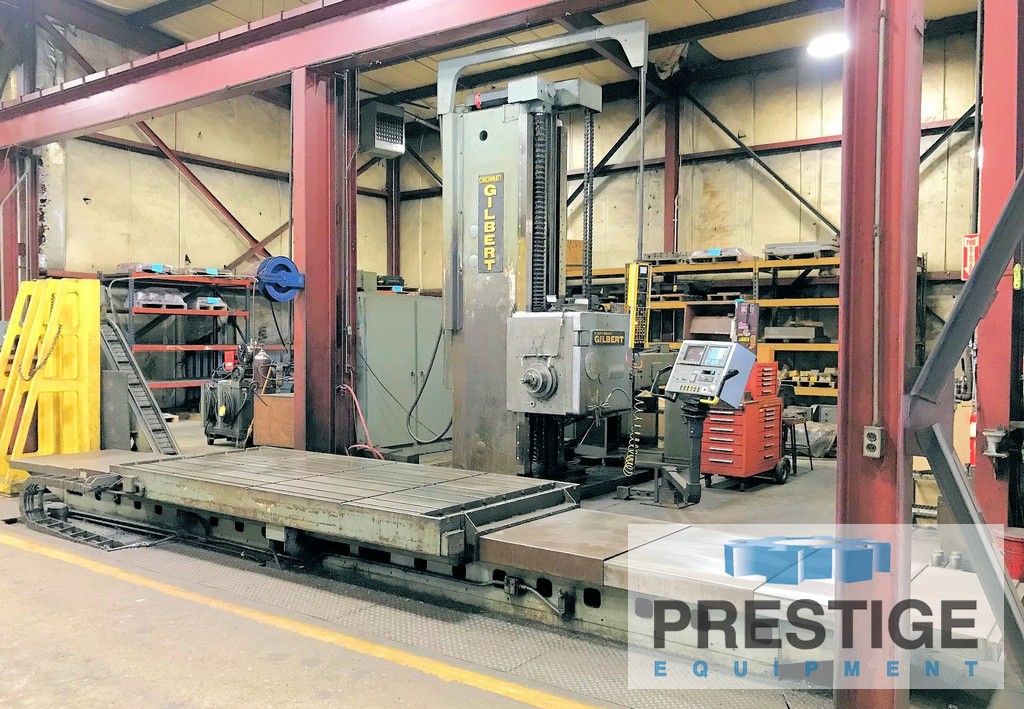

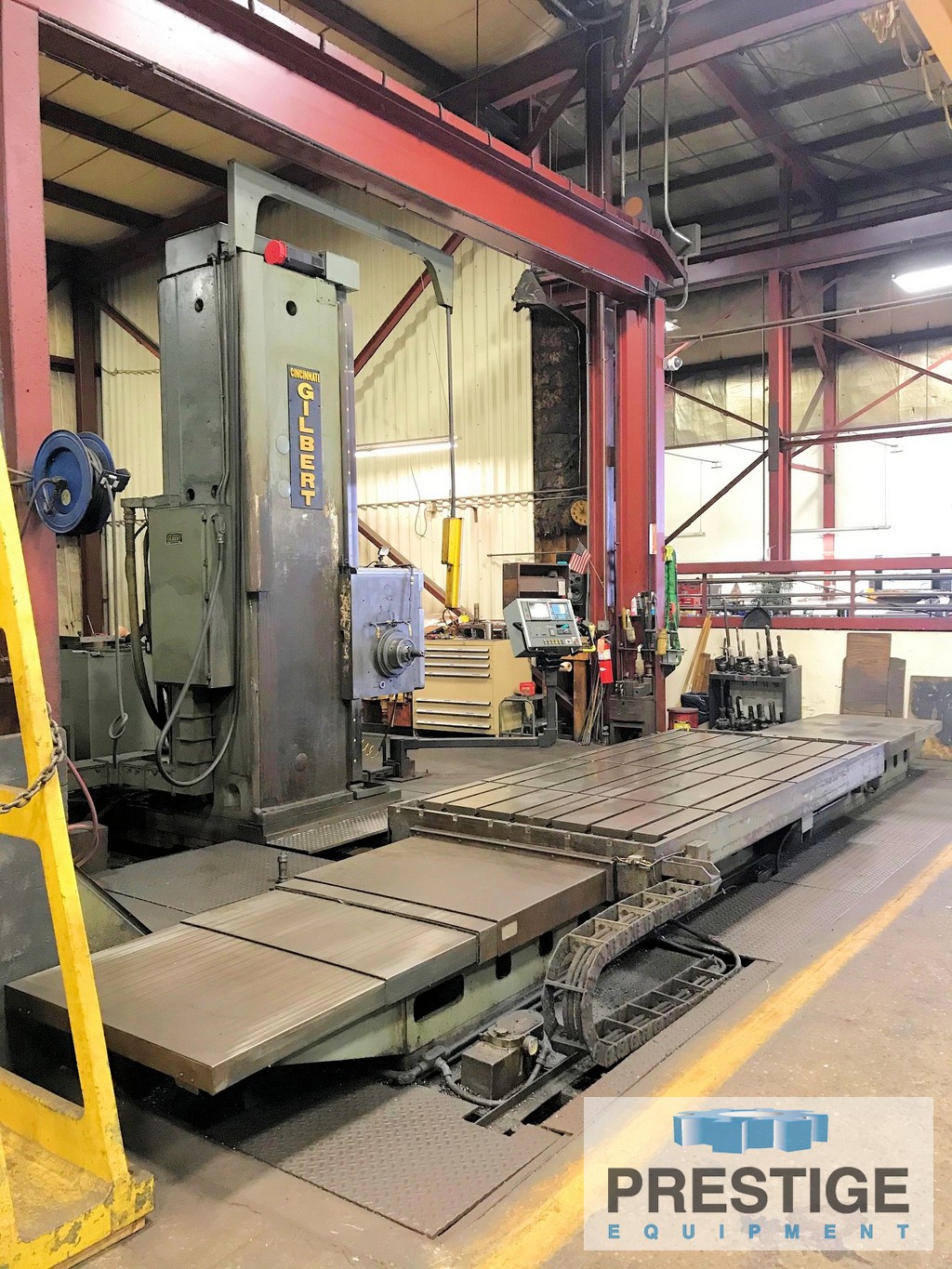

Cincinnati-Gilbert MacroCenter 5" CNC Table Type Horizontal Boring Mill

FEATURES:
Fanuc OM CNC Control
T-Type Construction
30,000 Lb. Table Weight Capacity

CAPACITY:
Spindle Diameter ...................... 5"
Vertical Head Travel, Y-Axis .......... 120"
Table Travel, X-Axis .................. 98"
Column Infeed Travel, W-Axis .......... 60"
Spindle Travel, Z-Axis ................ 36"
Spindle Speeds ........................ 15-1500 RPM
Spindle Taper ......................... #50
Table Size ............................ 60" x 120"
Table Weight Capacity ................. 30,000 LBS

EQUIPPED WITH:

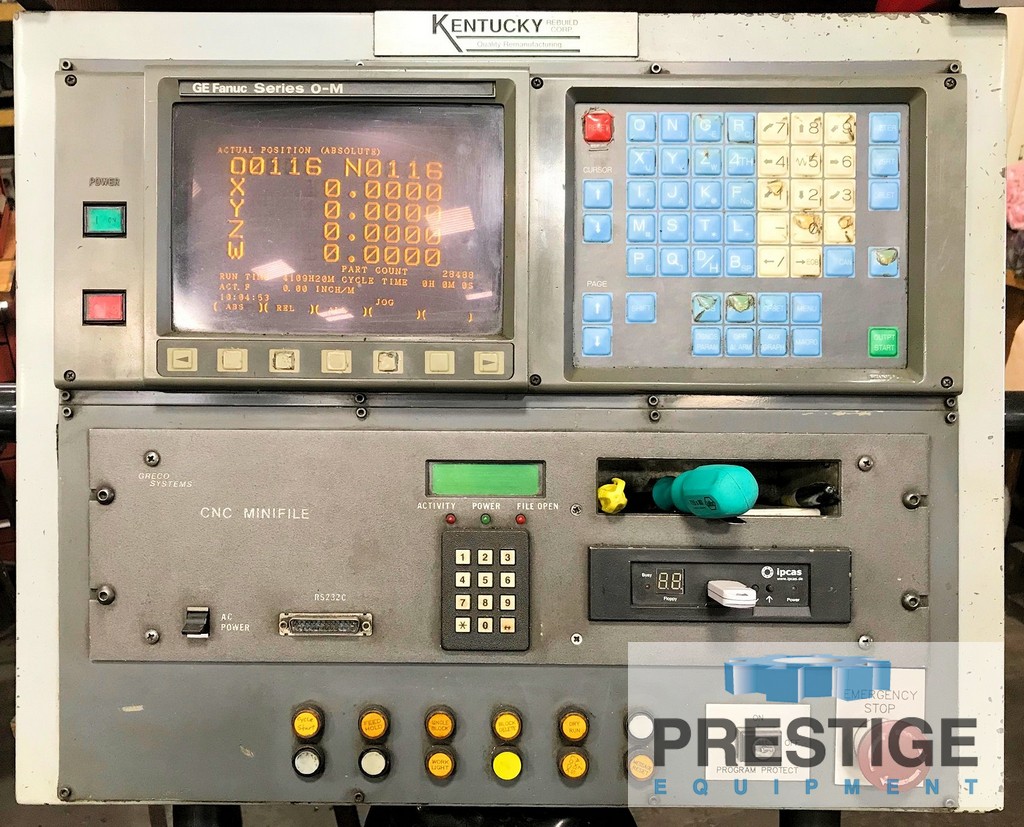

Fanuc OM CNC Control

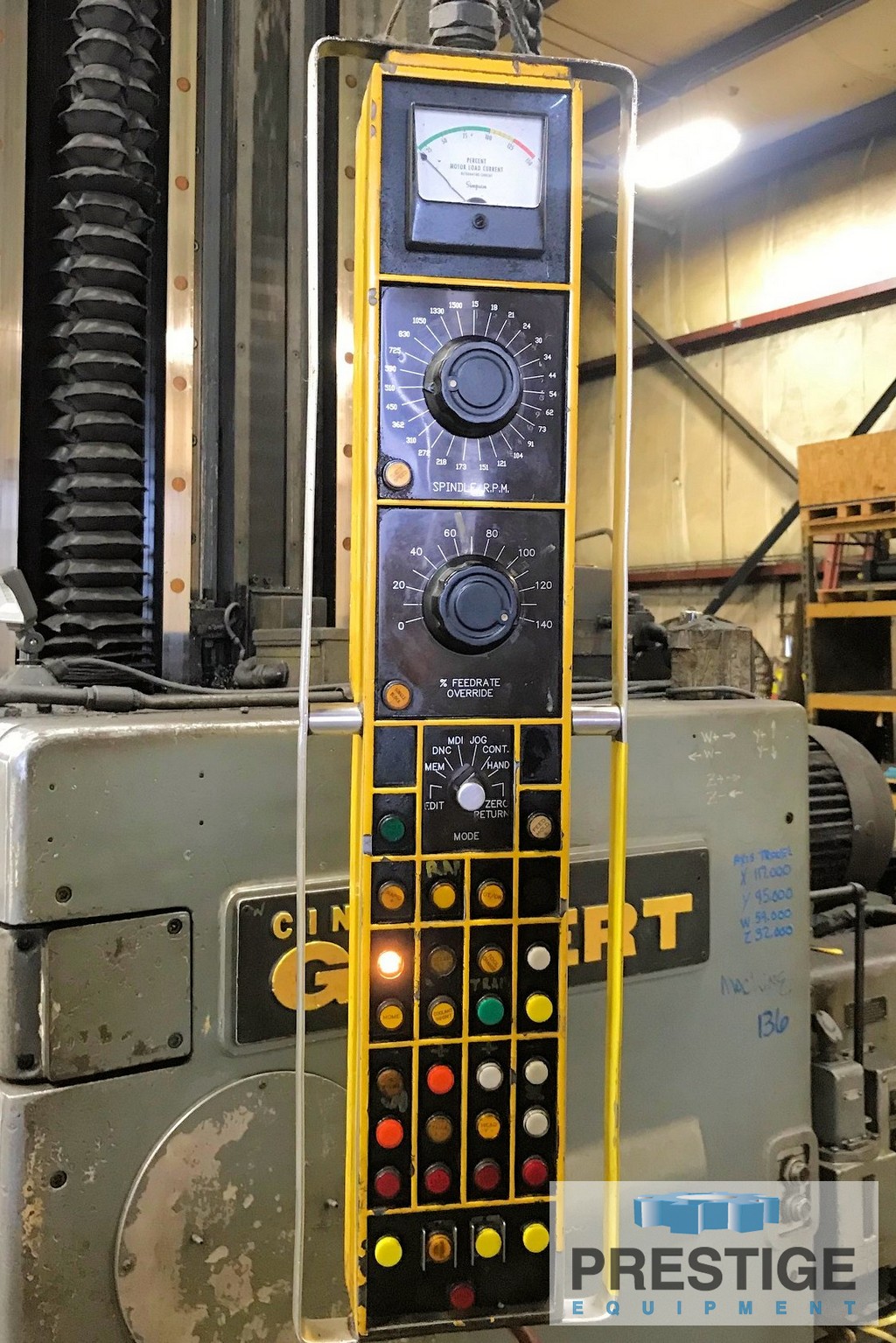

Pendant Control
Fanuc Red Cap Servo Motors
Ball Screws & Independent Servo Drives
Hardened Ways
30 HP Spindle Motor

NOTE:
Inspect in Plant Under Power
