HARTFORD HSA-4260 5-Face, X-157" , Y-102", Fanuc OiMD, 60 ATC, Right Angle Head, 2012, #43512

Manufacturer

HARTFORD

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43512

Model

HSA-4260

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43512

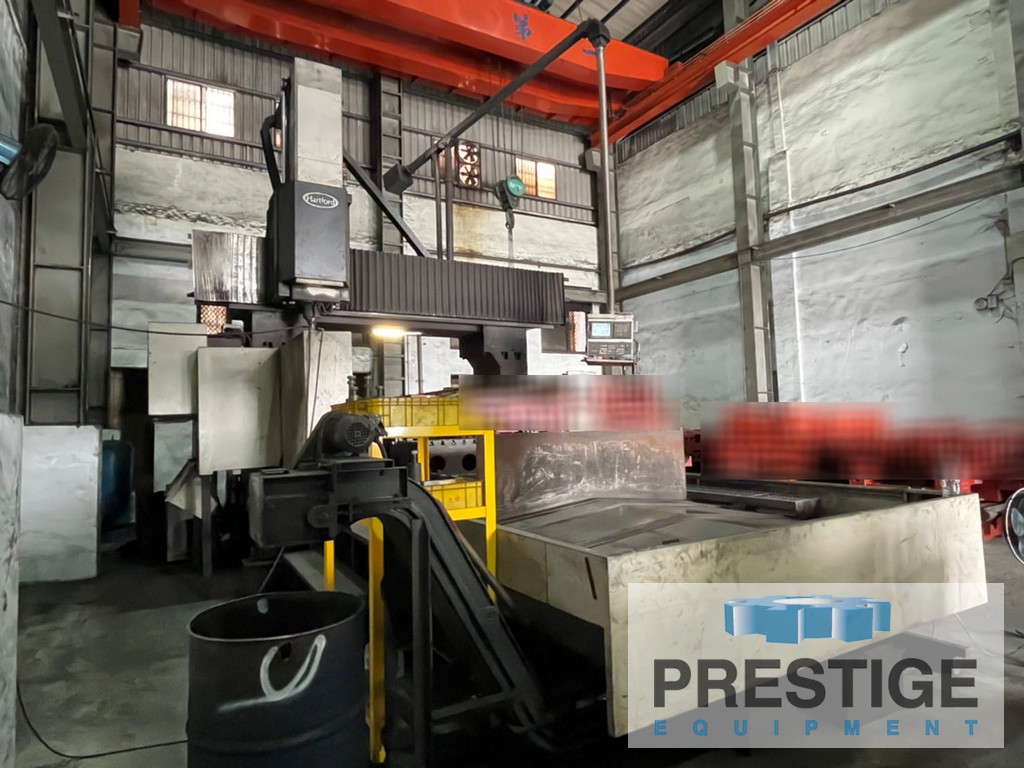

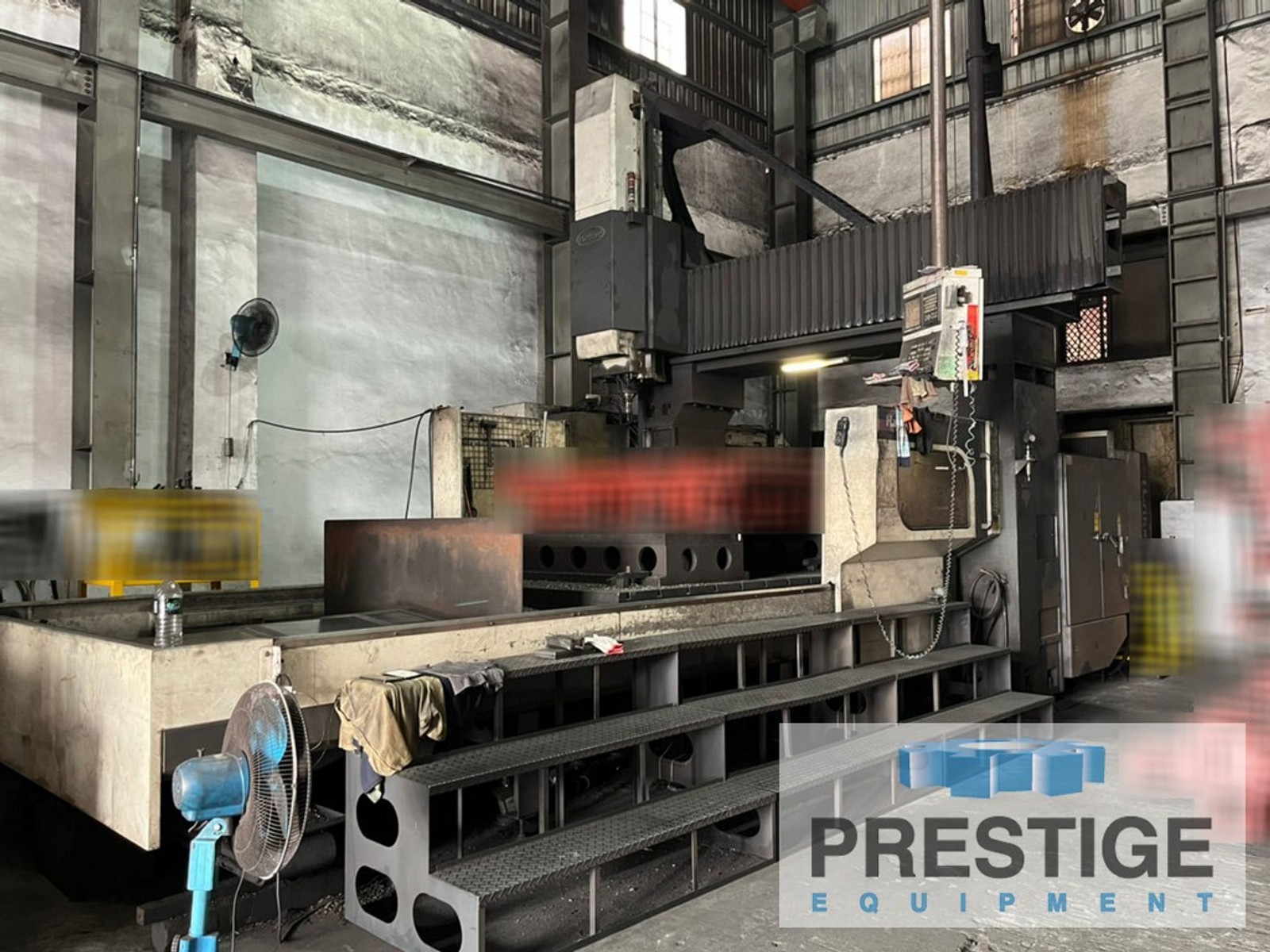

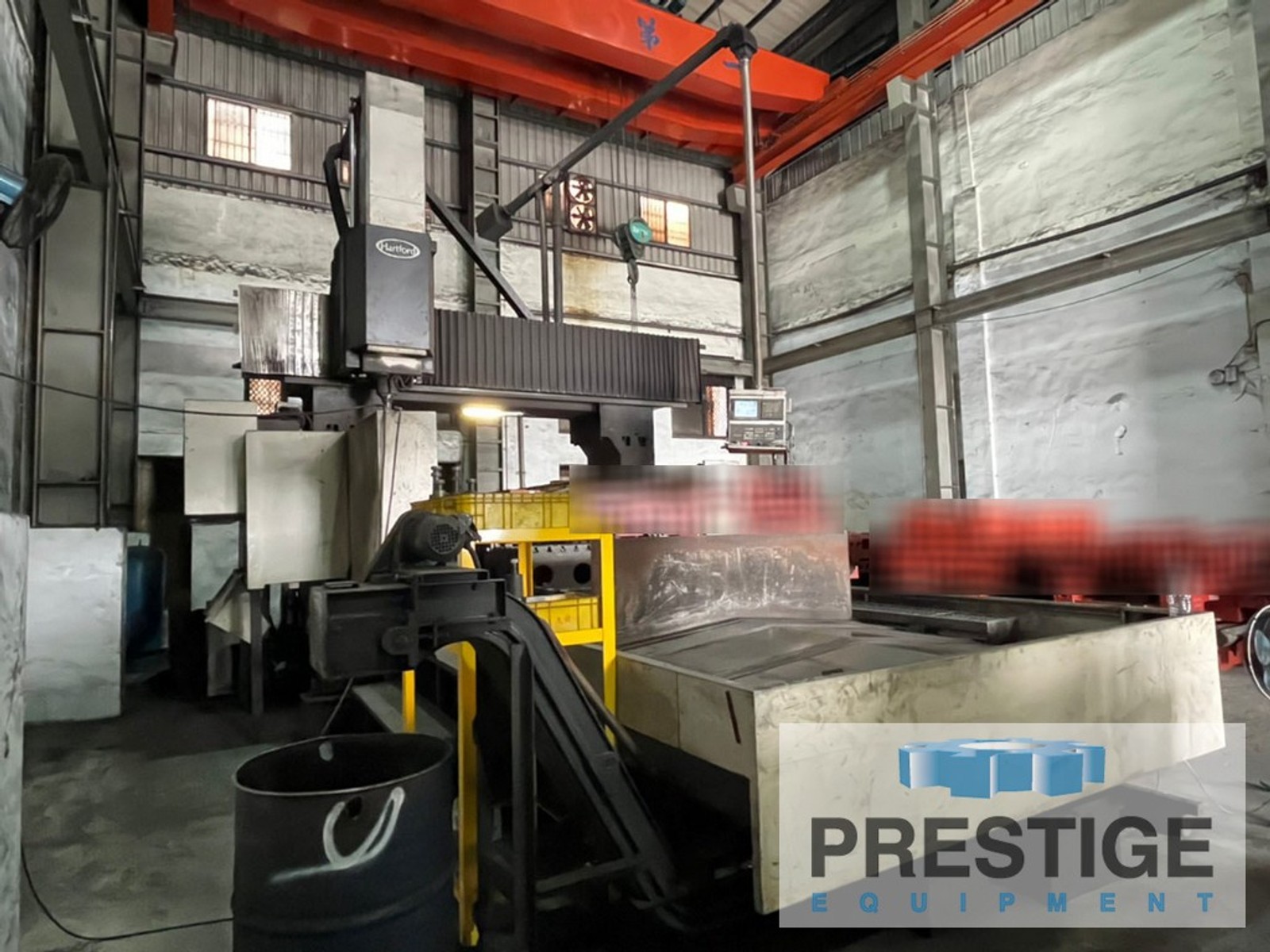

HARTFORD HSA-4260 5-Face Double Column Bridge Mill

FEATURES:
Fanuc OiMD CNC Control
60 Station Automatic Tool Changer
Right Angle Head
5-Face Machining

SPECIFICATIONS:
X-Axis, Table Travel .................. 157.48"
Y-Axis, Spindle Head Travel ........... 102.36"
Z-Axis, Vertical Travel ............... 39.37"
Distance Between Columns .............. 98.42"
Distance From Spindle Nose to Table ... 19.68"-61.02"
Table Size ............................ 161.41" x 84.25"
Table Load Capacity ................... 22,000 Lbs
Spindle Taper ......................... BT 50
Spindle Speeds (Gear) ................. 4,000 RPM
Spindle Motor ......................... 35 HP
Approximate Machiene Dimensions ....... 430" x 230"
Approximate Machine Weight ............ 99,000 Lbs.

EQUIPPED WITH:

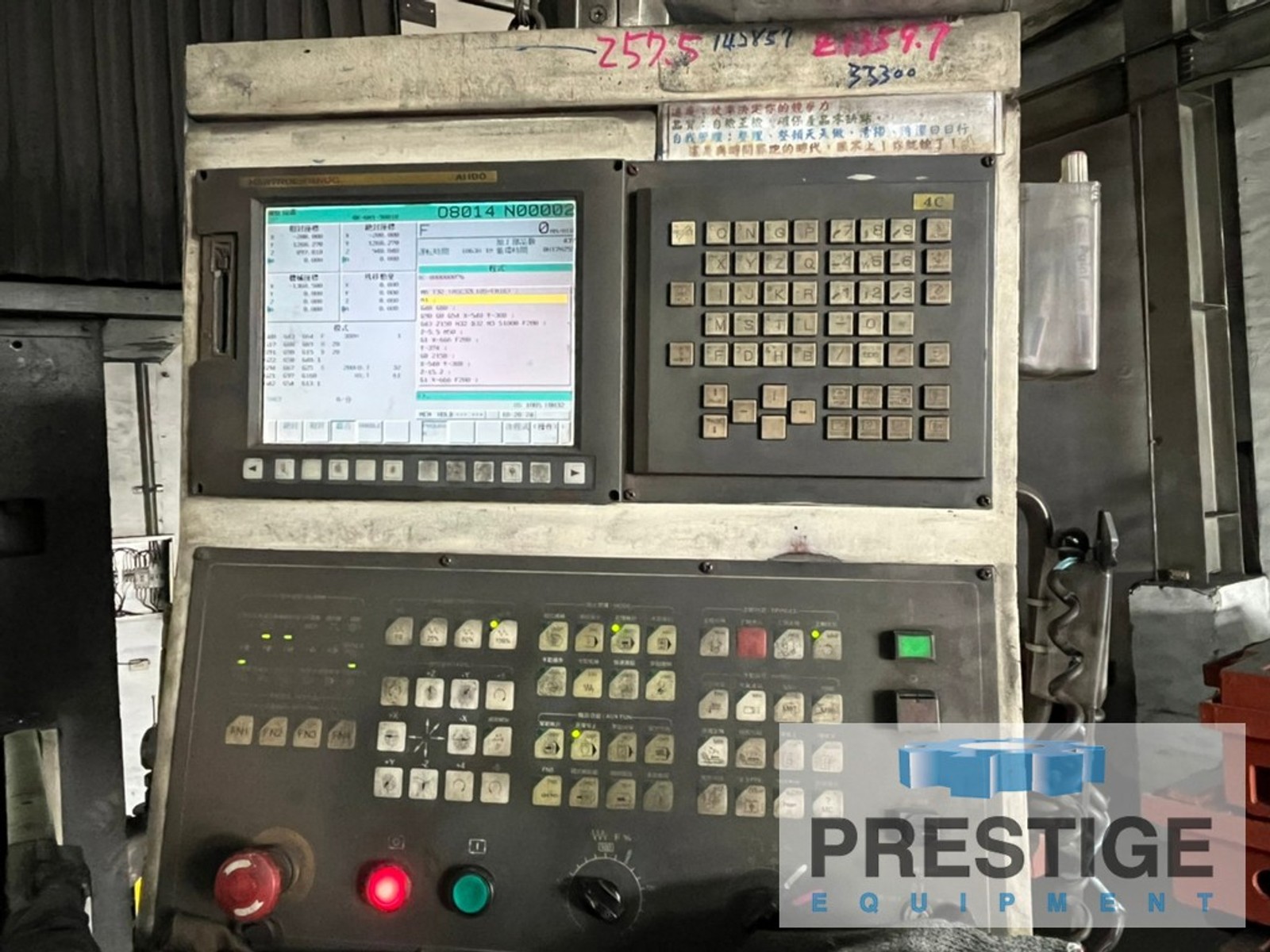

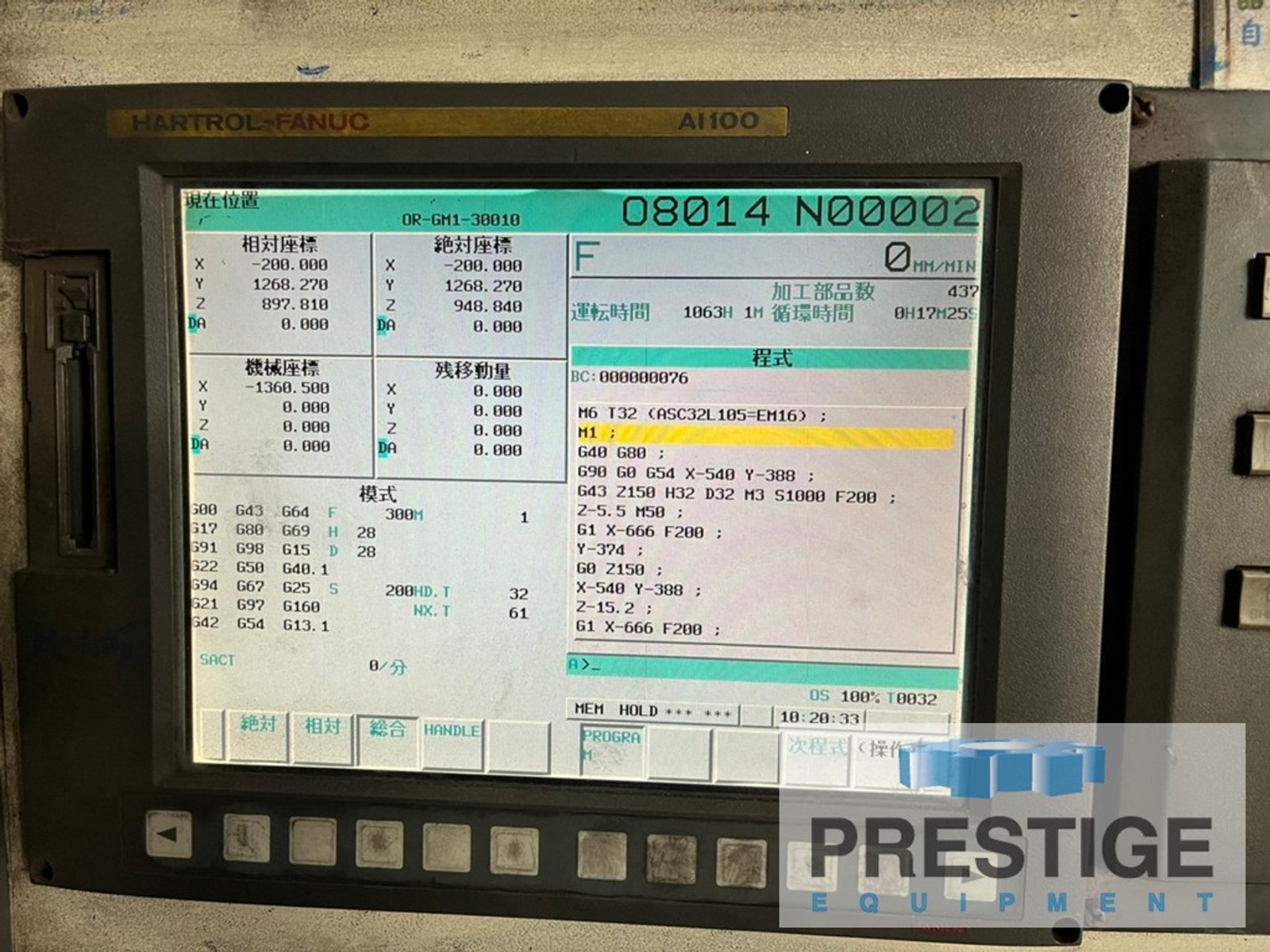

Fanuc OiMD CNC Control

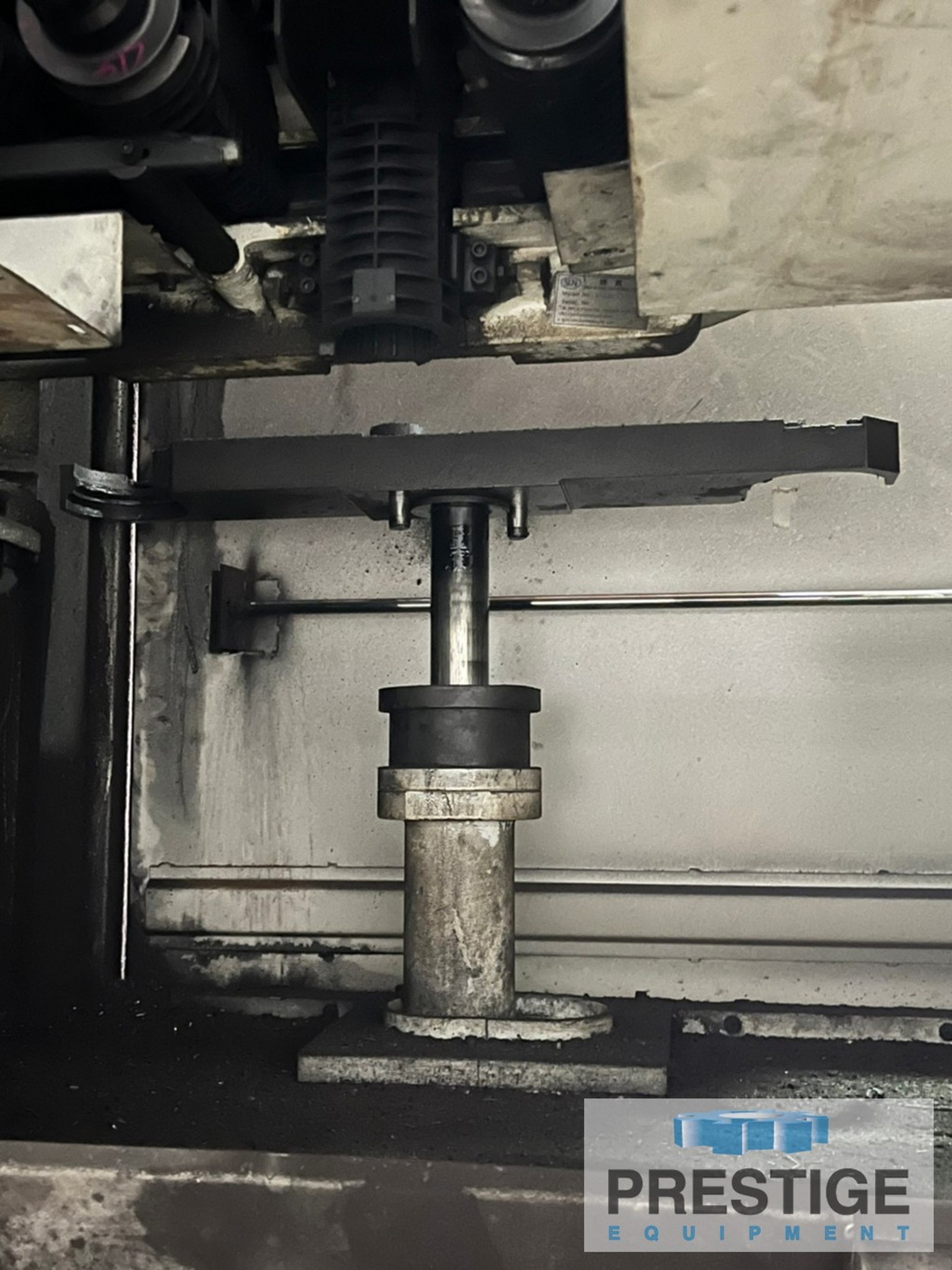

60 Station Automatic Tool Changer
X/Y Linear Way Construction
Z Axis Box Way Construction

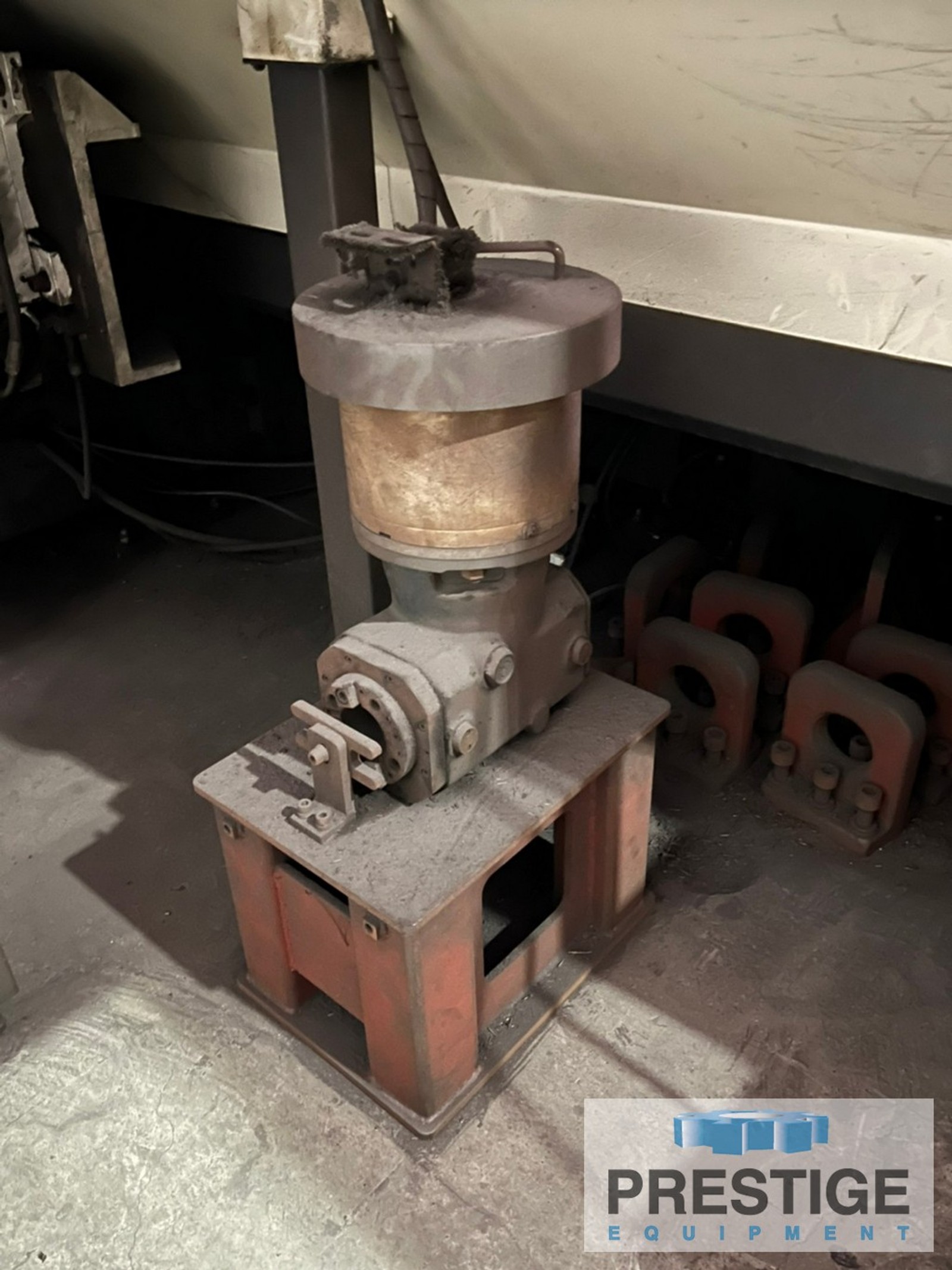

Manual Right Angle Head

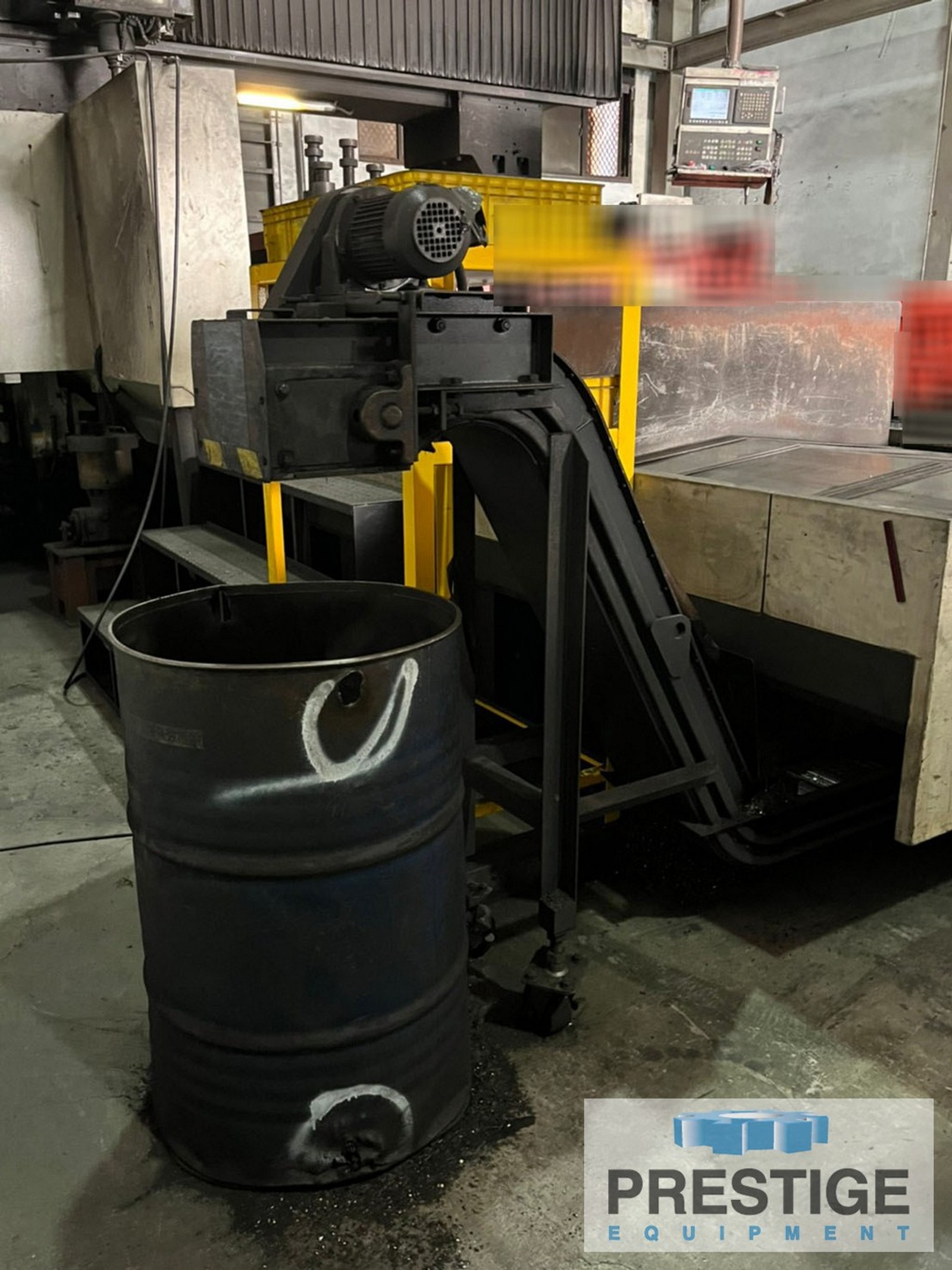

Chip Conveyor

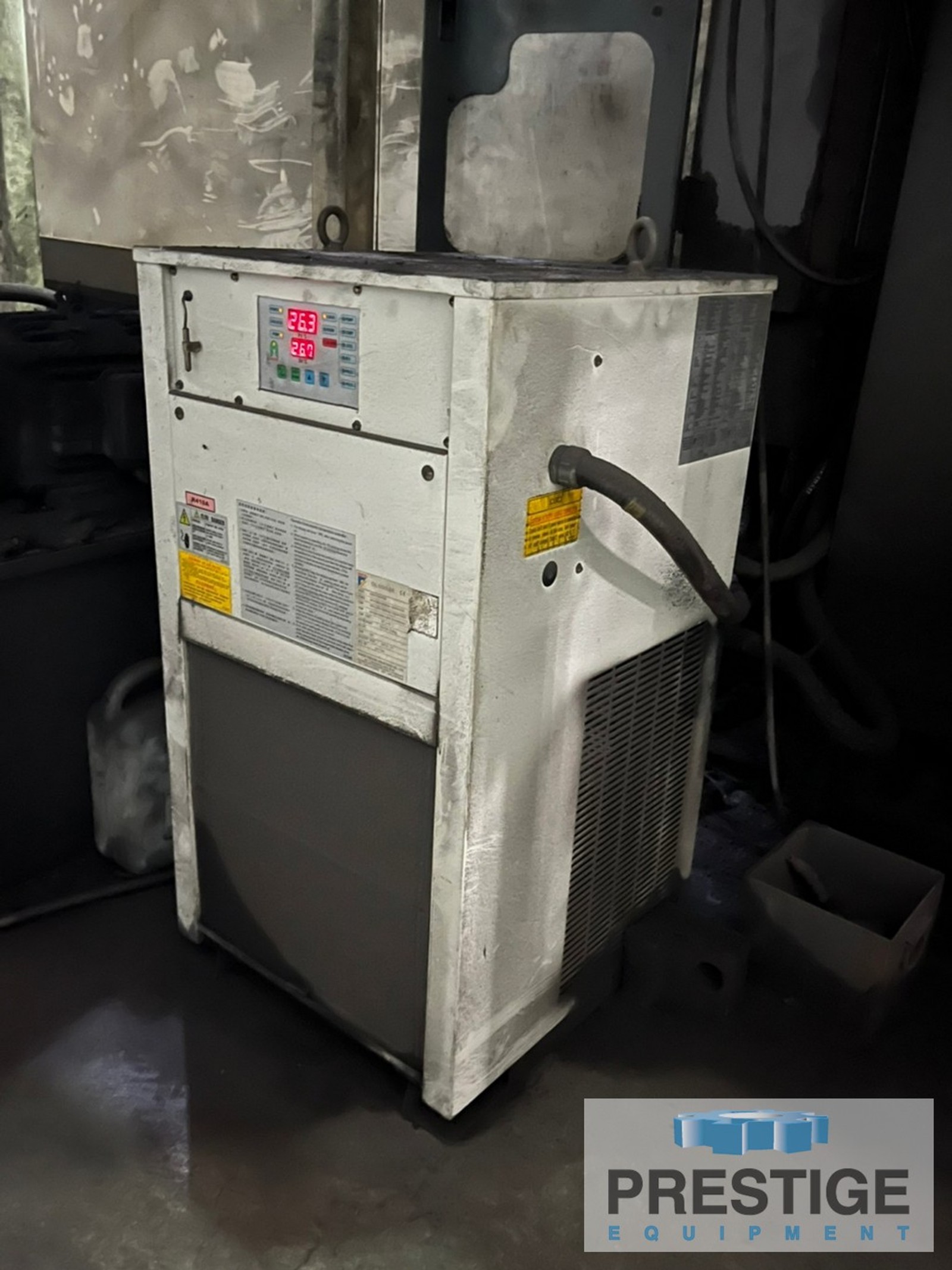

Spindle Oil Cooler
Heat Exchanger

NOTES:
5-Face Machining with Right Angle Head. Inspect Under Power
