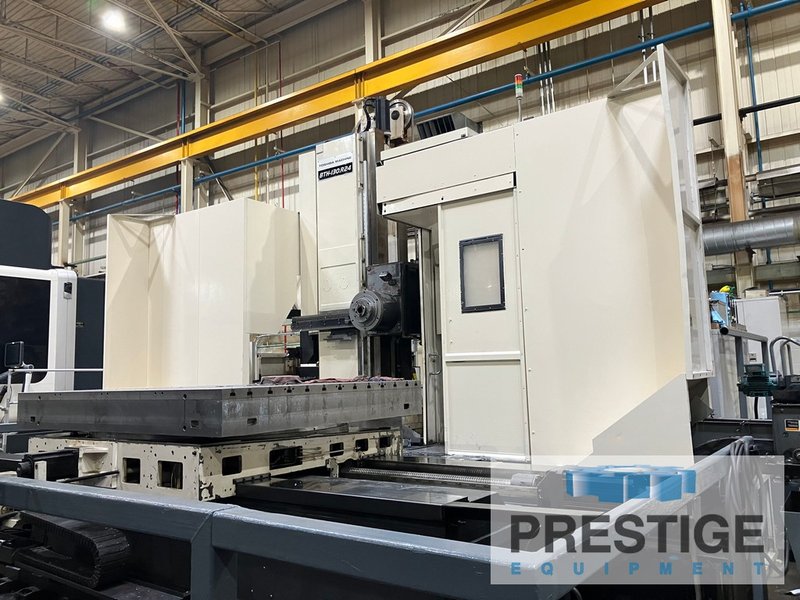

Toshiba BTH-130.R24, 5" Spindle, X-118", Y-90", Tosnuc 999, 78" x 94" B-Axis Tbl, 60 ATC, TSC, 2012, #43493

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43493

Model

BTH-130.R24

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43493

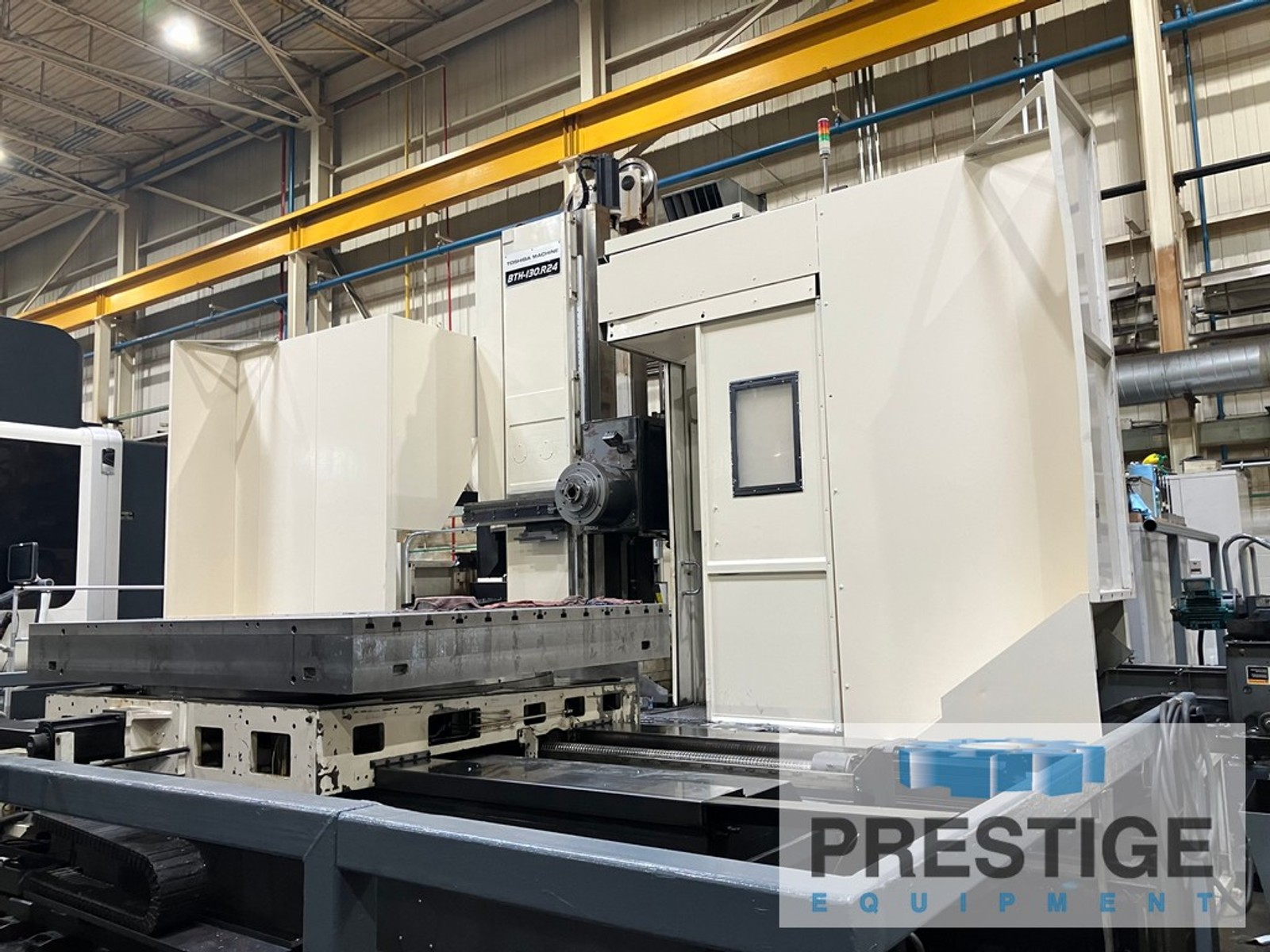

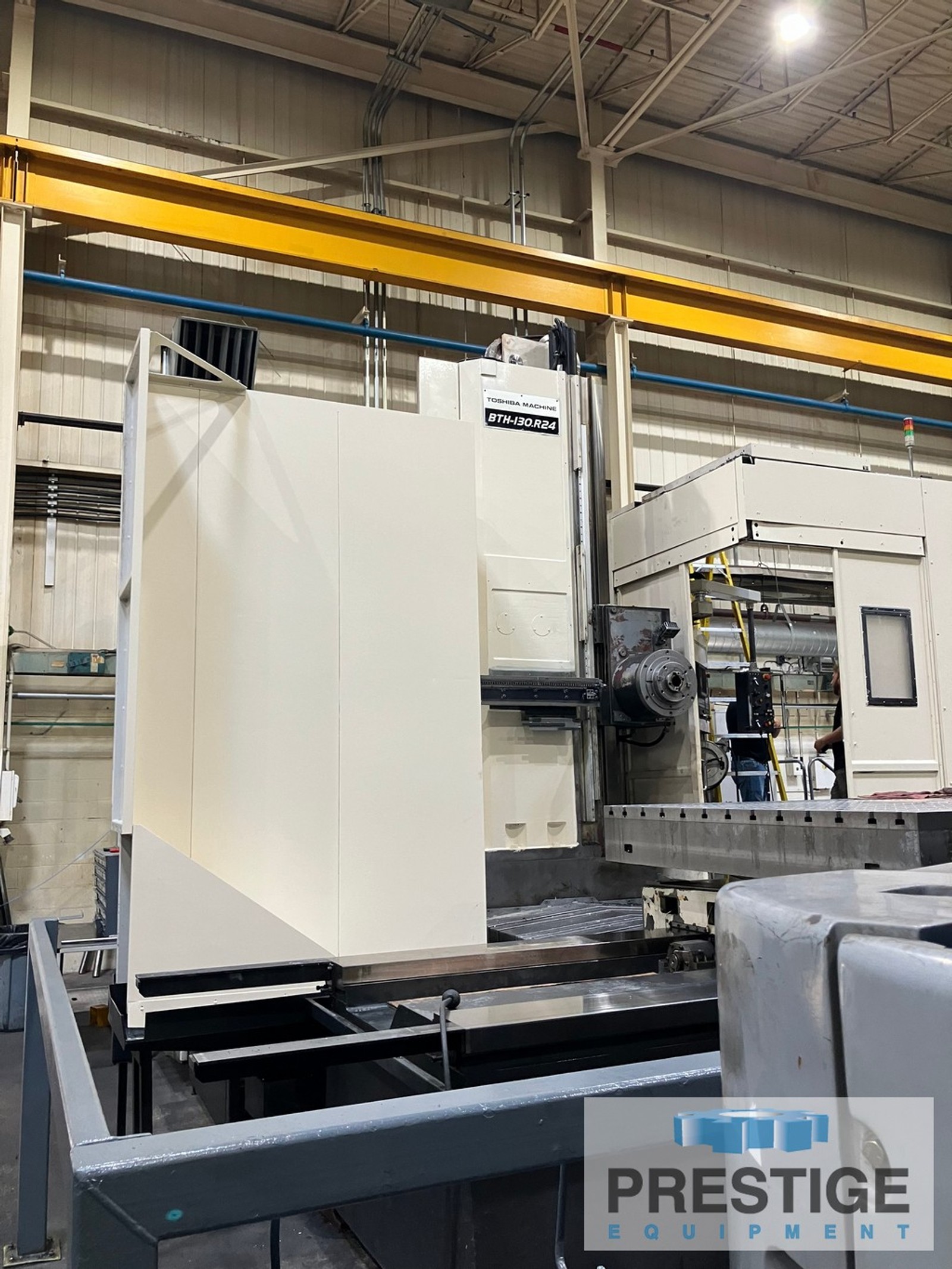

Toshiba BTH130 CNC Table Type Horizontal Boring Mill

FEATURES:

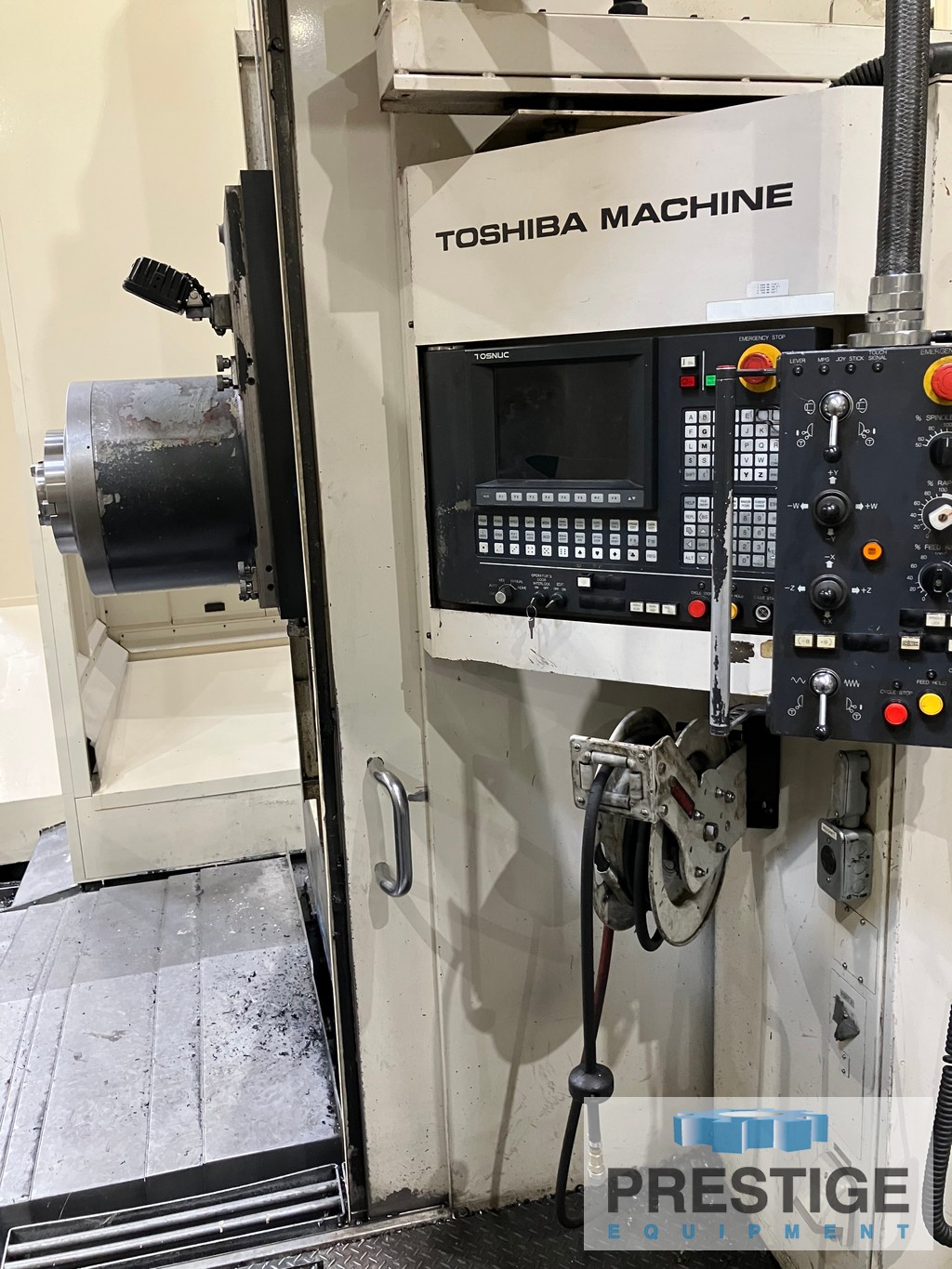

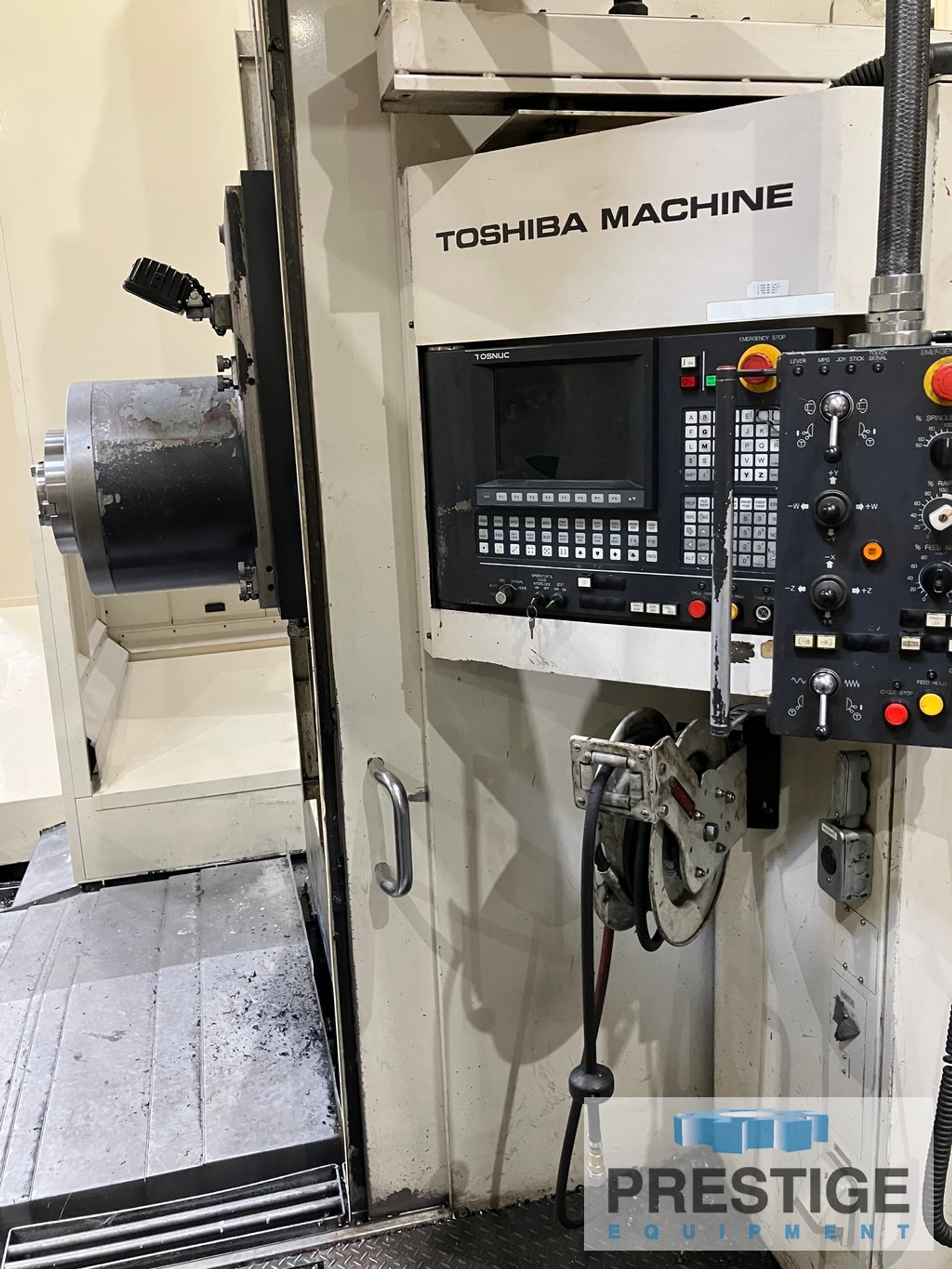

Tosnuc 999 CNC Controls

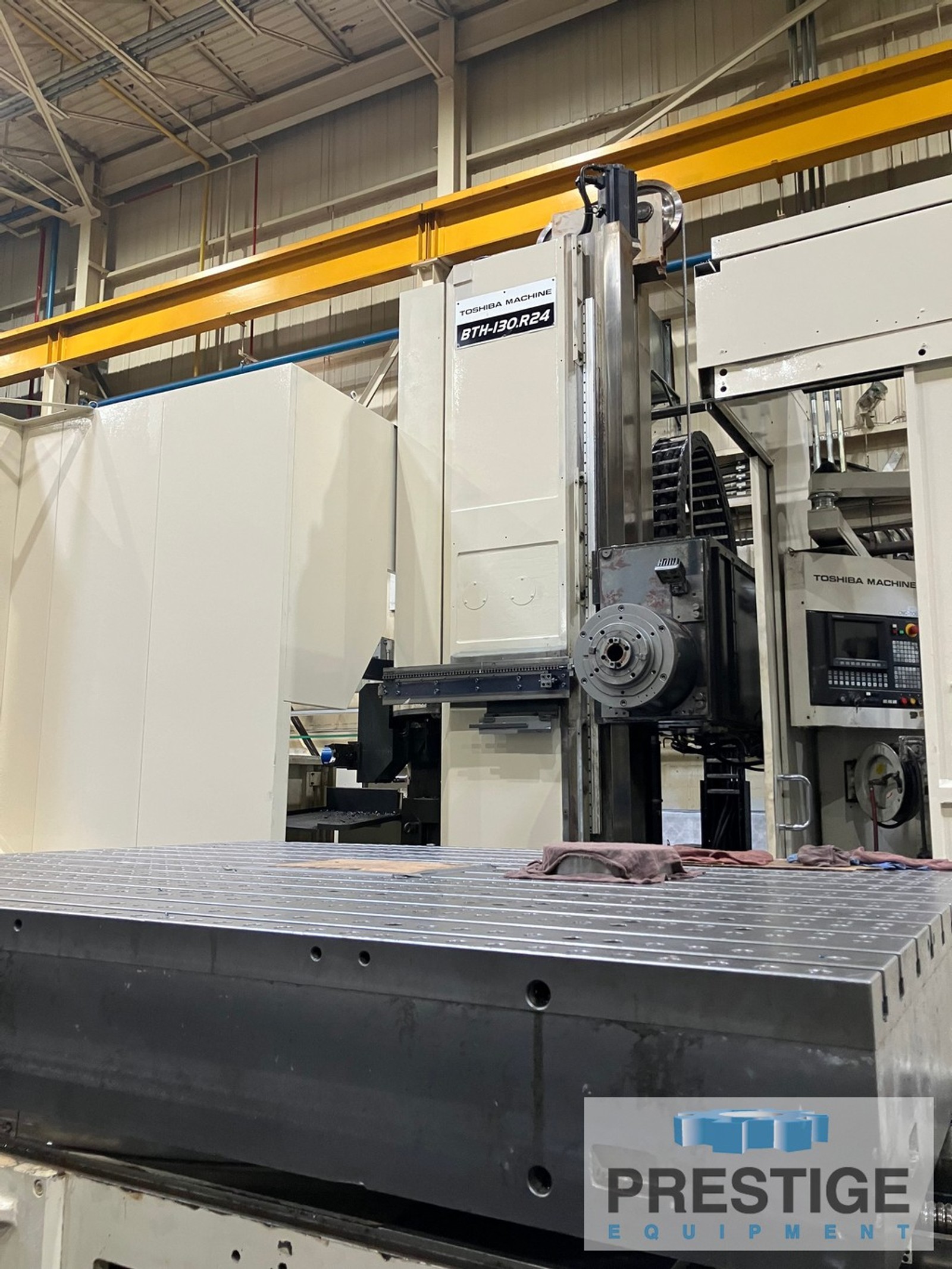

78.74" x 94.48" Full B-Axis Rotary Table

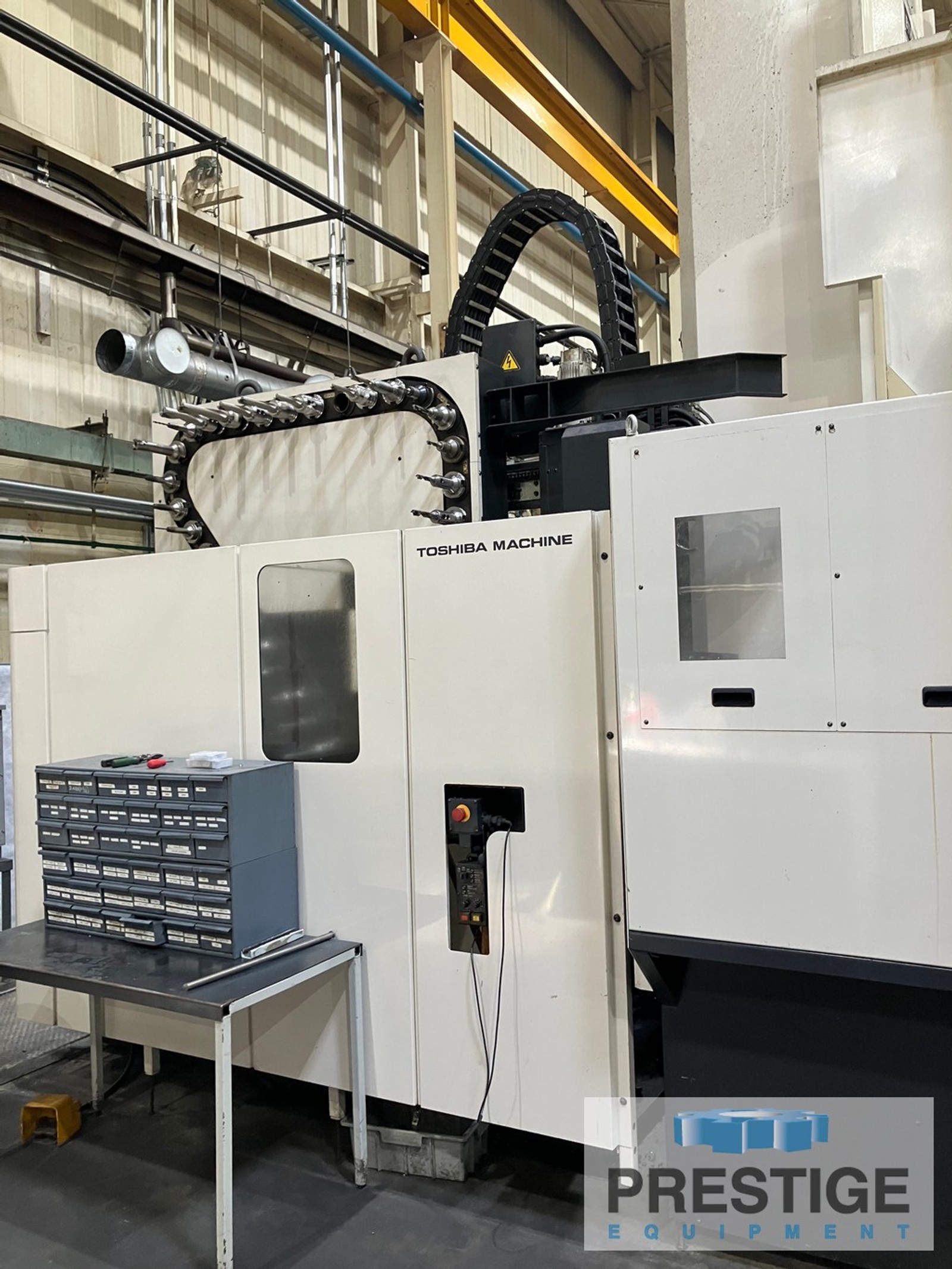

60-Position Automatic Tool Changer
Thru Spindle Coolant
Chip & Splash Enclosures
Chip Conveyor

CAPACITY:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Vertical Head Travel, Y-Axis .......... 90.55"
Table Cross Travel, X-Axis ............ 118.11"
Spindle Travel, Z-Axis ................ 27.55"
Saddle Travel, W-Axis ................. 59.05"
Table Surface to Spindle Center ....... 35.4"-95.4"
Table Center to Milling Spindle ....... 0-90.5"
Spindle Speeds ........................ 5-2,500 RPM
Rotary Table Size ..................... 78.74" x 94.48"
Table Indexing ........................ 0.001"
Table Load Capacity ................... 44,000 Lbs.
Feed Rates ............................ 0.04-275.59 IPM
Rapid Traverse: X,Y, & Z Axes ......... 551.18 IPM
Rapid Traverse: W-Axis ................ 196.85 IPM
Approximate Floor Space ............... 285.4" x 273.6"
Approximate Height .................... 199.2"
Approximate Weight .................... 99,000 Lbs.

EQUIPPED WITH:
Tosnuc 999 CNC Controls
78.74" x 94.48" Full B-Axis Rotary Table
60-Position Automatic Tool Changer
Thru Spindle Coolant
Chip & Splash Enclosures
Chip Conveyor

NOTE:
Inspect In Plant Under Power

No Video Available
