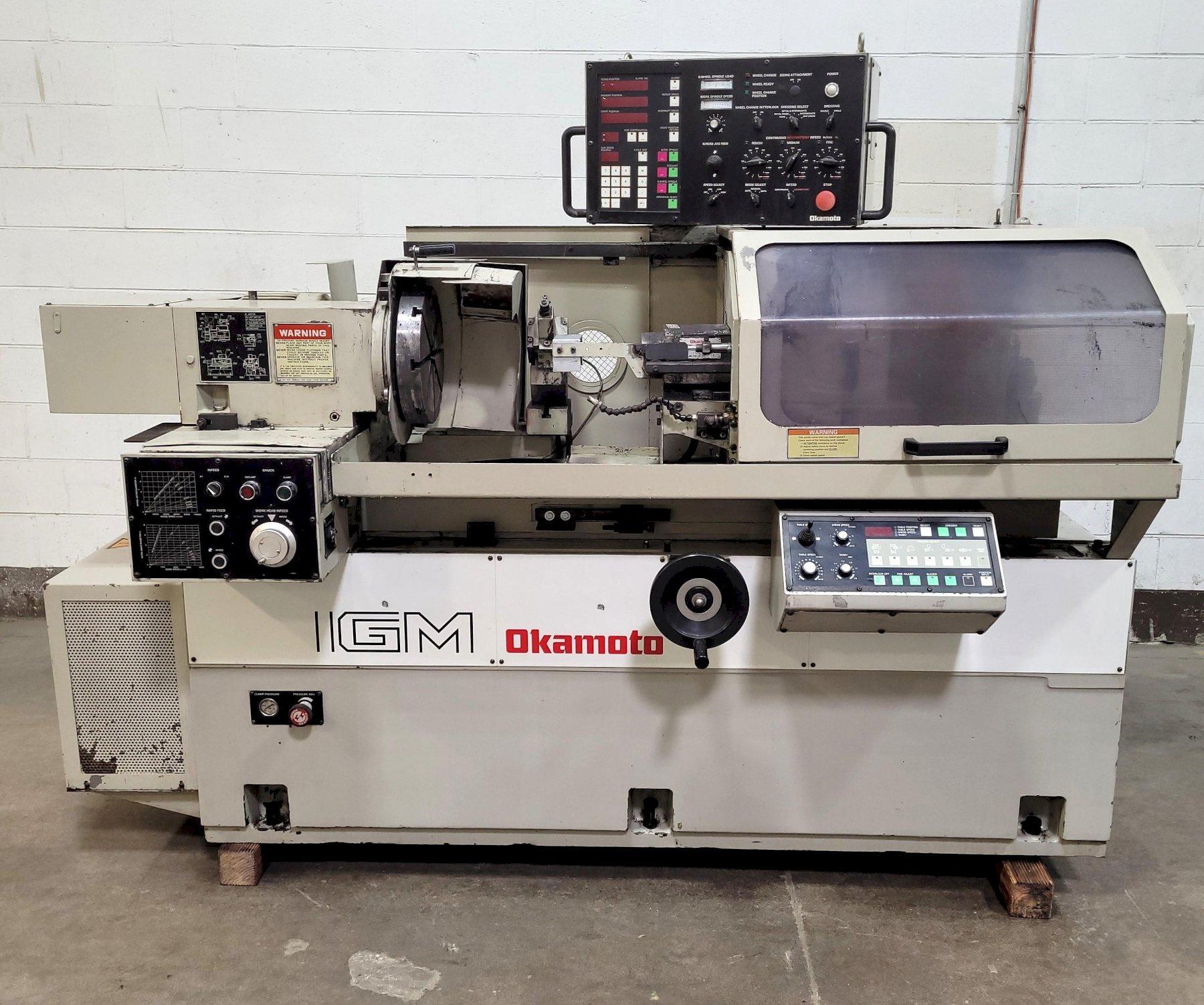

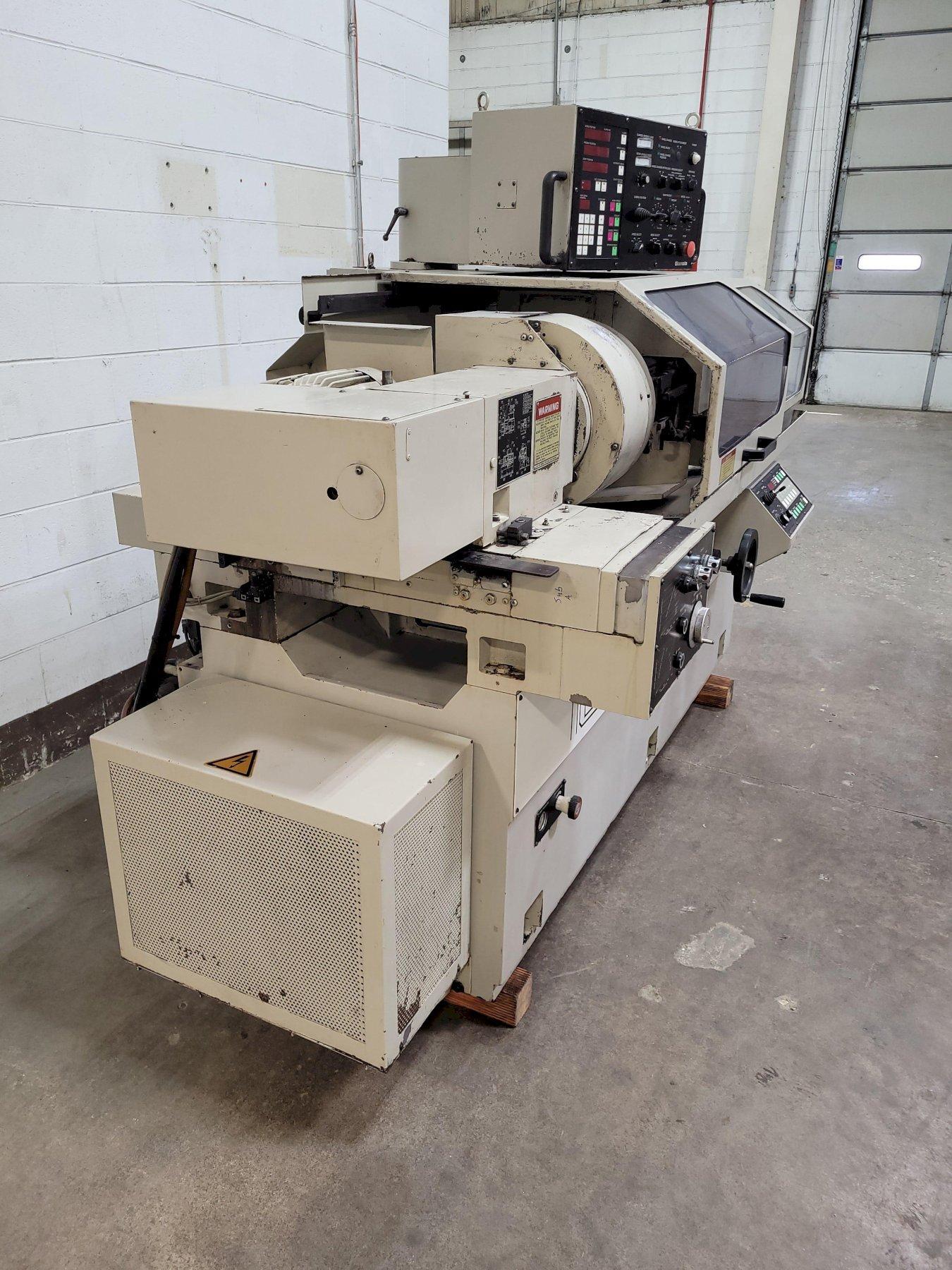

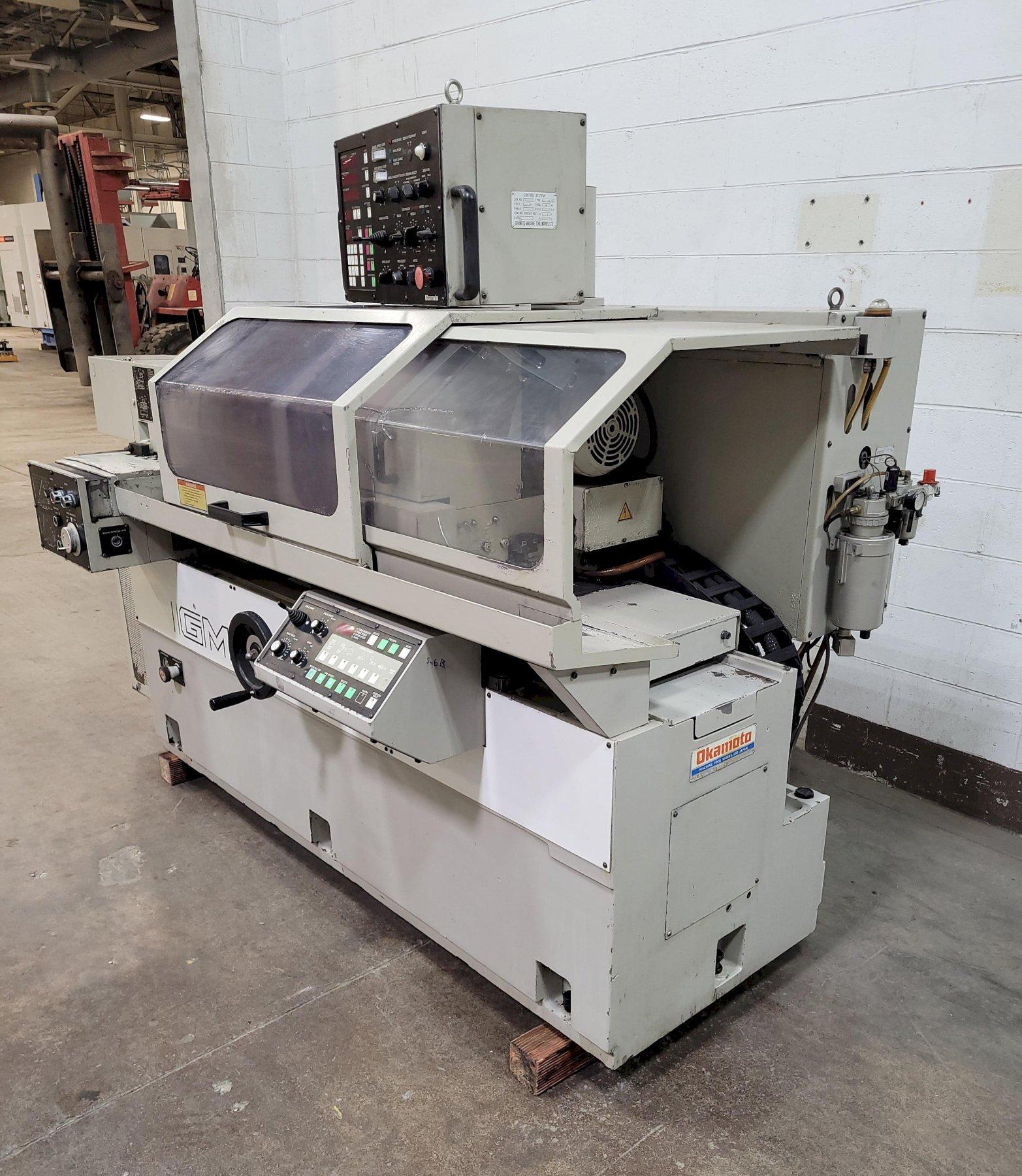

Okamoto IGM-2M Micro Processor Controlled Internal Grinder

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, INTERNAL

Stock

G1579

Model

IGM-2M

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Diameter to be Ground - 6 to 200 mm 0.23”-7.87”
Grinding Stroke - 200mm (max) 7.87”
Swing Over Table - 600mm 23.6”
Maximum Swing Inside the Chuck Cover - 350mm 13.7”
Table Speed - 0.5 to 15 m/min 1.96”-591 IPM
Workhead Swiveling Angle - -5° to +30°
Graduation of Handwheel (Diameter) - (x1) 0.001m; (x10) 0.01mm .039”-.394”
Spindle Speed (Variable) - 0-20,000 RPM
Work Spindle Speed - 50-850 RPM
Work Spindle - 1.5 kw, 2HP
Wheel Spindle - 2.2 kw, 3HP
Hydraulic Tank - 2.2 kw, 3HP
Hydraulic Oil Tank Capacity - 60 Ltrs
Floor Space - 2,320 x 2,000 mm 92” x 80”
Net Weight - 2,800 kg 6,200 Lbs.


EQUIPPED WITH:

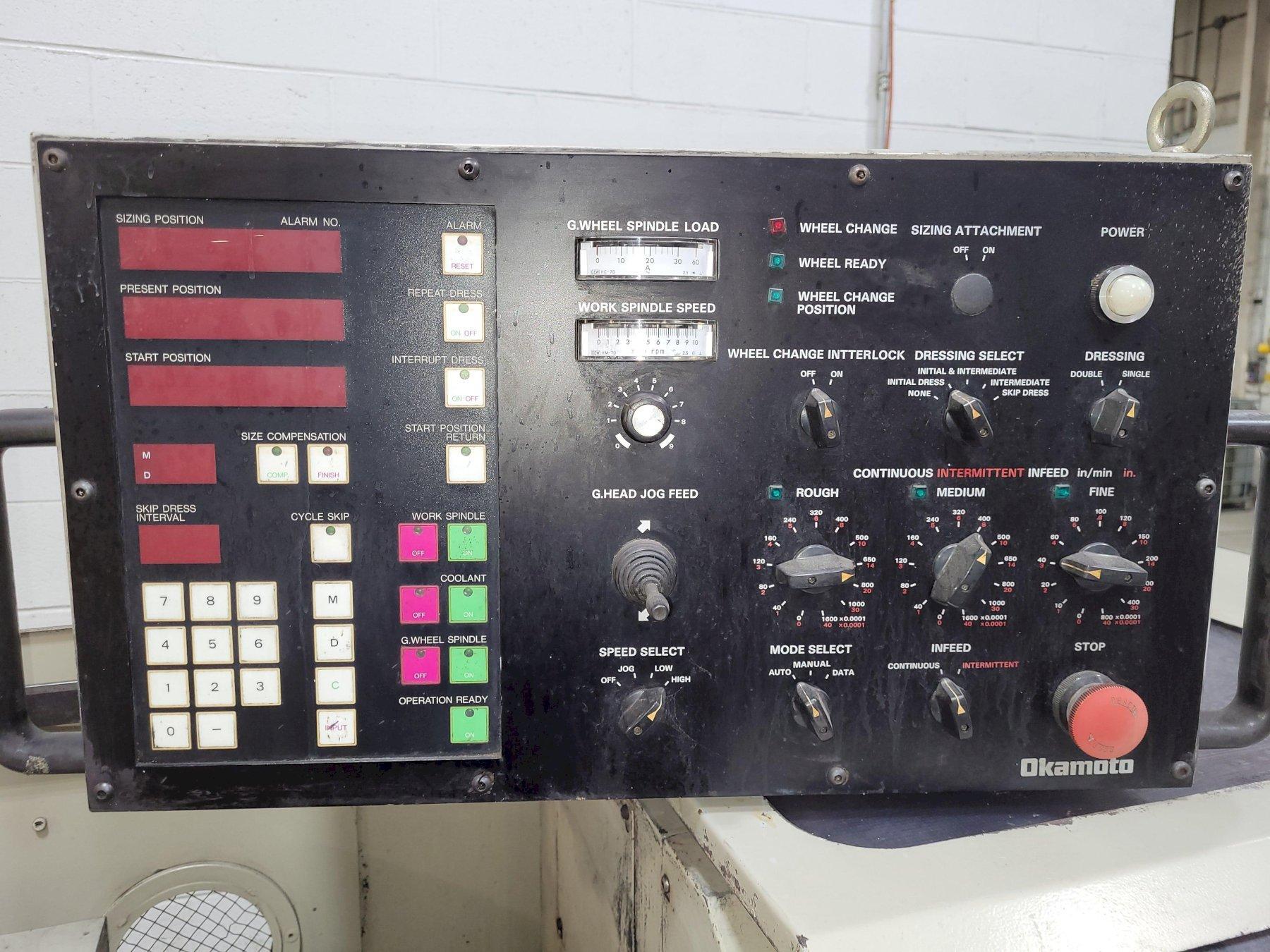

Okamoto Mini Processor for Programmable Automatic Grinding Cycles.
Size Compensation.
Dressing Cycles.
Fully Programmable Variable Speed Wheel Head.
Variable Speed Workhead with Hydraulic Cylinder.

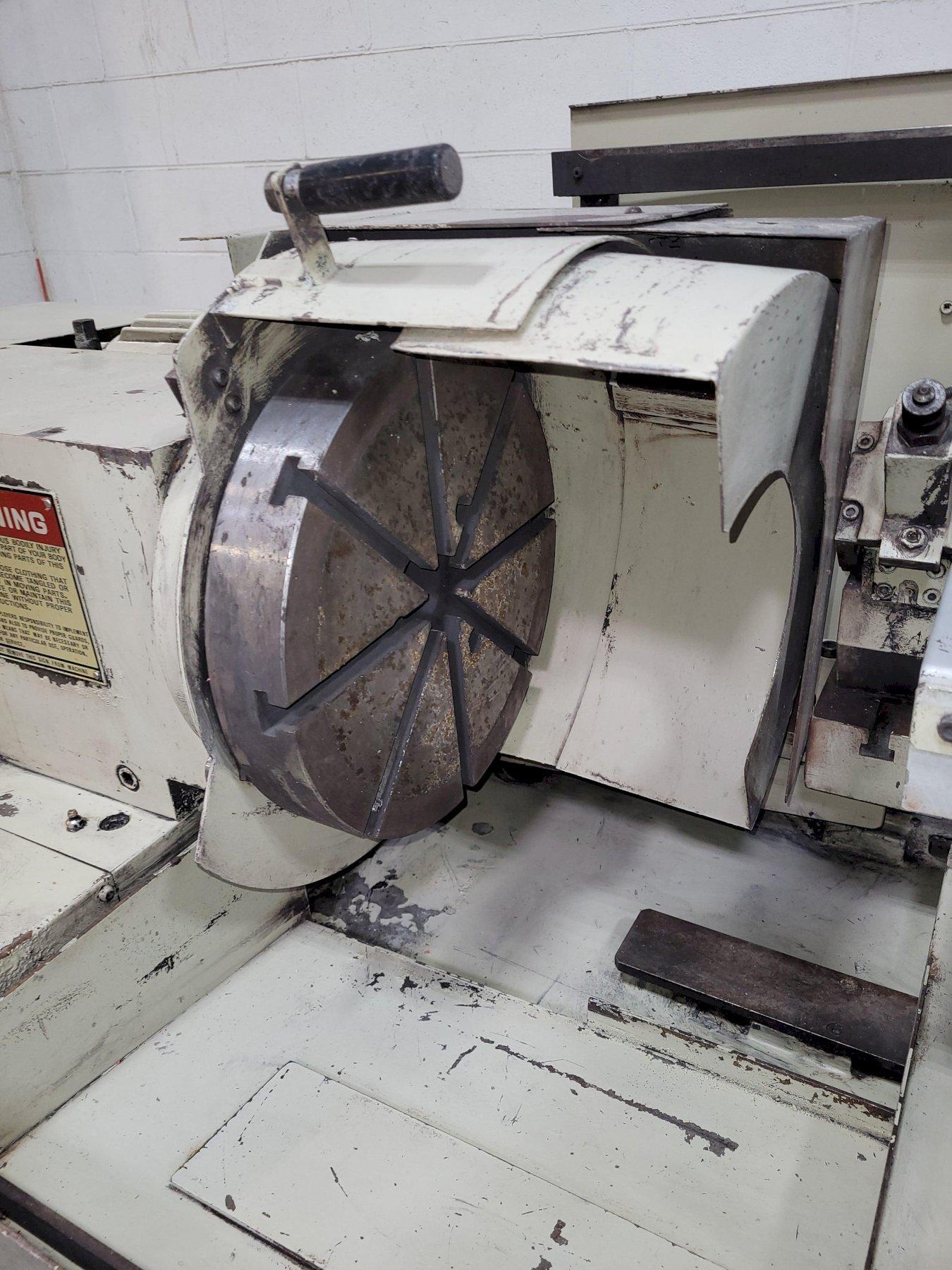

12” Face Plate Chuck.

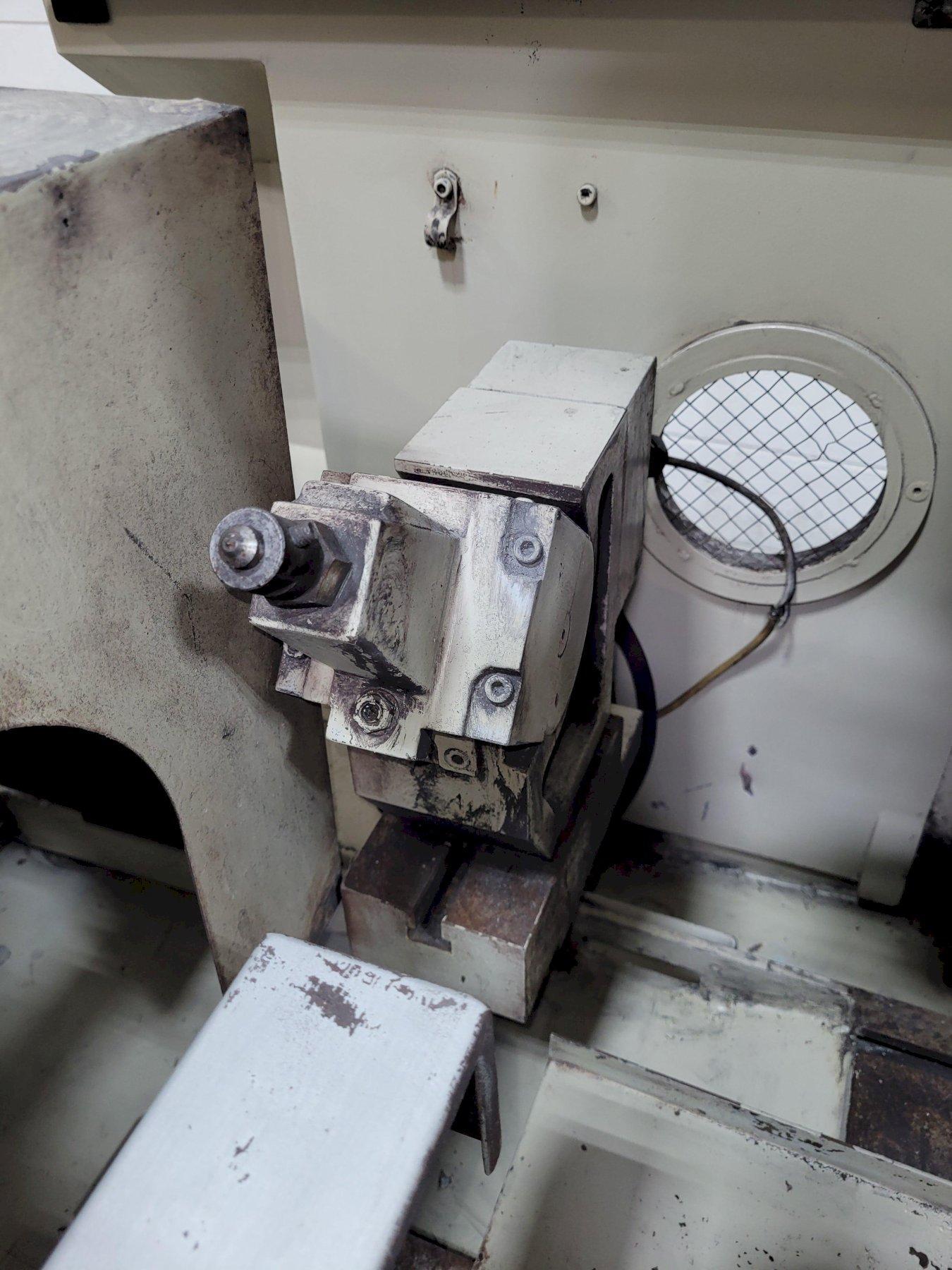

Programmable Independent Slide Wheel Dresser with Swivel Positioning.
Swivel Table.

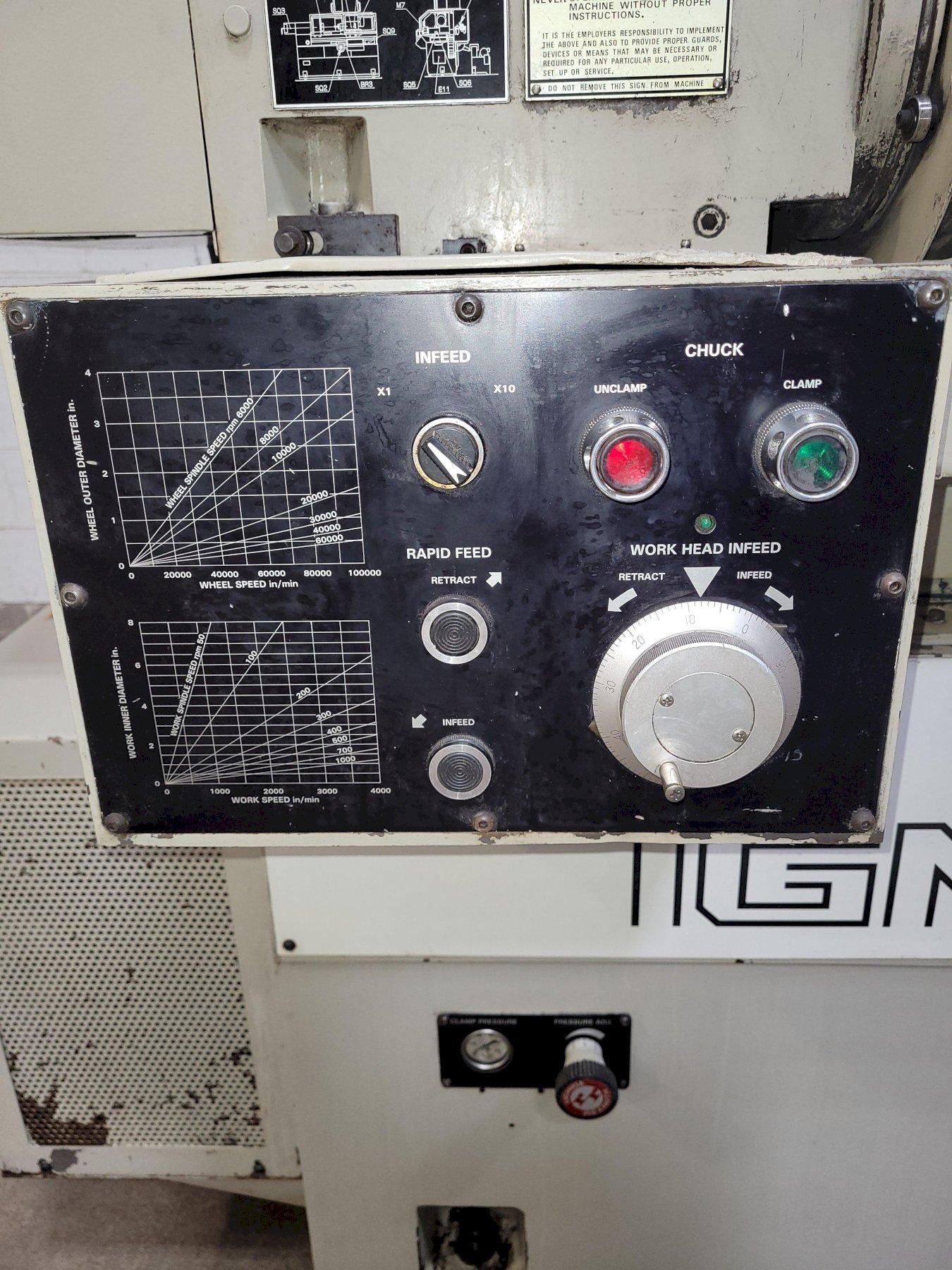

Handwheel.

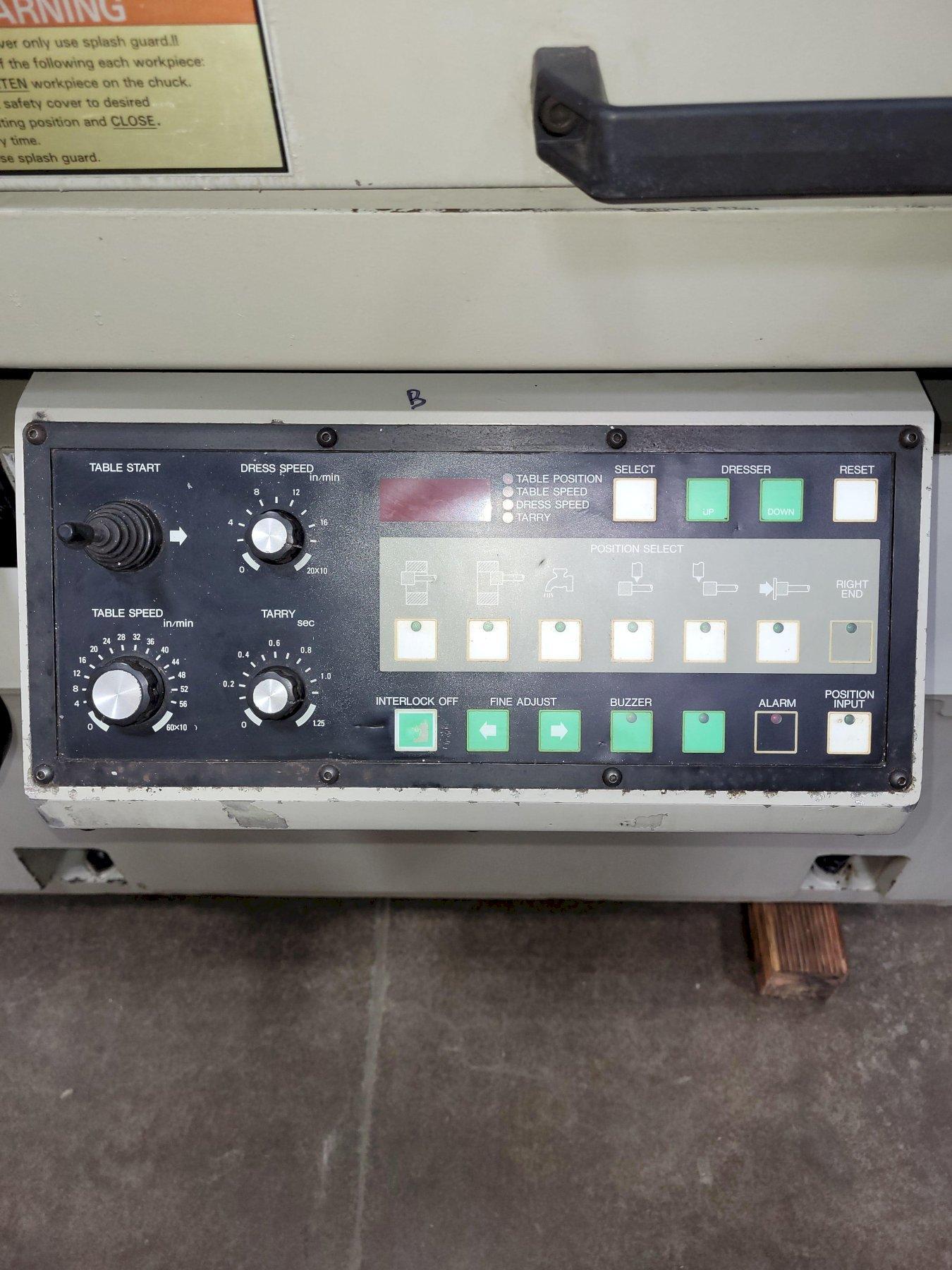

Joystick and MPG Positioning.

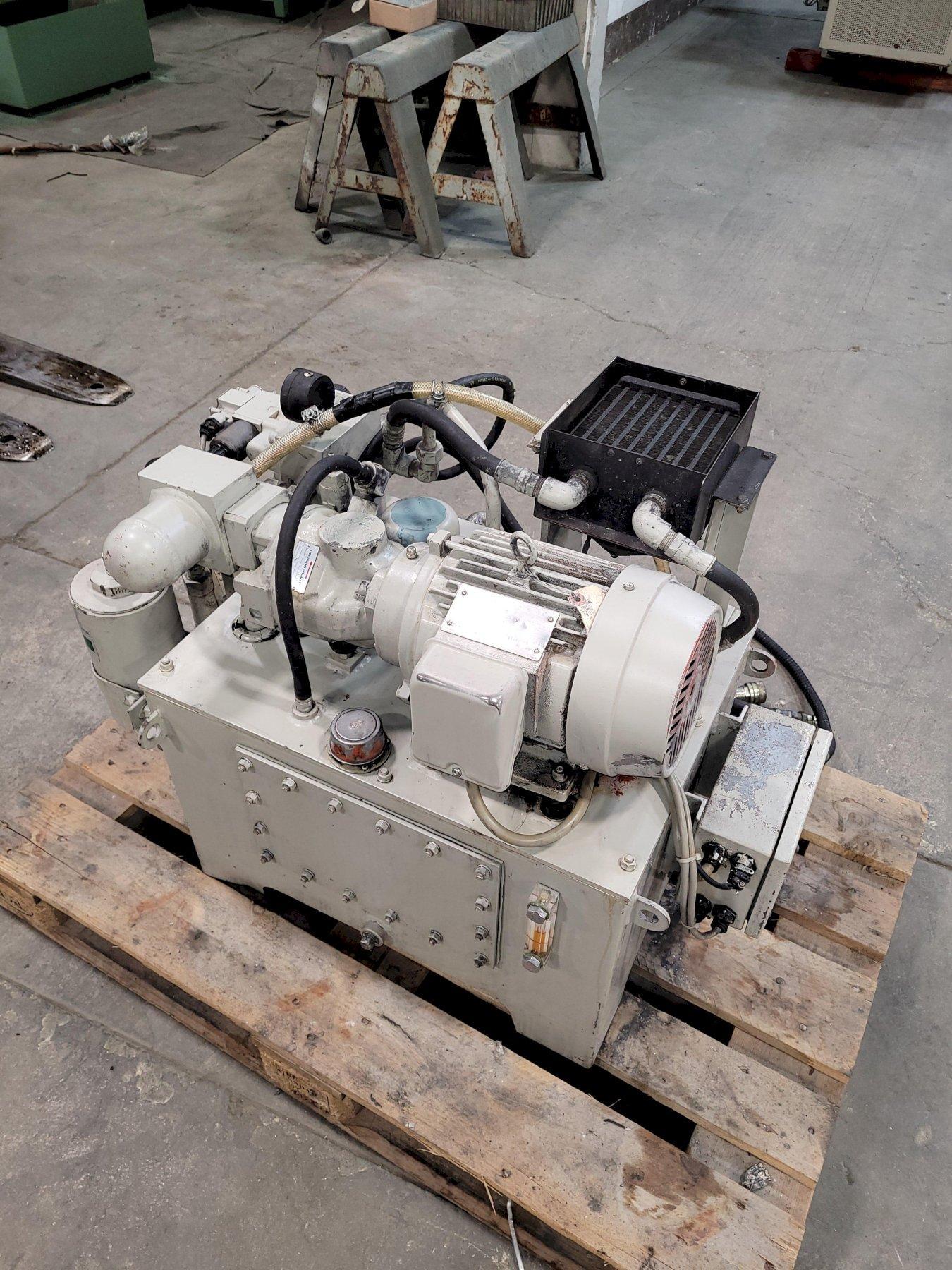

Free Standing Hydraulics.

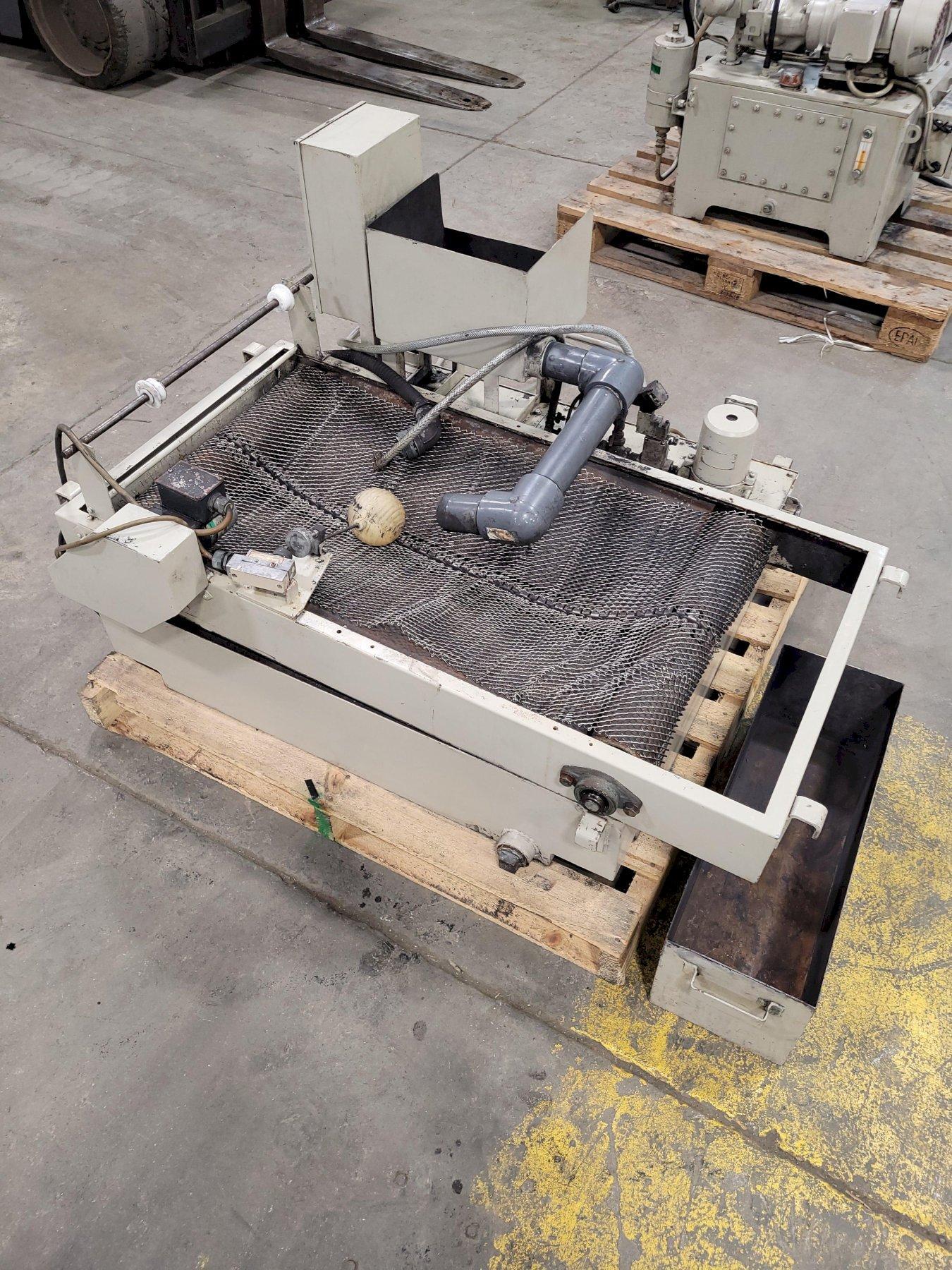

Coolant Pump and Tank with Paper Filtration.

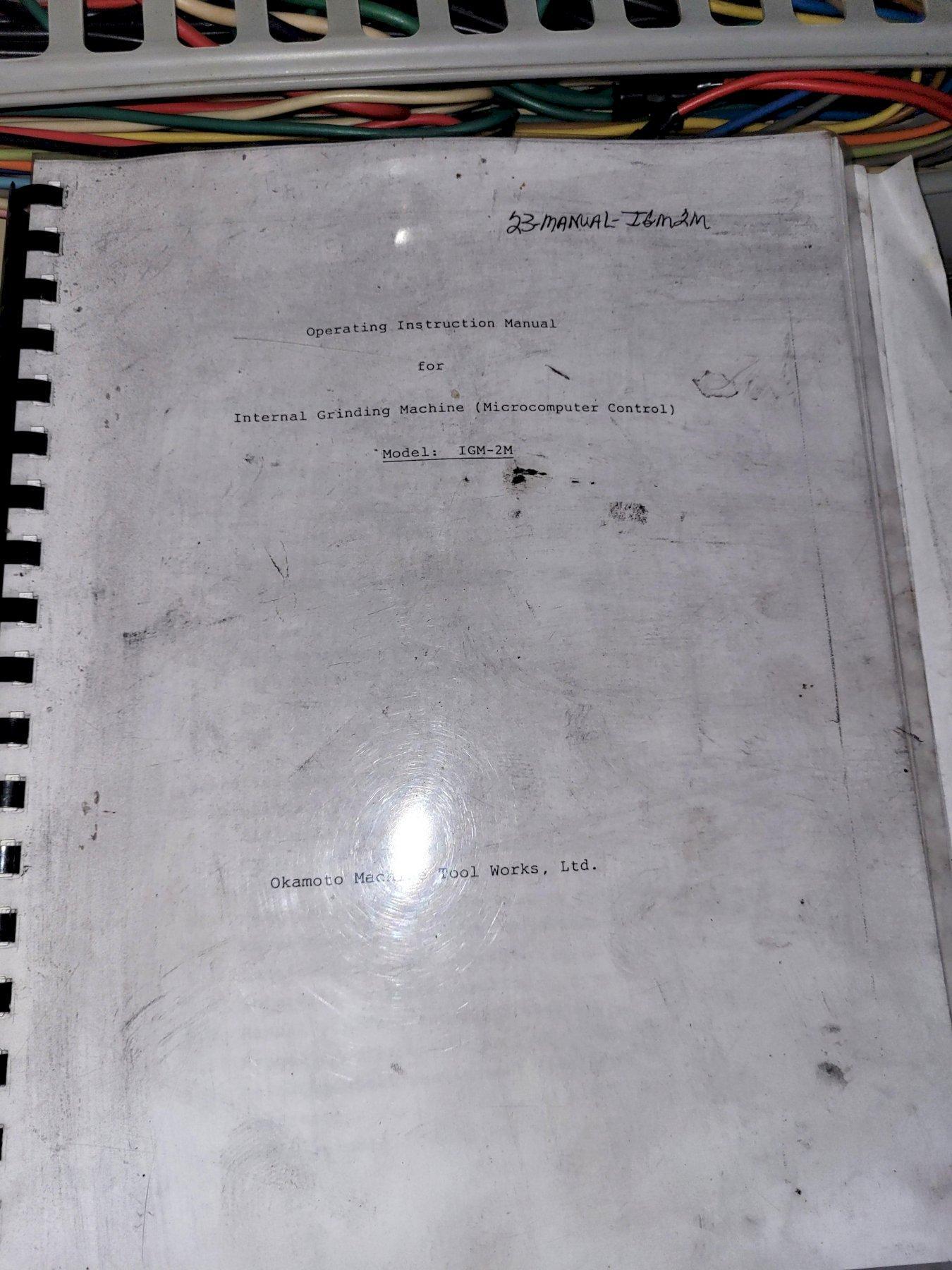

Manuals.
