Giddings & Lewis MC-60, 120 ATC, X-96" Y-106", Z-48" 60" X 60" B-Axis Table w/Shuttle, 2500 RPM, '95 #43086

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43086

Model

MC-60

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43086

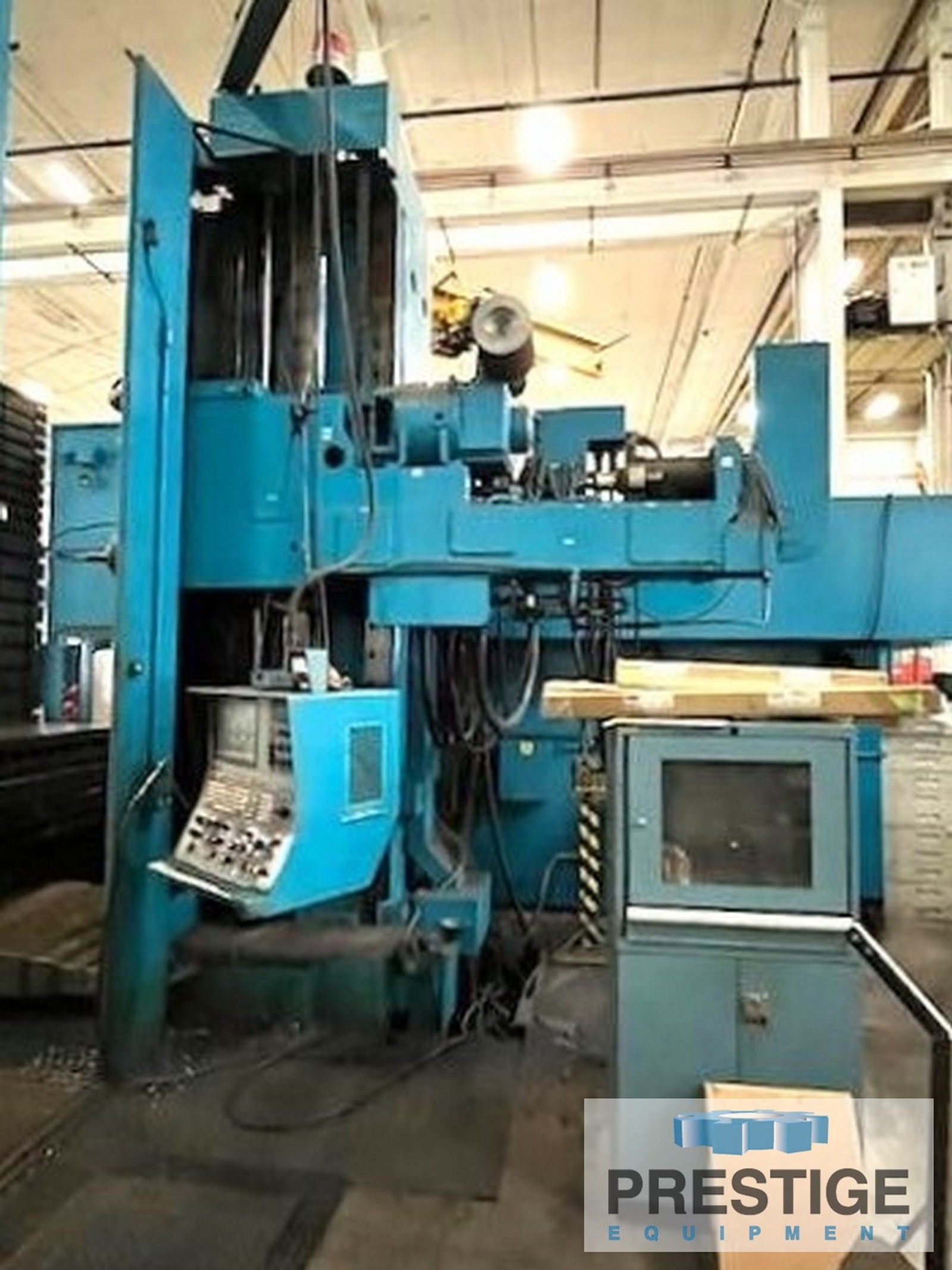

Giddings & Lewis MC-60 6" CNC Horizontal Boring Mill w/Pallet Shuttle

Features:
120-Station Automatic Tool Changer
2-Pallet Shuttle 60" x 60" Pallets
B-Axis Rotary Table
Thru Spindle Coolant

Specifications:
Spindle Diameter ...................... 6"
Spindle Taper ......................... 50 ANSI B5.50
X-Axis Table Travel ................... 96"
Y-Axis Head Travel .................... 108"
Y-Axis Head Travel Above Pallet ....... 86"
Z-Axis Spin Travel .................... 48"
W-Axis Saddle Longitudinal Travel ..... 62"
B-Axis Pallet Rotation ................ 360,000 Positions
Pallet Weight Capacity, Heavy Duty .... 30,000 Lbs
Spindle Speeds (4-Ranges) ............. 12 to 2500 RPM
Rapid Traverse Rate, X,Y Axes ......... 450 IPM
Rapid Traverse Rate, Z,W Axes ......... 300 IPM
Feeds, X,Y,Z,W Axes ................... .1 to 150 IPM
Spindle Motor ......................... 50 HP 460/3/60

EQUIPPED WITH:
Giddings & Lewis 8000B CNC Control
120-Station Automatic Tool Changer

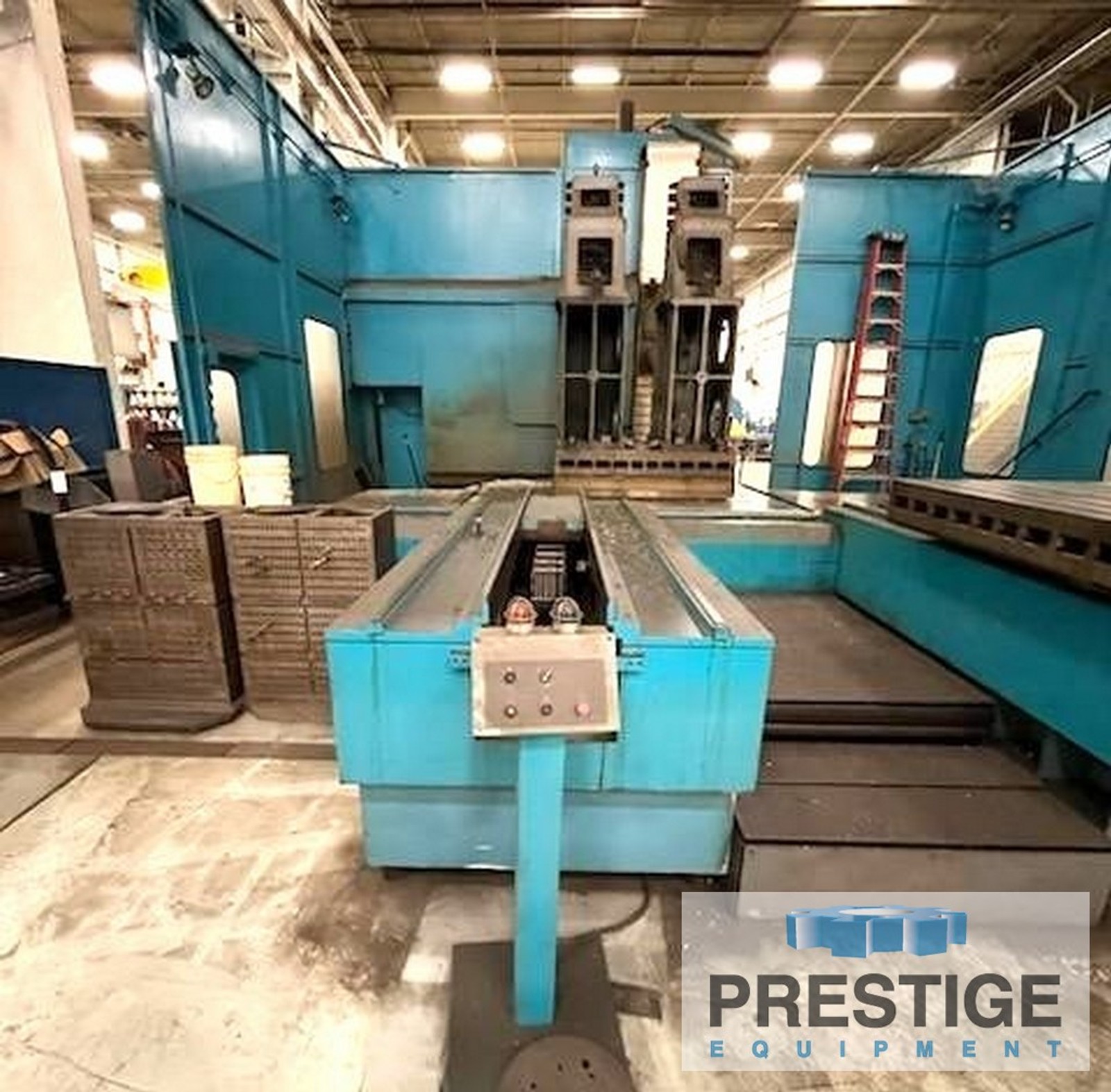

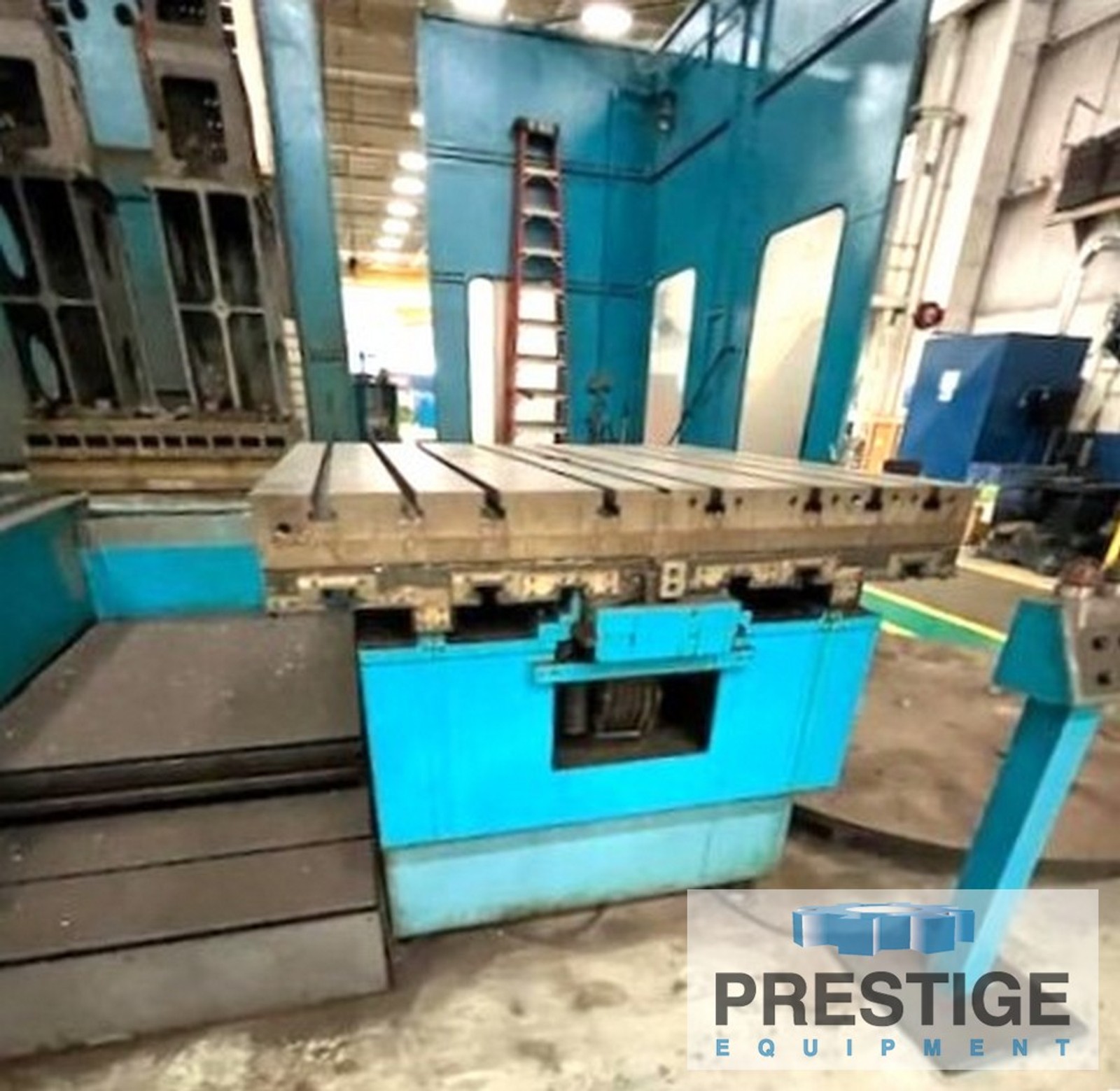

(2) 60" x 60" Pallets with Shuttle System
Thru-Spindle Coolant
Flood Coolant
Air Blast For Tool Change
B-Axis Built-In Rotary Table
Hardened Ways on Bed & Column
Steel Telescoping Way Covers

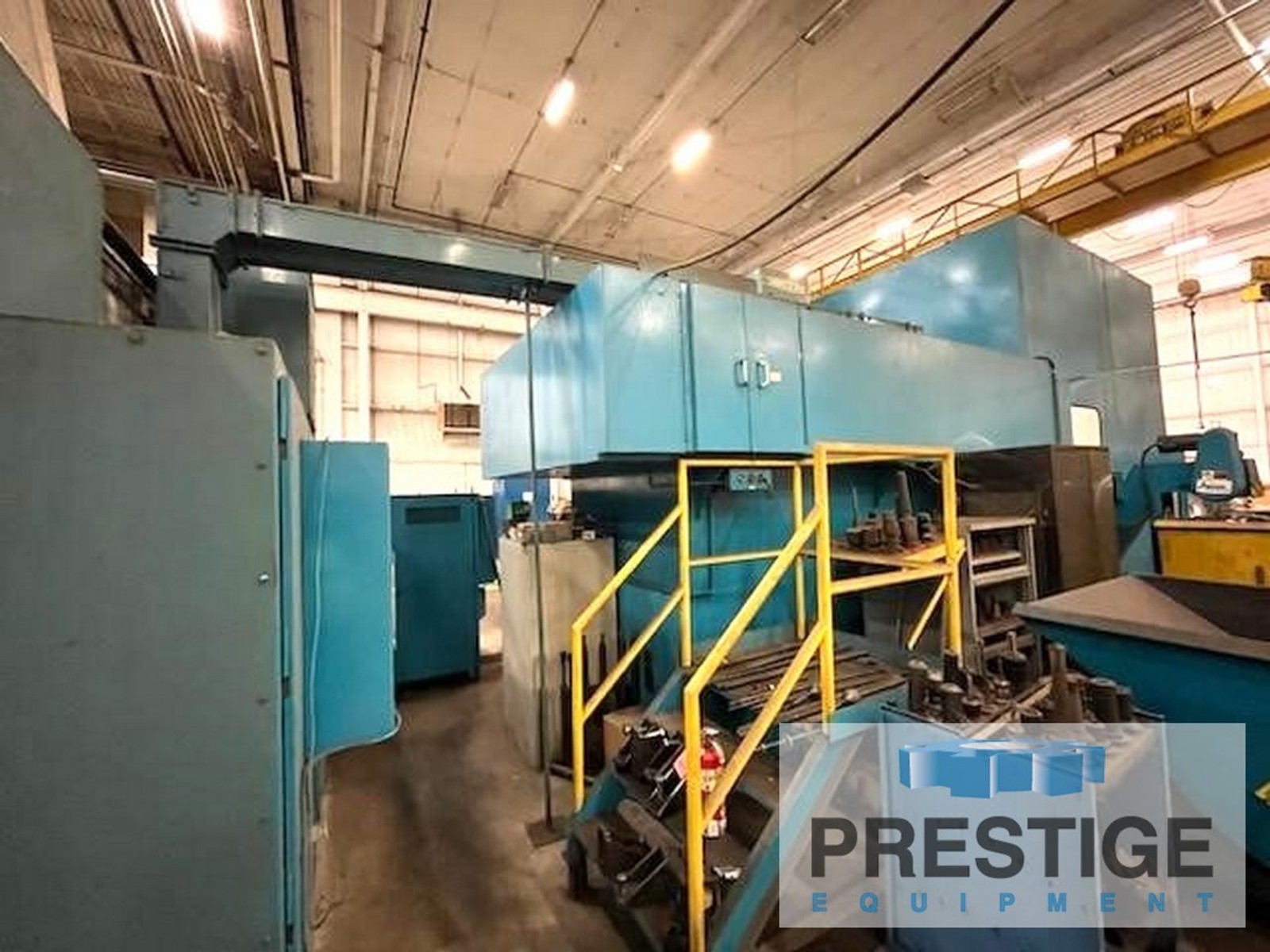

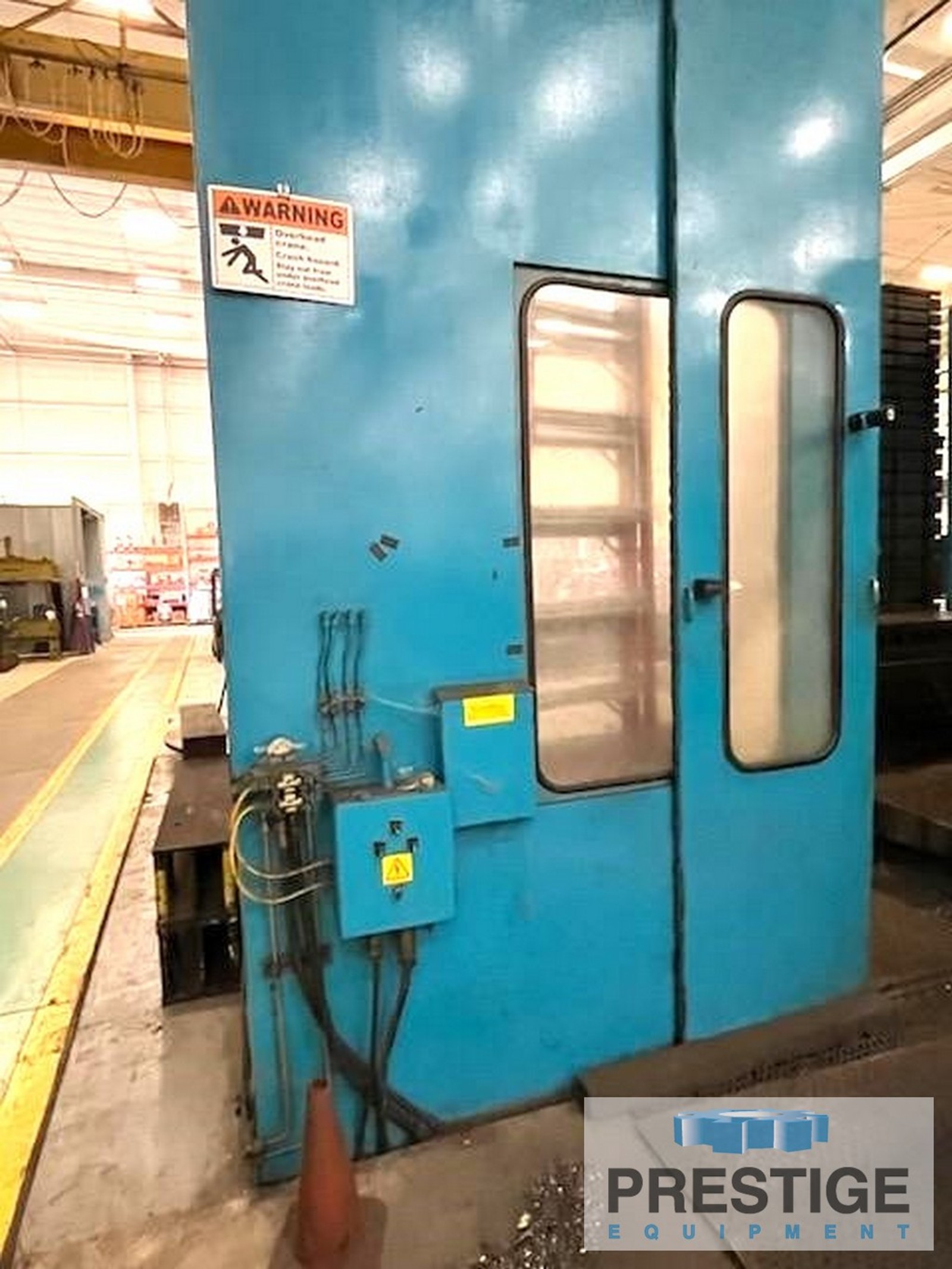

Coolant and Chip Enclosure

NOTE:
Large Quantity of Tooling, and Two sets of Angle Plates
Machine Currently in Storage.
Call for additional information.
