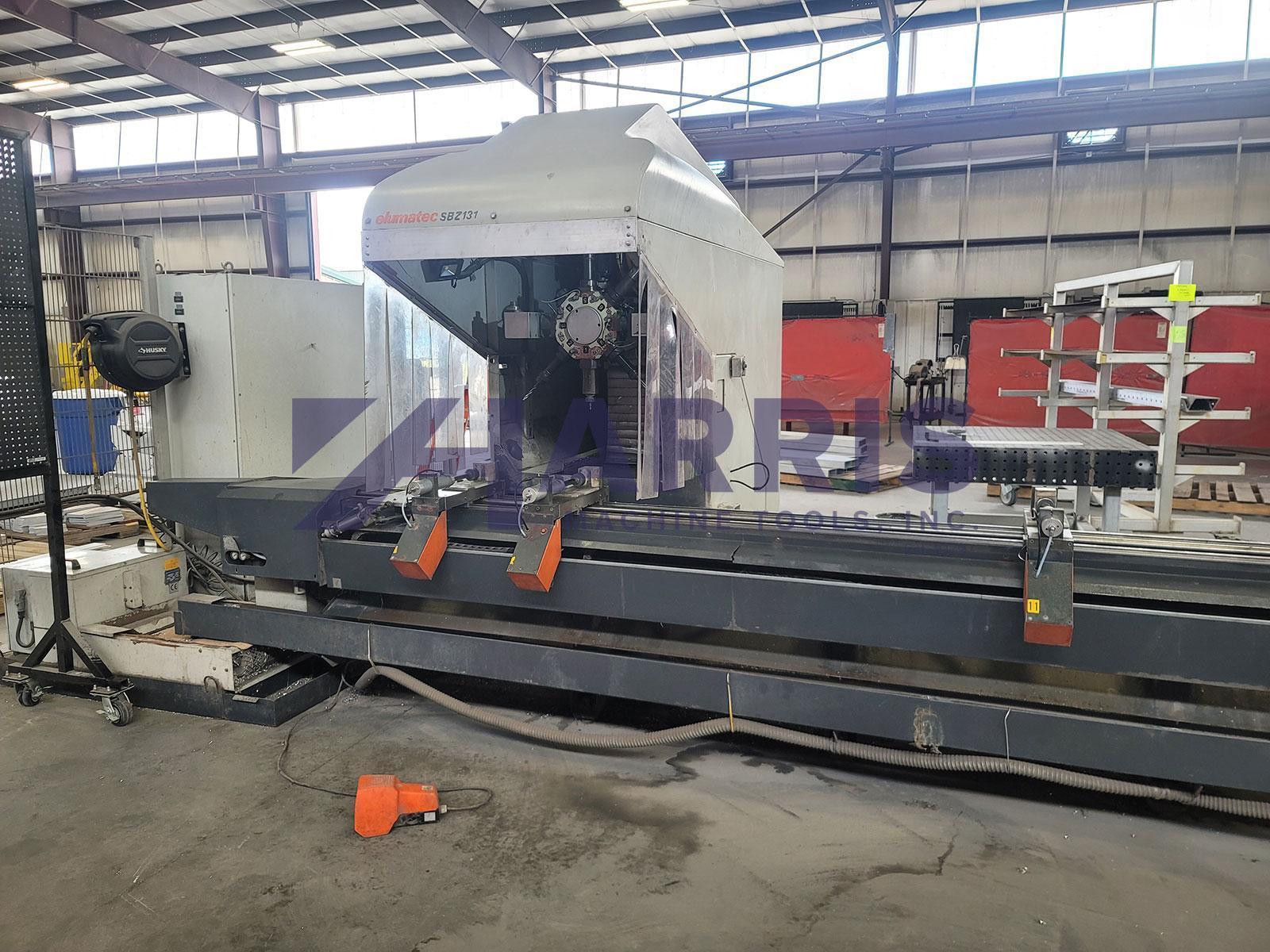

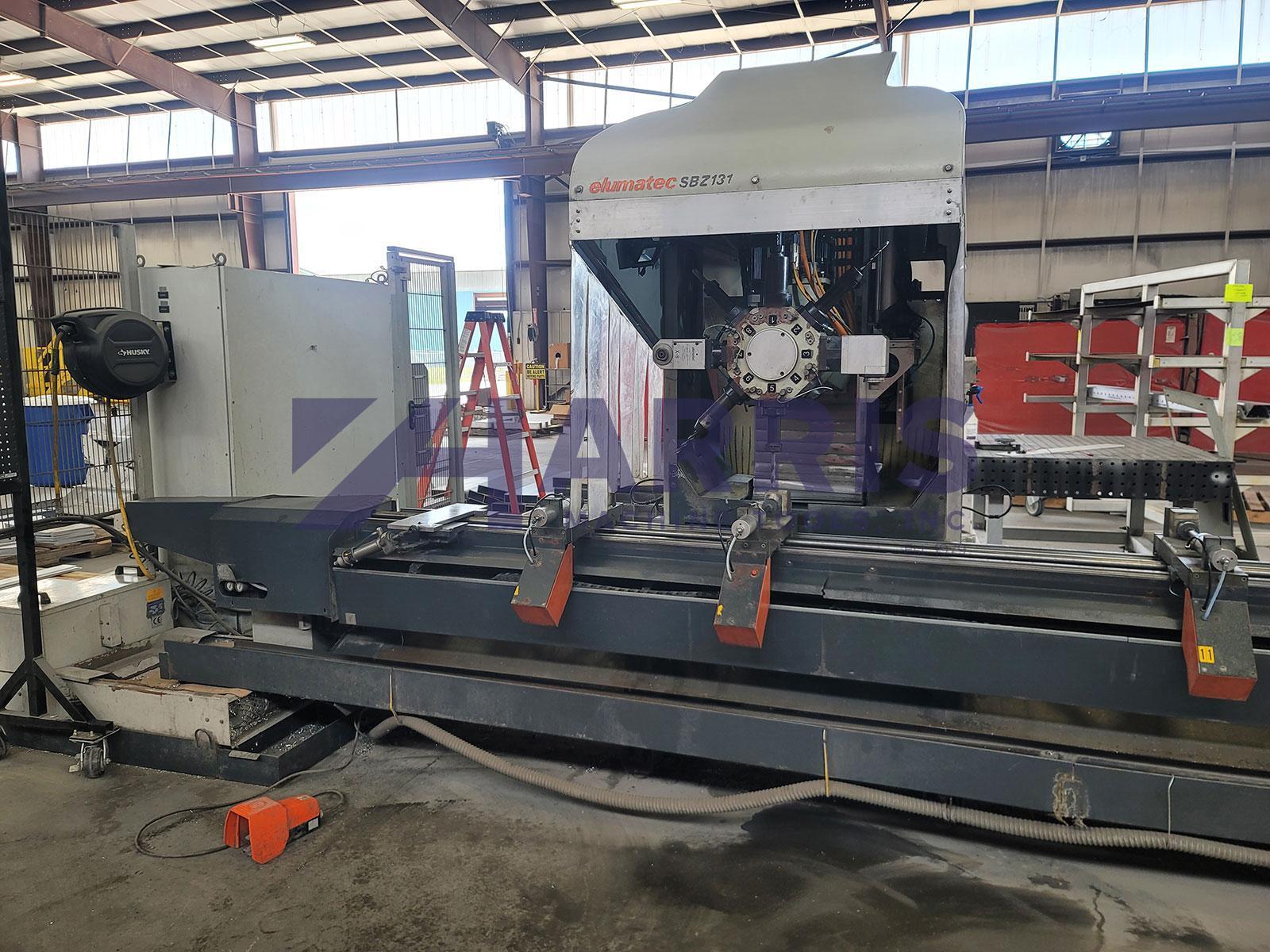

2012 Elumatec Profile Machining Center, SBZ-131-V2 WITH 40’ length capacity and saw option

Manufacturer

ELUMATEC

Stock

20375

Model

SBZ-131-V2

Dealer Location

Texas

Spec Sheet

X Axis Travel - 4200, 7200, 8500, 10200, 11500 mm
X-Axis Rapid Traverse Rate - 60m/min.
Y Axis Travel - 485mm
Y-Axis Rapid Traverse Rate - 60m/min.
Z Axis Travel - 340 mm
Z-Axis Rapid Traverse Rate - 60m/min.
Spindle Speed - 6000 RPM
Spindle Output - 5.5 kW max
Tool Changer Capacity - 8 Tools on Turret
Compressed Air Supply - 7 Bar

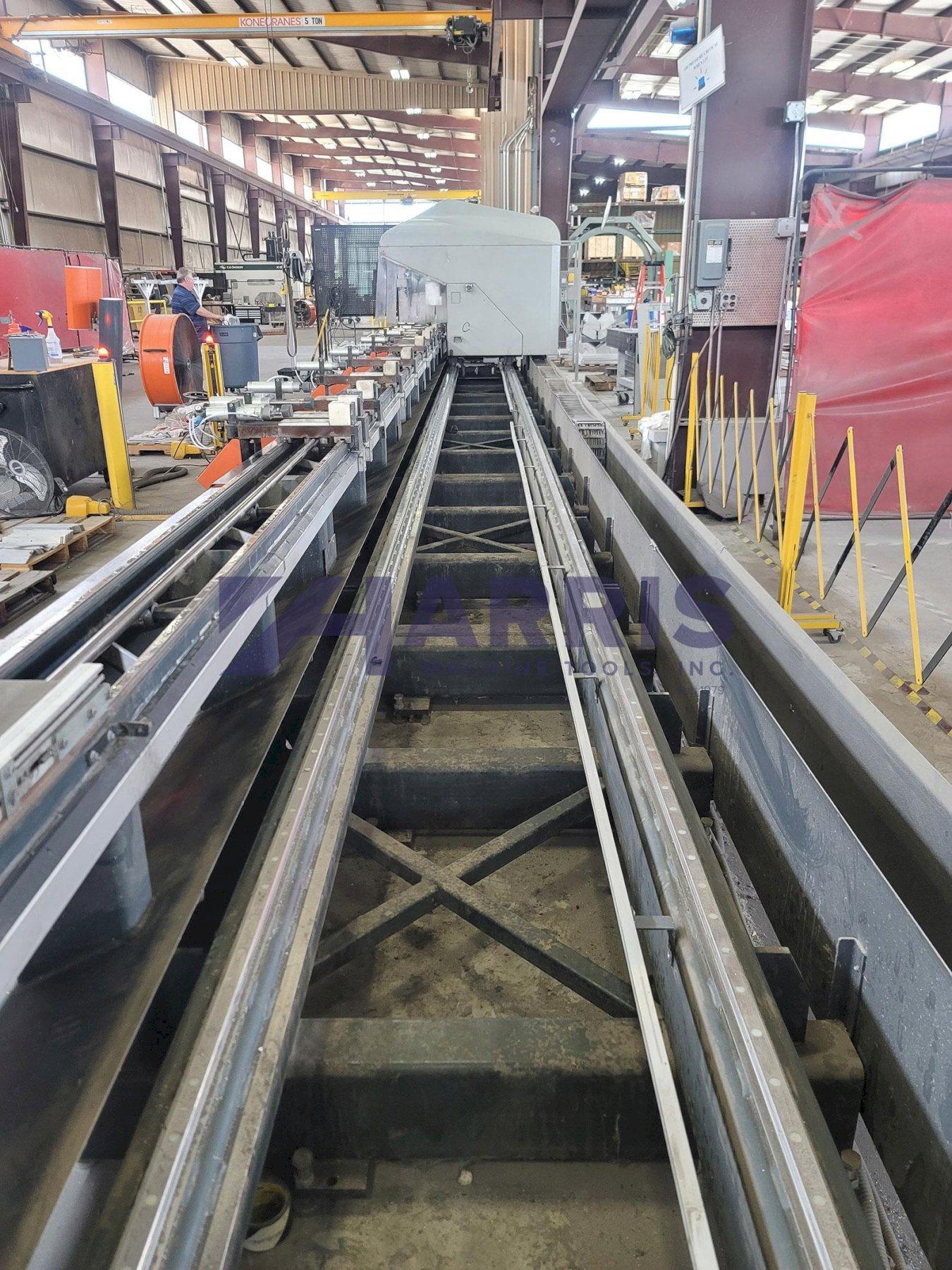

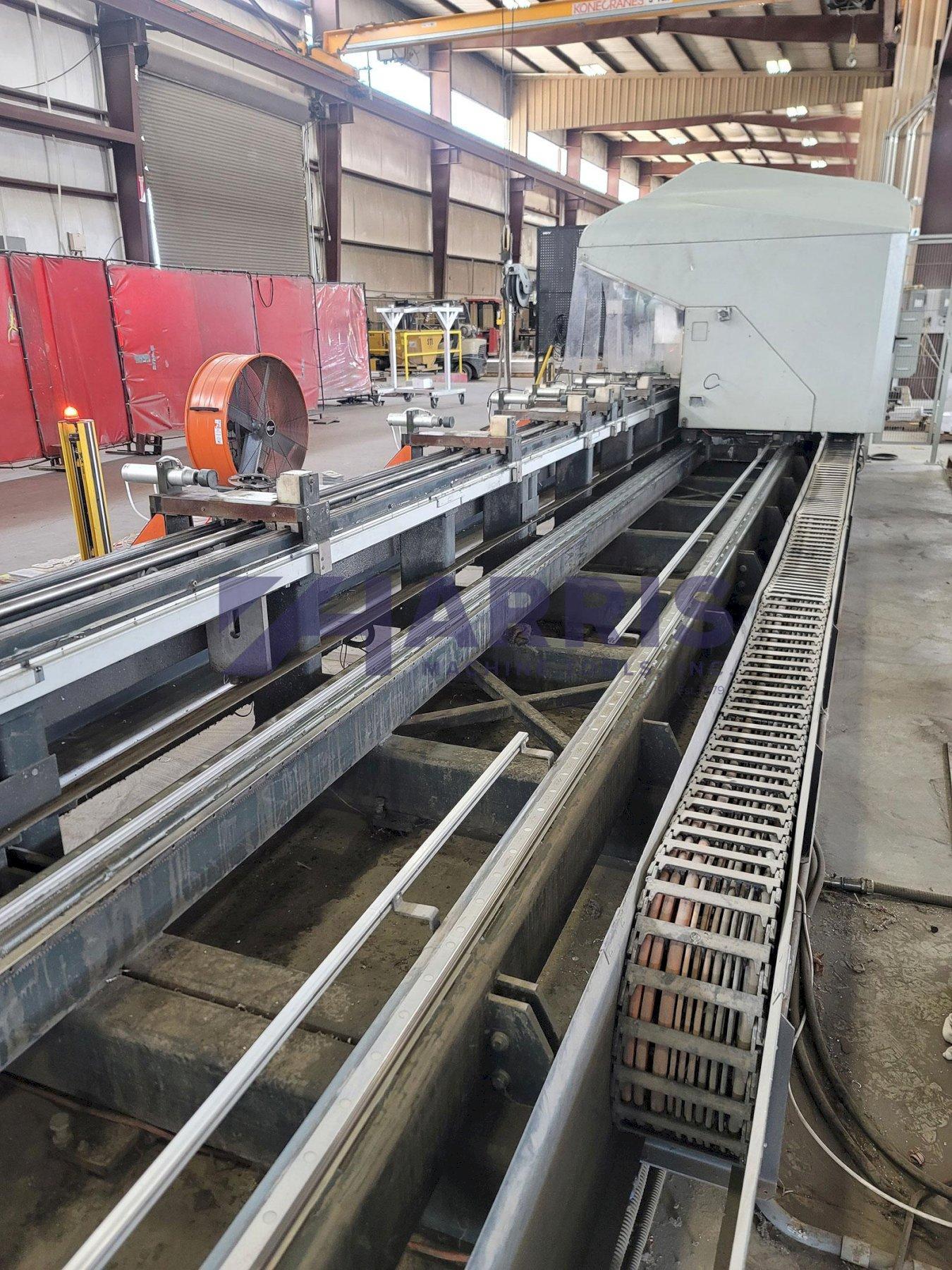

40’ length capacity
Saw option

Additional Information from the Manufacturer:

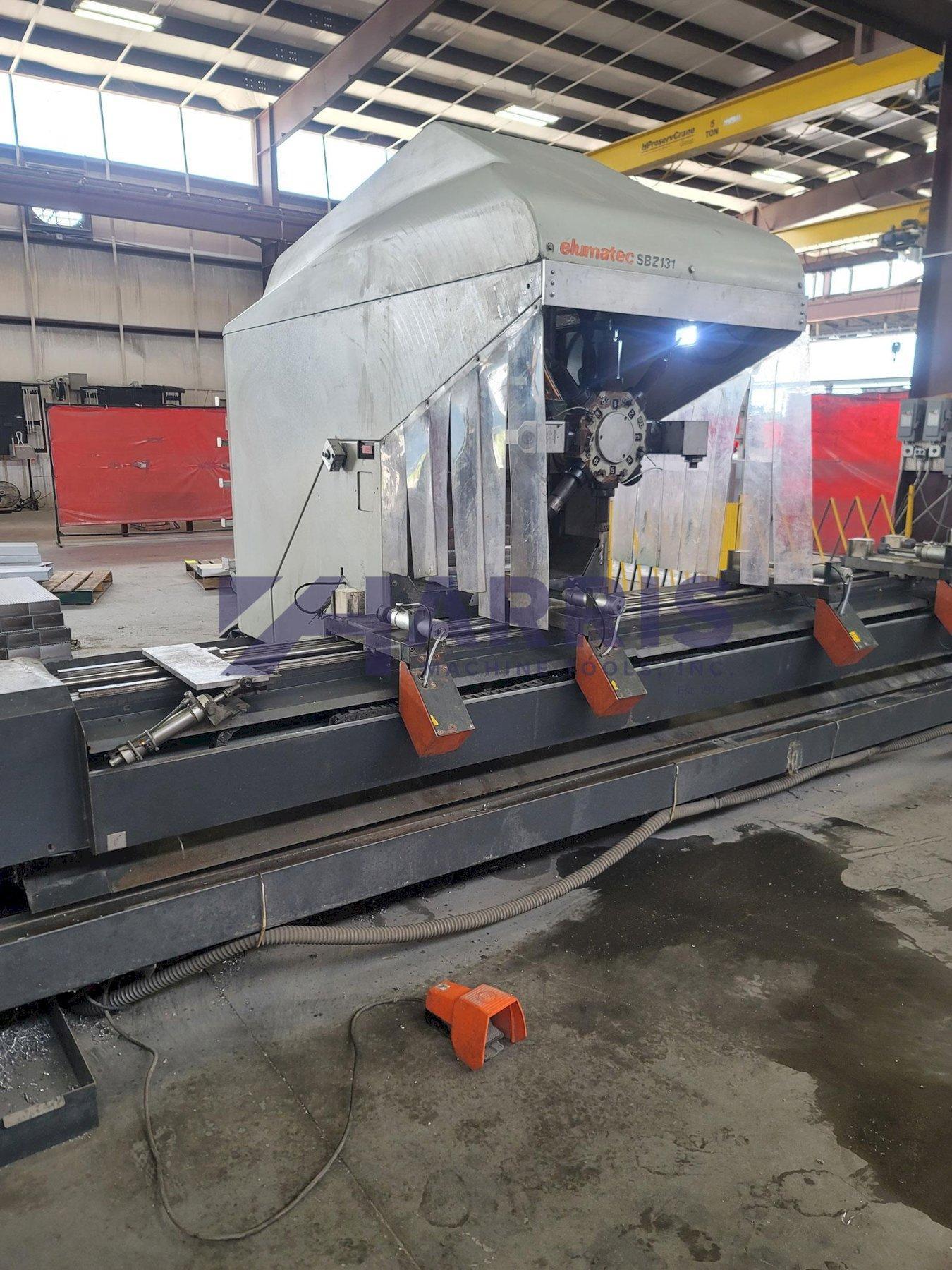

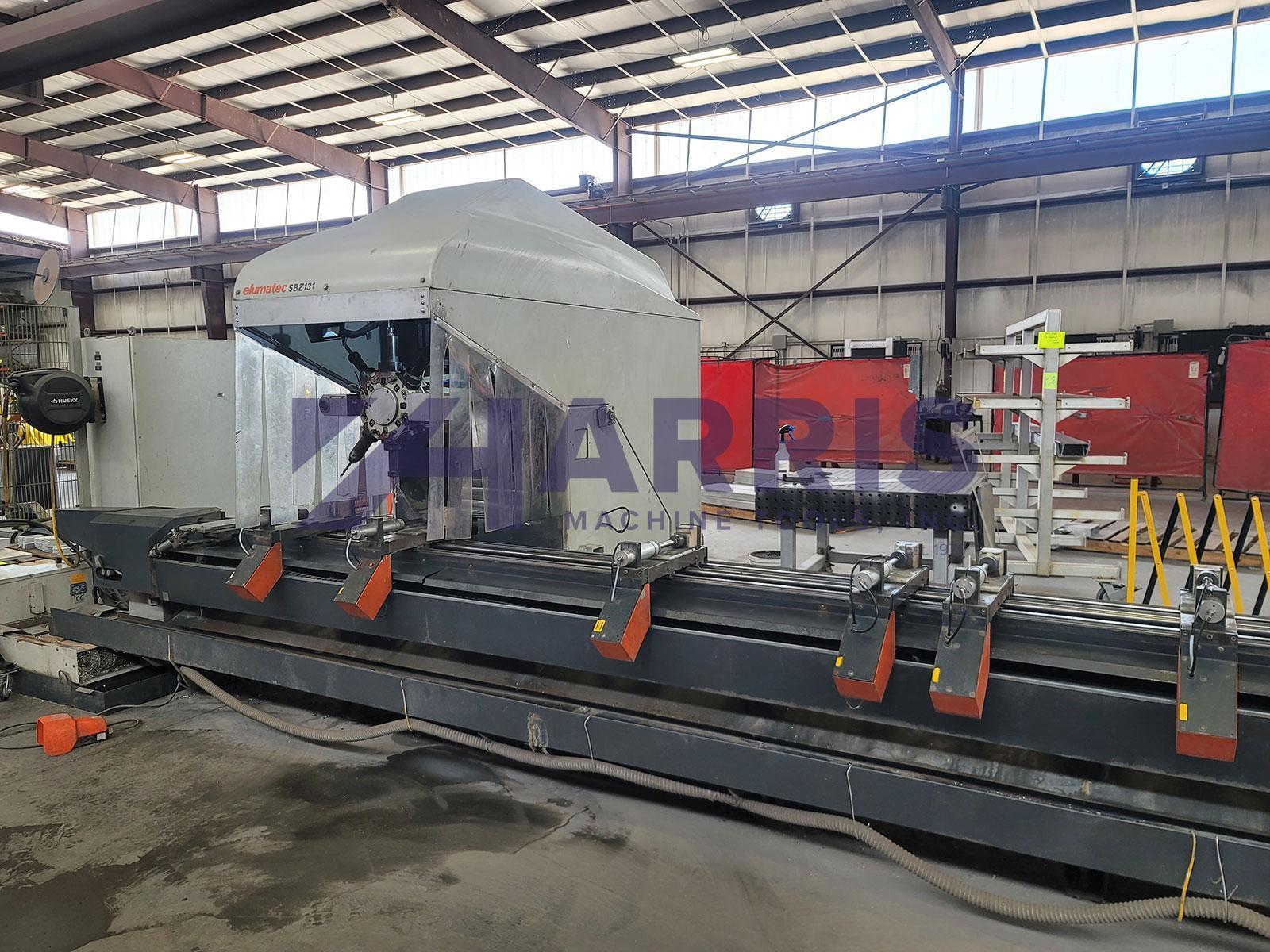

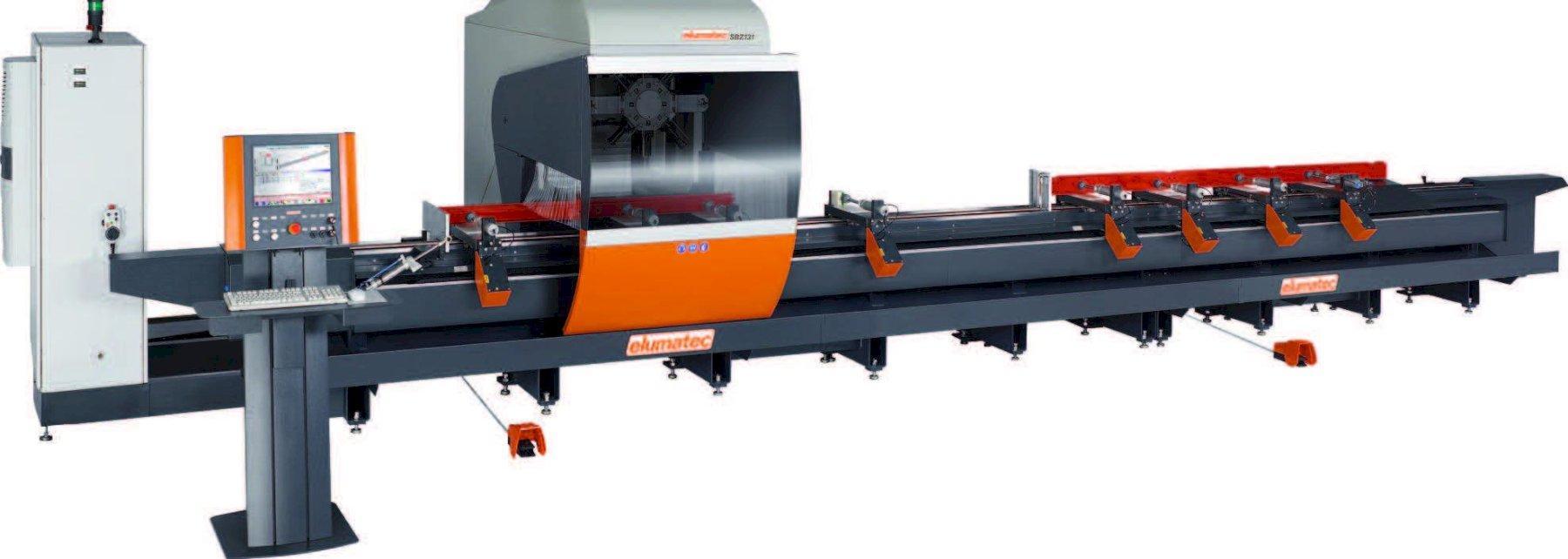

  • 3-axis profile machining centre SBZ 131
  • For the economical and efficient processing of aluminium, steel, and special steel profiles
  • All operations like routing, drilling, and tapping are carried out with the profile stationary to avoid scratches and damages on the profile surface

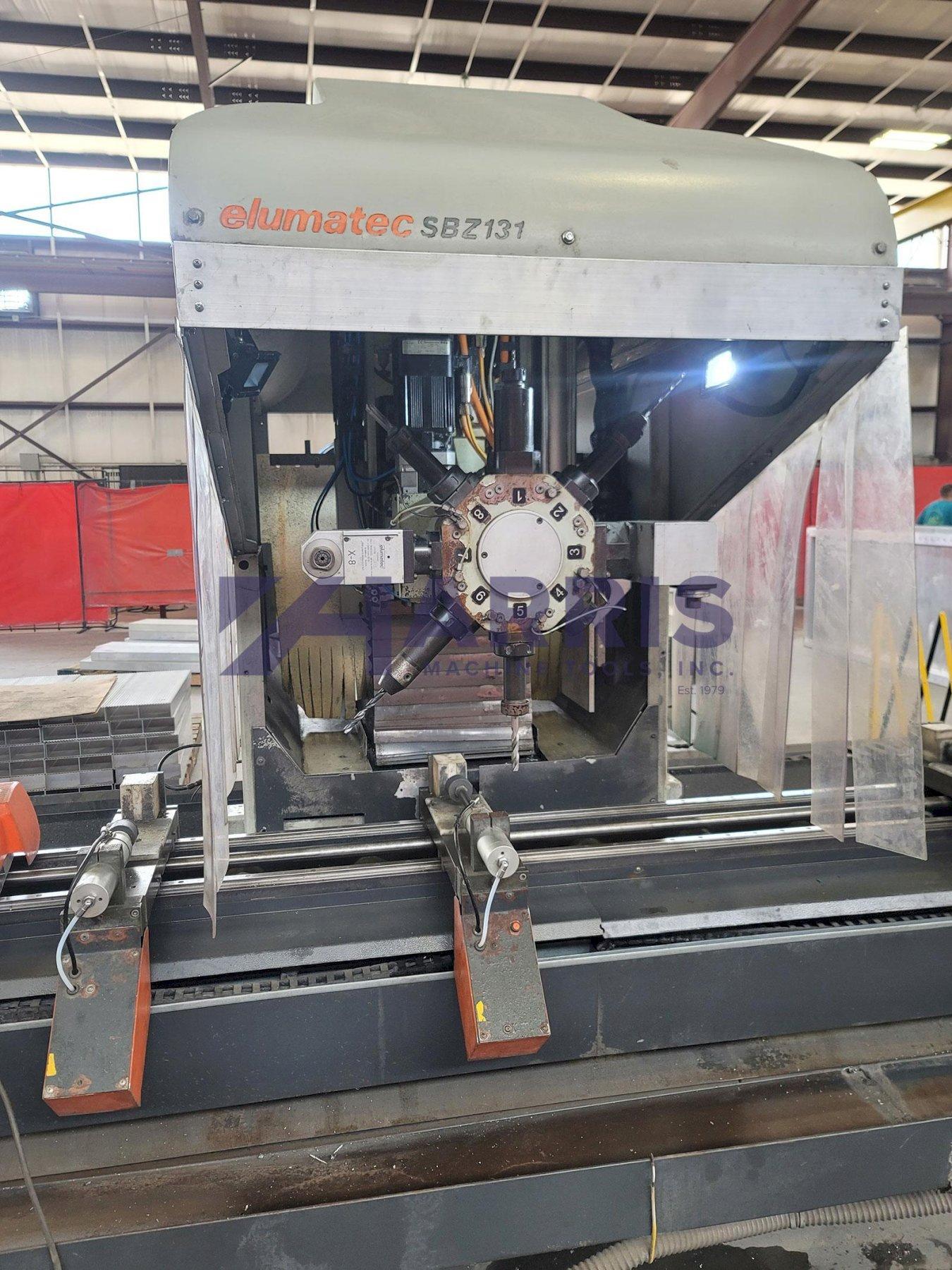

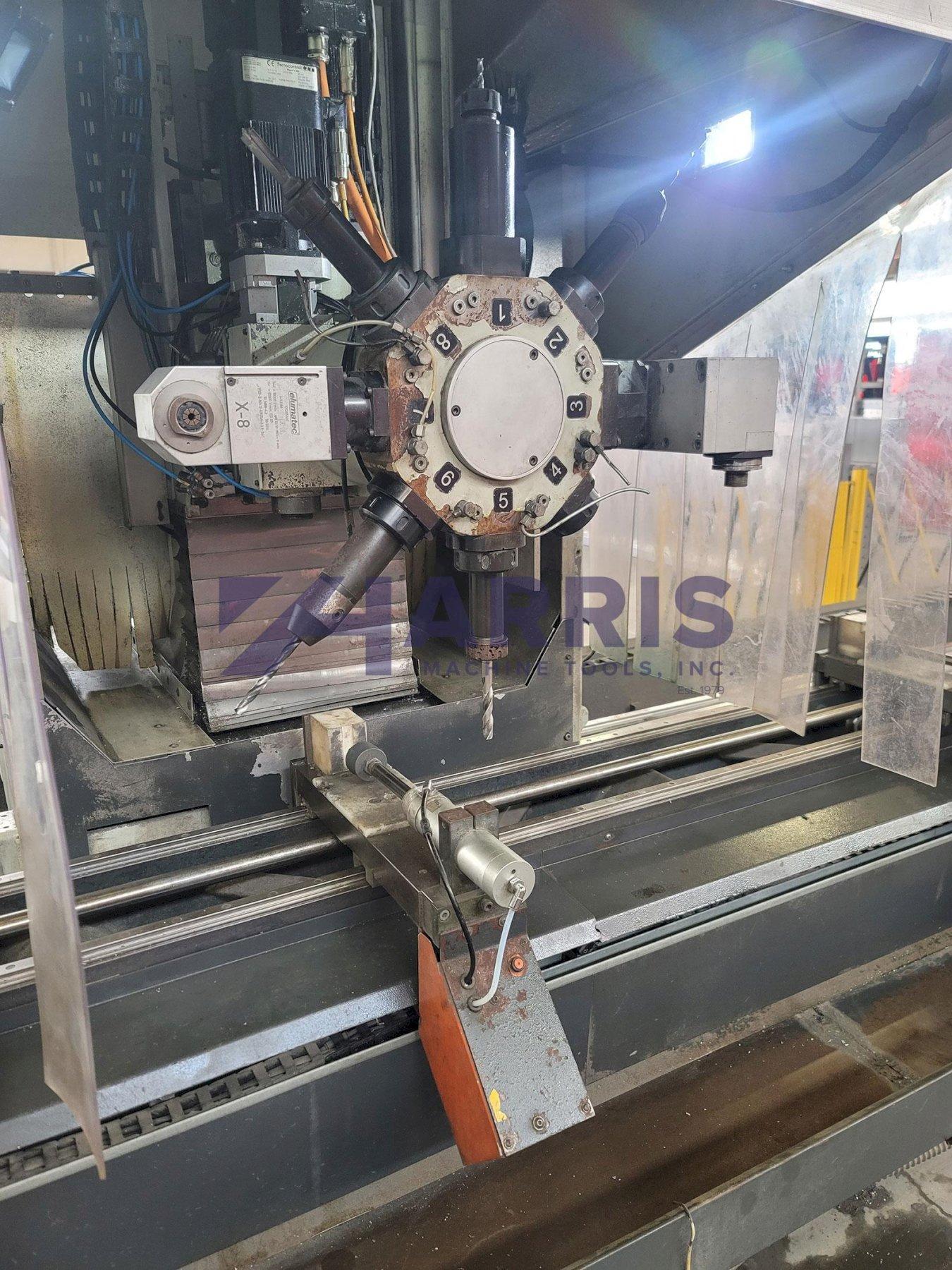

  • The travelling turret head provides rapid tool changes with optimum processing cycles
  • The turret head can be equipped with 8 standard tools or angle routing heads
  • 2 separate working zones allow profile processing in oscillating mode

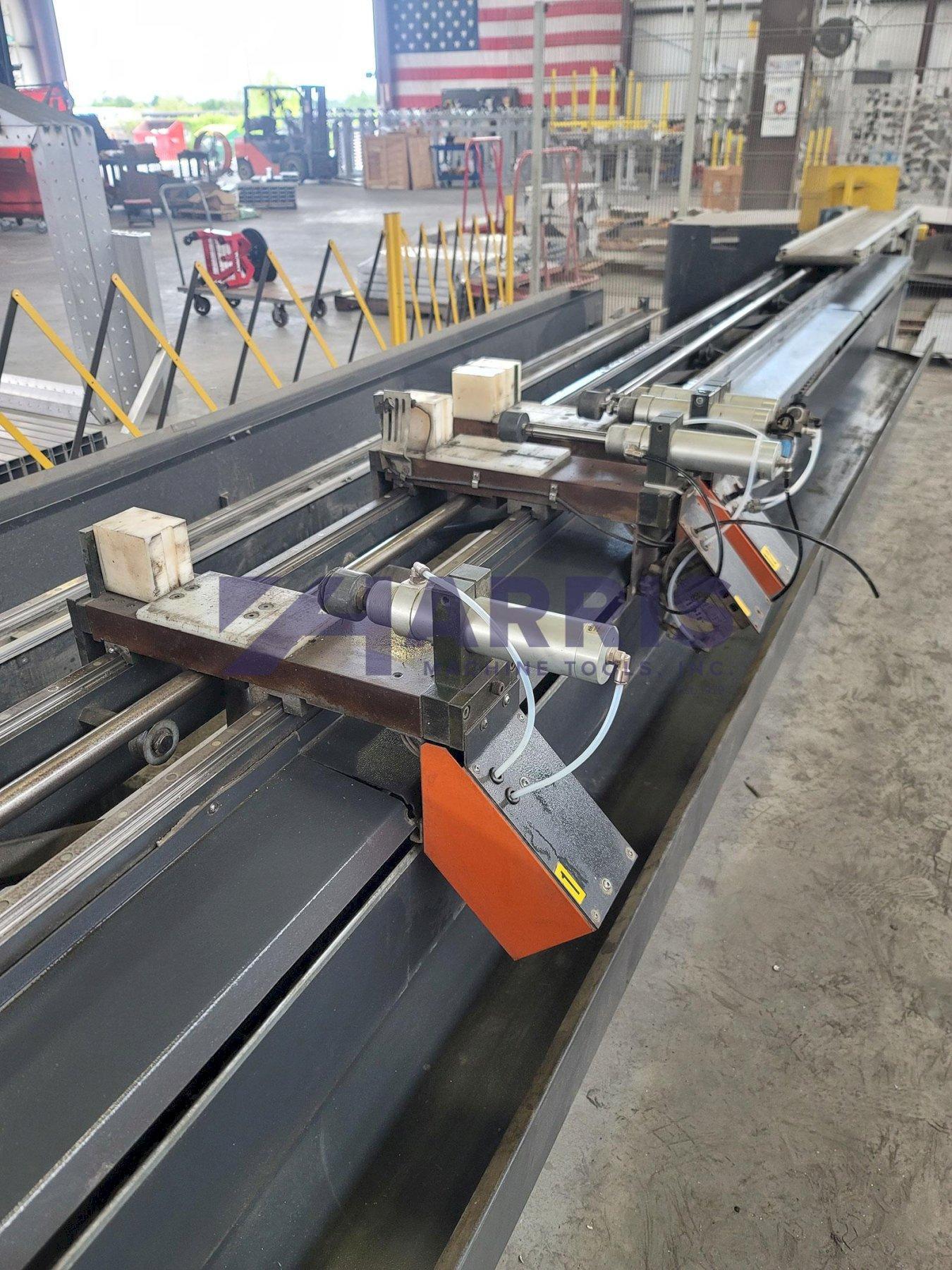

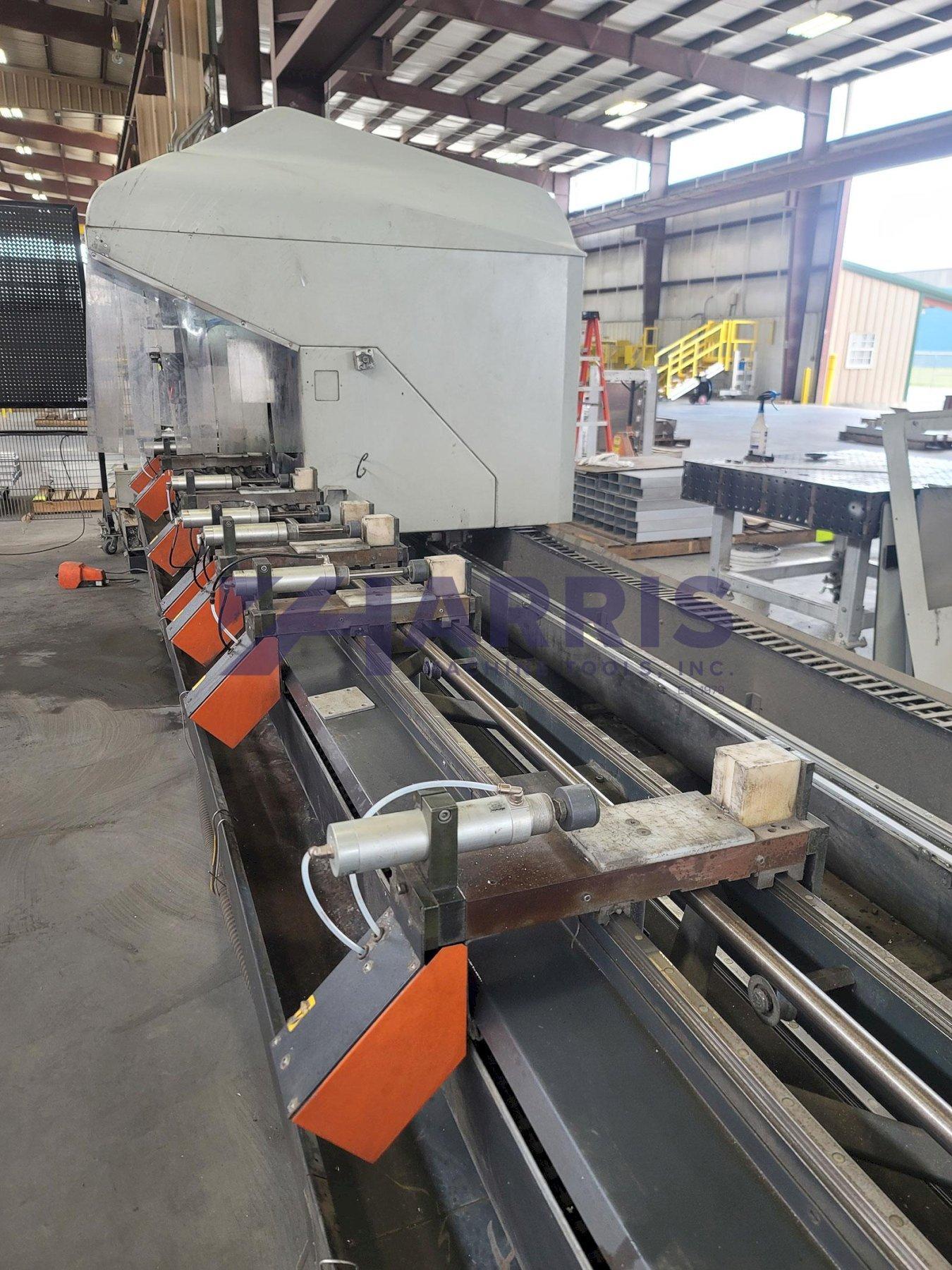

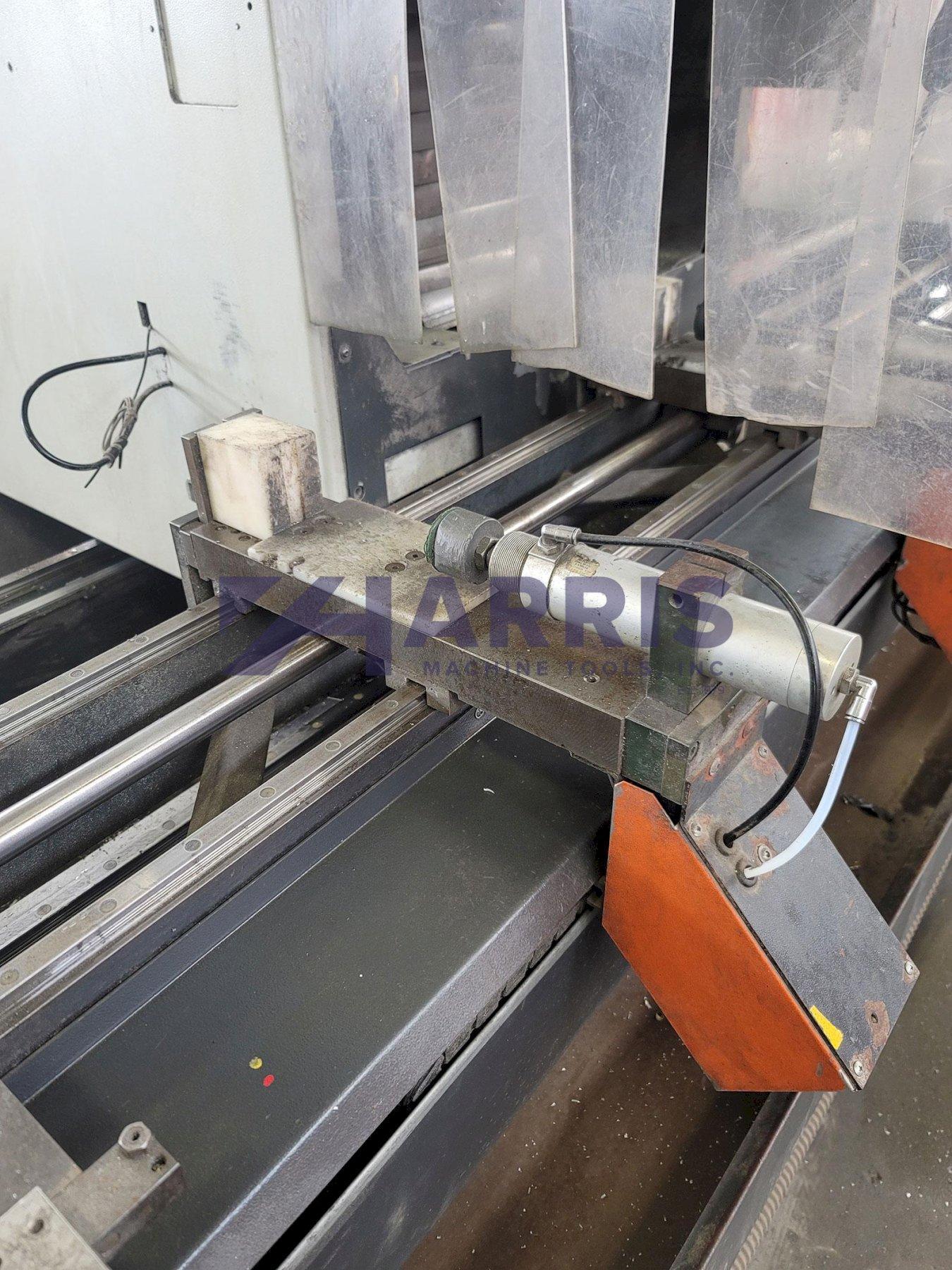

  • The autonomous clamping adjustment enables clamp positioning during secondary time

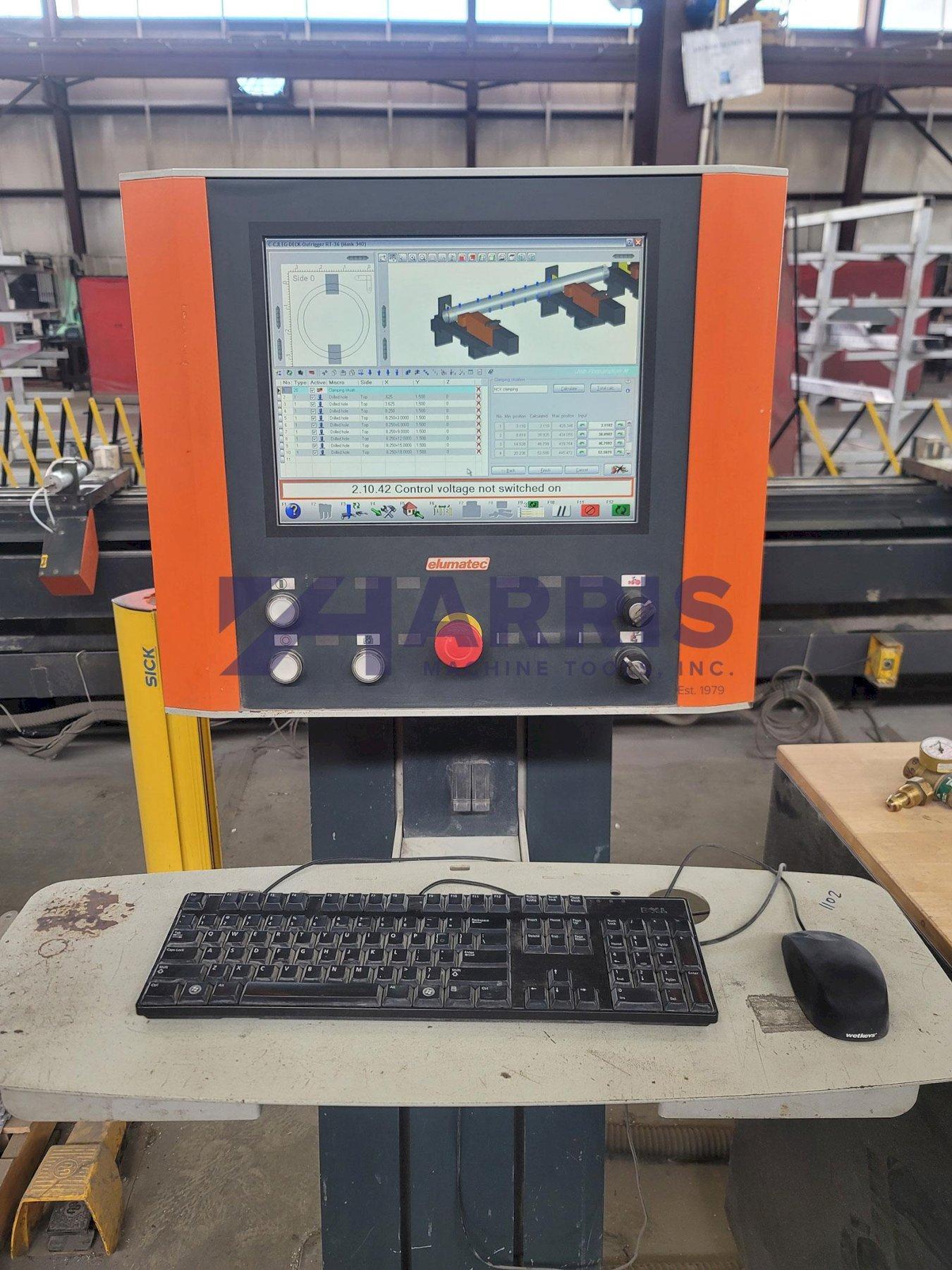

  • Electronic 4-axis industrial PC control
  • Tool spindle is designed as an additional axis
  • 15" colour monitor
  • RJ 45 10/100 MBit network connection
  • Serial and parallel interfaces (extendable) for online connection, barcode scanner and label printer

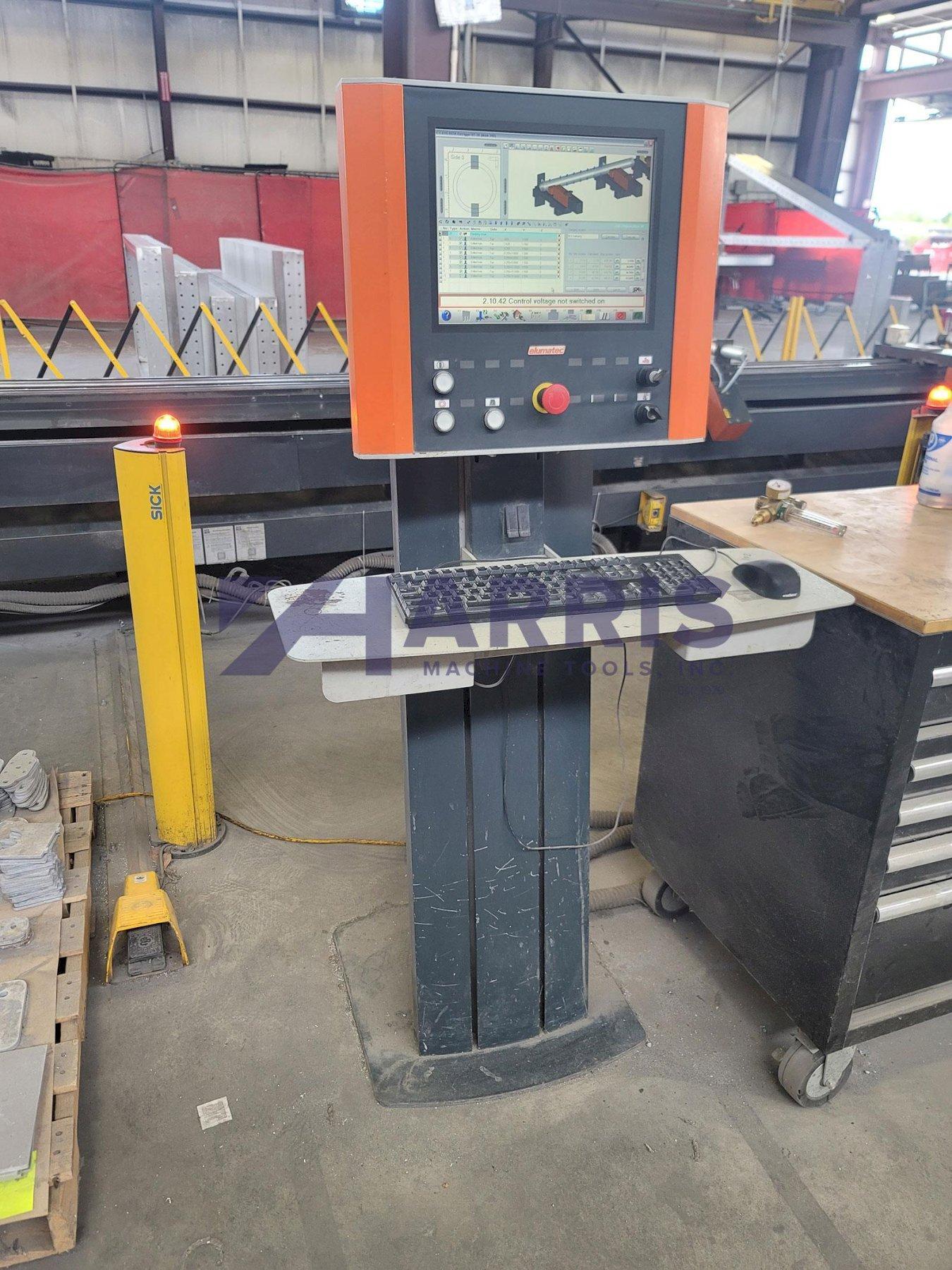

  • Mobile operation terminal
  • eluCam (Easy and direct programming on the machine)
