4'2" ERMAKSAN 44 TON CNC HYDRAULIC PRESS BRAKE, Model POWER BEND PRO 4.17X44

Manufacturer

Ermaksan

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, CNC, (Including Hyd/Mech)

Stock

30422

Model

POWER BEND PRO 4.17X44

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

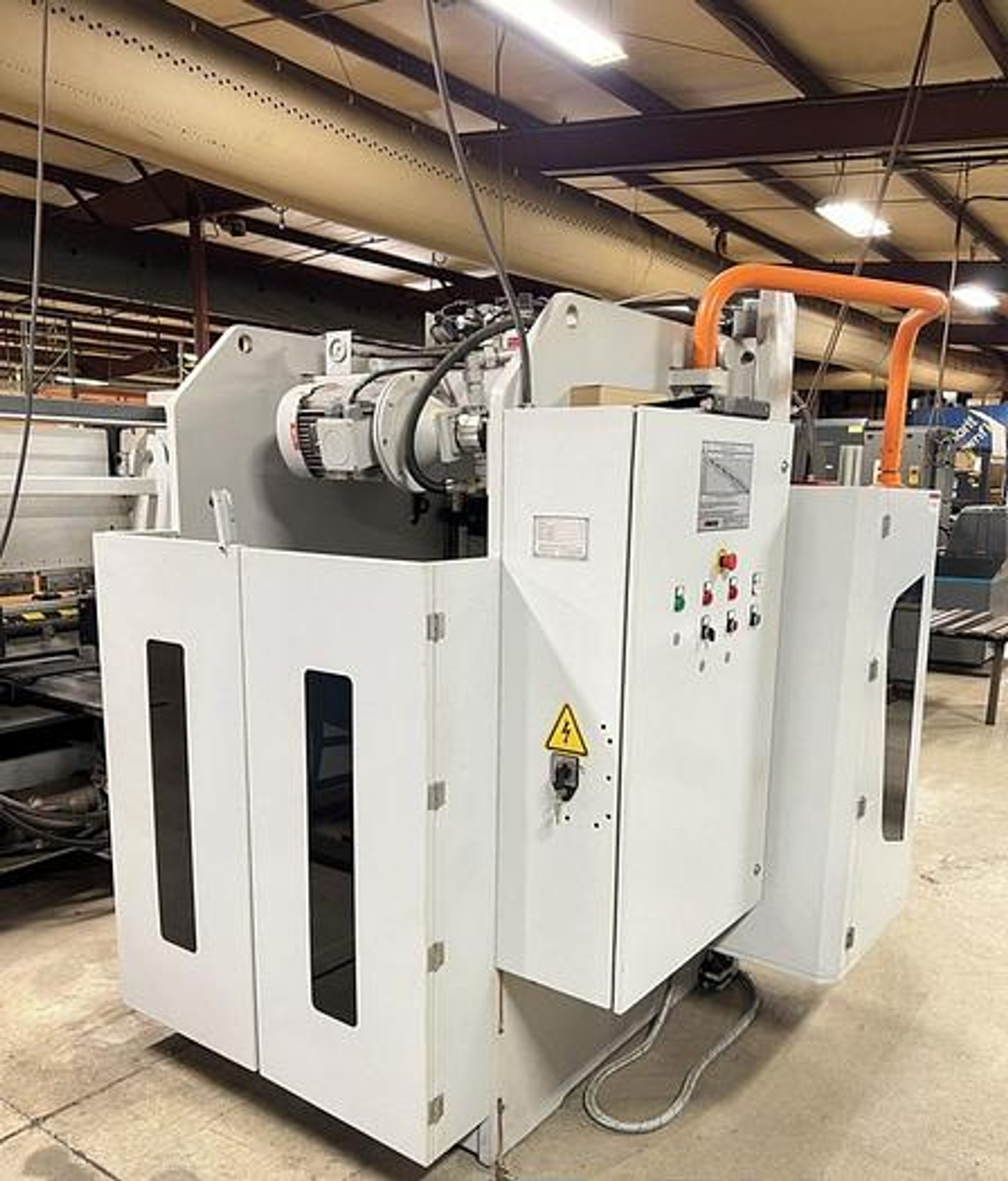

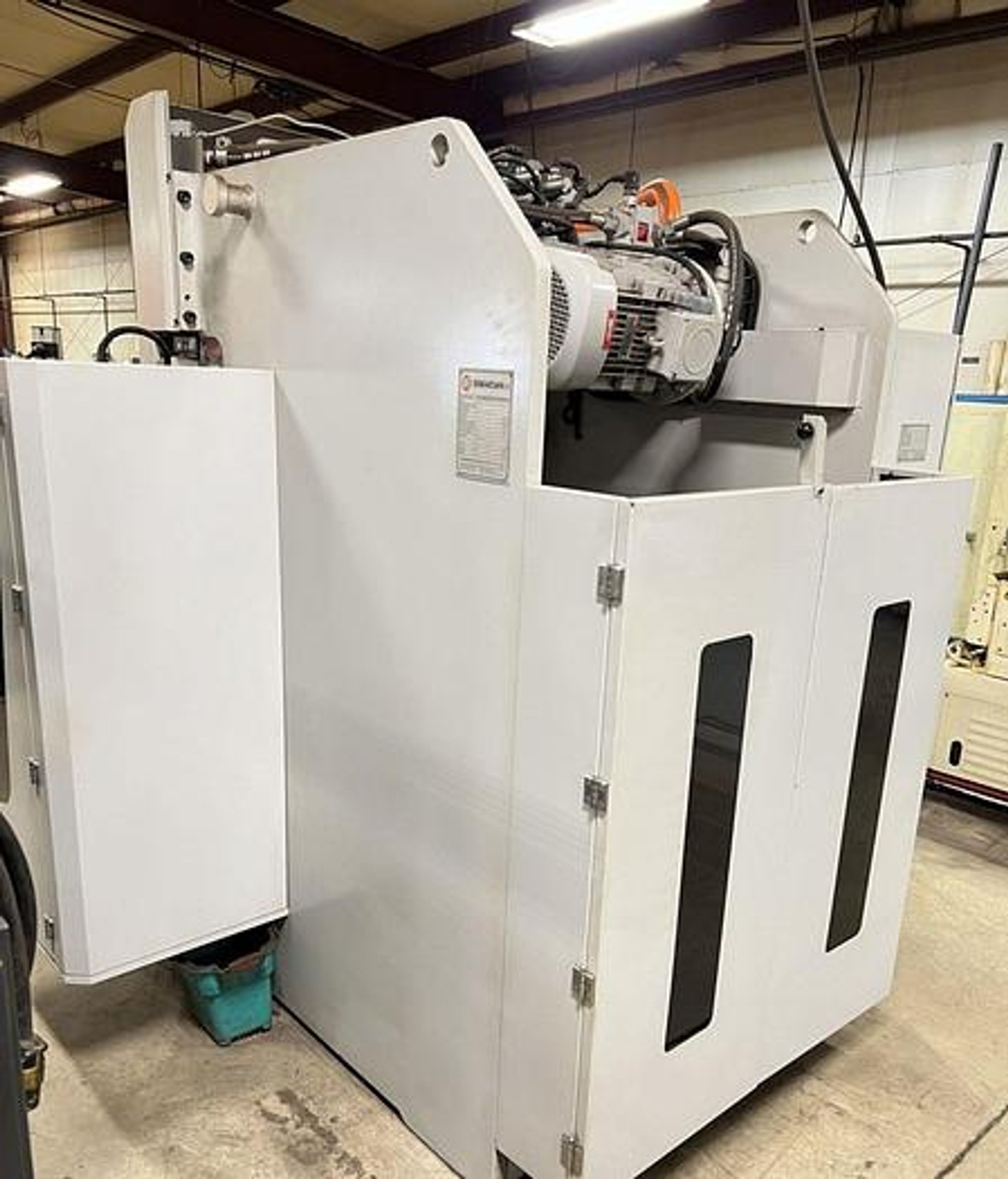

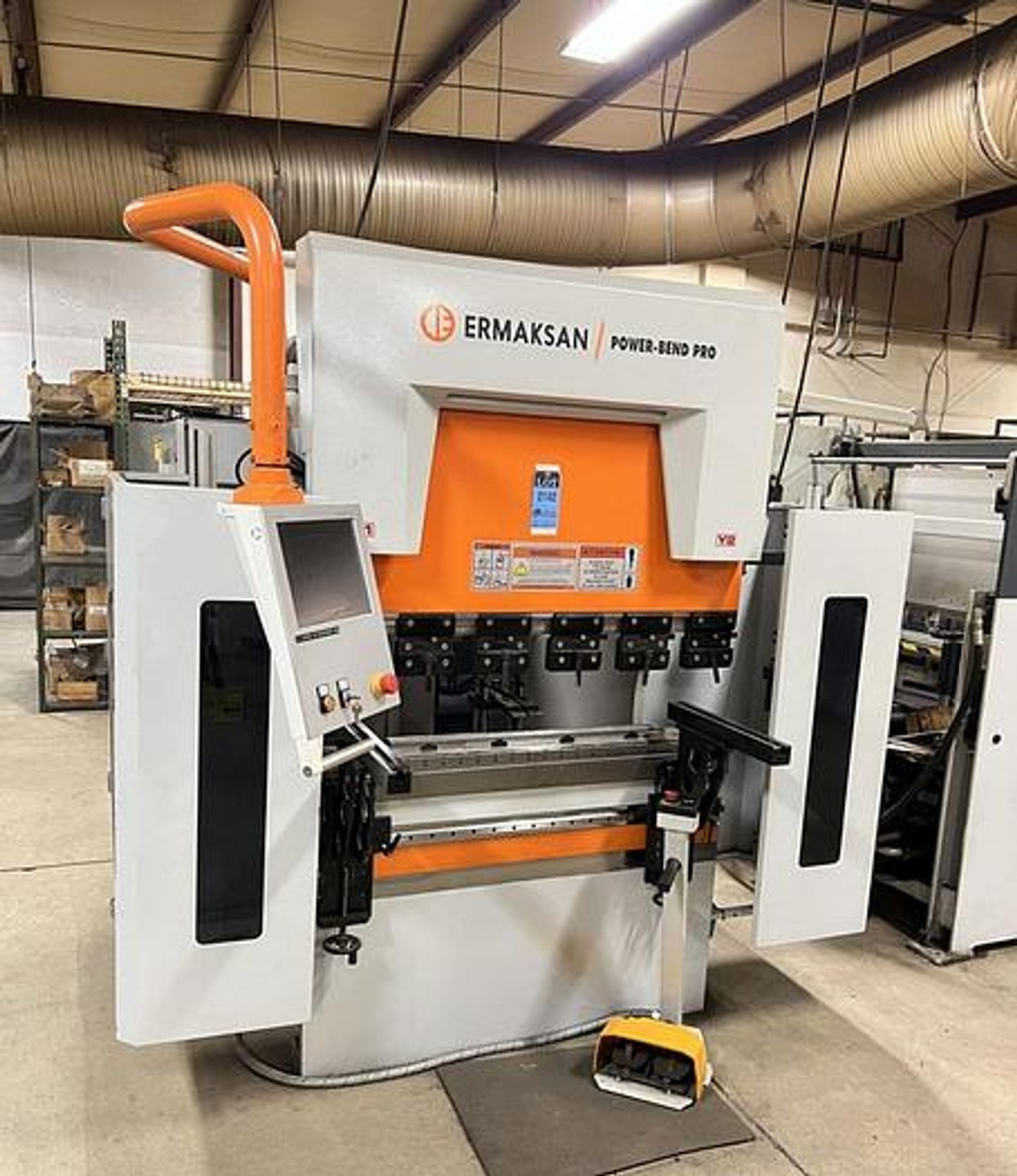

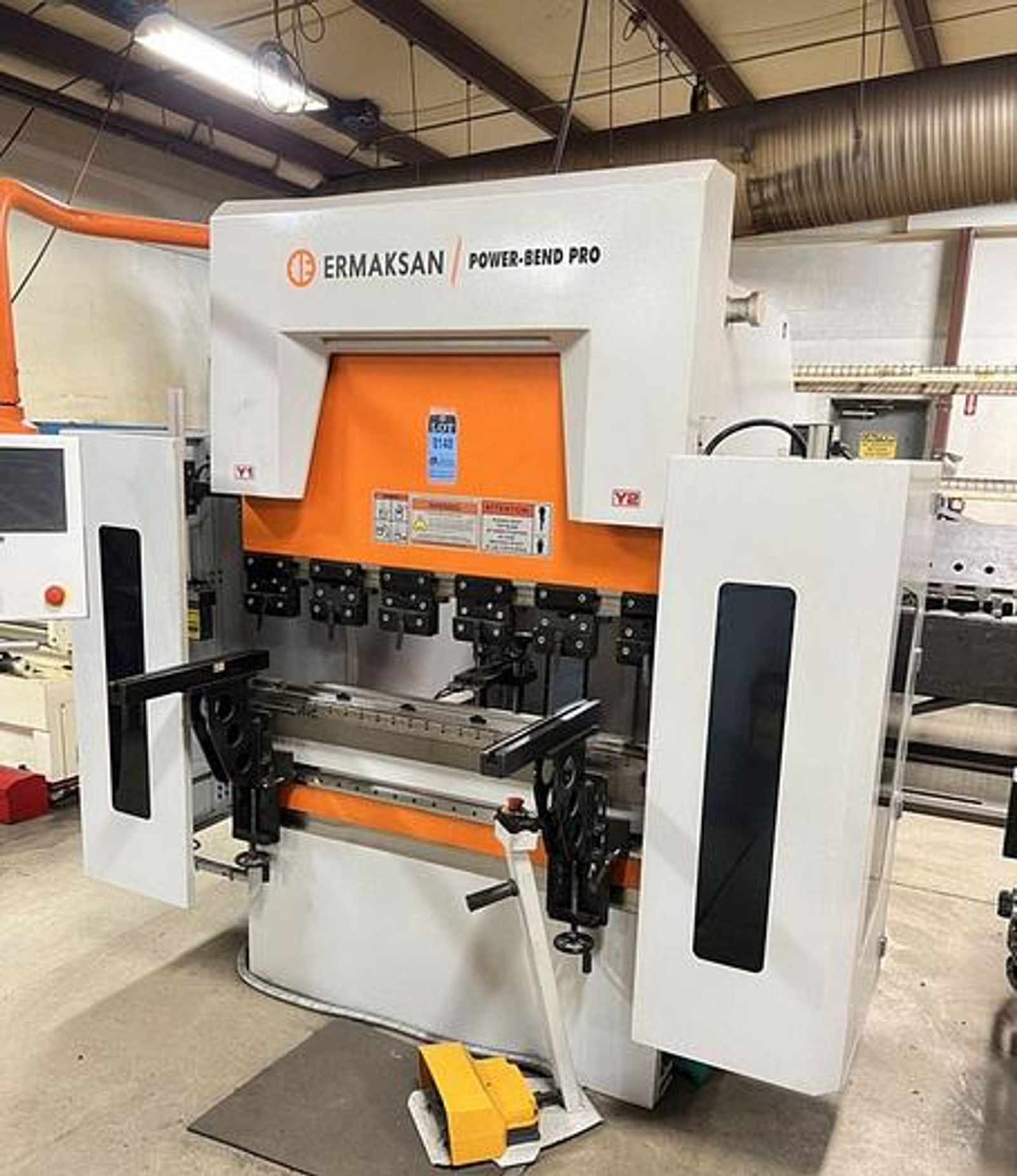

4'2" ERMAKSAN 44 TON CNC HYDRAULIC PRESS BRAKE

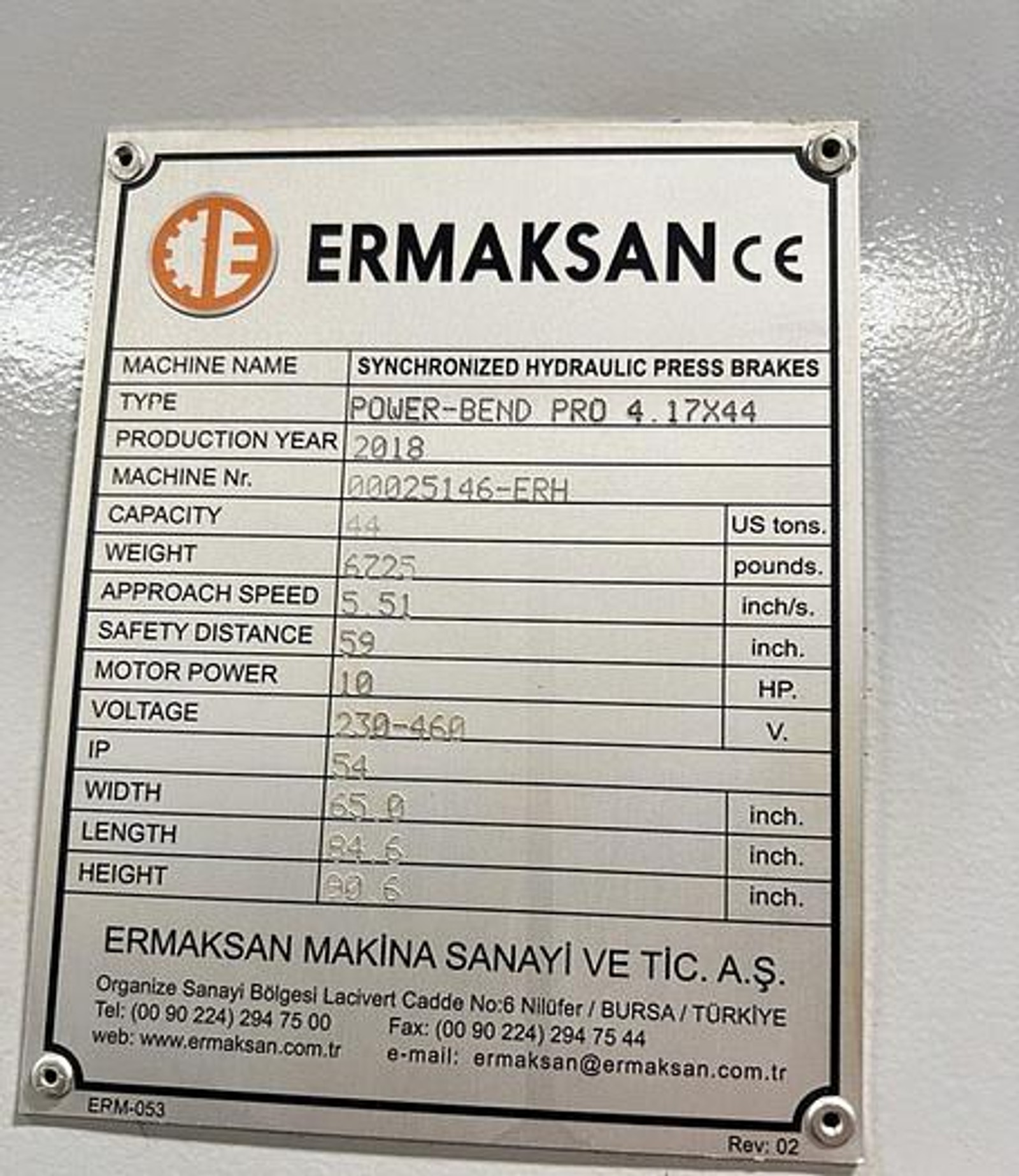

New 2018, Serial No 00025146-ERH, Model POWER BEND PRO 4.17X44

EQUIPPED WITH:

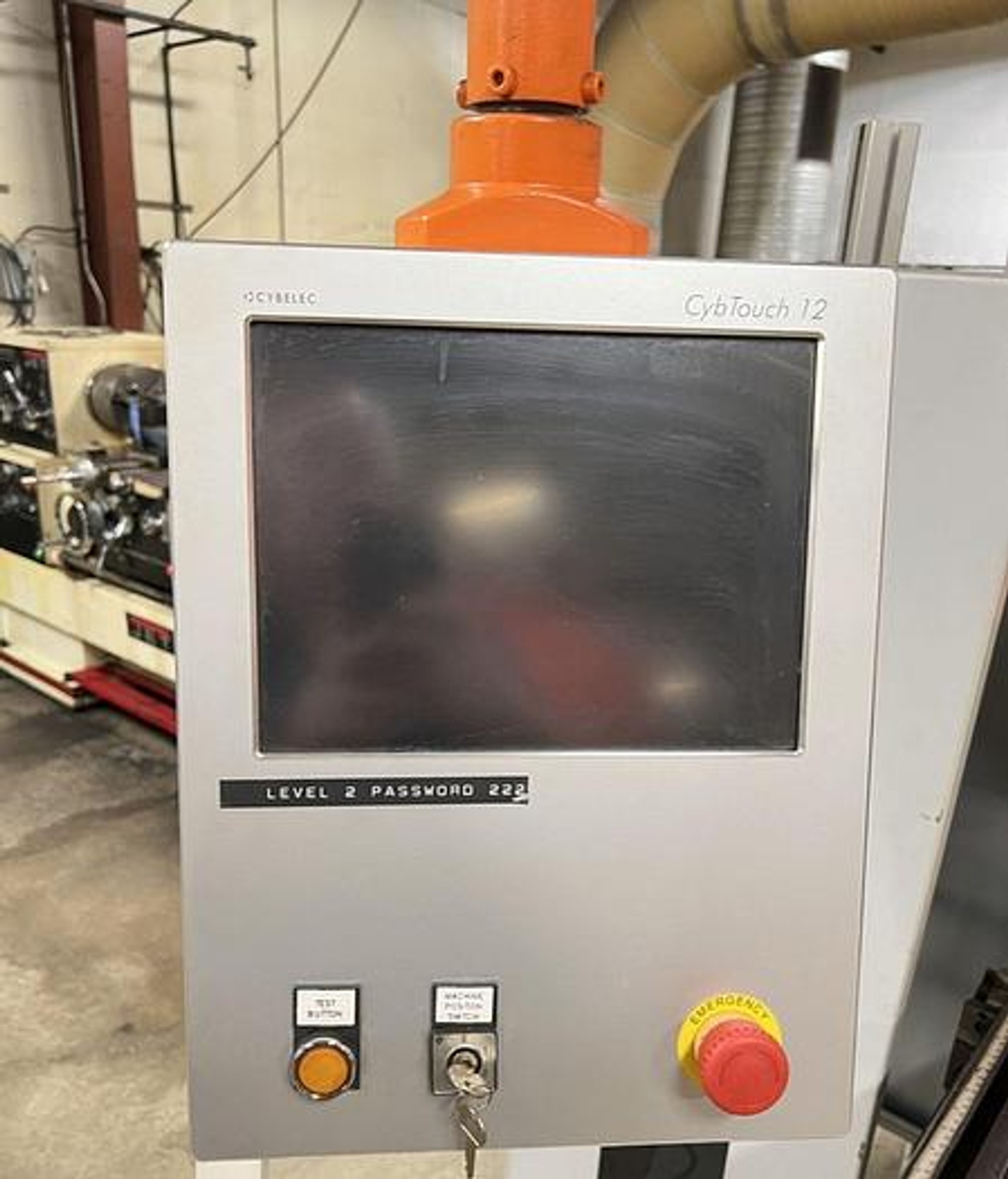

Cybelec "Cybtouch 12" CNC Control Back Gauge

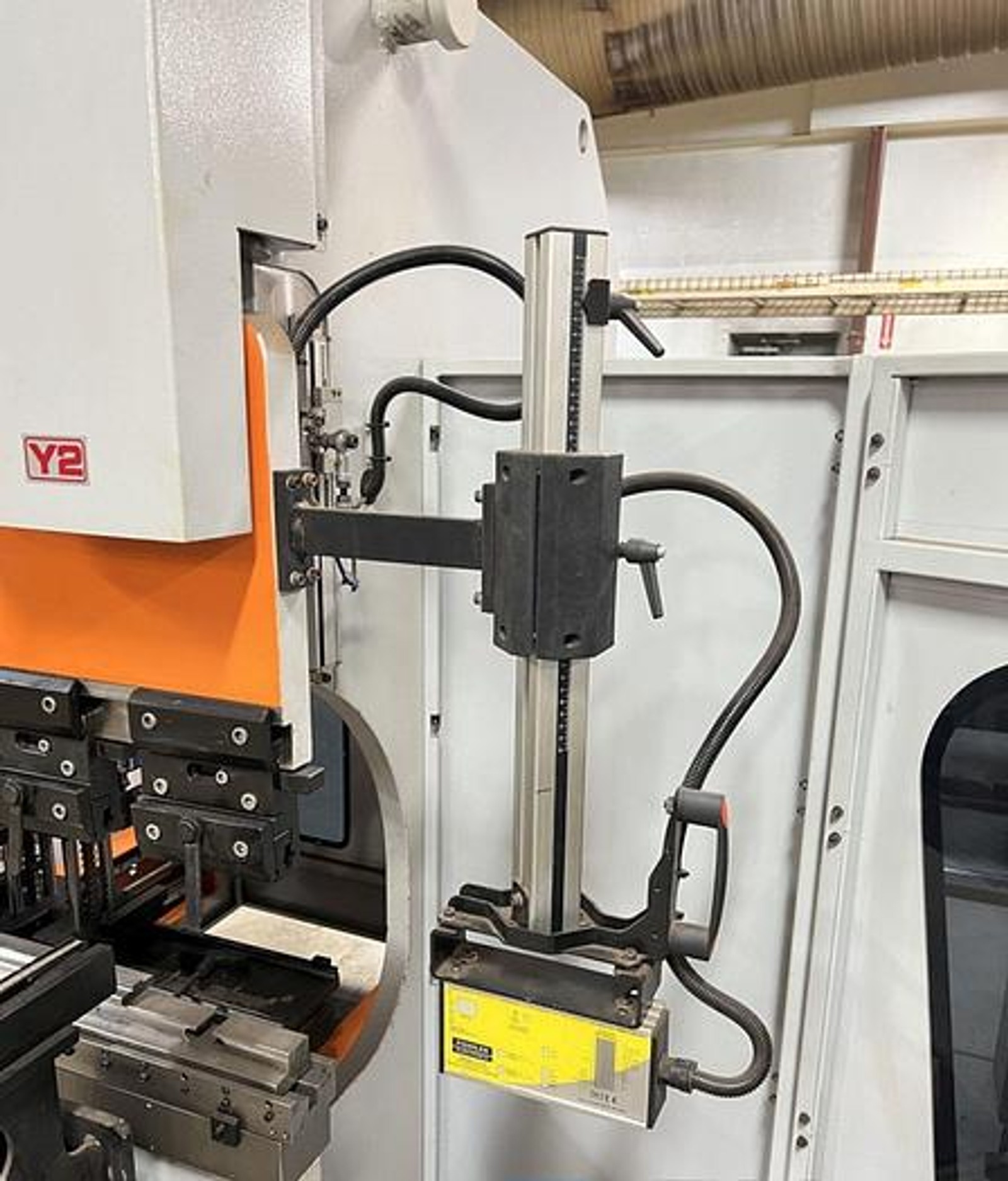

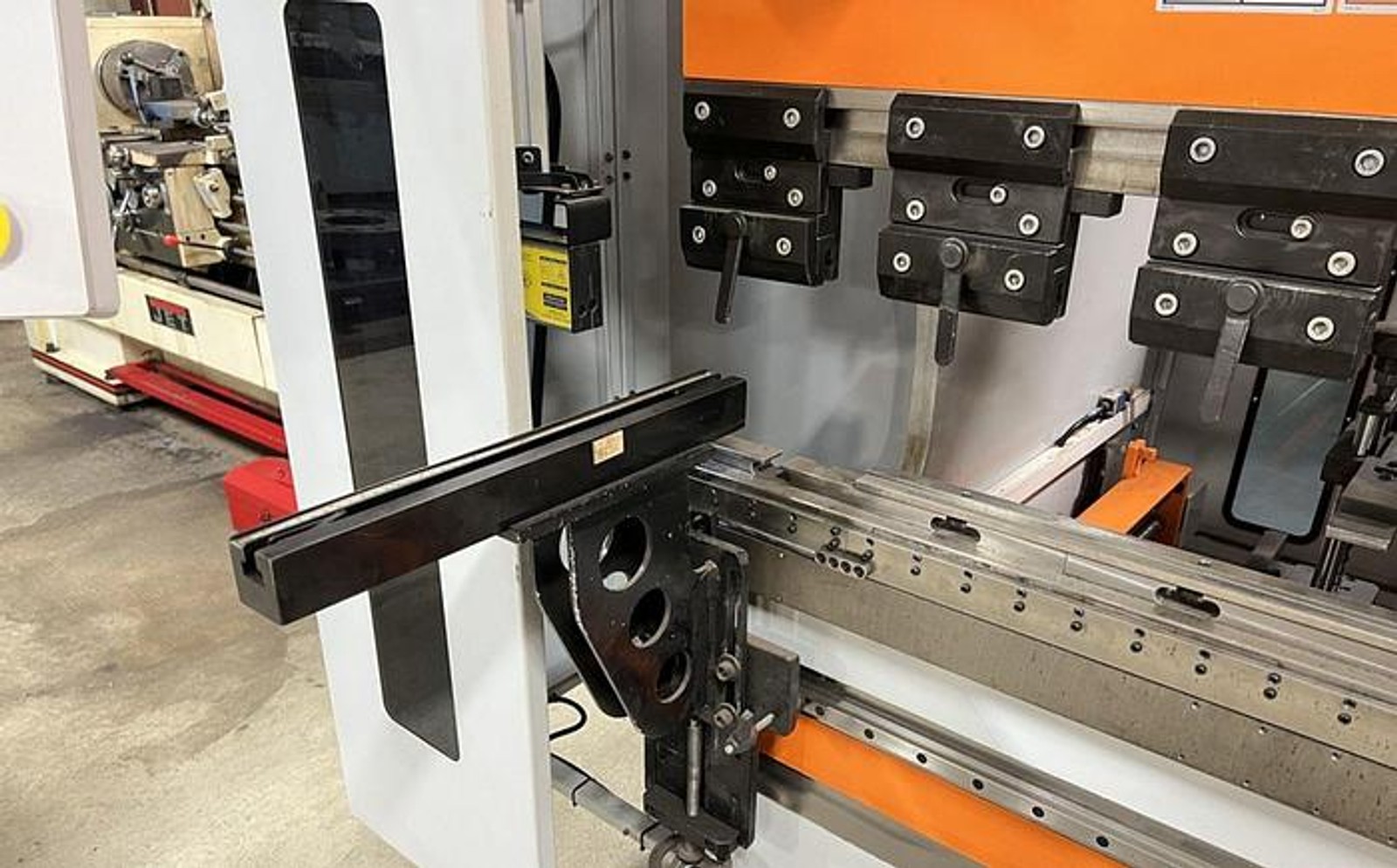

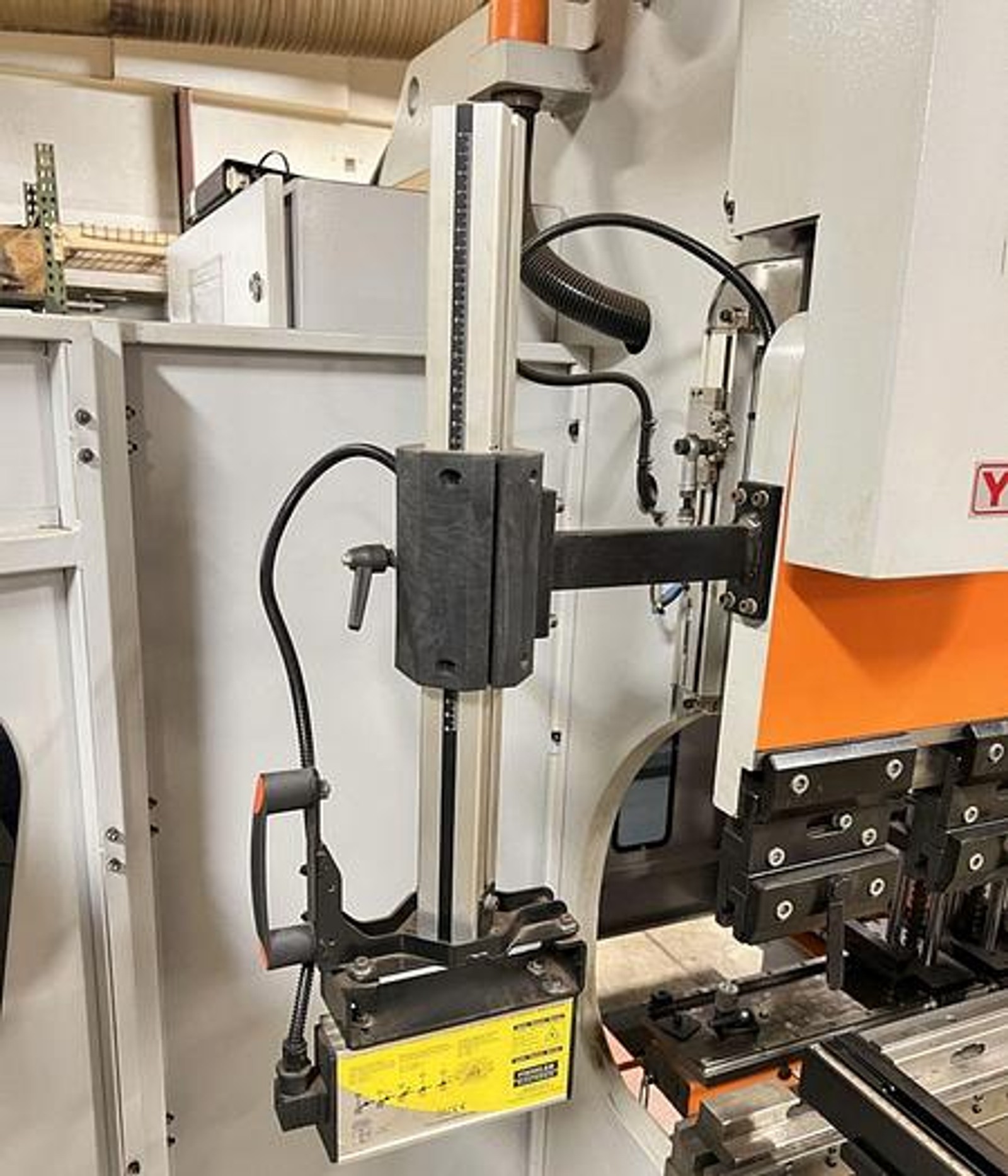

(2) Height Adjustable Sliding Front Arms

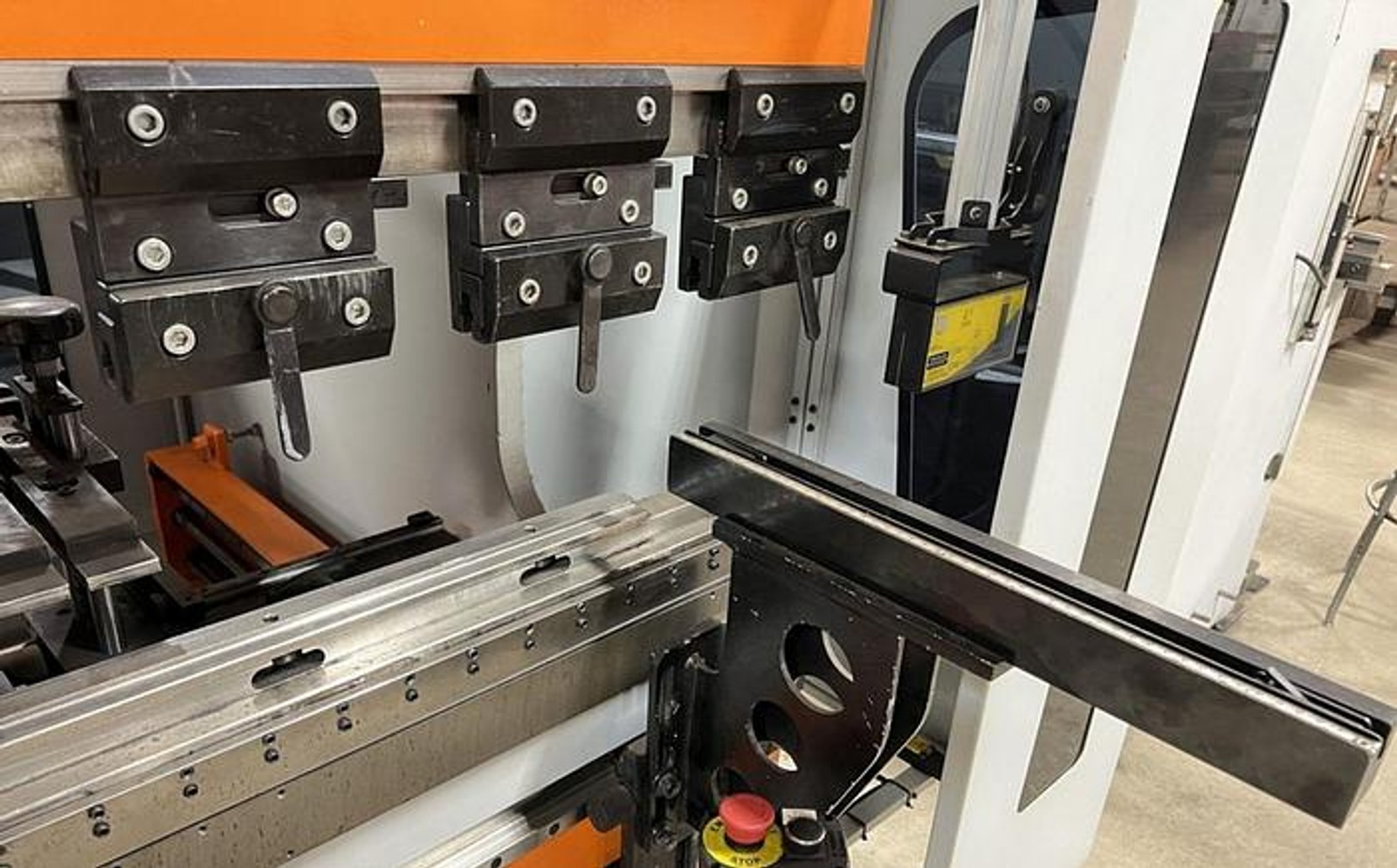

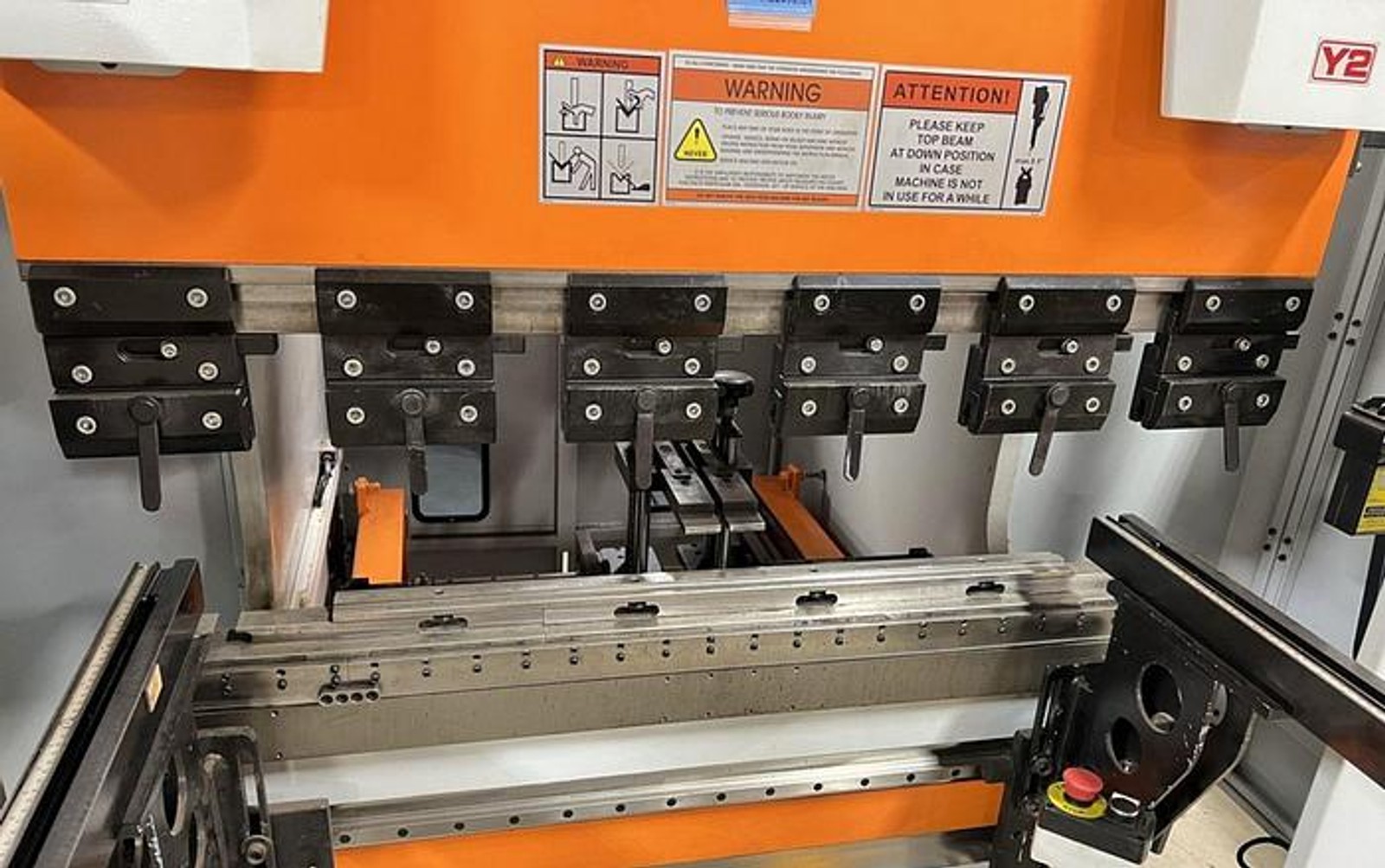

Promecam Fast Tool Clamping

CATALOG SPECIFICATIONS:
Tonnage Capacity 44 TONS
Overall Length Of Table 50"
Distance Between Housings 43.3"
Ram Travel 6.7"
X-Axis Travel 31.5"
Stroke Adjustment Of Ram 2.75"
Open Height 15.2"
Throat Depth 13.8"
Rapid Ram Travel 5.51 IPS
Ram Working Speed 0.39 IPS
Rapid Ram Return 6.69 IPS
Overall Dimensions, L x W 84.6" x 65"
Overall Height 80.6"
Motor Horsepower 10 HP
Electrical System 230-460/3/60
Weight Approximately 6725 LBS
