30418
375HS12
Ohio

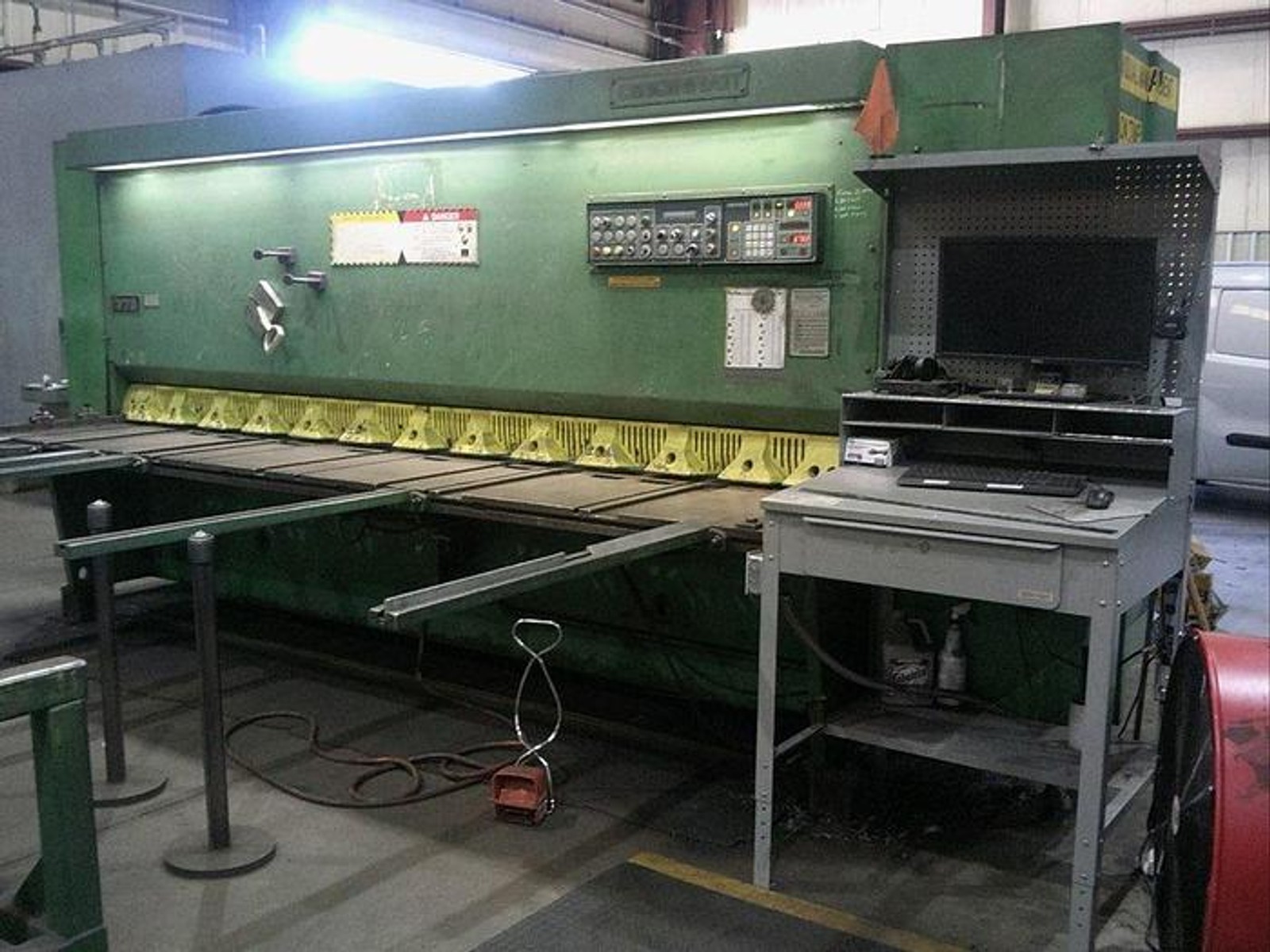

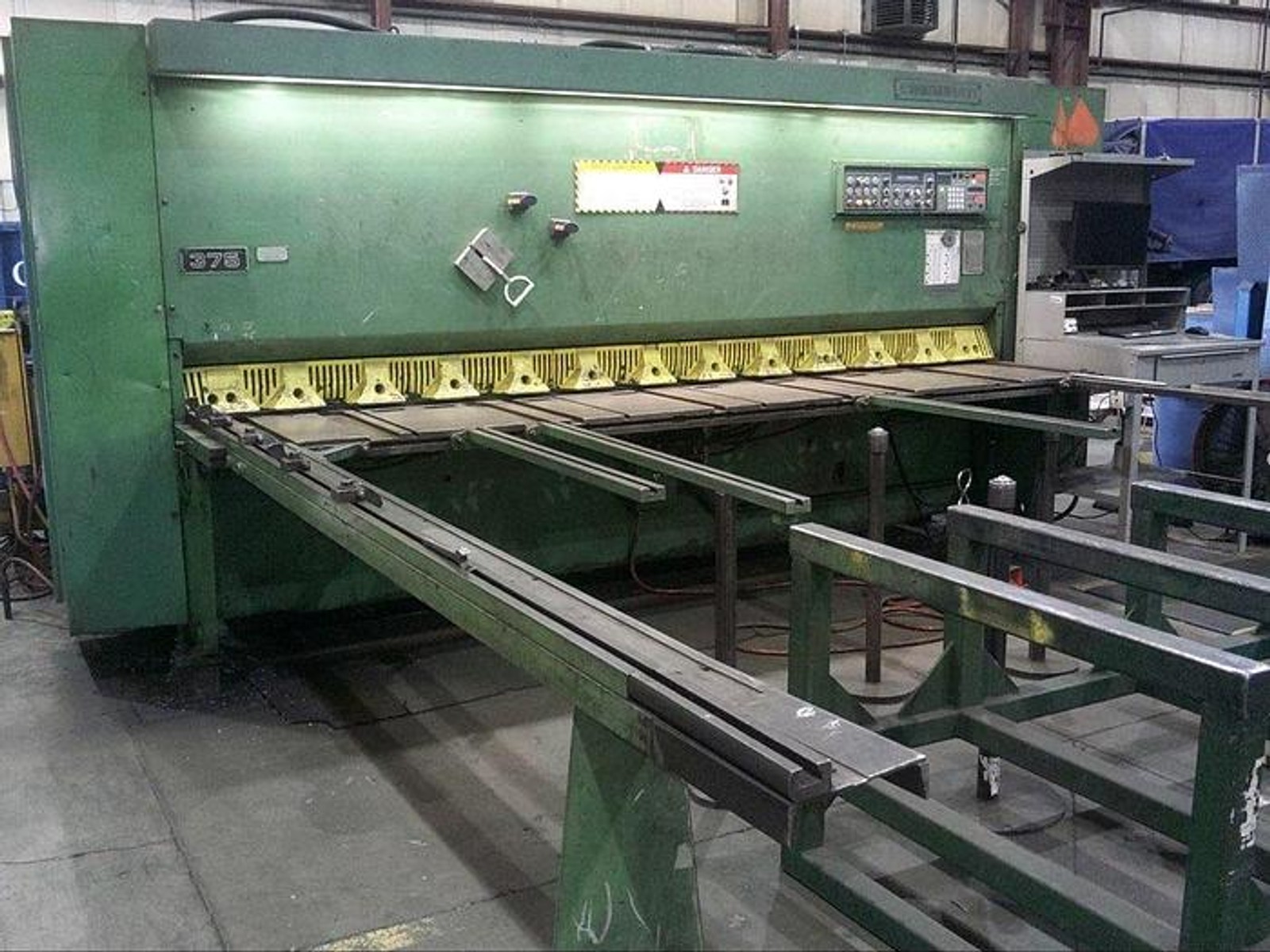

12' x 3/8" CINCINNATI-INC HYDRAULIC POWER
SQUARING SHEAR w/CONVEYOR & STACKER
New 2000, Serial No 51582, Series 375HS12
EQUIPPED WITH:

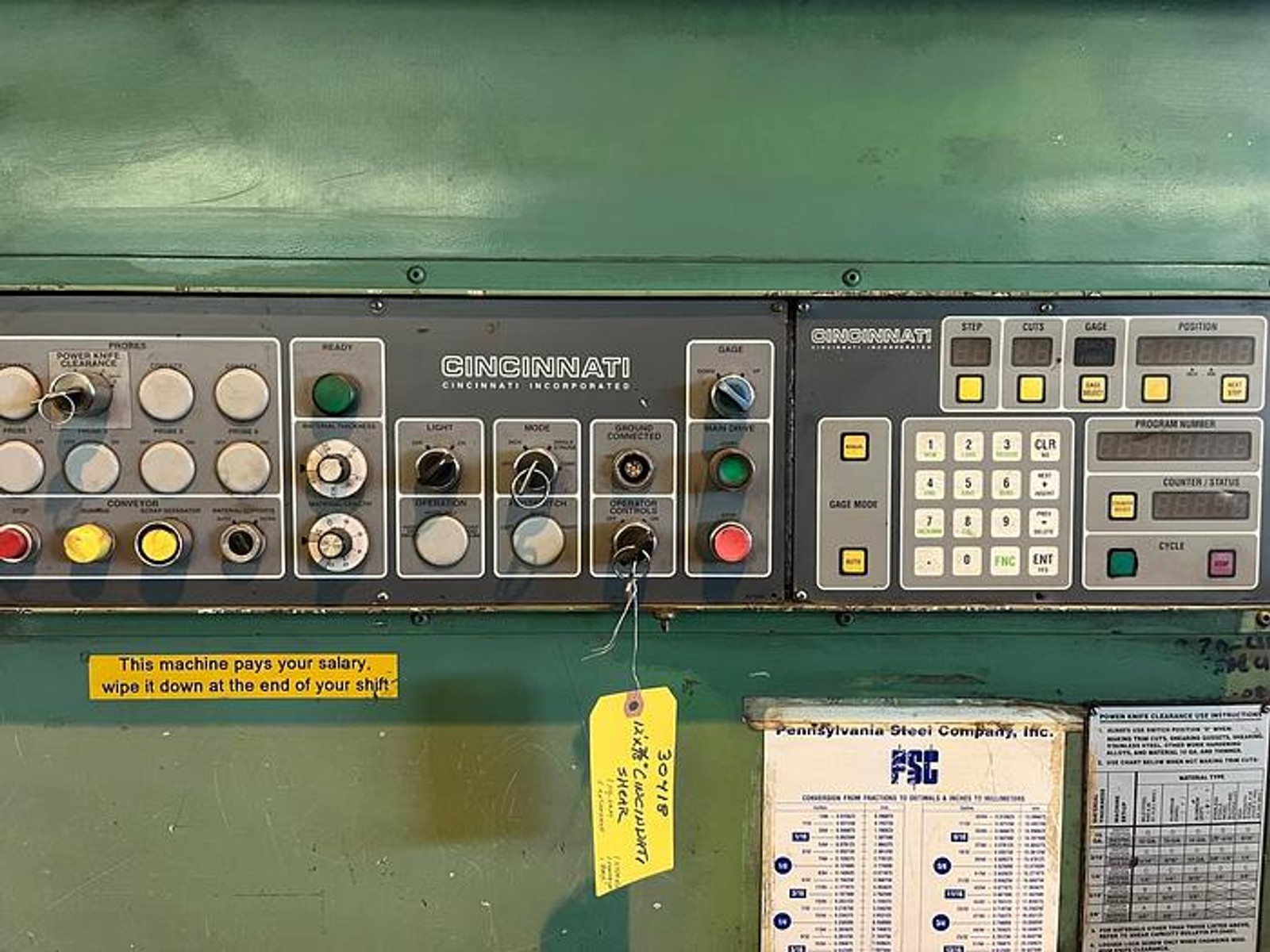

48" Front Operated Power Back Gauge (Swing-Up Design)
Adjustable Powered Knife Clearance
12' Squaring Arm - (4) Front Supports

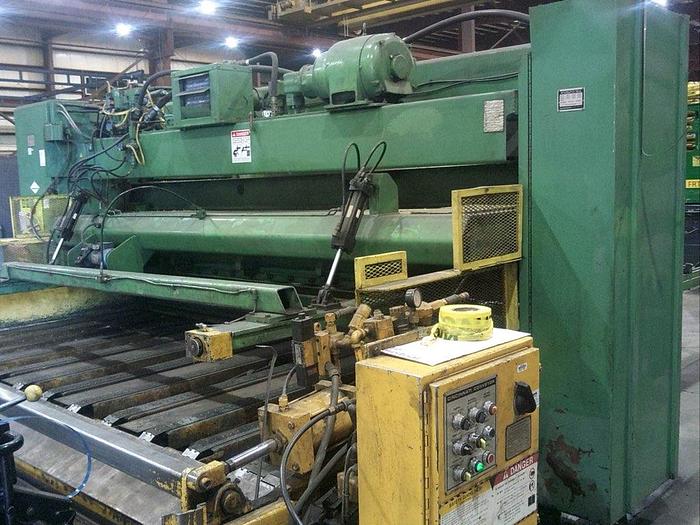

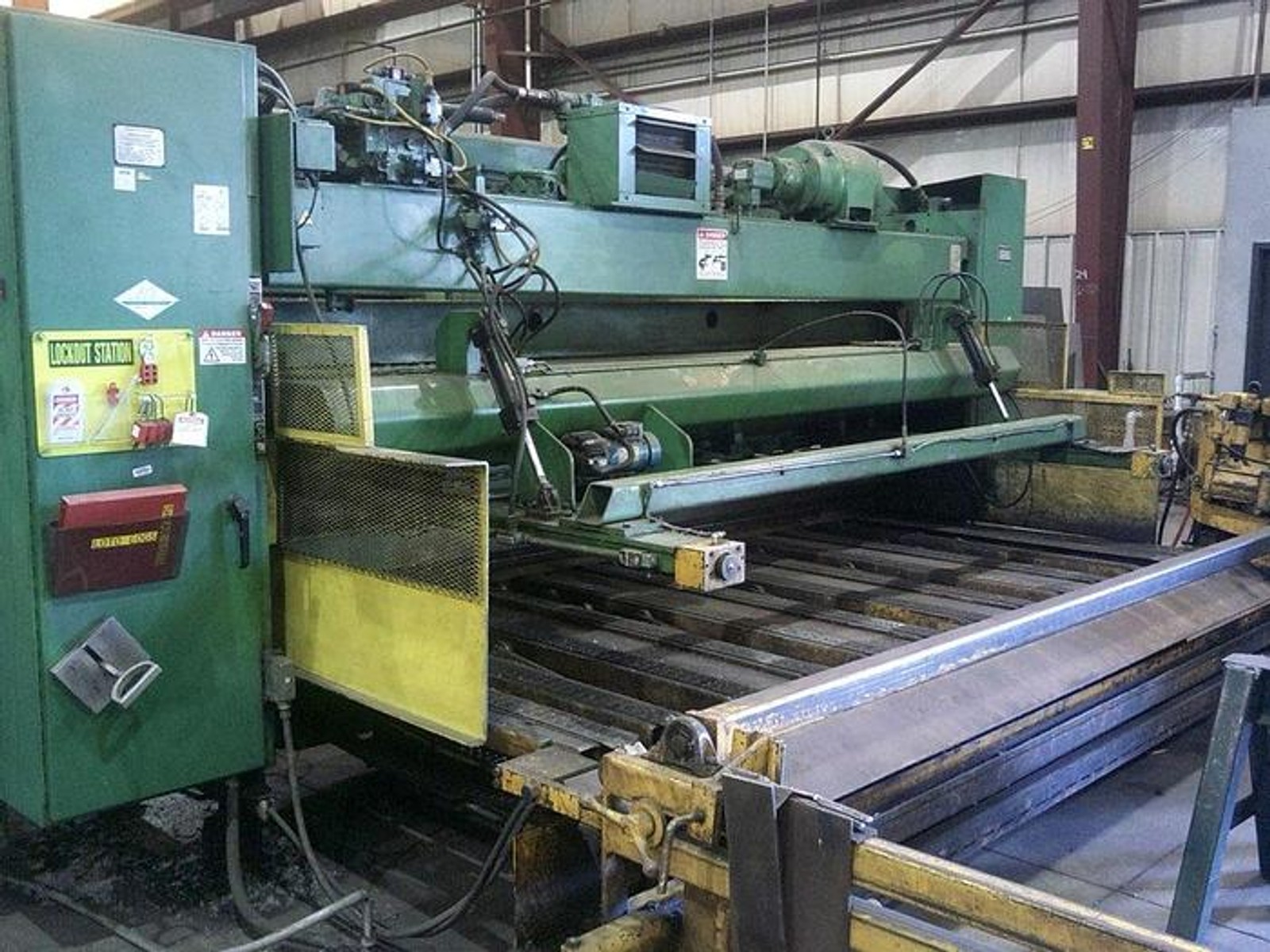

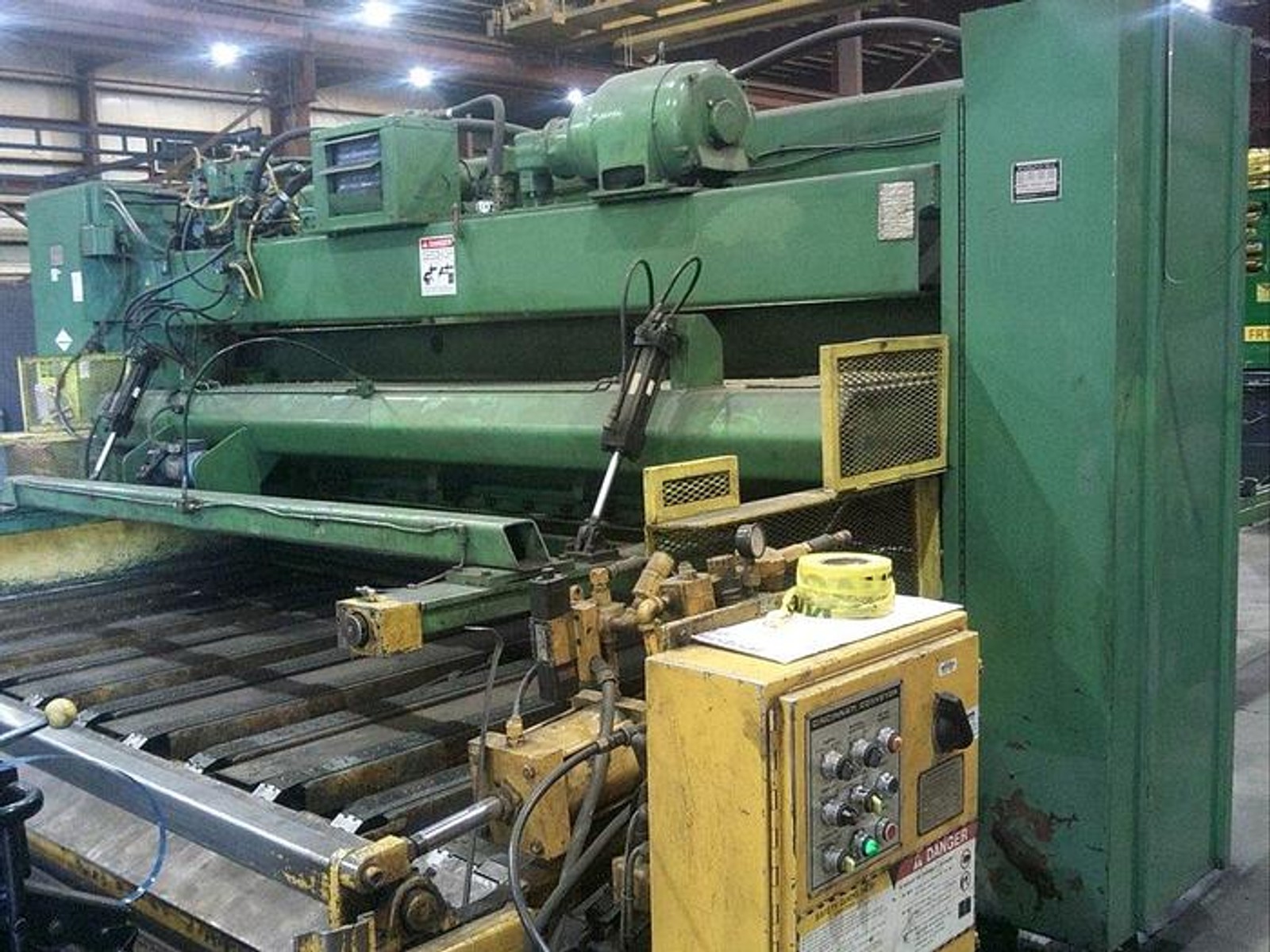

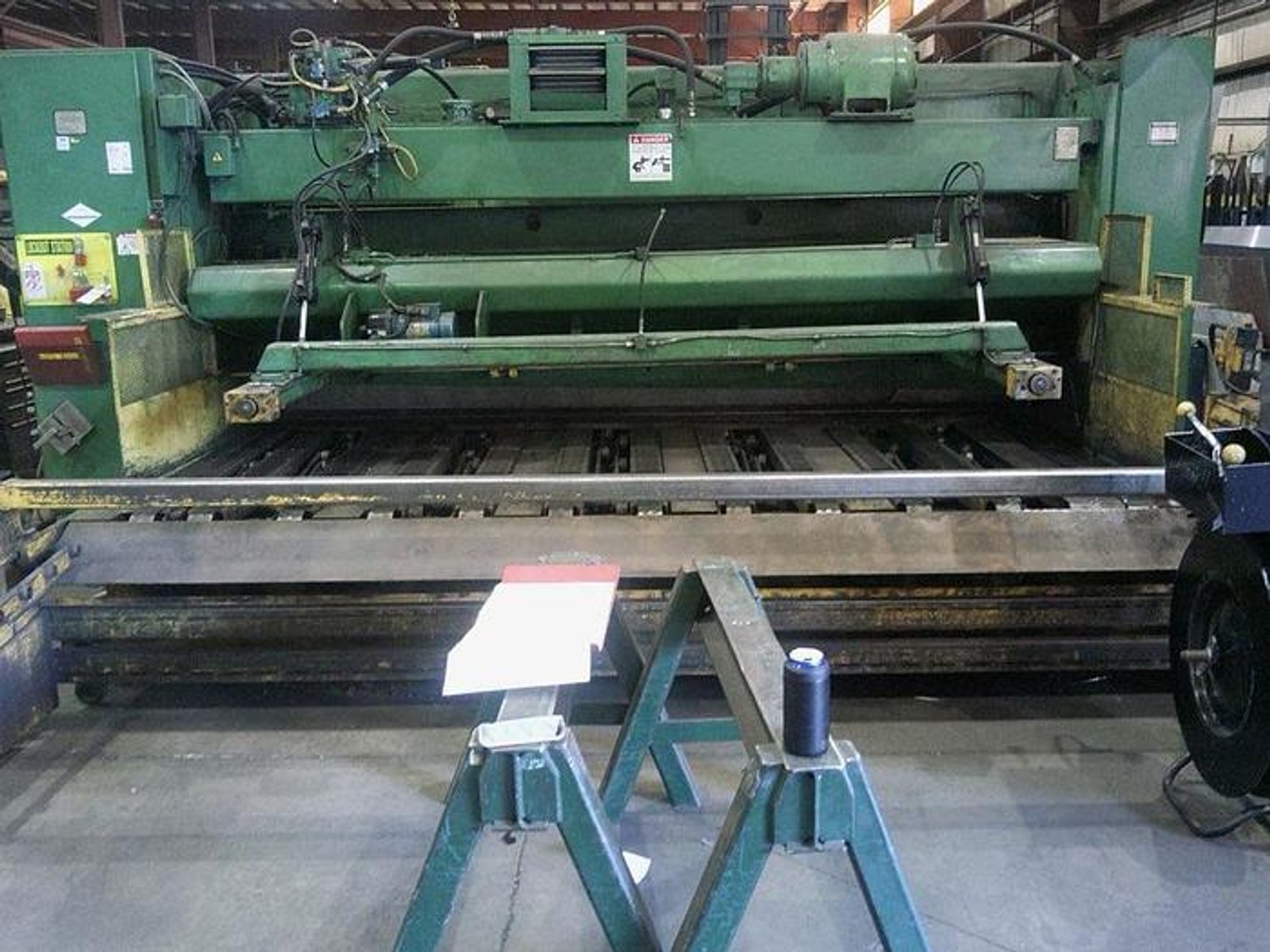

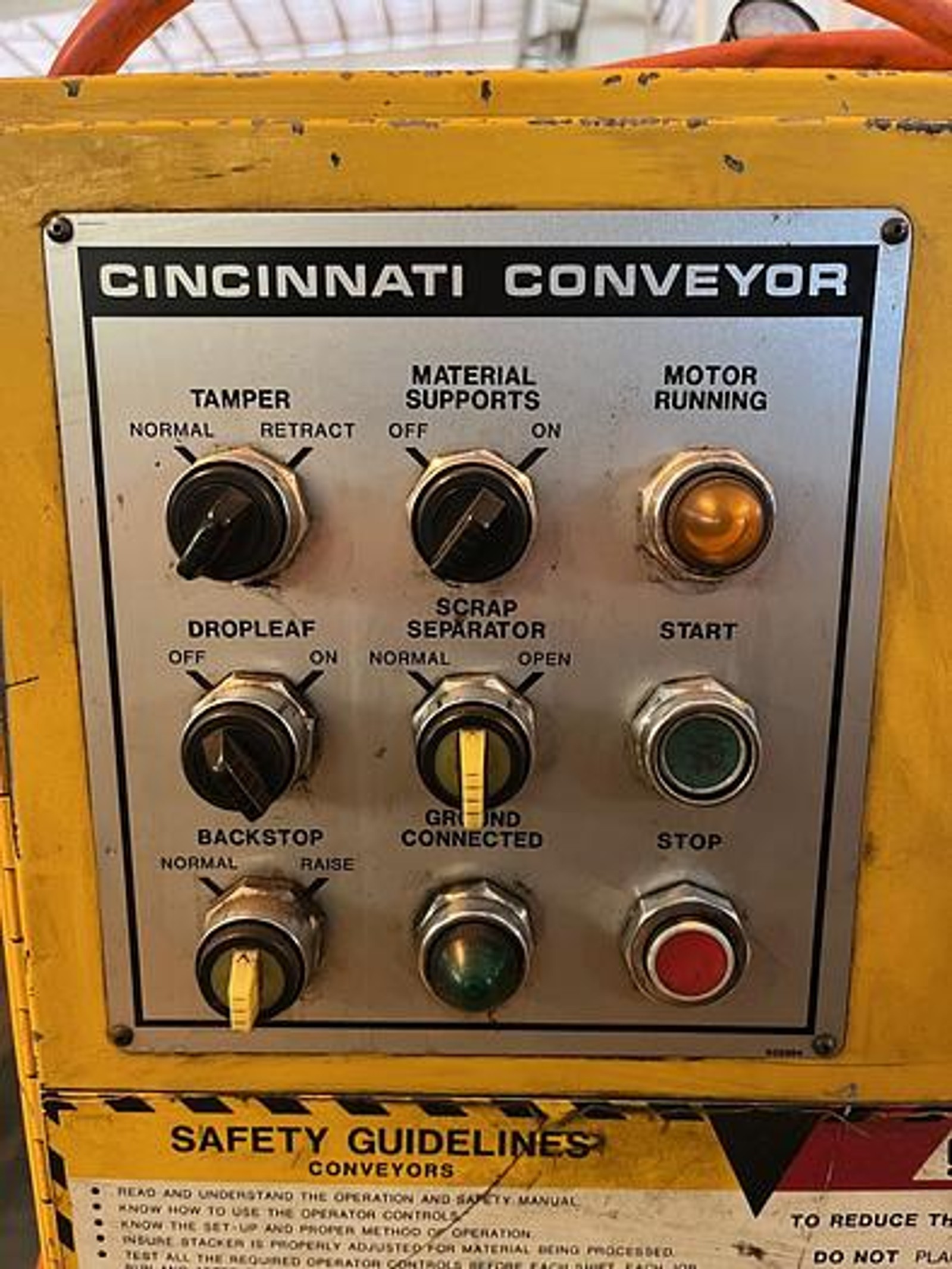

Rear Sheet Stacker & Conveyor
(15) Hydraulic Holddowns
Automatic Lubrication - Extra Knives
CATALOG SPECIFICATIONS:
Capacity Rating, Mild Steel 12' x 3/8"
Cutting Length, Maximum 146-3/4"
Knife Size 150" x 3" x 1"
Number Of Hydraulic Holddowns 15
Distance Under Holddowns 5/8"
Holdown Force 17.2 TONS
Maximum Rake, Taper Per Foot 7/16"
Strokes Per Minute, Maximum 56 SPM
Strokes Per Minute, Minimum 16 SPM
Motor, Horsepower 25 HP
Overall Dimensions, L x W 198" x 106"
Overall Height 93"
Weight Approximately 20,600 LBS
