Trumpf 3000 Watt TruLaser 5030, 5' x 10', Siemens 840D, Pallet Shuttle, TruDisk 3001, Chiller, Dust Collector, #43420

Manufacturer

TRUMPF

Category

Laser Cutting

Type

LASERS

Stock

43420

Model

TruLaser 5030

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43420

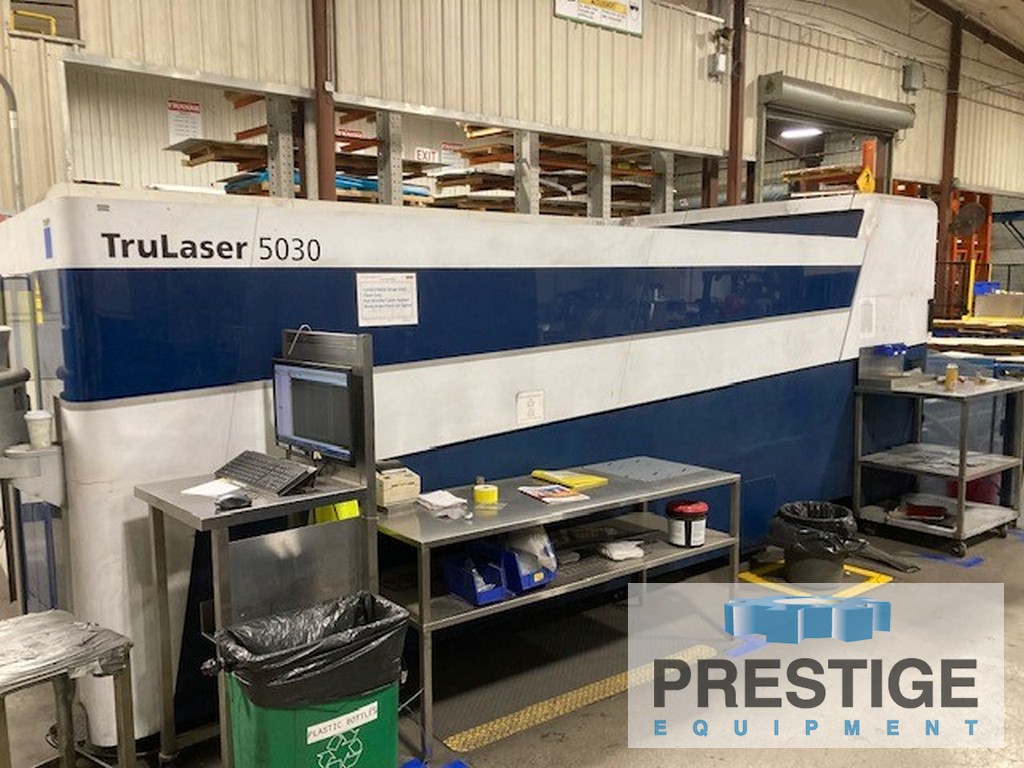

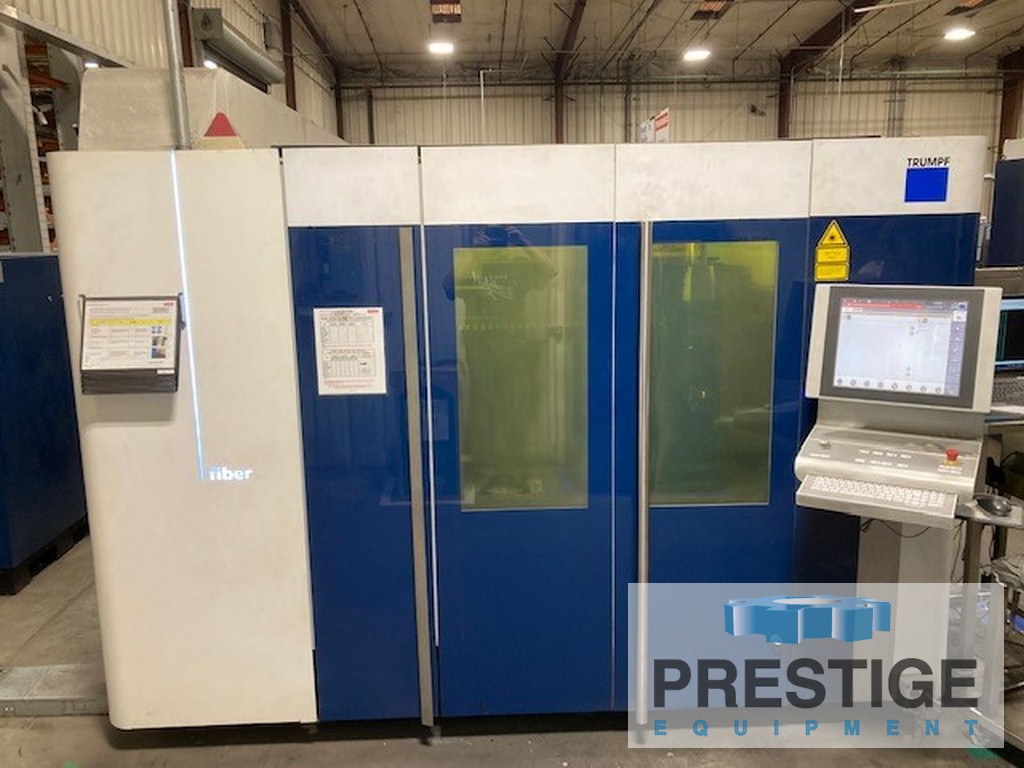

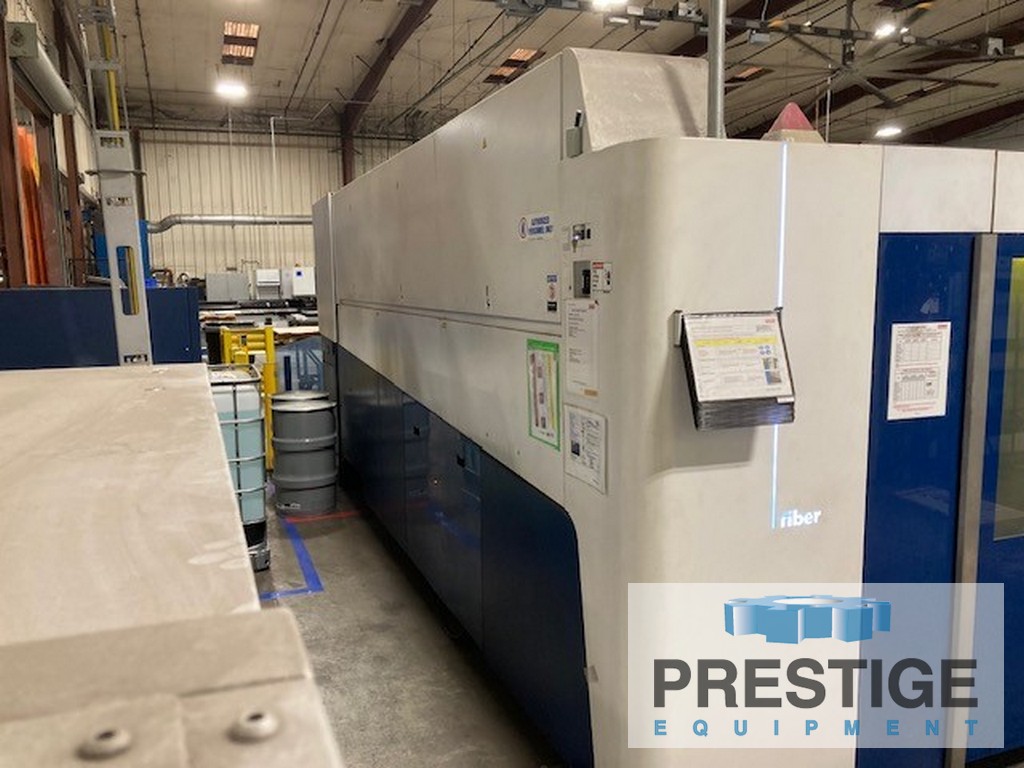

Trumpf 3000 Watt TruLaser 5030 CNC Fiber Laser

FEATURES:
Siemens 840D SL CNC Control

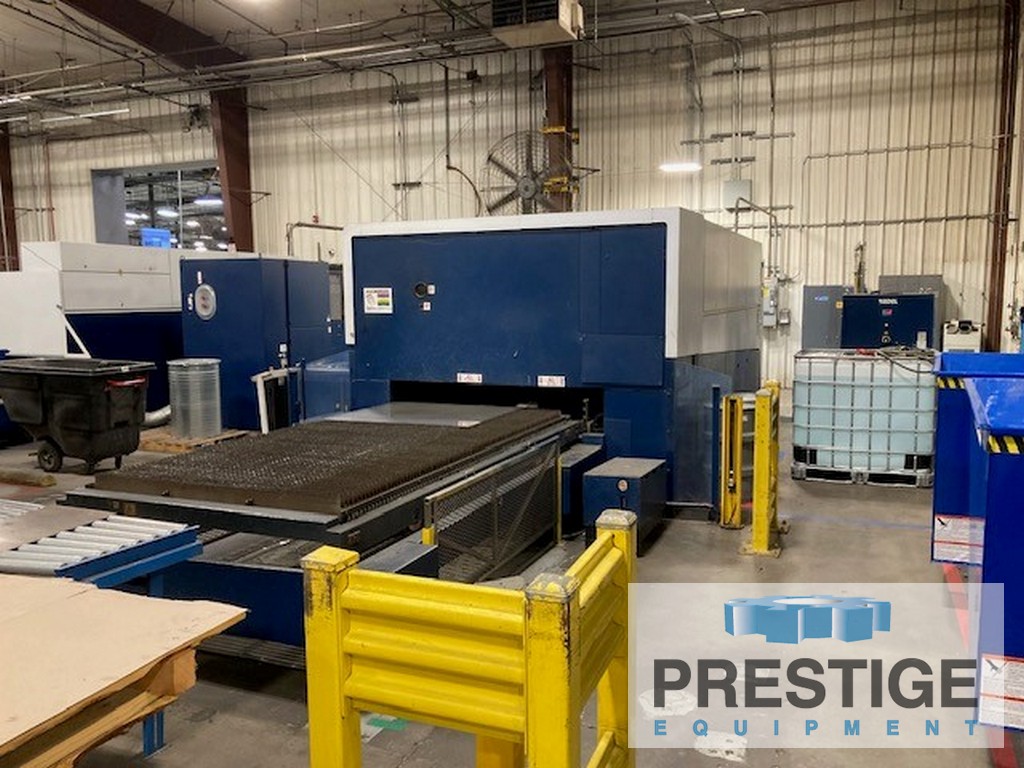

Automatic Pallet Shuttle System

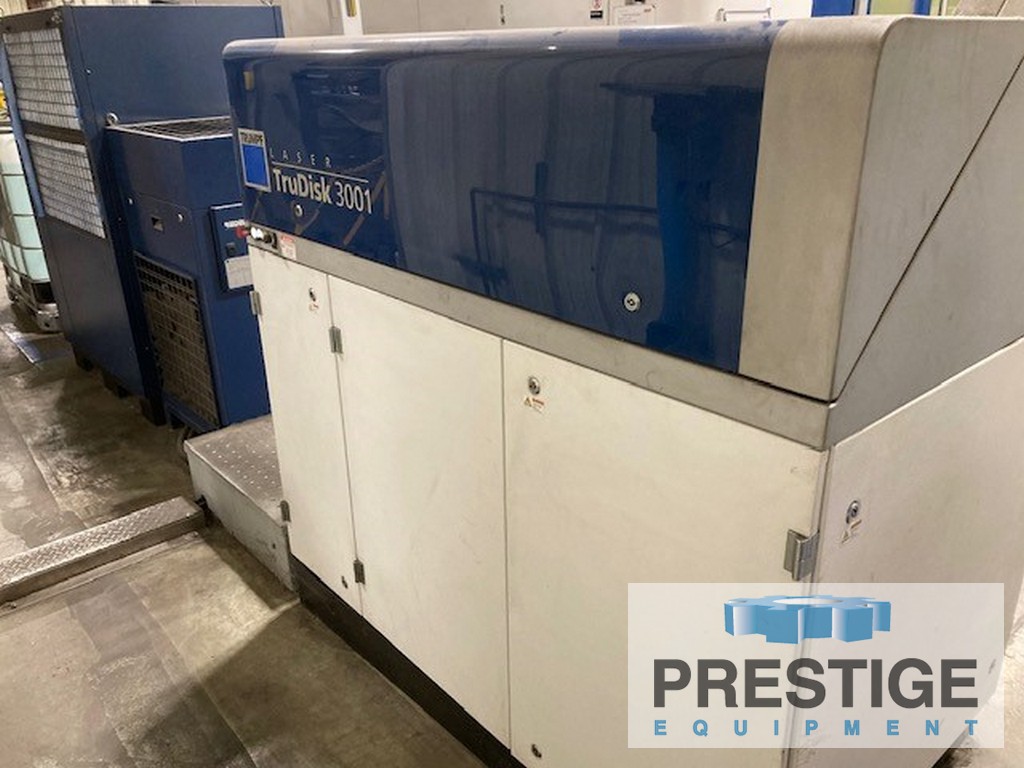

Laser TruDisk 3001

CAPACITIES:
Laser Output ............................ 3000 Watts
X-Axis Travel ........................... 120"
Y-Axis Travel ........................... 60"
Z-Axis Travel ........................... 4.5"
Maximum Workpiece Weight ................ 2,420 Lbs.
Maximum Material Thickness (Mild Steel).. 0.8"
Maximum Material Thickness (Aluminum) ... 0.5"
Max. Positioning Speed (Simultaneous).... 11,023 IPM
Approximate Machine Weight ............ ..25,740 Lbs.

EQUIPPED WITH:
Siemens 840D SL CNC Control
Automatic Pallet Shuttle System
Laser TruDisk 3001
Riedel Chiller
Dust Collector

HOURS:
Operating Hours: 68,100
Laser On Hours: 23,418

NOTE:
Inspect in Plant Under Power

No Video Available
