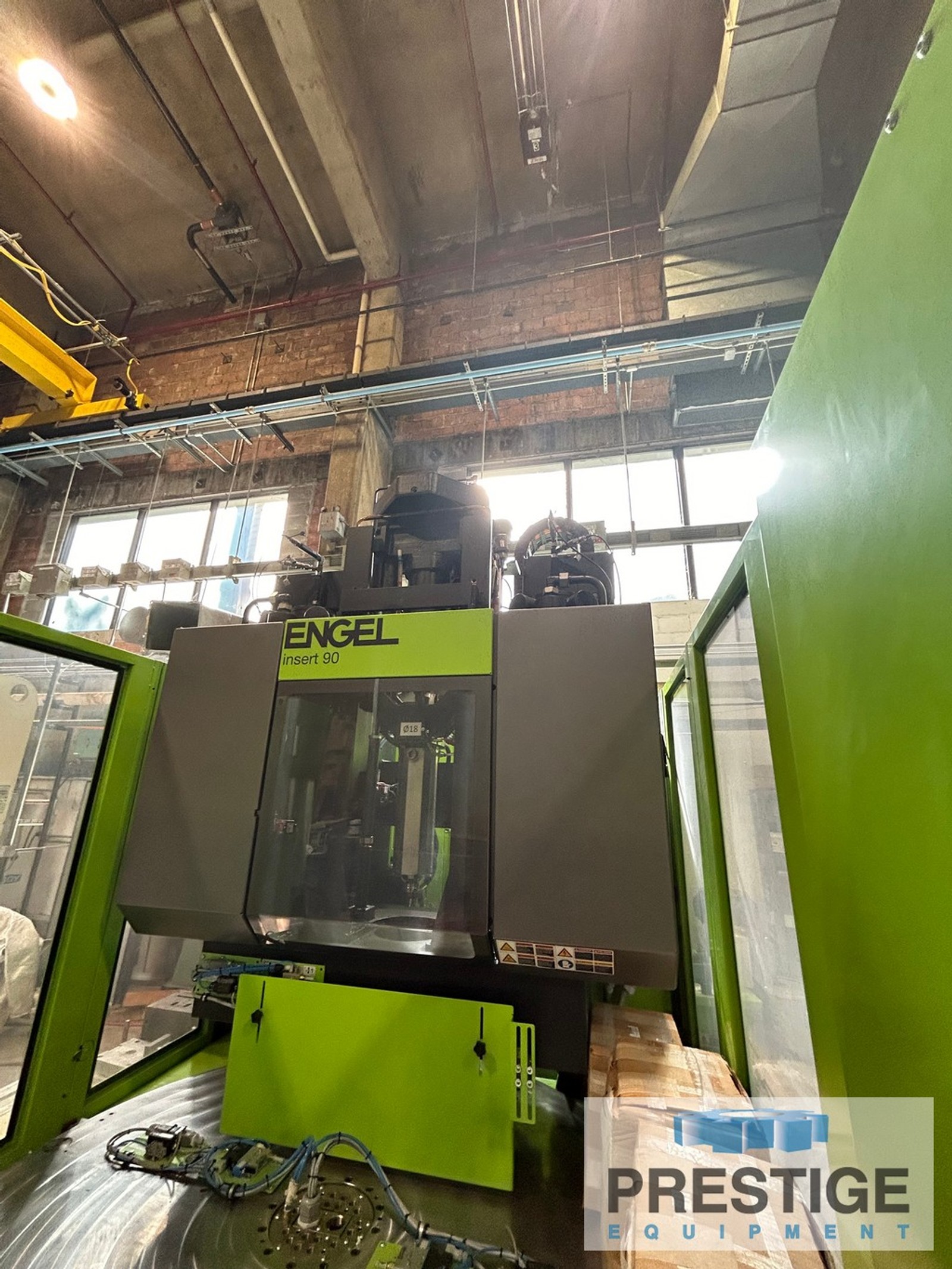

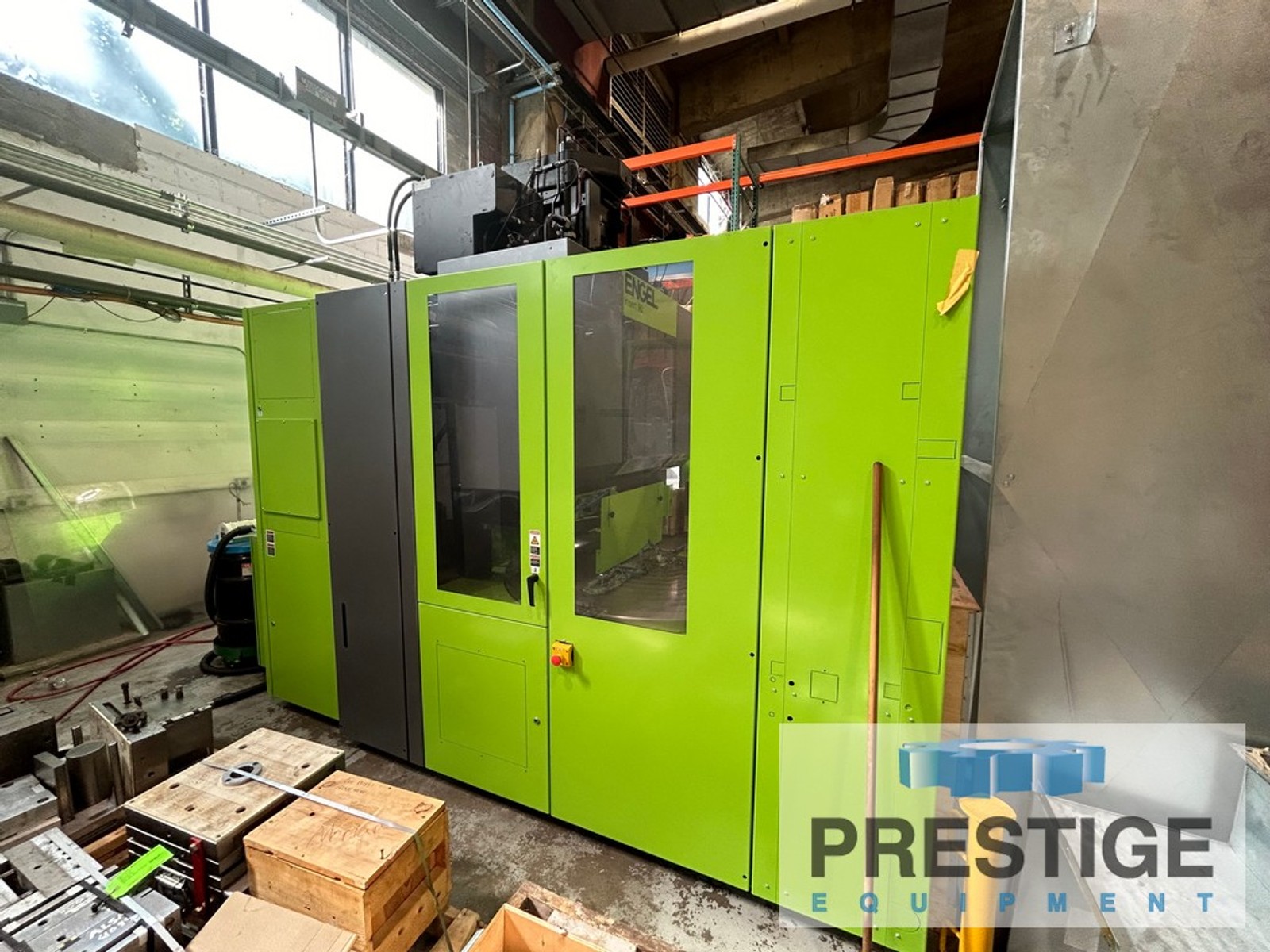

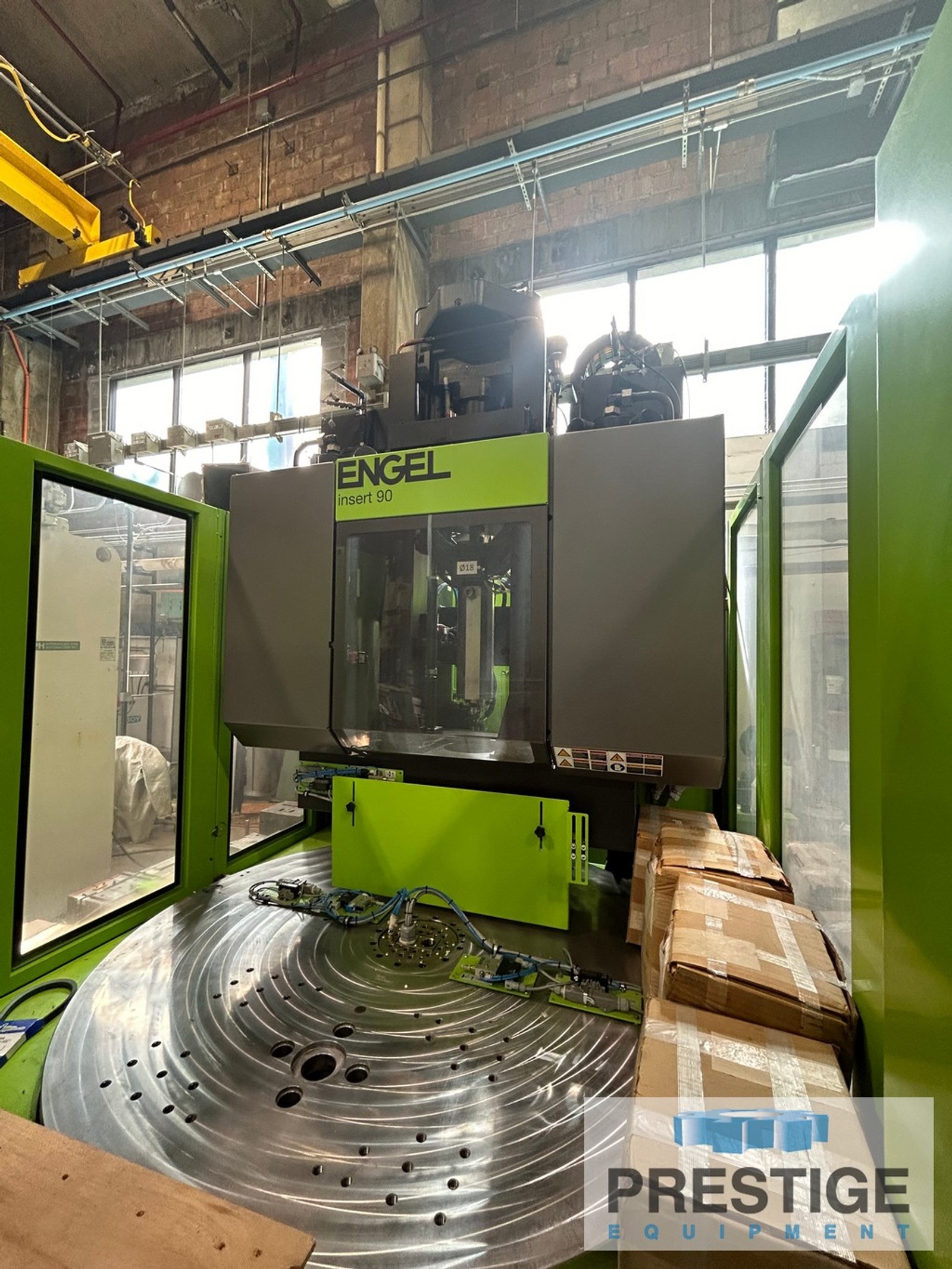

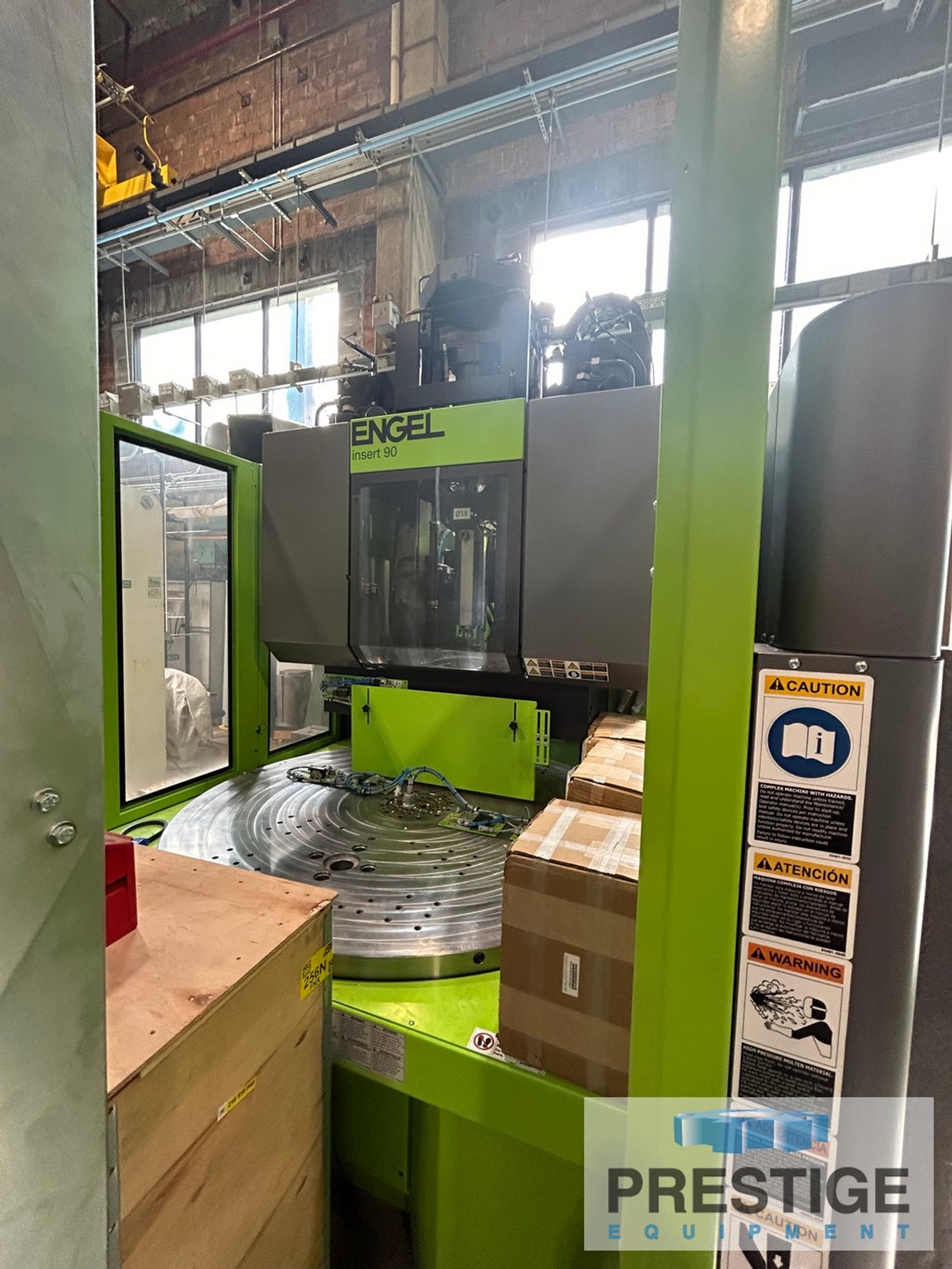

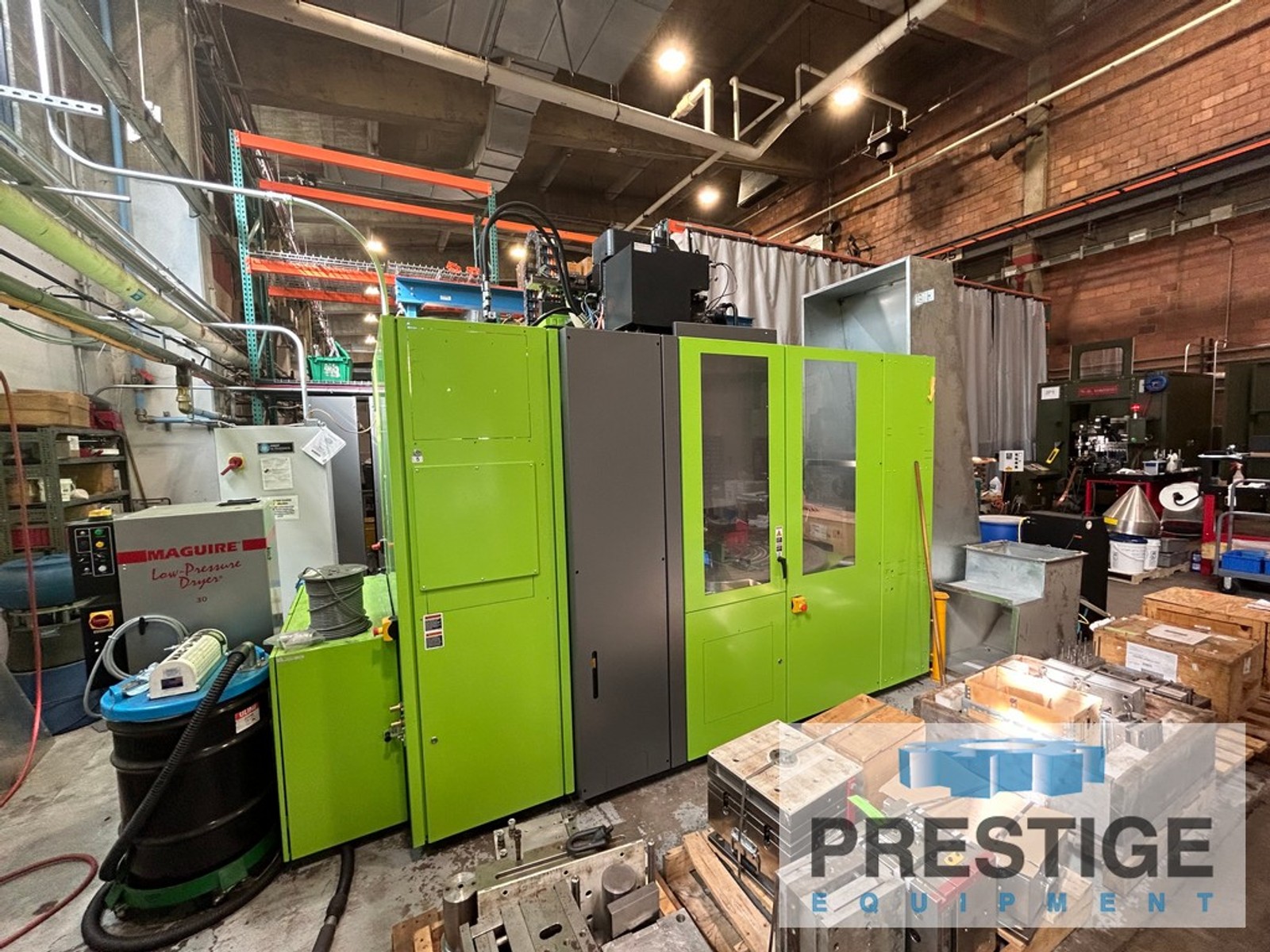

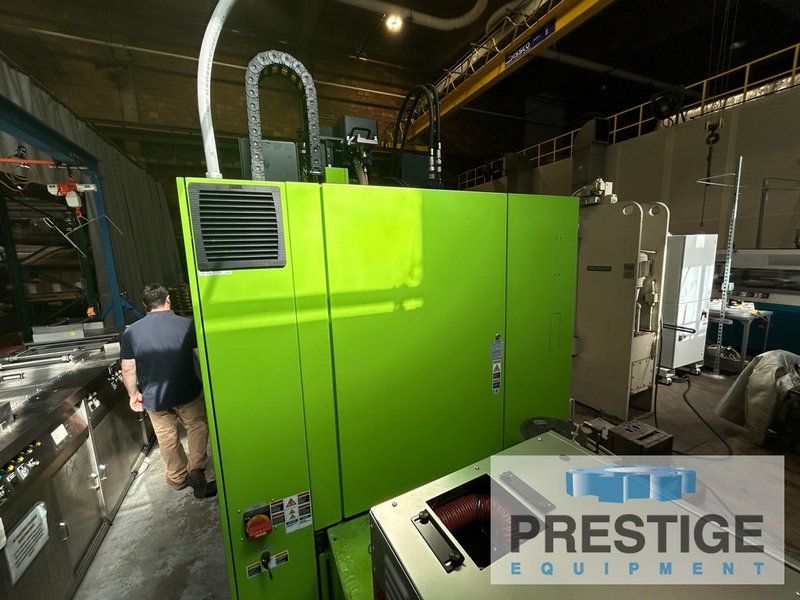

Engel e-insert 90 Rotary, 90 Ton Clamping Force, 13.8" Stroke, CC300 Control, RD 1600 Servo 2 Station RT, 2022, #43482

Manufacturer

ENGEL

Category

Injection Molding

Type

INJECTION MOLDING, HORIZONTAL/VERTICAL

Stock

43482

Model

e-insert 90 rotary US

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43482
Engel e-insert 90 Rotary US


CLAMPING UNIT:
Clamp Force ....................... 90 US Tons
Opening Force ..................... 8.6 US Tons
Opening Stroke .................... 13.8"
Mold Height Minimum ............... 9.8"
Daylight Maximum .................. 23.6"
Mold Fixing Platen Size ........... 42.1" x 19.7"

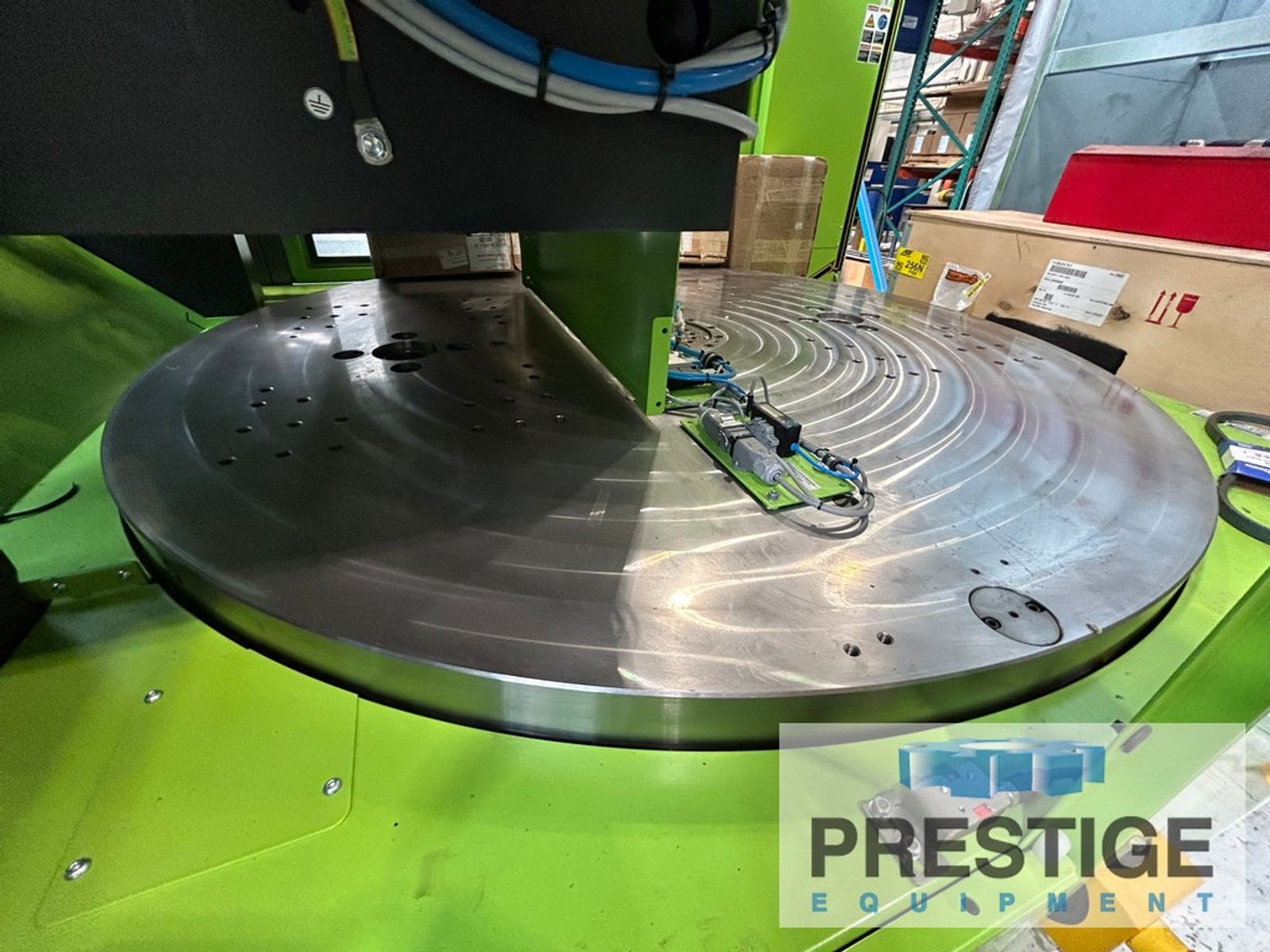

Rotary Table Diameter ............. 47.2"
Sliding Table Stroke .............. 43.3"
Rotary Time (180 Deg.) ............ 2.2 Seconds
Sliding Time ...................... 3.5 Seconds
Ejector Stroke .................... 4.1"
Ejector Force Foward/Return ....... 2.3/2.3 US Tons

INJECTION UNIT:
Weight Total (Rotary) ............. 8.71 US Tons
Total Transporting Dimensions ..... 118.1" x 114.2" x 68.9"
Oil Reservoir Capacity ............ 68.68 Gallons
Drive Power ....................... 20.4 HP

EQUIPPED WITH:

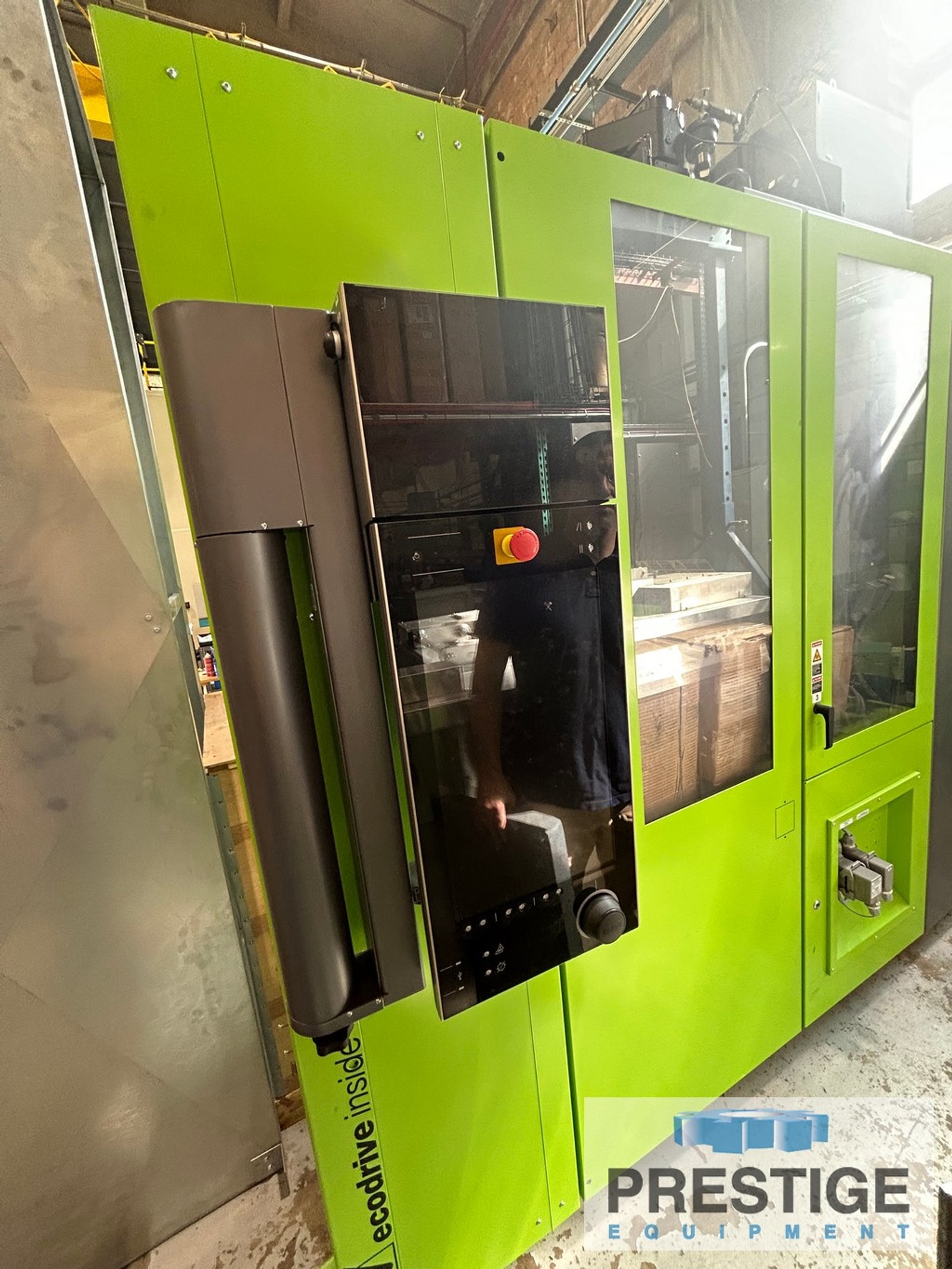

CC300 Controller
Autoprotect-Injection Monitoring
RD 1600 Servo 2-Station RT
8-Axone Mold Heating EUROMAP 14/15
Heat Power Monitoring 8 Zone Mold
Pneumatic Valve Gates, 1 fold, 8.5 Bar
High Execution Injection Drive

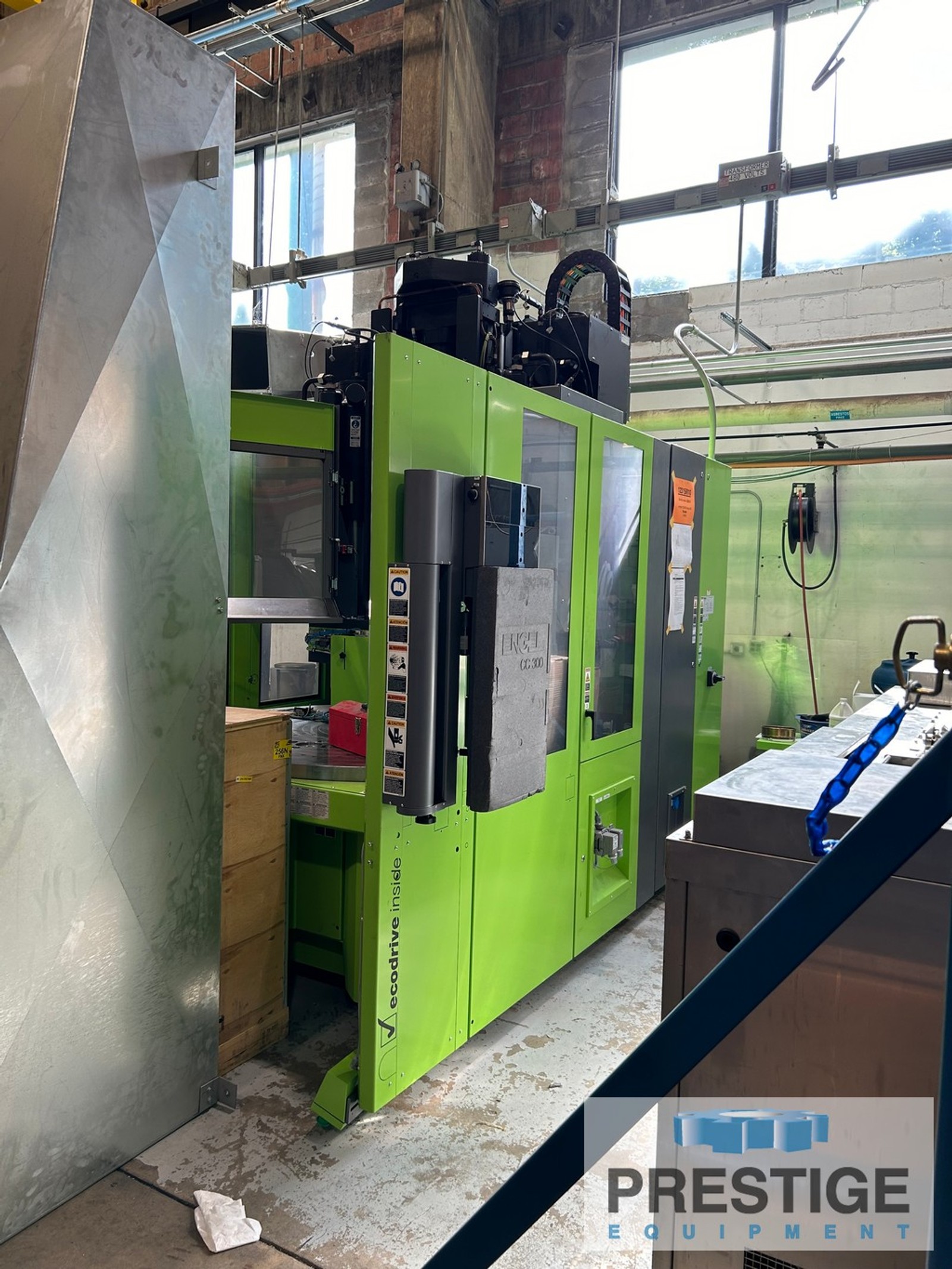

Ecodrive SHV2-EVC-EIN Hydraulic System
Mechanical Maintenance Switch/Repair Switch
Transformer
Interface Robot EM67.1/AN-146

NOTE:
Machine Coming out of Govt. Facility, Has Never Been Used
