RAS 73.40 FLEXIbend, 11 Ga. x 157", System 6000 CNC Control, Crowning, Tooling, #43458

Manufacturer

RAS

Stock

43458

Model

73.40 FLEXIbend

Dealer Location

New York

Spec Sheet

Reference #43458

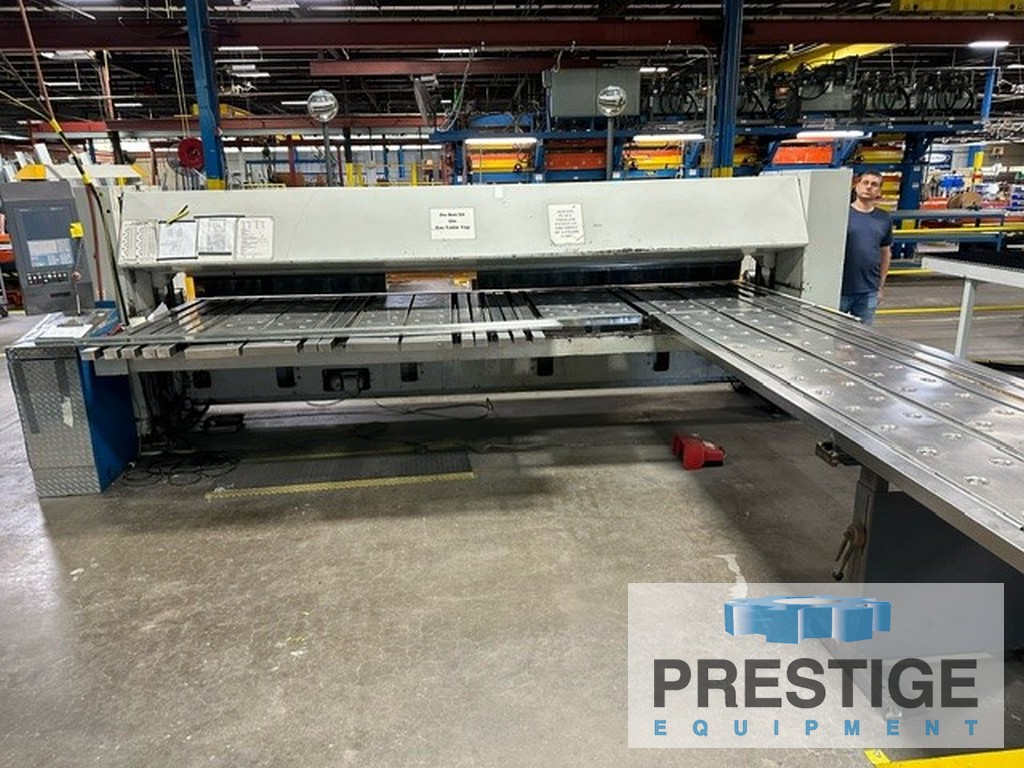

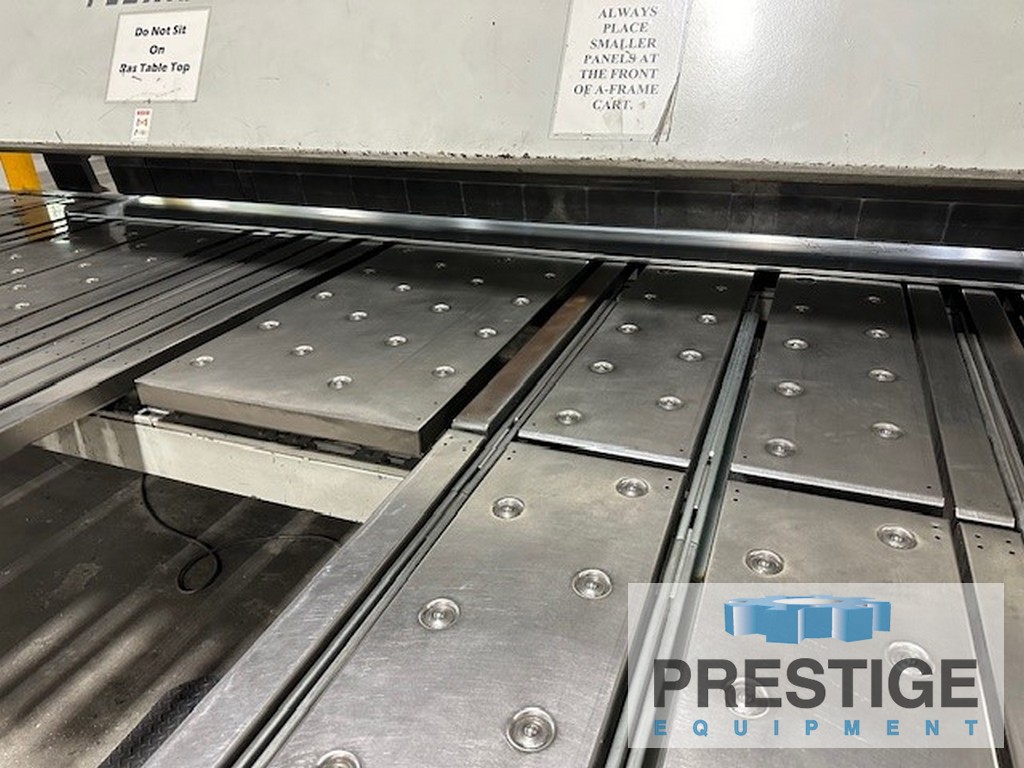

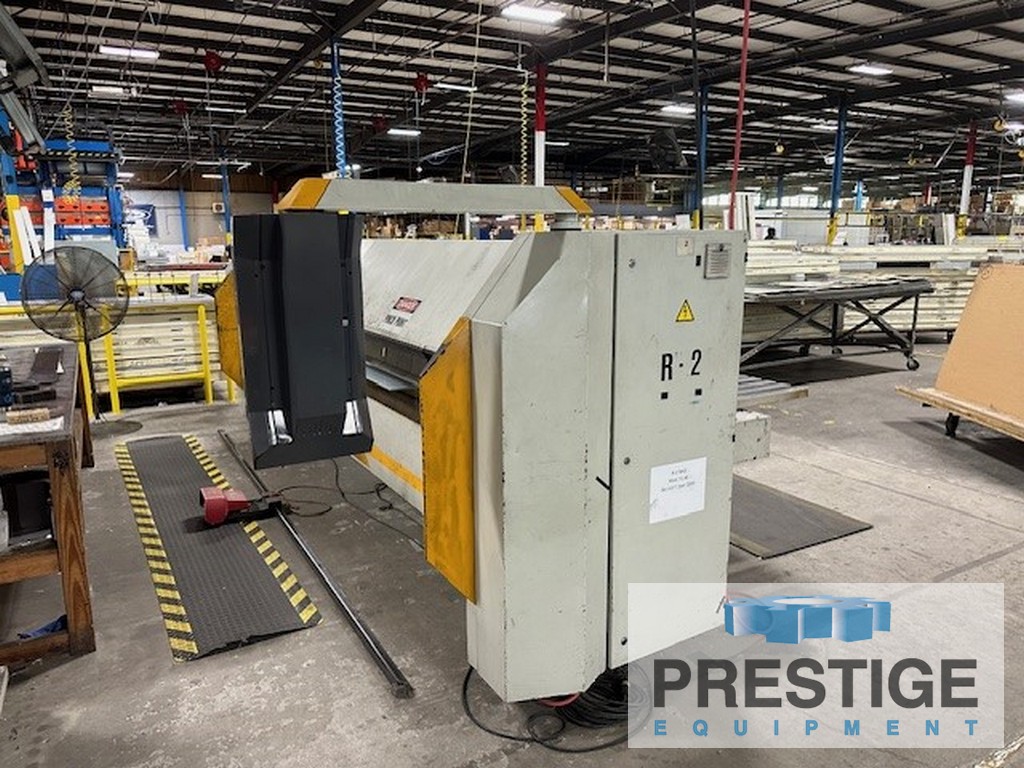

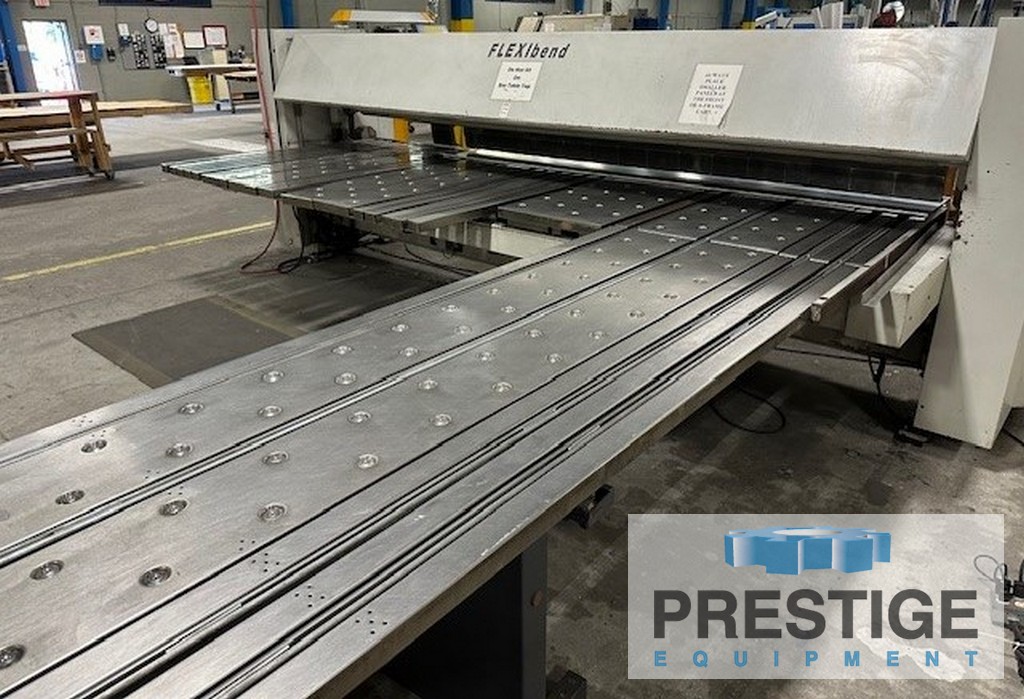

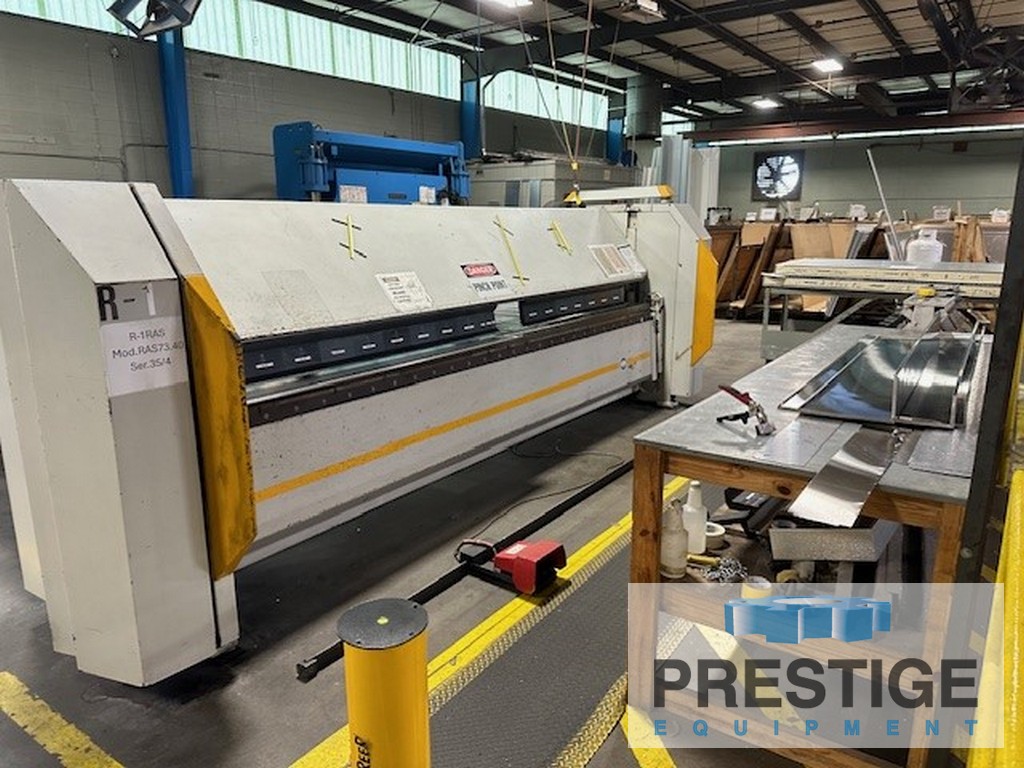

RAS 73.40 FLEXIbend 11 Ga. x 157" Hydraulic CNC Folding Machine

SPECIFICATIONS:
Maximum Sheet Thickness ............... 11 Ga.
Maximum Bending Width ................. 157"
Clamping Beam Stroke .................. 11.81"
Back Gauge Range ...................... 61"
CNC Folding Beam Stroke ............... 3.15"
CNC Lower Beam Stroke ................. 3.15"
Working height ........................ 35.43"
Drive Motor ........................... 4 H.P.
Machine Footprint ..................... 203" x 87.6"
Machine Height ........................ 70"
Weight ................................ 11,660 lbs

EQUIPPED WITH:

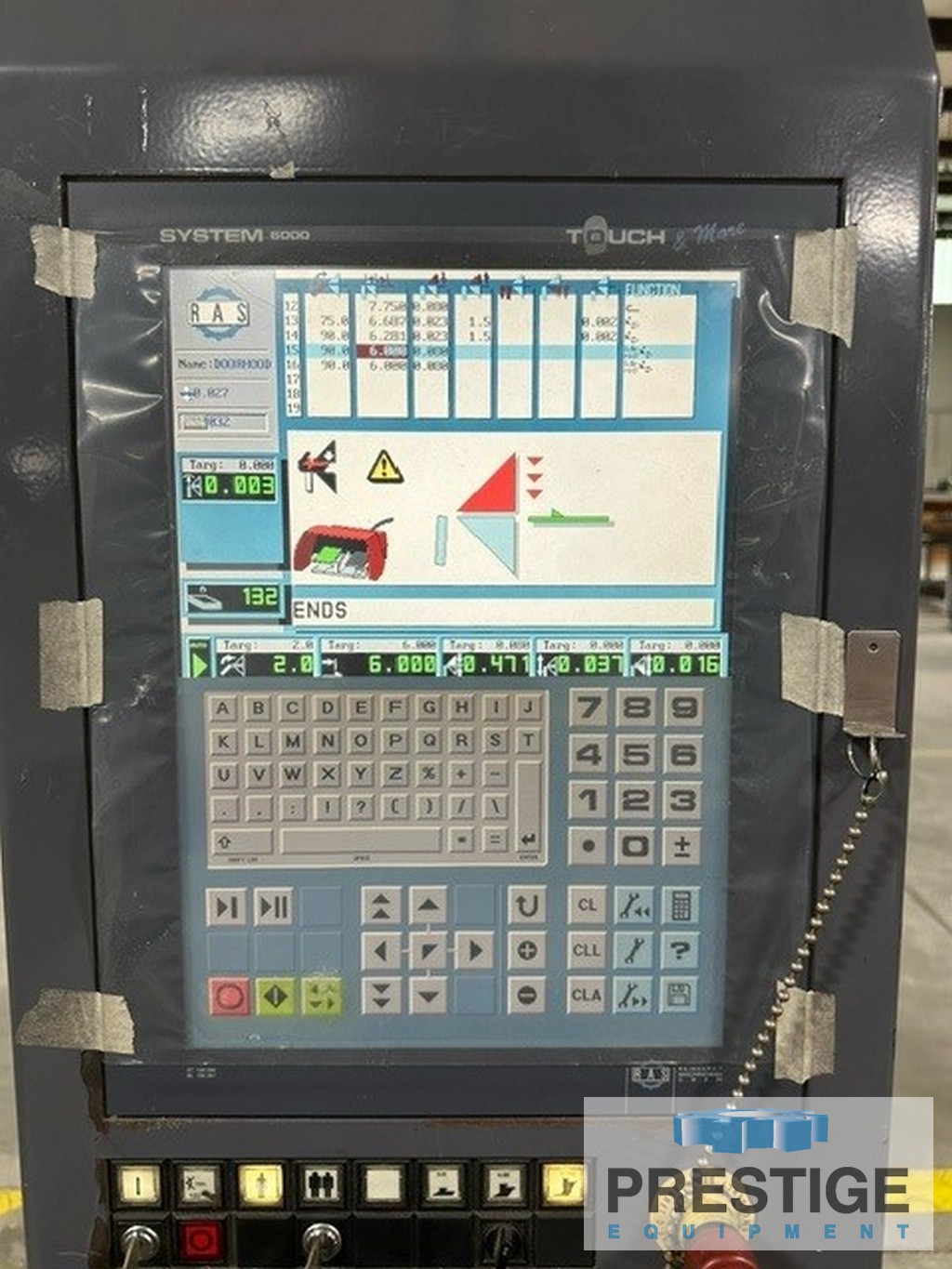

System 6000 CNC Control
Front/Back Electric Foot Pedals on Sliding Rail (For Operation on Either Side)
Tooling
