Swistek GT328DDY Swiss Type, 19.68" Swing, 1.25" Turning Dia., Fanuc OiTF, 8 Pos. Turret, Tooling, 2018, #43197

Manufacturer

Swistek

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

43197

Model

GT328DDY

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43197

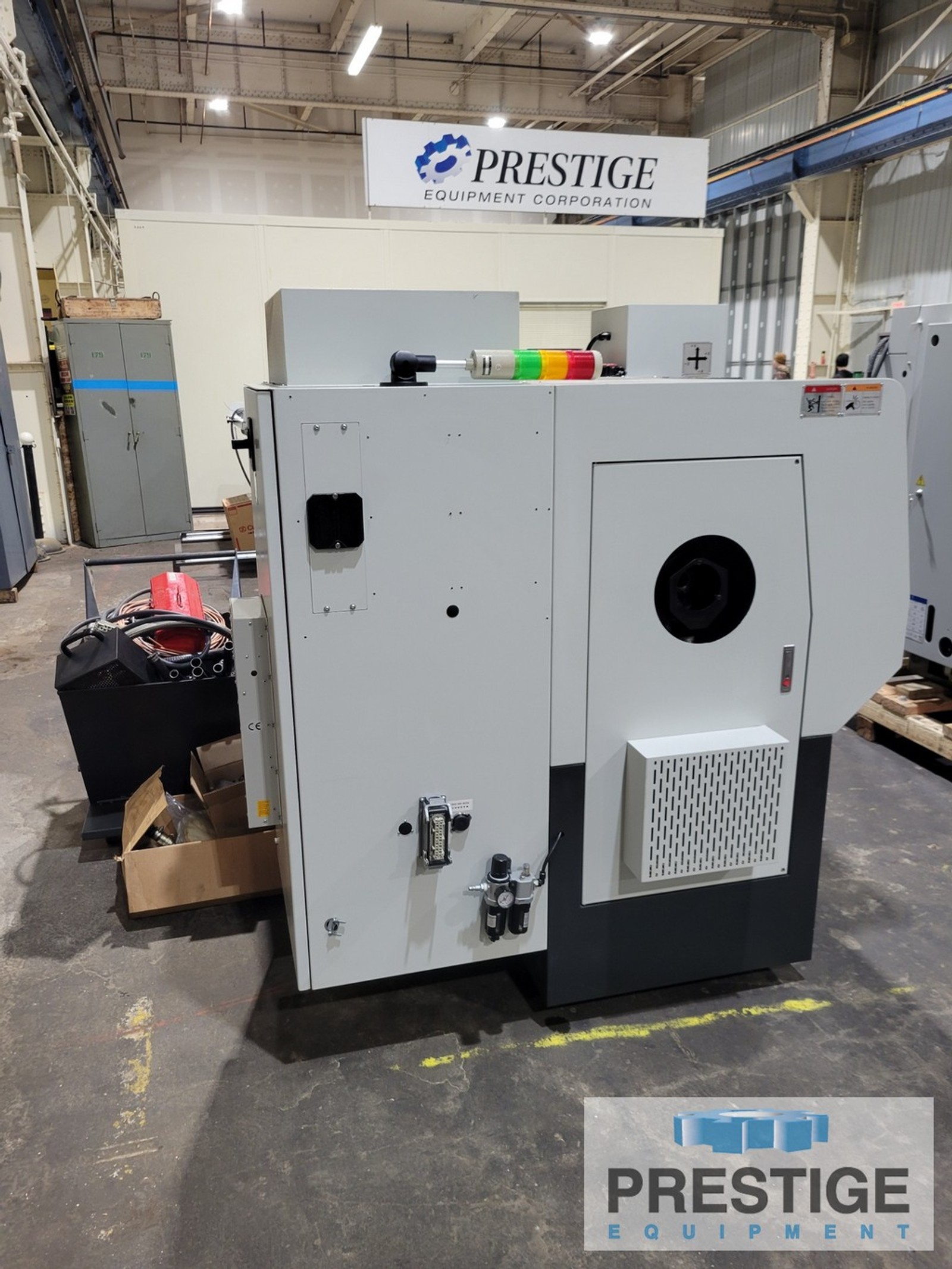

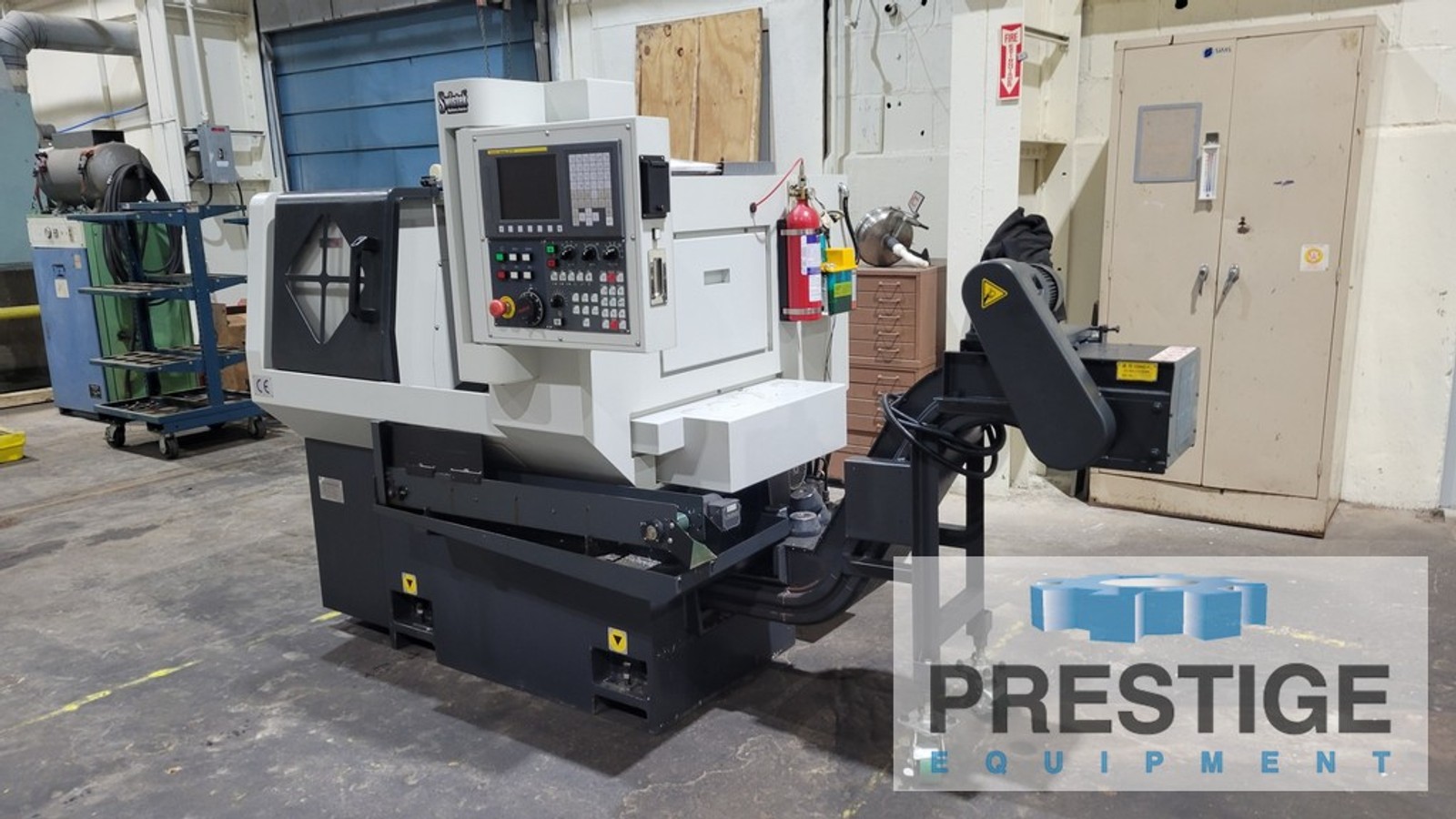

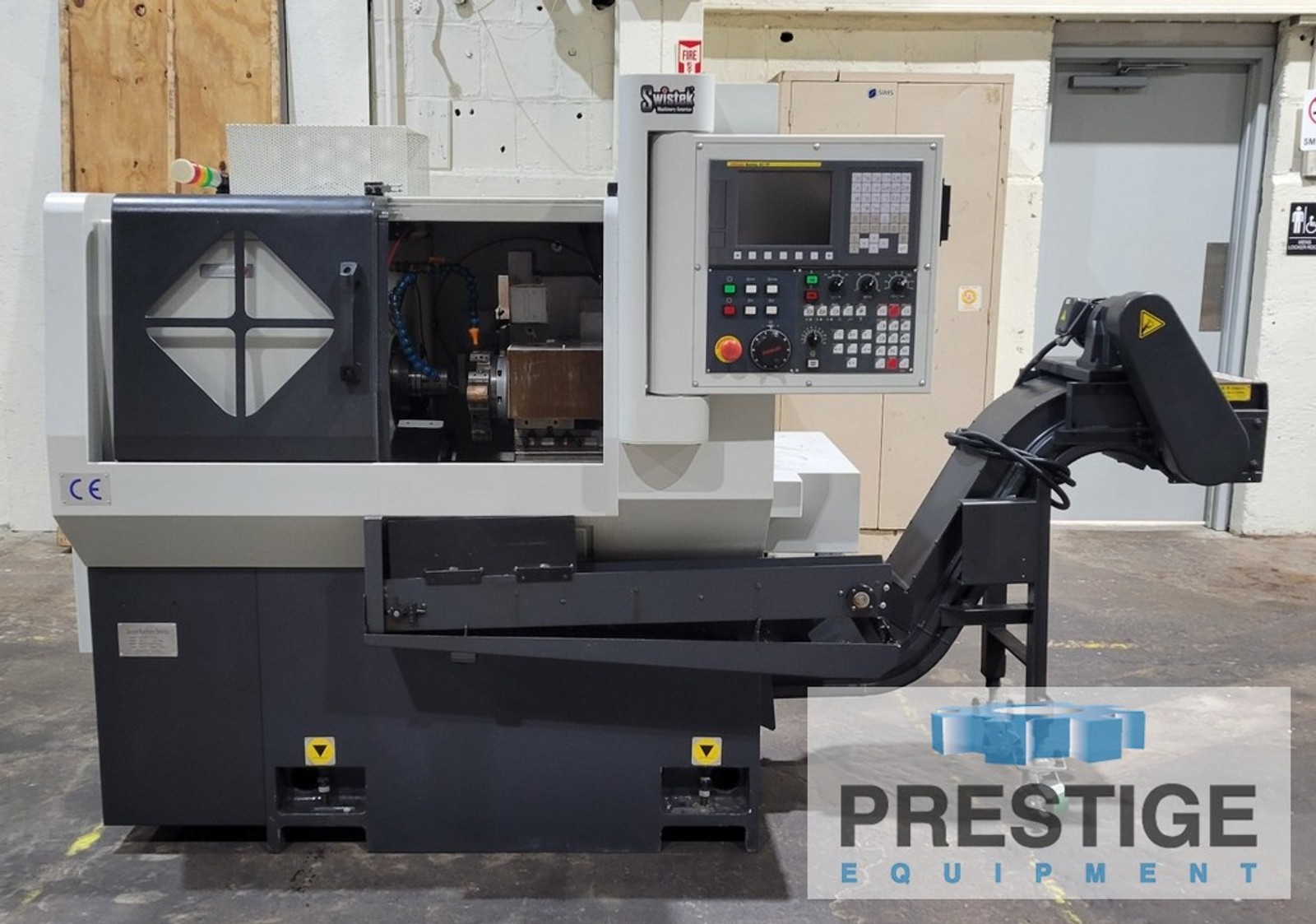

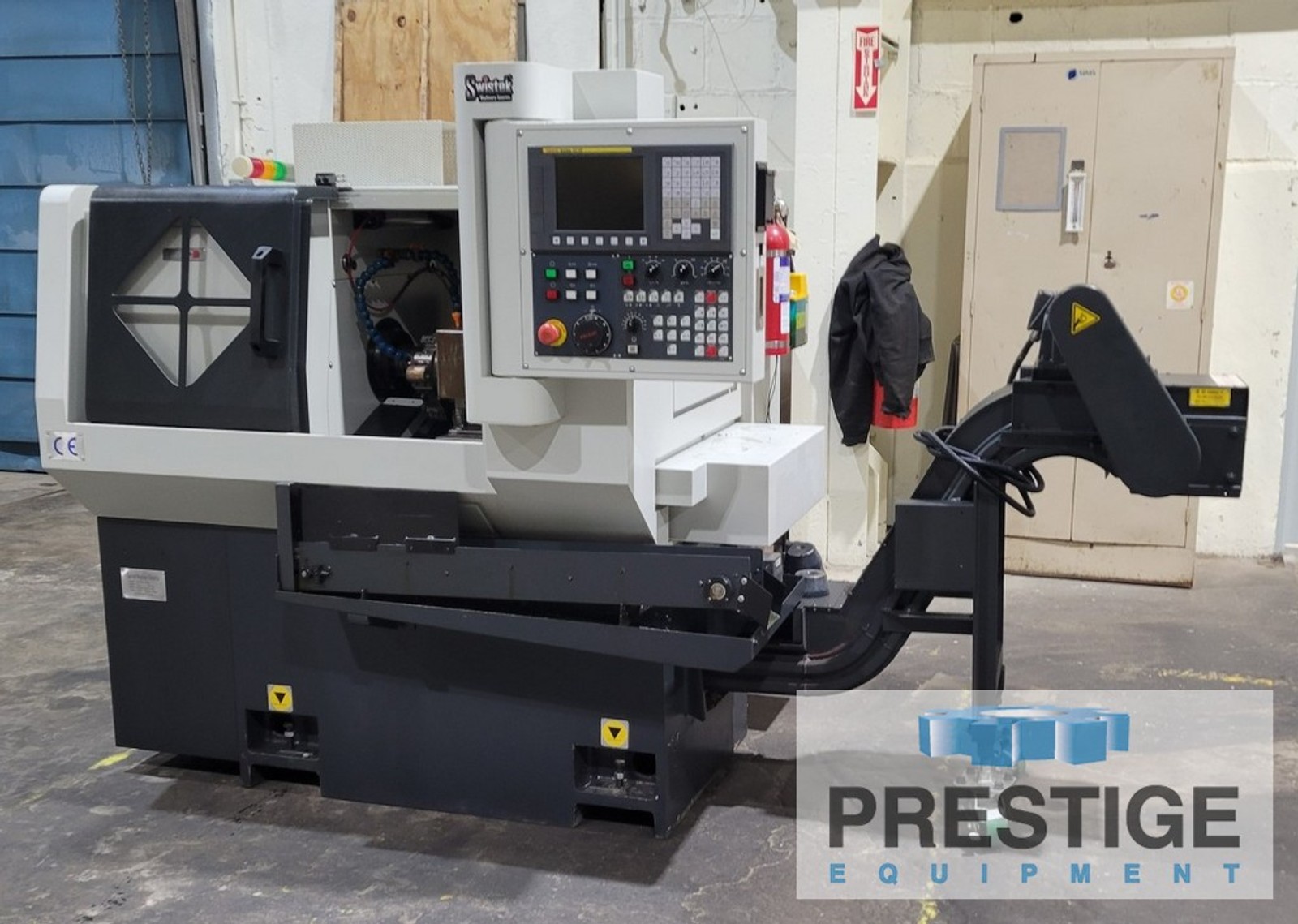

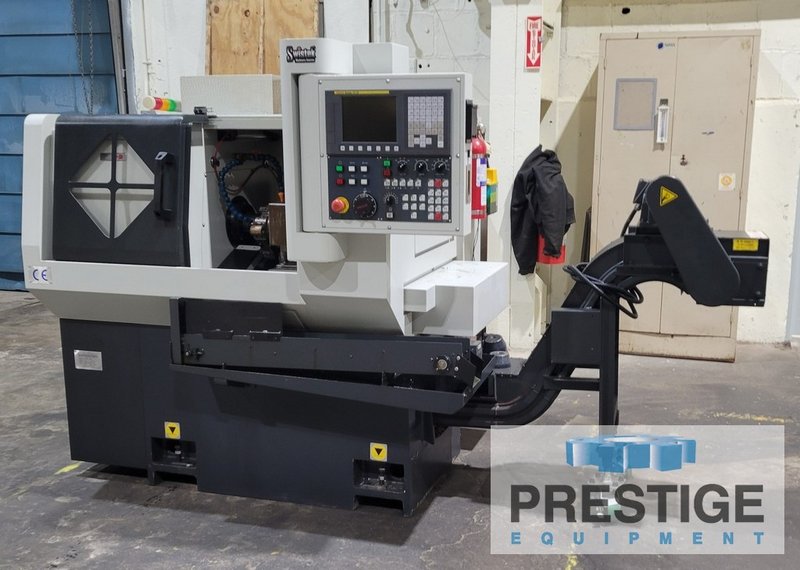

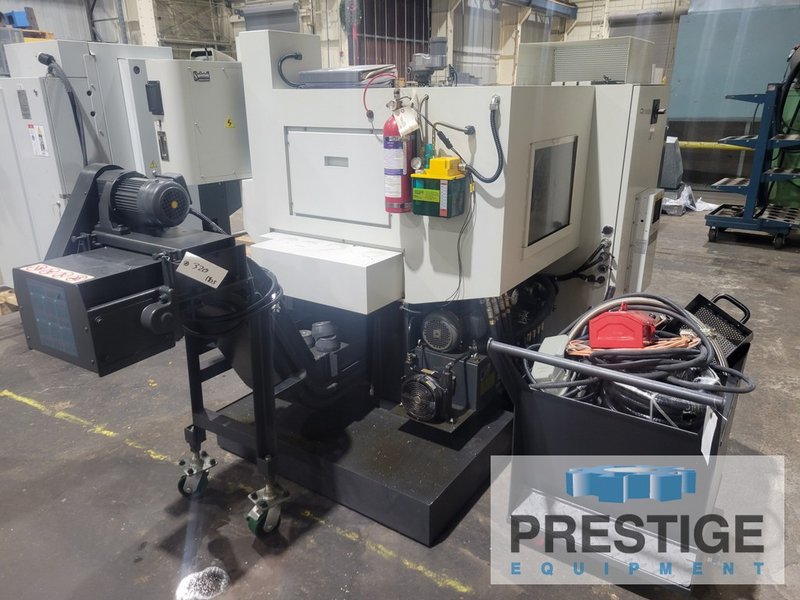

Swistek GT328DDY Swiss Type Automatic CNC Screw Machine

FEATURES:

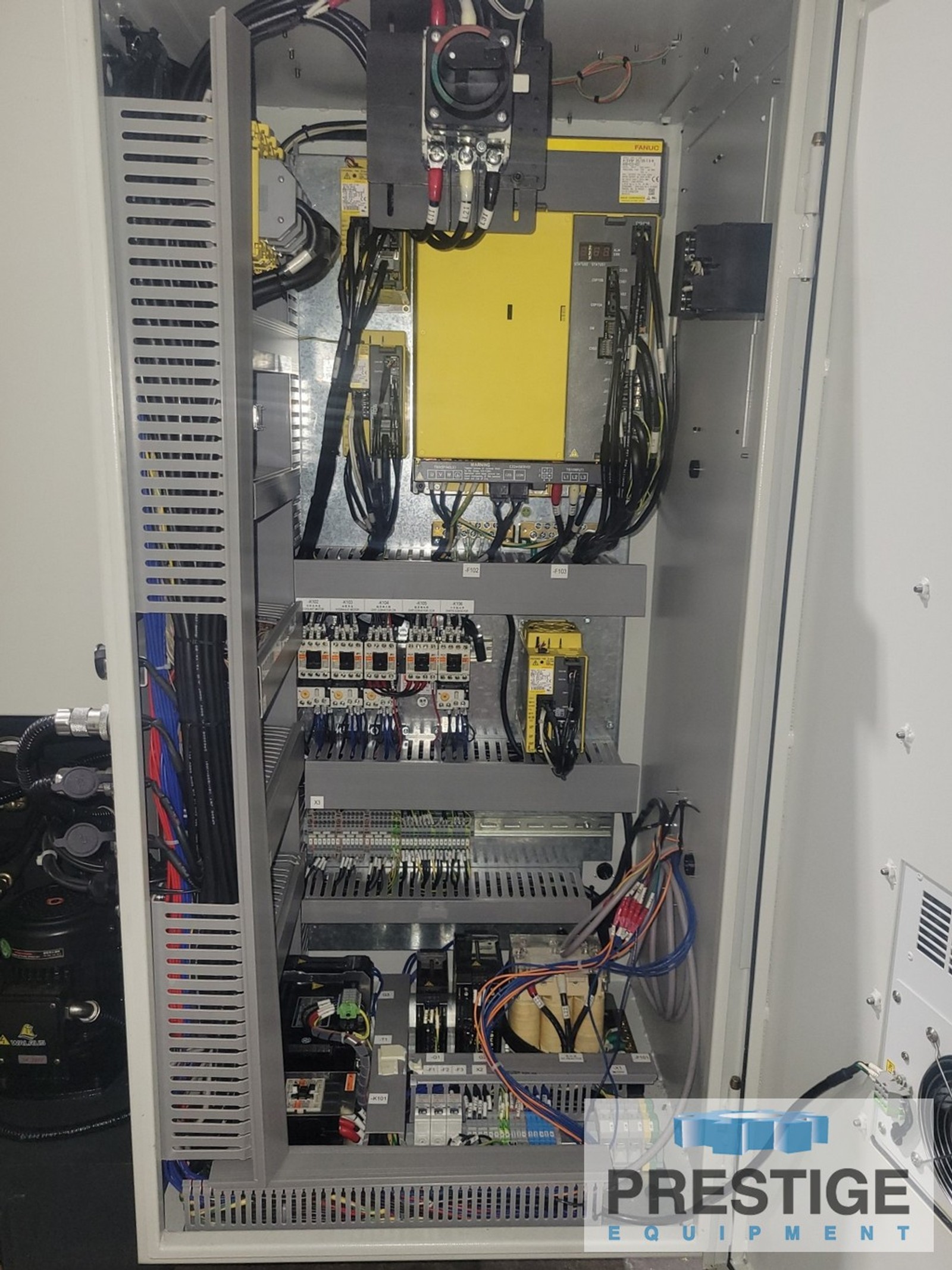

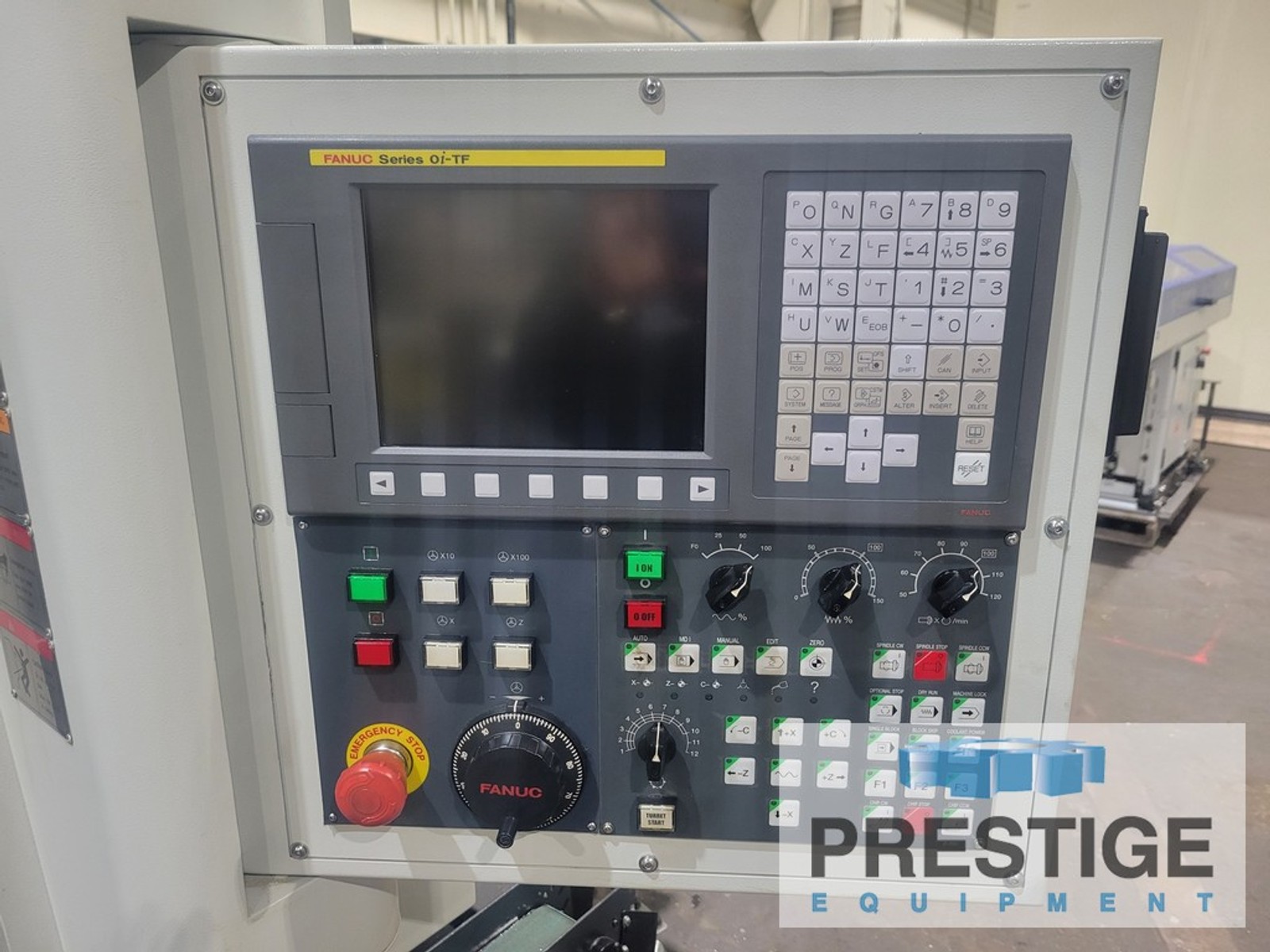

Fanuc OiTF CNC Control

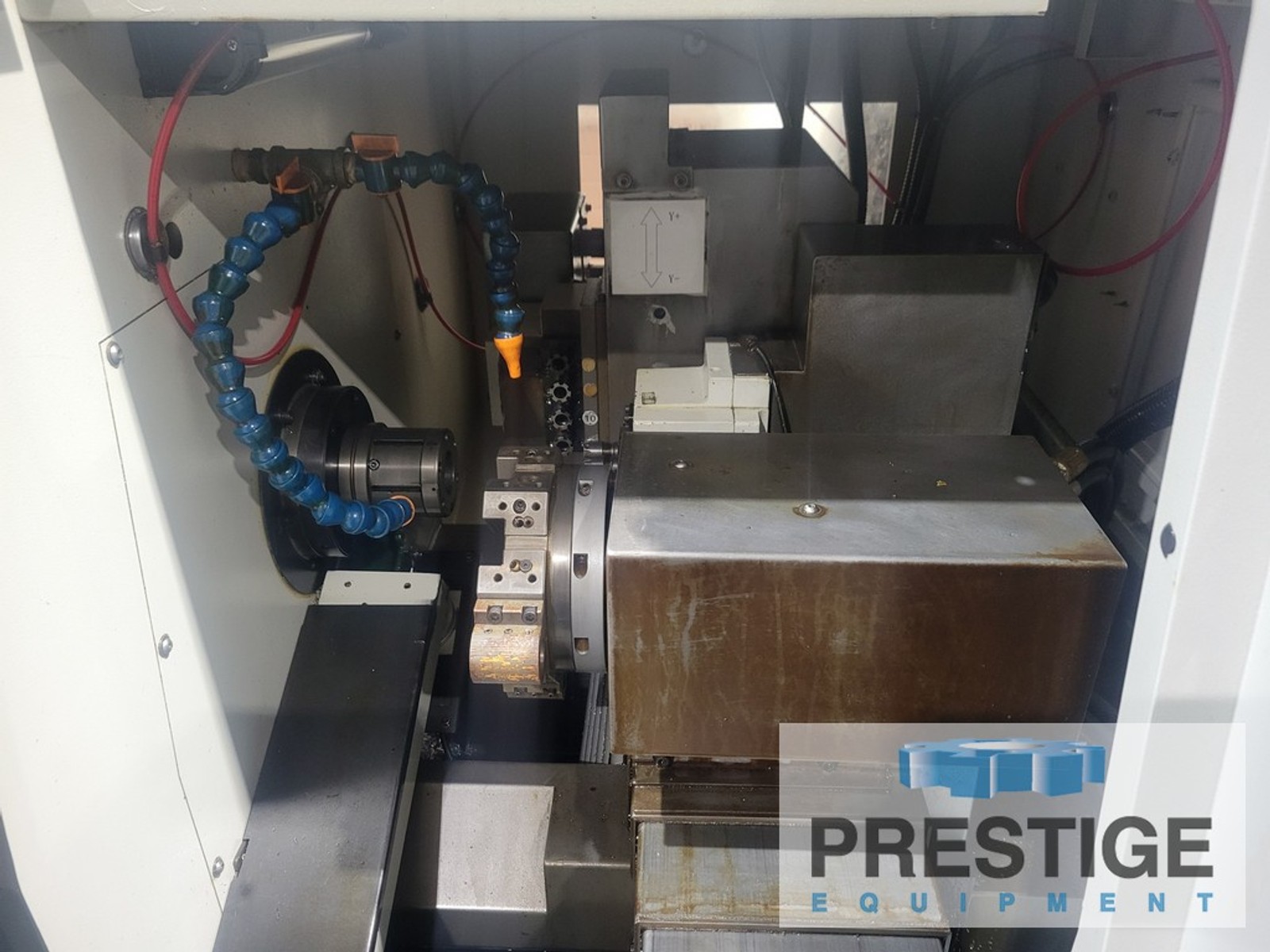

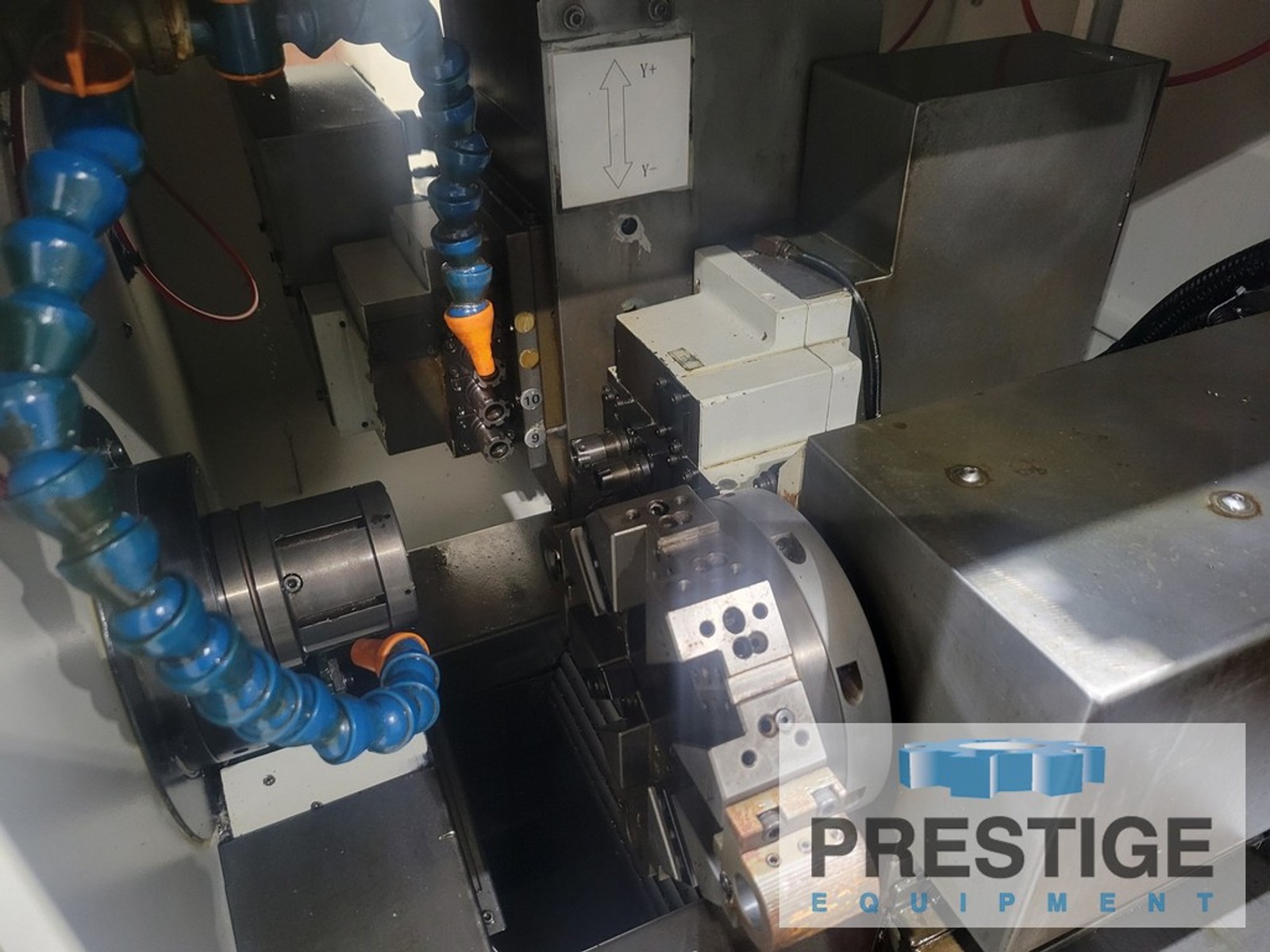

8-Position Turret

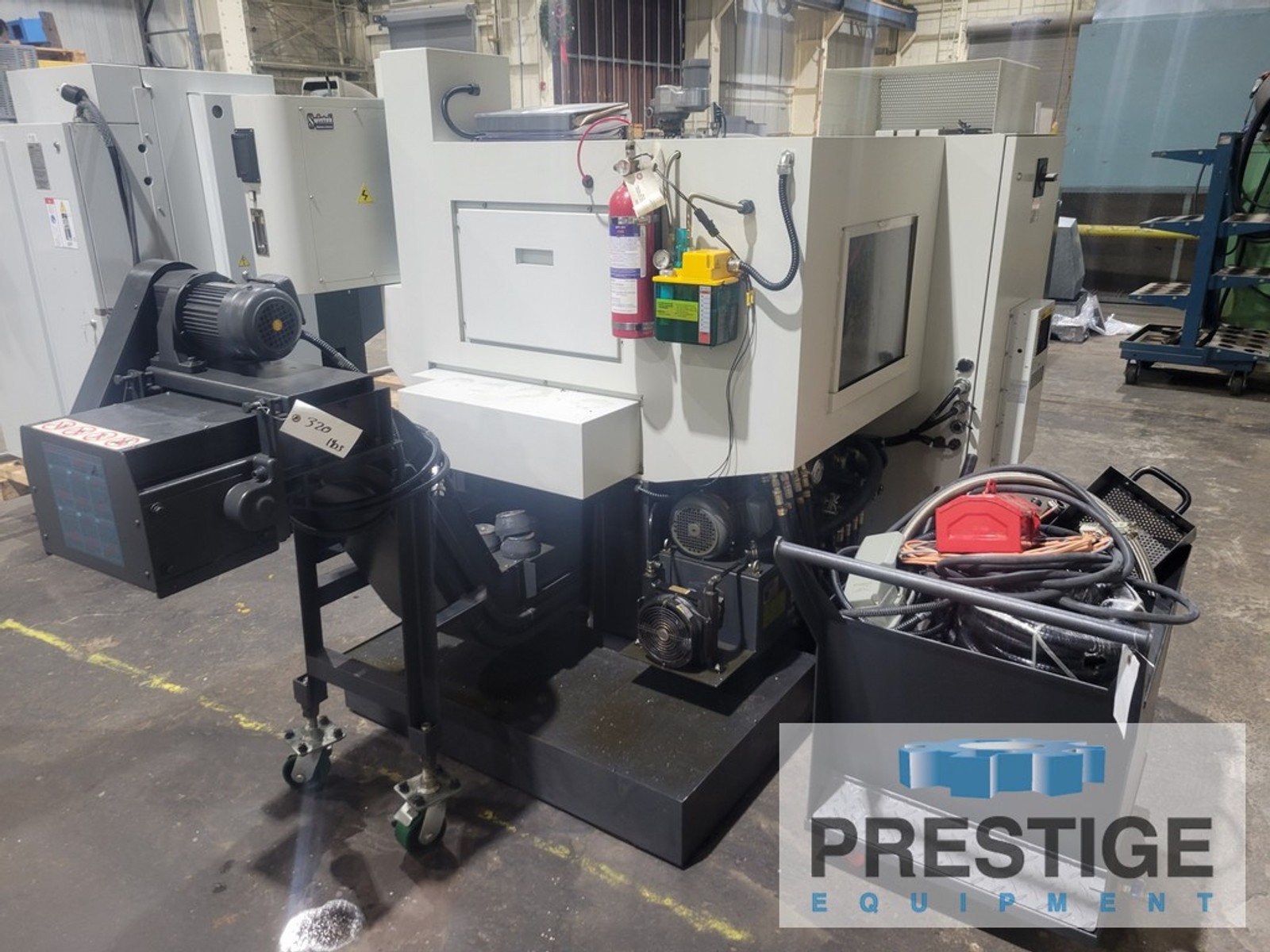

Chip Conveyor
4-Position Side Tools
4-Position Face Tools

CAPACITY:
Maximum Swing Over Bed................. 19.68"
Standard Turning Diameter ............. 1.259"
Maximum Bar Capacity .................. 1.259
Maximum Turning Length ................ 4.72"
X-Axis Stroke ......................... 7.87"
Z-Axis Travel ......................... 7.87"
Y-Axis Travel ......................... 3.937"
X/Z Axis Traverse ..................... 629.9 IPM
Positional Accuracy ................... 0.0001968"
Spindle Motor ......................... 4.9 HP
Spindle Speeds ........................ 50-6,000 RPM
Approximate Dimensions ................ 73" x 60" x 67"
Approximate Weight .................... 3,850 Lbs

EQUIPPED WITH:
Fanuc OiTF CNC Control
8-Position Turret
Chip Conveyor
4-Position Side Tools
3-Position Face Tools
