60" Summit, Ram, Turret, 63" Swing, 57" Dia. 4-Jaw Chuck, 47" U/R, 200 RPM, 75 HP, Pendant #43460

Manufacturer

SUMMIT

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

43460

Model

60" DC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43460

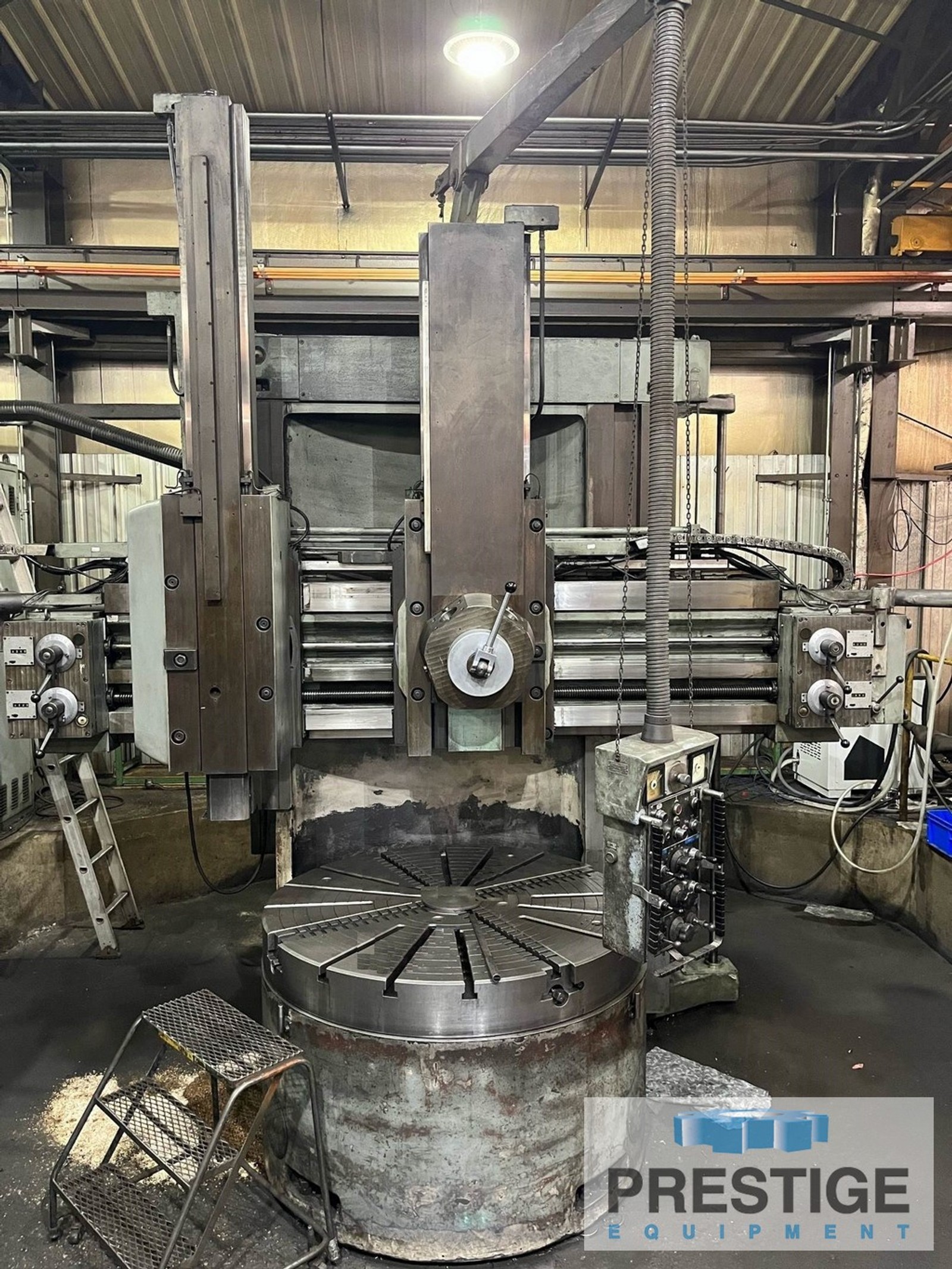

60" Summit Vertical Boring Mill

Features:
Full Pendant Control
Left Hand Vertical Swiveling Ram
Right Hand Vertical 5-Position Turret
57" Diameter 4-Jaw Chuck

Specifications:
Table Diameter ........................ 57"
Max. Turning Diameter ................. 63"
Max. Height Under Rail ................ 47"
Cross Rail Vertical Travel ............ 31.5"
Ram Stroke ............................ 48"
Turret Stroke ......................... 36"
Ram & Turret Swivel ................... +/- 35 Degrees
Table Speeds, Infinitely Variable ..... 2-200 RPM
Table Speed, Gear Ranges ............. 3
Max Weight of Workpiece ............... 17,600 Lbs.
Machine Dimensions, L x D ............. 160" x 180"
Machine Height ....................... 161"
Machine Weight ........................ 47,500 Lbs.

Equipped With:
Full Pendant Controls
Ram & Turret
57" 4-Jaw Chuck
Hardened Ways on Cross Rail
Coolant Pan & Pump
75 HP Main Drive Motor

Note:
Inspect Under Power In Midwest Plant!
