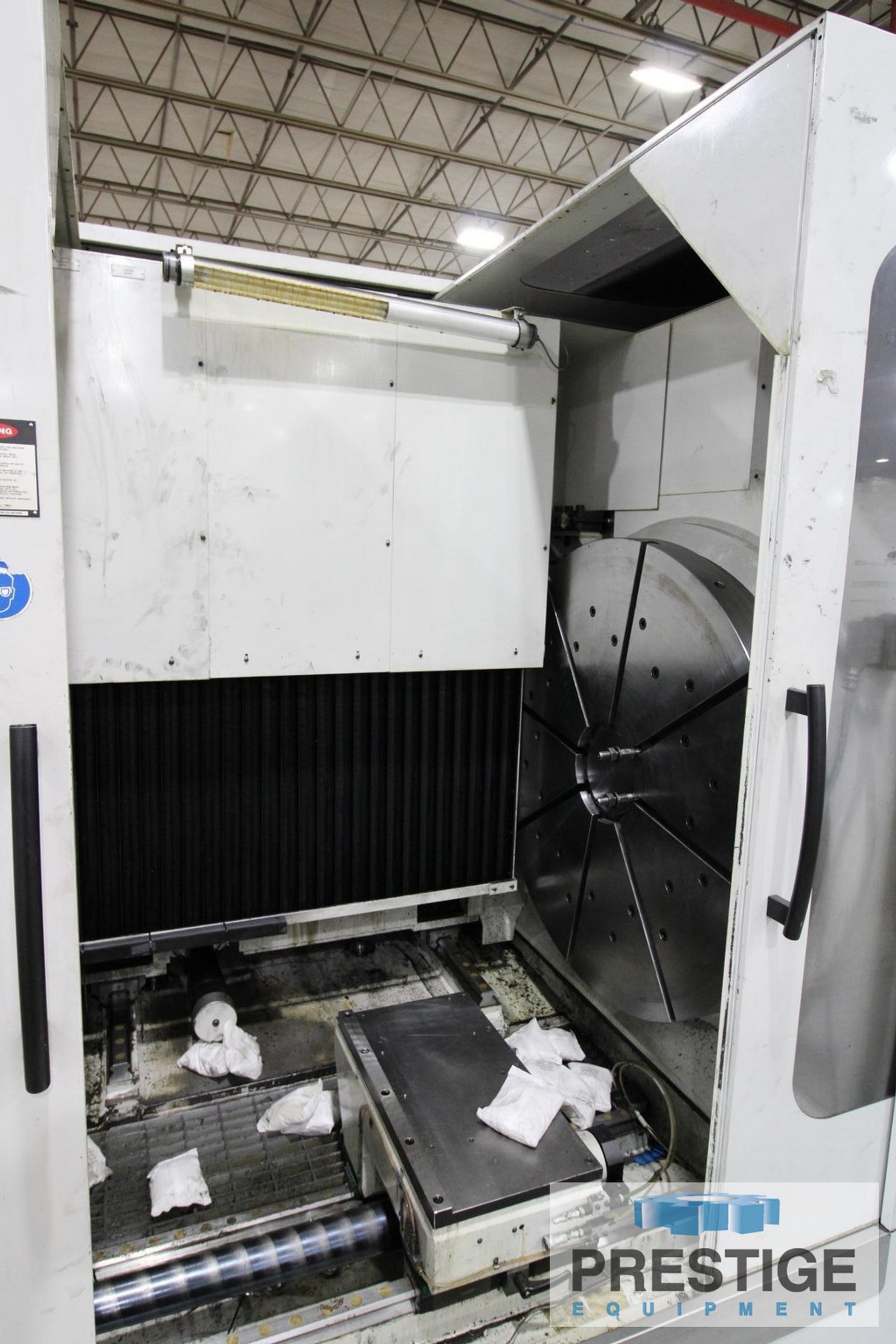

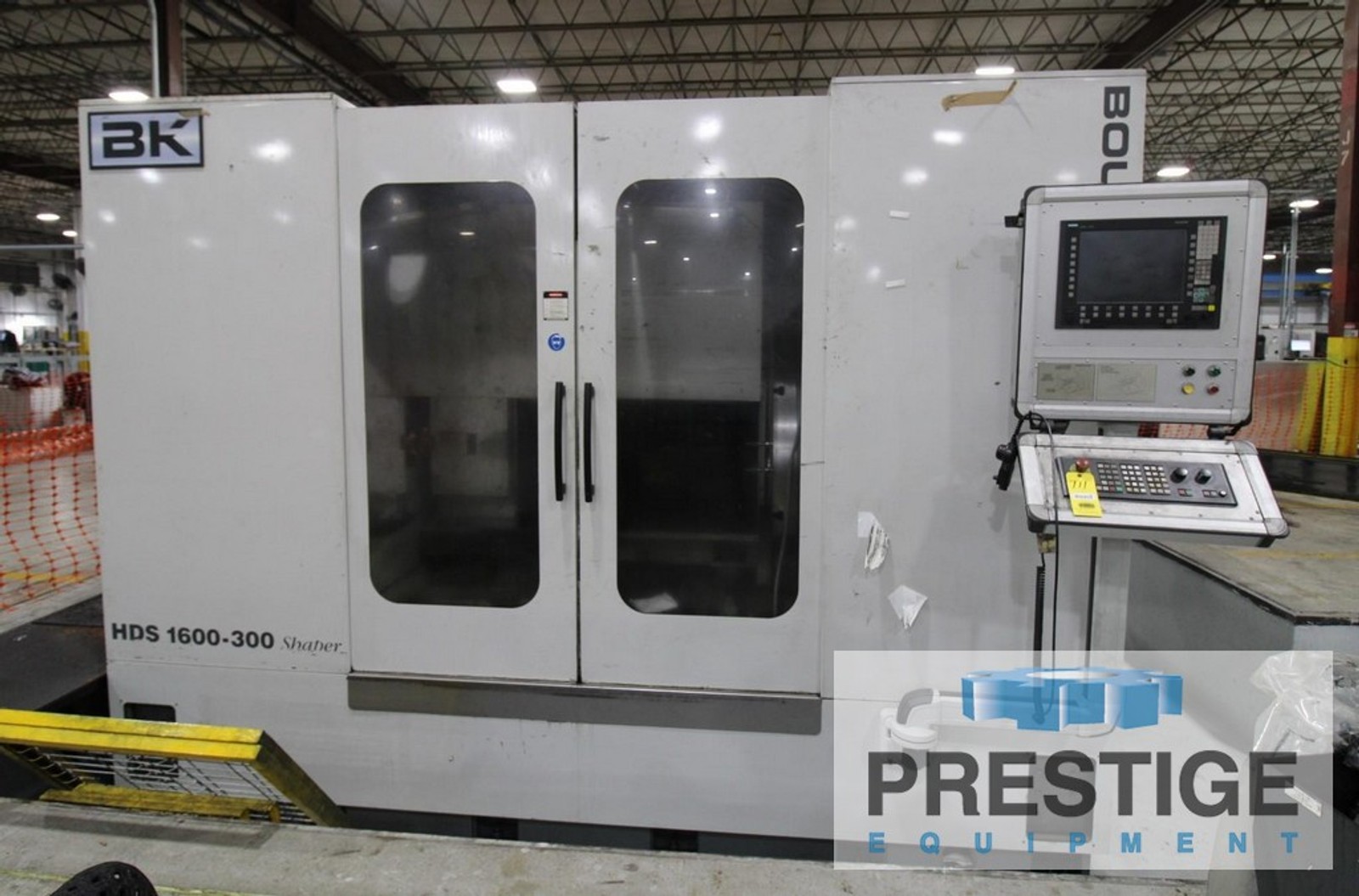

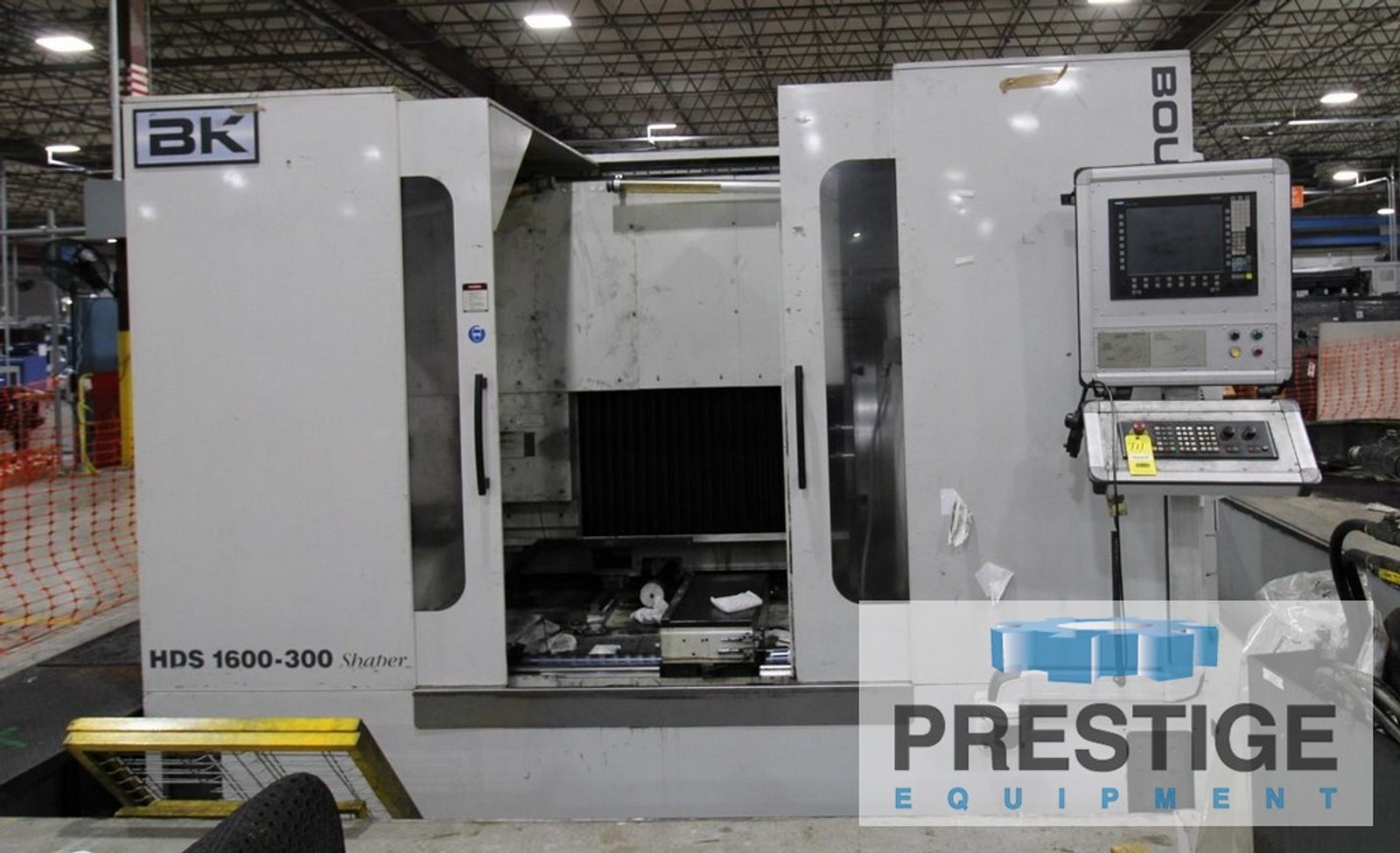

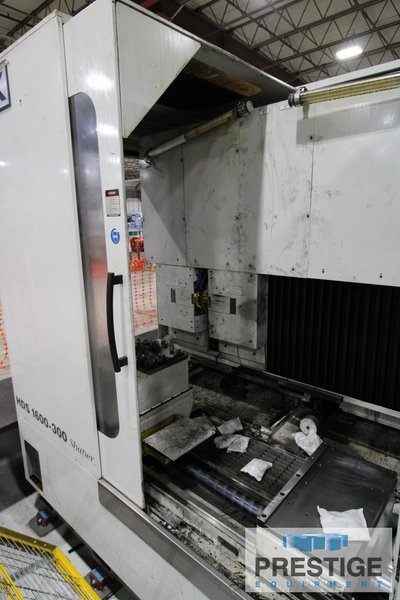

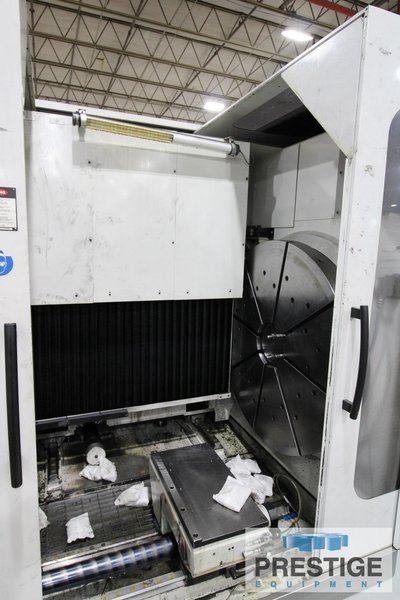

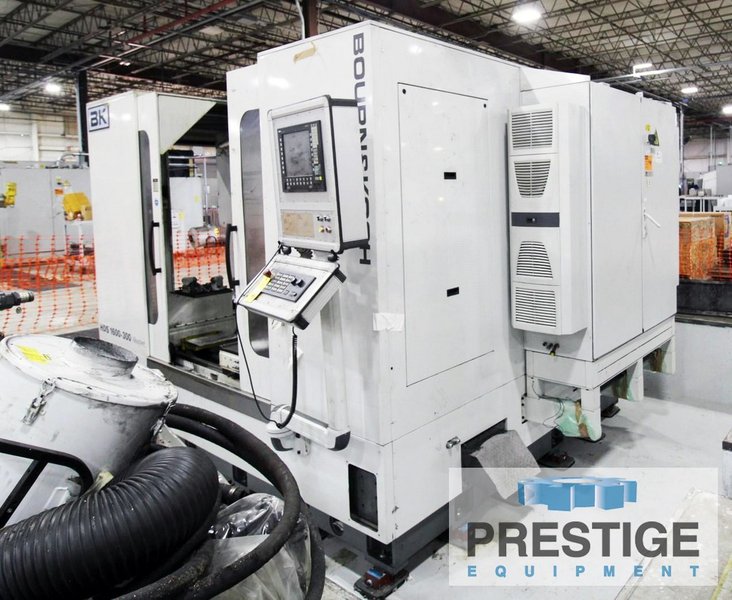

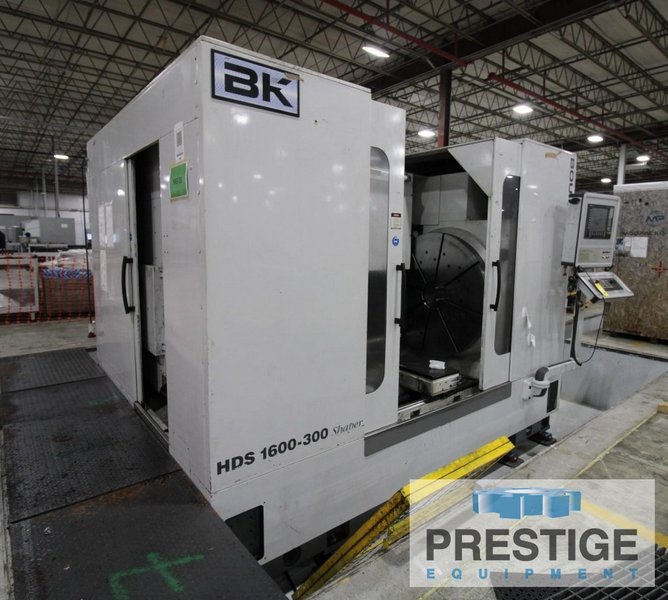

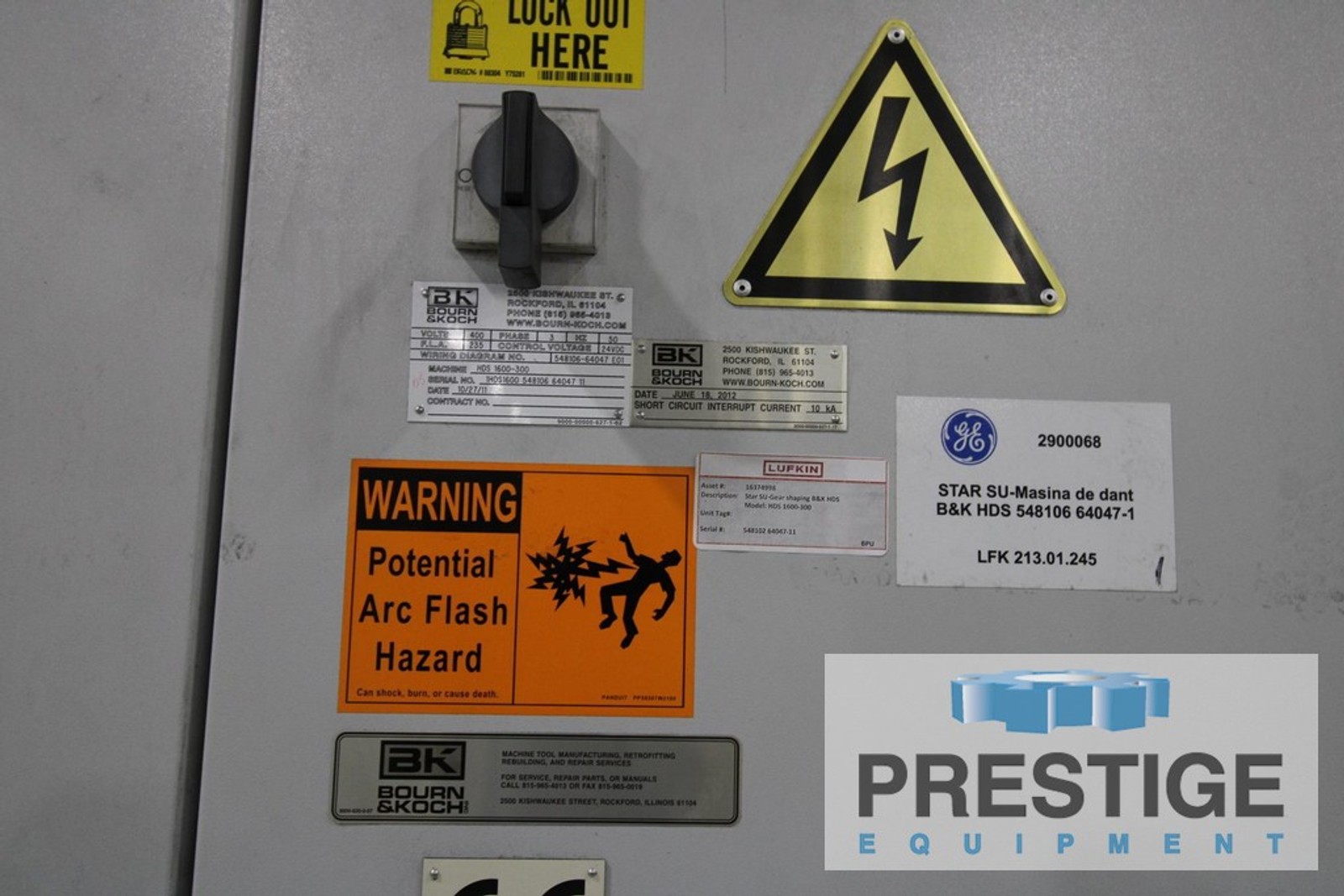

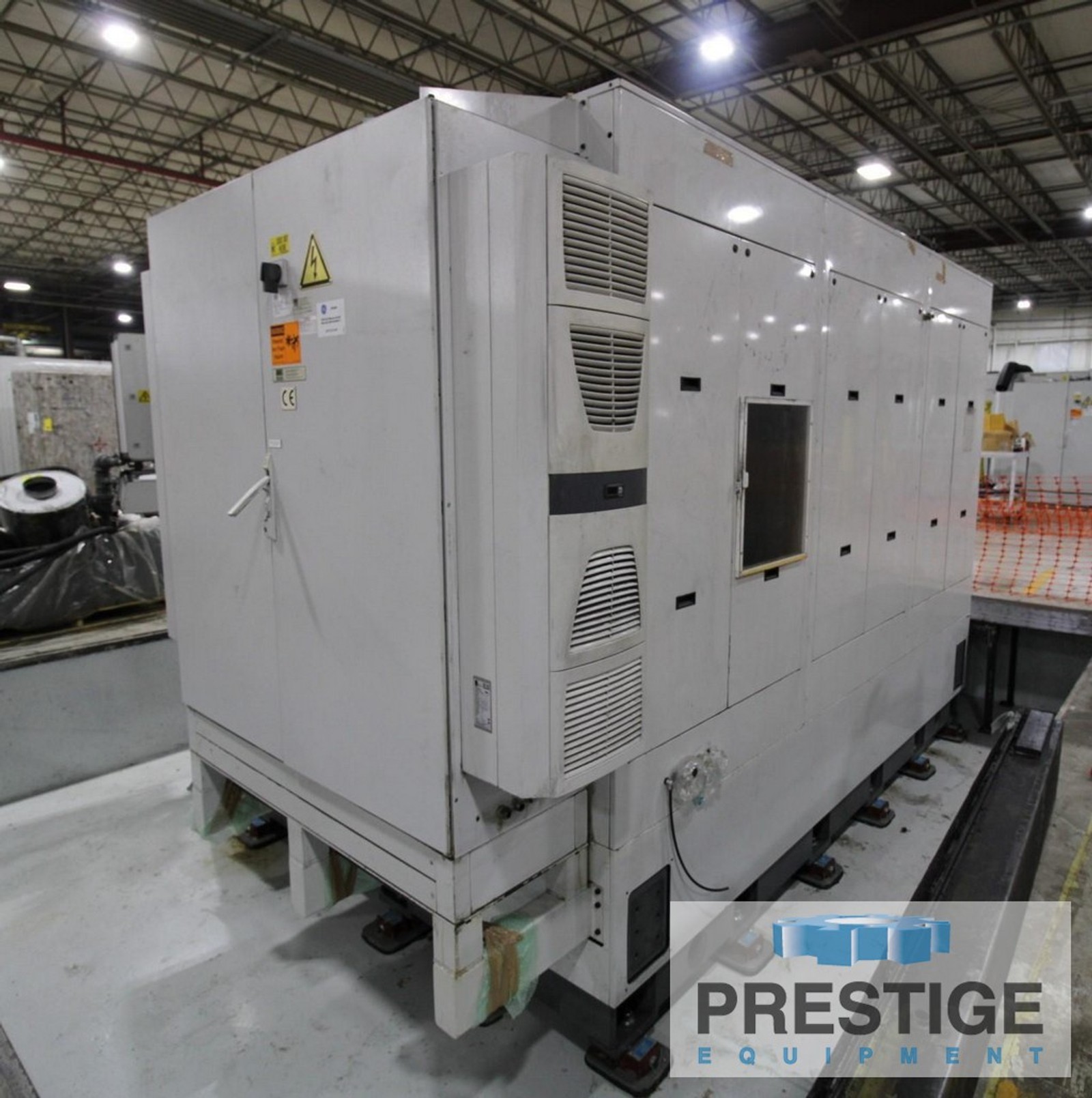

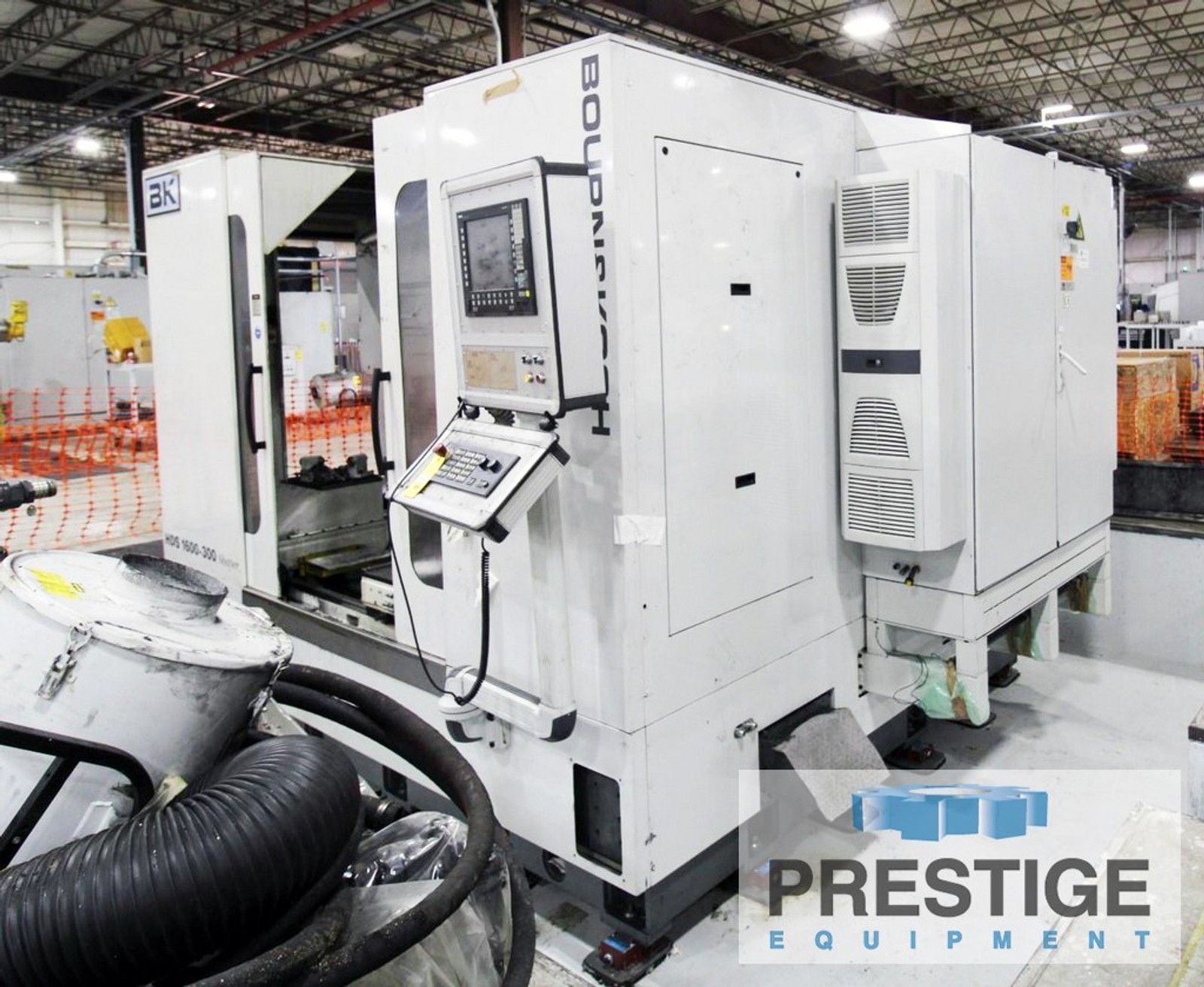

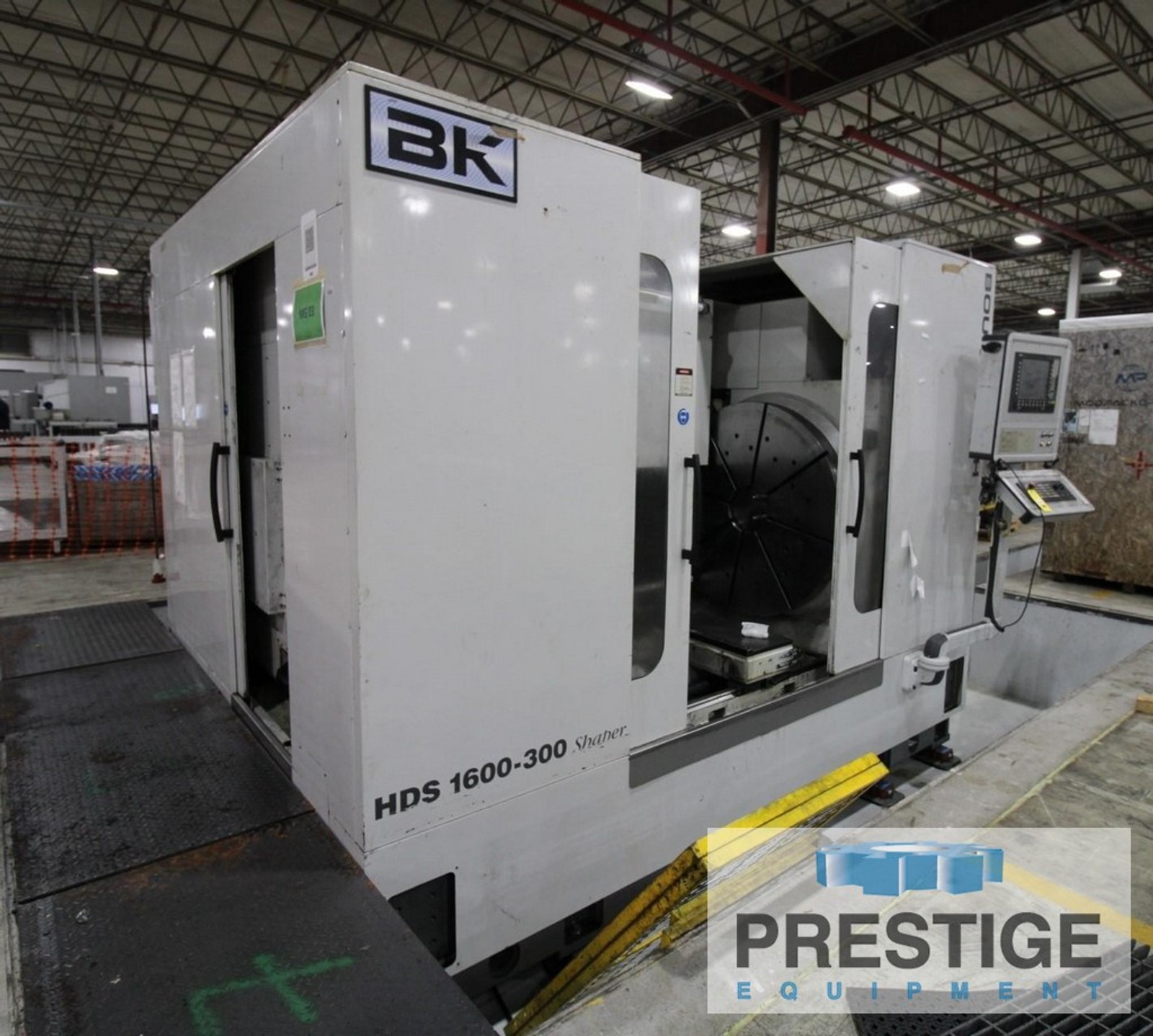

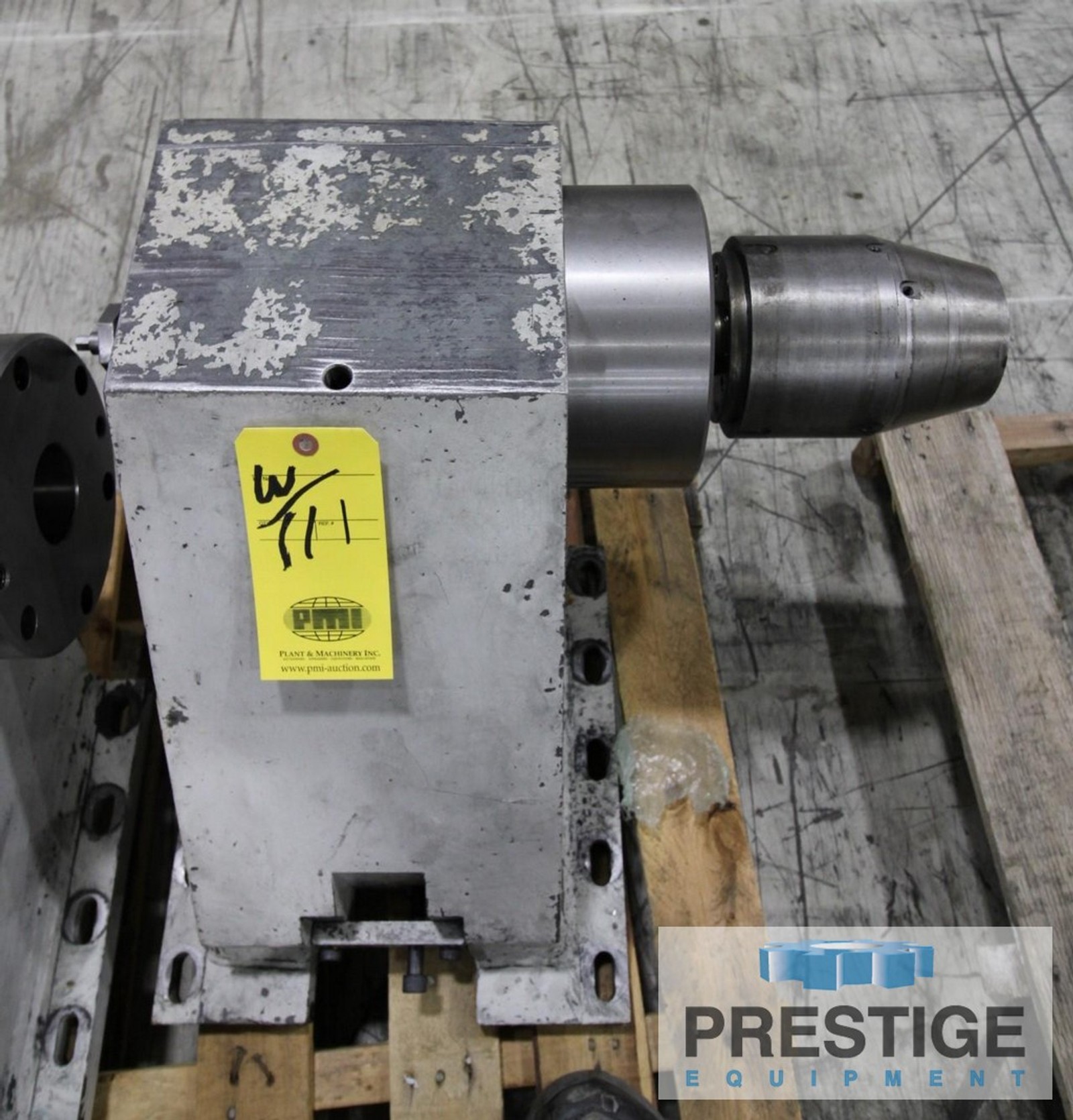

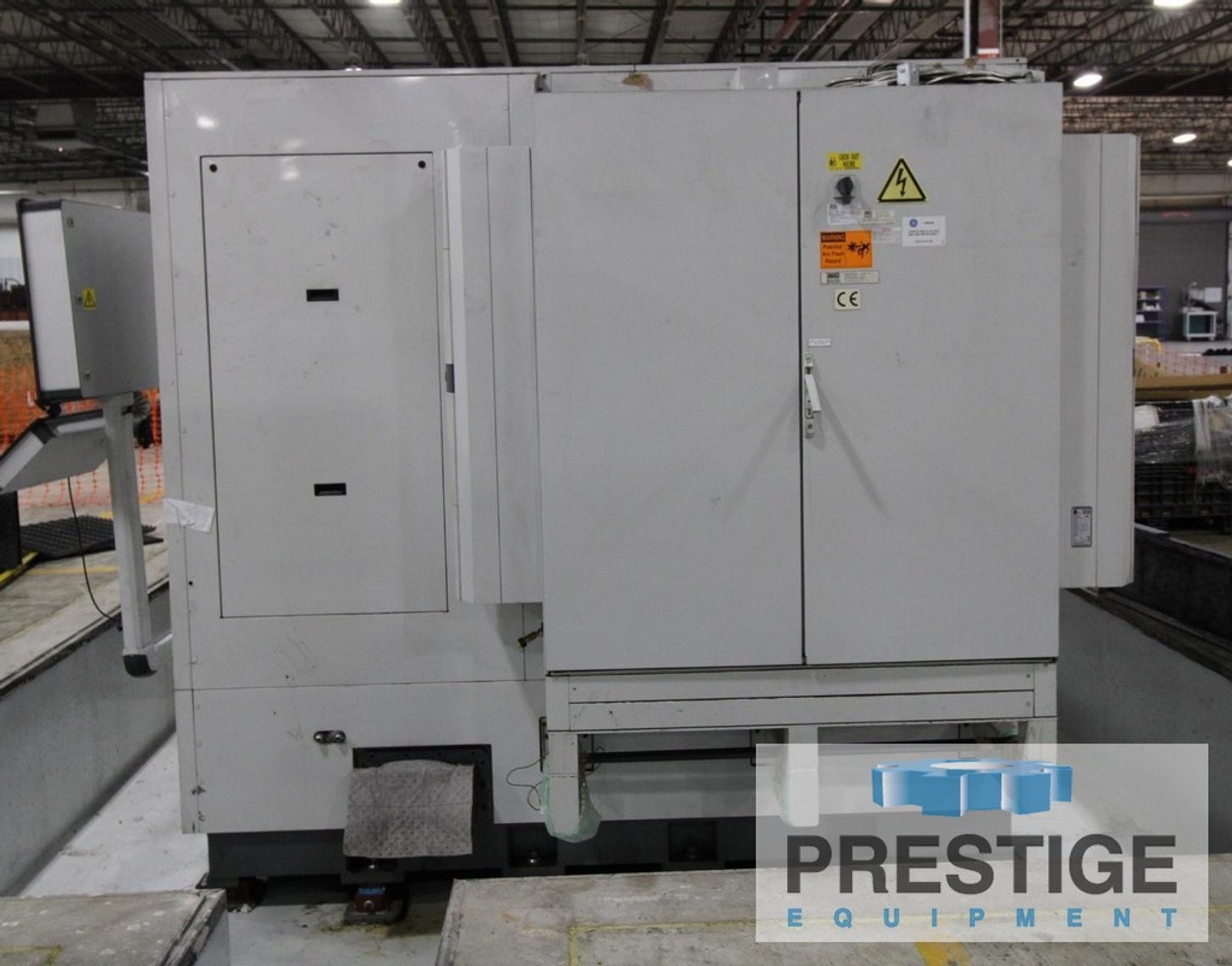

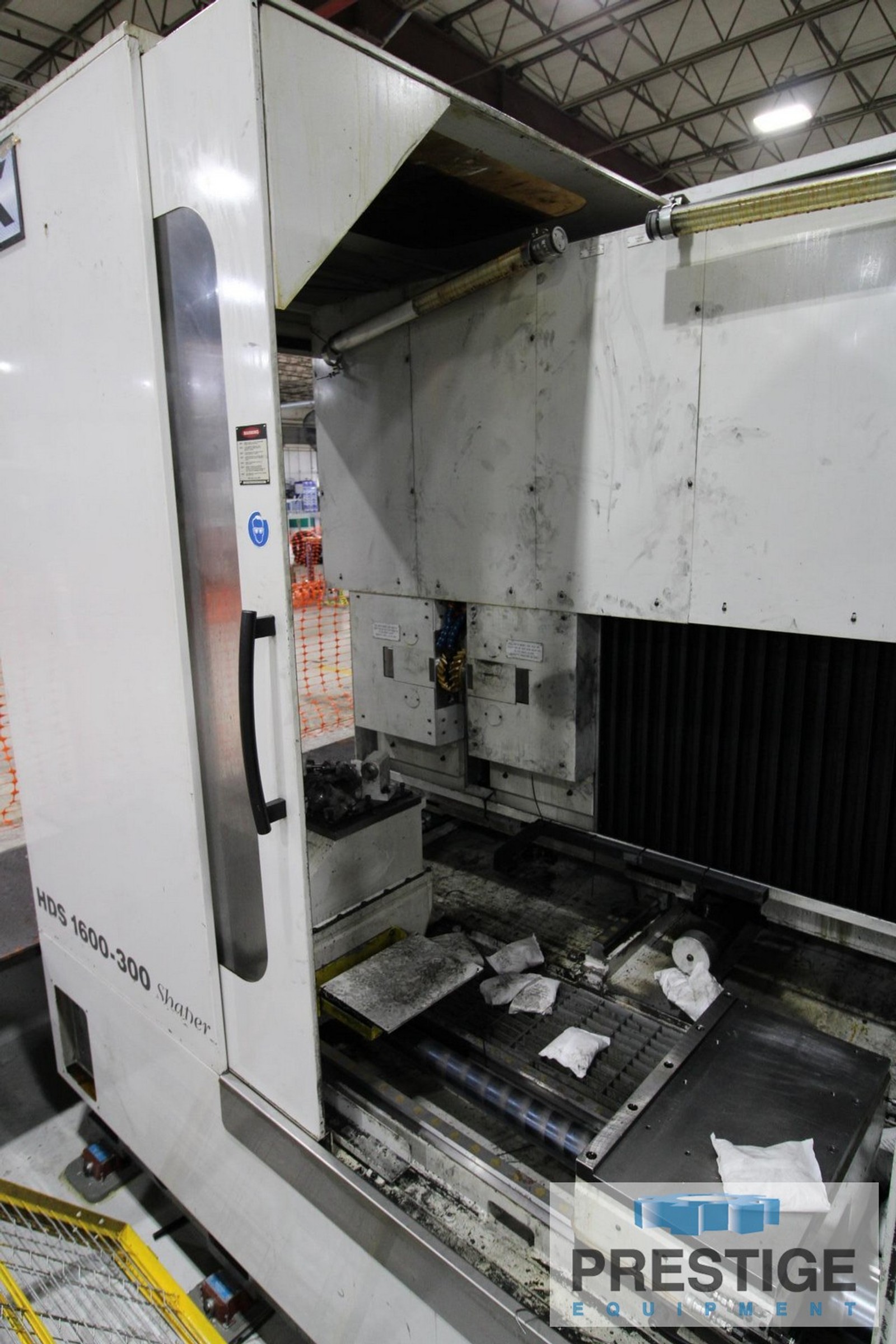

Bourn & Koch HDS1600-300 CNC Herringbone Gear Shaper

FEATURES:
Siemens 9-Axis CNC Control
Inch/Metric Operation

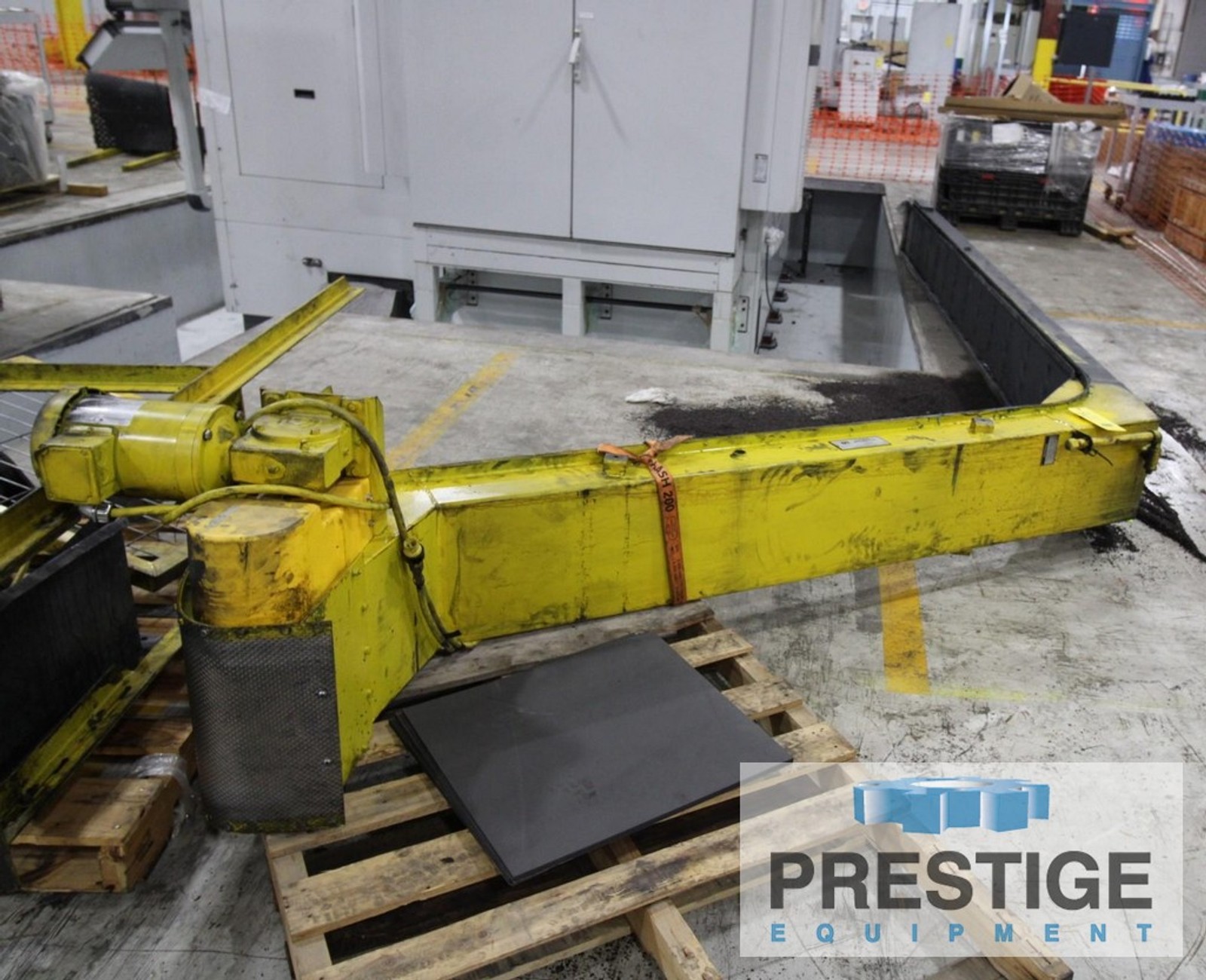

Chip Conveyor
CNC Crowning and Taper For External Gears

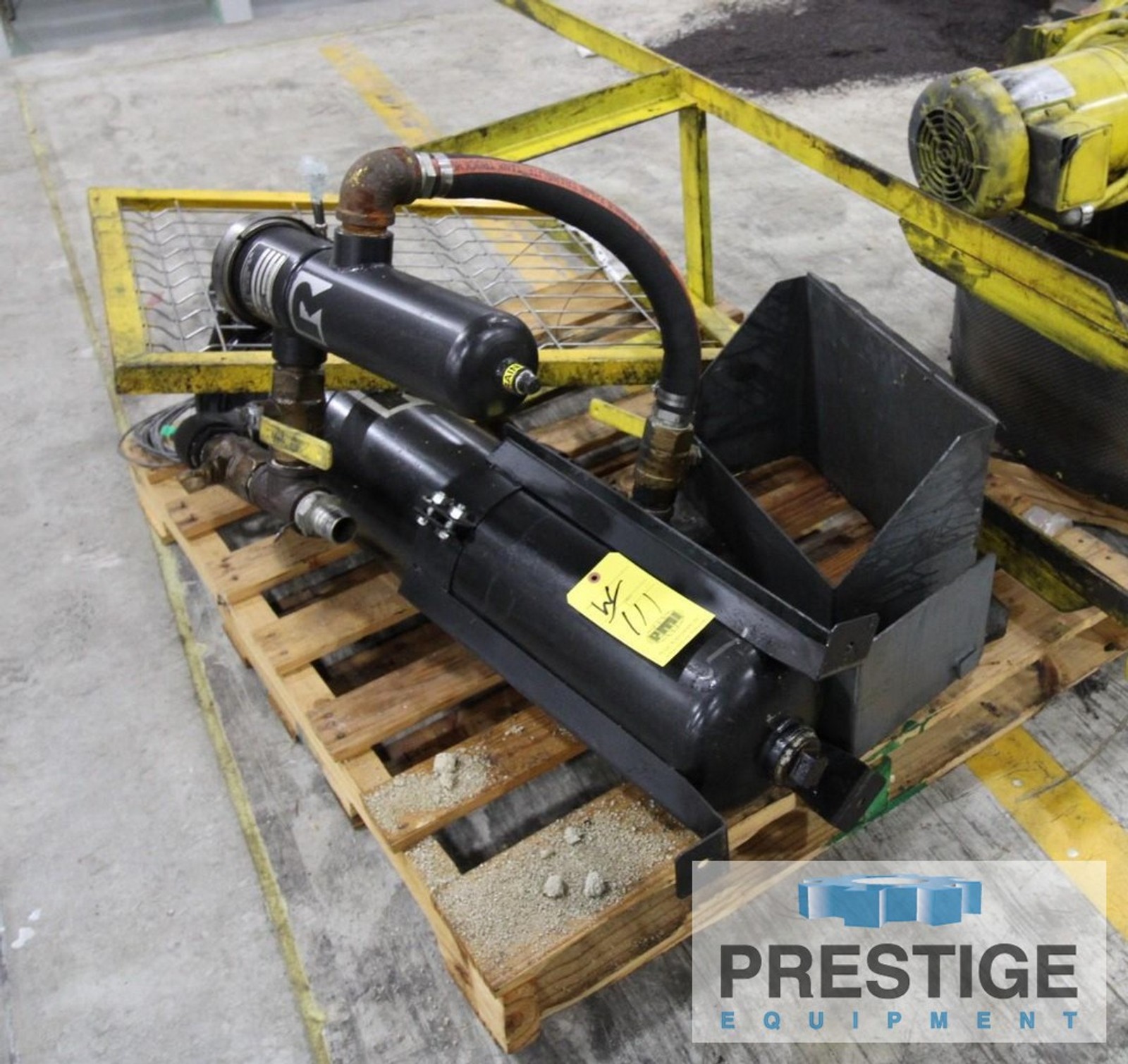

Mist Collector

CAPACITY:
Nominal Pitch Diameter, External ...... 62.99"
Maximum Face Width, w/ Both Heads ..... 23.62"
Maximum Face Width, Single Face ....... 11.81"
Maximum Diametral Pitch, Spur ......... 2 DP
Maximum Diametral Pitch, Helical ...... 2 DP
Minimum Gear Pitch .................... 8 DP
Maximum Helix Angle ................... 40 Degrees
Worktable Diameter .................... 44.09"
Worktable Bore ........................ 9.975"
Work Spindle Speeds ................... 1-25 RPM
X-Axis Travel ......................... 34"
Z-Axis Travel ......................... 13"
Cutter Spindle Stroking Range ......... 12-150 SPM

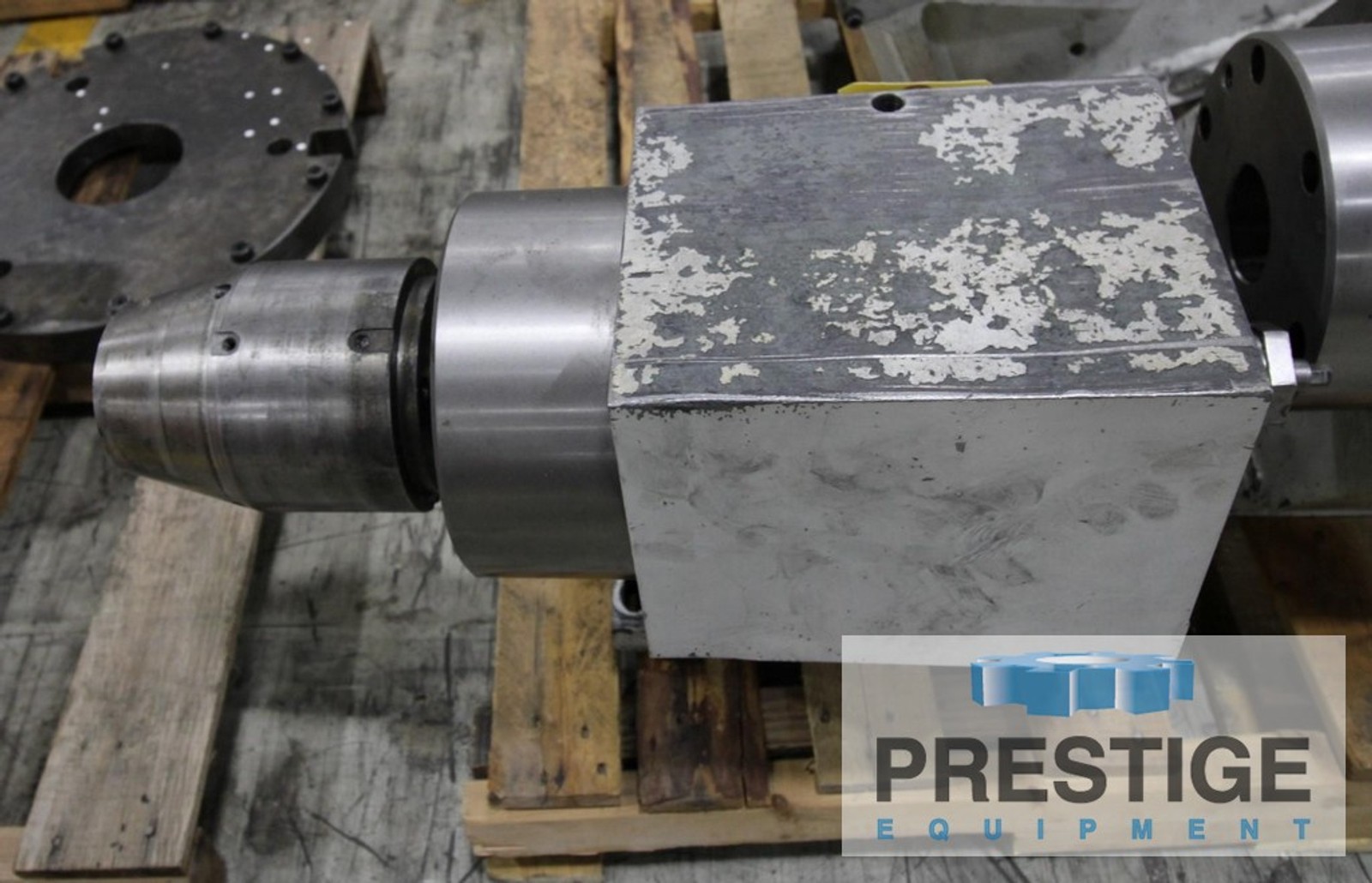

Cutter Spindle Diameter ............... 4.72"
Cutter Pitch Diameter, Max ............ 8.26"
Cutter Pitch Diameter, Min ............ 5.9"
Cutter Fit, Max ....................... 3.54"
Cutter Fit, Min ....................... 2.755"
Minimum Center Distance ............... 4.0"
Overall Dimensions .................... 191" L x 144" W x 132" H
Machine Weight ........................ 120,000 Lbs.

EQUIPPED WITH:

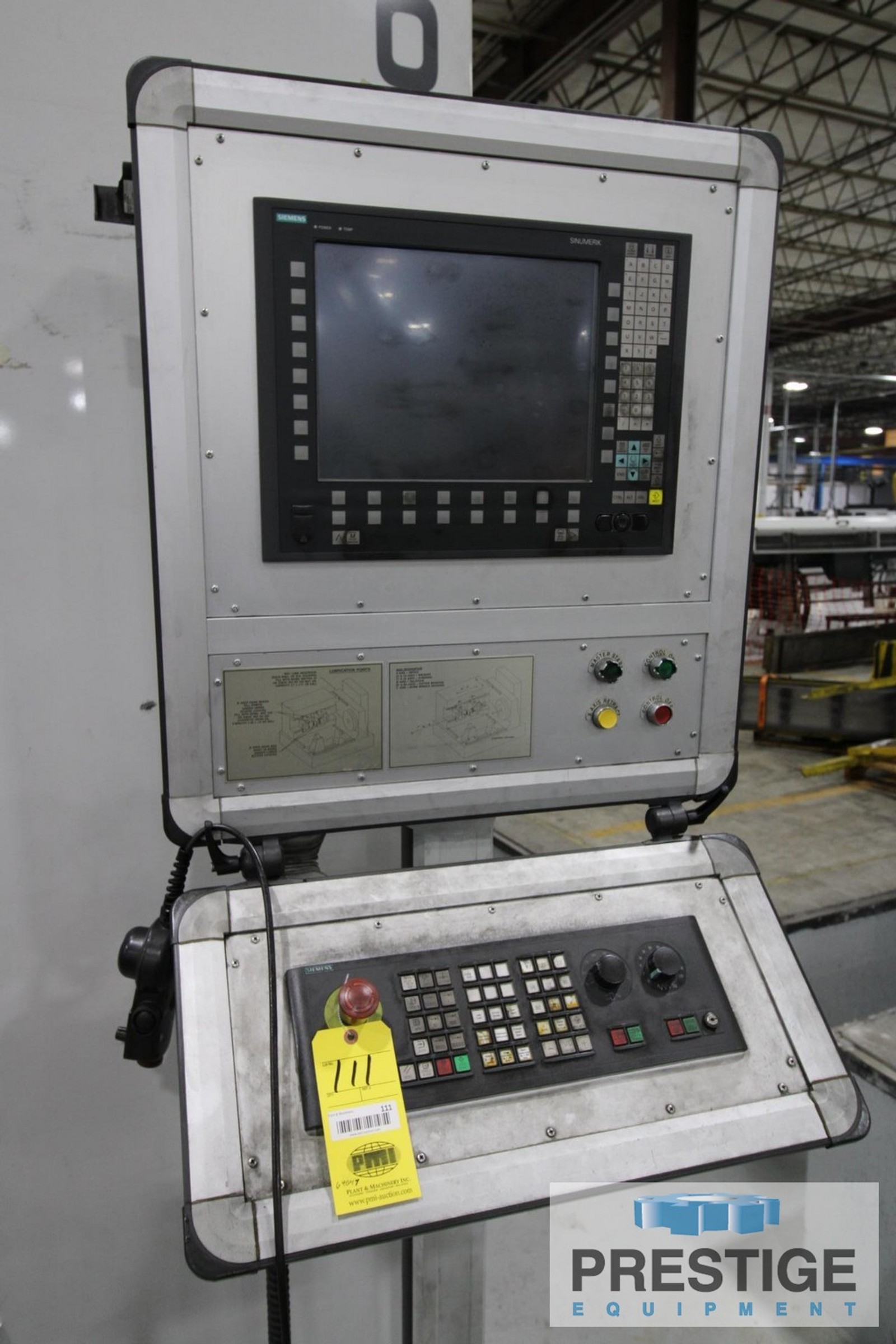

Siemens 9-Axis CNC Control
Inch/Metric Operation
CNC Crowning and Taper For External Gears
Lubrication System
Coolant System

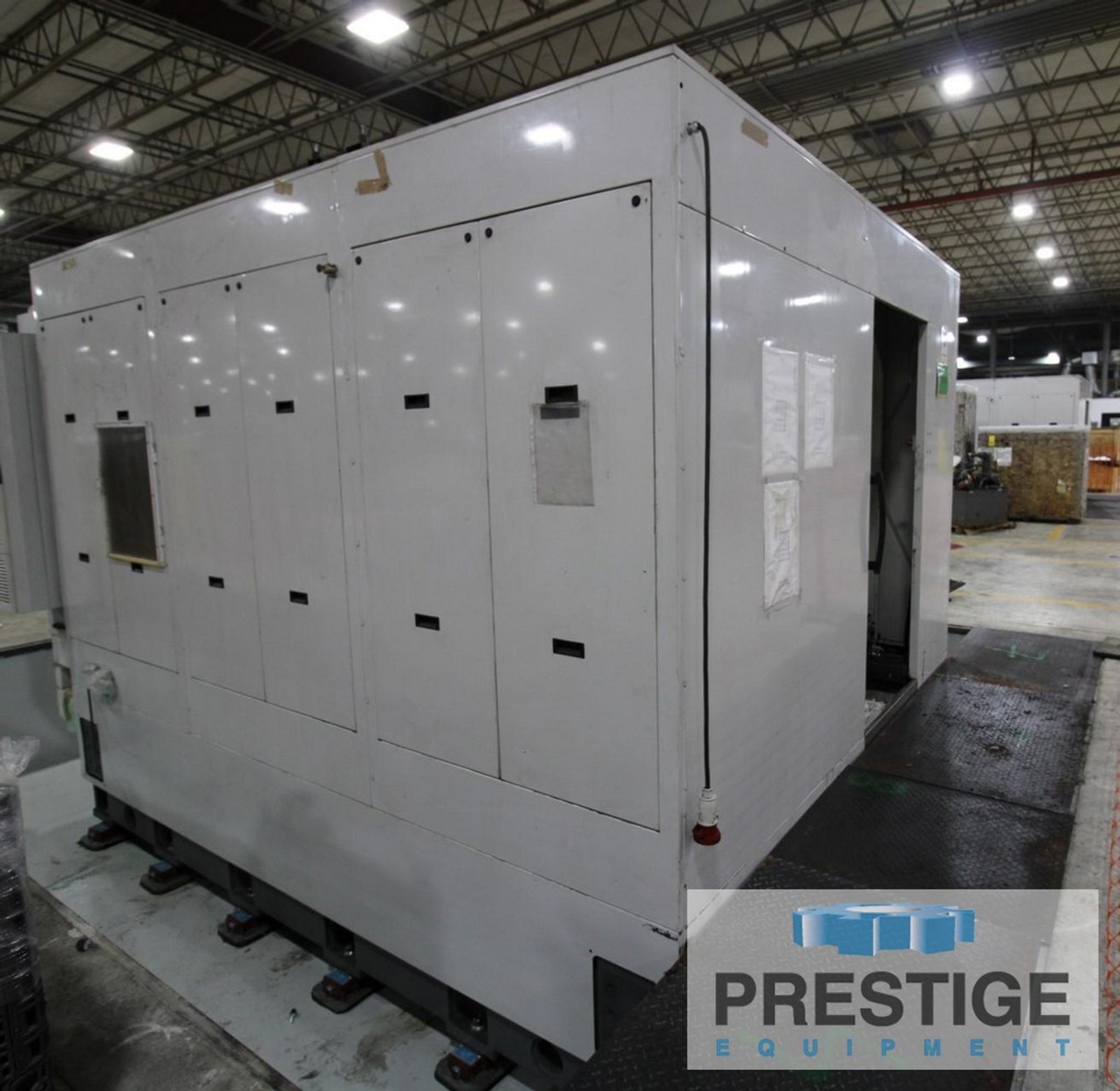

Full Enclosure

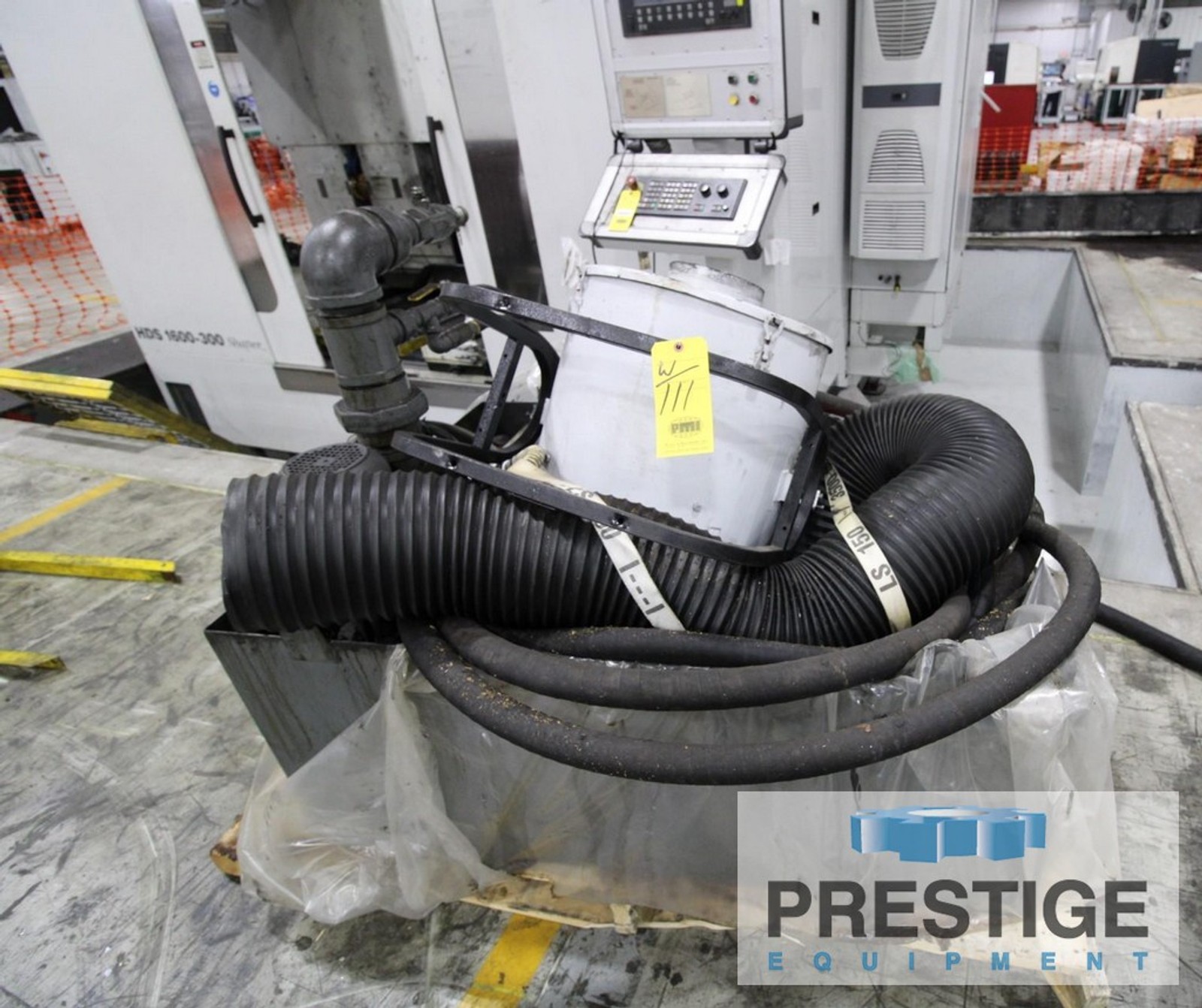

Mist Collector
