Schiess VKE 500/900,197" Table, 355" Swing, Openside, Live Spindle, 100 Ton Cap.,120HP, Fanuc 18-TB, #25414

Manufacturer

SCHIESS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

25414

Model

VKE 500/900

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25414

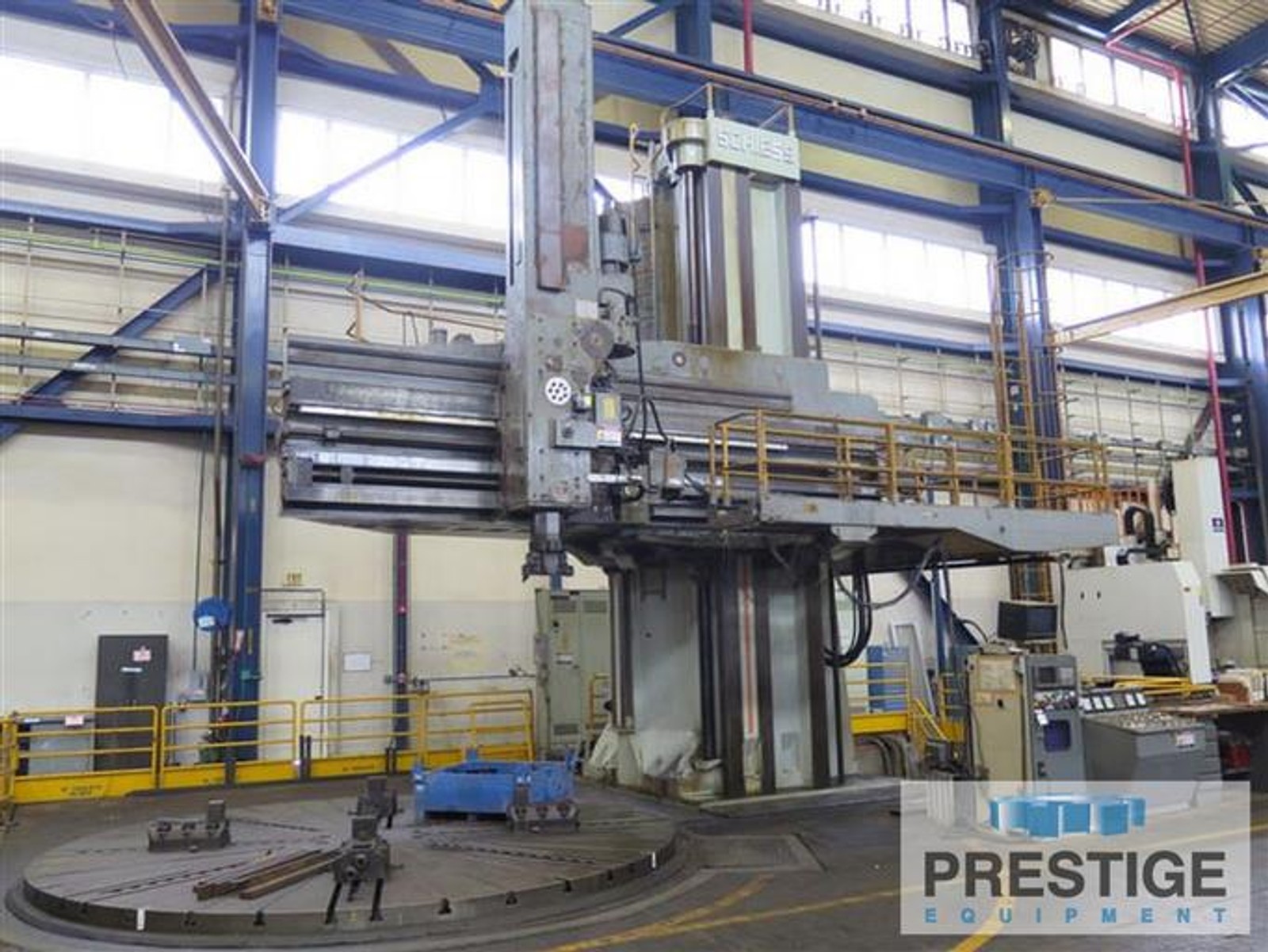

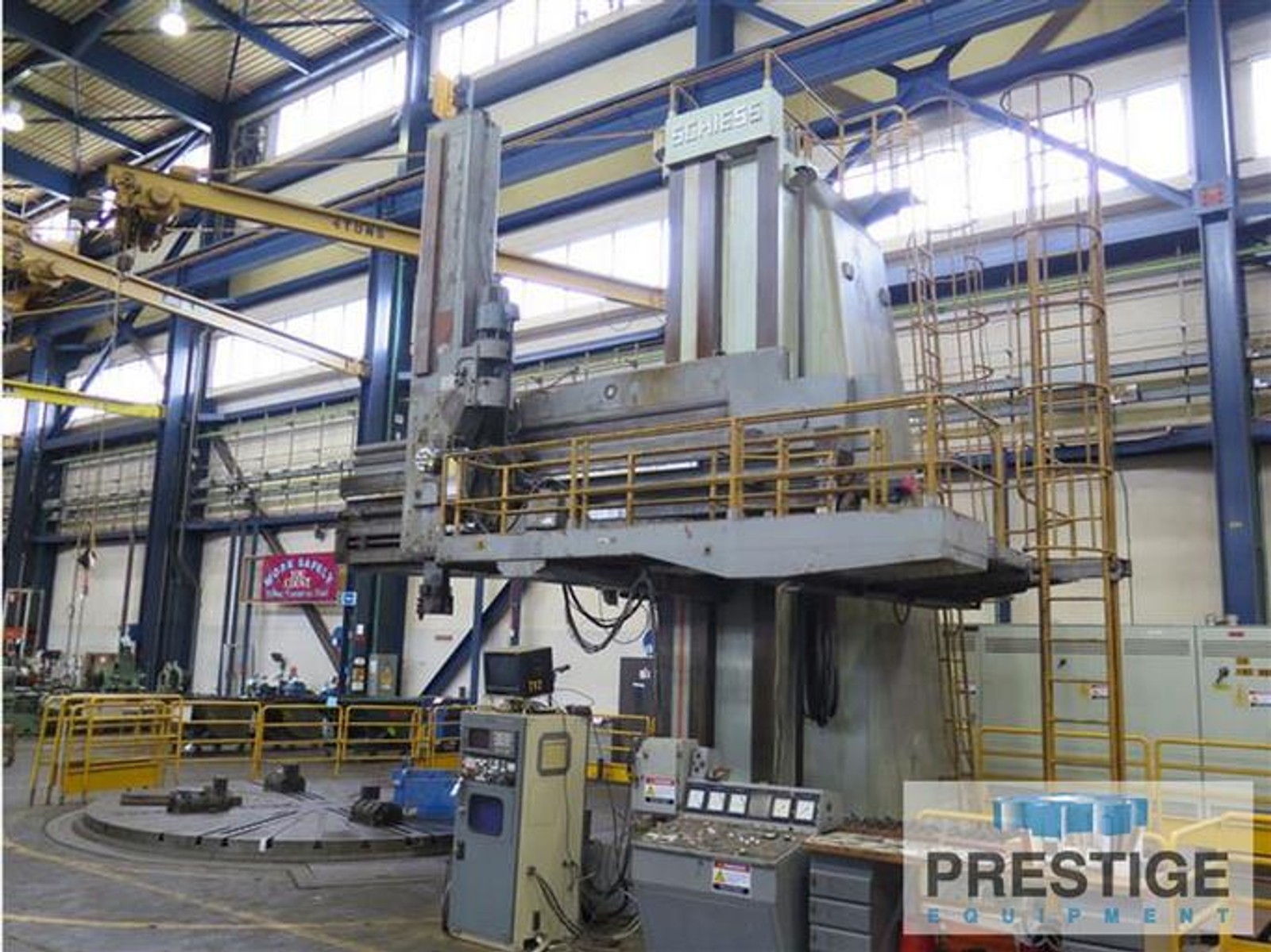

Schiess 3VKE 500/900 197"/355" CNC Openside Vertical Boring Mill with Milling

FEATURES:

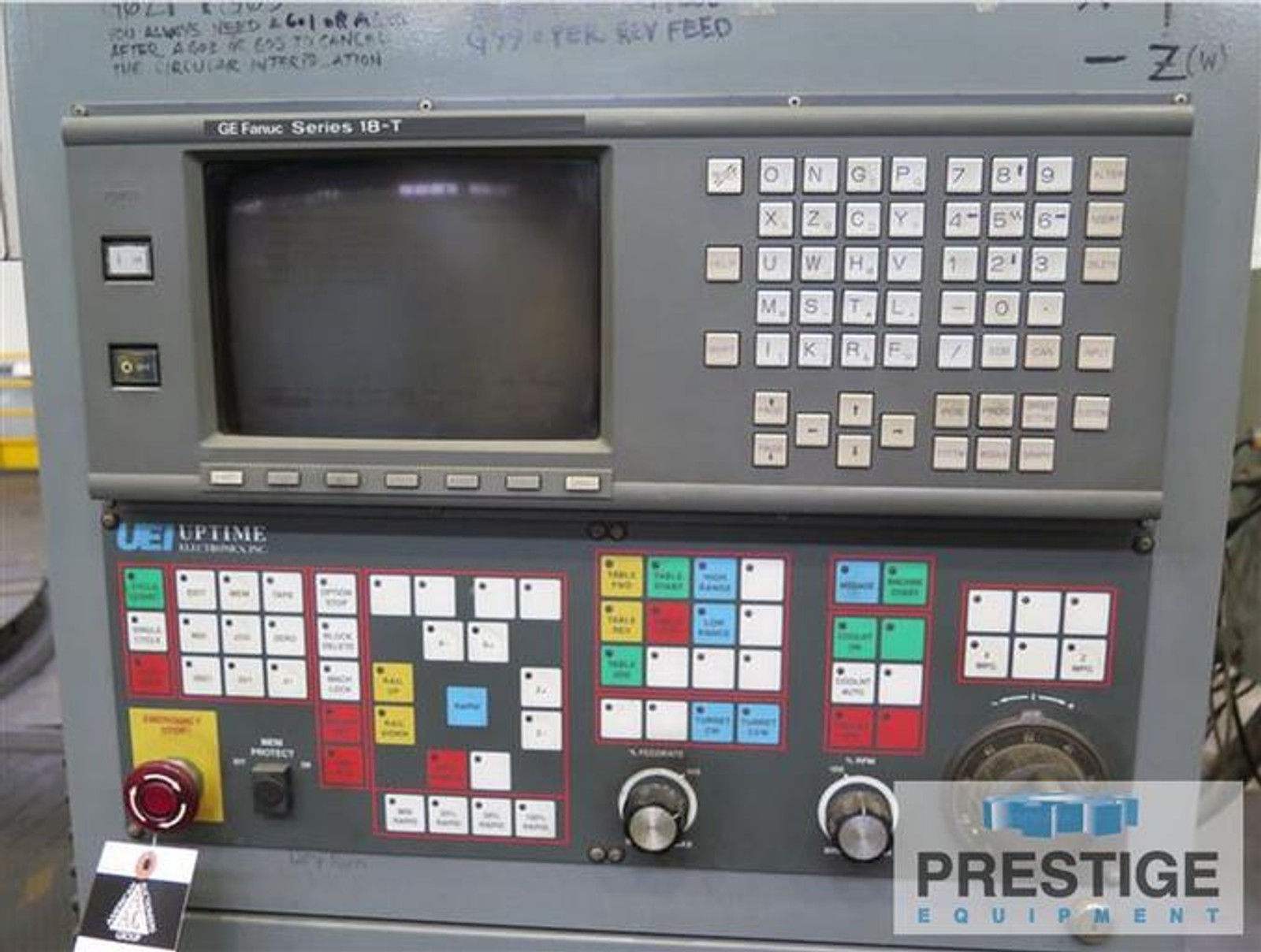

Fanuc 18-T CNC Control (Retrofit 1997)

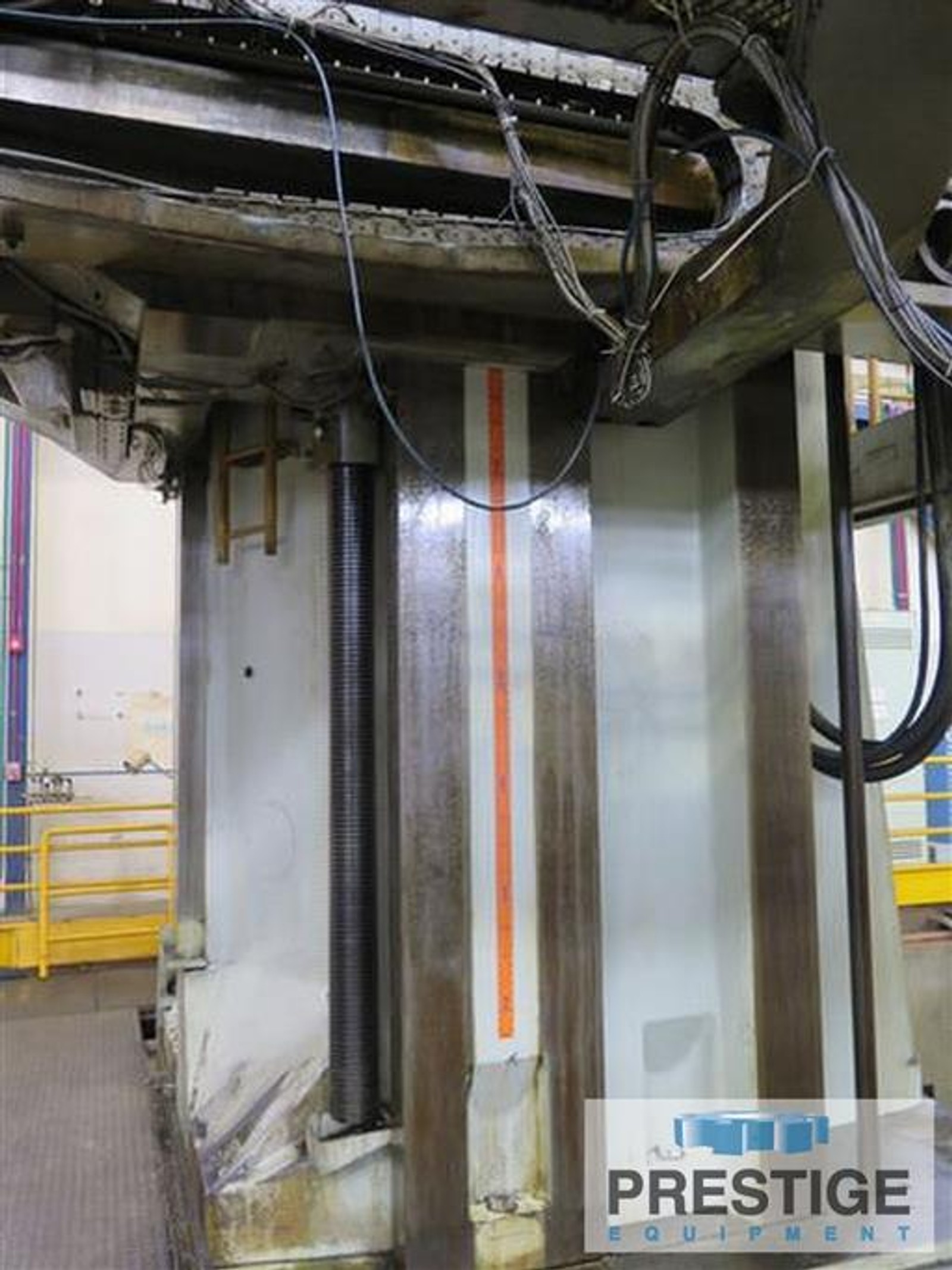

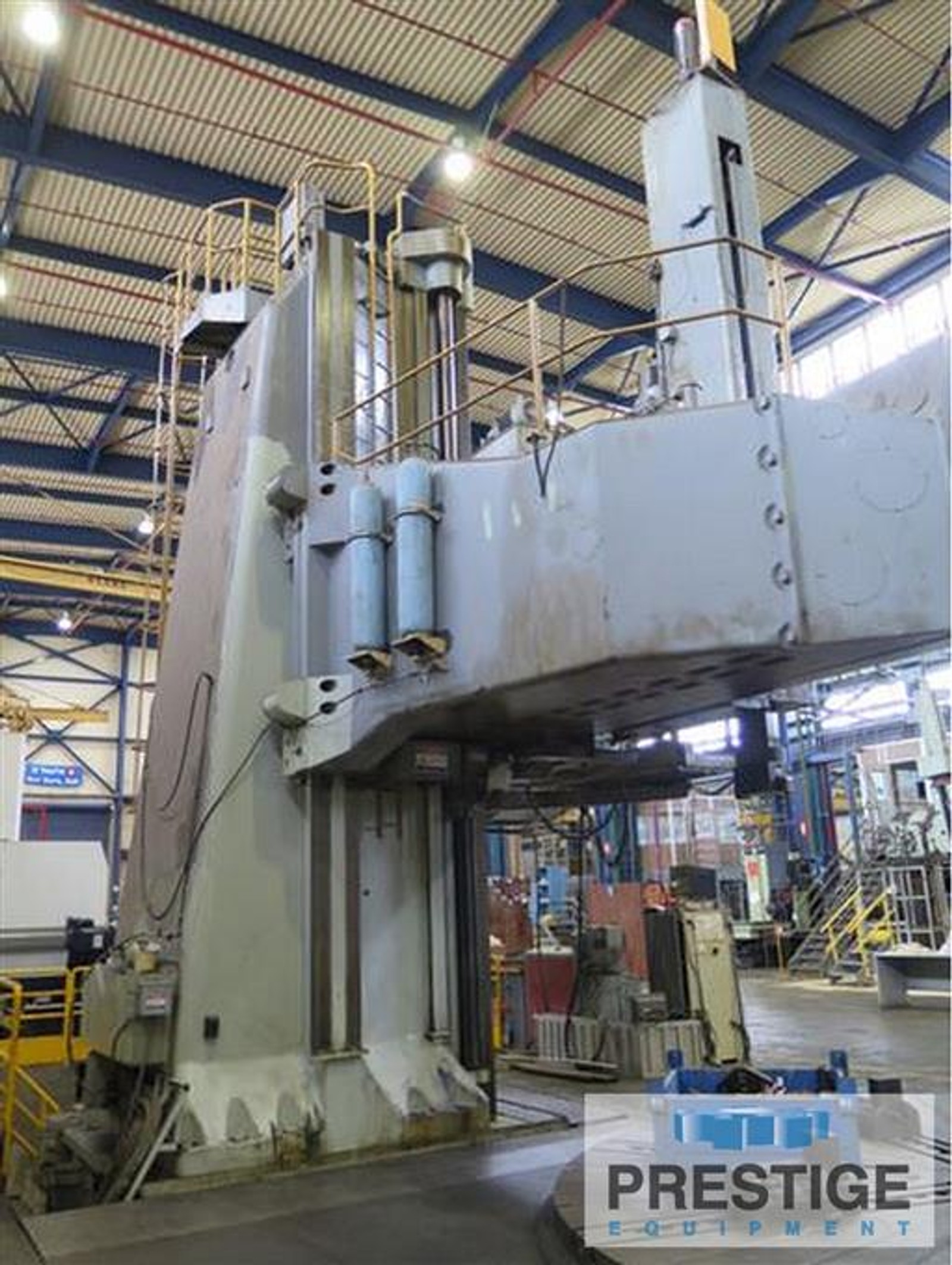

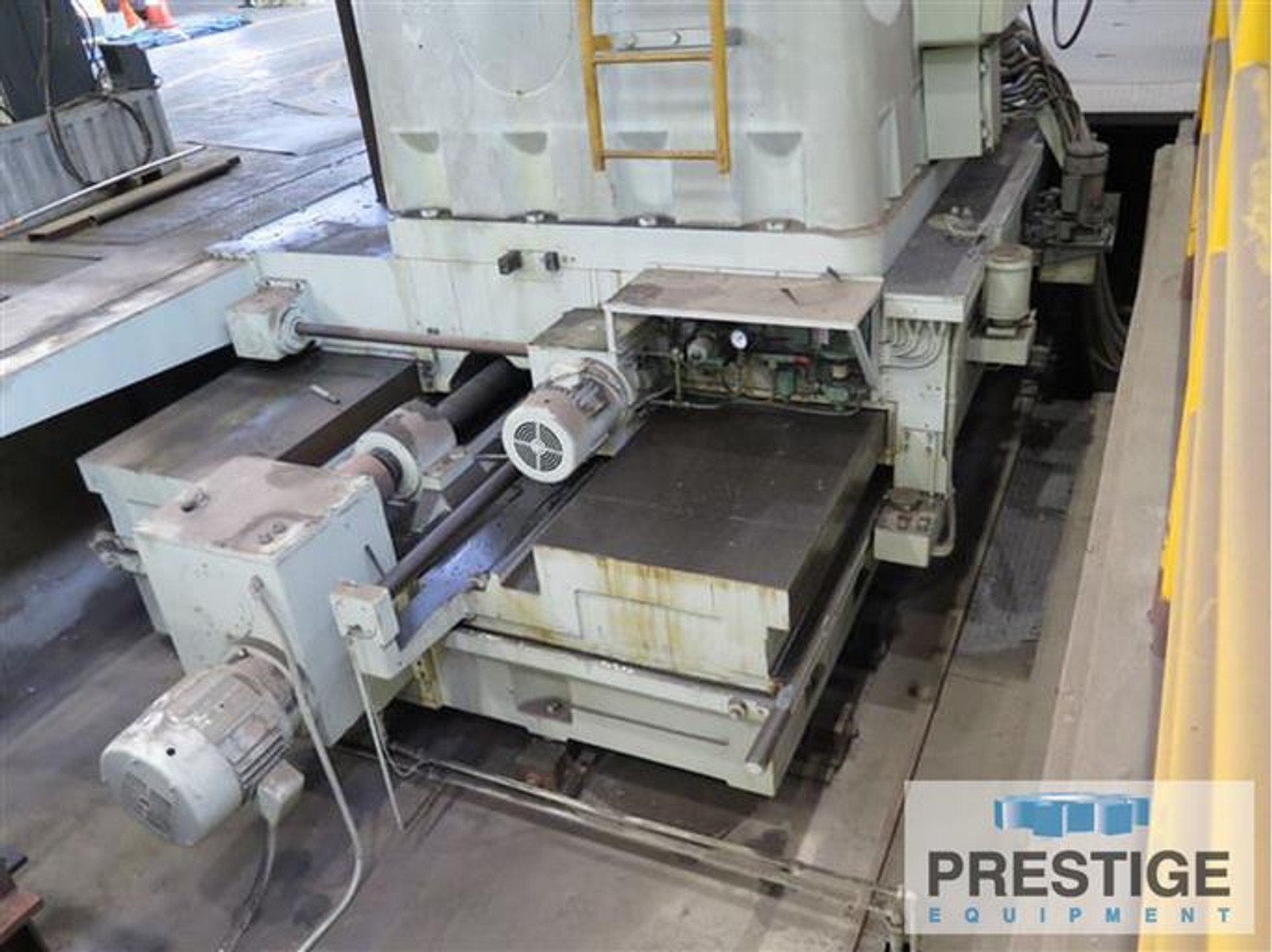

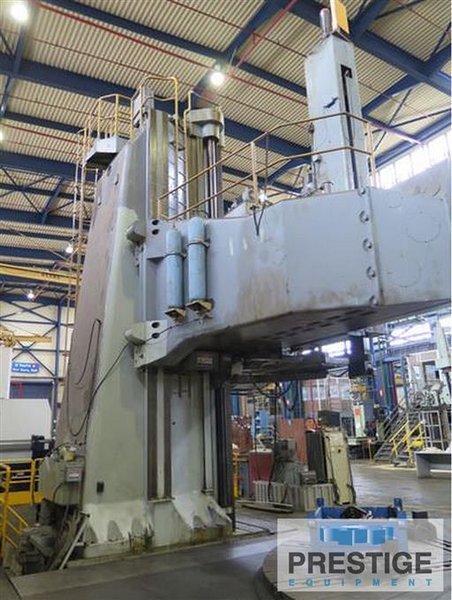

Openside Design With Sliding Column
90.55" Ram Stroke
177" Under the Rail
100 Ton Table Capacity

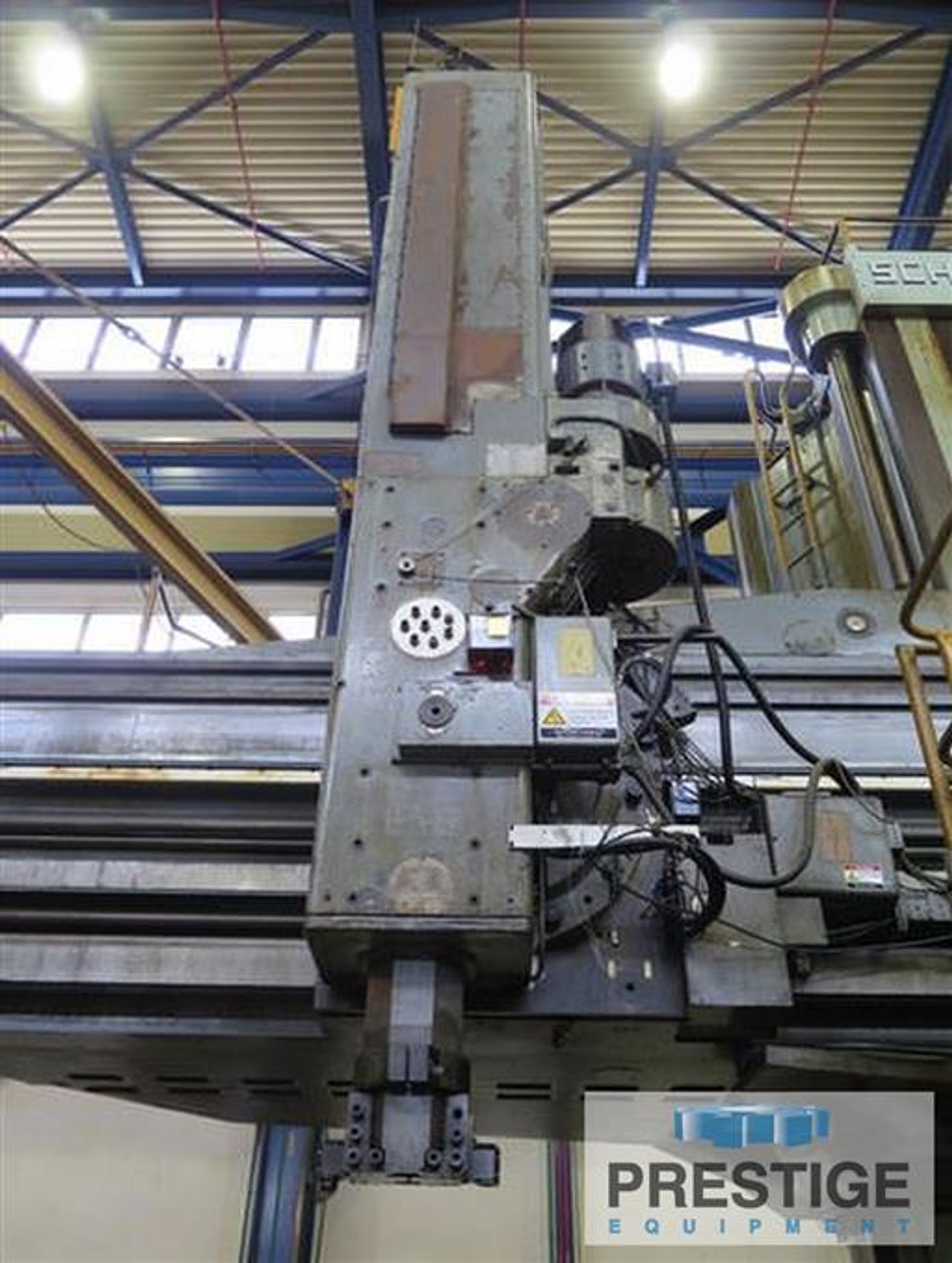

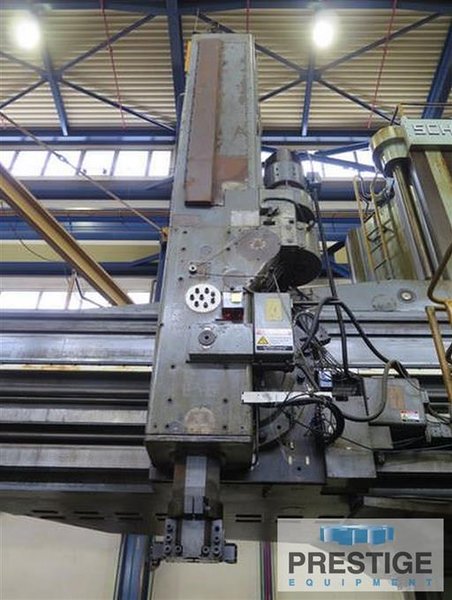

Ram with Live Spindle
C-Axis Table Indexing, For Milling, Drilling, & Boring Operations

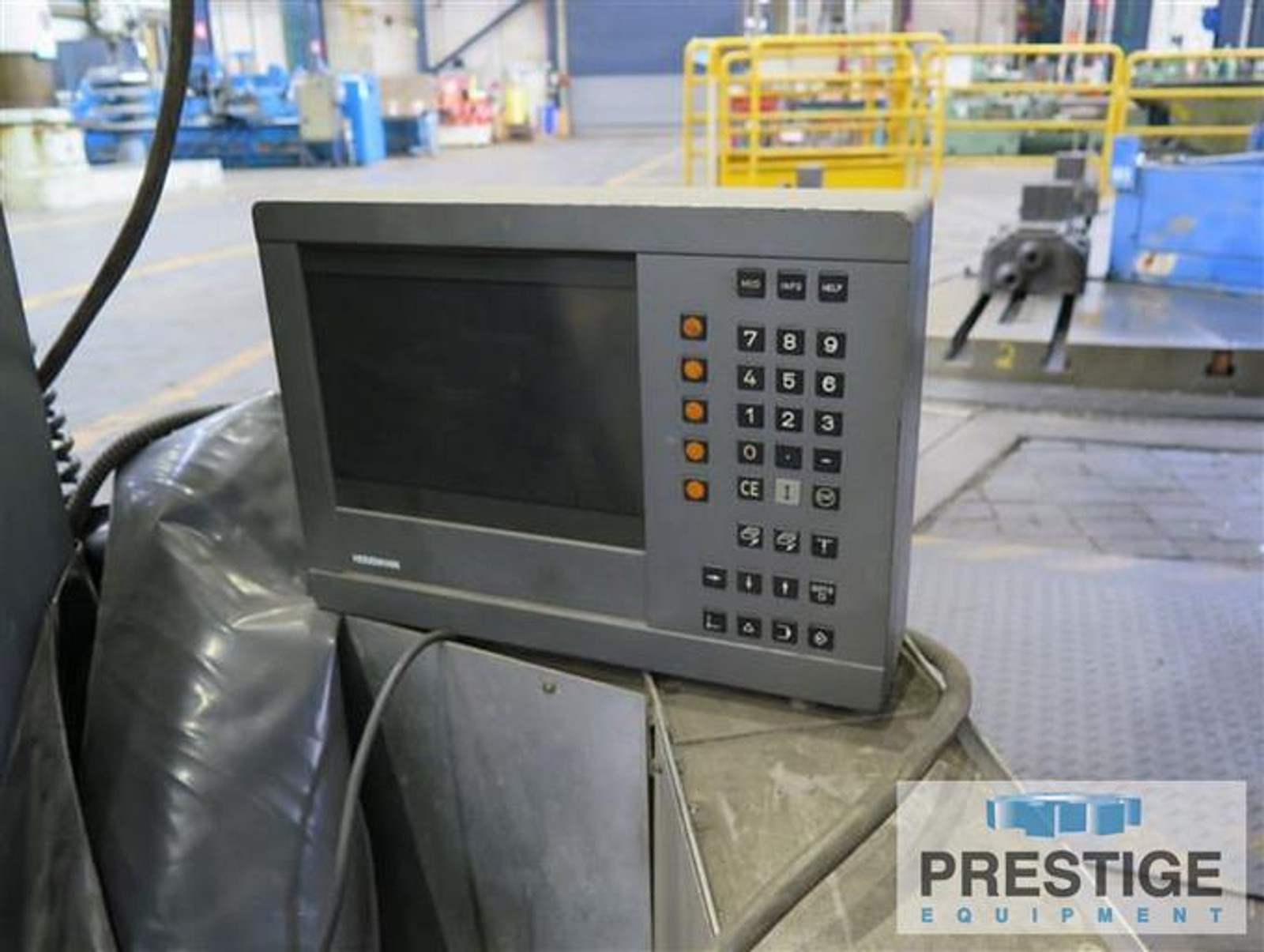

Heidenhain Scales & Rotary Encoder

CAPACITY:

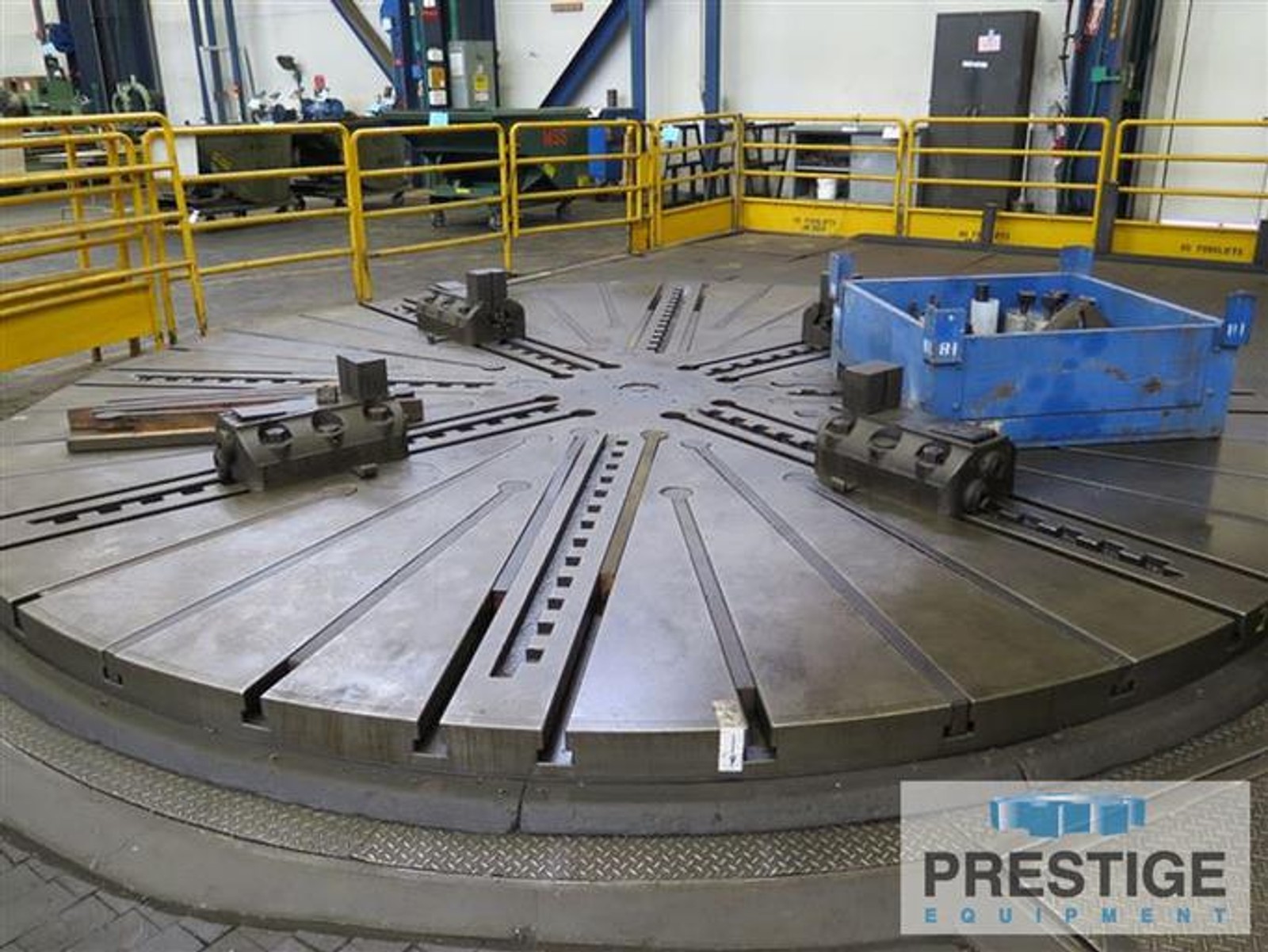

Table Diameter ........................ 196.85"
Maximum Swing ......................... 354.33"
Maximum Height Under Rail ............. 177.16"
Ram Vertical Travel ................... 90.55"
Column Travel ......................... 88"

TABLE:
Main Motor ............................ 120 HP
Table Speeds, Standard ................ .25-40 RPM
Table Speeds, Creep Motion ............ .0015-.25 RPM
Table Speed Ranges, Standard & Creep .. 4 Each
Table Indexing ....................... .001 Degrees
Table Turning Feeds ................... 0.0032-.4727 IPR
Table Milling Feeds ................... 0.0984-14.9 IPR
Table Weight Capacity ................. 100 Tons
Foundation Load with Work-piece ....... 350,000 Lbs

MILLING DRIVE:
Milling Spindle Motor ................. 25 HP
Milling Spindle Speeds ................ 10-500 RPM
Milling Speed Ranges .................. 2-Ranges
Milling Feeds ......................... 0.0984-14.9 IPR

RAPID TRAVERSE:
Column, Standard ...................... 157.48 IPM
Column, Creep ......................... 0.1574 IPM
Cross Rail, Standard .................. 94.49 IPM
Cross Rail, Fine ...................... 2.401 IPM
Cross Rail, Creep ..................... 0.165 IPM
FLOOR SPACE:
Approximate Floor Space ............... 474" L x 296" W
Approximate Overall Height ............ 339.37"

EQUIPPED WITH:
Fanuc 18-T CNC Control, (Retrofit 1997)
Swivelling Ram W/Live Spindle
C-Axis Table Indexing
Heidenhain Scales & Rotary Encoder
Threading & Angular Turning
25 HP Spindle Drive
120 HP Table Drive Motor
440/3/60 Electrics

NOTE:
Surplus From a Turbine Rebuilding Facility. FOB Long Beach, CA
