Mori Seiki MT-4000B/2000, 37" Swing, 80" Max. Turning Length, 1,500 RPM, Milling, Mori MSG-501 CNC, 2000, #43452

Manufacturer

MORI SEIKI

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

43452

Model

MT-4000B/2000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43452

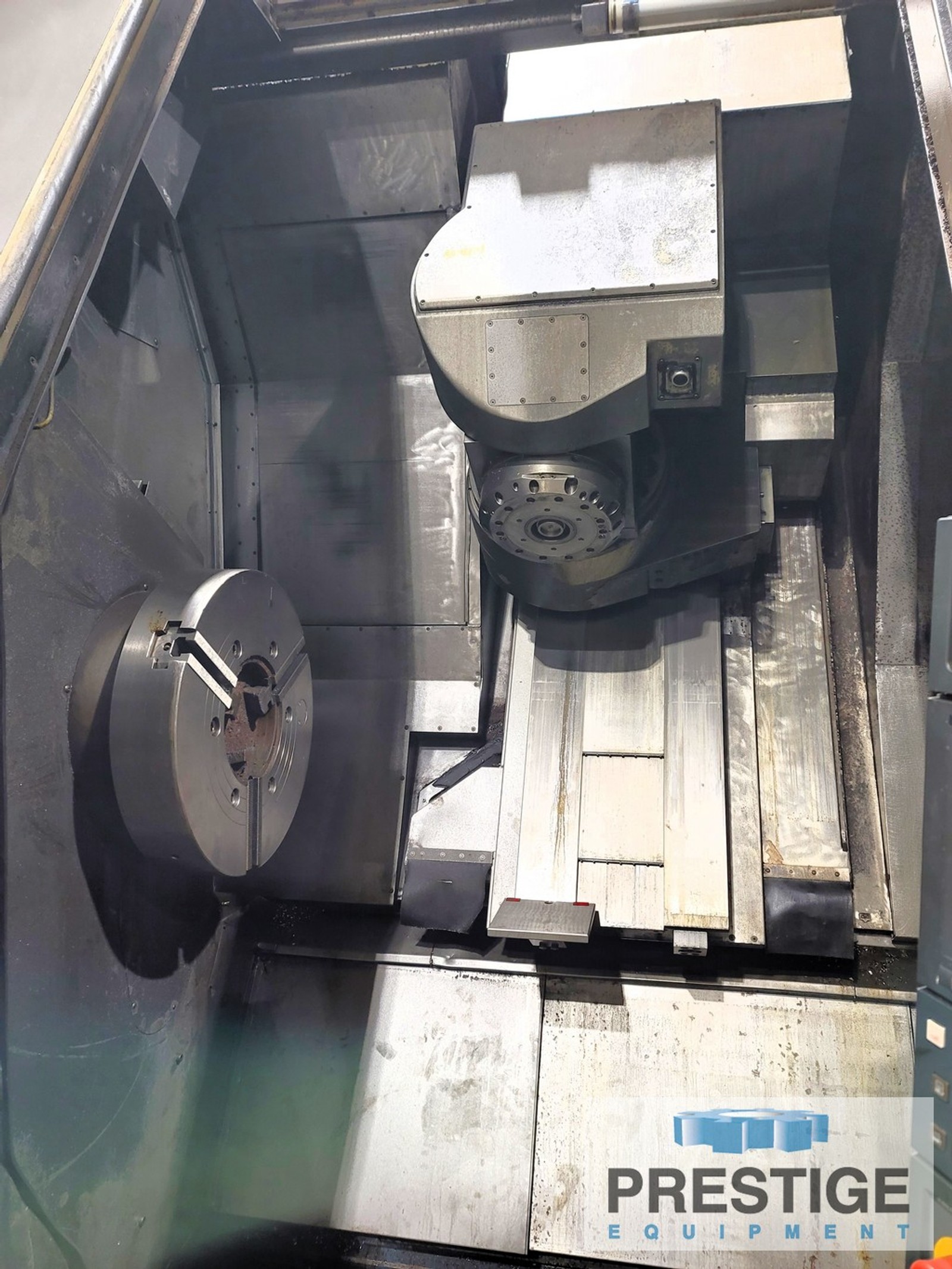

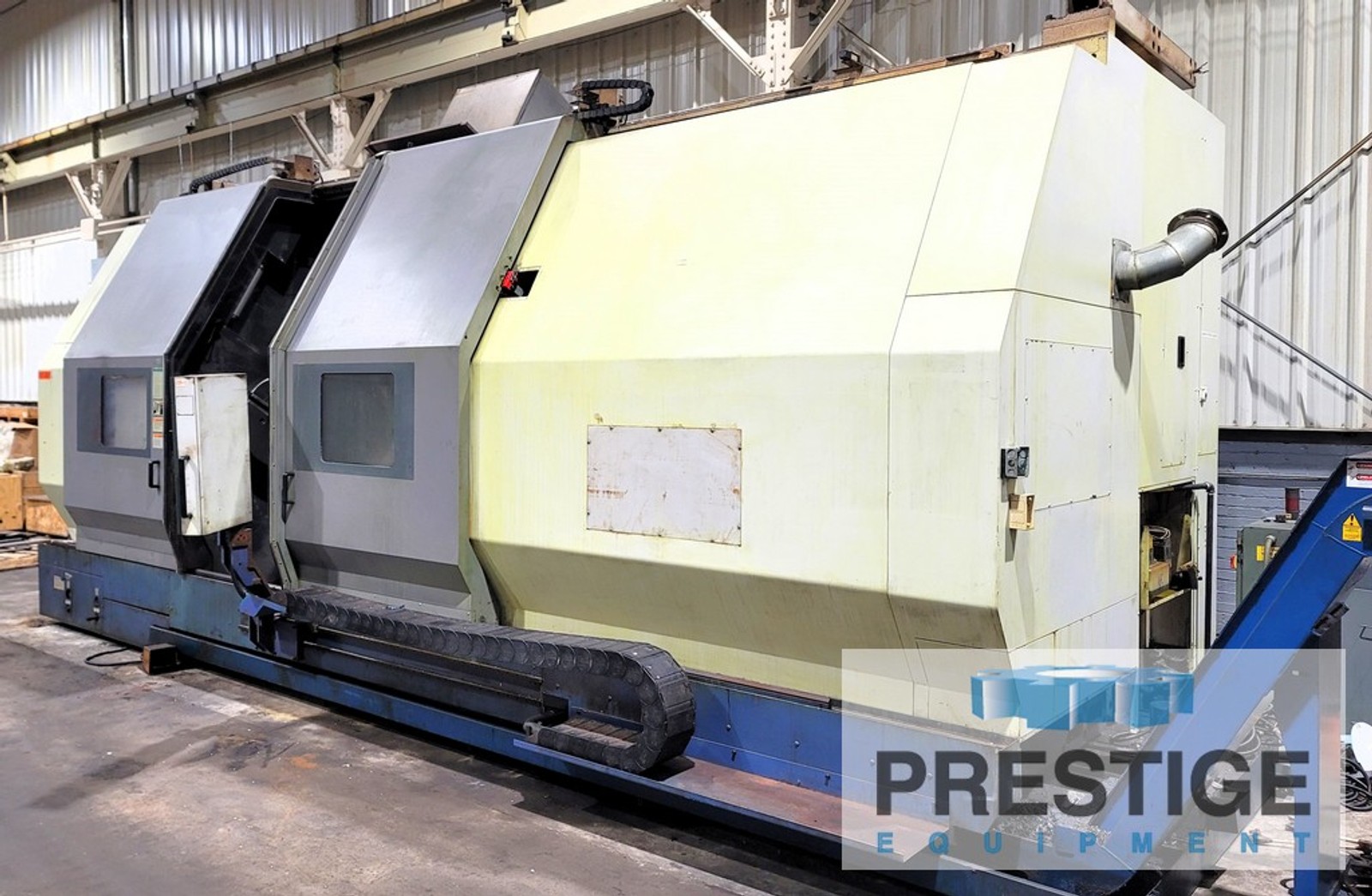

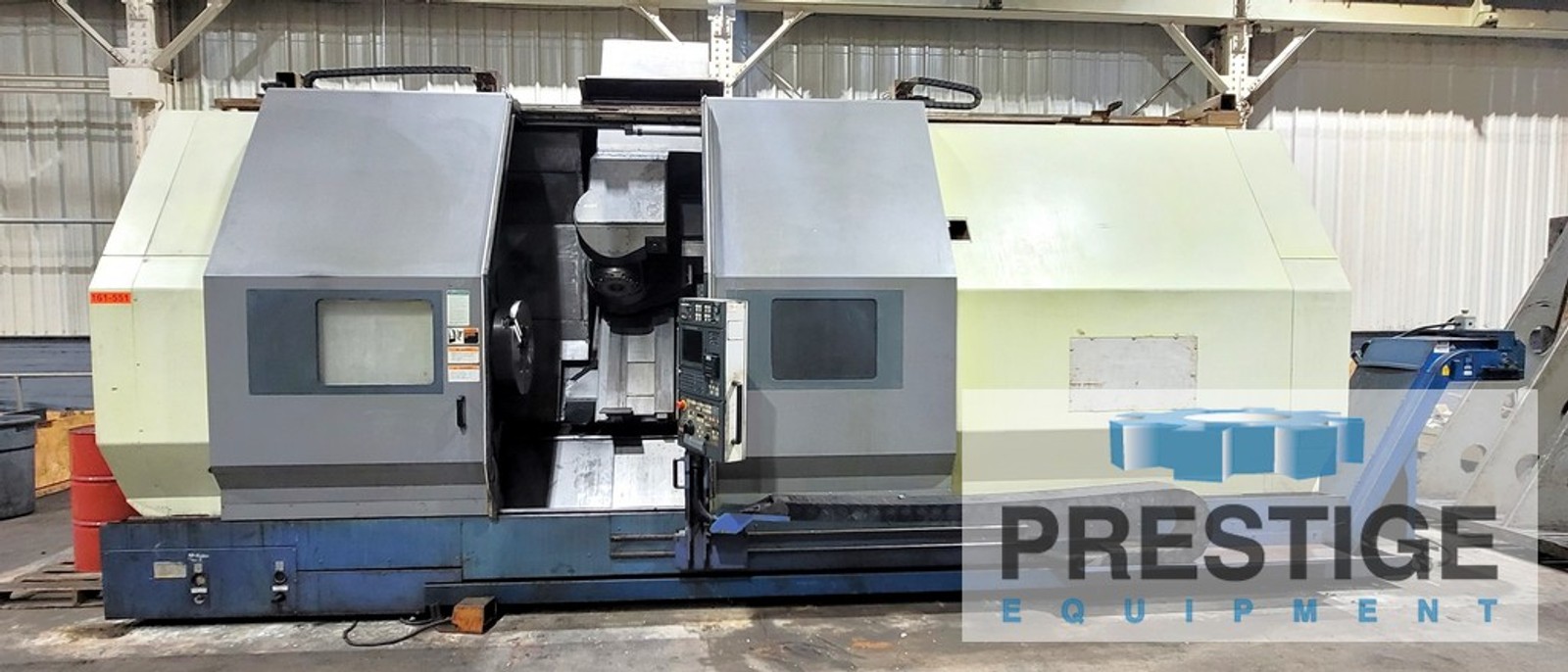

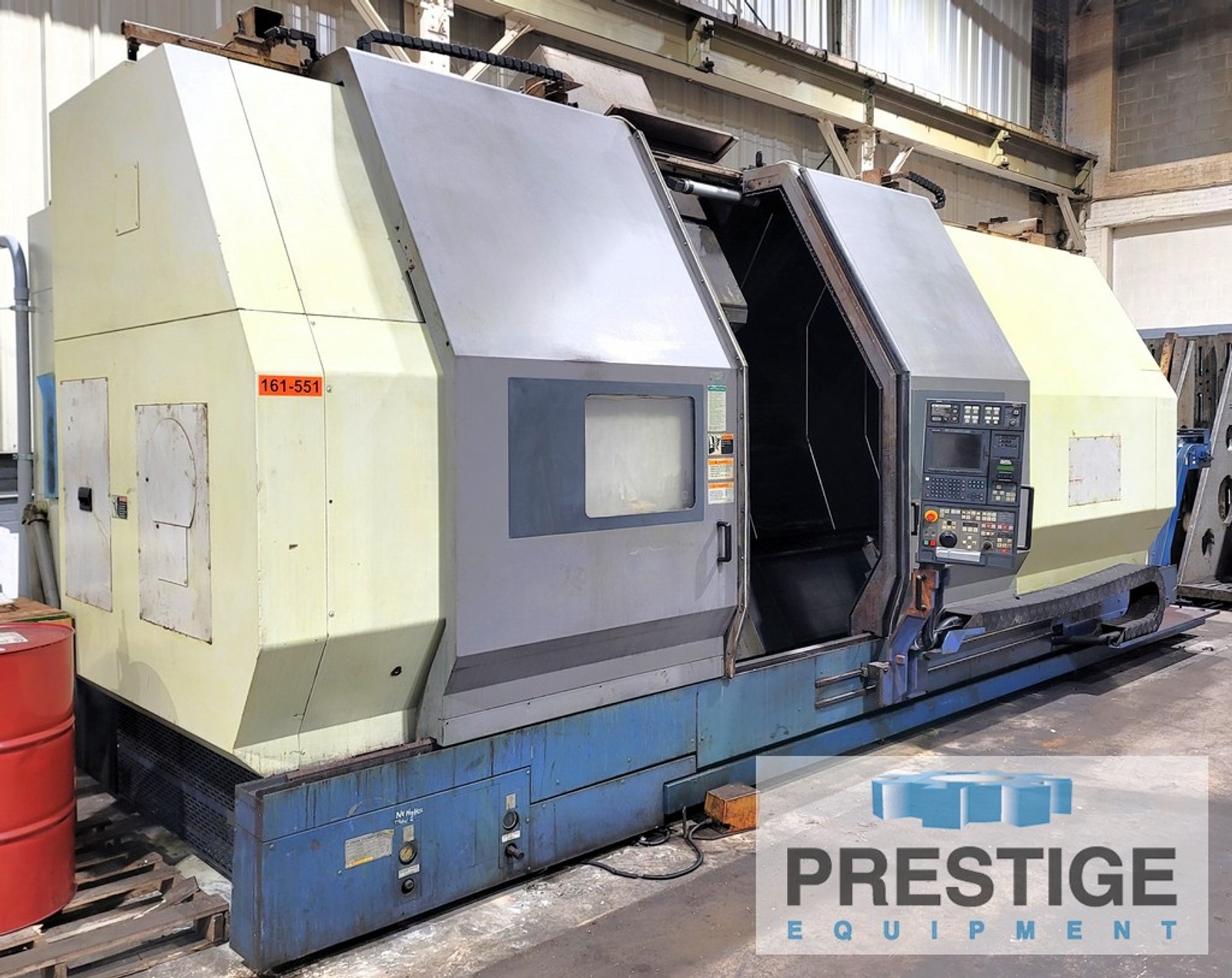

Mori Seiki MT-4000B/2000 CNC Milling & Turning Center

FEATURES:

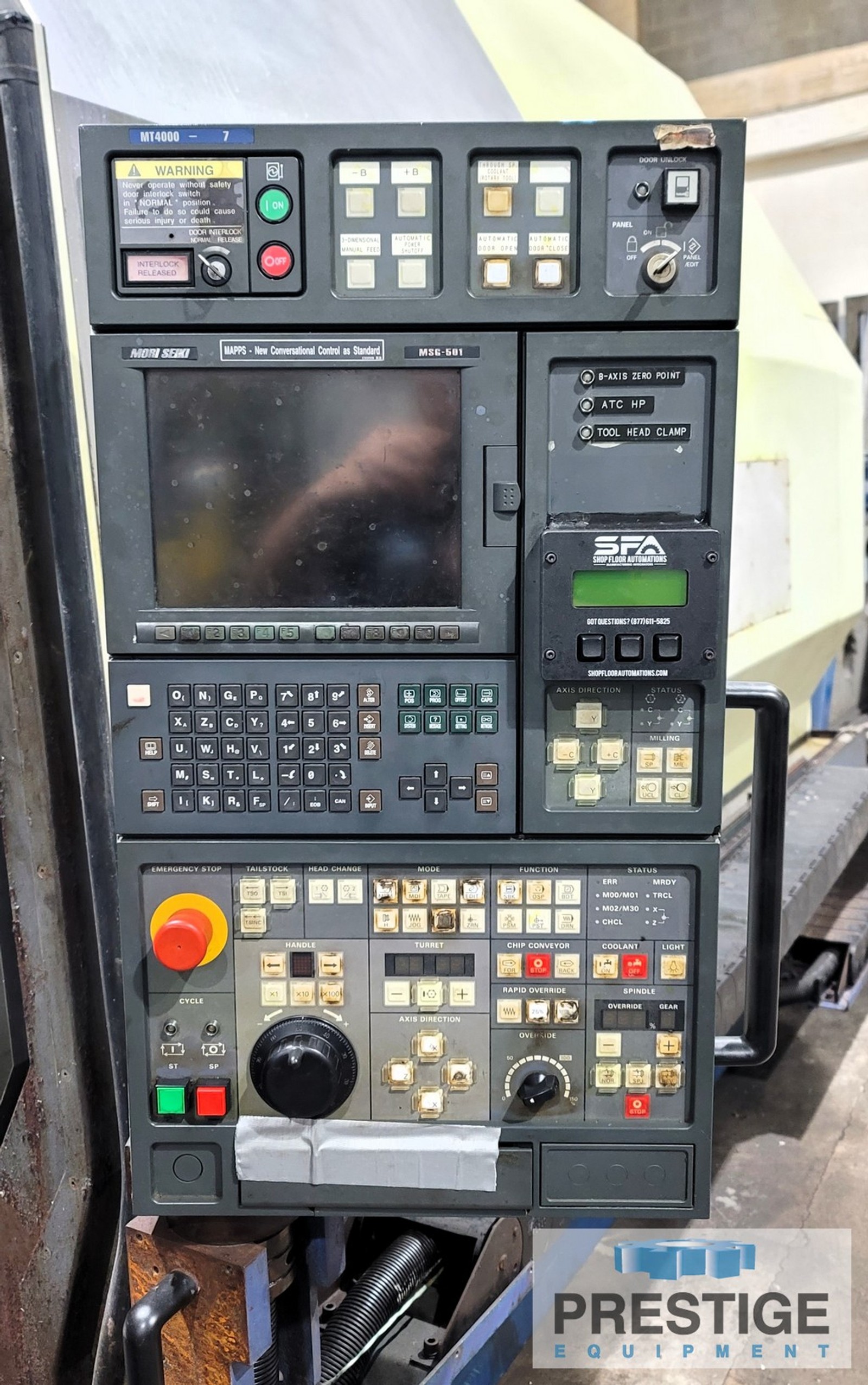

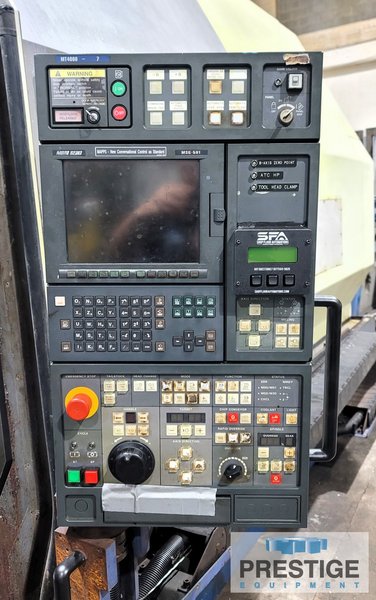

Mori Seiki MSG-501 CNC Control

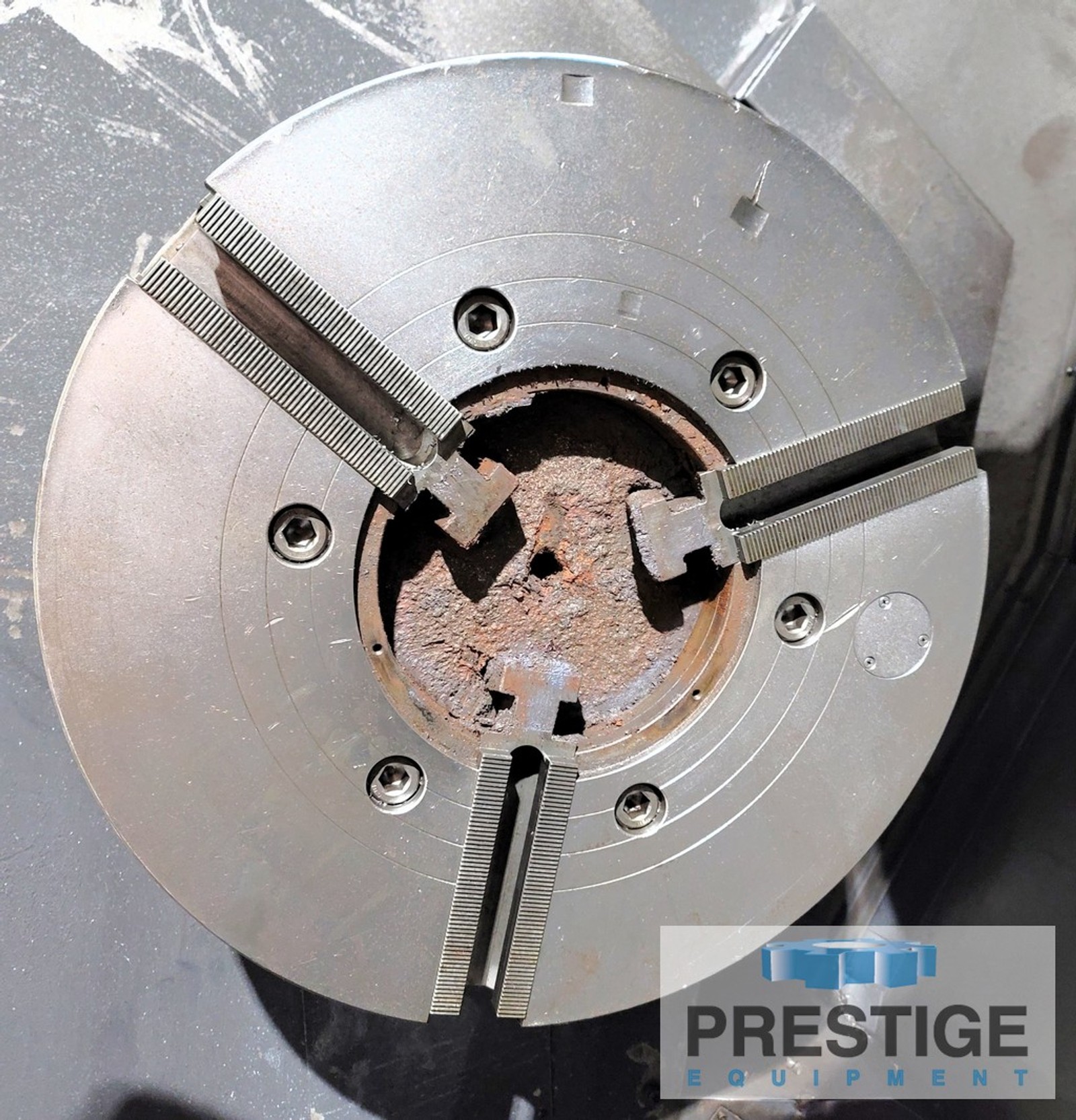

23.5" 3-Jaw Chuck

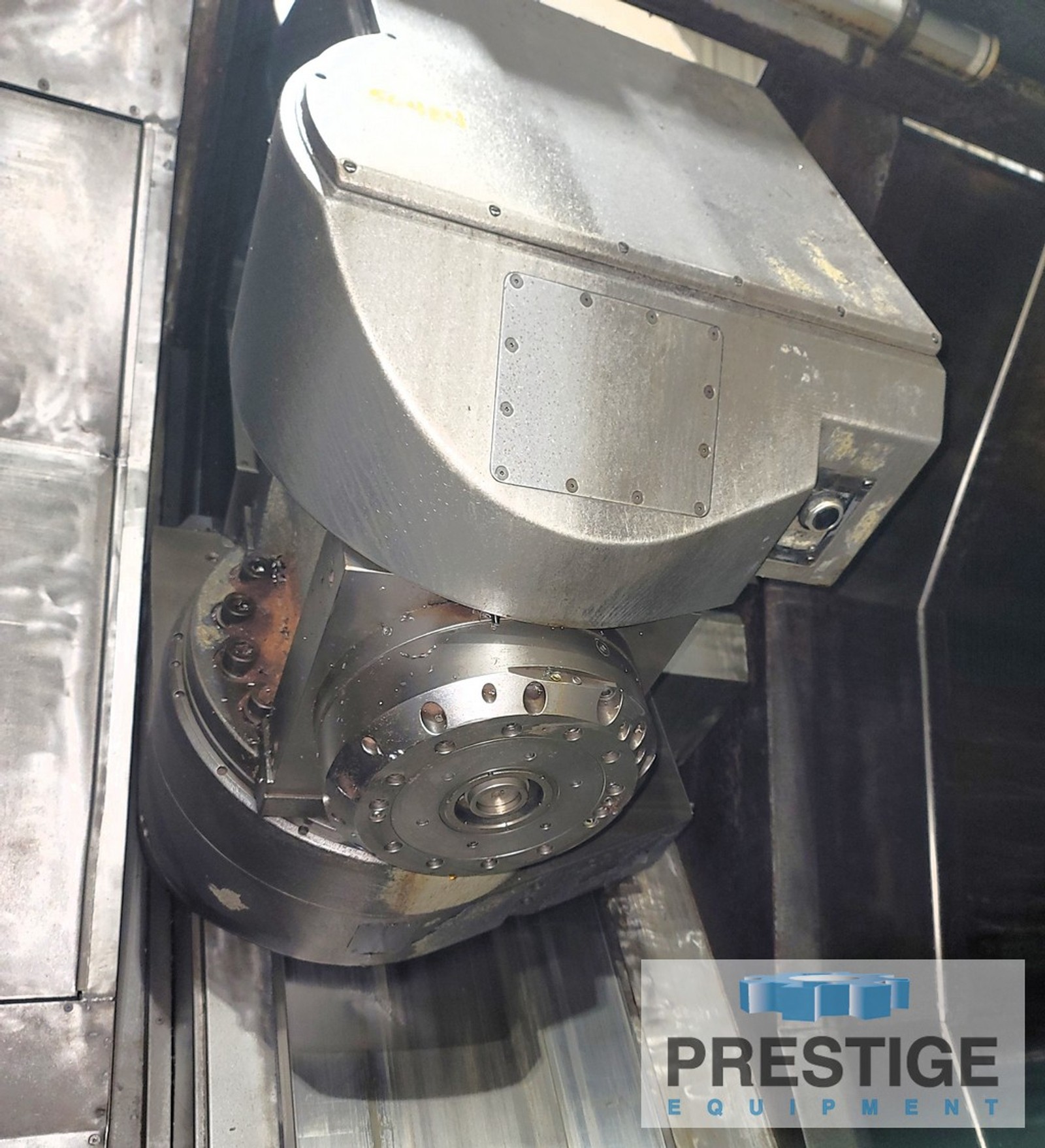

B-Axis Swivelling Milling Spindle
C-Axis Contouring Main Spindle

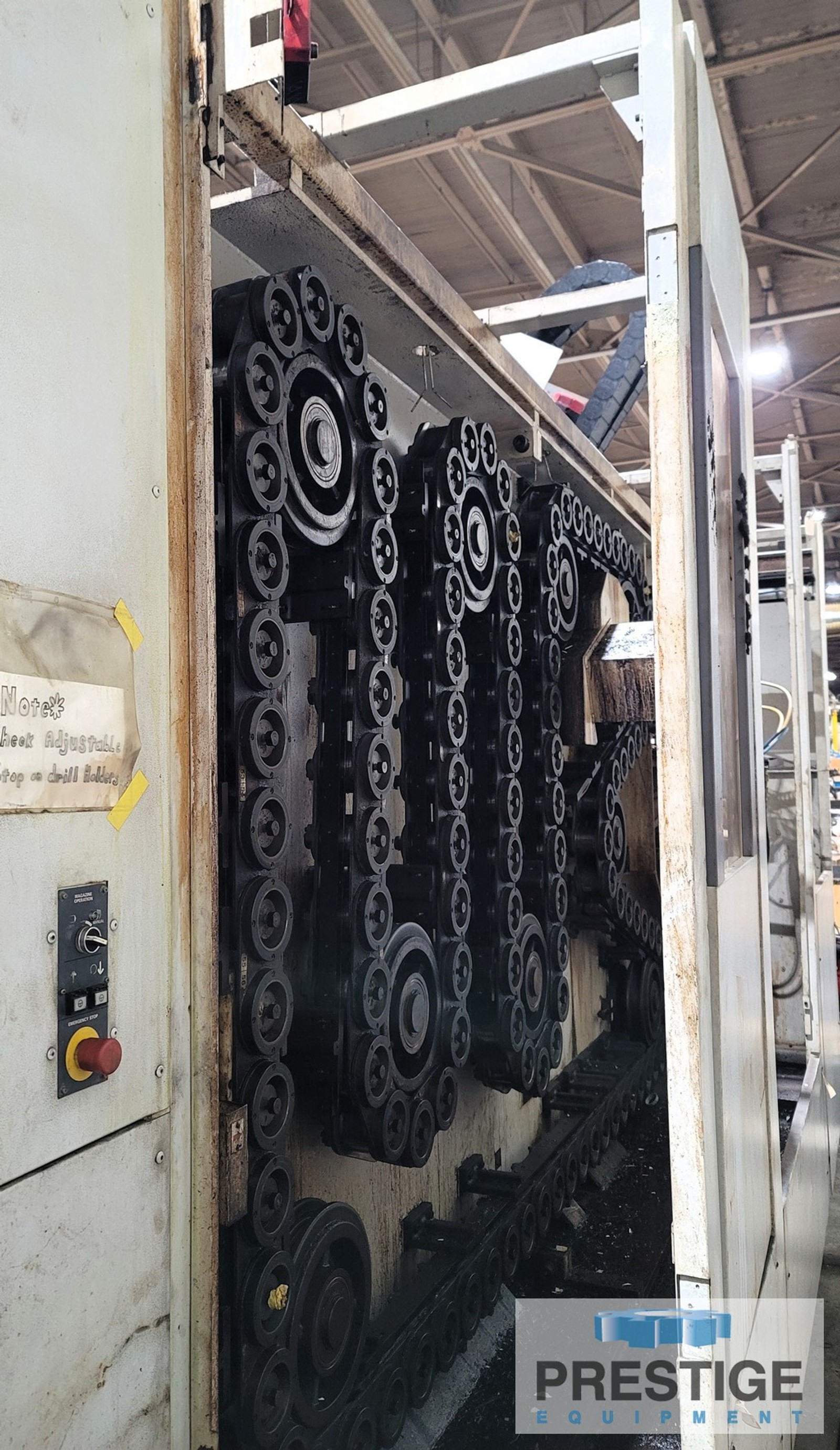

120-Position Automatic Tool Changer

SPECIFICATION:
Max Swing Of Workpiece ............... 37.00"
Max Swing Over Cross Slide ........... 25.59"
Max Turning Dia. ..................... 37.00"
Distance Between Centers ............. 103.1"
Max Turning Length ................... 81.5"
Spindle Speeds (2 Ranges) ............ 15 - 1500 RPM
Main Motor ........................... 50 HP / 40 HP
Y-Axis Travel ........................ 11.8" + 5.9"
X-Axis Travel ........................ 39.68"
Z-Axis Travel ........................ 84.6"
B-Axis Rotation Range ................ +120/-105 Deg.
B-Axis Indexing Angle ................ 0.001 Degree
Milling Spindle Speeds ............... 6000 RPM
Milling Spindle Motor ................ 20 HP
Automatic Tool Changer ............... 120 ATC
Tooling Type ......................... CAPTO C8

EQUIPPED WITH:
Mori Seiki MSG-501 CNC Control
23.5" 3-Jaw Chuck
B-Axis Swivelling Milling Spindle
C-Axis Contouring Main Spindle
120-Position Automatic Tool Changer
Assorted Tooling

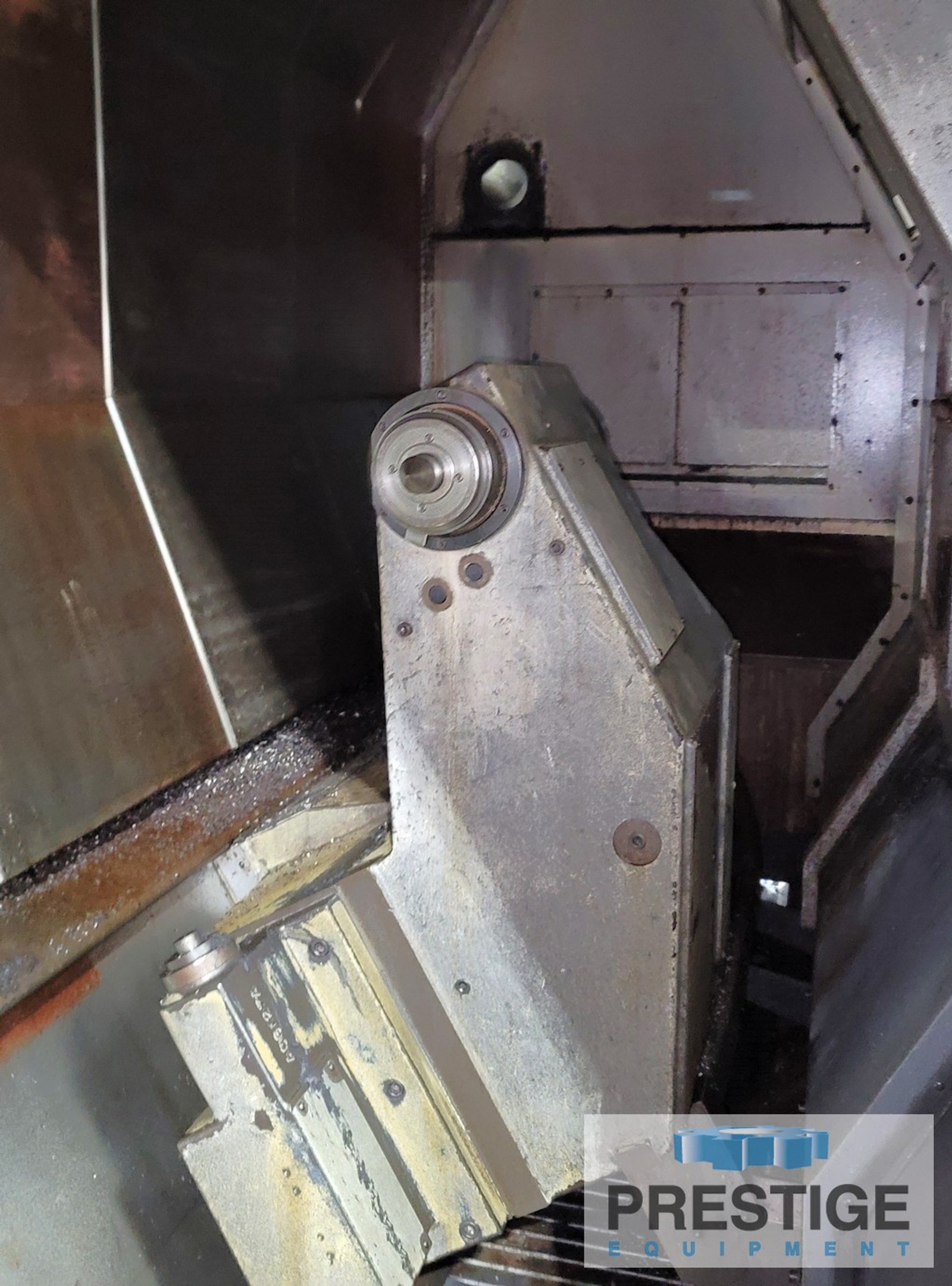

Tailstock

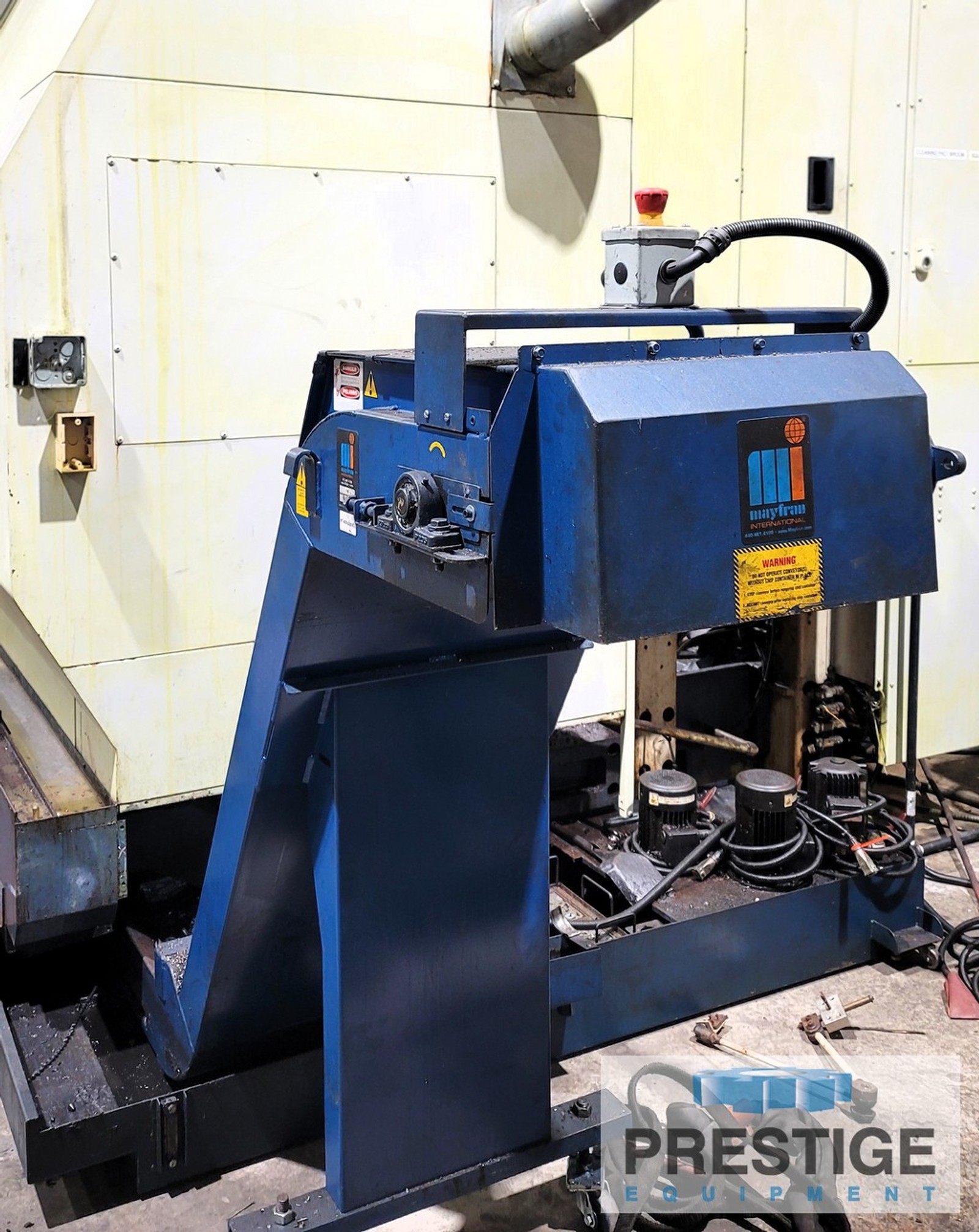

Chip Conveyor
