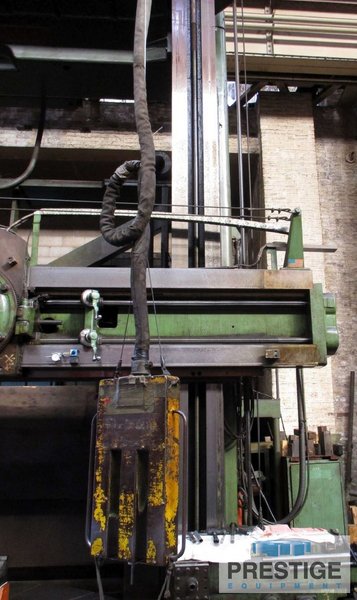

144" Giddings & Lewis VBM, 150" Swing, 186" Under Rail, 150 Ton Weight Cap., Acu-Rite, DRO, 75 HP, #43437

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

43437

Model

VBM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43437

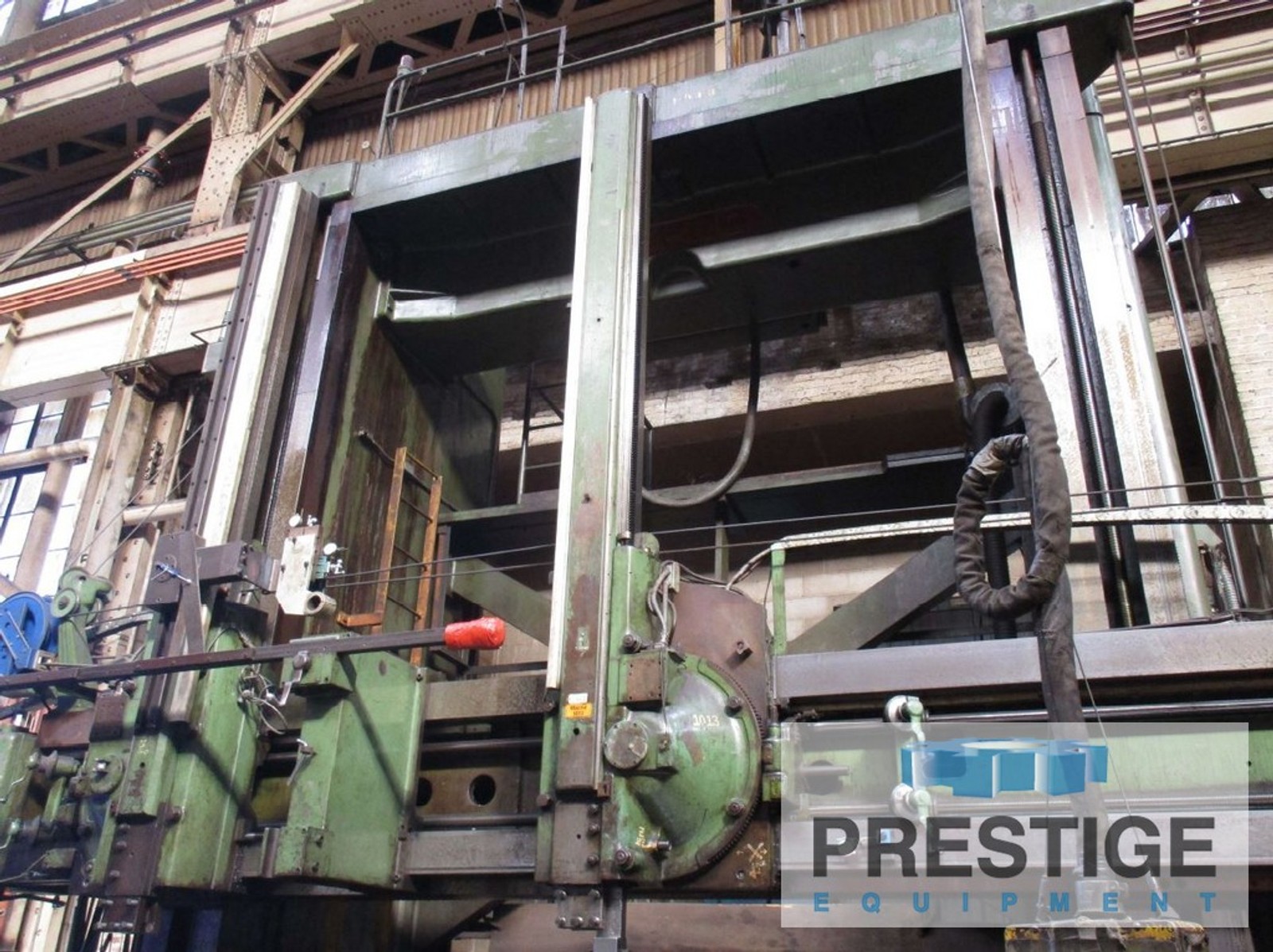

144" Giddings & Lewis Vertical Boring Mill

FEATURES:
Acu-Rite 300Sc 4xT Digital Readout
2-Swivelling Rams
Side Head

SPECIFICATIONS:
Table Diameter ........................ 144"
Maximum Swing ......................... 150"
Maximum Height Under Rail ............. 186"
Ram Stroke ............................ 96"
Table Weight Capacity ................. 150 Ton
Ram Swivel ............................ 55 Degrees
Side Head Stroke ...................... 36"
Table Speeds (16) ..................... .41 - 33.3 RPM
Feeds (16) ............................ .004-.750 IPR
Table Motor ........................... 75 HP

EQUIPPED WITH:

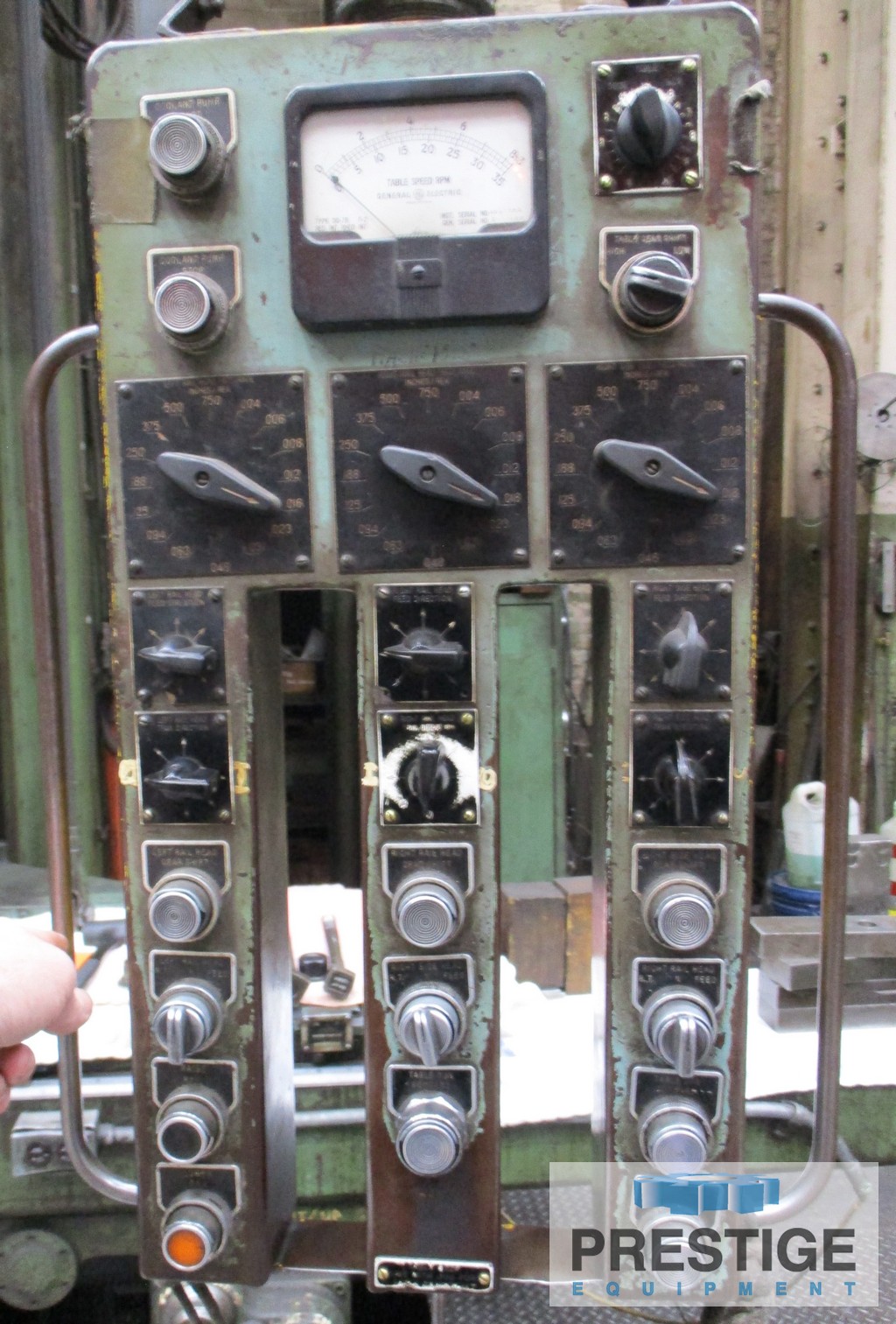

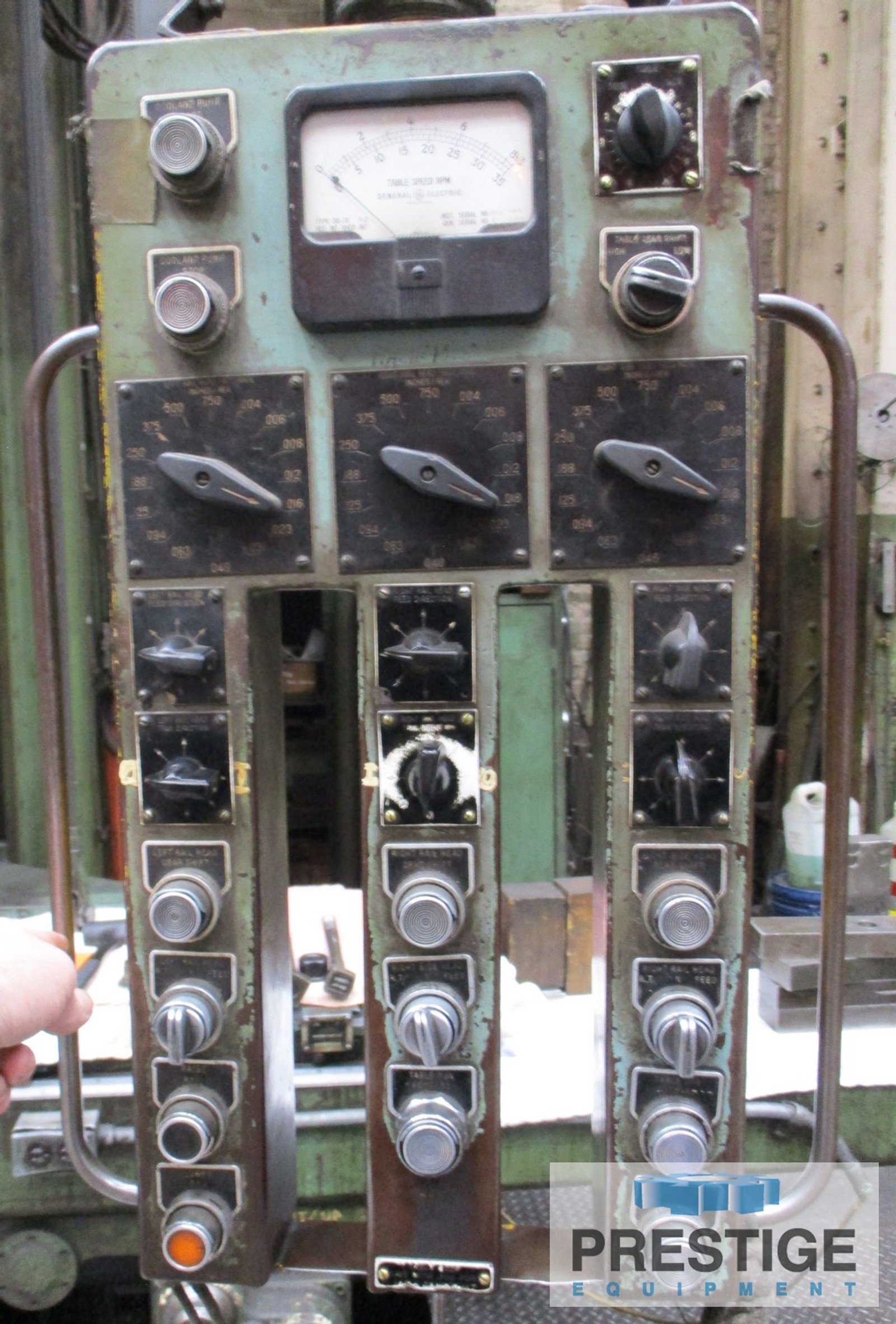

Full Pendant Controls
144" T-Slotted Table W/4-Top Jaws
Acu-Rite 300Sc 4xT Digital Readout
2-Swivelling Rams

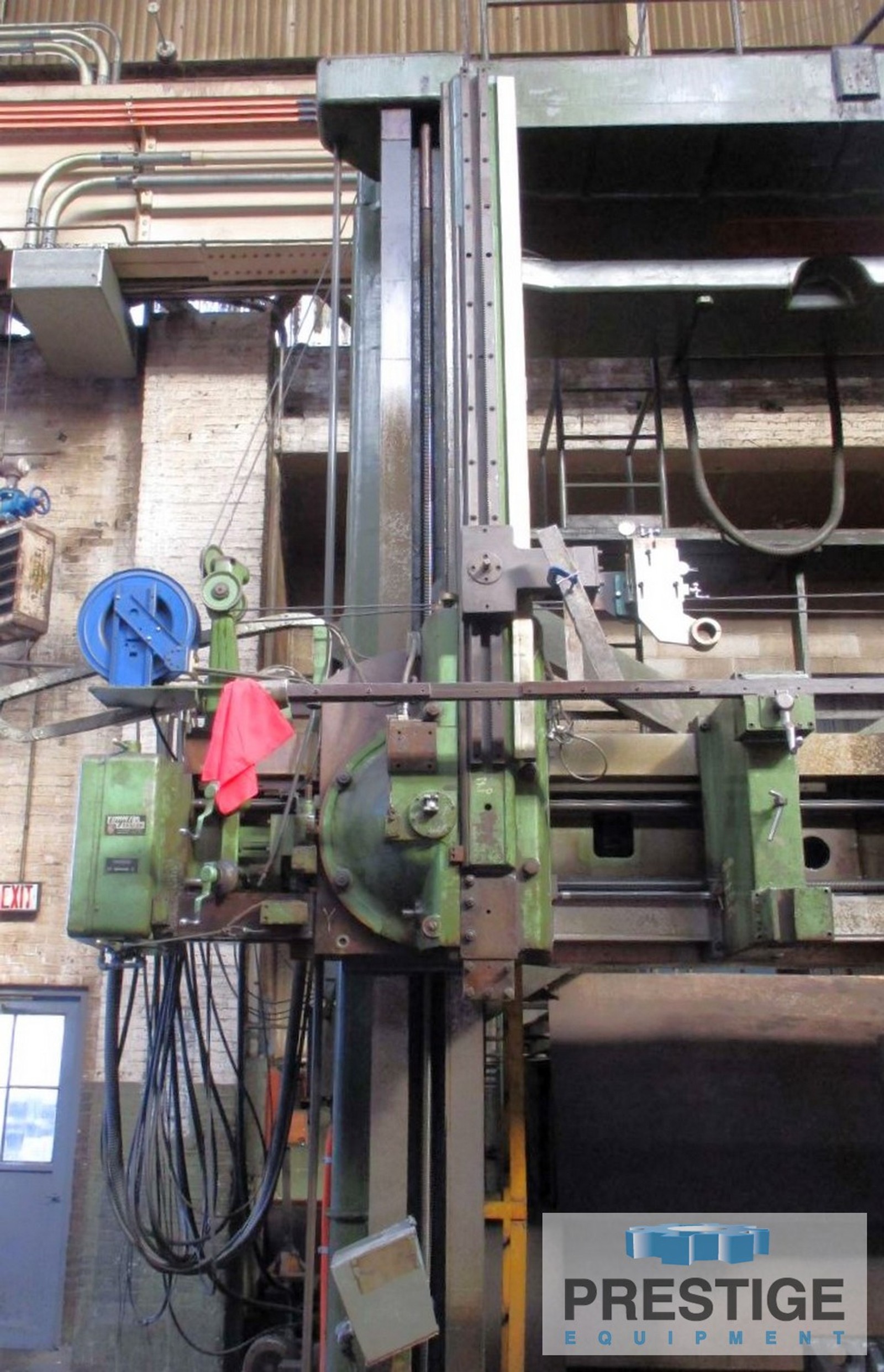

Side Head
Duplomatic E360-1C Tracer on Left Ram
Hardened Wear Strip On Cross Rail
Coolant System
75 HP Table Drive
