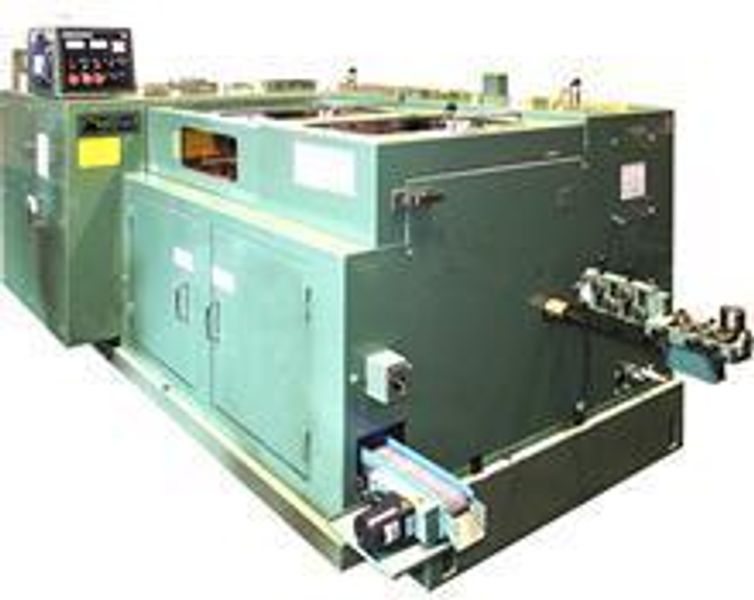

New Nakashimada Model BT208G 2 Die 2 Blow Cold Header - Stock machine Available!!

Manufacturer

NAKASHIMADA

Category

Fabricating Machines

Type

HEADERS, PROGRESSIVE DIE

Stock

8491

Model

BT208G

Dealer Location

Pennsylvania

Request a Quote
View Contact Information

Spec Sheet

Maximum Cutoff Diameter (High Tensile Steel) - .393" (10mm)
Maximum Cutoff Diameter (Mild Steel) - .433" (11mm)
Maximum Cutoff Length - 5" (125mm)
Maximum DKO Length - 5" (125mm)
Maximum Transfer Length - 5-3/4" (145mm)
Maximum Production Speed - 80-240 PPM
1st Punch KO Stroke - 1" (25mm)
2nd Punch KO Stroke - 3/8" (10mm)
Main Motor - 30 HP (22kW)
Approx. Weight - 25,000 lbs (12,500kgs)


Heading Tool / Tryout Feed can be quoted after review of prints:  For designing and building tooling for a specific job at the factory and test running job at the factory

With all Standard Accessories and the following Options
  • Finger Modulate Jig (Finger Jig for Setting)
  • Total Counter (For Batch counting of Tool Life)
  • Separate Lubrication (This is a separate lube system to recirculate the heading oil back to the feed wheels and keeps the extrusion/heading oils out of the machine reservoir)
  • Short Blank Unit
  • Extra Finger Unit
  • Dead Point Checker
  • Oil Micro Separator (A centrifugal filtering system for removing sludge and chips from the machine oil - with Extra Tank)
