5.12" Kuraki KBT-13A, Fanuc 31i-A5, X-118", Y-90", 86" x 71" B-Axis Rotary Table, 60 ATC, TSC, Chip Blaster #43444

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43444

Model

KBT-13A

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43444

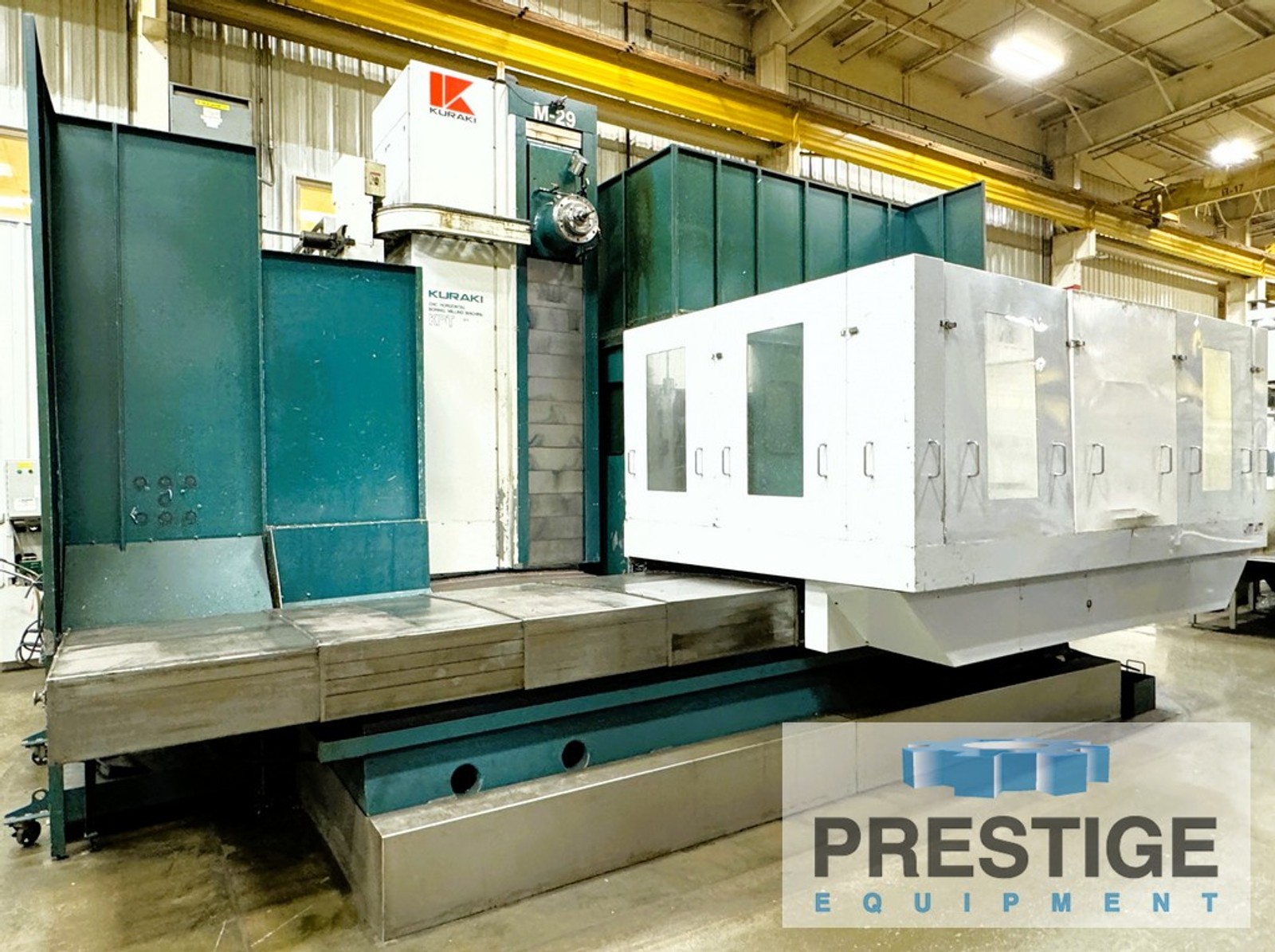

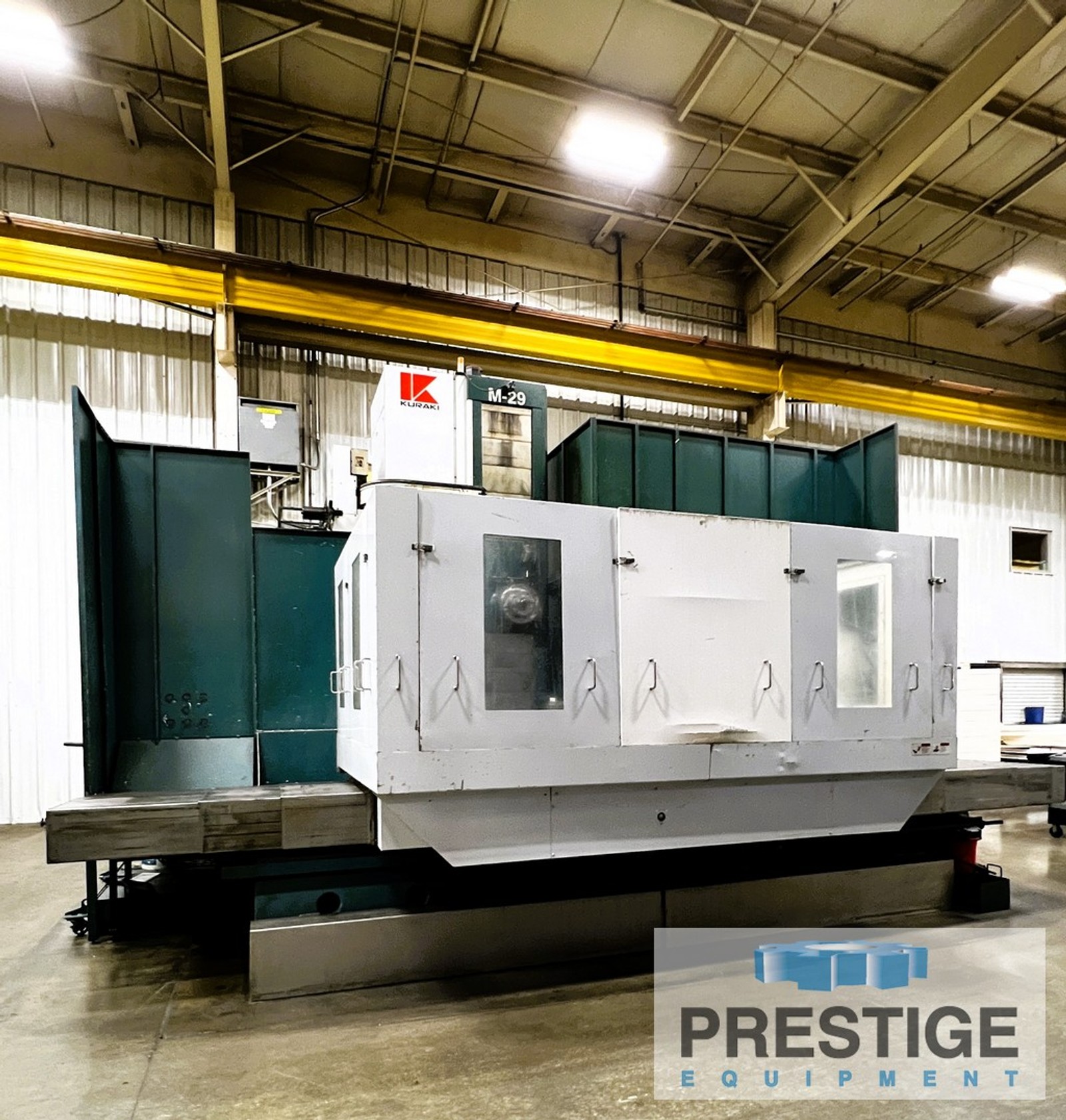

Kuraki KBT-13A 5.12" CNC Table Type Horizontal Boring Mill

FEATURES:

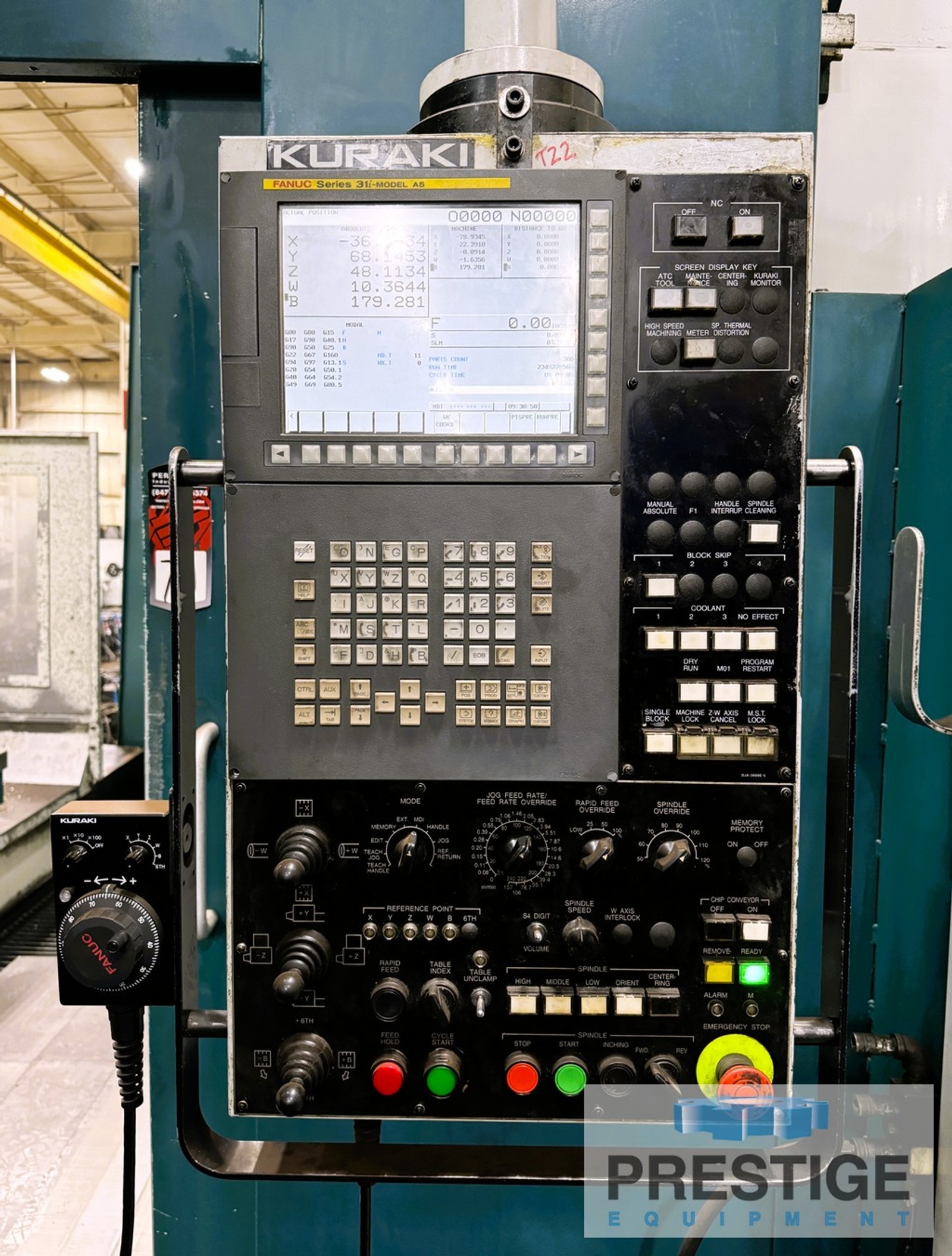

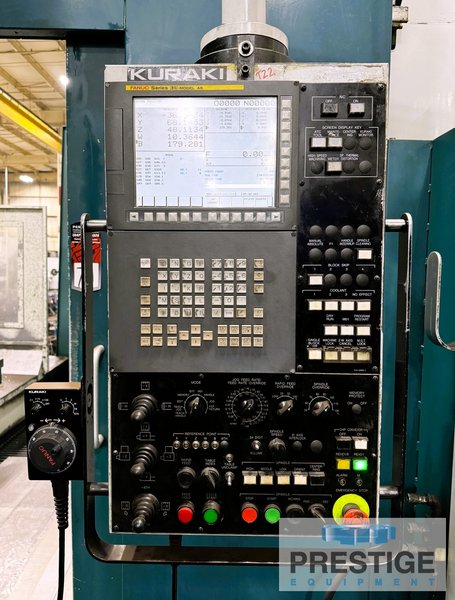

Fanuc 31i-A5 CNC Control

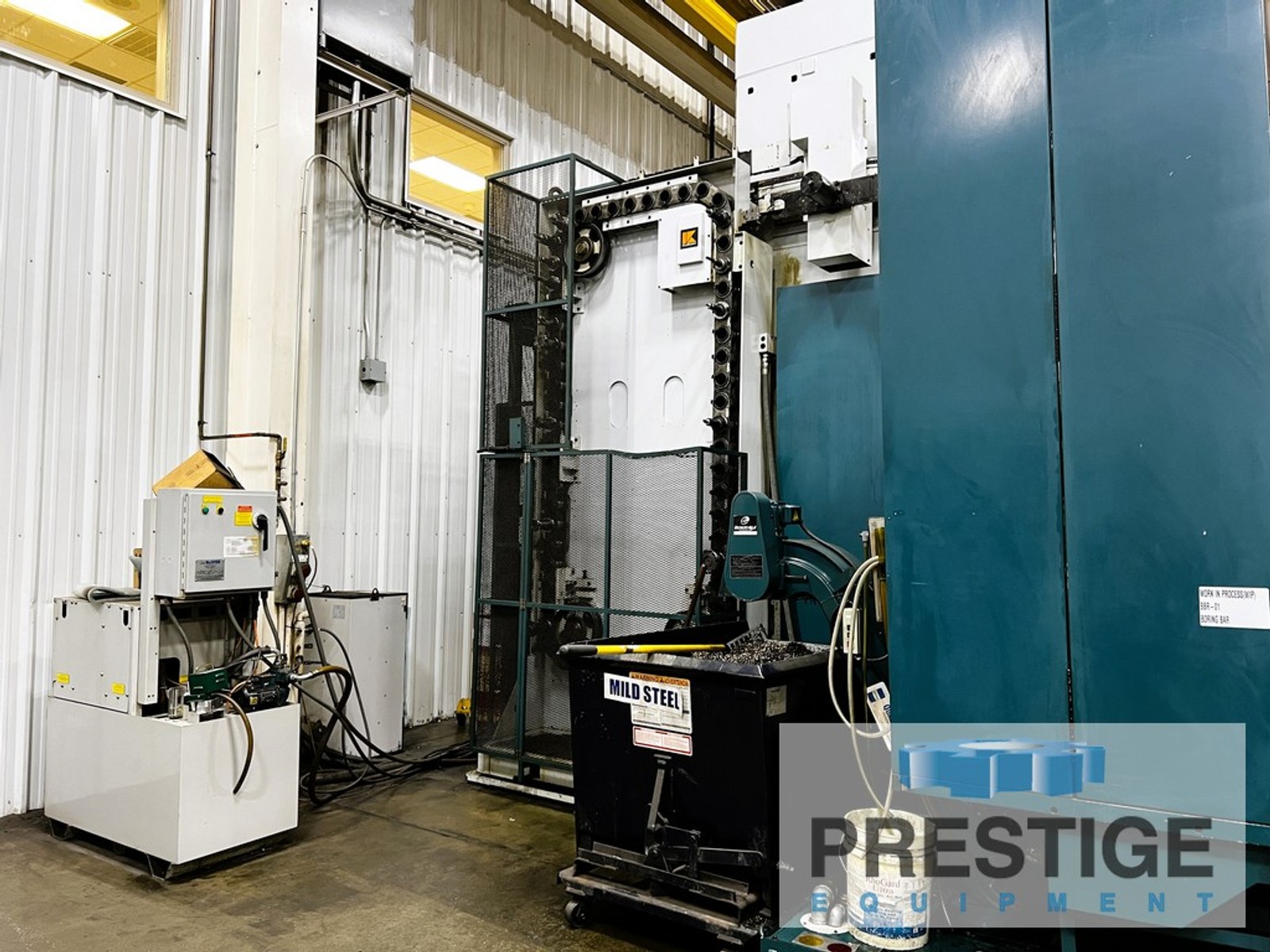

60-Station Automatic Tool Changer
Built In B-Axis Rotary Table
Renishaw OMP60 Part Probe
Rigid Tapping
External Air Blow
Through Spindle Coolant

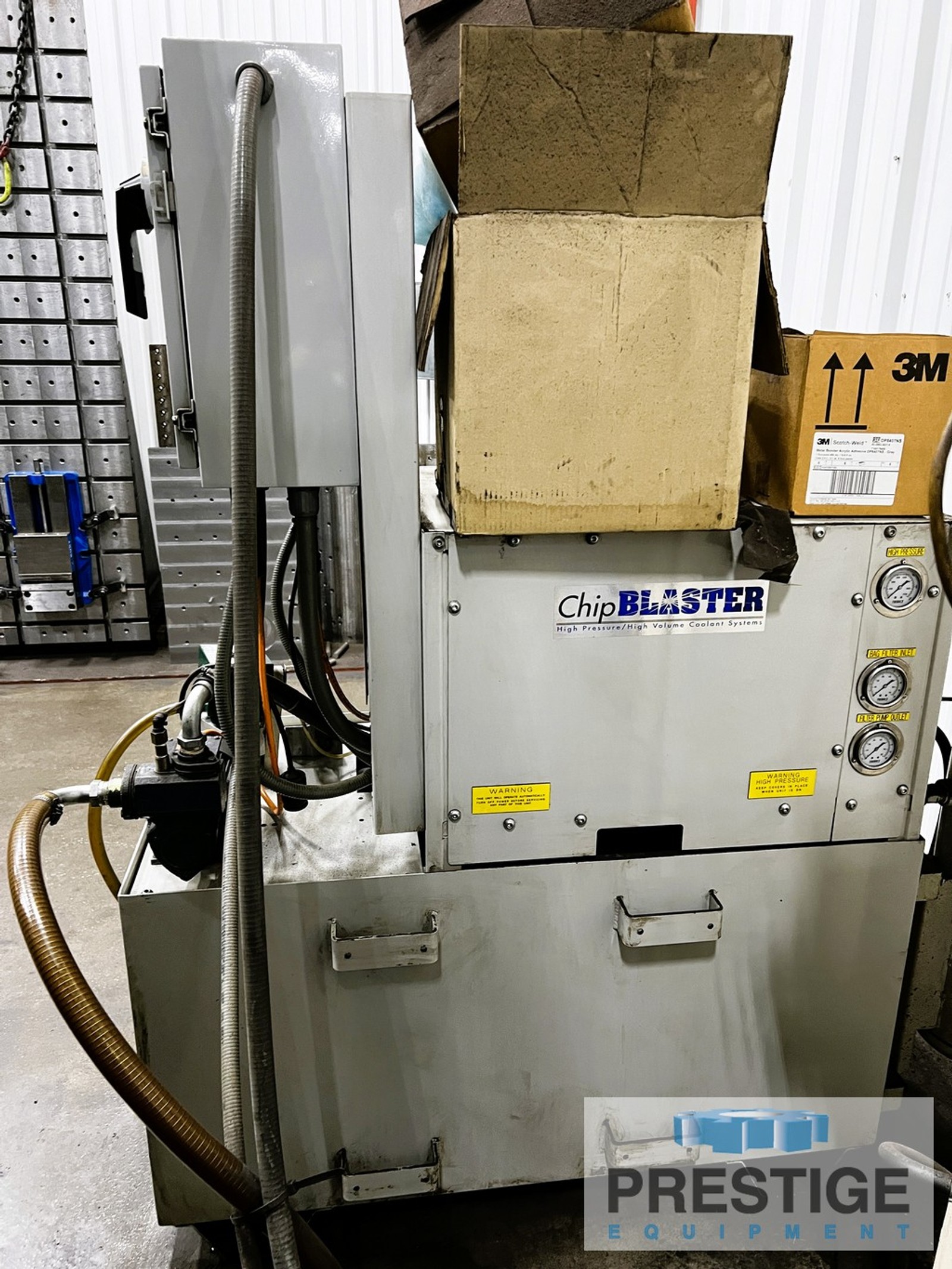

Chip Blaster Model JV10 700 PSI
Chip & Splash (Table) Guard

SPECIFICATIONS:

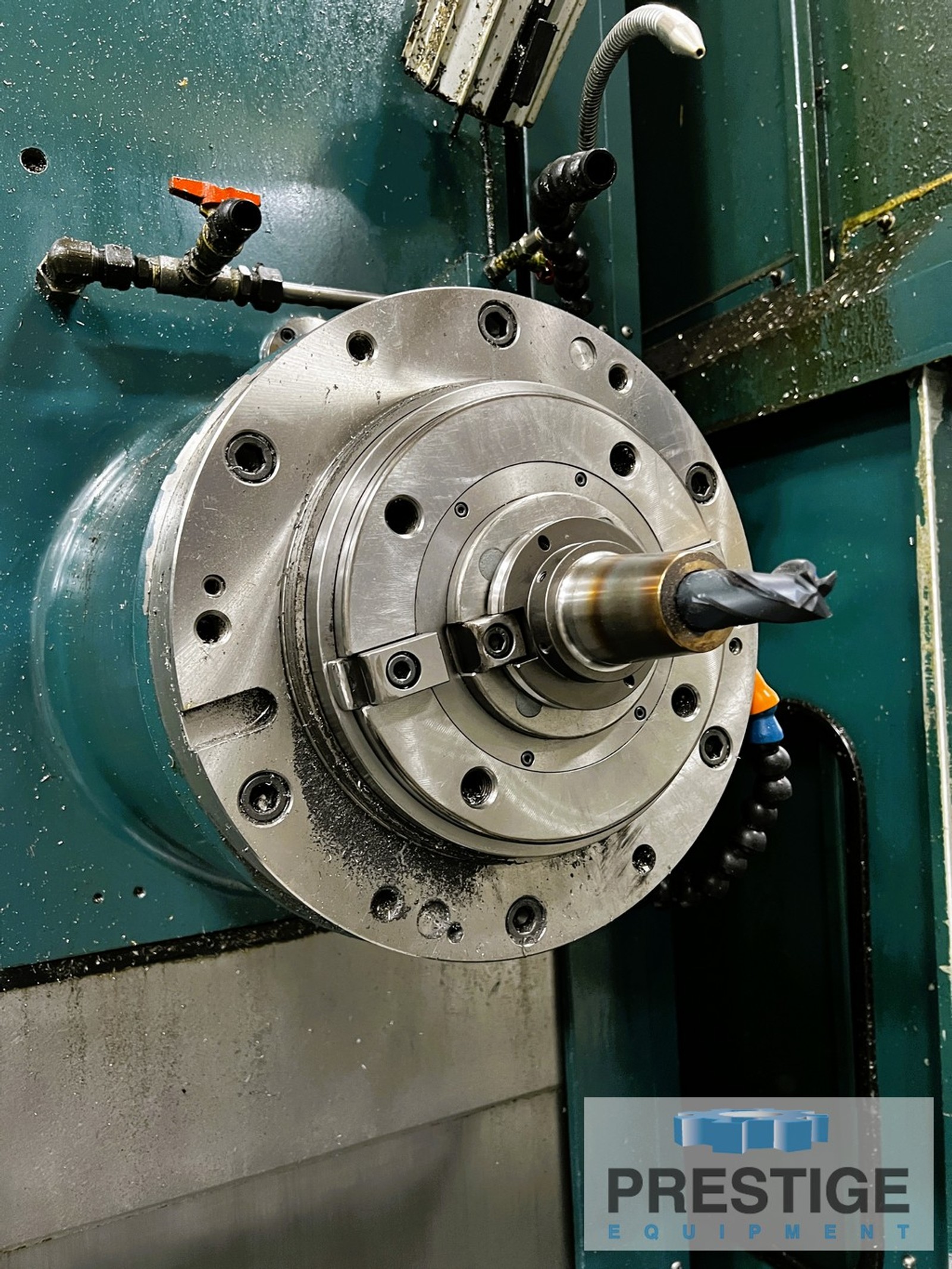

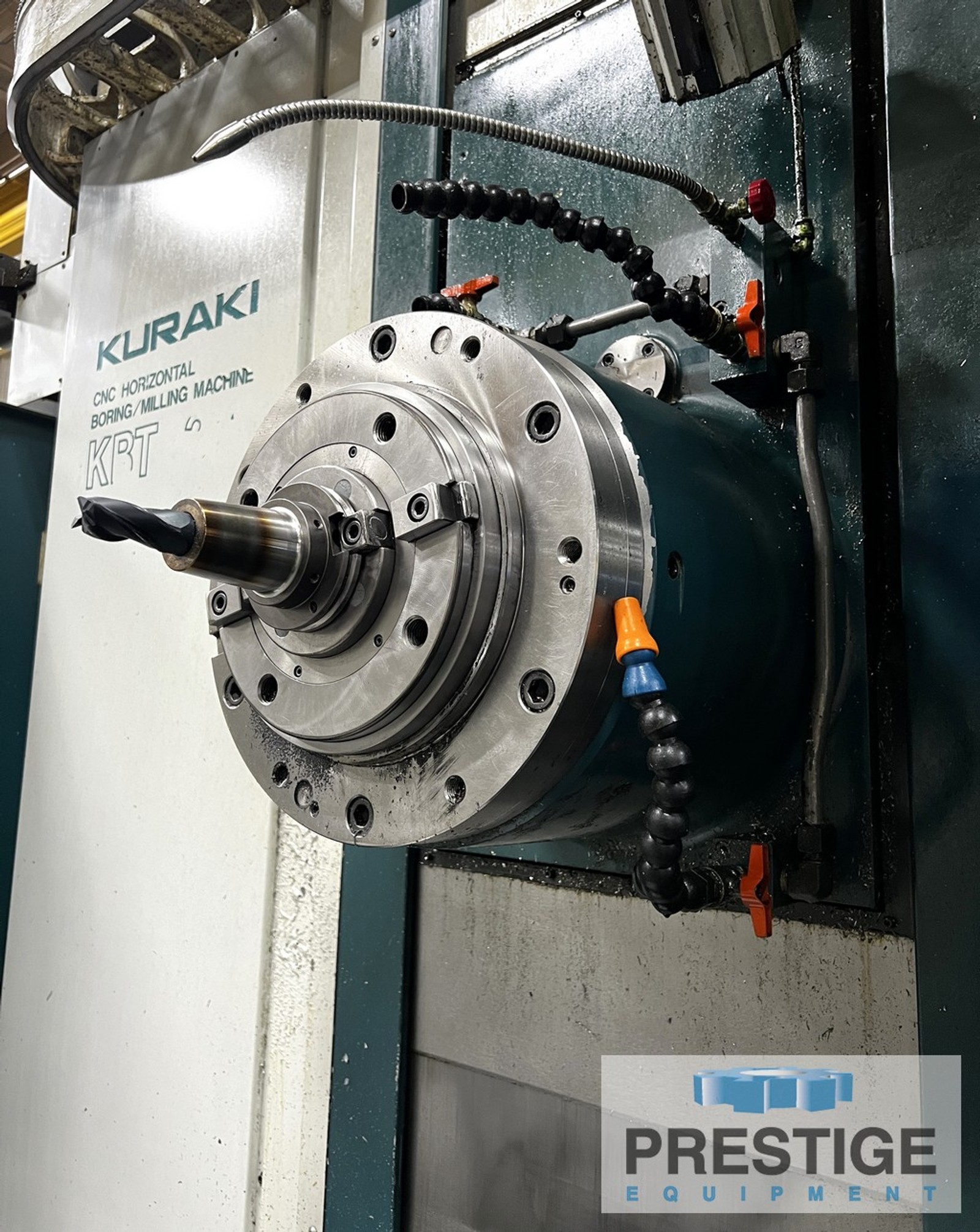

Spindle Diameter ...................... 5.12"
Spindle Taper ......................... #50 CAT
Vertical Head Travel, Y-Axis .......... 90"
Table Travel, X-Axis .................. 118.11"
Spindle Travel, W-Axis ................ 27.56"
Column Cross Travel, Z-Axis ........... 51.00"

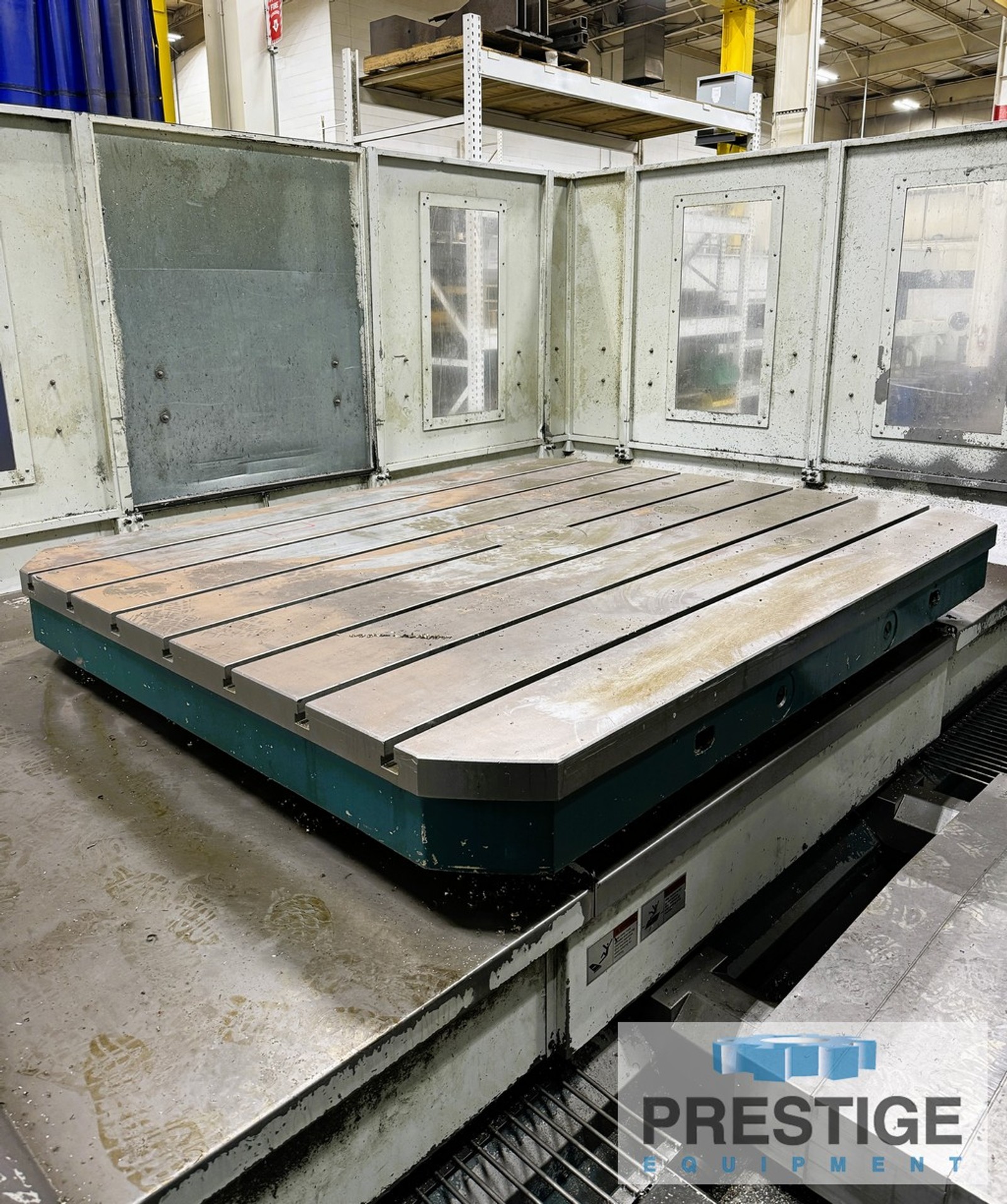

Table Size ............................ 70.86" x 86.61"
Table Load Capacity ................... 44,000 LBS
Rotary Table, B-Axis .................. 0.001 Degrees
Spindle Speeds, Inf. Variable ......... 5-2500 RPM
Speed Ranges .......................... 3
Spindle Motor ........................ 40 HP / 32 HP
Floor Space ........................... 268.9" x 267.72"
Machine Height ........................ 188.9"
Machine Weight ........................ 79,200 lbs

EQUIPPED WITH:
Fanuc 31i-A5 CNC Control
60-Station Automatic Tool Changer
Built In B-Axis Rotary Table
Renishaw OMP60 Part Probe
Rigid Tapping
External Air Blow
Through Spindle Coolant
Chip Blaster Model JV10 700 PSI
Chip & Splash (Table) Guard
Chip Conveyor

LOCATION:
Under Power In Midwest Manufacturing Facility



Being Offered at Auction on July 18th - Robinson Inc. – Assets Surplus to Ongoing Operations
https://www.prestigeequipment.com/auction/robinson-inc/
