Mazak Integrex 200-IV-S, Matrix CNC, Second-Spindle, Milling Spindle, 40 ATC, Lower Turret, TSC, Bar Feed, 2008, #43447

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

43447

Model

Integrex 200-IV-S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43447

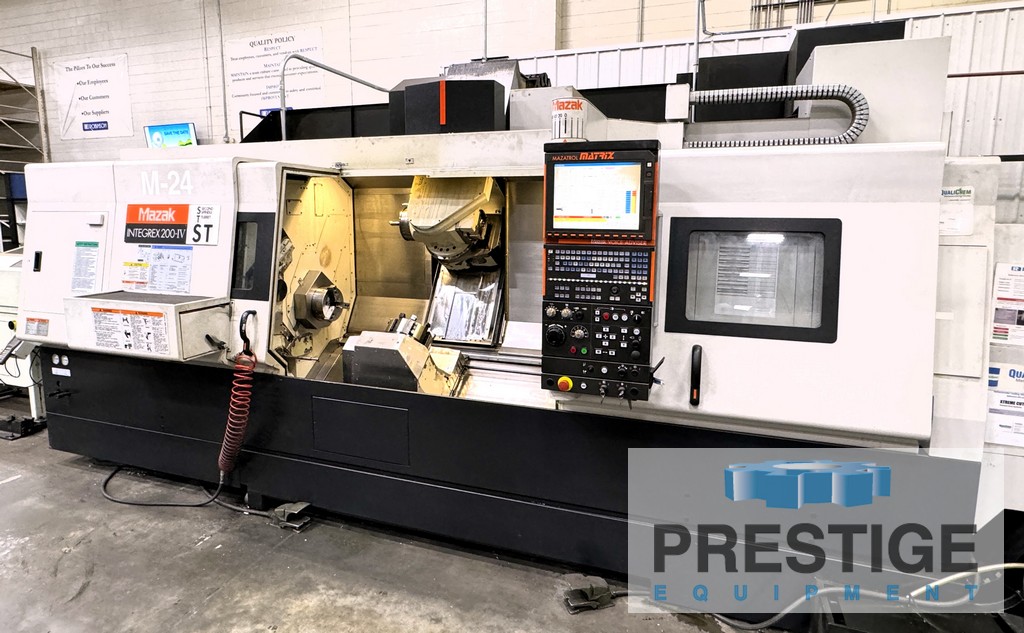

Mazak Integrex 200-IV-ST Multi Axis CNC Turning & Milling Center

FEATURES:

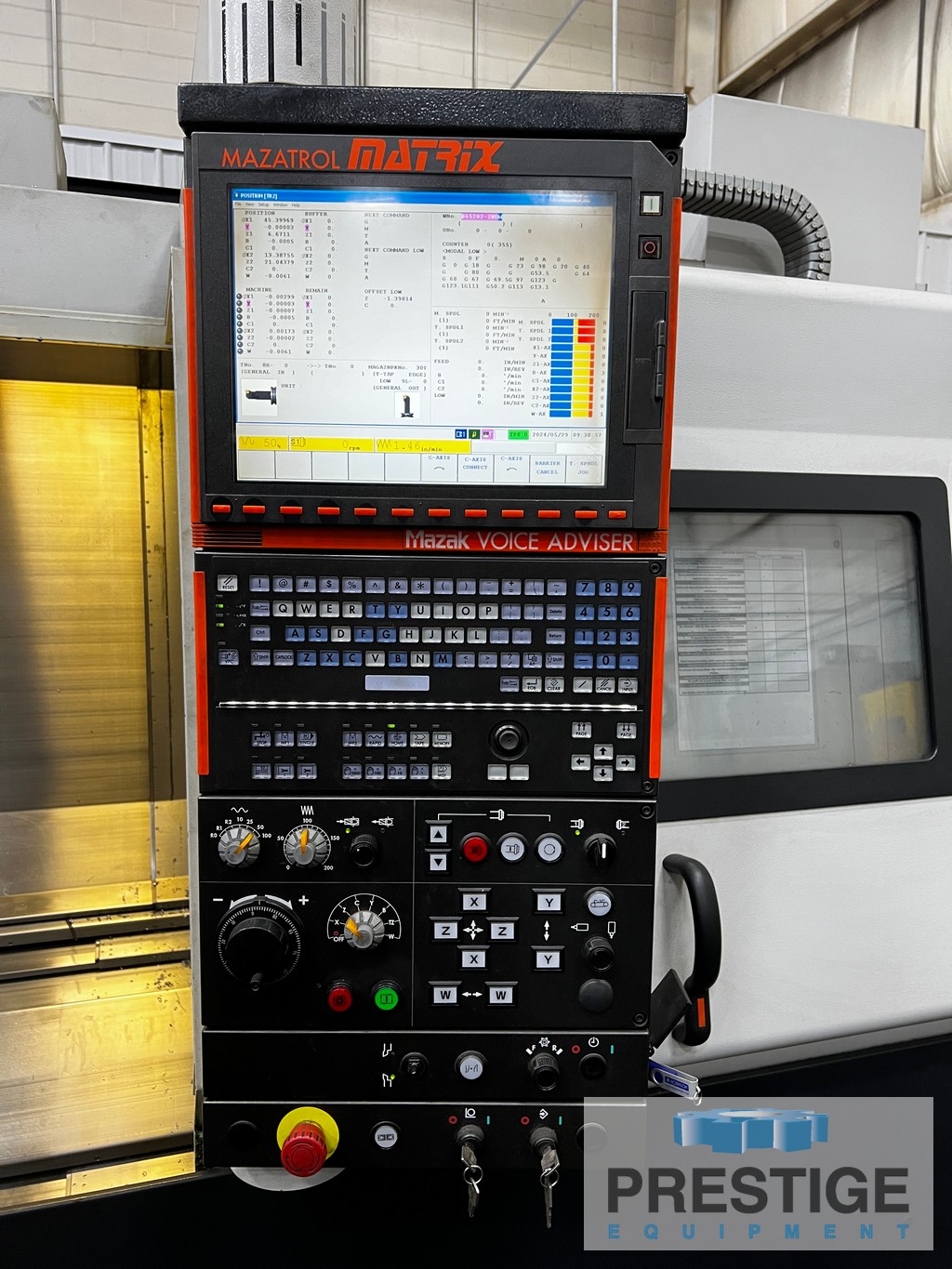

Mazatrol Matrix CNC Control
Main Spindle & Second Spindle
B-Axis Milling Spindle

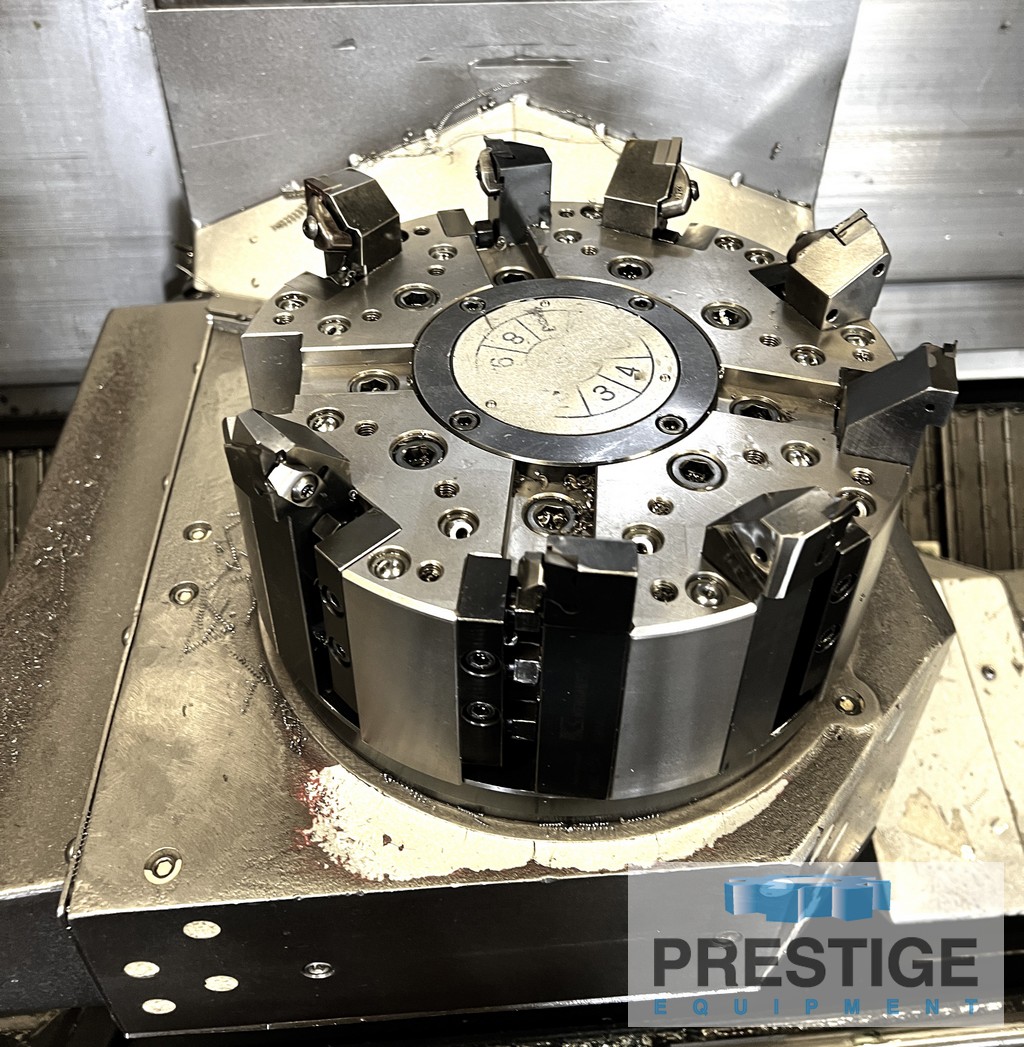

9-Station Lower Turret
40-Position Automatic Tool Changer
Thru-Spindle Coolant
1000 PSI Super Flow High Pressure System
Chip Conveyor

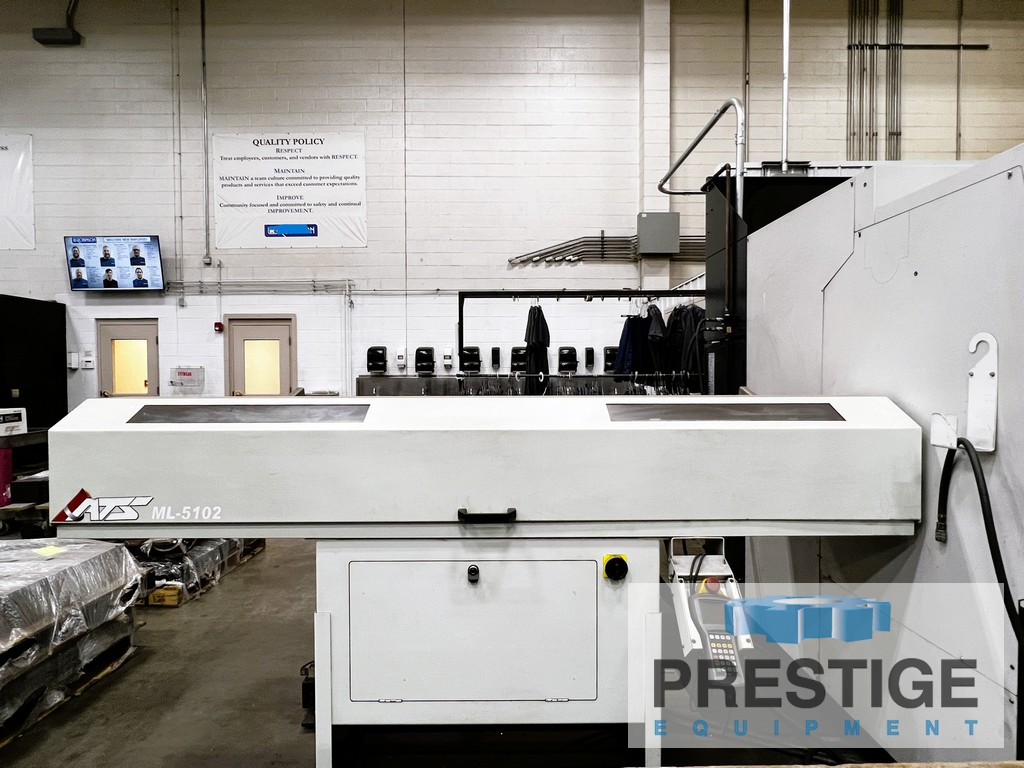

ATS ML-5102 Servo Bar Feeder

CAPACITY:
Maximum Swing ......................... 26"
Maximum Machining Length .............. 60"

MAIN SPINDLE:
Main Spindle Nose ..................... A2-6
Main Spindle Bar Capacity ............. 2.5"
Main Spindle Speed .................... 35-5000 RPM
Main Spindle Motor .................... 30 HP

SECOND-SPINDLE:
Second-Spindle Nose ................... A2-6
Second-Spindle Bar Capacity ........... 2.5"
Second-Spindle ........................ 35-4500 RPM
Second-Spindle Motor .................. 25 HP

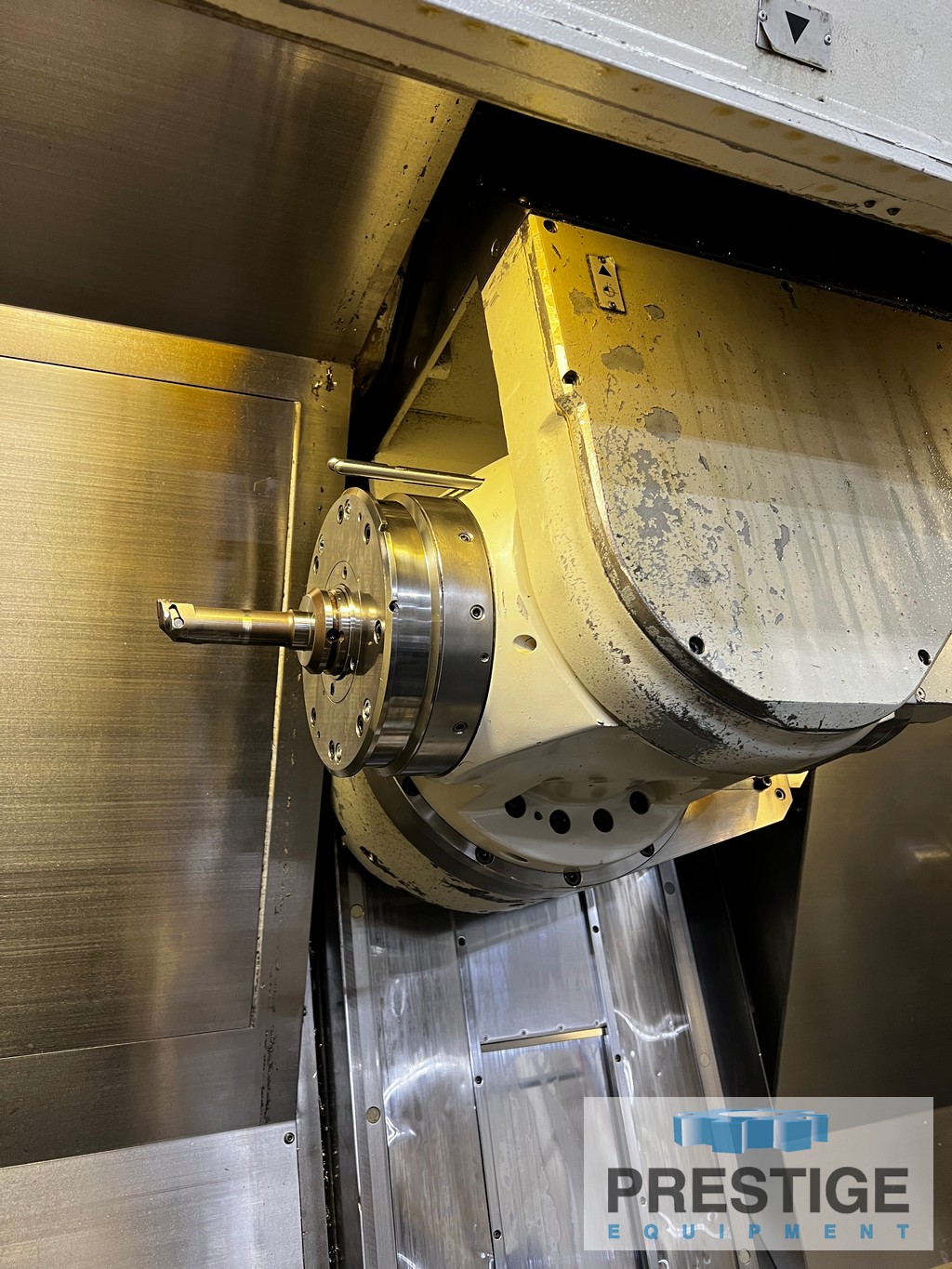

B-AXIS MILLING SPINDLE:
Milling Spindle Swivel ................ 225 Degrees
Milling Spindle Speed ................. 12,000 RPM
Milling Spindle Motor ................. 8 HP

TOOL MAGAZINE:
Tool Capacity ......................... 40 Tools
Tooling Type .......................... KM-50TS
Lower Turret Capacity ................. 9 Tools

EQUIPPED WITH:
Mazatrol Matrix CNC Control

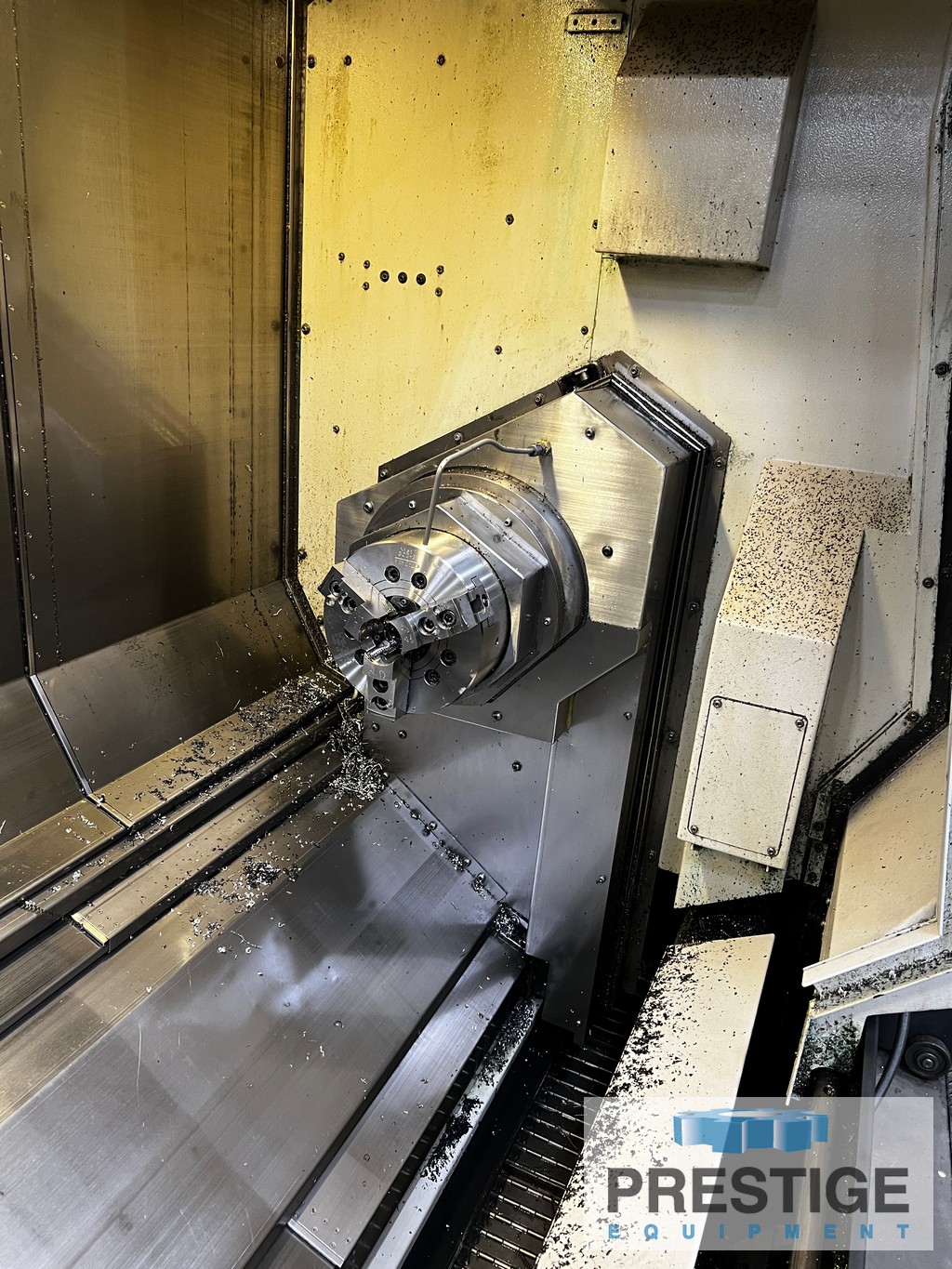

8" Kitagawa 3-Jaw Hydraulic Chuck on Main Spindle
8" Kitagawa 3-Jaw Hydraulic Chuck on Second-Spindle
B-Axis Milling Spindle w/ 225 Degree Swivel
40-Position Automatic Tool Changer
9-Station Lower Turret
Parts Catcher
Programmable Tool Eye
Synchronous Tapping

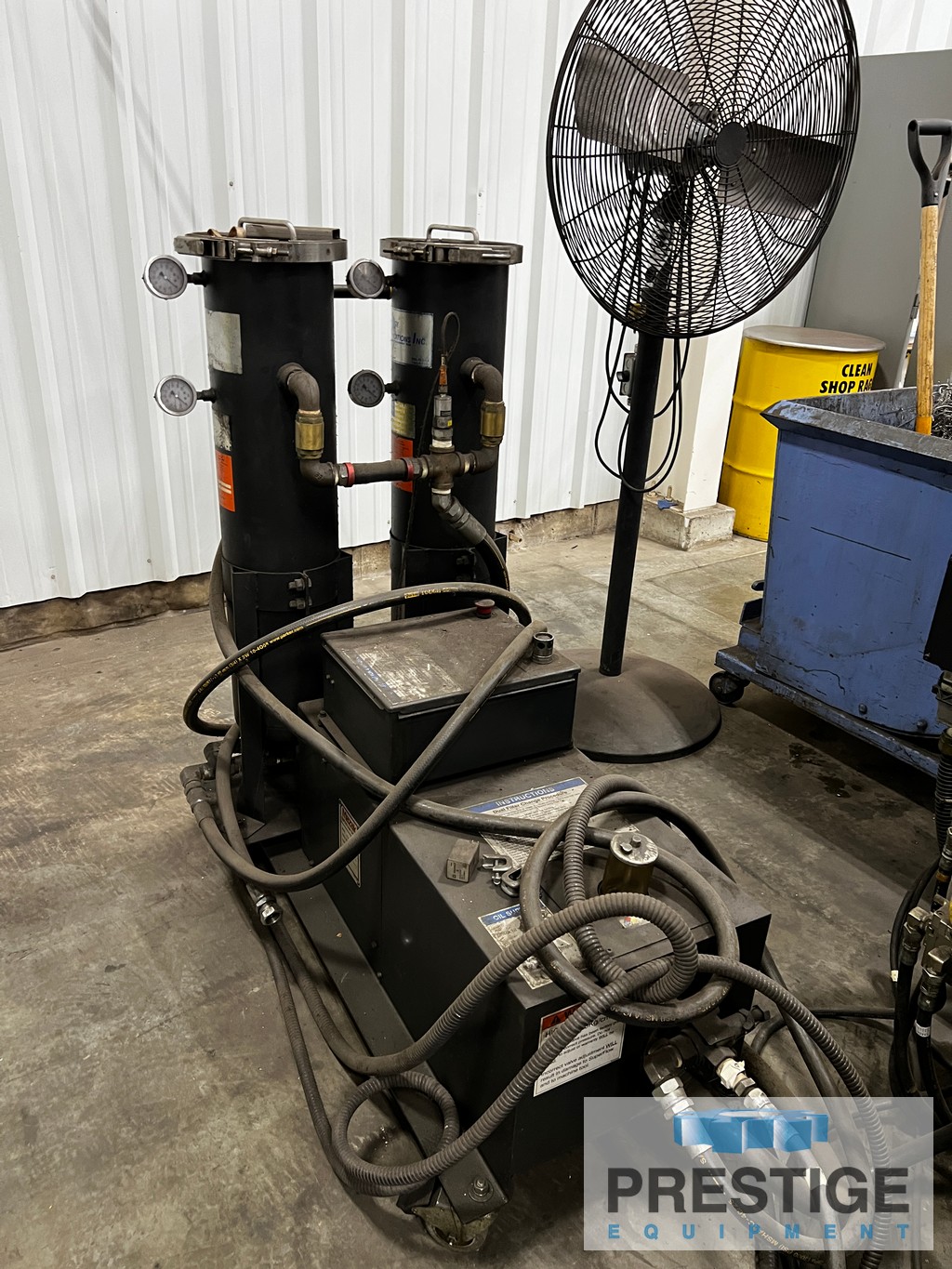

1000 PSI Super Flow High Pressure System
Thru-Spindle Coolant
Chip Conveyor
ATS ML-5102 Servo Bar Feeder w/ Pendant

LOCATION:
Under Power In Midwest Manufacturing Facility


Being Offered at Auction on July 18th - Robinson Inc. – Assets Surplus to Ongoing Operations
https://www.prestigeequipment.com/auction/robinson-inc/
