150 ton Verson Single Crank Mechanical Metal Stamping Gap Frame Press For Sale, Model 150-OBG In

Stock

2887

Model

150-OBG

Dealer Location

Michigan

Spec Sheet

Tonnage - 150
Stroke - 12 inches
Shut Height - 22 inches
Adjustment - 6 inches
Bed Size - 50" LR x 30" FB
Ram Area - 34" LR x 24" FB
SPM - 30


Standard Specifications
Verson Press Model 150-OBG
Mechanical Metal Stamping
150 ton Capacity
12" Stroke
22" Shut Height
6" Motorized Adjustment
50" LR x 30" FB Bed Area
34" LR x 24" FB Slide Area
30 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Air Valve

Overall Height:  13'9" tall

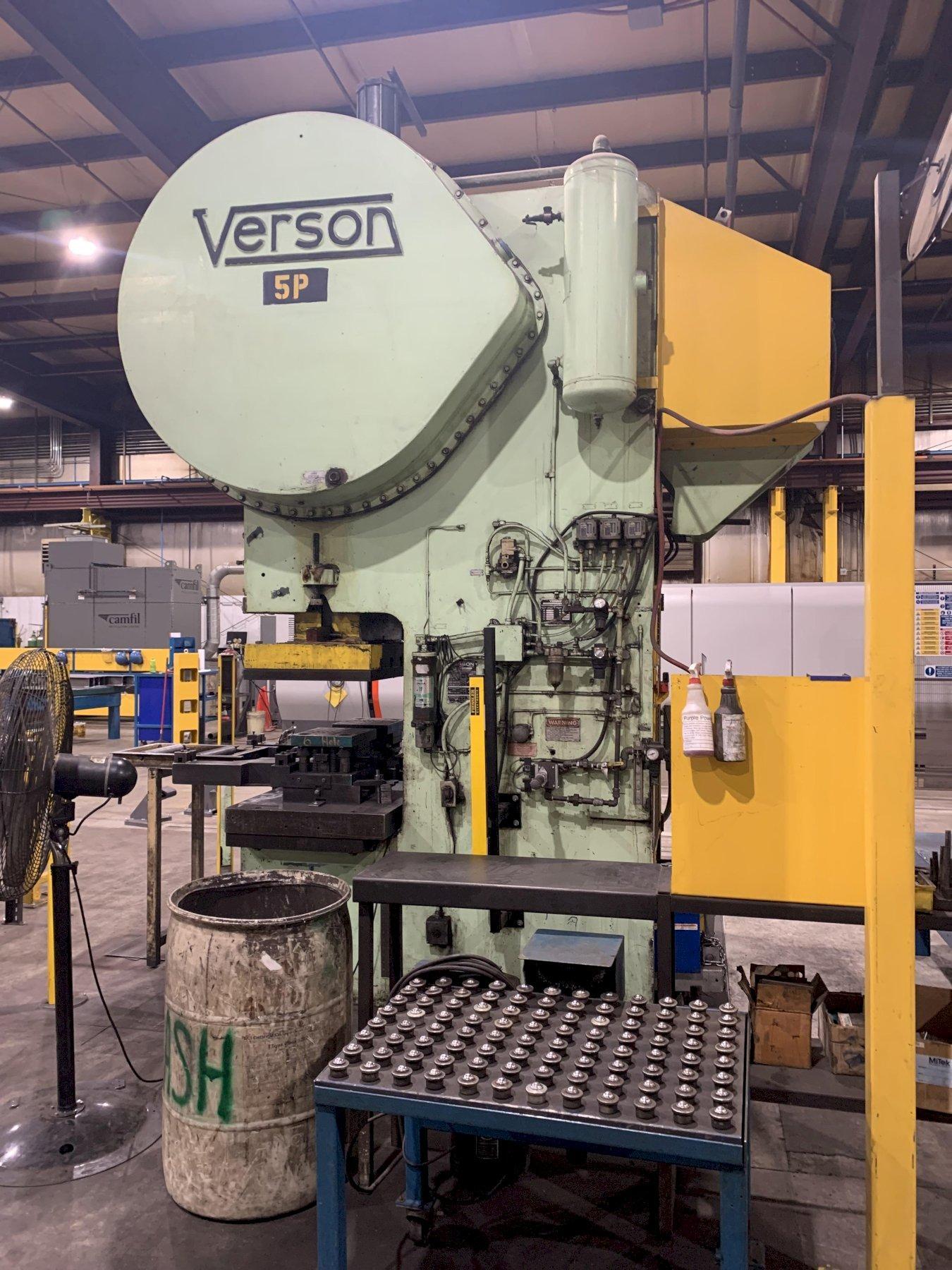

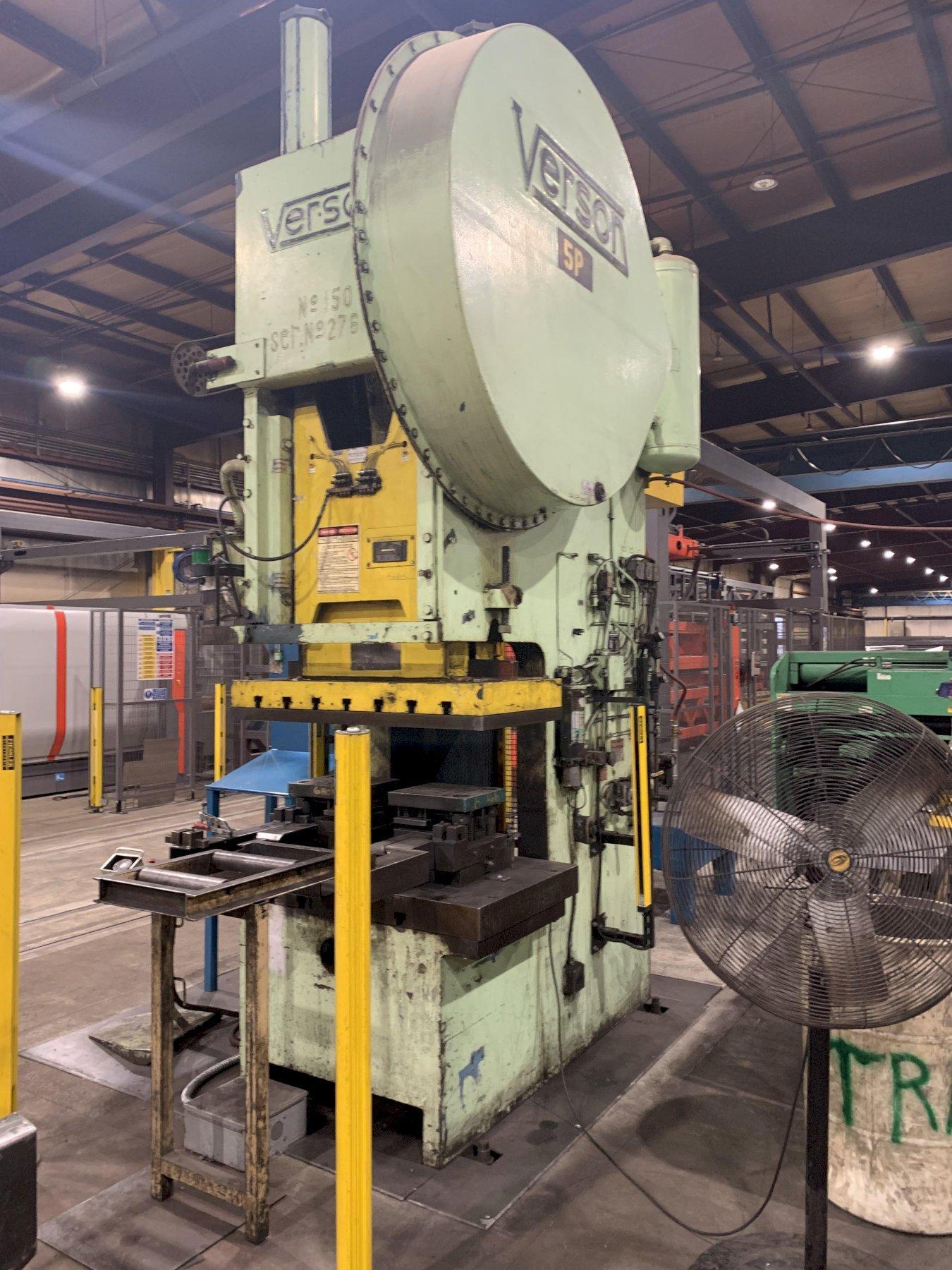

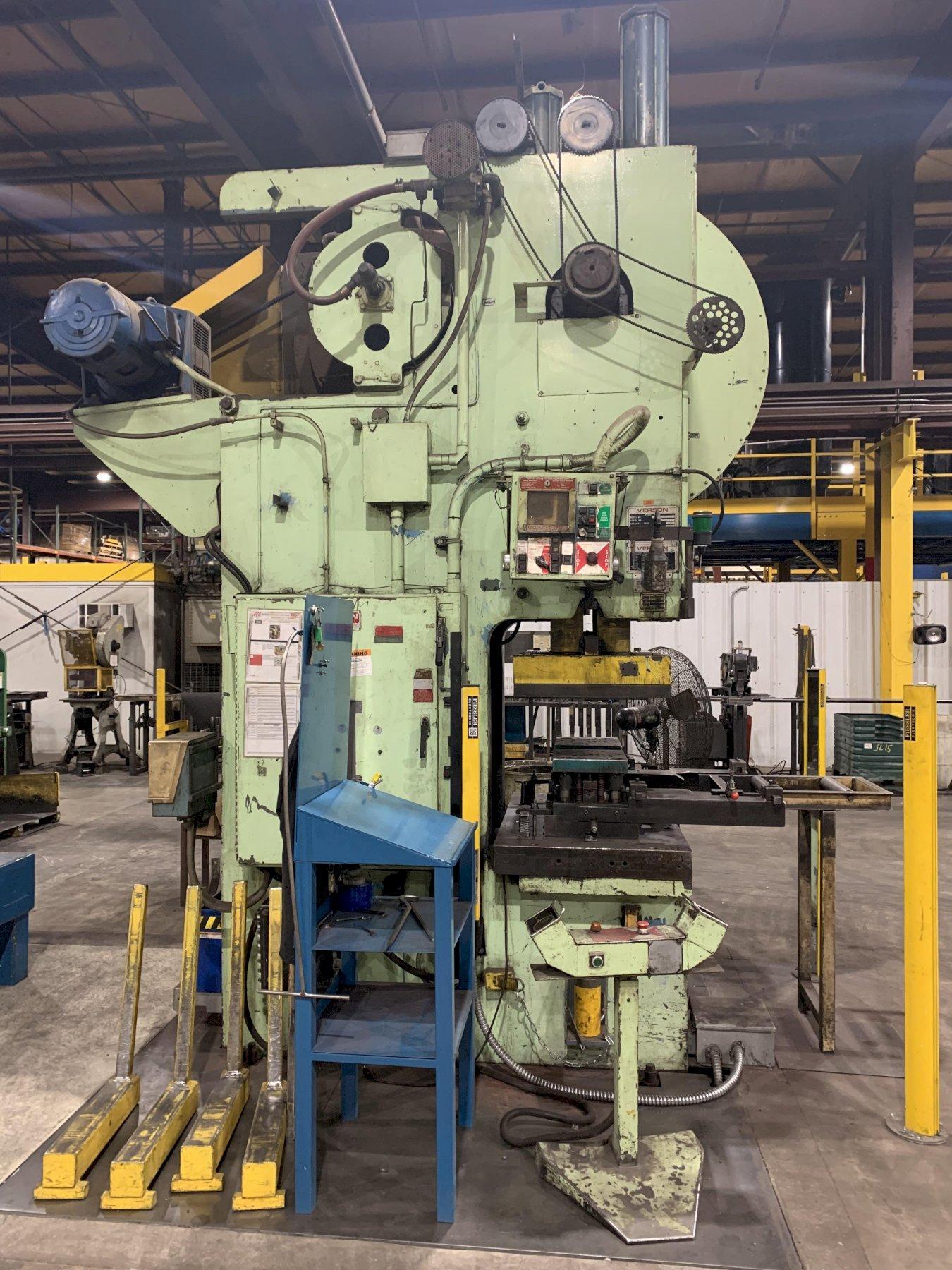

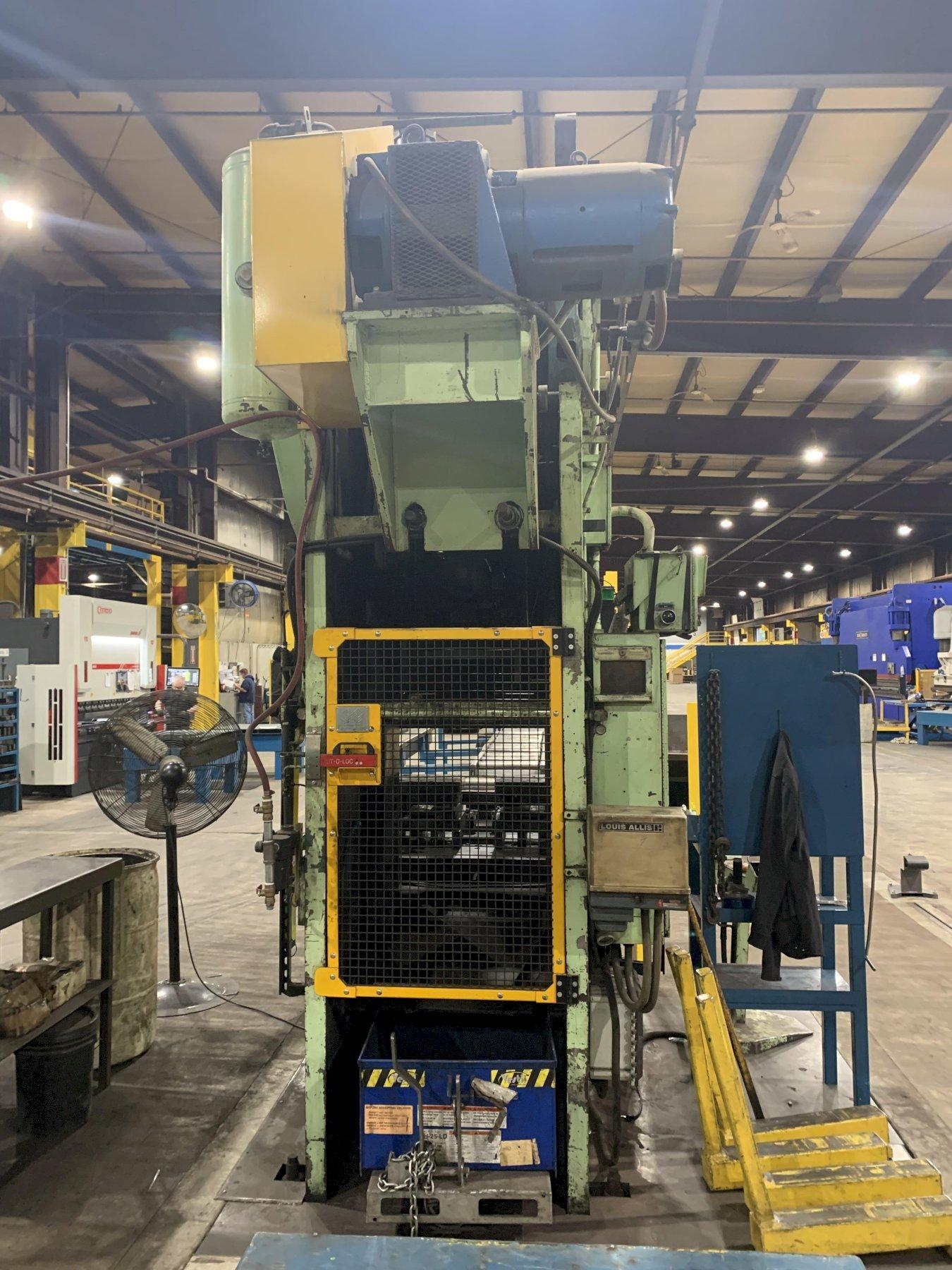

This used 150 ton Verson Gap Frame Press can be seen under power in the S&G Press Livonia Michigan Warehouse.

Used Good Running! 150-ton Verson Mechanical Metal Stamping Press For Sale!
