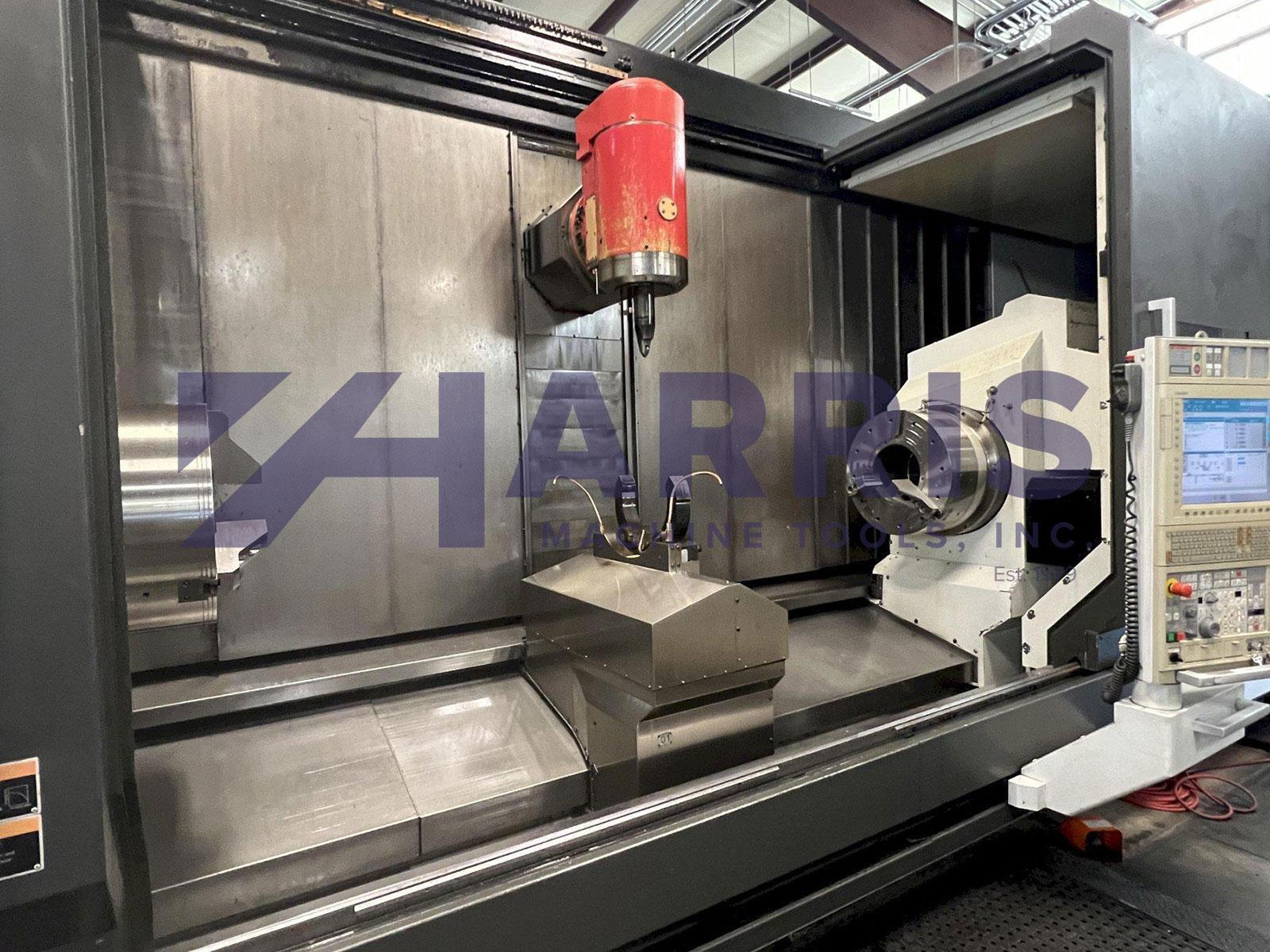

MORI SEIKI NT6600 DCG/3000CS 5 AXIS TURN MILL CENTER WITH SUB SPINDLE

Manufacturer

MORI SEIKI

Category

Lathes

Type

LATHES, CNC

Stock

20370

Model

NT6600 DCG/3000CS

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Type of CNC Control - MSX-7111IV
# Axis - 5
Chuck Size - 24 inches
Swing - 42 inches
Turning Diameter - 42 inches
Center Distance - 120 inches
Bar Capacity - 10.8 inches
Main Motor - 40 HP
Spindle Bore - 10.8 inches
Spindle Speed (RPM) - 1500
Sub Spindle Motor - 40 HP
Sub Spindle Bore - 10.8 inches
Sub Spindle Chuck Size - 24 inches
Sub Spindle Speed (RPM) - 1500
X Axis Travel - 41 inches
Z Axis Travel - 122 inches
Y Axis (Yes / No) - yes
Live Milling (Yes / No) - yes
Live Milling Speed (RPM) - 8000
Live Milling Motor - 40 HP
Weight - 130000 pounds


MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 120"
MAXIMUM BAR DIAMETER: 10.8"
SPINDLE BORE: 10.8"
SUB SPINDLE BORE: 10.8"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 122"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP

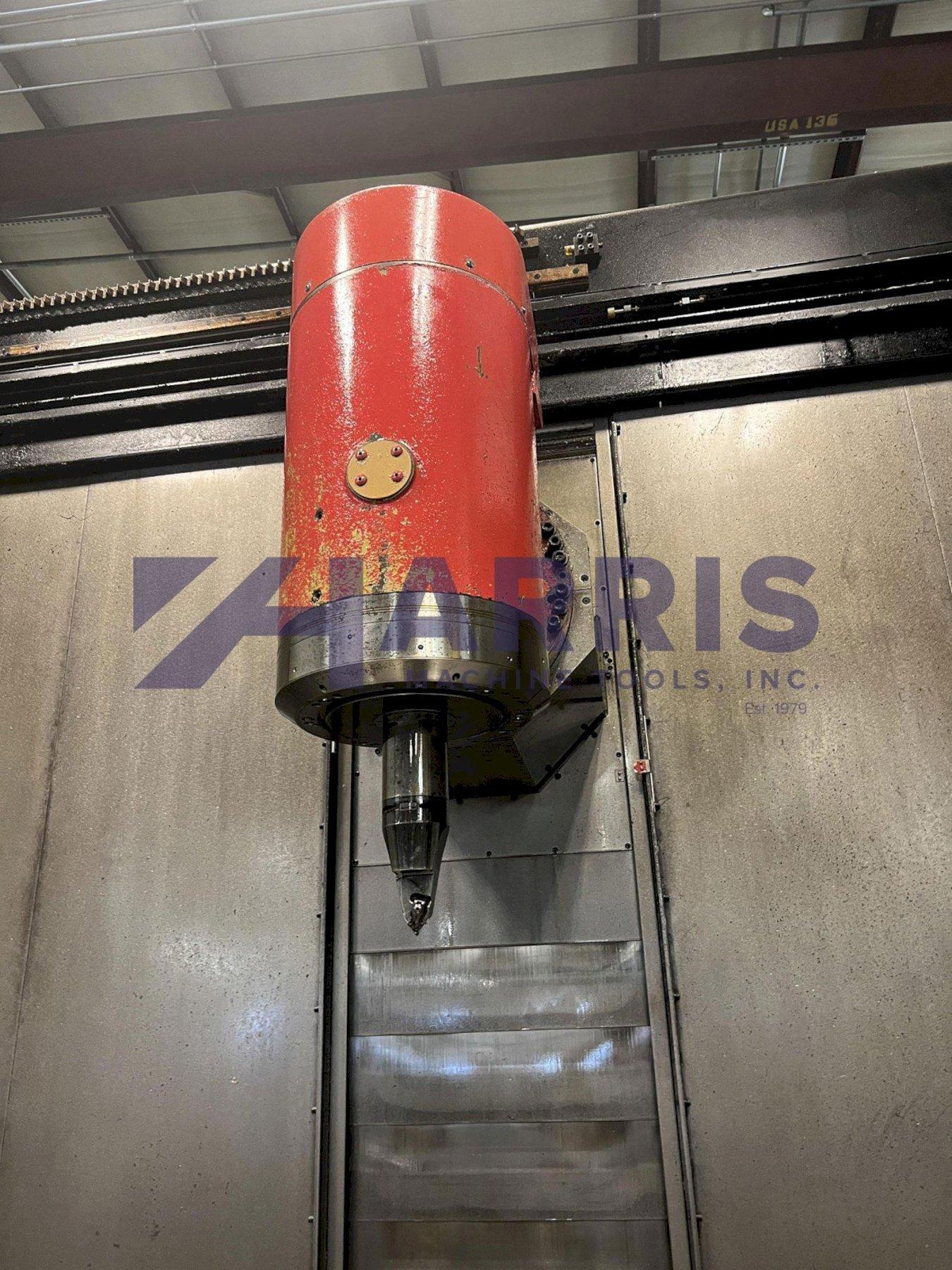

MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP

OAD (APPROXIMATE): 360" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 130,000LBS.
EQUIPPED WITH:

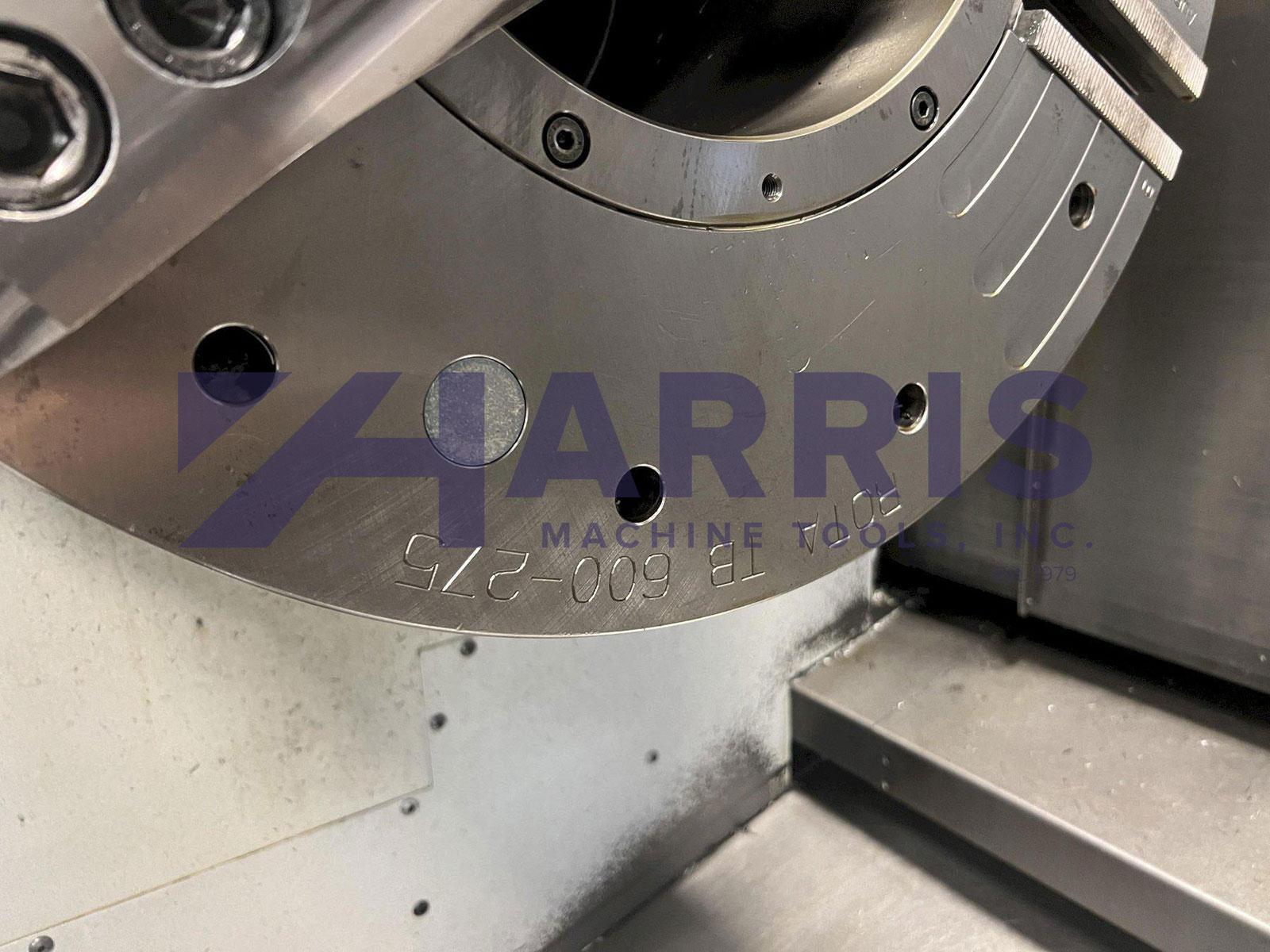

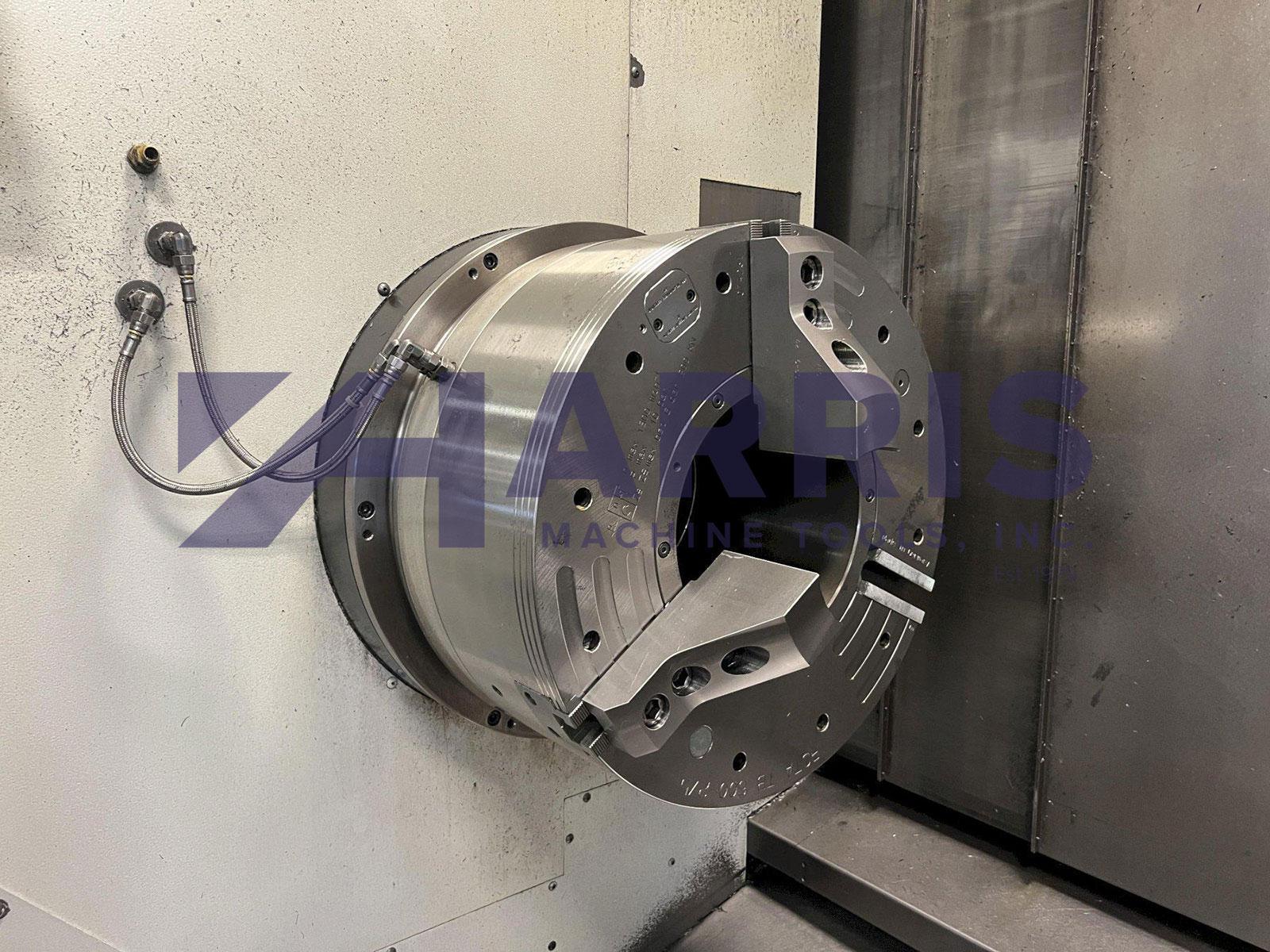

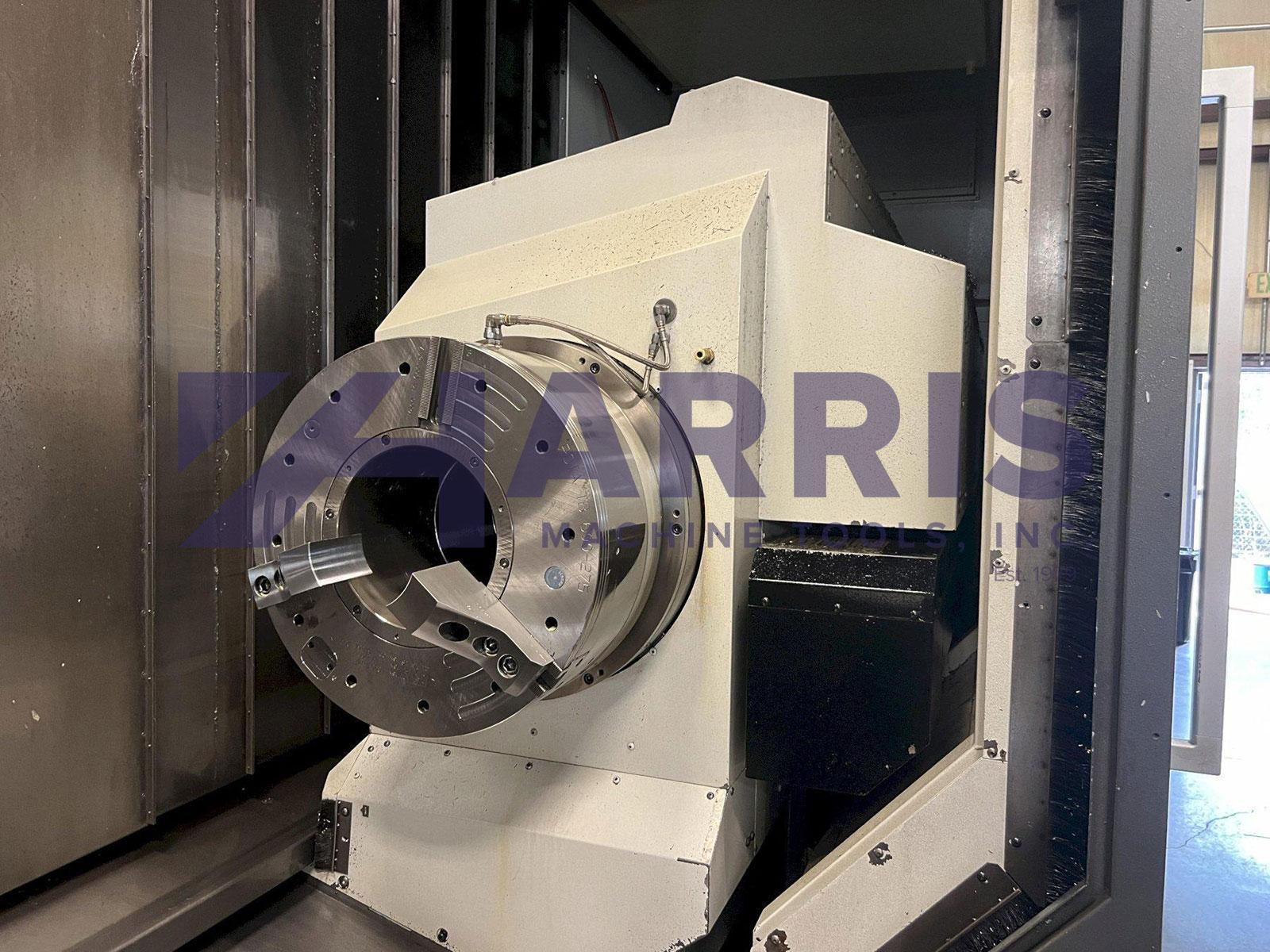

24" FRONT MOUNT AIR CHUCKS ON MAIN AND SUB SPINDLE
10.8" HOLE THROUGH MAIN AND SUB SPINDLE
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING

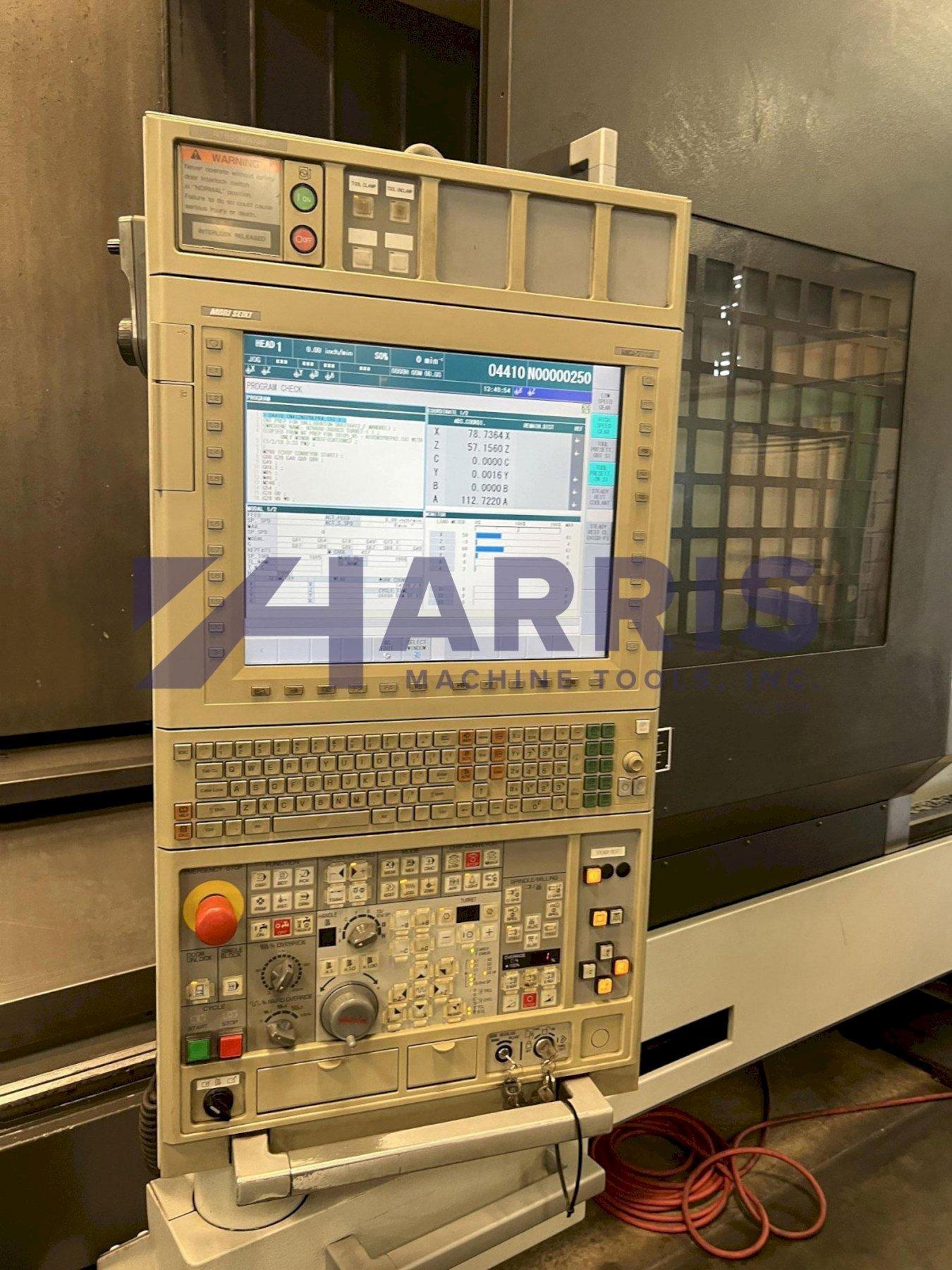

MSX-711IV / FS-31iA5 CNC CONTROL

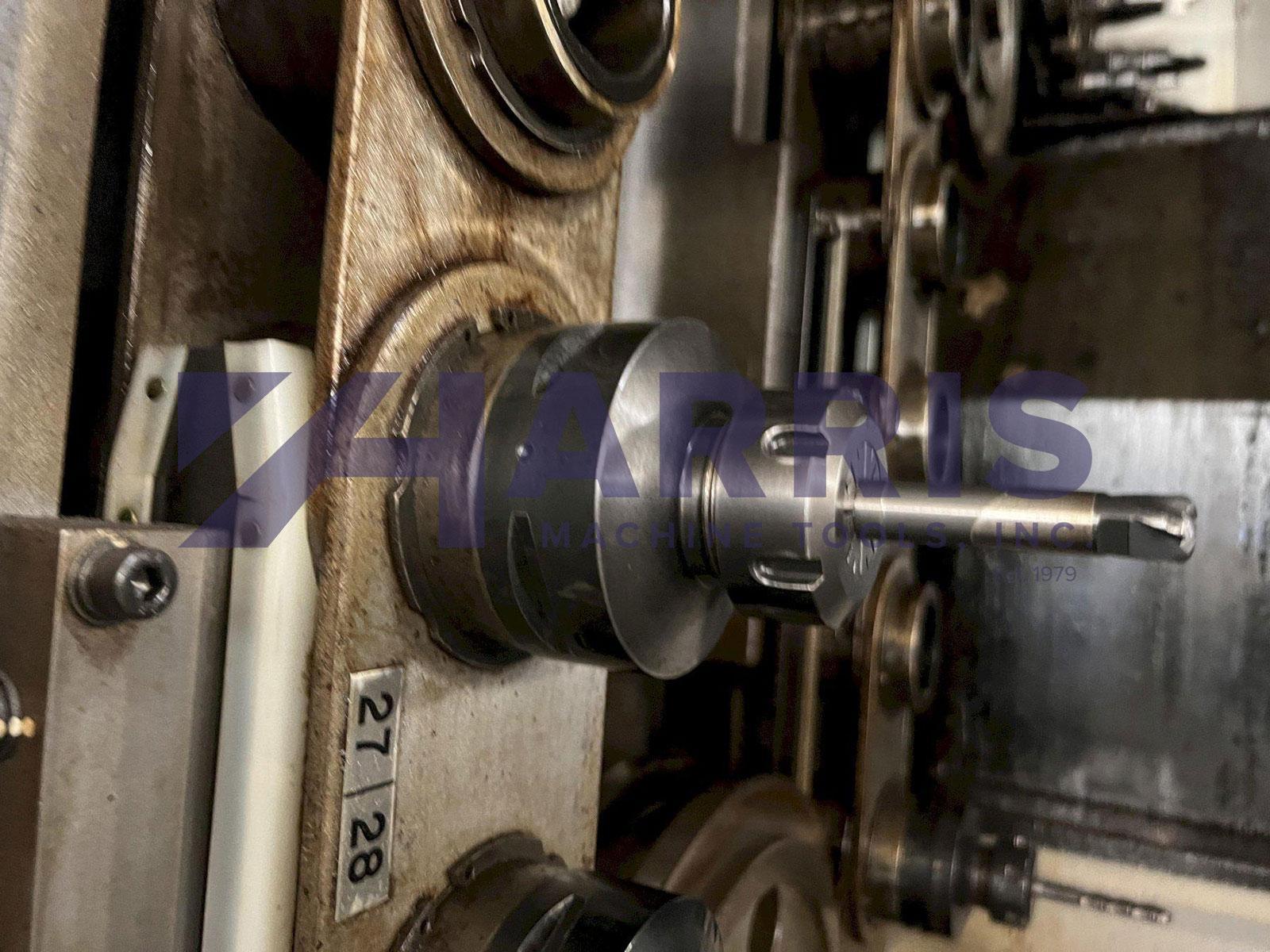

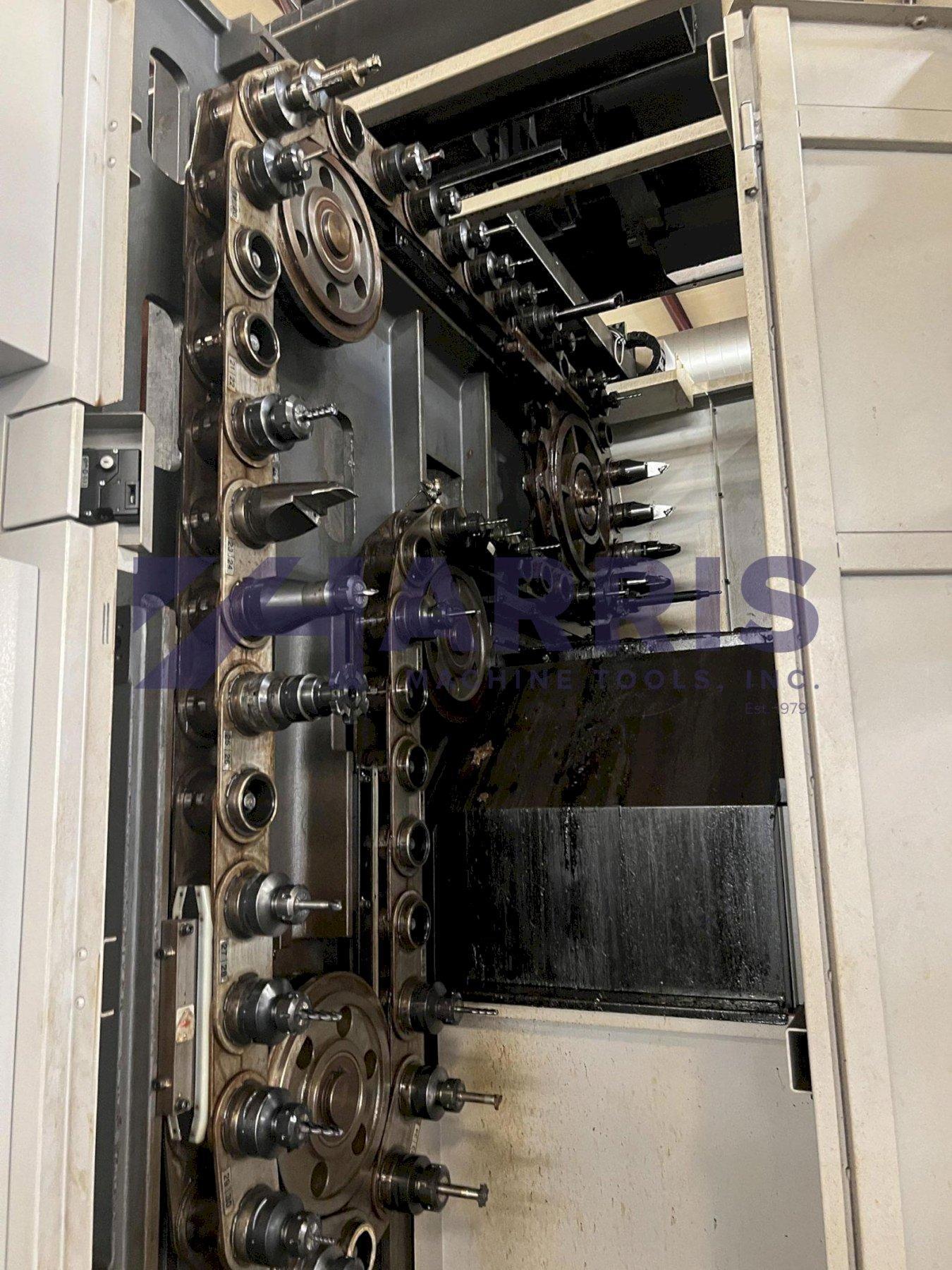

60 POSITION AUTOMATIC TOOL CHANGER
SUB SPINDLE
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR TO CHIP CONVEYOR SYSTEM WITH REAR DISCHARGE TAILSTOCK END

Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control

Additional Machine Specs:
Capto C8 Spindle
Full B-Axis

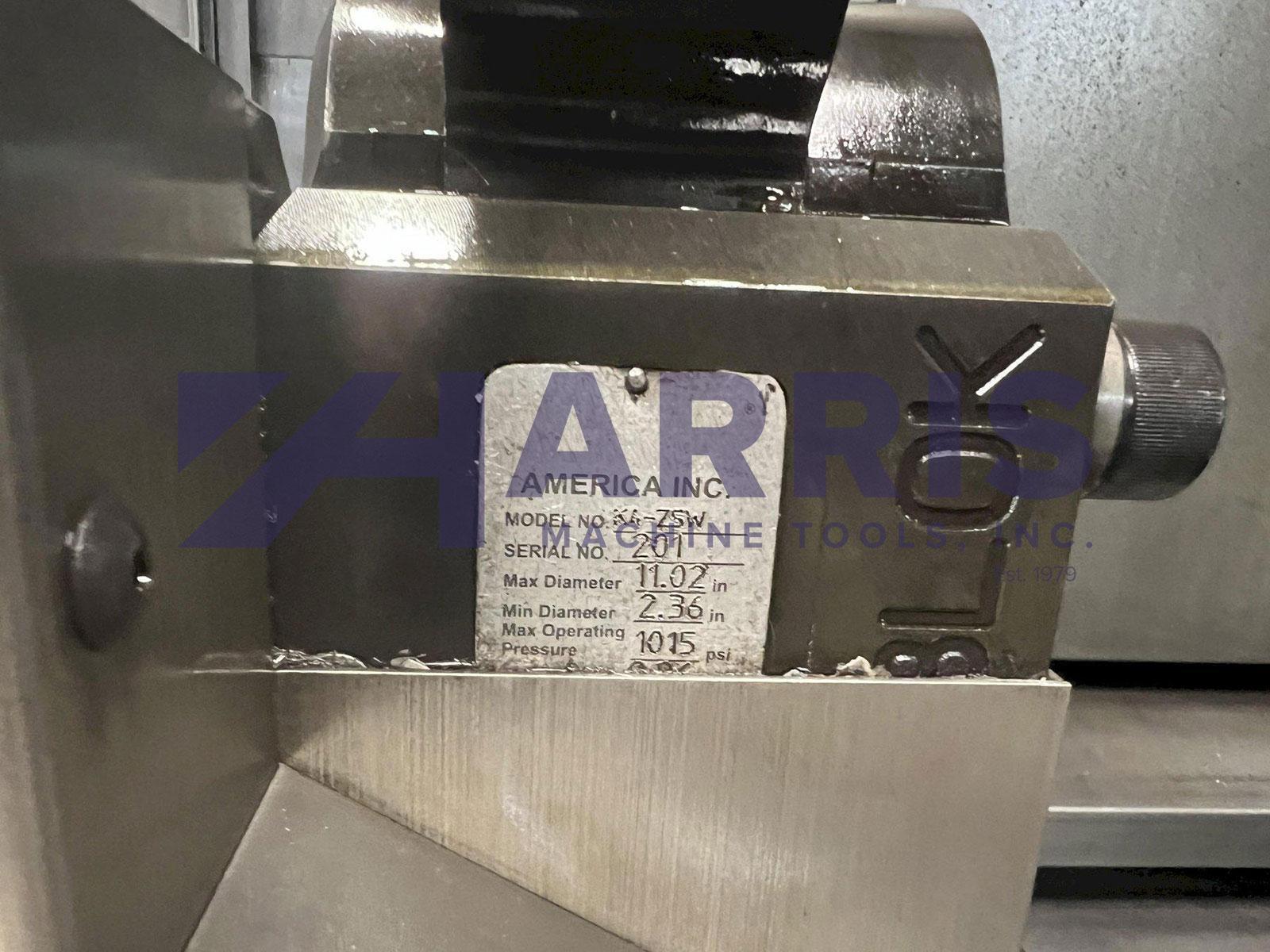

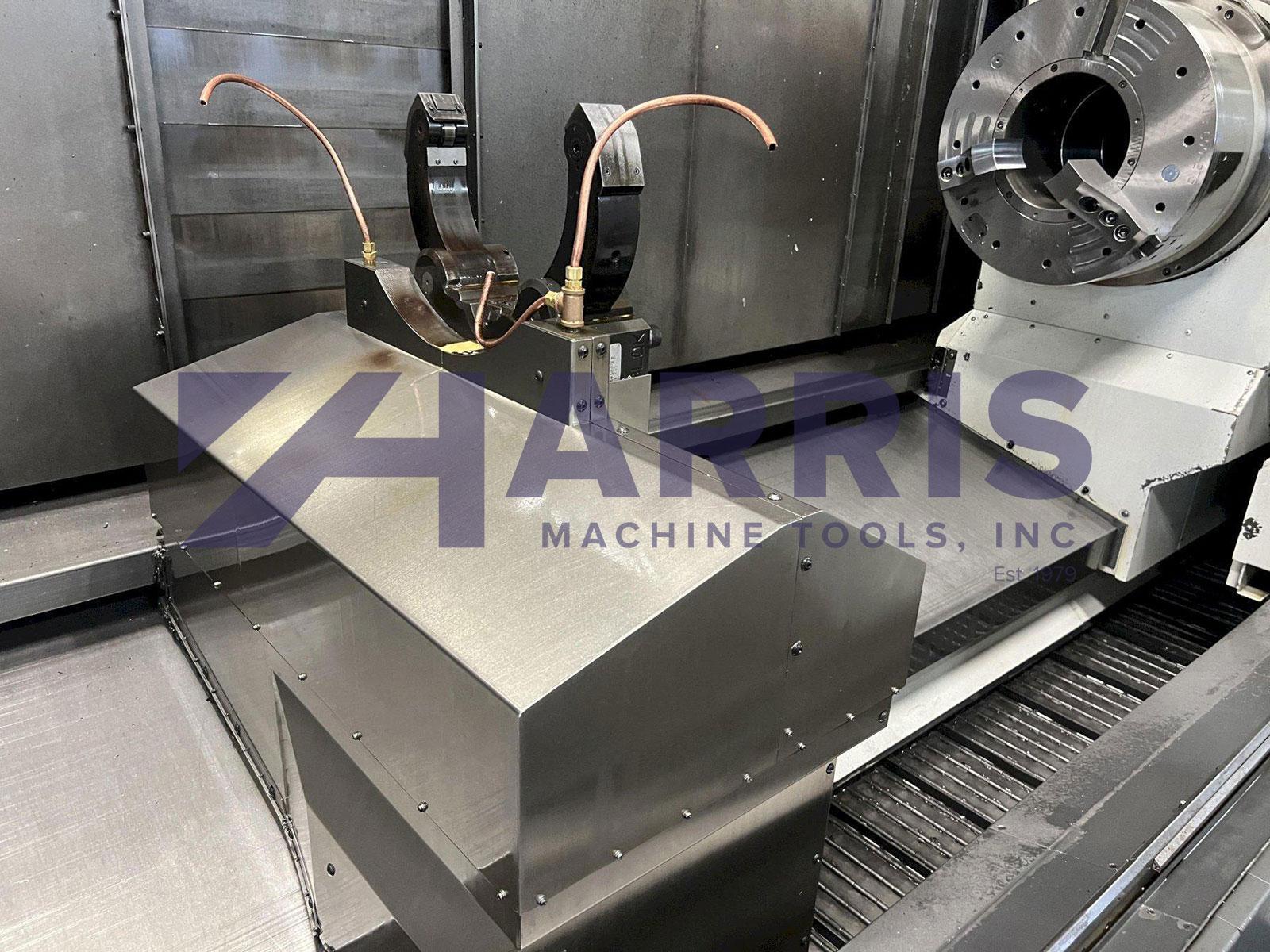

(1) Programmable Automatic Steady Rest (2.36 - 11.02" CAPACITY)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
