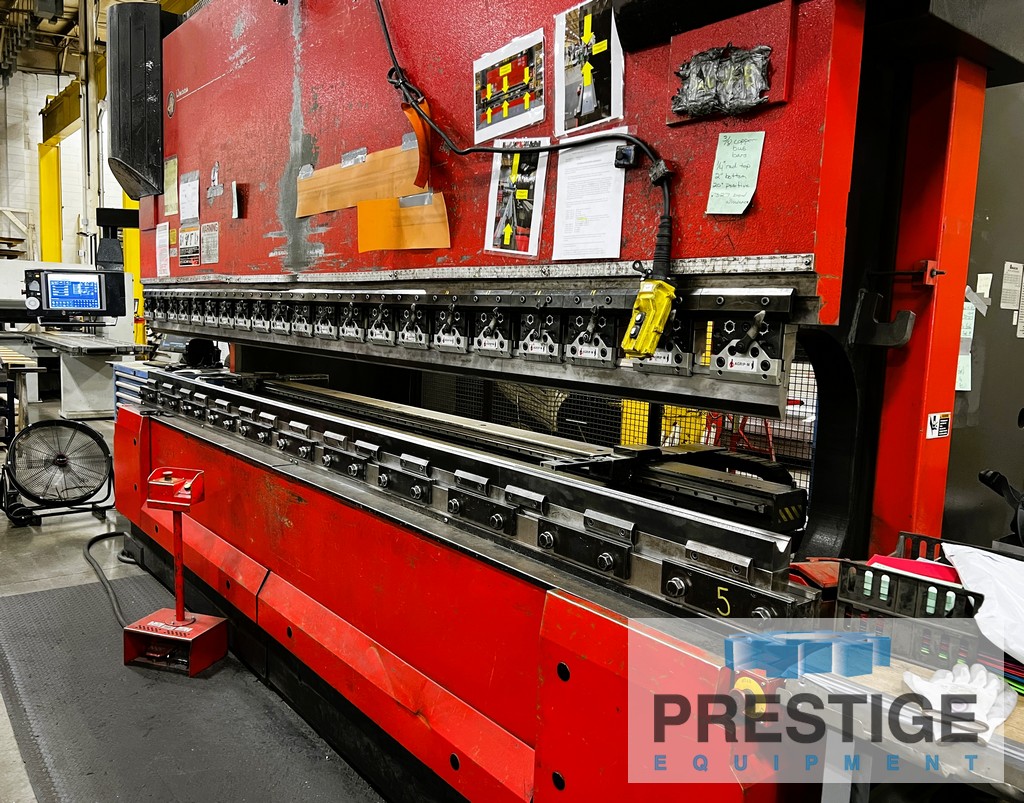

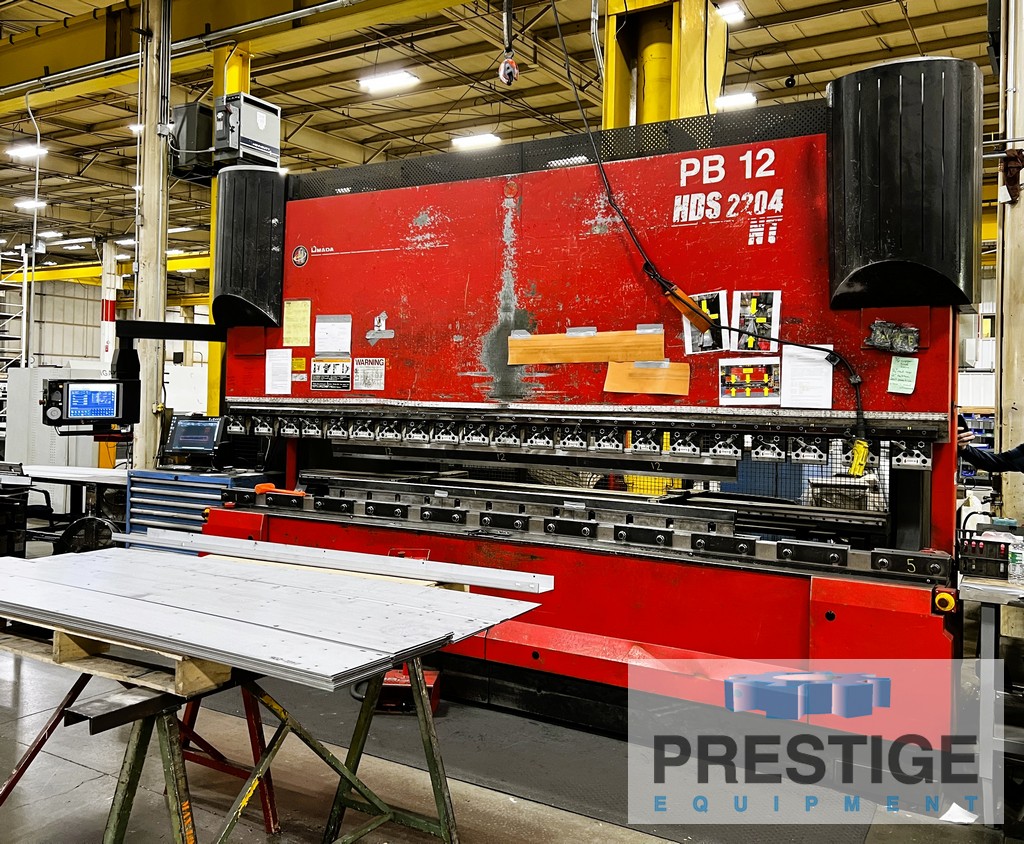

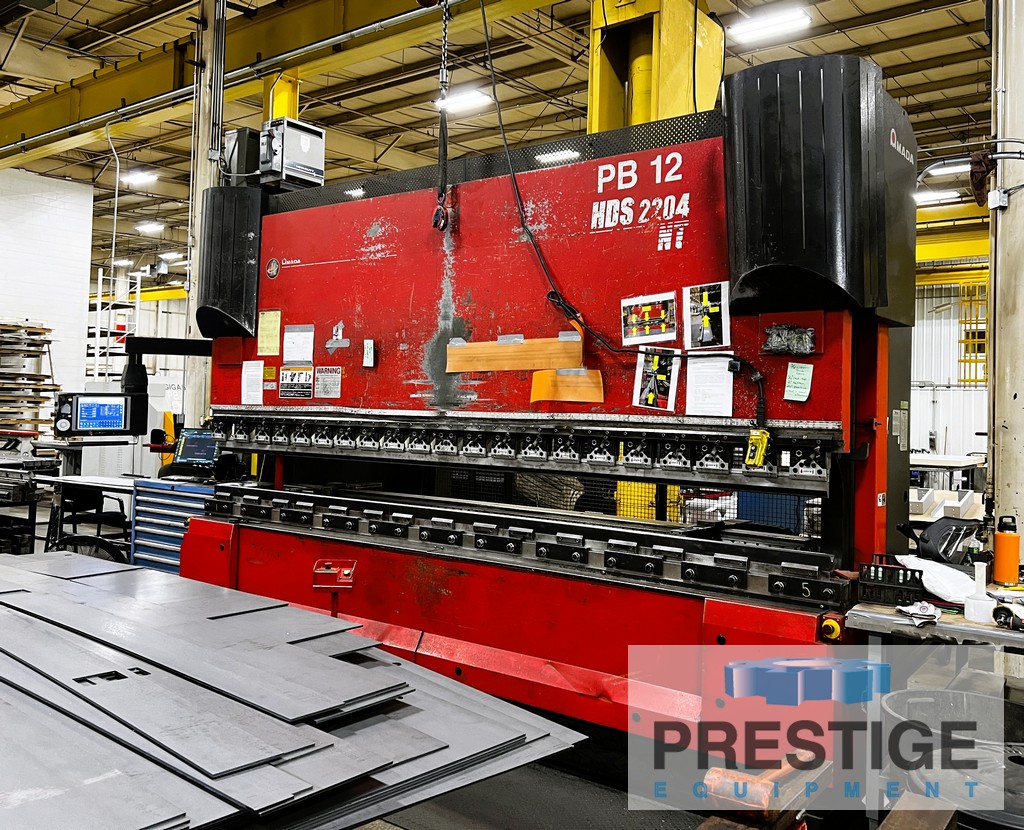

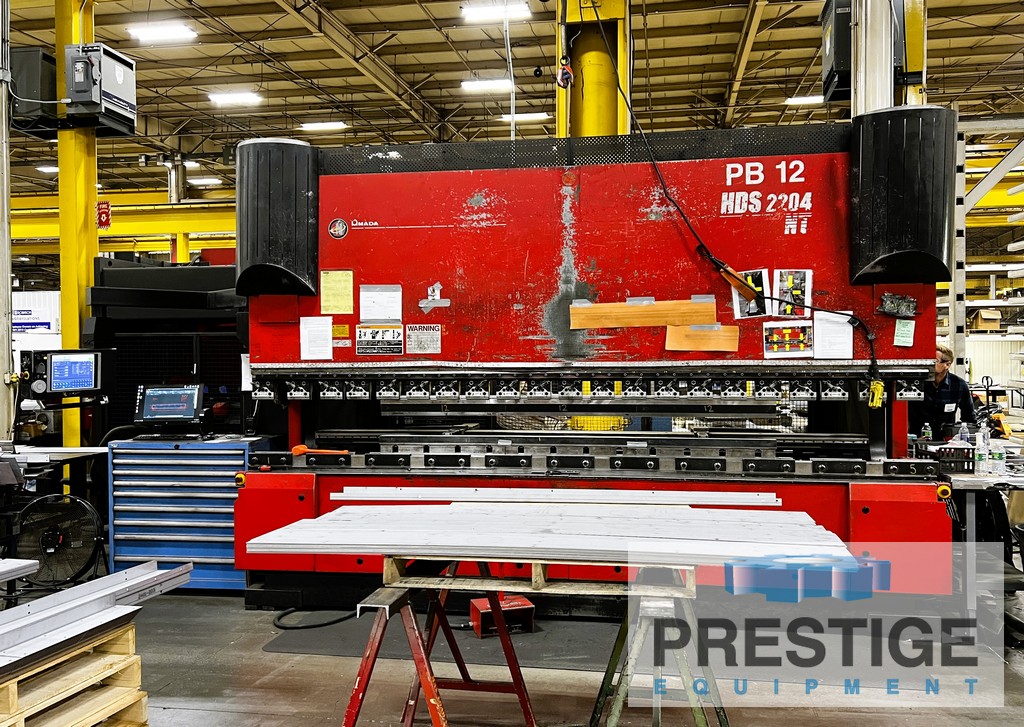

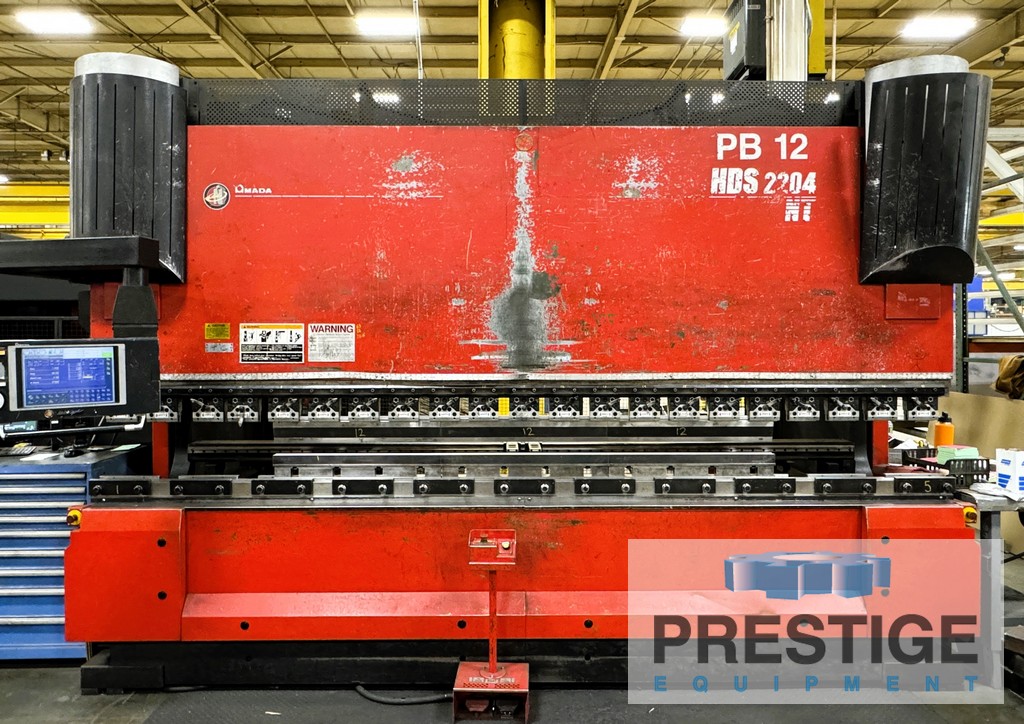

Amada HDS-2204 NT 242 Ton x 14' 8-Axis Servo Hydraulic Hybrid CNC Press Brake, Ref# 43463

Manufacturer

AMADA

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43463

Model

HDS-2204 NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43463
Amada HDS-2204 NT 242 Ton x 14' 8-Axis Servo Hydraulic Hybrid CNC Press Brake

FEATURES:

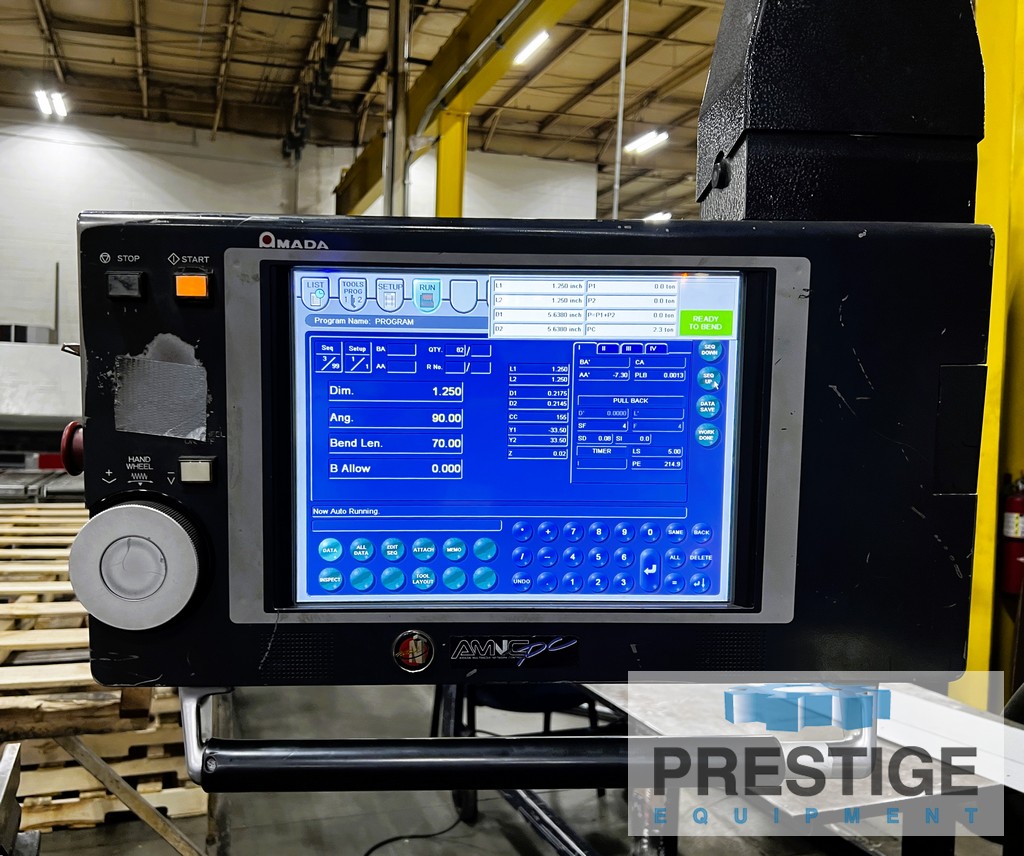

Amada AMNC/PC 8-Axis Touchscreen Networking CNC Control
2-Axis Ram, D1, D2
5-Axis CNC Back Gauge,L1 & L2, Y1 & Y2 (Horizontal), Z (Vertical)
CNC Hydraulic Bed Crowning
Independent AC-Servo Motors With High Efficiency Bi-Directional Hydraulic Pumps
Flush Floor

CAPACITY:
Maximum Tonnage Capacity .............. 242 Ton
Overall Length Of Bed & Ram ........... 168.5"
Distance Between Housings ............. 148"
Open Height ........................... 20.5"
Throat Depth .......................... 17.7"
Stroke Length ......................... 9.8"
Approach Speed ........................ 7.87 IPS
Bending Speed ......................... .78 IPS
Return Speed .......................... 7.87 IPS
Motor ................................. 27.6 HP
Approx. Machine Dimensions L x W x H .. 224.8" x 97" x 126.6"
Approx. Machine Weight ................ 50,710 Lbs

EQUIPPED WITH:
Amada AMNC/PC 8-Axis Touchscreen Networking CNC Control
2-Axis Ram, D1, D2
5-Axis CNC Back Gauge,L1 & L2, Y1 & Y2 (Horizontal), Z (Vertical)
CNC Hydraulic Bed Crowning
Independent AC-Servo Motors With High Efficiency Bi-Directional Hydraulic Pumps
Flush Floor

NOTES:
Inspection in Plant Under Power


Being Offered at Auction on July 18th - Robinson Inc. – Assets Surplus to Ongoing Operations
https://www.prestigeequipment.com/auction/robinson-inc/
