238" Sellers VBM, 244" Swing, 150.5" U.R, 95 Ton Weight Cap. 92.75" Ram Travel, Acu-Rite DRO, Tracer, #43436

Manufacturer

Sellers

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

43436

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43436

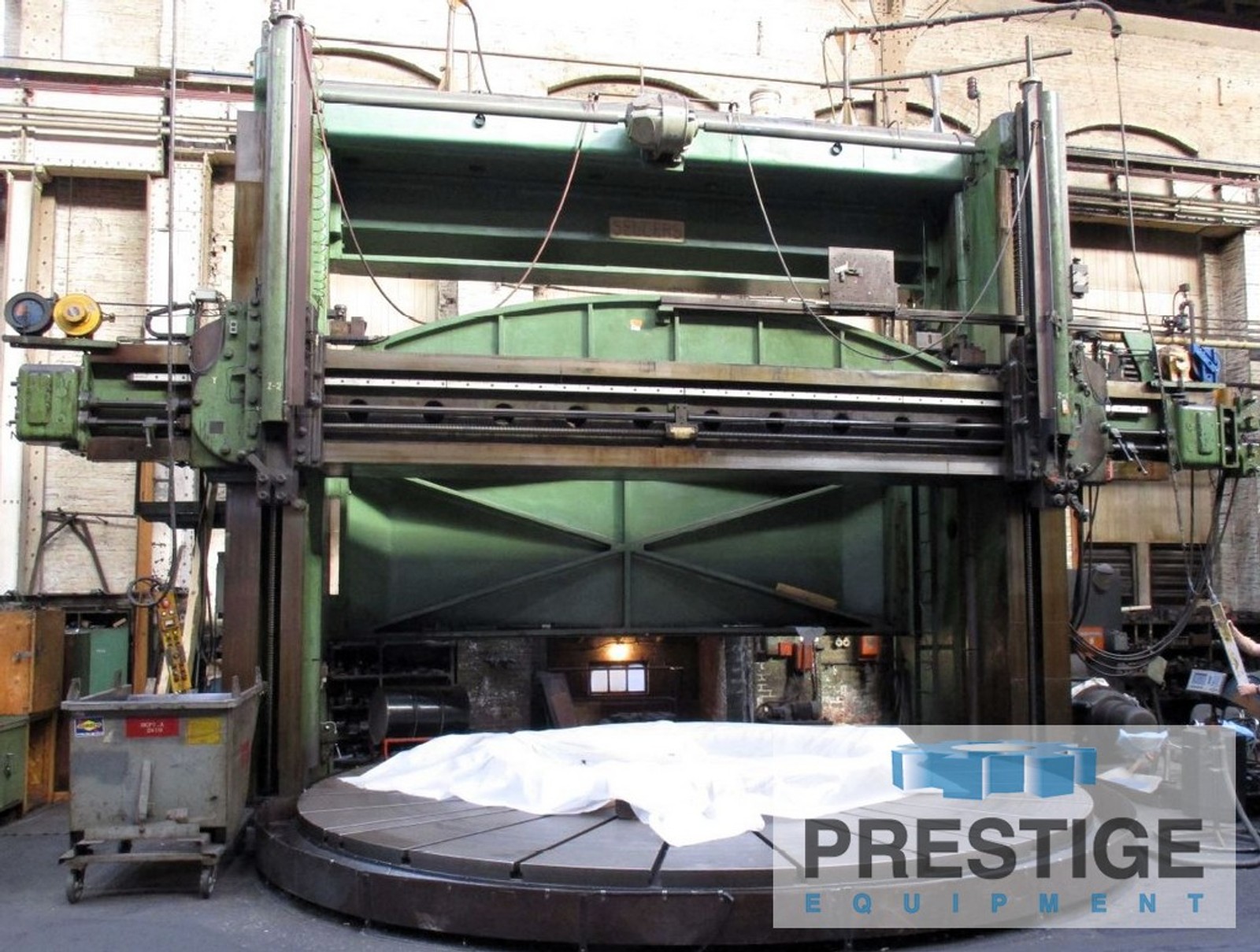

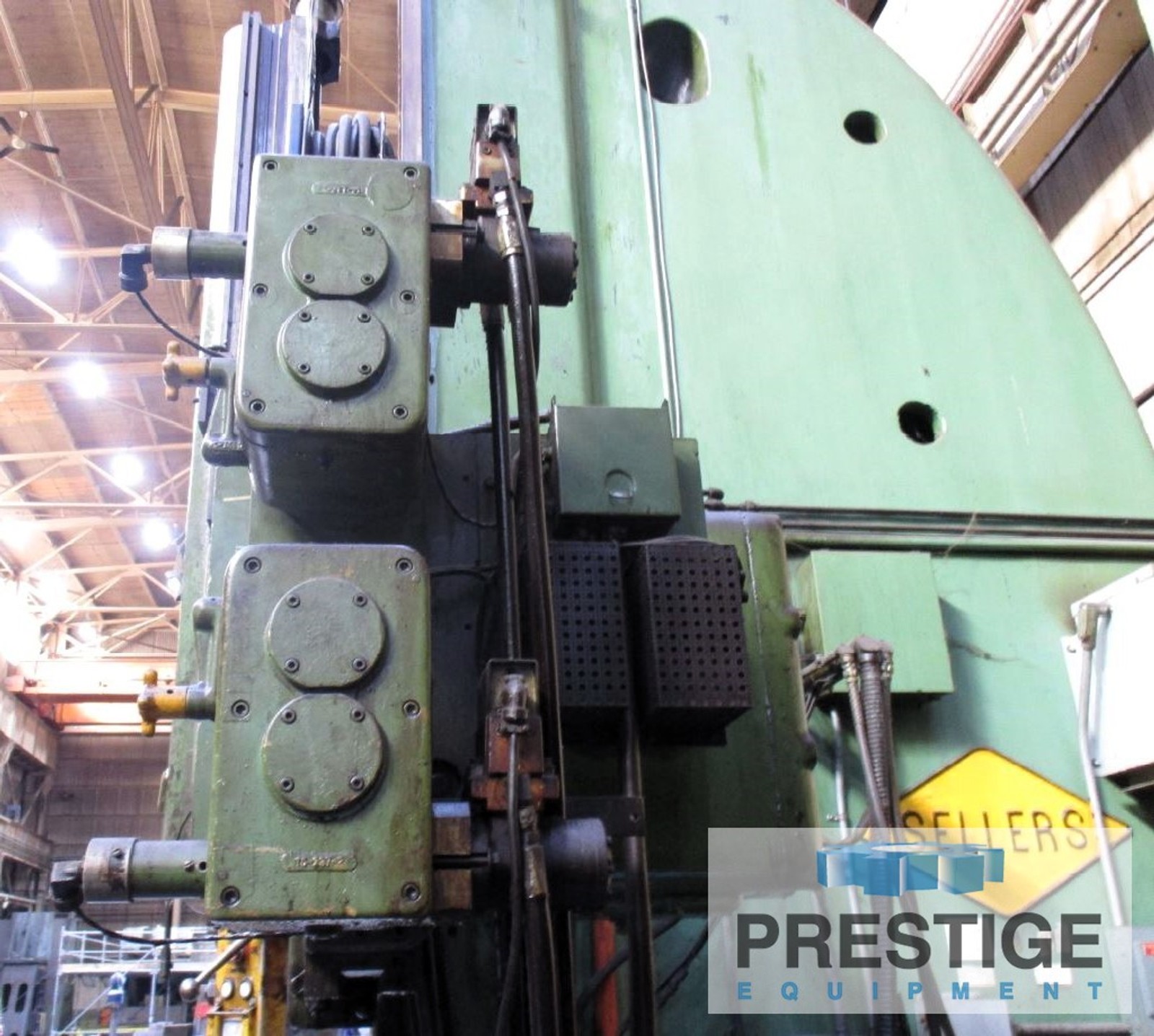

238" Sellers Vertical Boring Mill

FEATURES:
Aci-Rite 300Sc 4xT Digital Readout

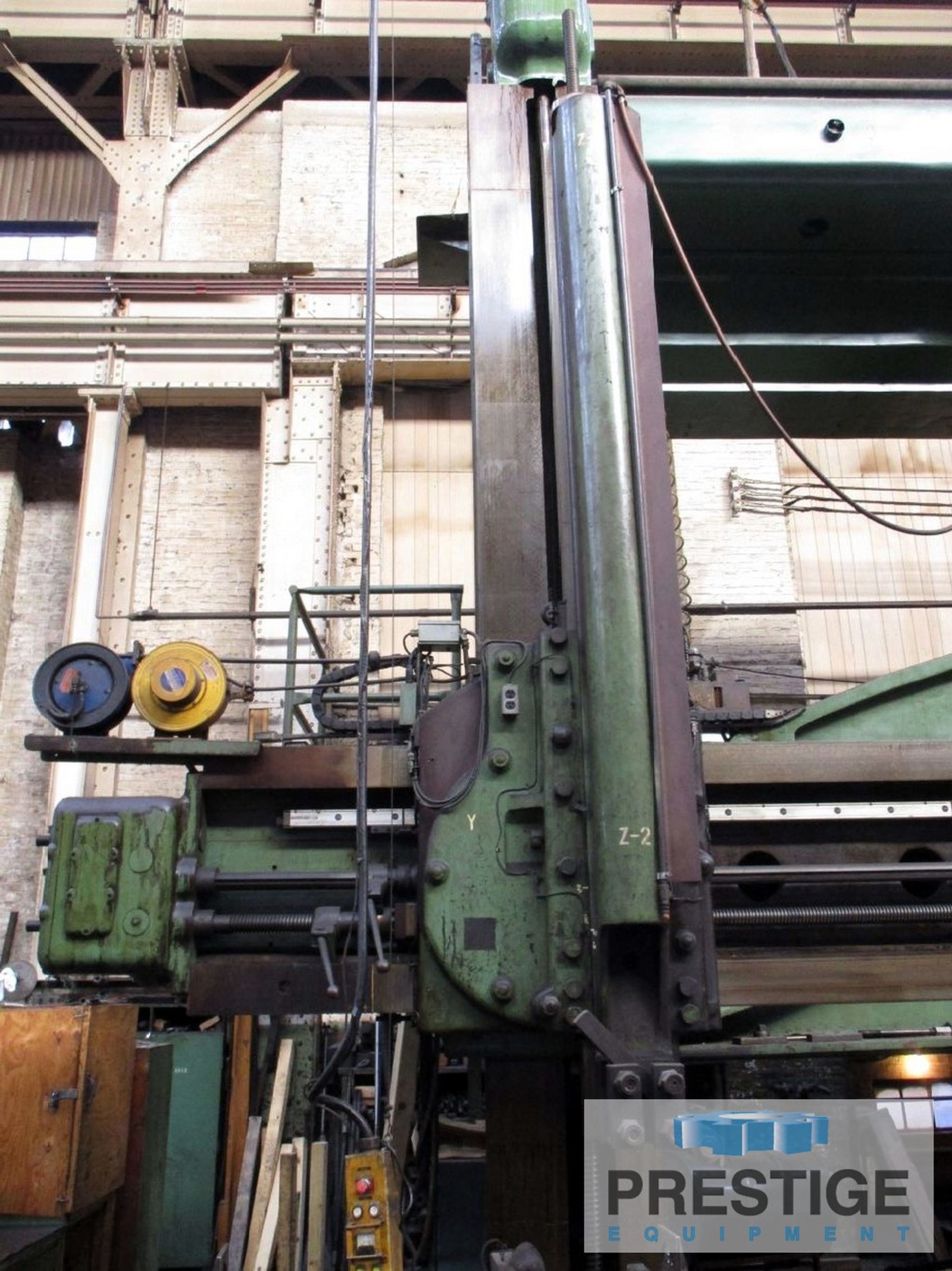

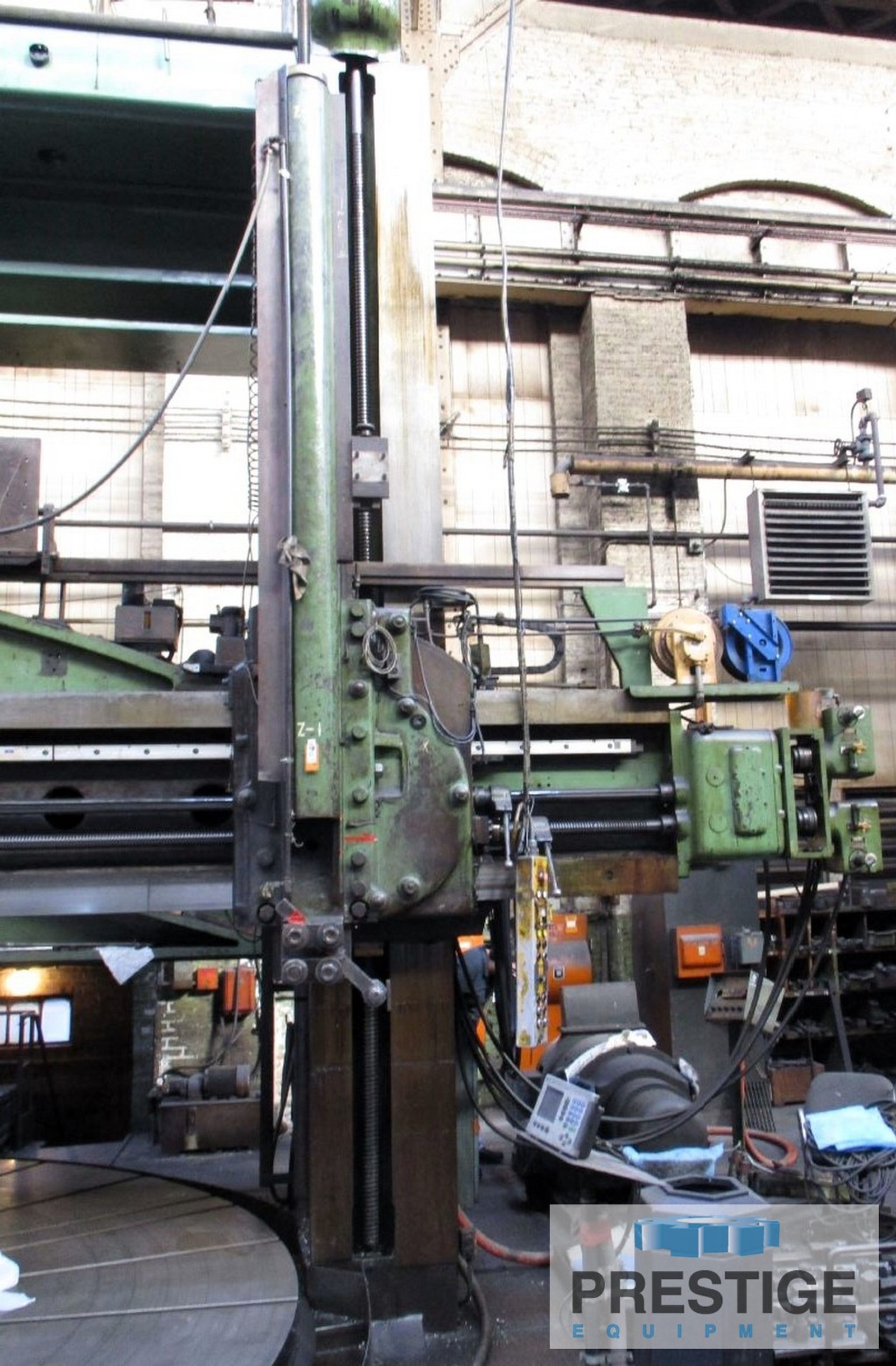

2 - Vertical Swiveling Rams
Duplimatic E 360 Tracing Attachment

SPECIFICATIONS:
Table Diameter ......................... 238"
Maximum Swing .......................... 244"
Maximum Height Under Tool Heads ........ 148.5"
Maximum Height Under Cross Rail ........ 150.5"
Ram Stroke ............................. 92.75"
Table Speeds ........................... .097 - 11.6 RPM
Weight Capacity ........................ 95 Ton
Feed Rate .............................. .010 - 1.68 IPR
Table Motor ............................ 125 HP

EQUIPPED WITH:
2 - Vertical Swiveling Rams

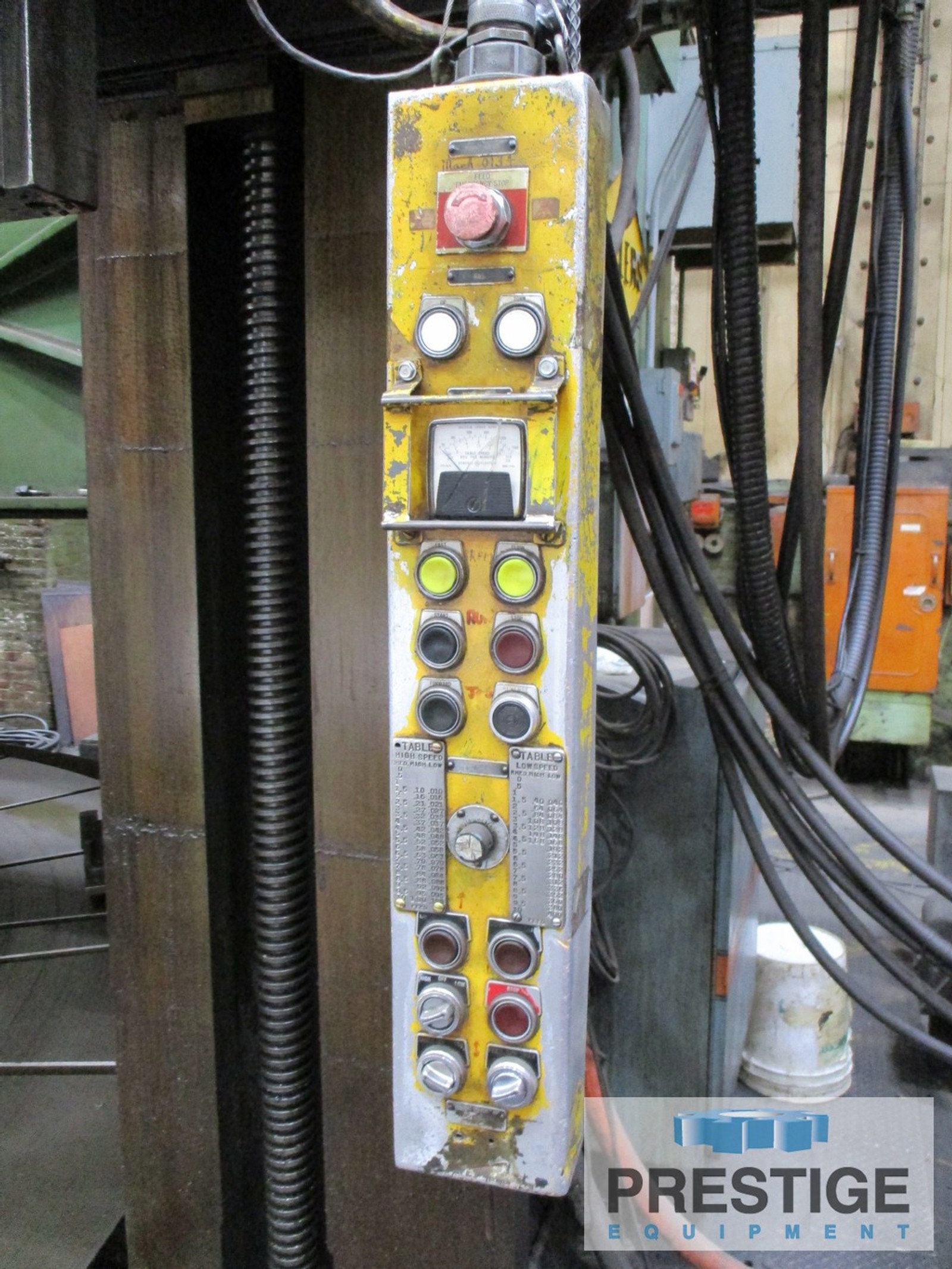

Full Pendant Controls For Each Ram

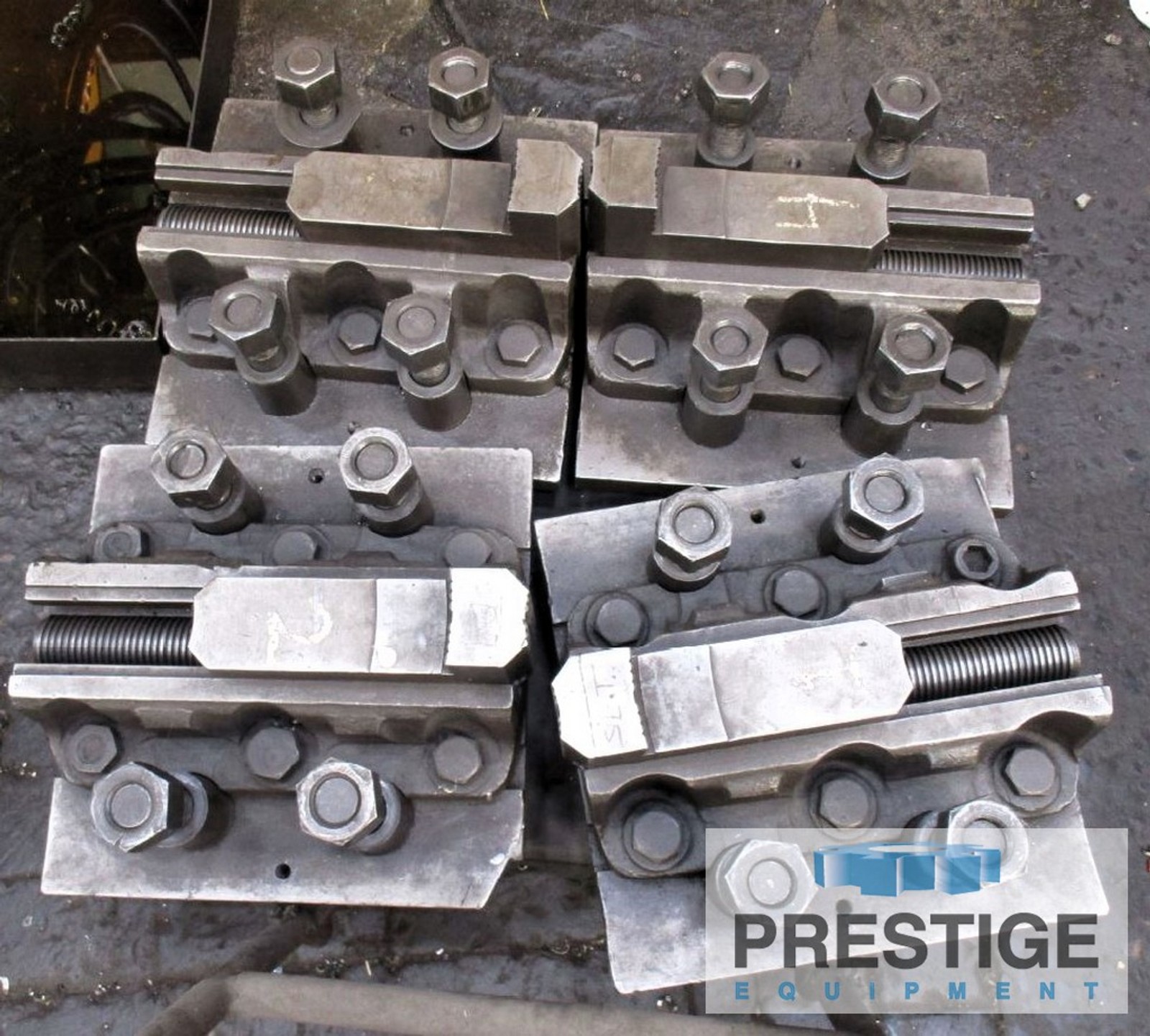

238" T-Slotted Table w/4-Top Chuck Jaws
Duplimatic E 360 Tracing Attachment
Power Rail Adjustment

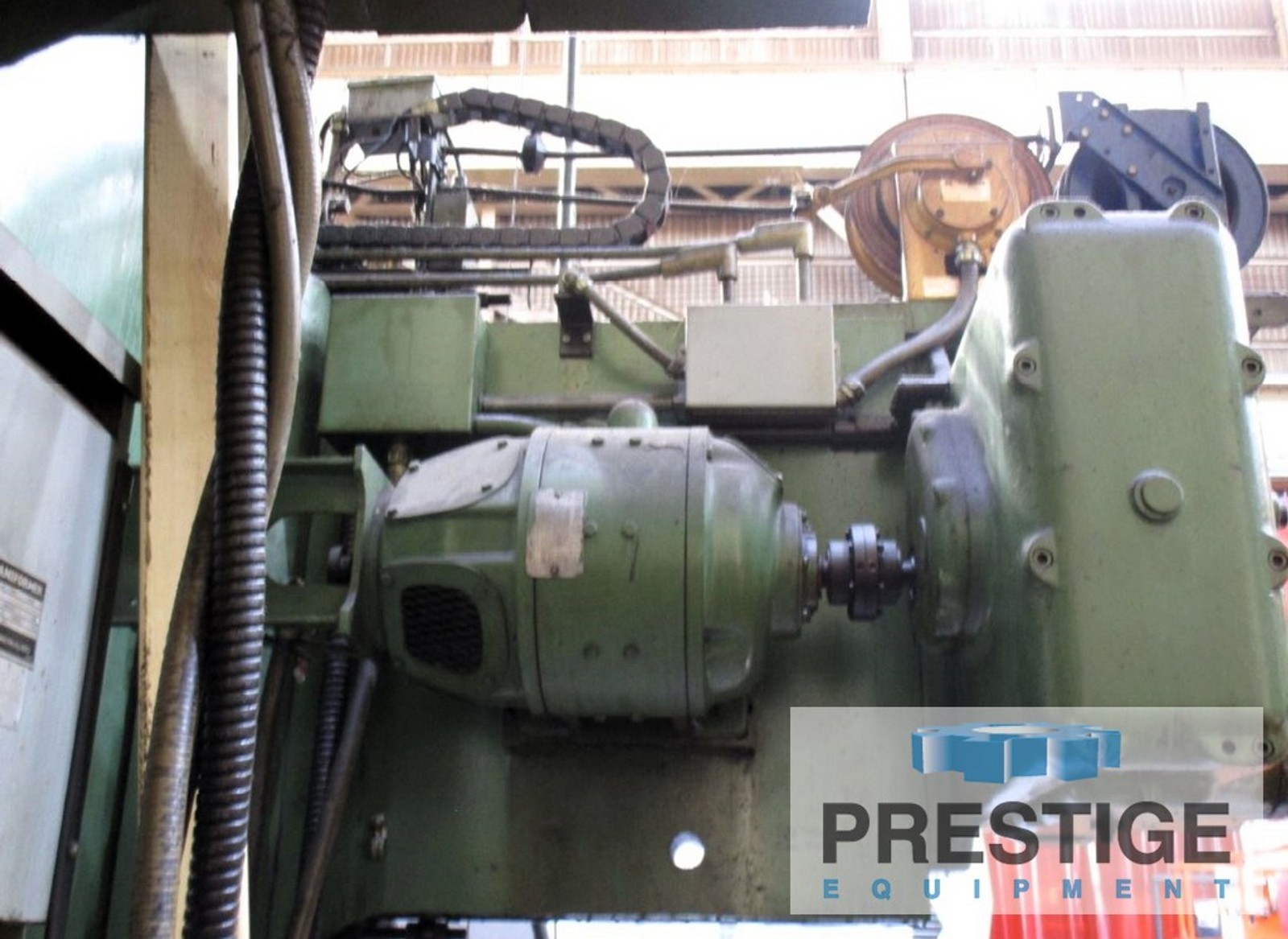

125 HP Table Drive DC
