Toshiba TUE-15, 59" Table, 70" Swing, Fanuc Oi-TC, Ram with 12 Sta. ATC, 60 HP, Chip Conveyor, 2008, #43442

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43442

Model

TUE-15

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43442

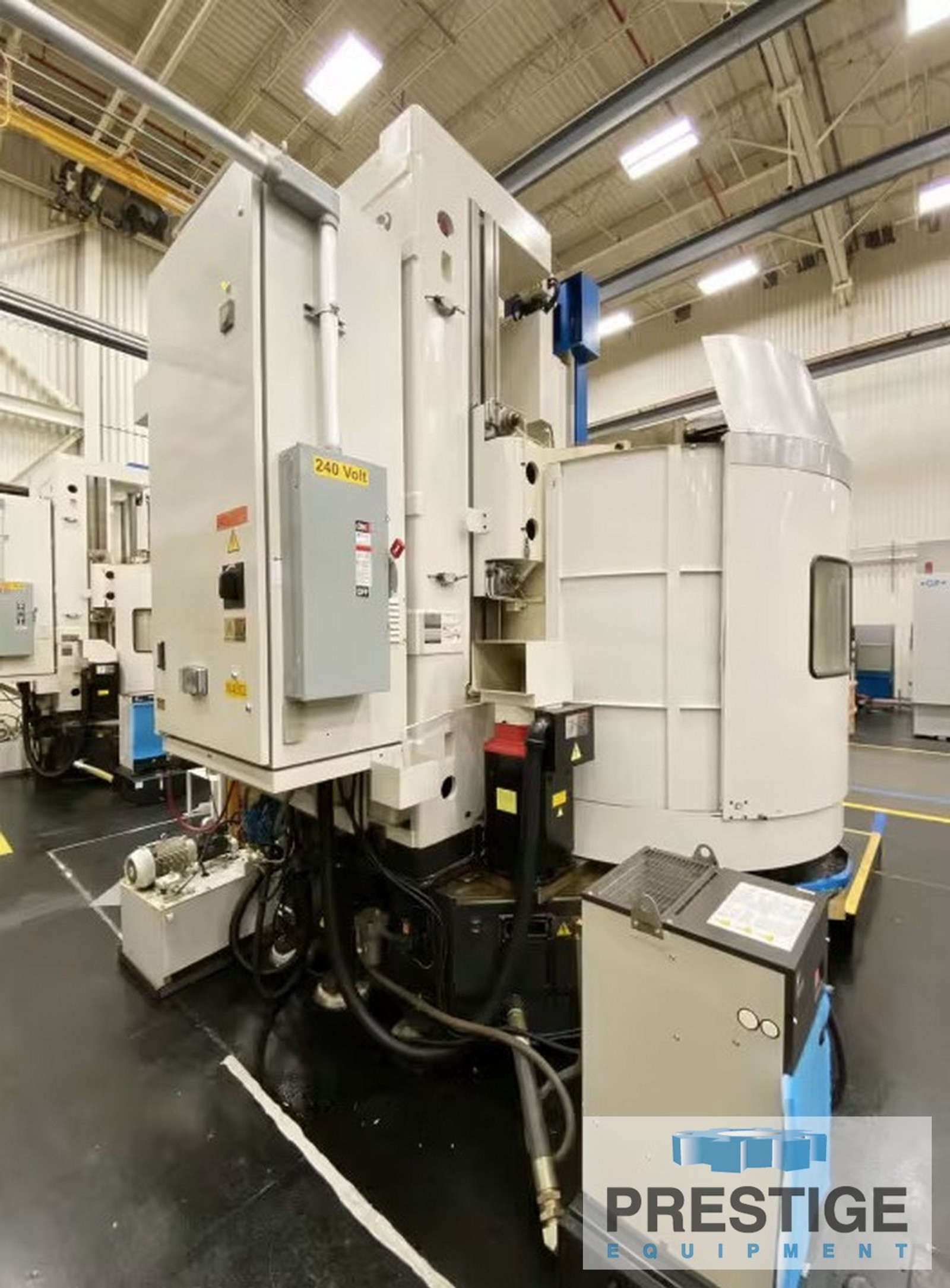

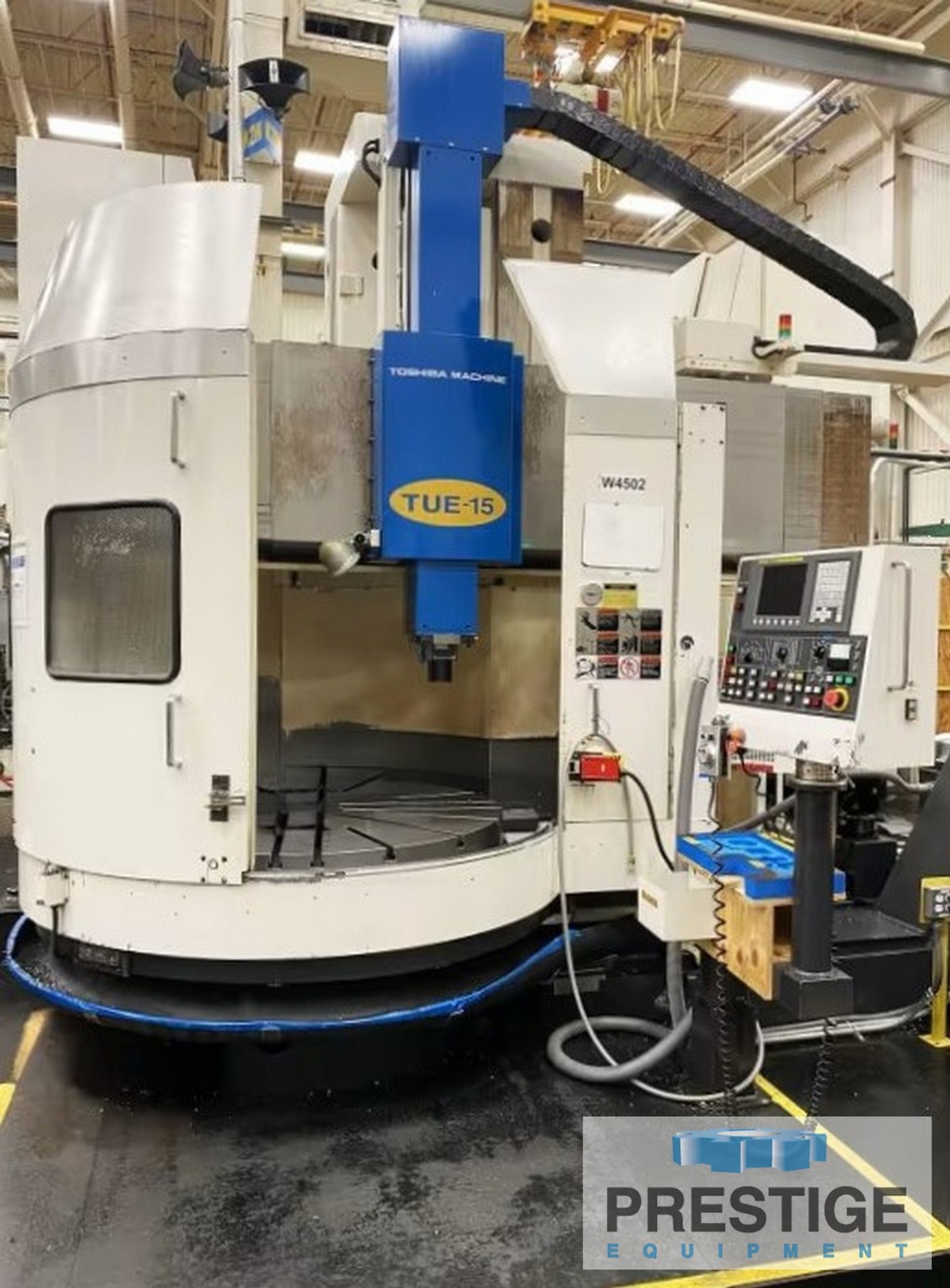

Toshiba TUE-15 CNC Vertical Boring Mill

FEATURES:
Fanuc 0i-TC CNC Control

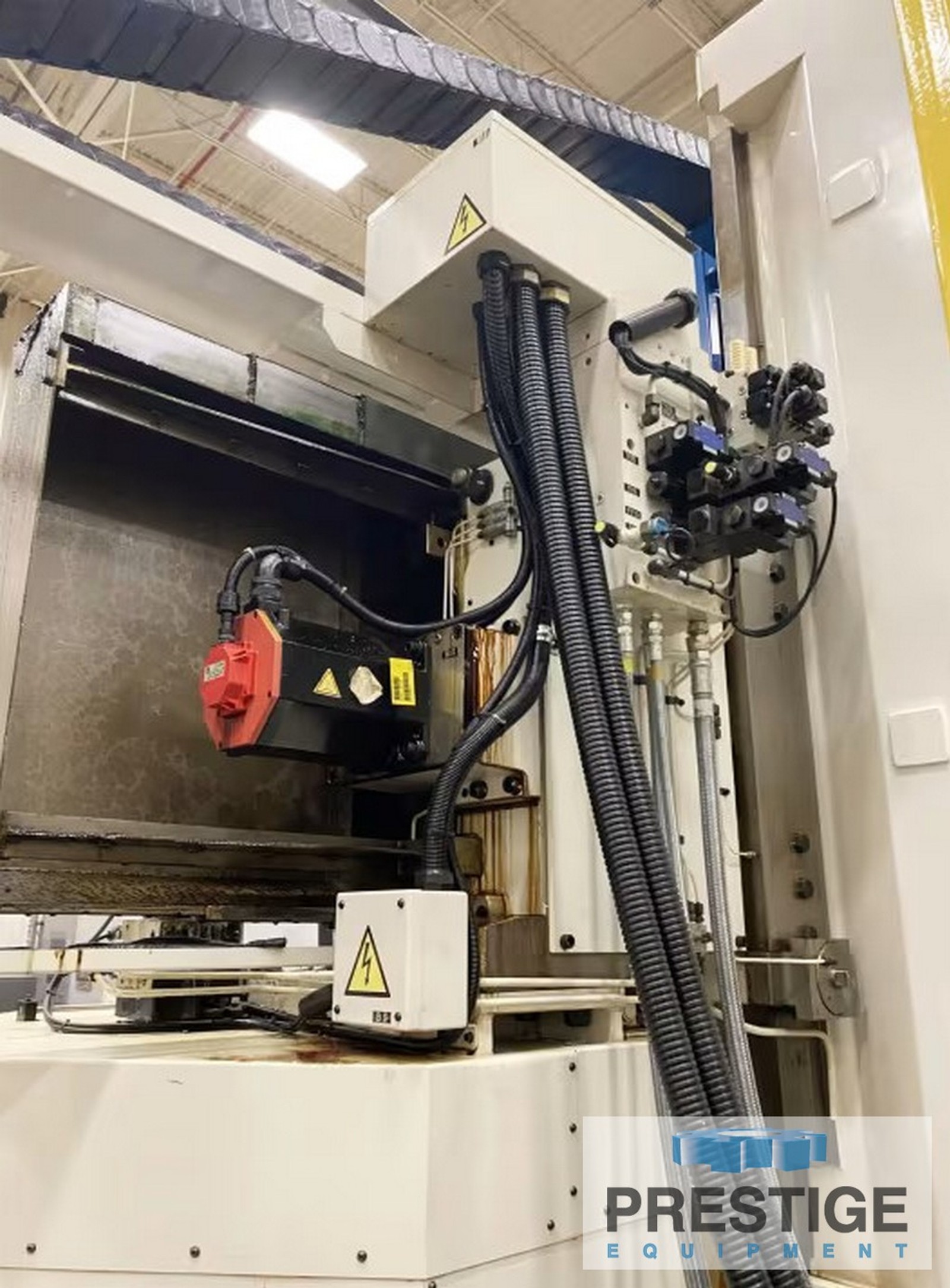

Ram W/ 12 Position Automatic Tool Changer
Chip Conveyor

SPECIFICATIONS:
Table Diameter ....................... 59.05"
Maximum Turning Diameter ............. 70.86"
Maximum Turning Height ............... 59.05"
Maximum Height Above Table ........... 67.71"
Table Speeds: (2-Ranges) ............. 2-300 RPM
Maximum Weight Capacity .............. 17,625 lbs
Ram Stroke ........................... 35.43"
Horizontal Ram Travel ................ 47.24"
Rail Travel .......................... 35.43"
Rapid Traverse (Tool Head) ........... 393.7 IPM
Machine Weight ....................... 37,454 lbs

EQUIPPED WITH:
Fanuc 0i-TC CNC Control
Ram W/ 12 Position Automatic Tool Changer

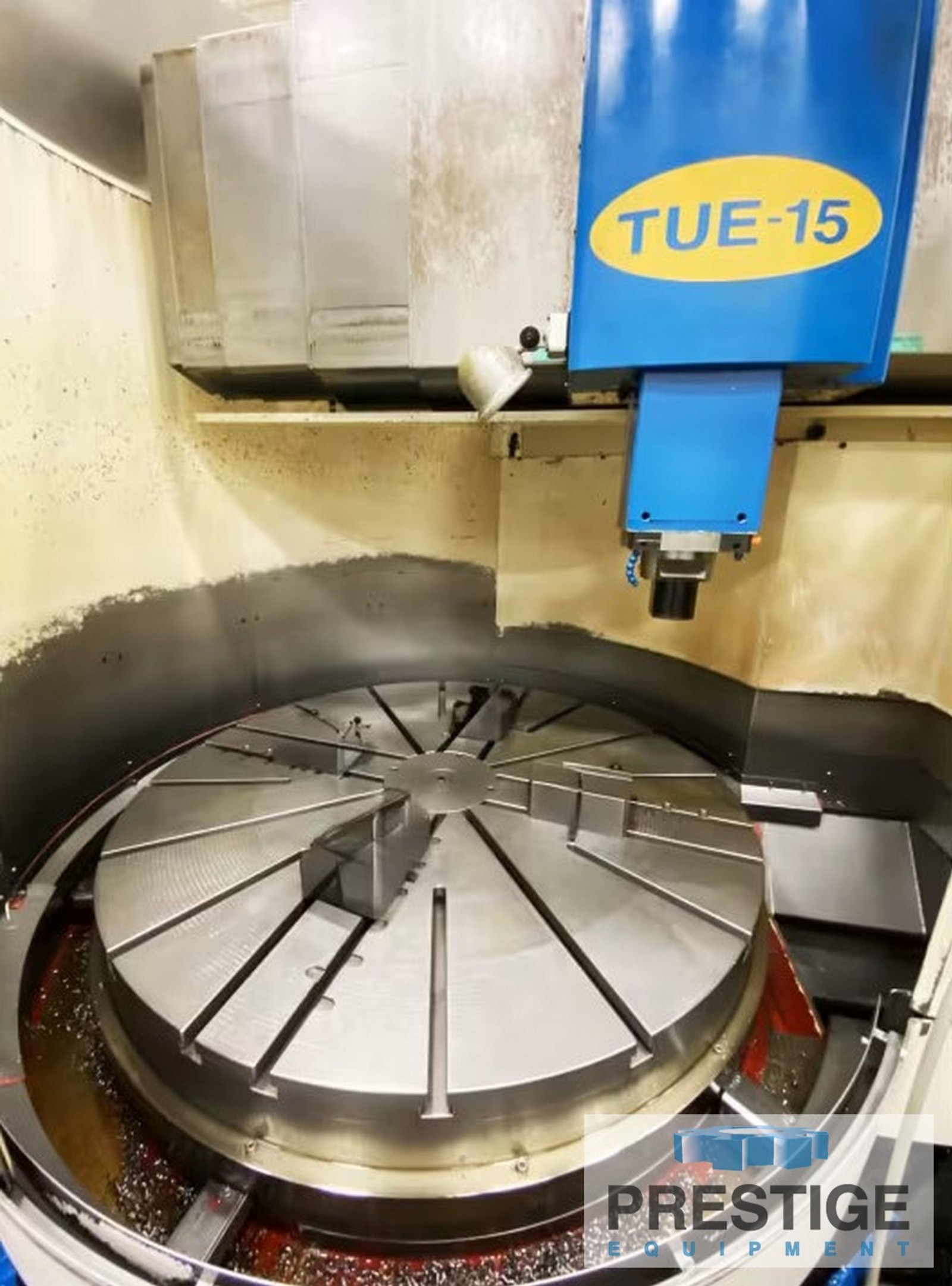

59.05" T-Slotted Table

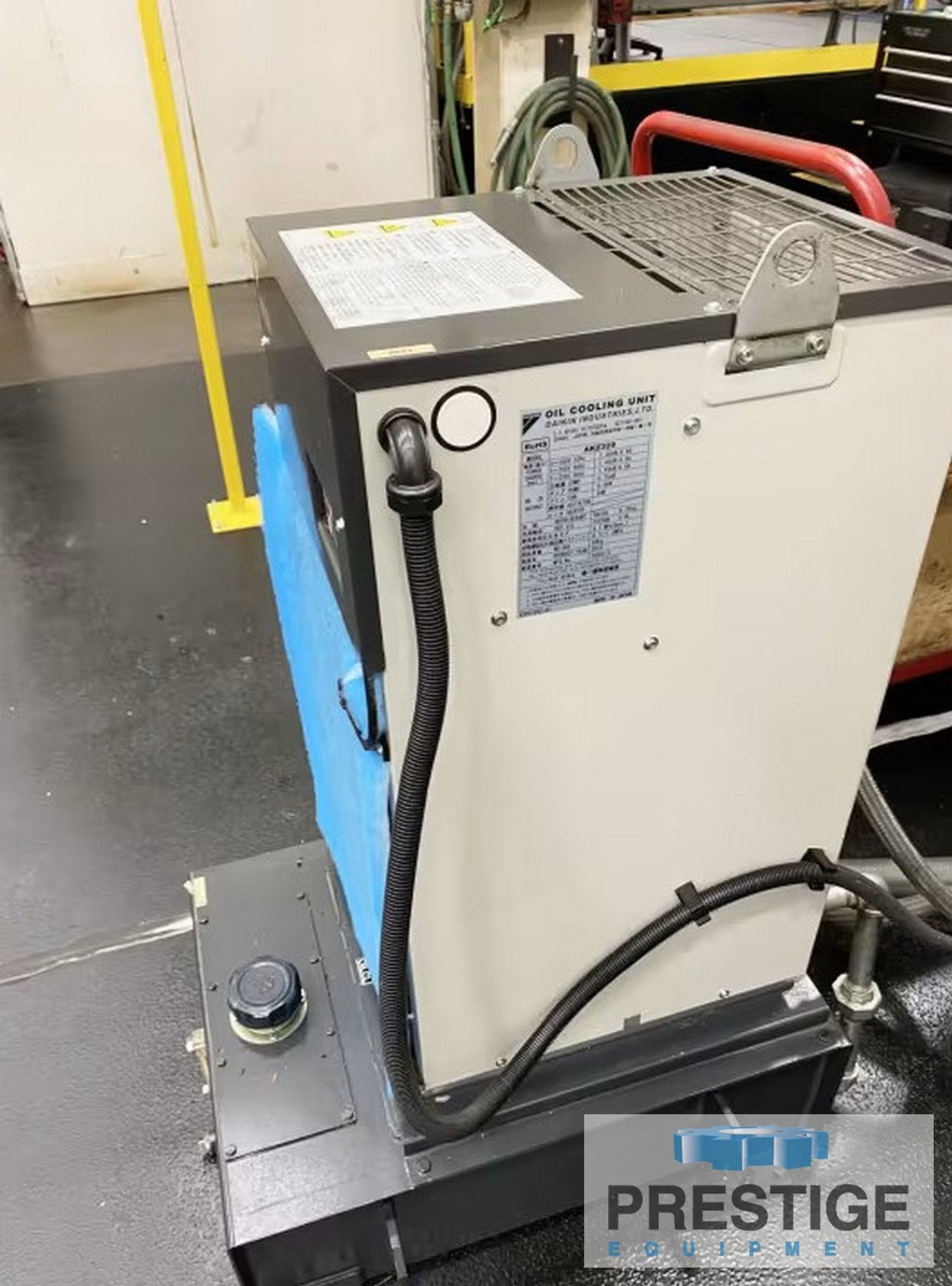

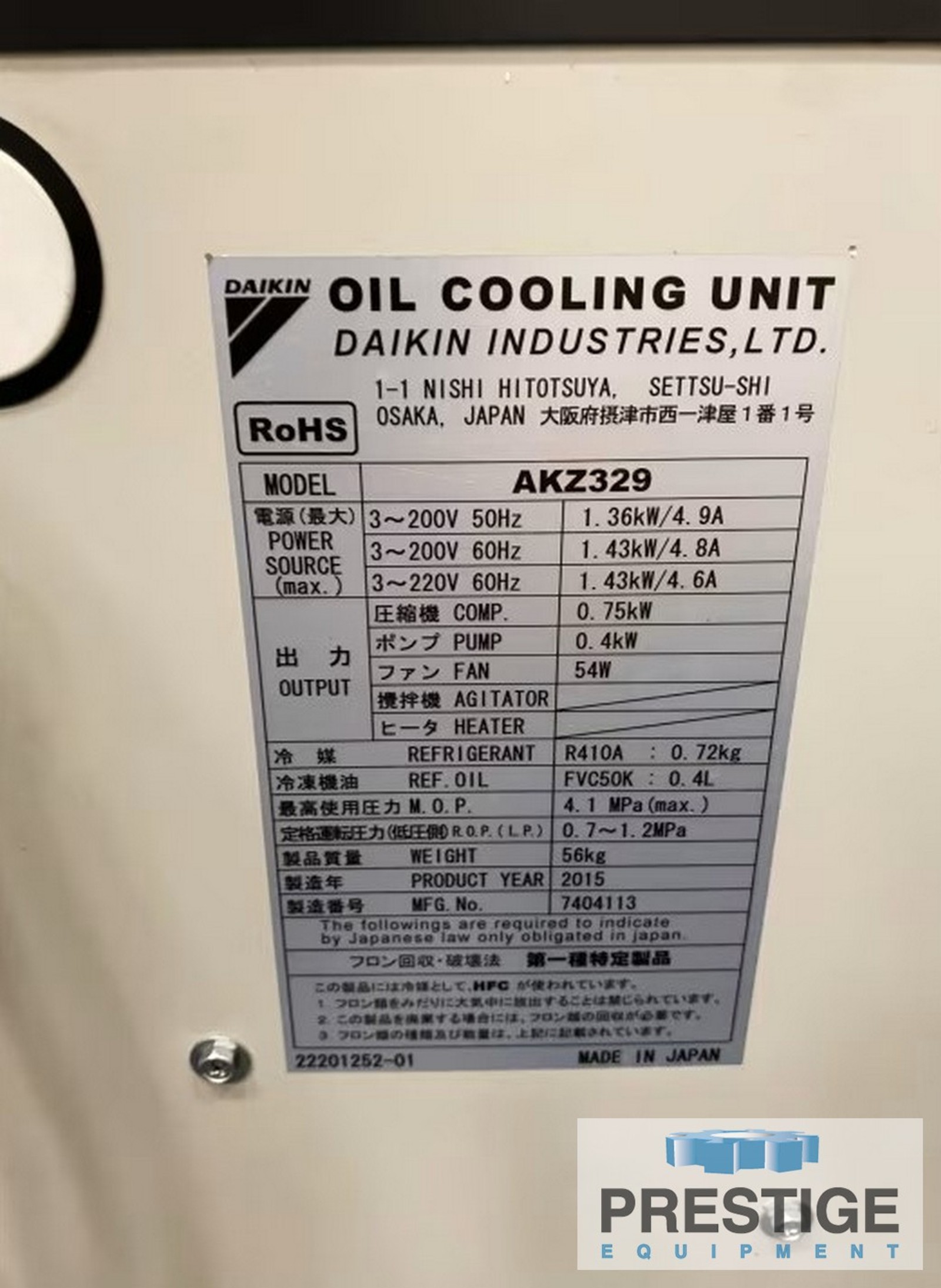

Dakin Oil Cooler
Chip Conveyor
Full Enclosure
Hardened Ways & Steel Way Covers
Ball Screws & Independent Servo Drives
50 HP / 60 HP Table Drive 220/3/60

No Video Available
