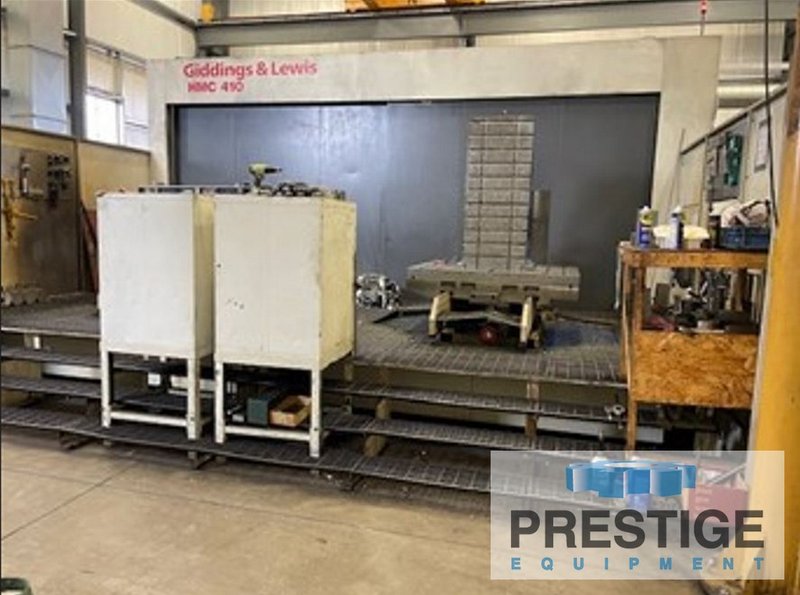

Giddings & Lewis 410, 120 ATC, X-129", Y82", Z-78", 63" x 49" Pallets, 4000 RPM, 50 HP, Fanuc 15M, #43365

Manufacturer

GIDDINGS & LEWIS

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43365

Model

HMC 410

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43365

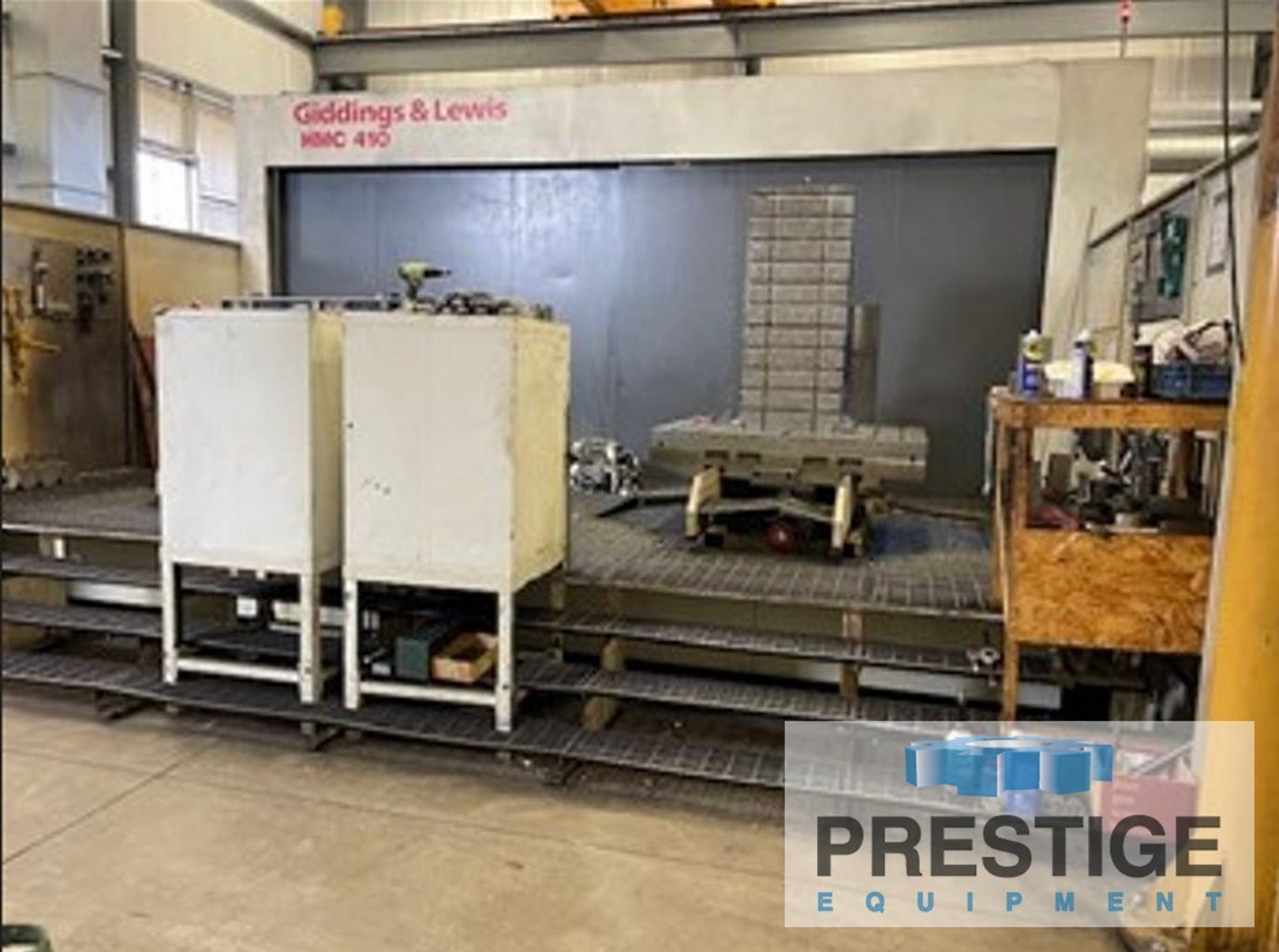

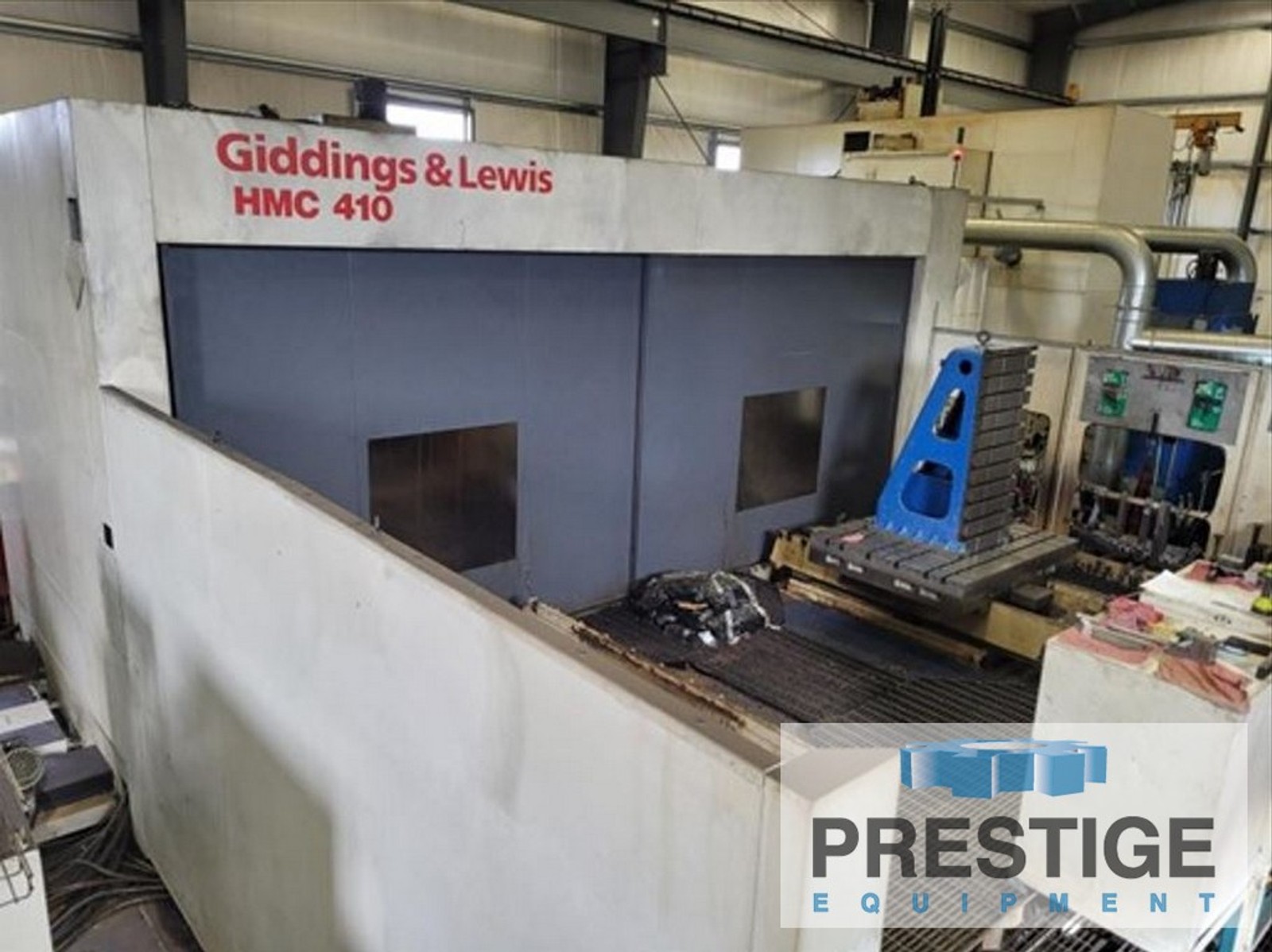

Giddings & Lewis 410 CNC Horizontal Machining Center w/63" x 49" Pallets

FEATURES:
100 Station Automatic Tool Changer
2-Pallet Shuttle 62.99" x 49.21"
Thru-Spindle Coolant
Linear Scales
Fanuc 16M CNC Control

SPECIFICATIONS:
X-Axis, Cross Travel of Pallet ....... 129.92"
Y-Axis, Vertical Head Travel ......... 82.67"
Z-Axis, Column Infeed ................ 78.74"
B-Axis, Pallet Rotation ............. 360,000
Spindle Taper ........................ ANSI B5.50
Pallet Size .......................... 62.99" x 49.21"
Number of Pallets .................... 2
Maximum Swing of In Load Area ........ 118.11"

Pallet Weight Capacity ............... 15,430 Lbs
Feed Rates All Axes .................. .001-630 IPM
Rapid Traverse All Axes .............. 1260 IPM
Spindle Speeds, Infinitely Variable .. 30-6000 RPM
Maximum Rotatable Part Size .......... 118.11"


EQUIPPED WITH:
Fanuc 16iM 4-Axis CNC Control

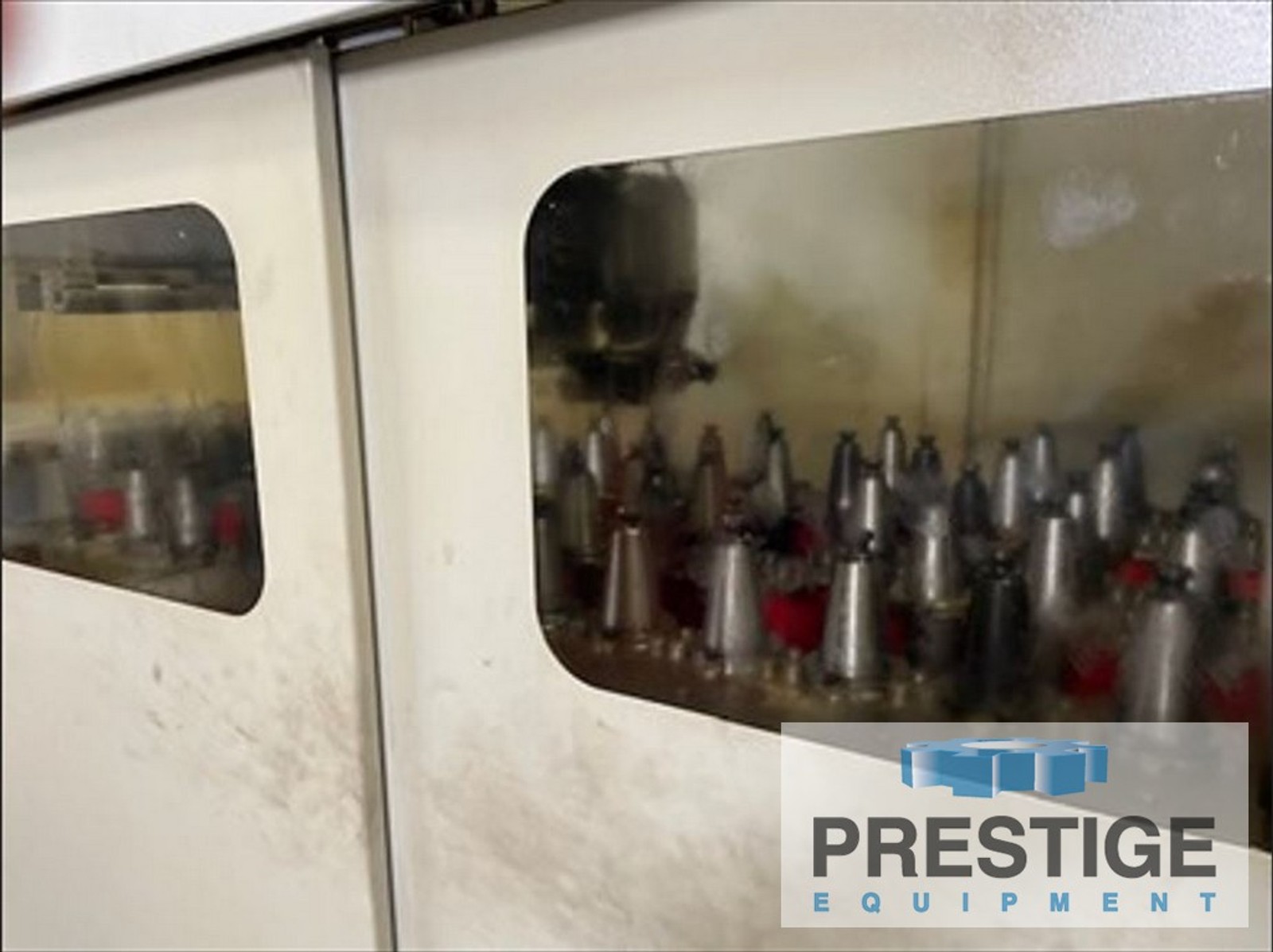

120 Station Automatic Tool Changer
Pallet Shuttle Changer
Thru-Spindle Coolant, 70 Bar,(1015 PSI)
Paper Filtration
Linear Scales All Axis
Renishaw Part Probe
Chip Conveyer
50 HP/60 HP AC Spindle Motor
