Kafo KG5A-2232 5-Axis, X-86", Y-126", Kessle 2-Axis Head, 12,000 RPM, Heidenhain TNC-640, 32 ATC, 2019, #43439

Manufacturer

KAFO

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43439

Model

KG5A-2232

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43439

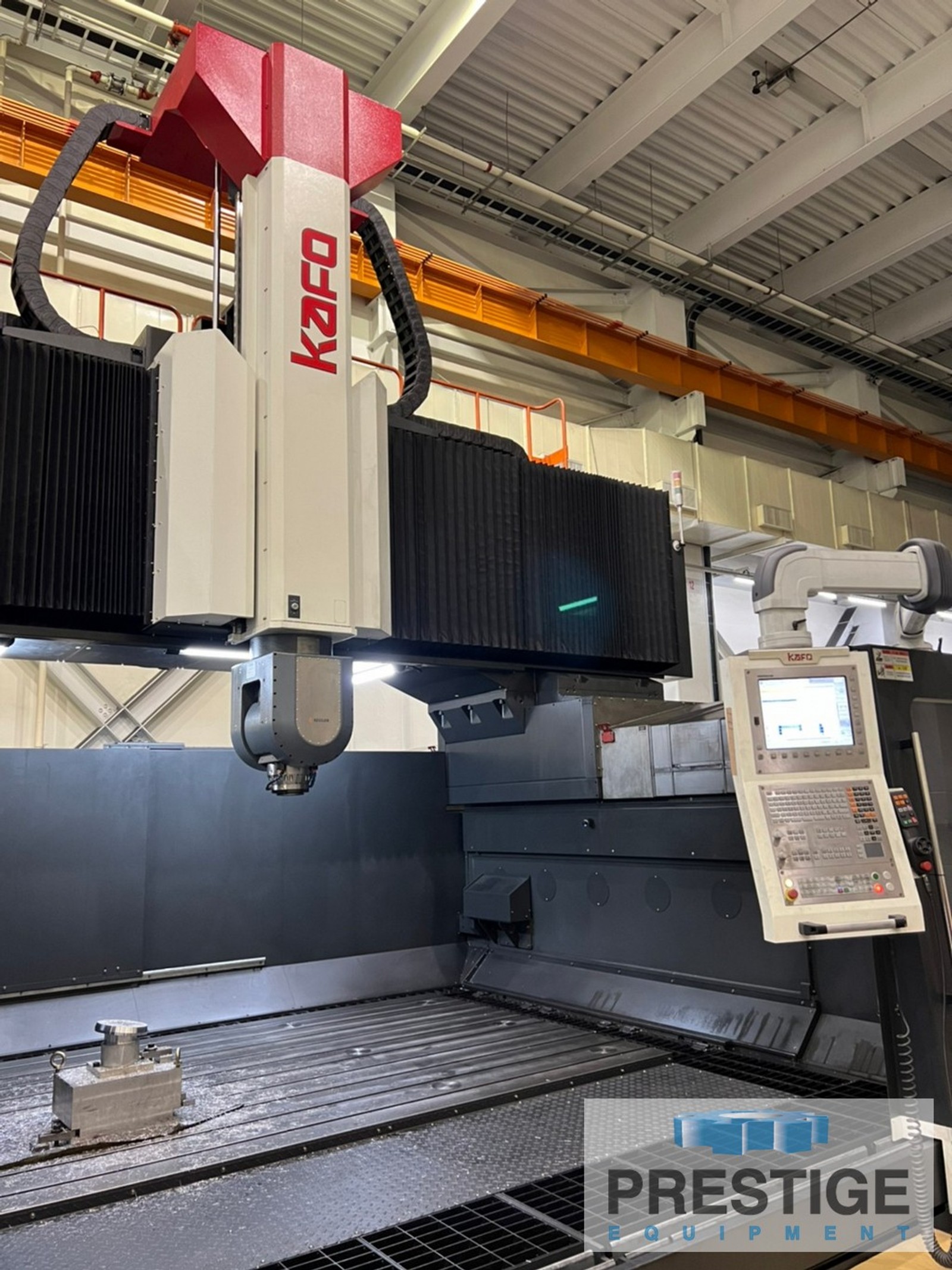

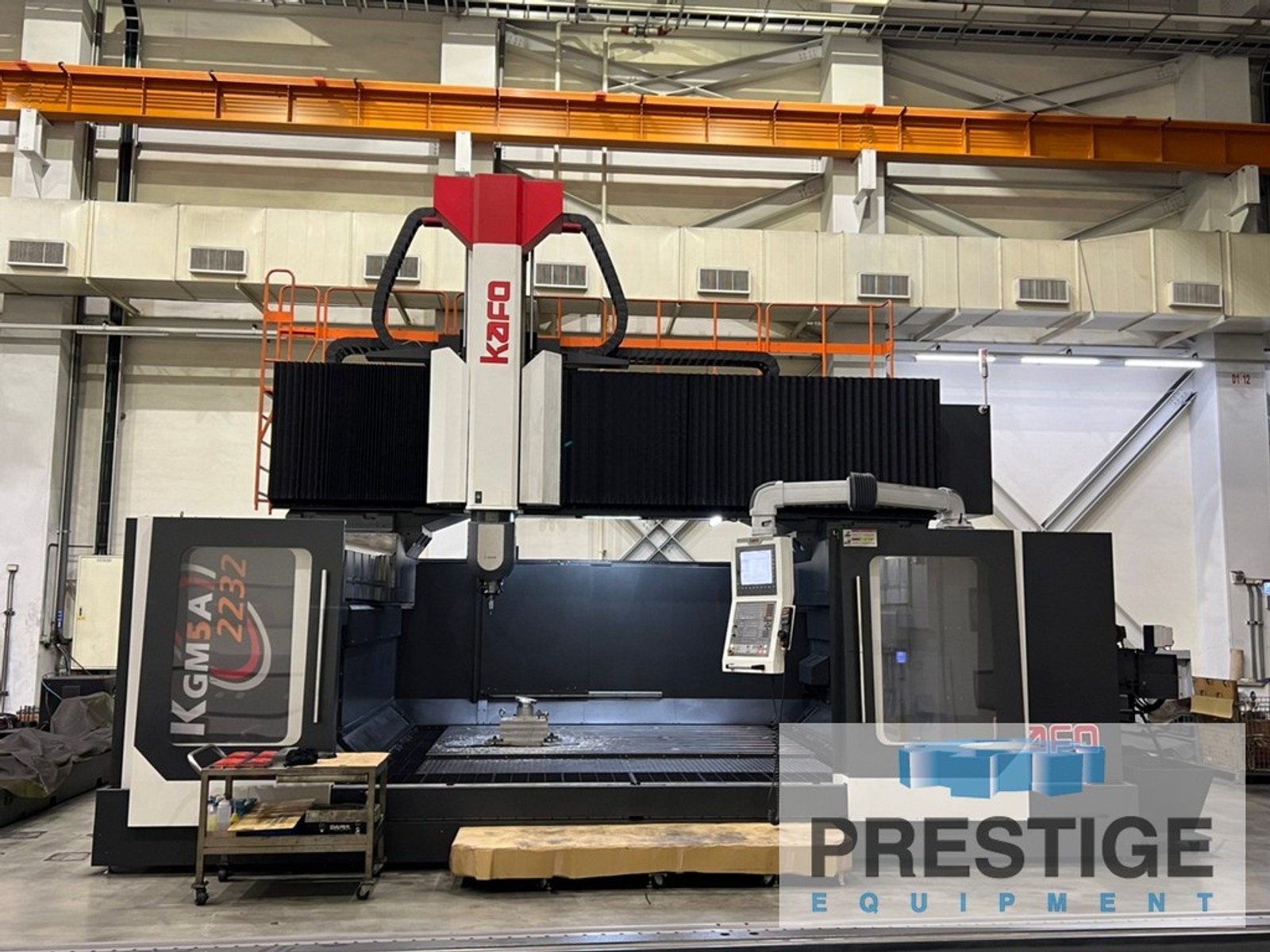

Kafo KG5A-2232 5-Axis CNC Double Column Vertical Machining Center

FEATURES:

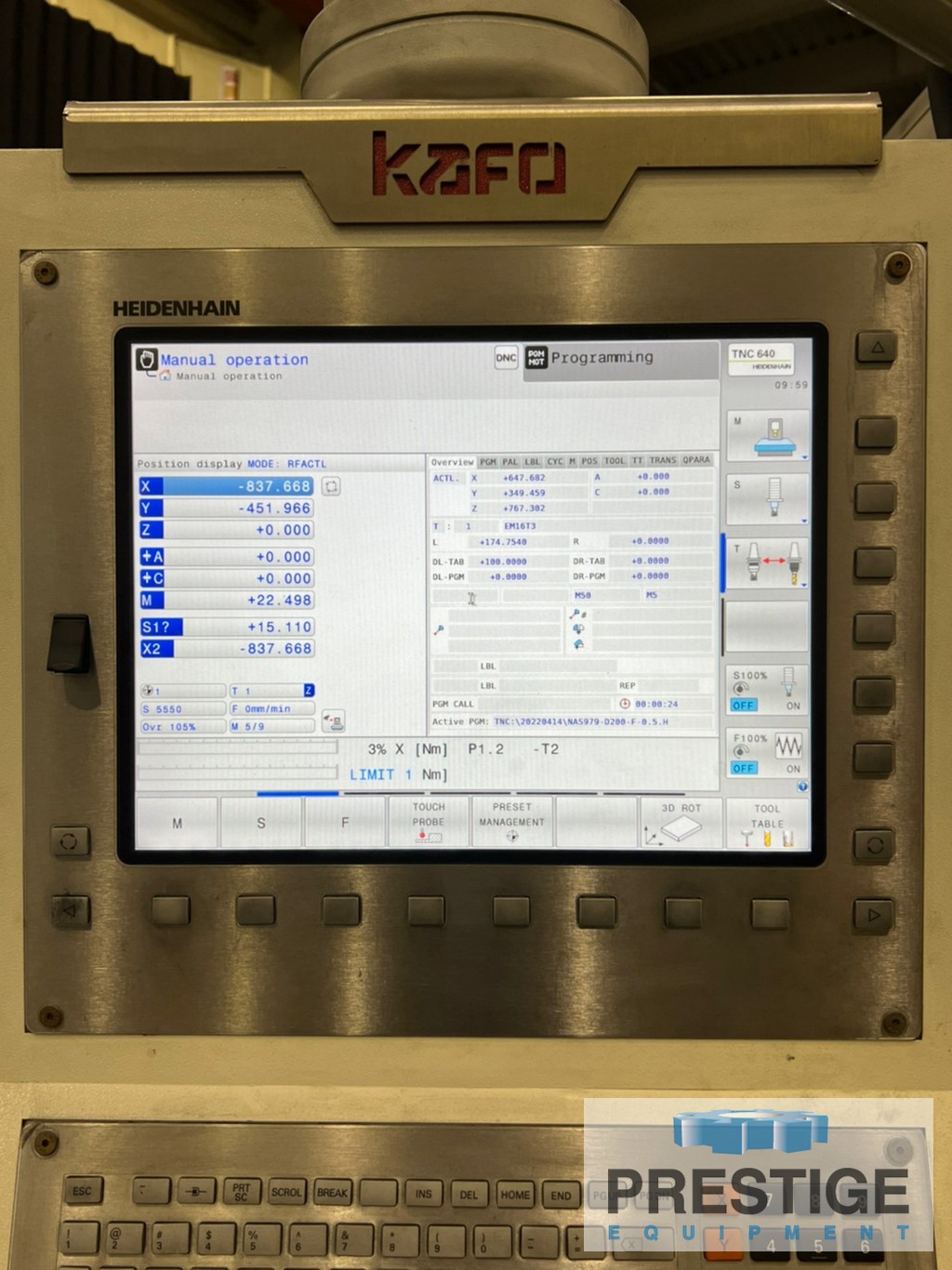

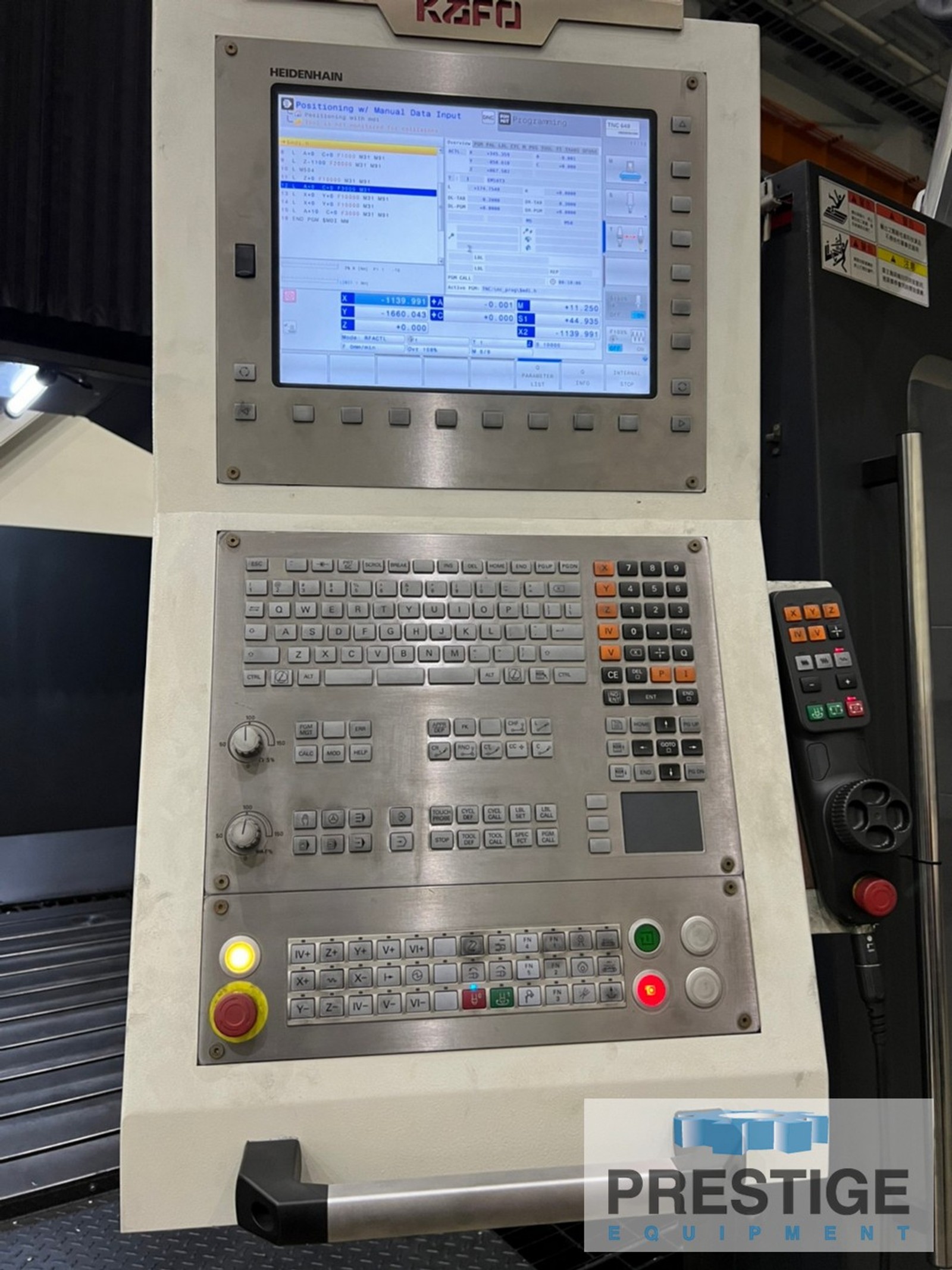

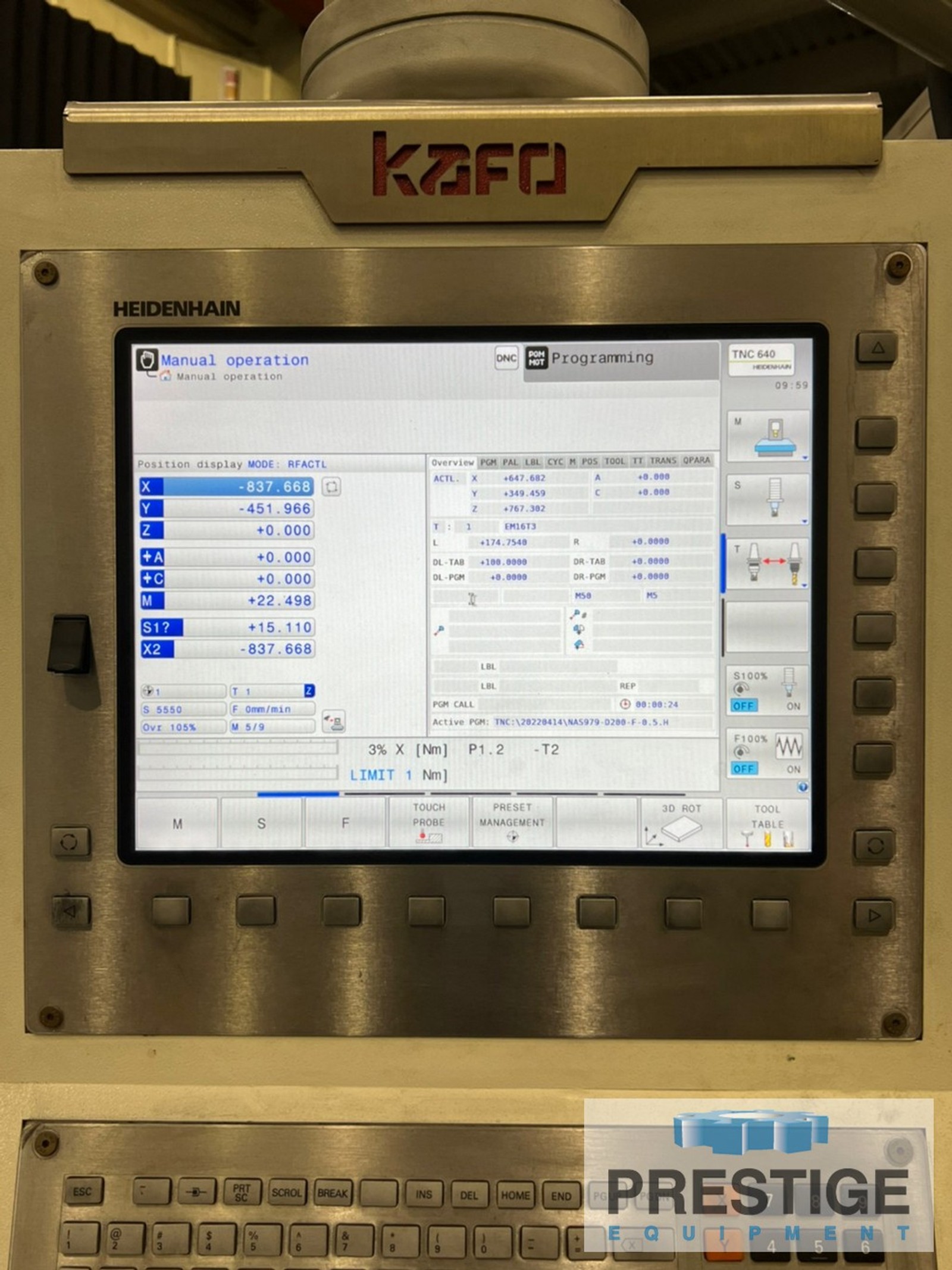

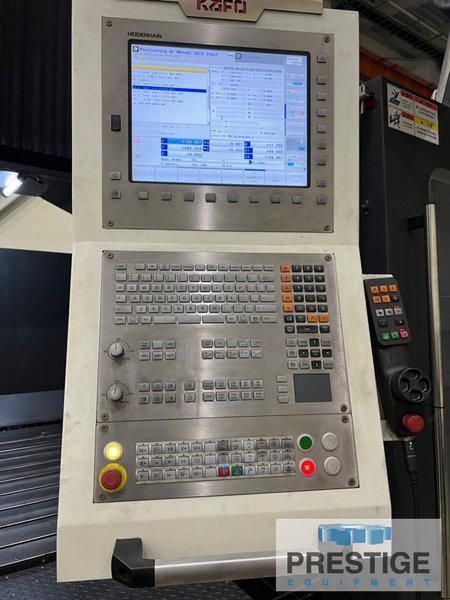

Heidenhain TNC-640 5-Axis CNC Controls

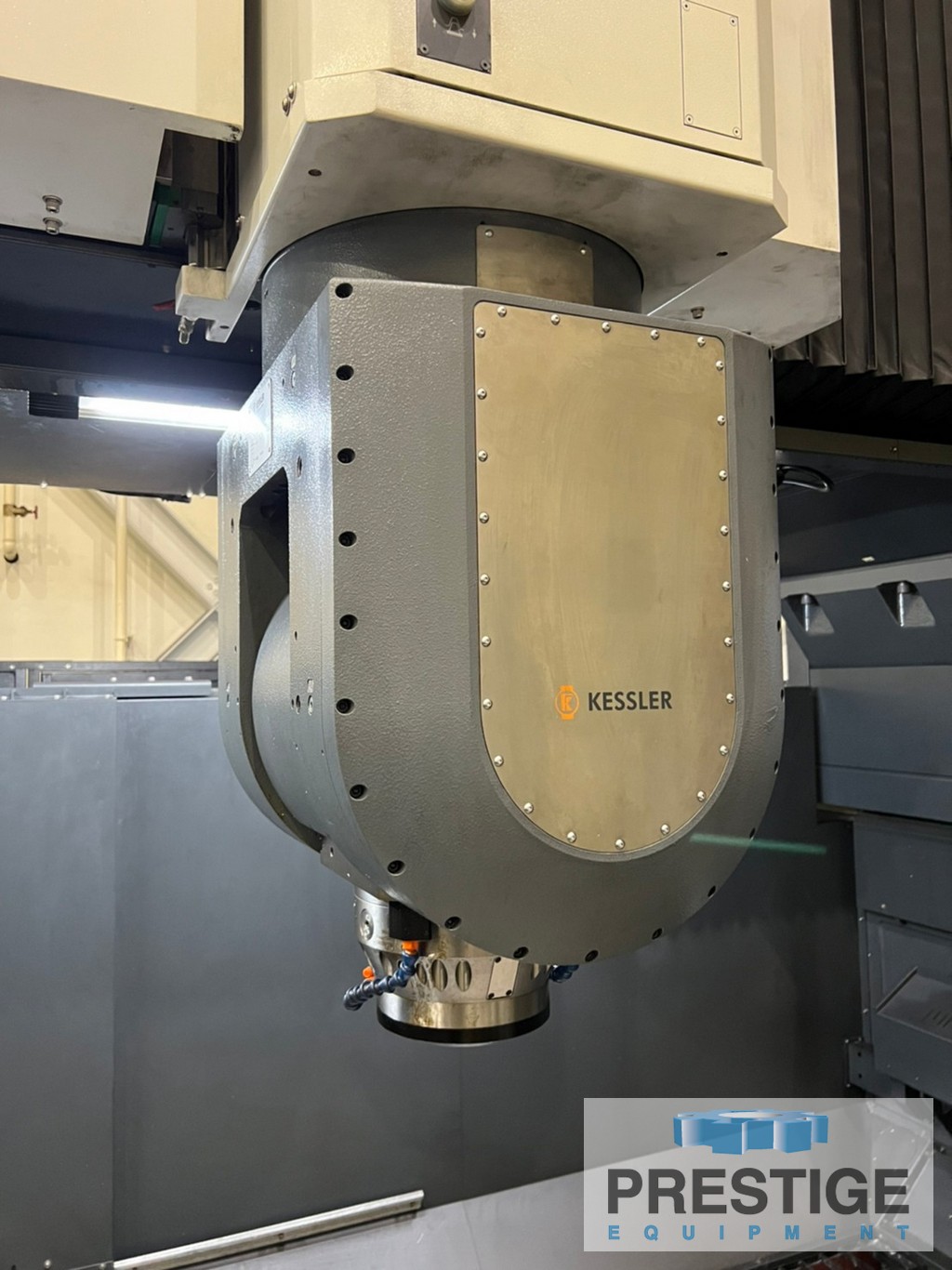

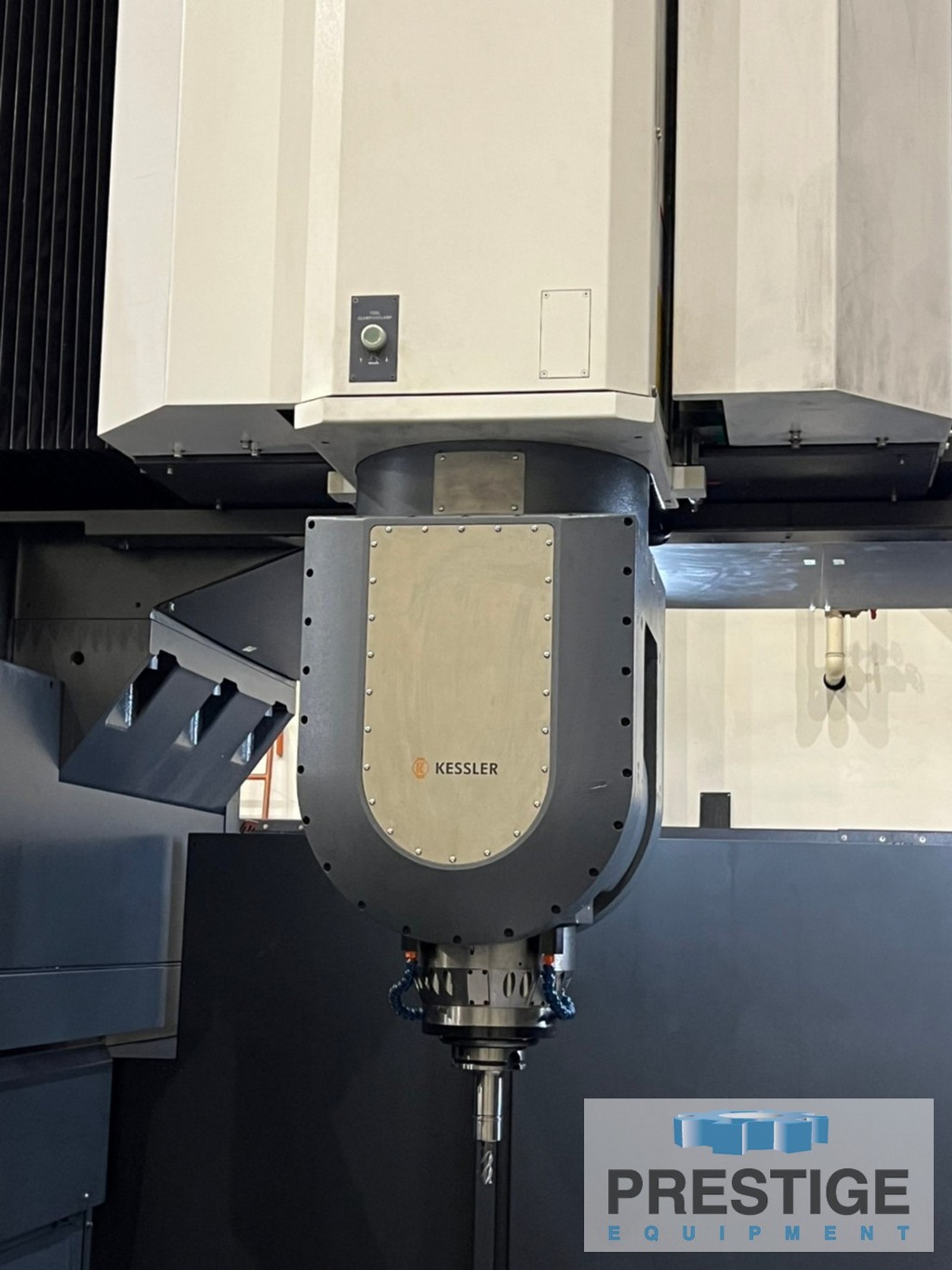

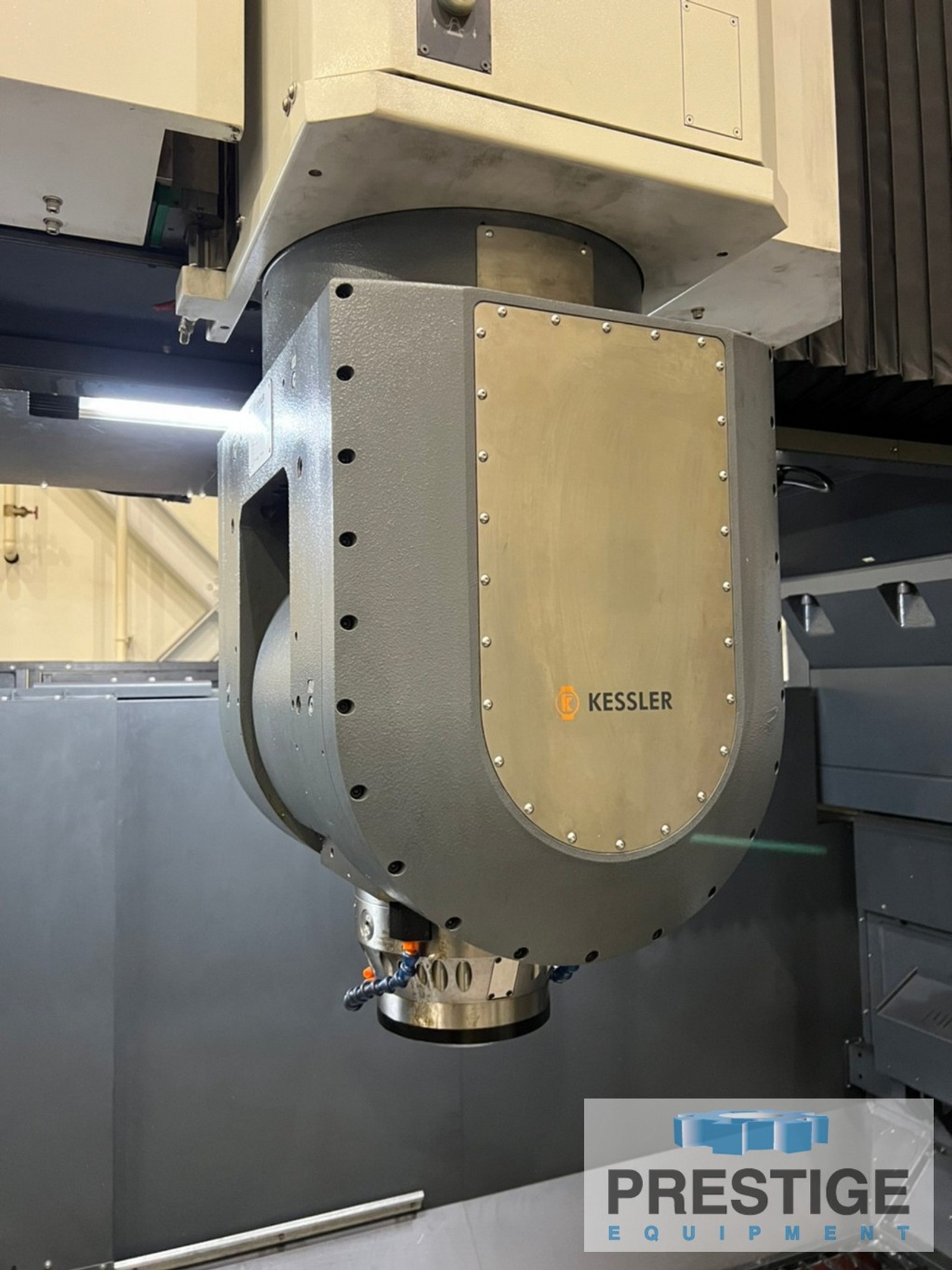

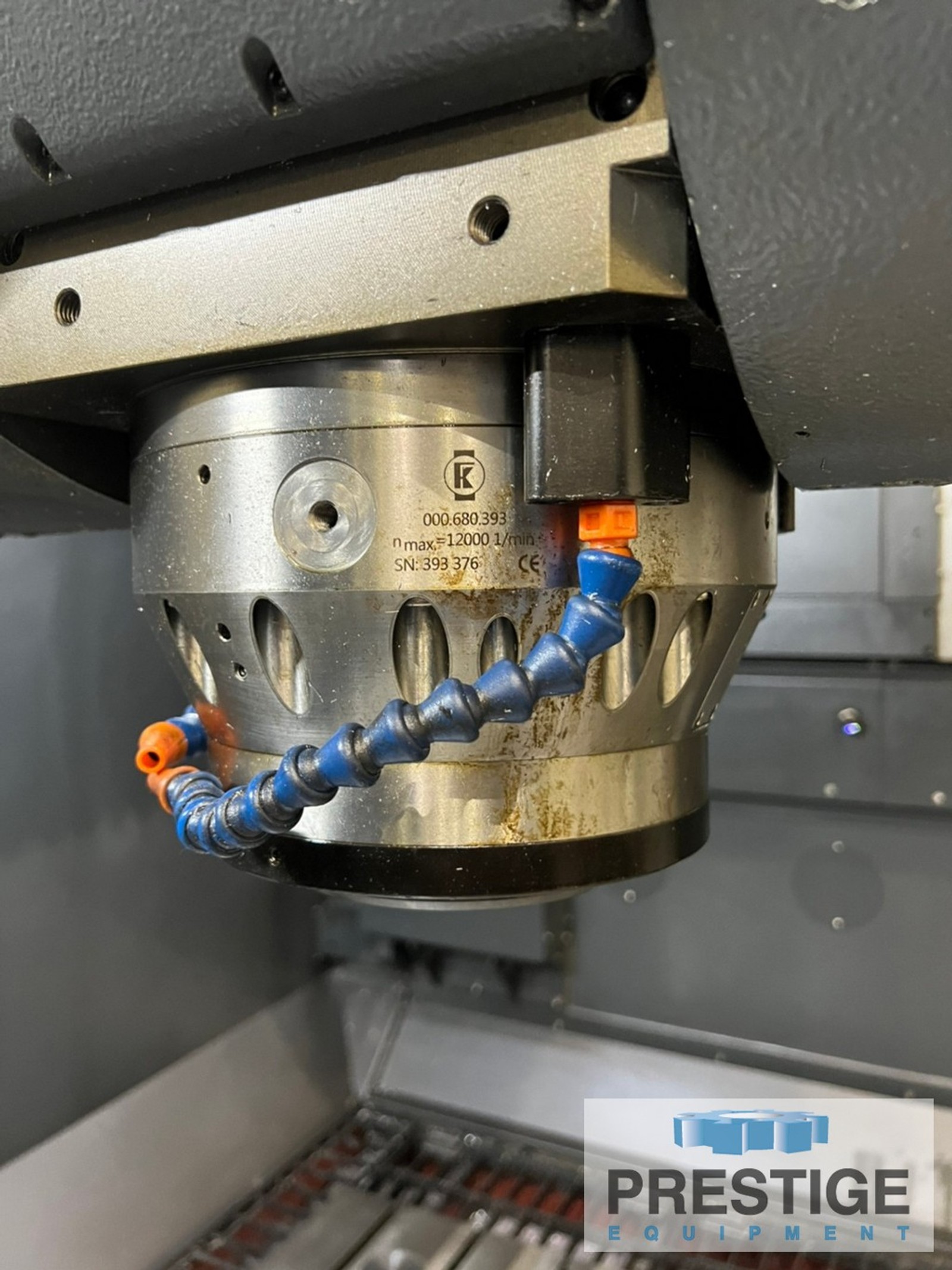

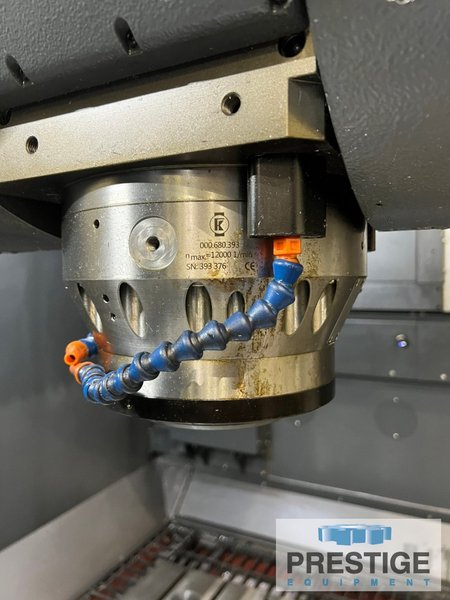

Kessle A/C Head (A-Axis, +/-105, C-Axis +/-200)

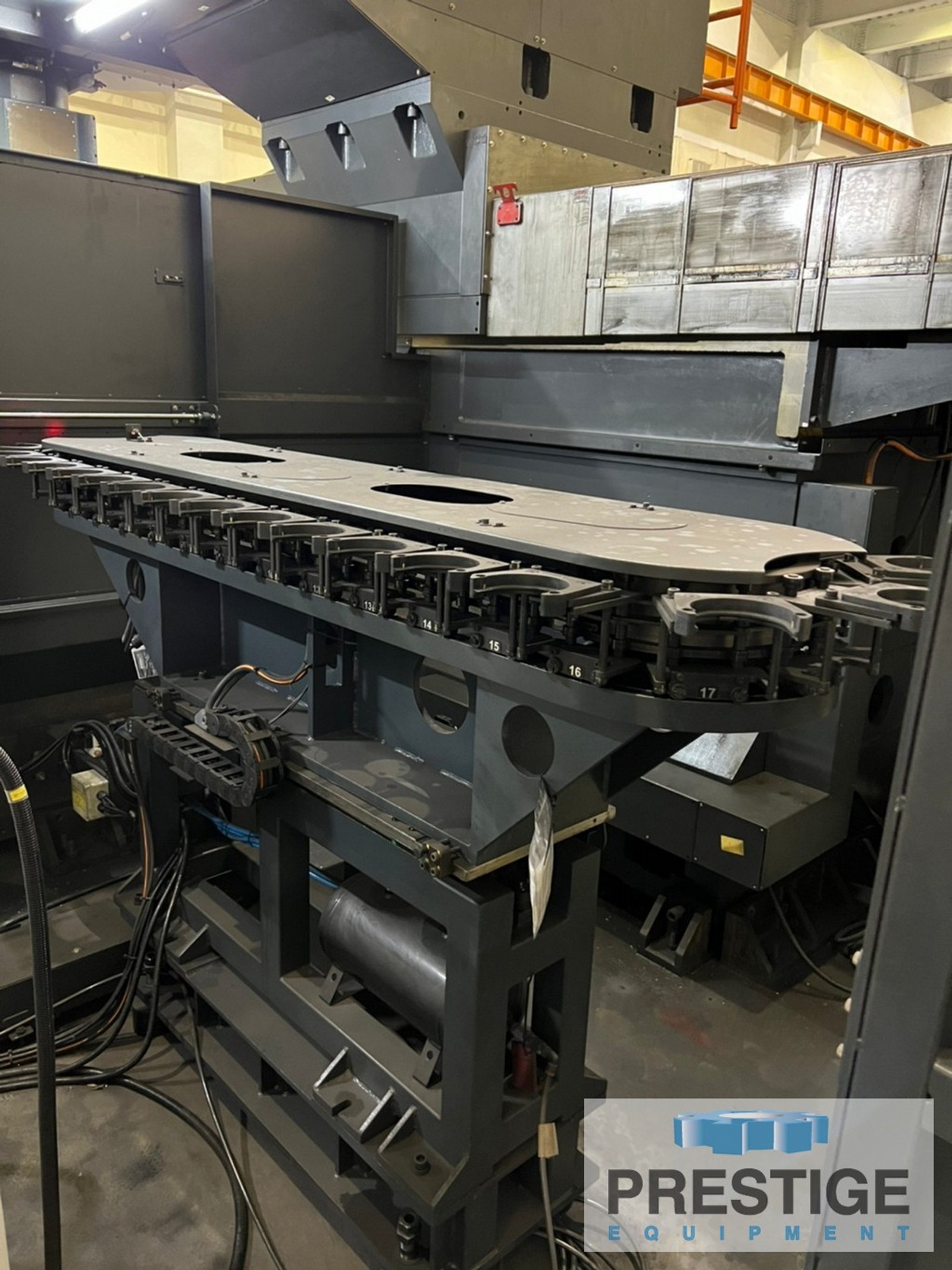

32 Station Automatic Tool Changer
3-Axis Linear Roller Guide Ways

SPECIFICATIONS:
X-Axis Travel ......................... 86.61"
Y-Axis Travel ......................... 125.98"
Z-Axis Travel ......................... 43.30"
A-Axis Travel ......................... +/-105 Degrees
C-Axis Travel ......................... +/-200 Degrees
Distance Between Columns .............. 157.48"
Table Size ............................ 82.67" x 122.04"
Max. Load on Table .................... 5,500 Lbs.
Spindle Speed ......................... 12,000 RPM
Spindle Drive Motor.................... 40 HP
Spindle Taper ......................... HSKA 100
Rapid Traverse (X,Y,Z) ................ 787.40 IPM
Cutting Feed Rate (X,Y,Z) ............. 393.70 IPM
Machine Dimensions .................... 324" x 320" x 230"
Approx. Machine Weight ................ 150,000 Lbs.

EQUIPPED WITH:
Heidenhain TNC-640 5-Axis CNC Controls
Kessle A/C Head (A-Axis, +/-105, C-Axis +/-200)
32 Station Automatic Tool Changer
3-Axis Linear Roller Guide Ways
