Hankook VTC125E, 49" Table, 63" Swing, 55" U.R, 8.6" x 8.6" Ram, C-Axis, Milling, 24 ATC, Fanuc 32iA CNC, 2015, #43434

Manufacturer

HANKOOK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43434

Model

VTC125E

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43434

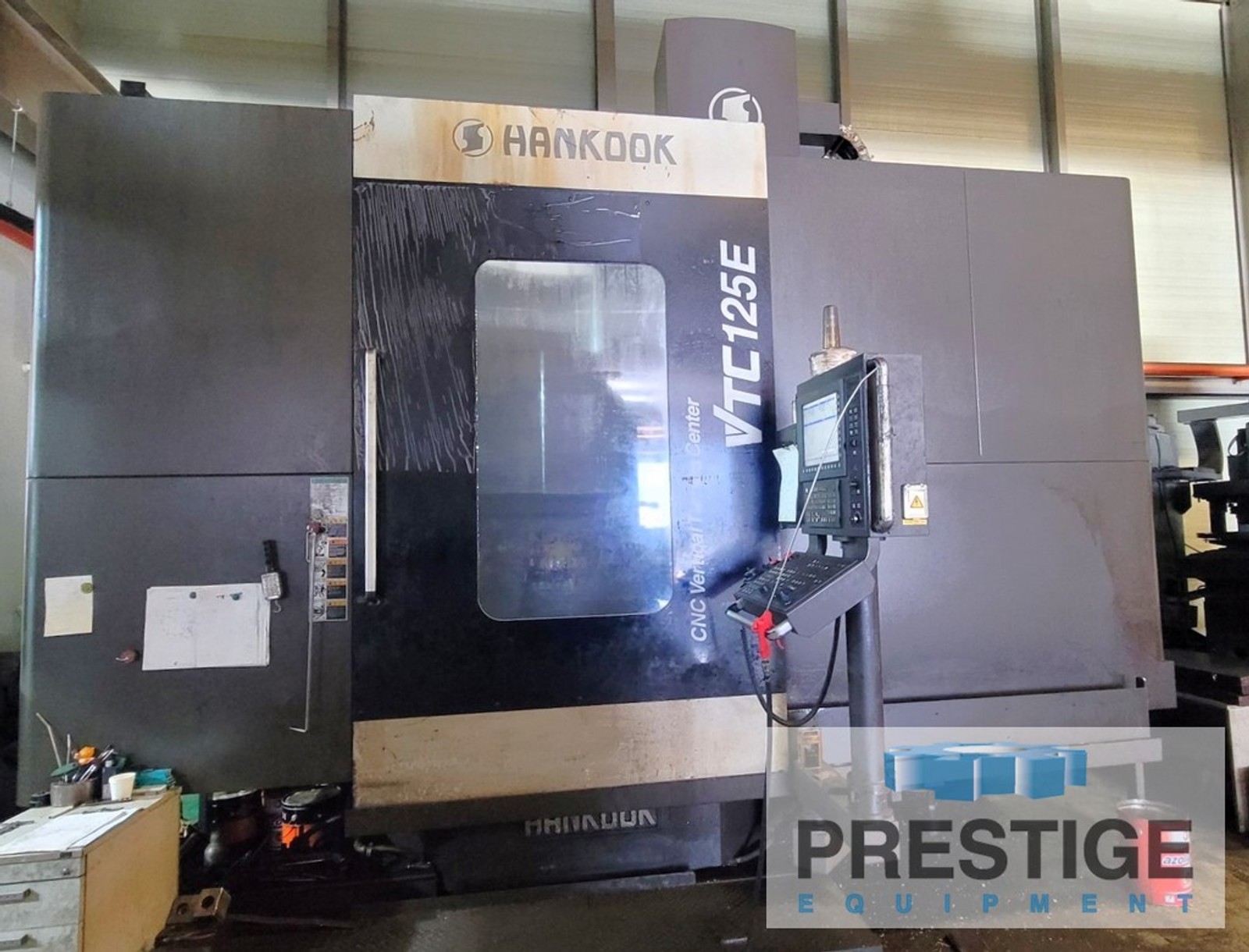

Hankook 49" VTC-125E CNC Vertical Turning & Milling Center

FEATURES:

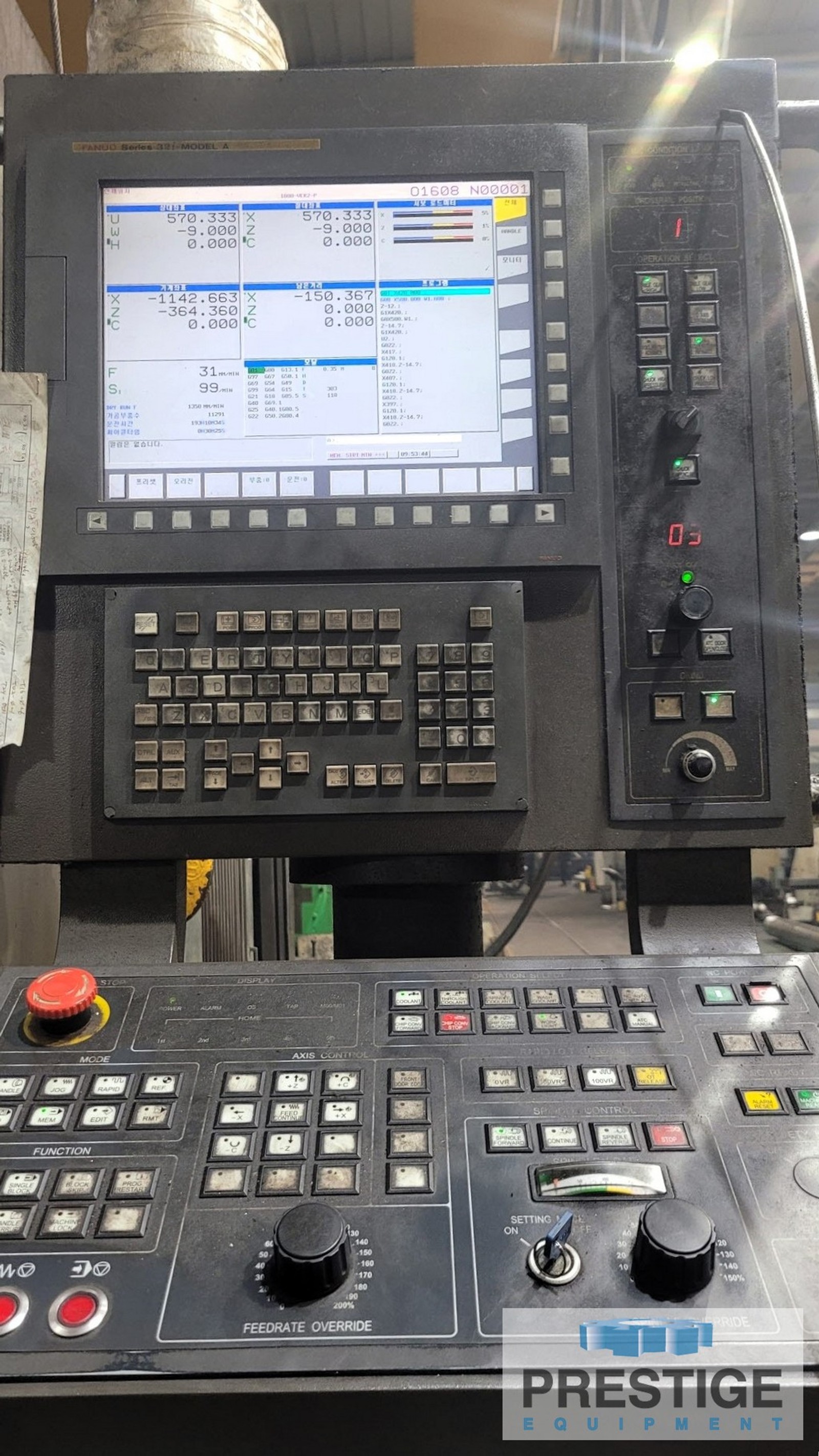

Fanuc 32i-A CNC Control
Ram with 24 Station Automatic Tool Changer

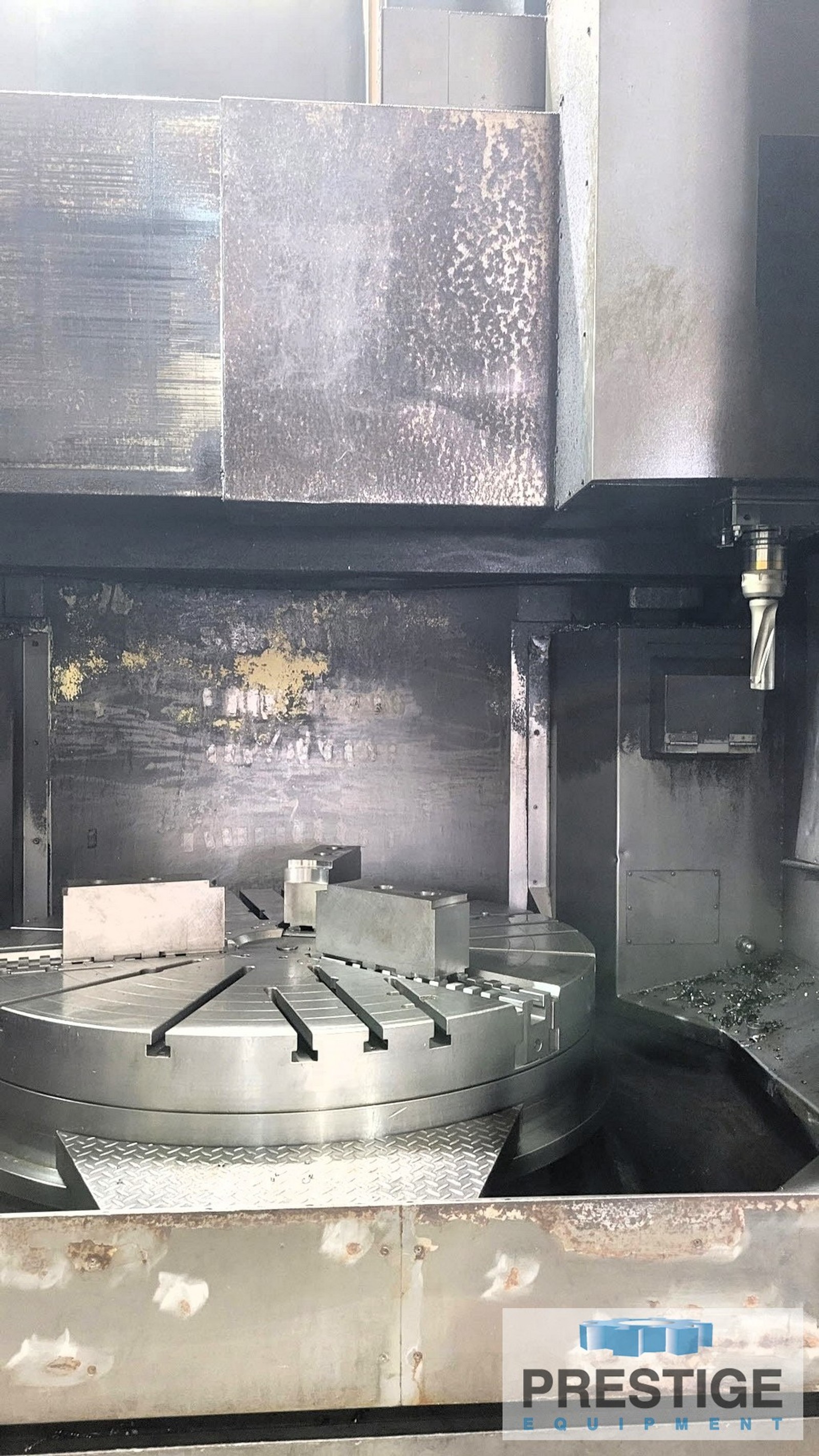

49.21" 3-Jaw Hydraulic Chuck
C-Axis Table Rotation
Grinding Attachment

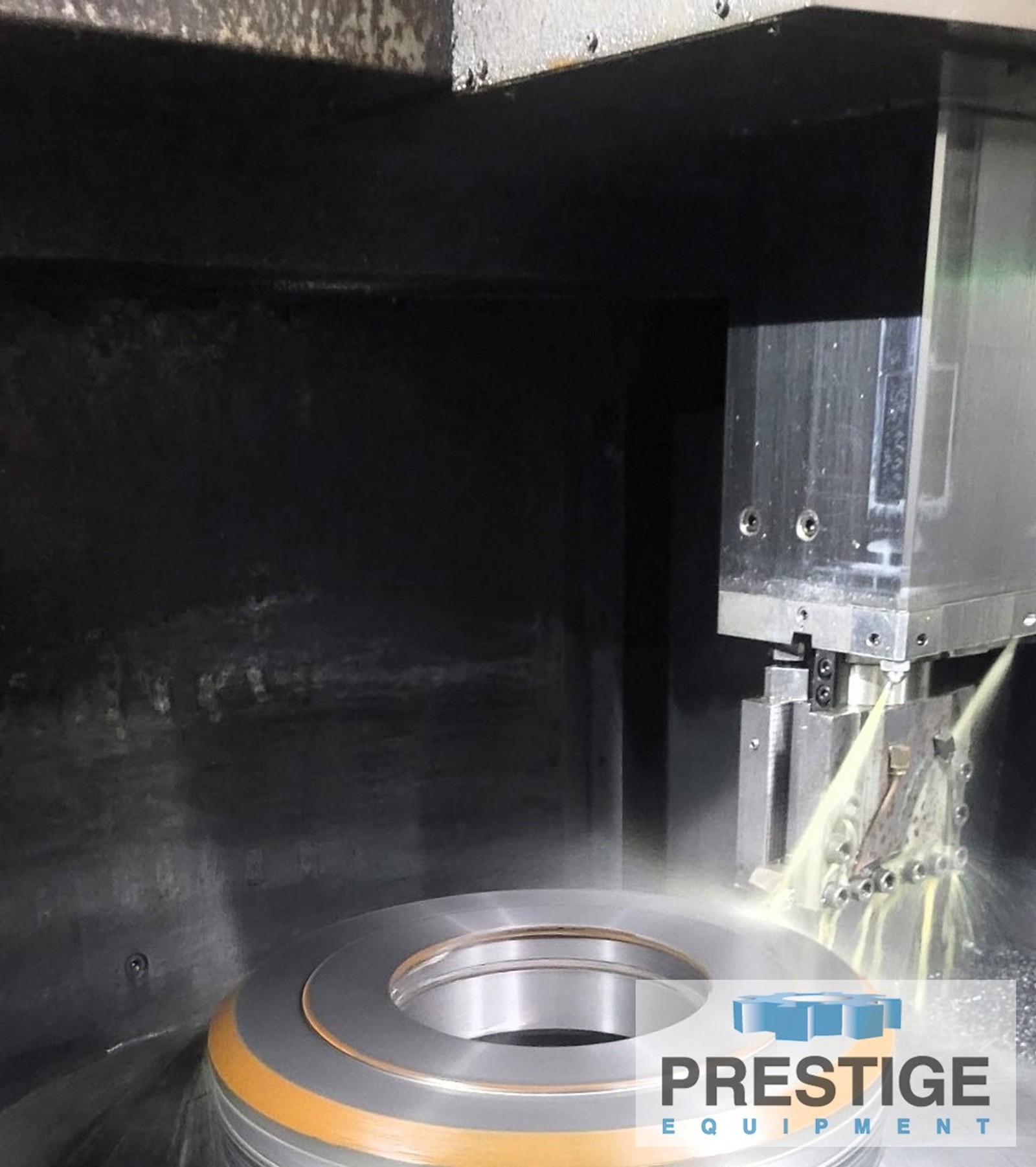

Live Milling

SPECIFICATION:
Table Diameter ........................ 49.21"
Maximum Part Swing .................... 62.99"
Maximum Cutting Height ................ 55.11"
Table Speed ........................... 1 - 360 RPM
Table Weight Capacity ................. 8 Ton
Cross Rail Travel ..................... 27.55"
Milling Spindle Speed ................. 3,000 RPM
C-Axis Rotation ....................... .001°
Ram Cross Section ..................... 8.66" x 8.66"

EQUIPPED WITH:
Fanuc 32i-A CNC Control
Ram with 24 Station Automatic Tool Changer
49.21" 3-Jaw Hydraulic Chuck
C-Axis Table Rotation
Grinding Attachment
Live Milling
Chip Conveyor
