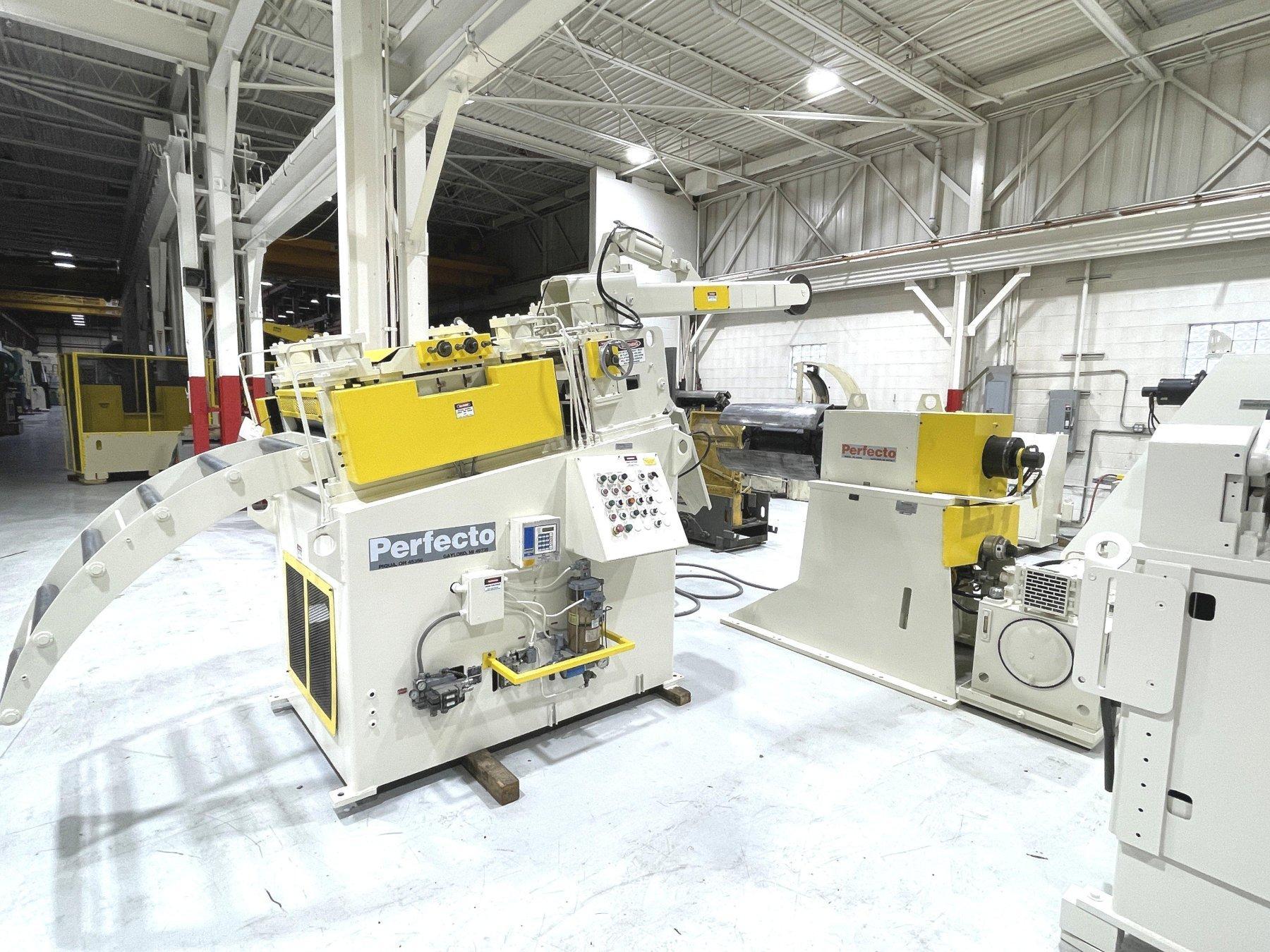

10,000 Lbs. x 24" Wide Perfecto Coil Feed Line, 24" @ .187" Capacity at Full Width

Manufacturer

PERFECTO

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2886

Model

RS107230 / 38-24-7

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 24 inches
Coil Thickness - .187 inches


Standard Specification
10,000 lbs. Maximum Coil Capacity
24" Maximum Stock Width Capacity
.187" Maximum Stock Thickness At Full Width:
20"-24" ID Range
72" Maximum Coil O.D. capacity

Stock thickness capacity: .187" x 24" Wide
Stock thickness capacity: .250" x 12" Wide

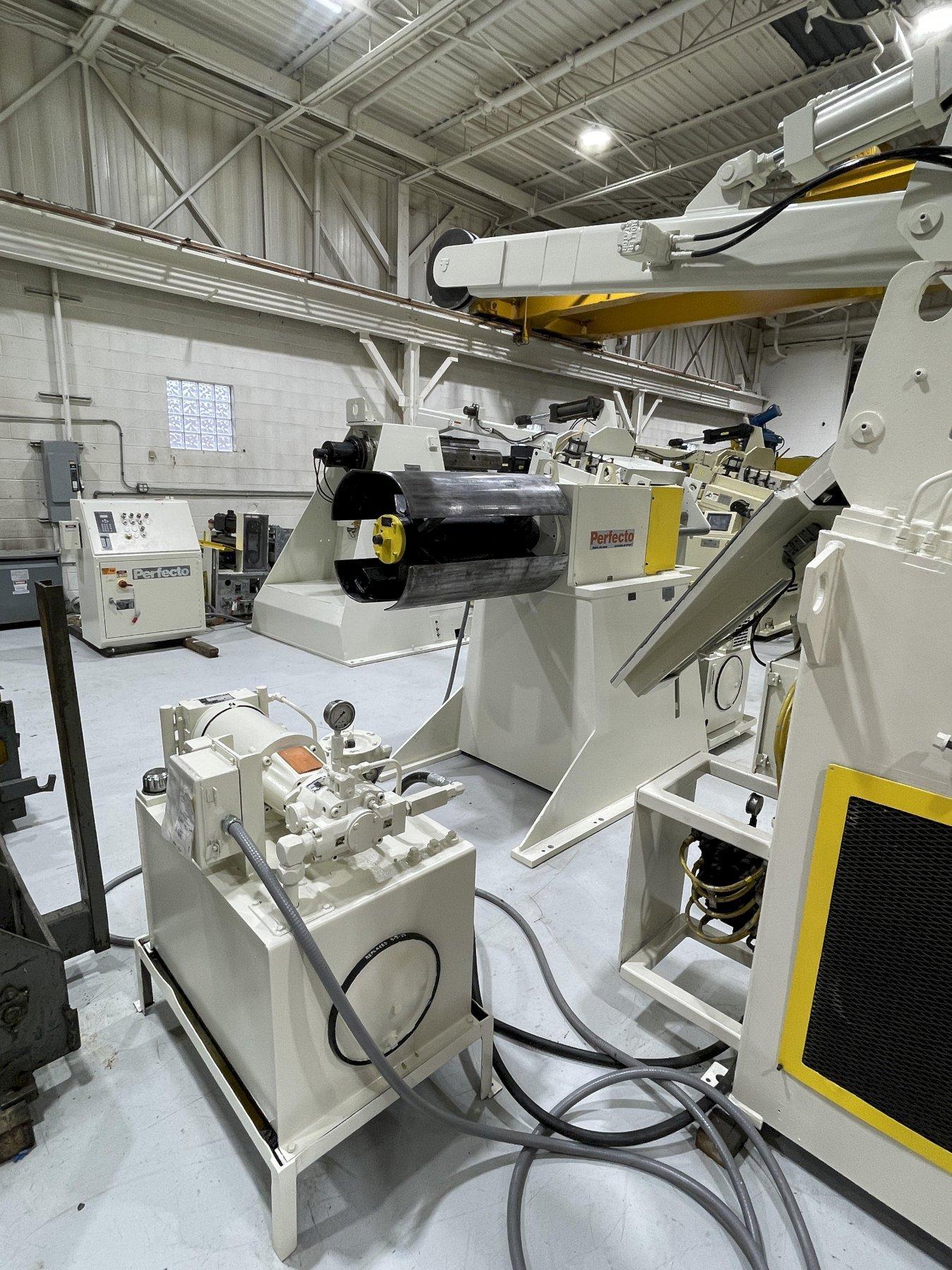

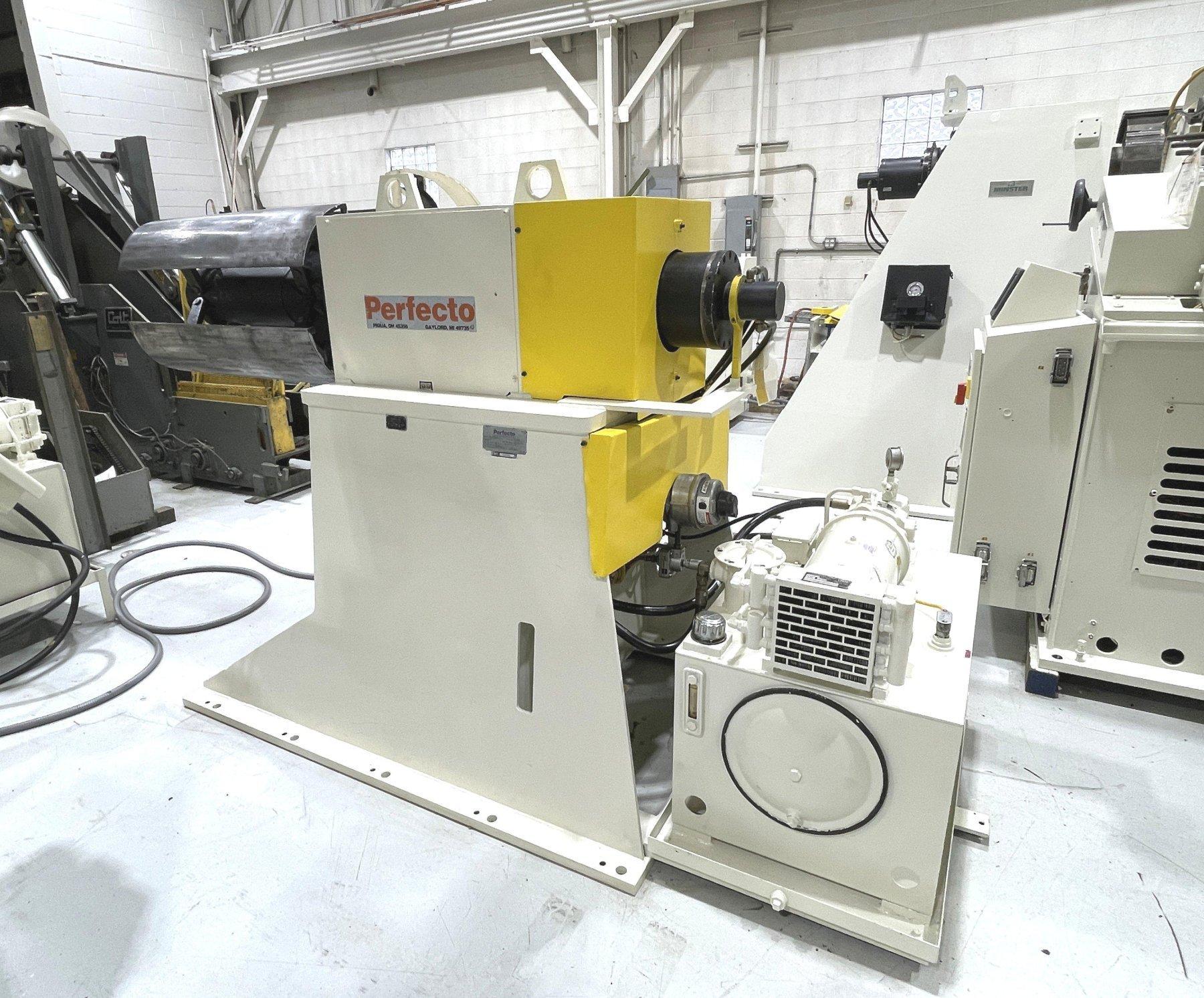

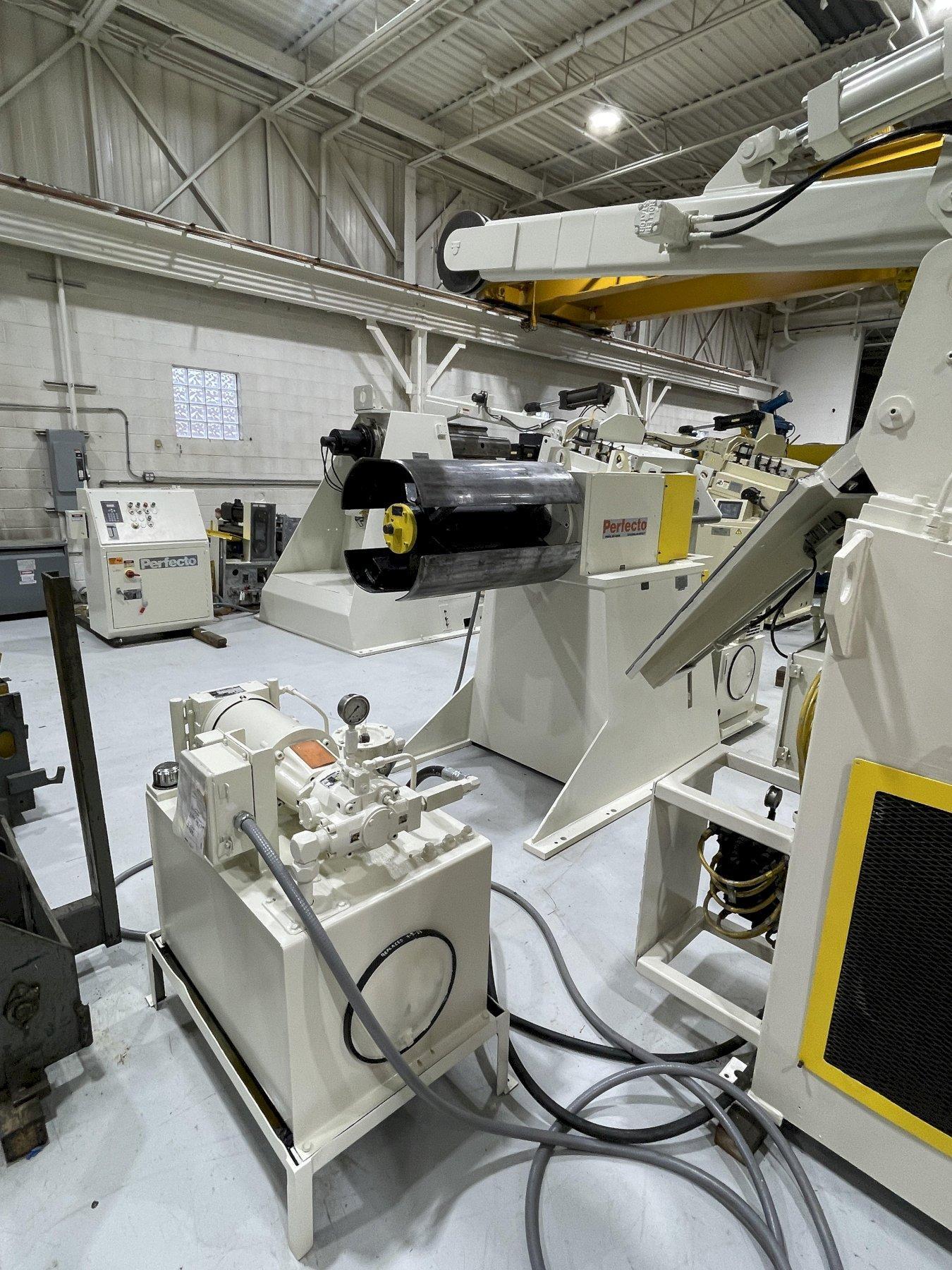

Perfecto Coil Reel Model No. RS10
Serial Number - 98088
Three leaf mandrel with mandrel expansion
Threading drive for jog forward and reverse
Air brake mounted on main spindle

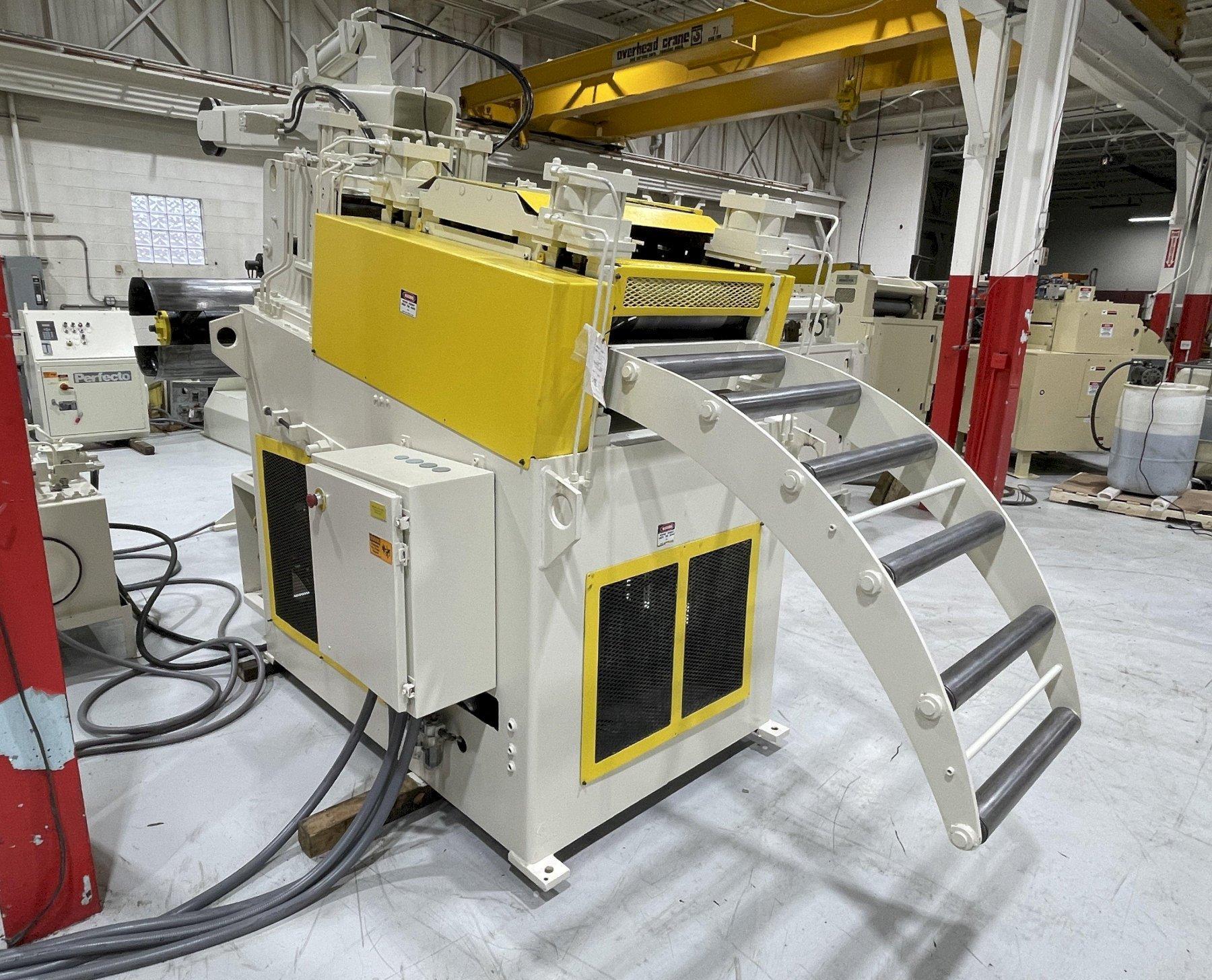

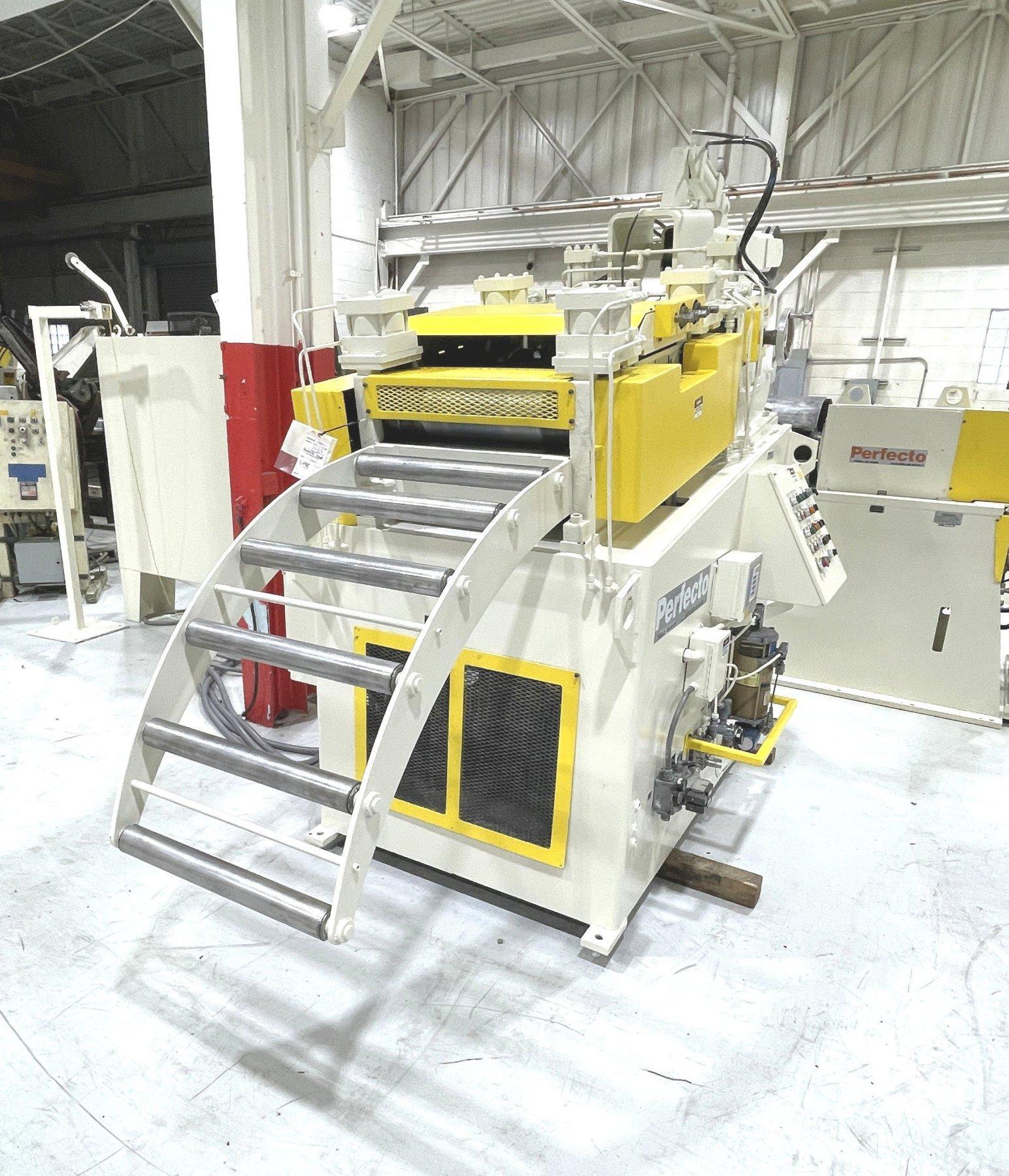

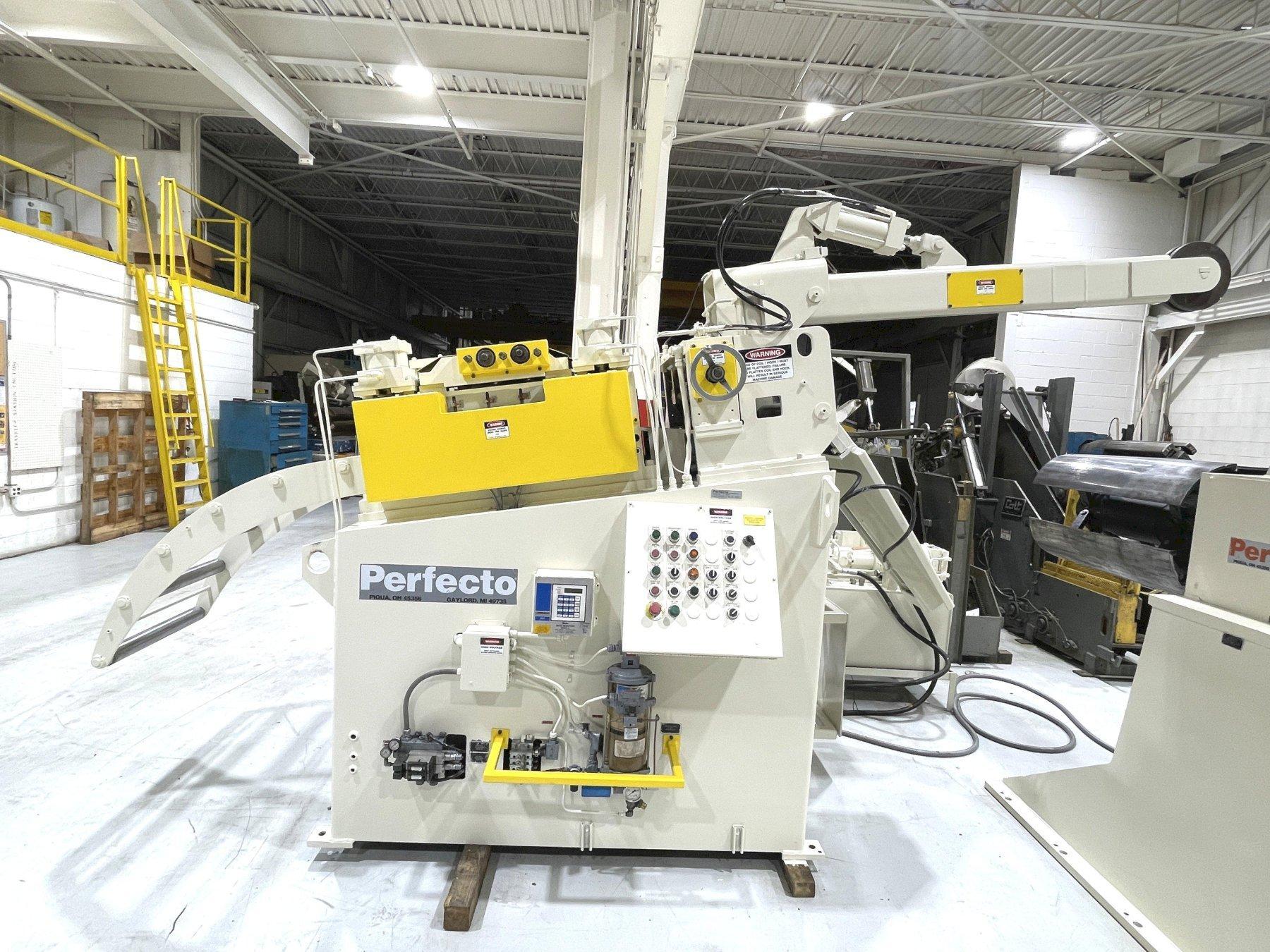

Perfecto Powered Coil Straightener Model No. 38-24-7
Serial Number - 95248
Seven straightening rolls x 3.8" diameter
Upper roll adjustment roll adjustments
Coil hold down arm
Stock peeler table -
Hand crank adjustable stock width edge guides
Automatic lubrication system
Operator's control station

Perfecto Servo Roll Feed 500-20
Serial Number - 95246
Upper and lower feed rolls
Piloting upper feed roll
Press mounted
Stock width edge guides
AC Servo controls

Can be seen under power in the S&G Press Warehouse.

Perfecto Conventional Coil Feed Line For Sale
