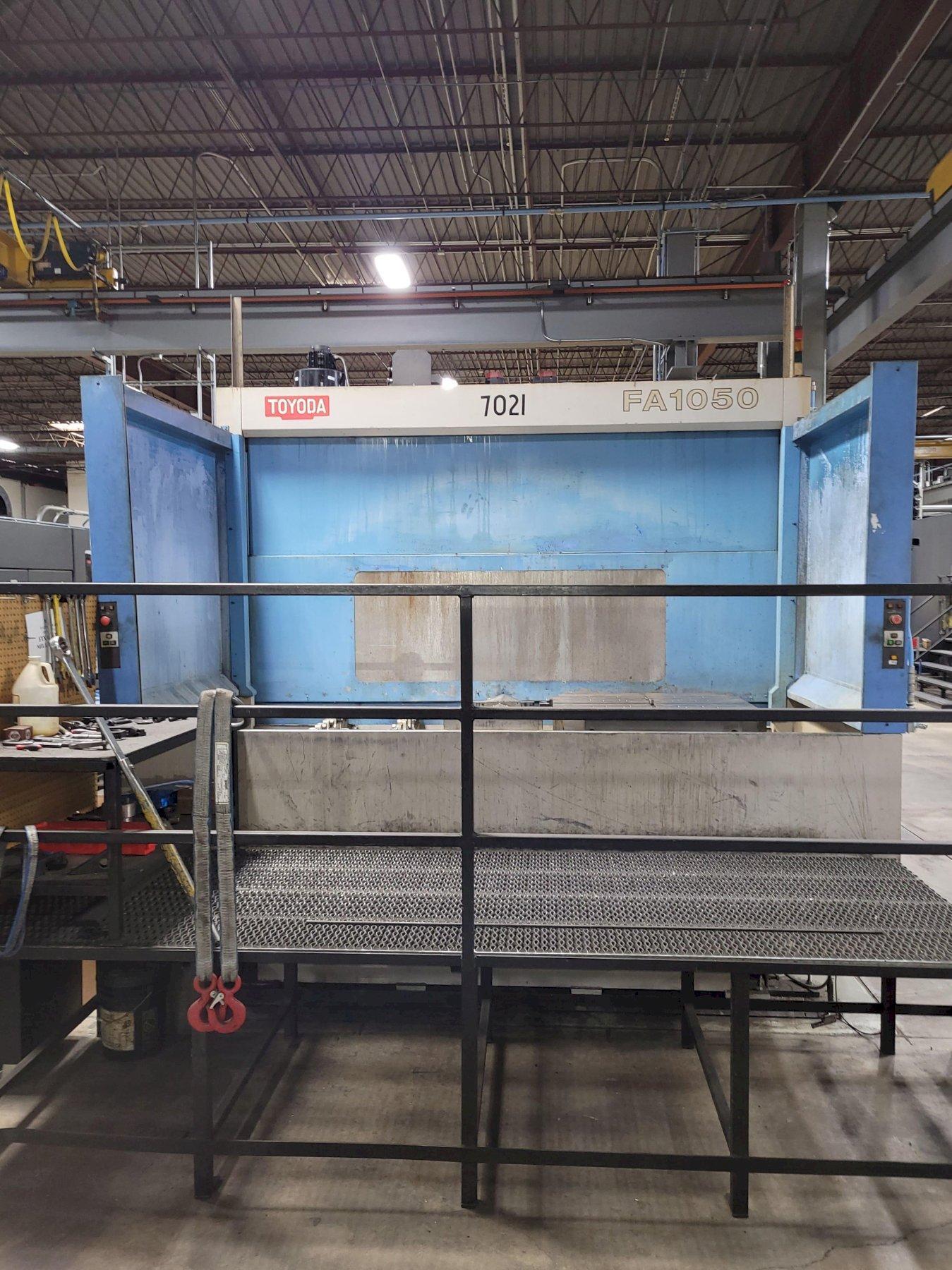

Toyoda FA1050 Horizontal Machining Center

Manufacturer

TOYODA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, PORTABLE

Stock

HMCT1050WC7021X

Model

FA1050

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Pallet Size - 41" x 41"
Pallet Weight Limit - 6,600 Lbs.
Travels XYZ - 63” X 55”X 45”
Rapid Feedrate (XYZ) - 1181 I.P.M.
Pallet Rotation Increment (Full Contouring) - 360,000 Positions
Max Workpiece Swing - 72.83"

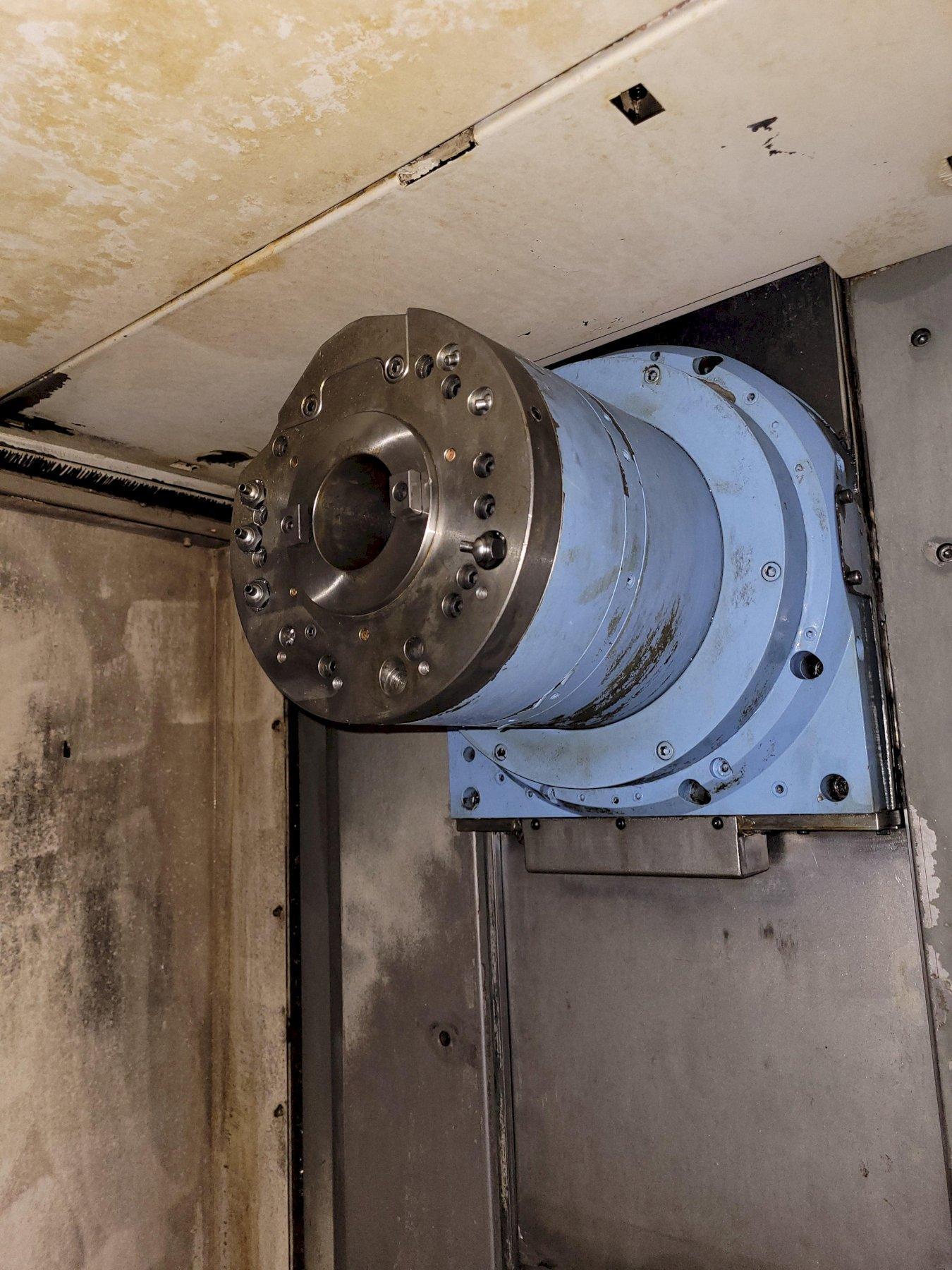

Spindle Motor H.P. - 40 H.P.
Spindle RPM - 6000
Spindle Taper - Cat 50
Number of Tools in ATC - 120
Coolant Thru Spindle Pressure - 1,000 psi
Max Part Size Swing Diameter - 72.83"
Approximate Machine Weight - 66,139 Lbs.


EQUIPPED WITH:

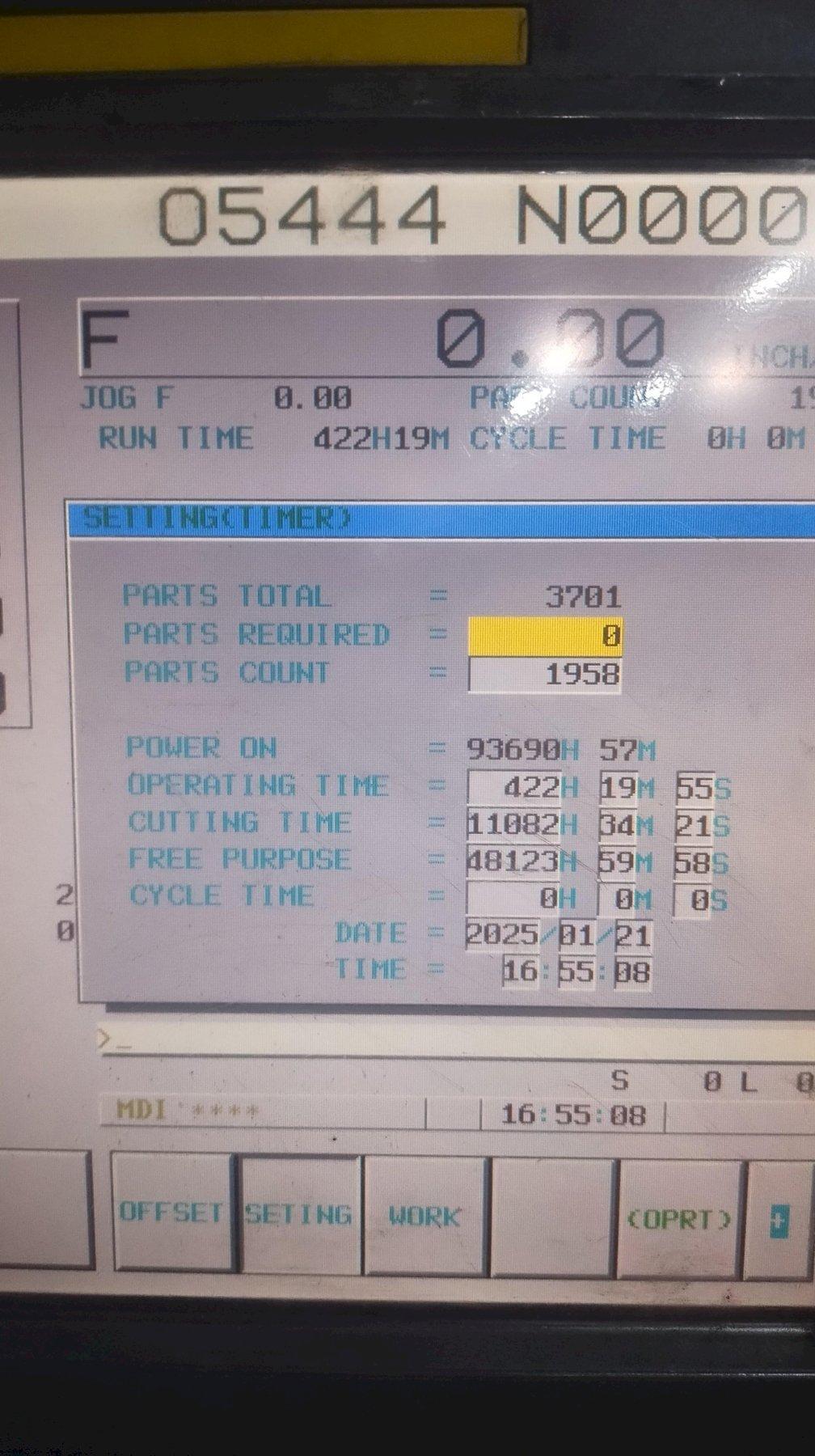

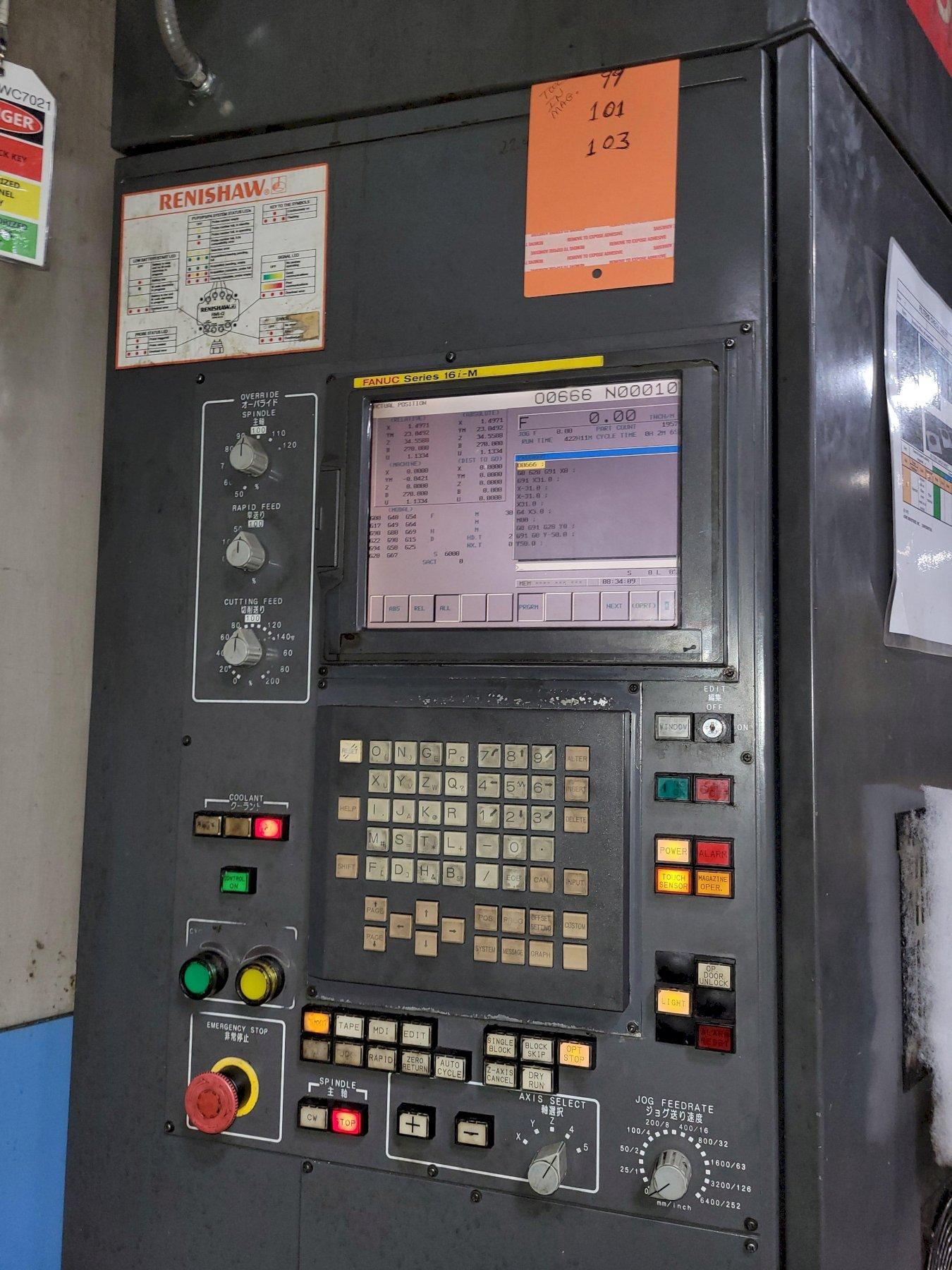

Fanuc 16i-M Control.
Coolant through the spindle.

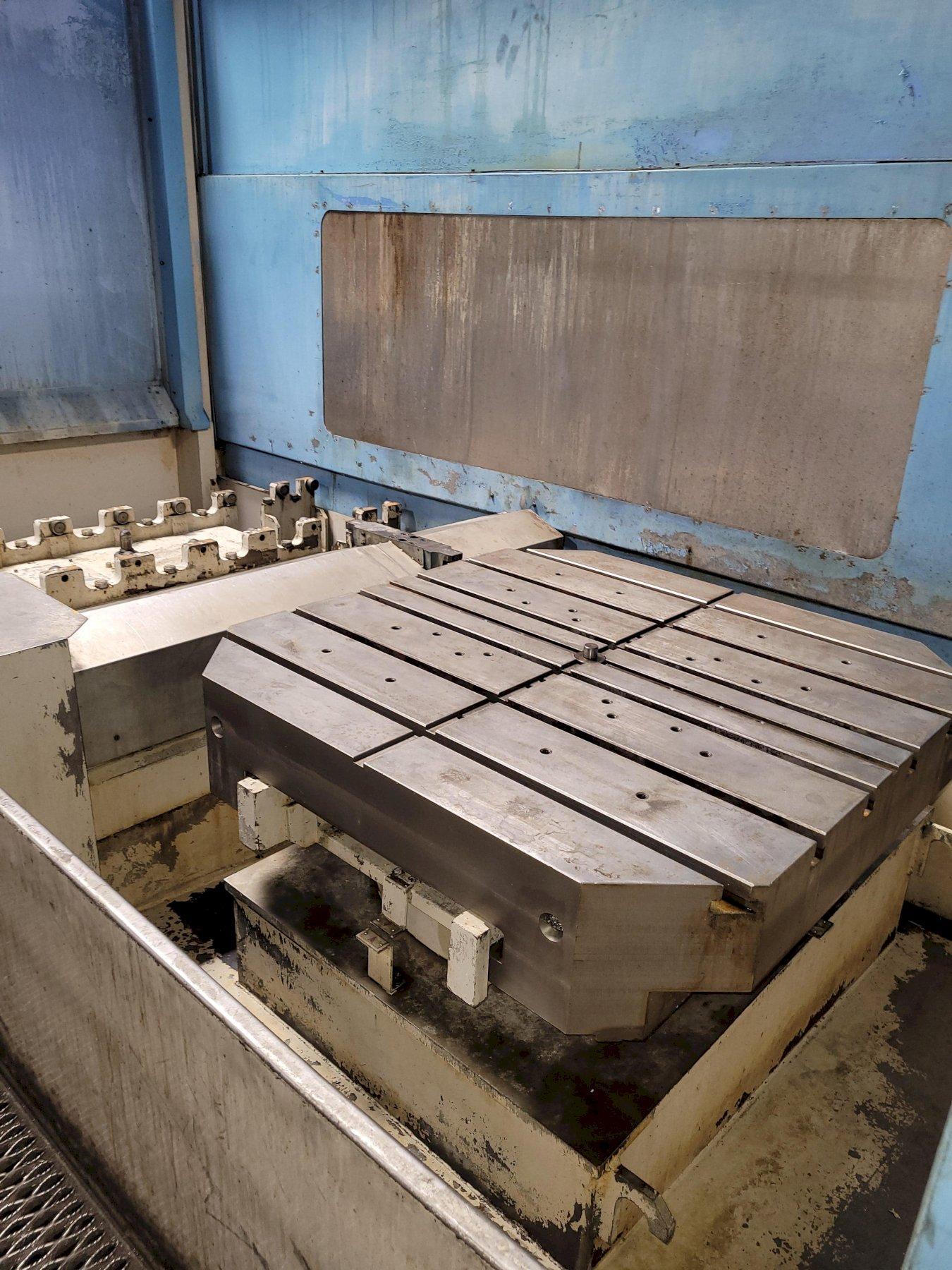

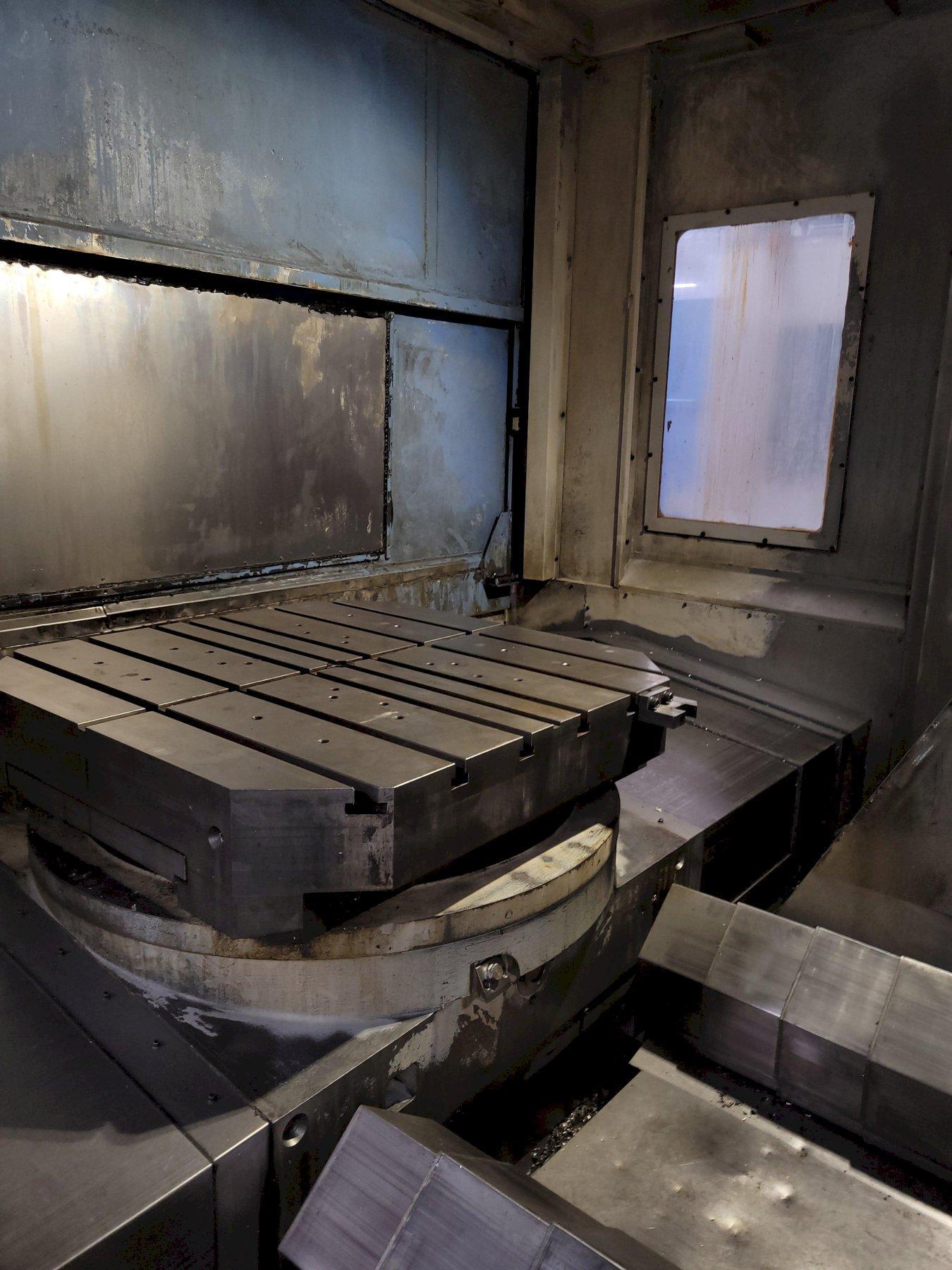

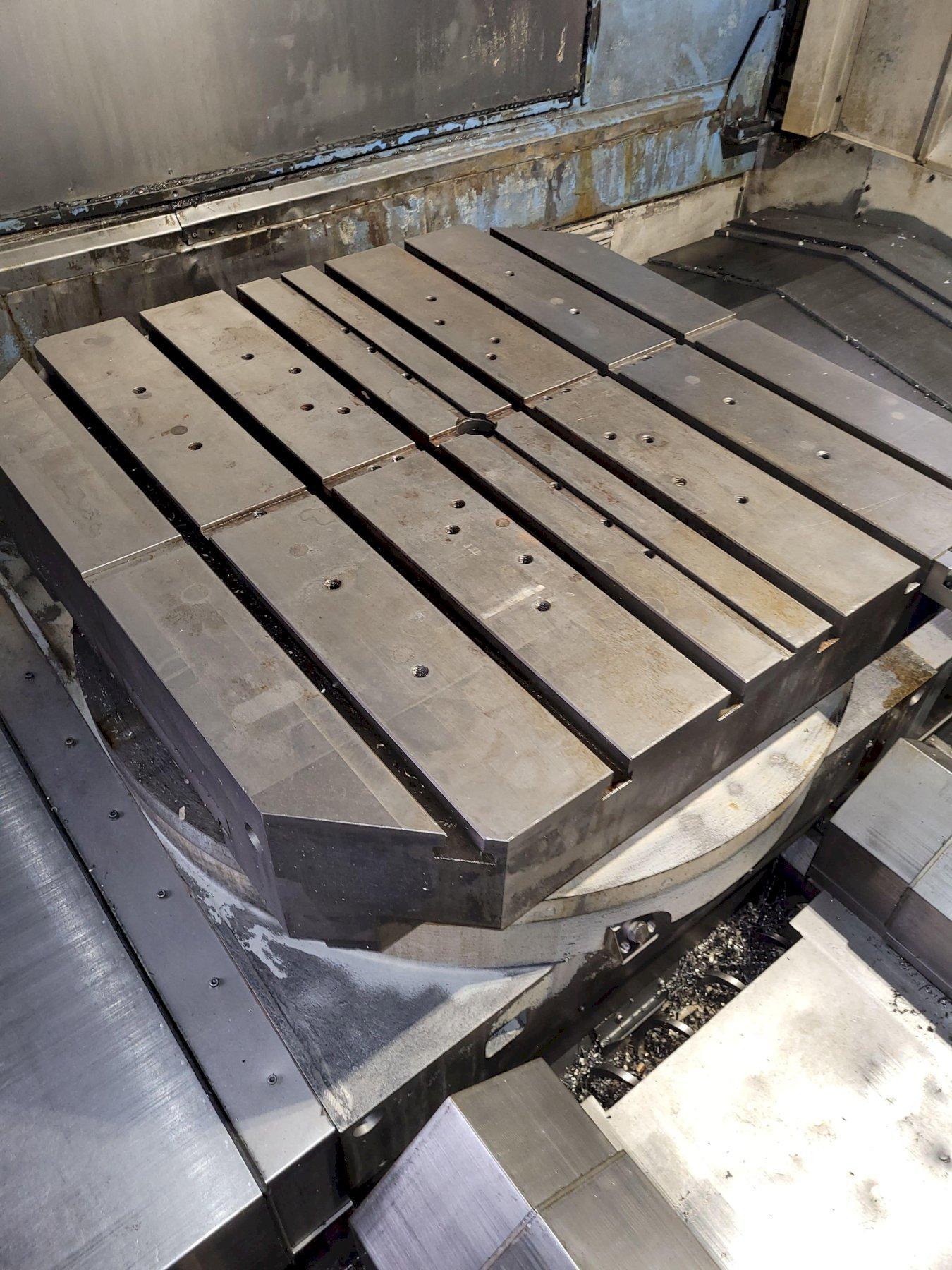

(2) 1050 T-Slotted D&T Pallets.

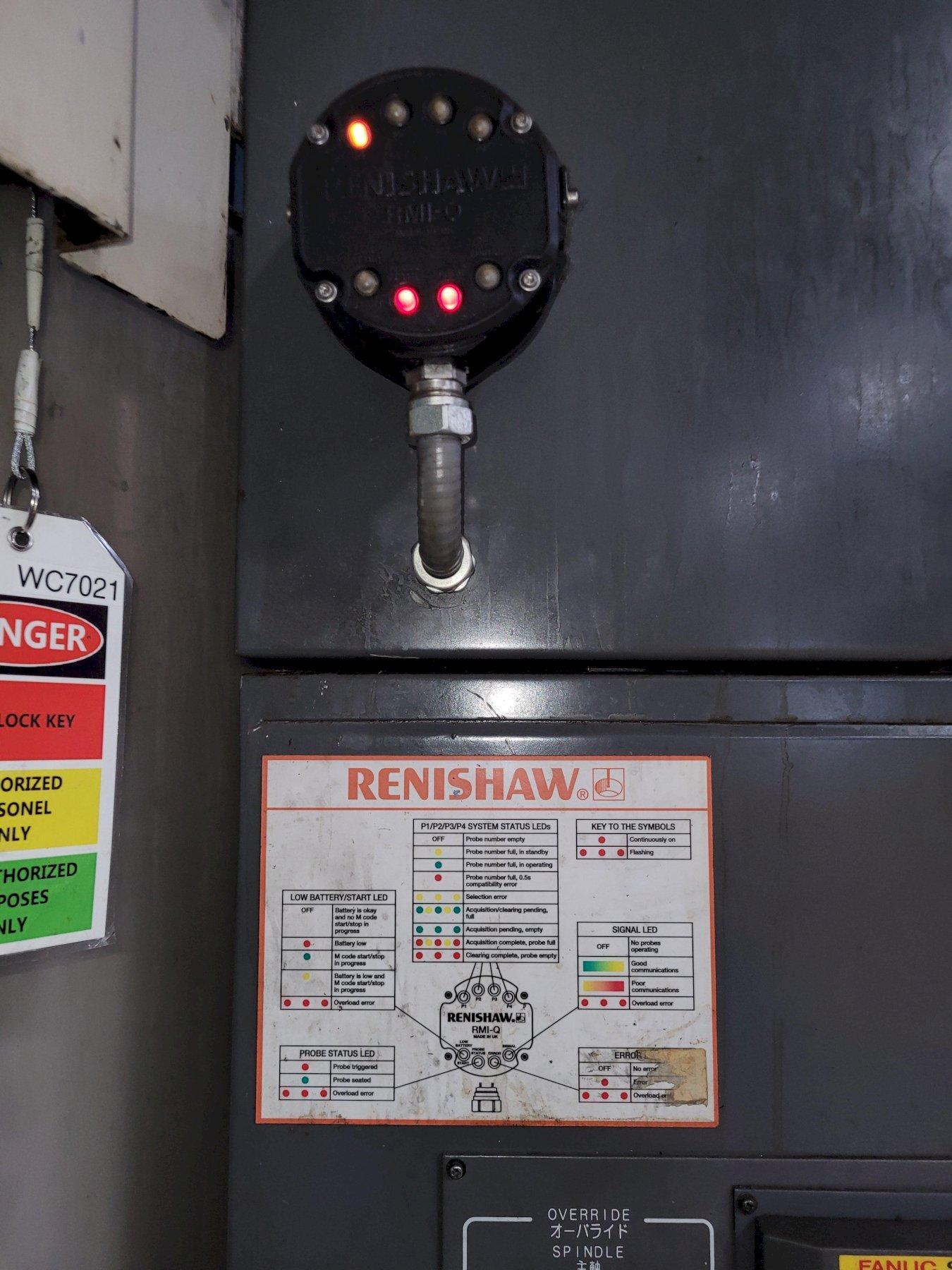

Renishaw Probing.
120 Position Automatic Tool Changer.

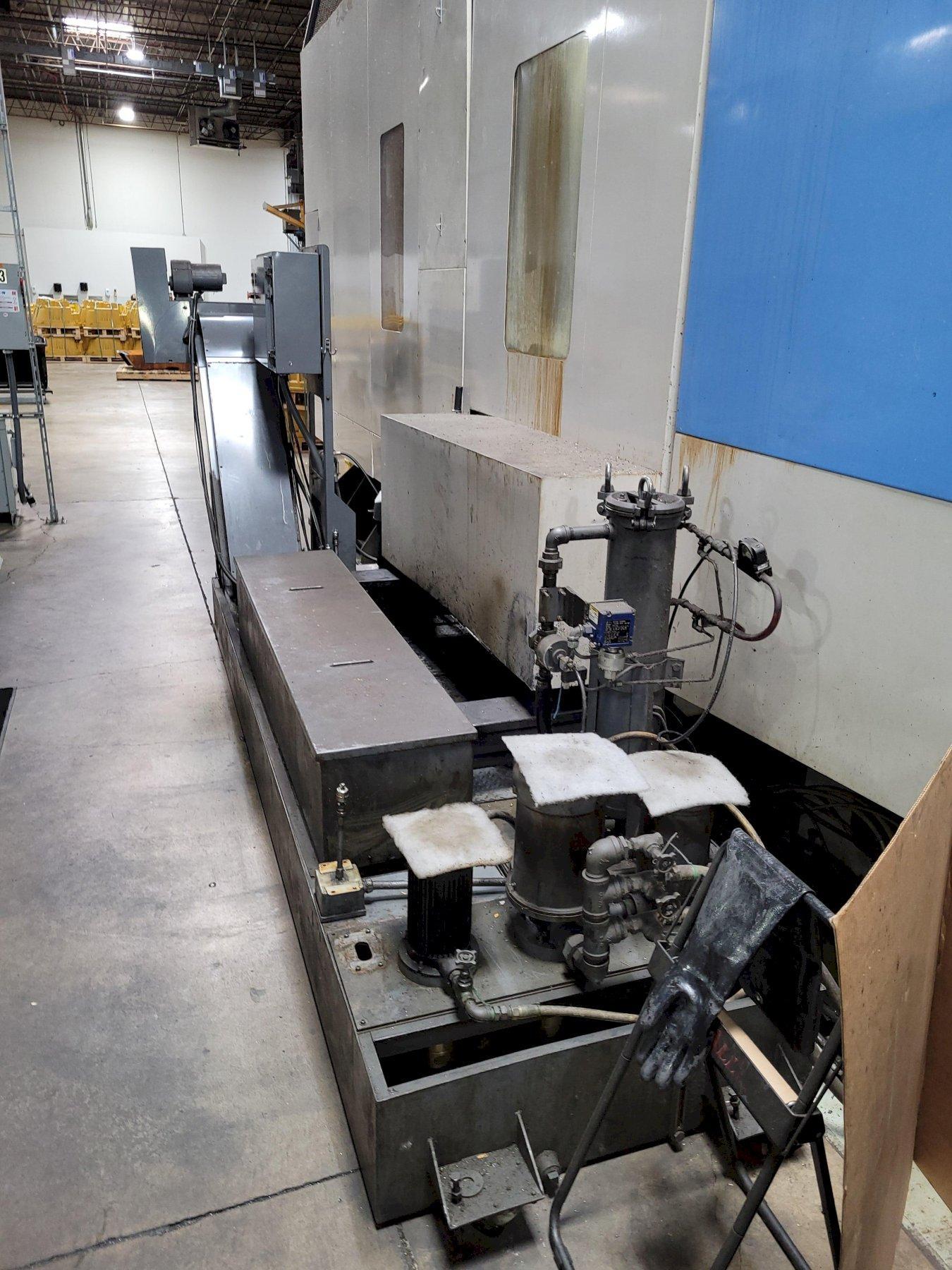

Coolant system with chip conveyor.

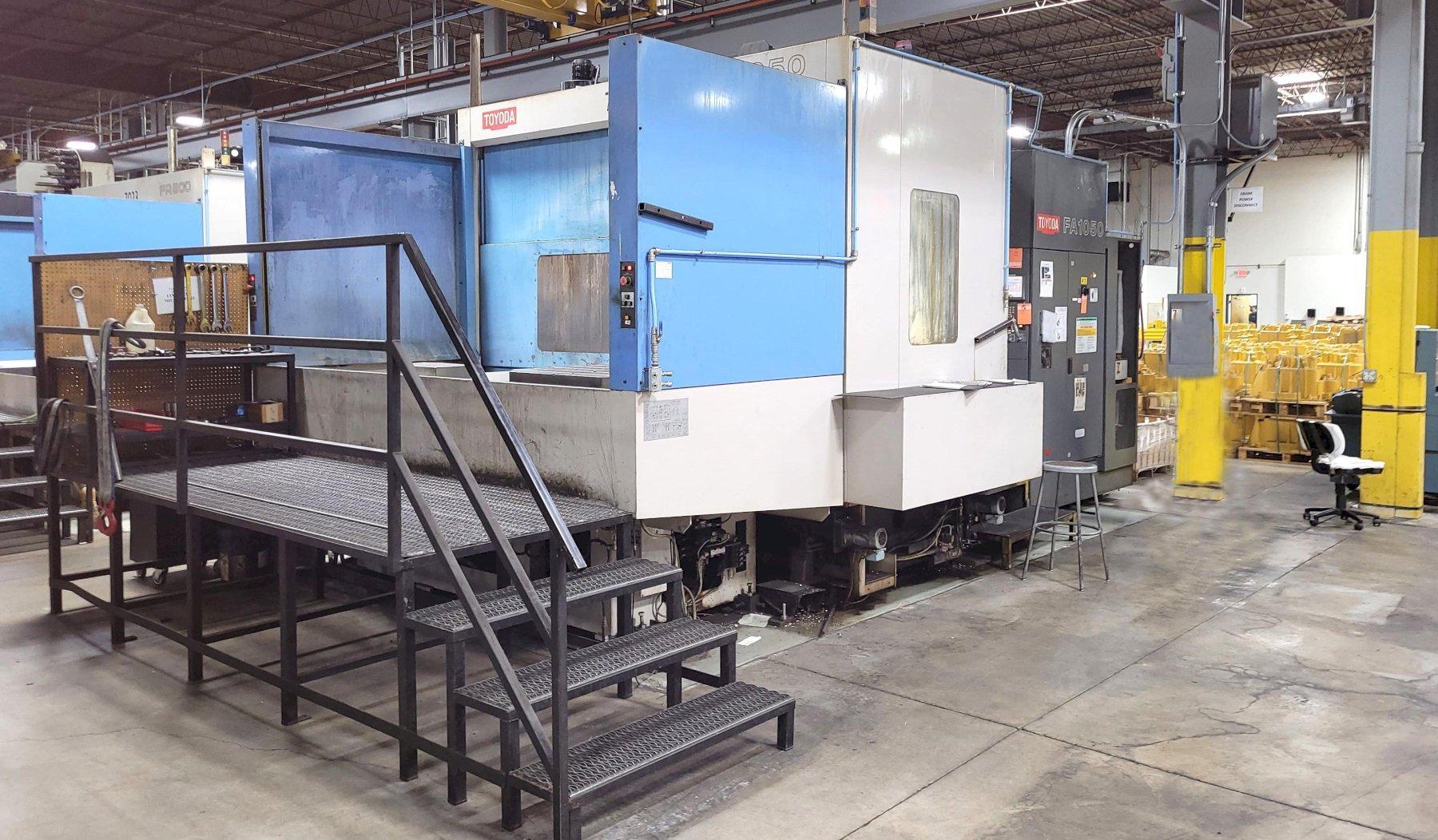

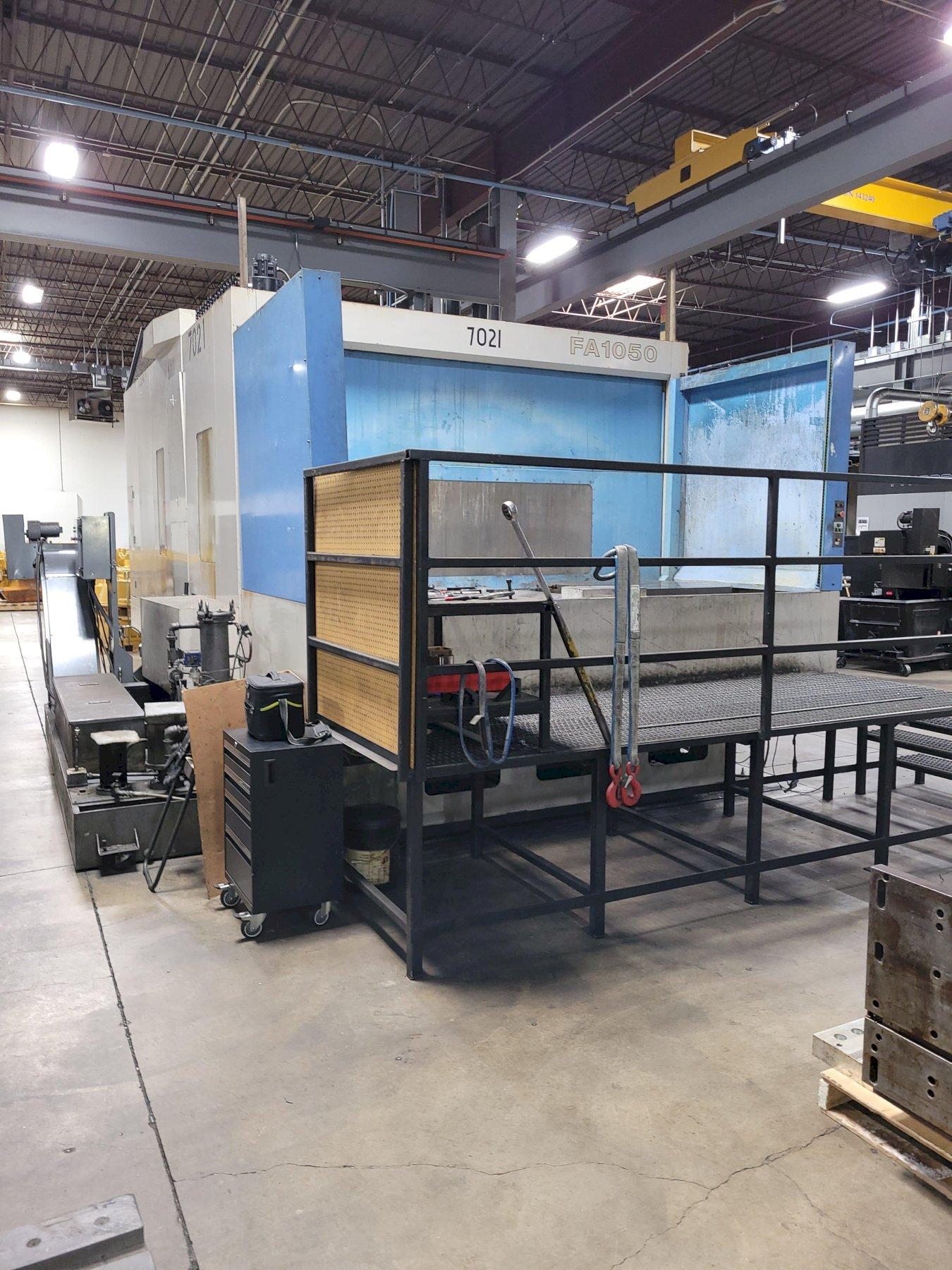

Stairs/Platforms for loading and machining area access.
