Hyd-Mech VW-18, 18" X 20", Automatic, 1-1/4" Blade, Power Tilt Option, Digital Angle Display, 2013, #43276

Manufacturer

HYD-MECH

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

43276

Model

VW-18

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43276

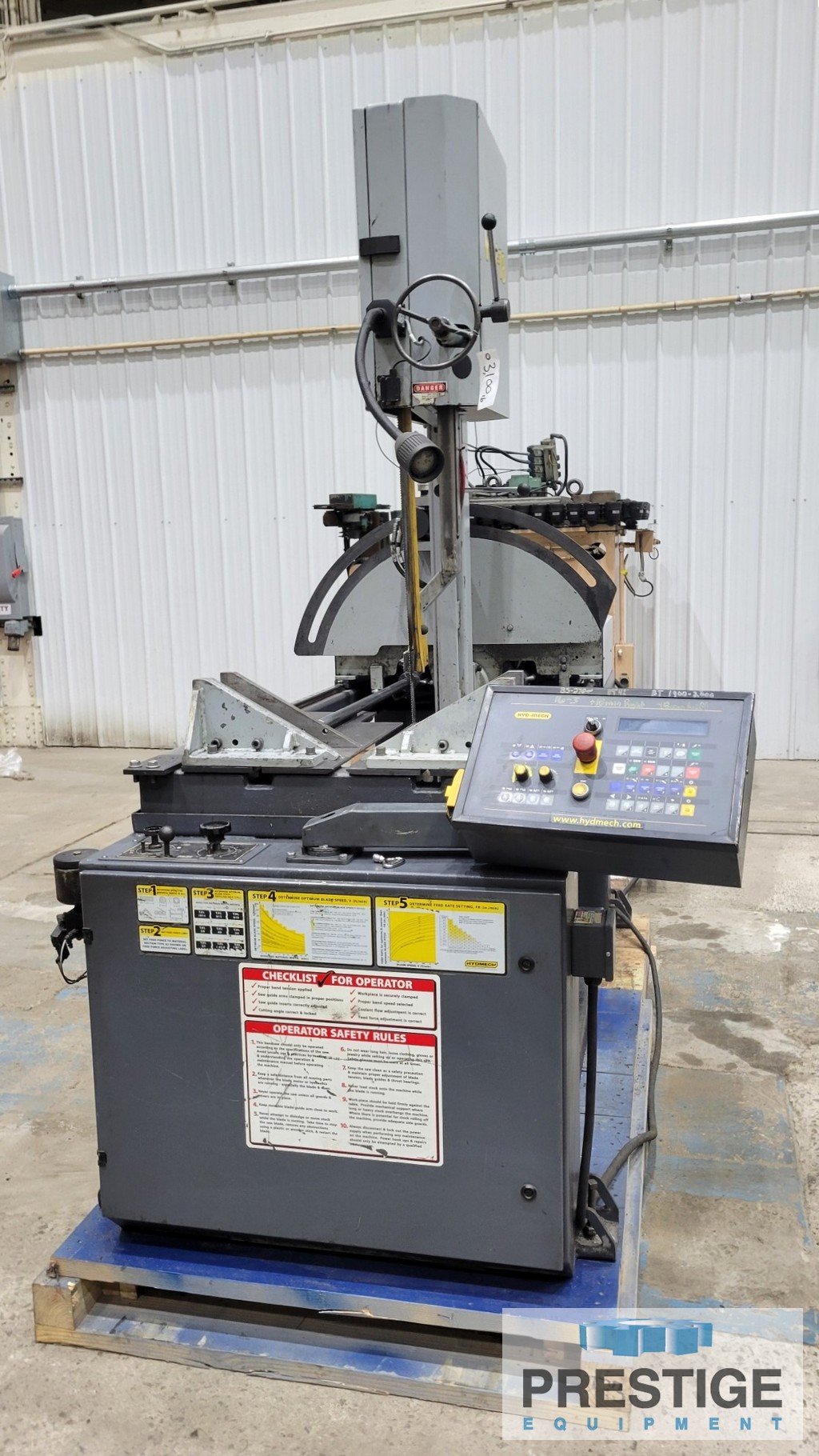

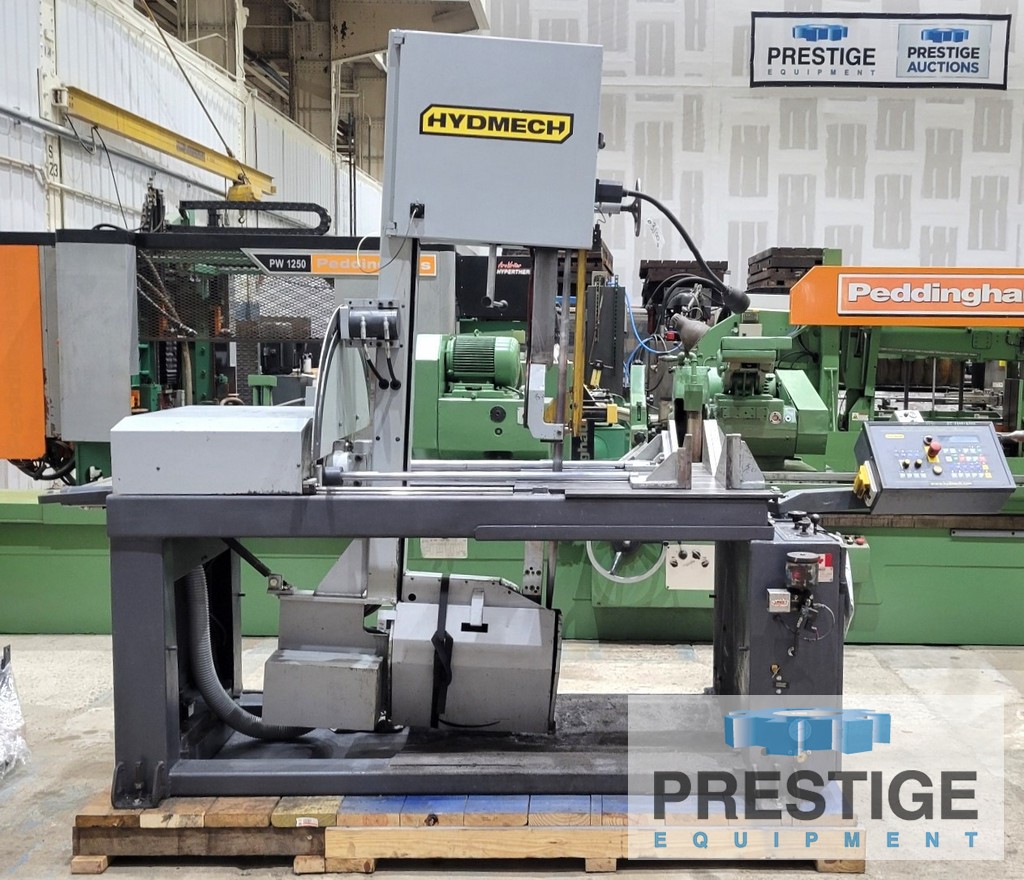

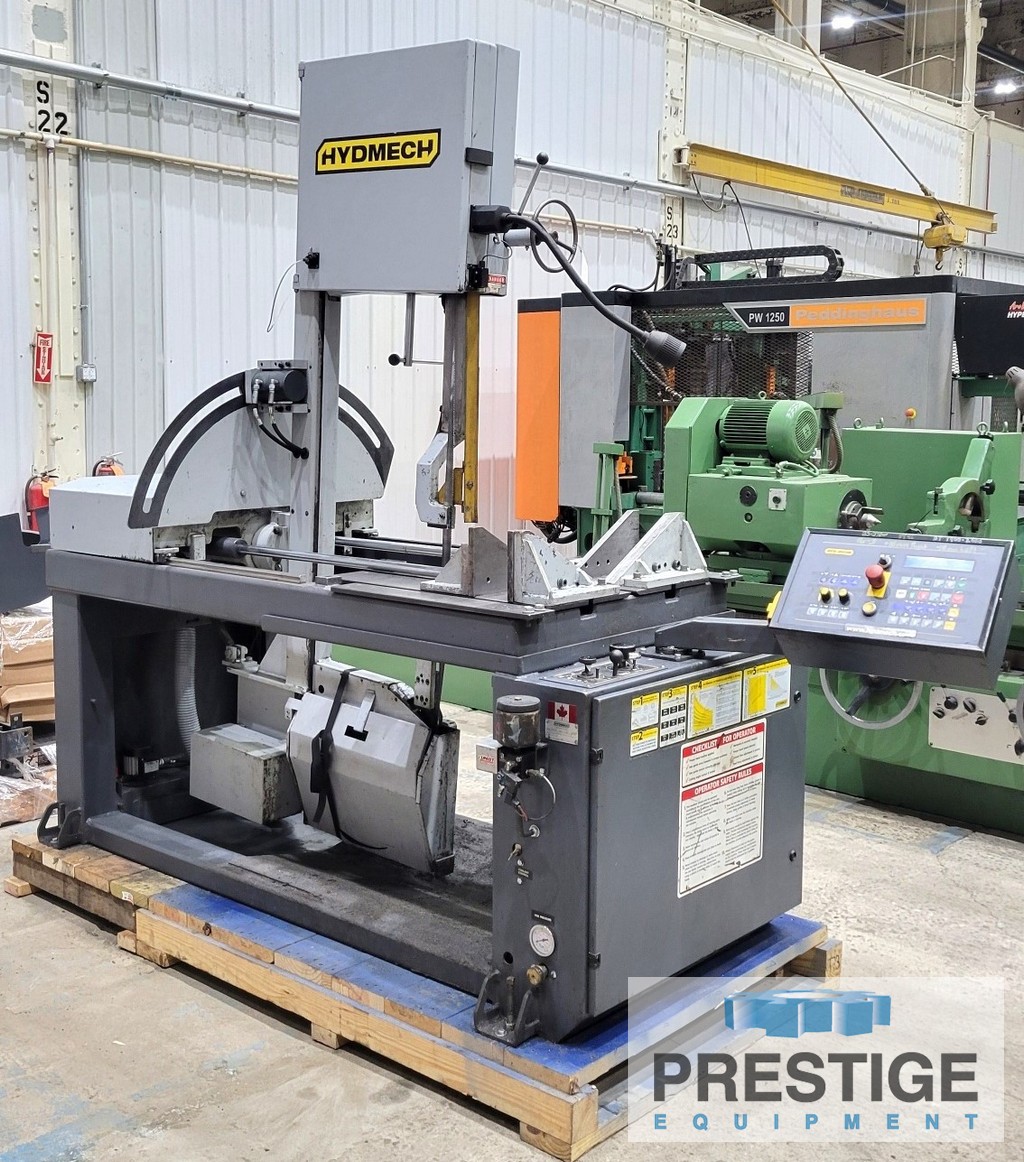

Hyd-Mech 18" X 20" Automatic Vertical Band Saw

FEATURES:
Digital Angle Display
Power Tilt Option-Includes Digital Angle Display and Laser Ligth
Variable Vise Pressure
Free Wheeling 5' Long Roller Conveyor
Chip Bucket
Additional Vise
Mist Lubrication System

CAPACITY:
Cutting Capacity (Rectanglar) ...... 18" High X 20" Wide
Cutting Capacity (Round) ........... 17.5"
Blade Size ......................... 16'3" x 1-1/4"
Blade Speeds (Variable) ............ 65-385 SFPM
Hydraulic Motor .................... 1/2 H.P.
Main Motor ......................... 5 H.P.
Approximate Dimensinos ............. 46" x 95" x 96"
Approximate Shipping Weight ........ 3,100 Lbs.

EQUIPPED WITH:
Digital Angle Display
Power Tilt Option-Includes Digital Angle Display and Laser Ligth
Variable Vise Pressure
Free Wheeling 5' Long Roller Conveyor
Additional Vise
Mist Lubrication System
Adjustable 3 Deg. Canted Head

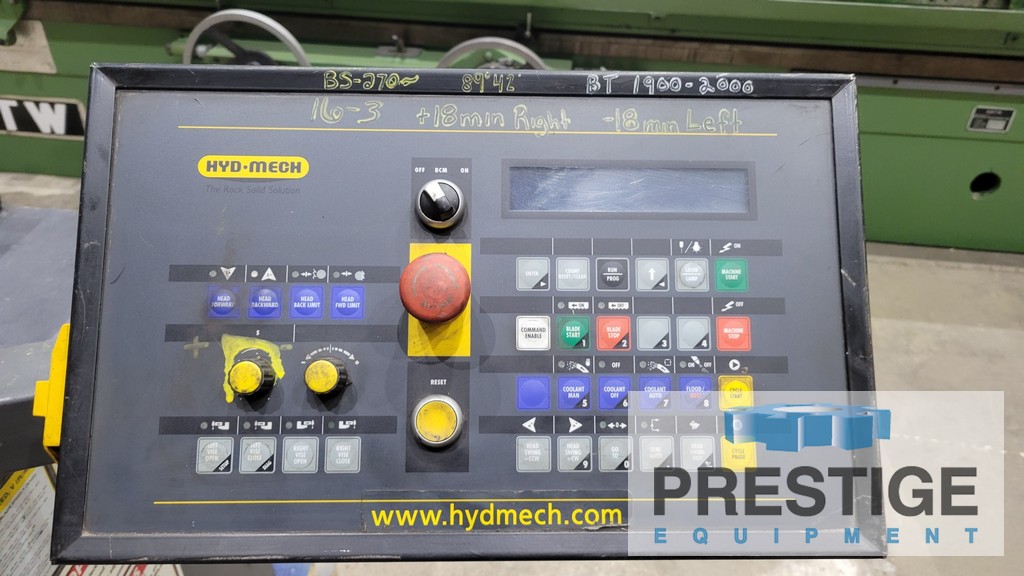

Double Articulating, Semi-Automatic Control

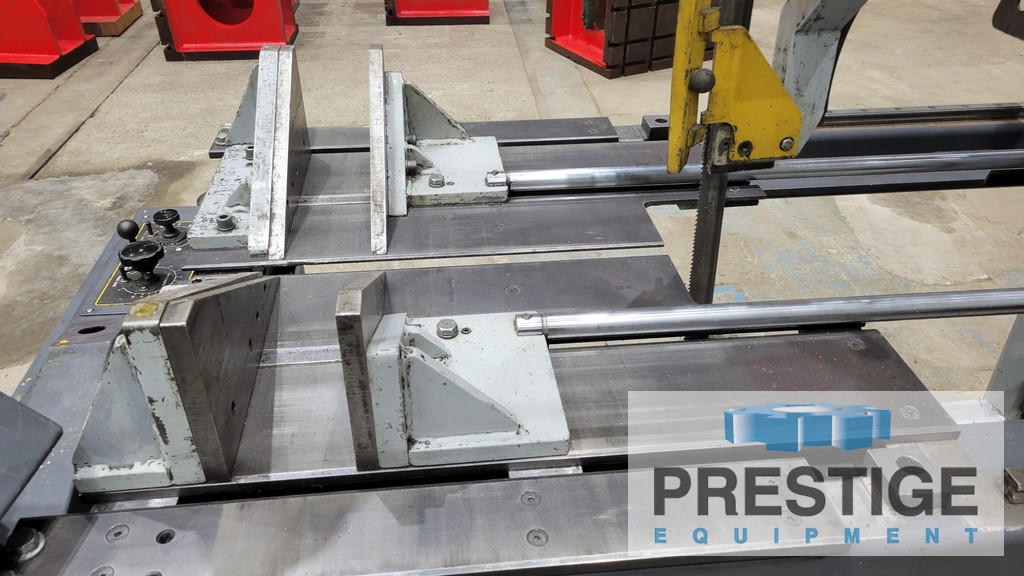

Two Full Stroking Hydraulic Vises
Manual Precise Head Positioning from 60 Deg. Left to 60 Deg. Right
Digital Angle Display with Protractor

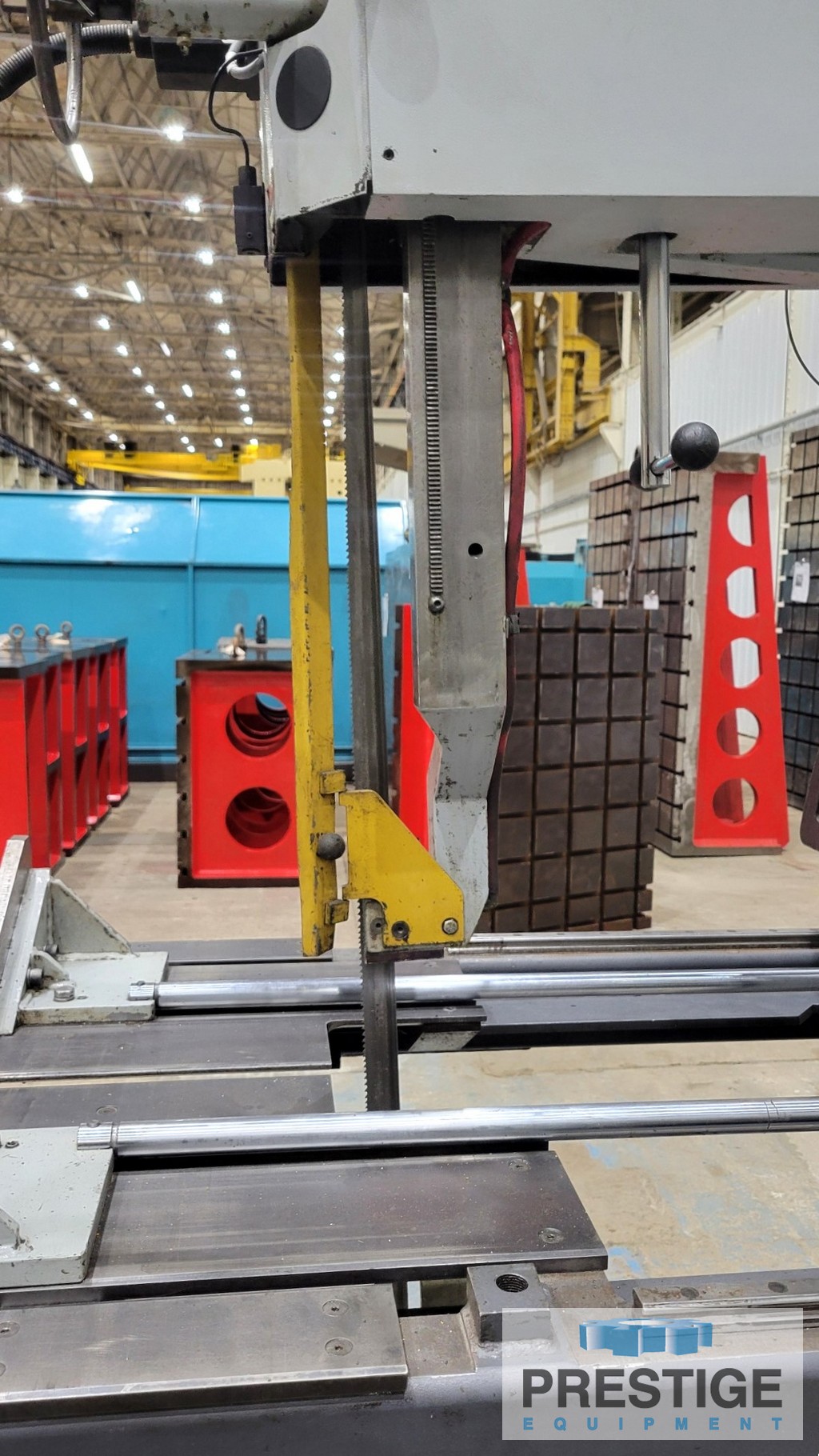

Mechanically Adjustable Guide Arm

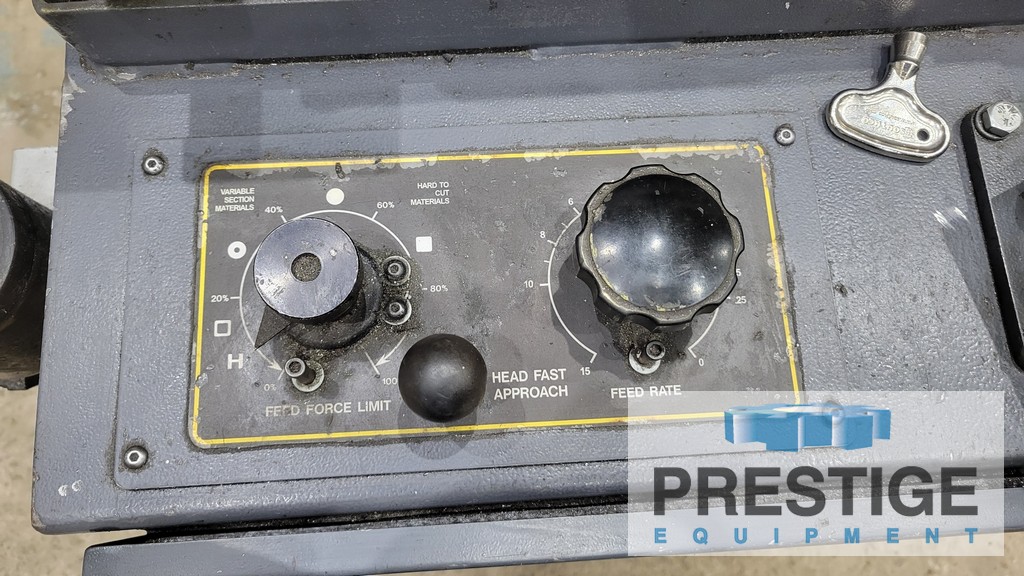

Hydraulic Positive Down Feed
Replaceable Blade Brush
Mechanical Band Tensioning With Digital Readout
Coolant

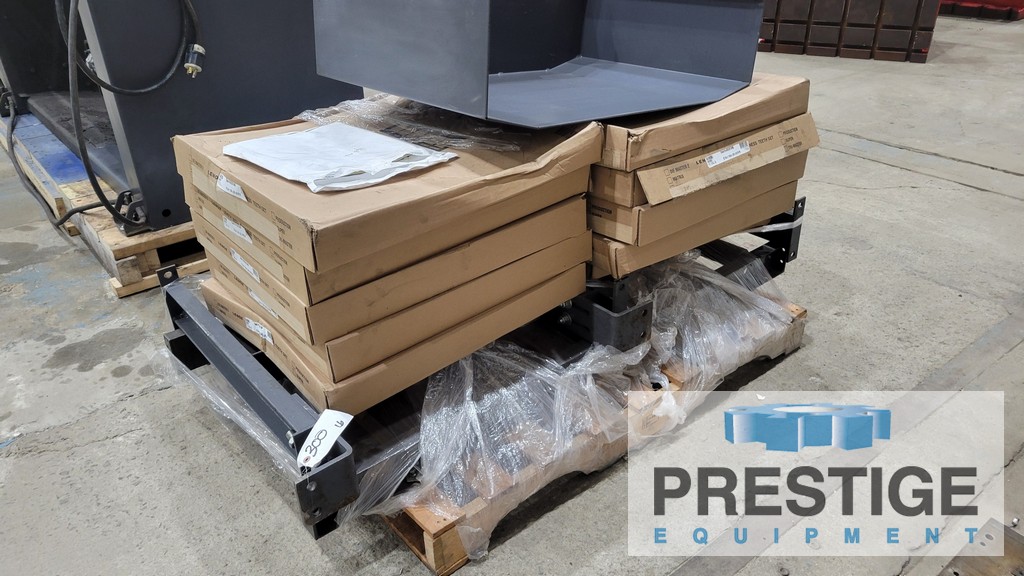

Spare Blades
