Mazak e1550V10/2 5-Axis, X-74",Y-61", Z-53", Head Tilt, 2 APC, 80 ATC, Matrix-2 CNC, 2010, #43121

Manufacturer

MAZAK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43121

Model

Integrex e1550V

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43121

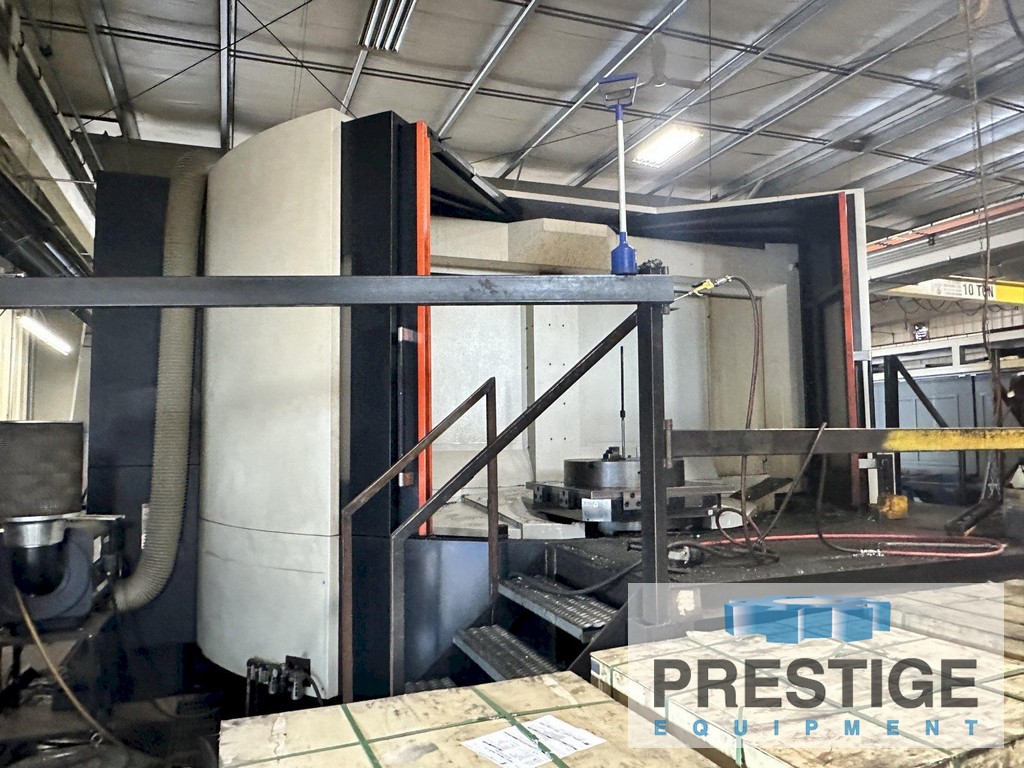

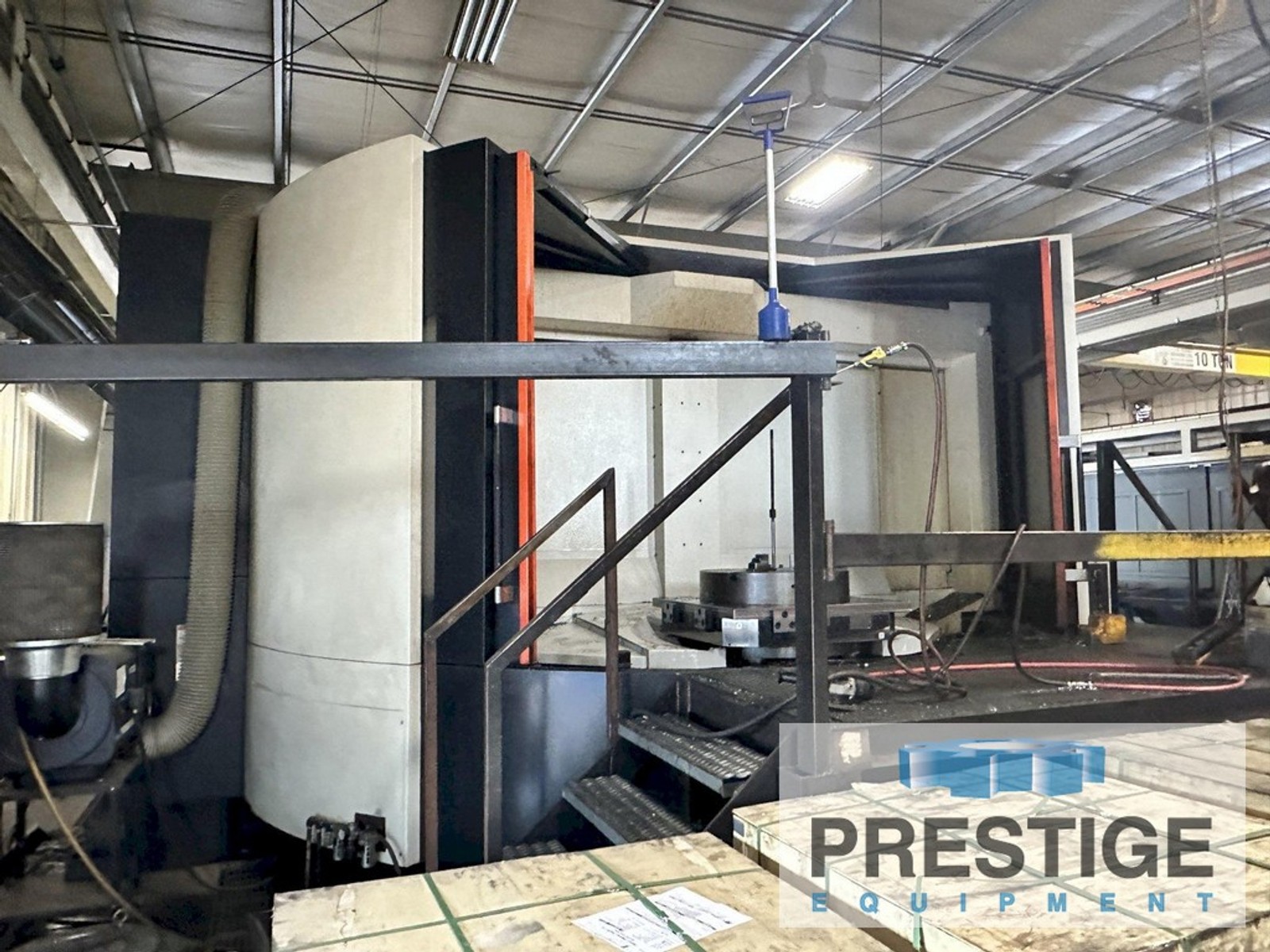

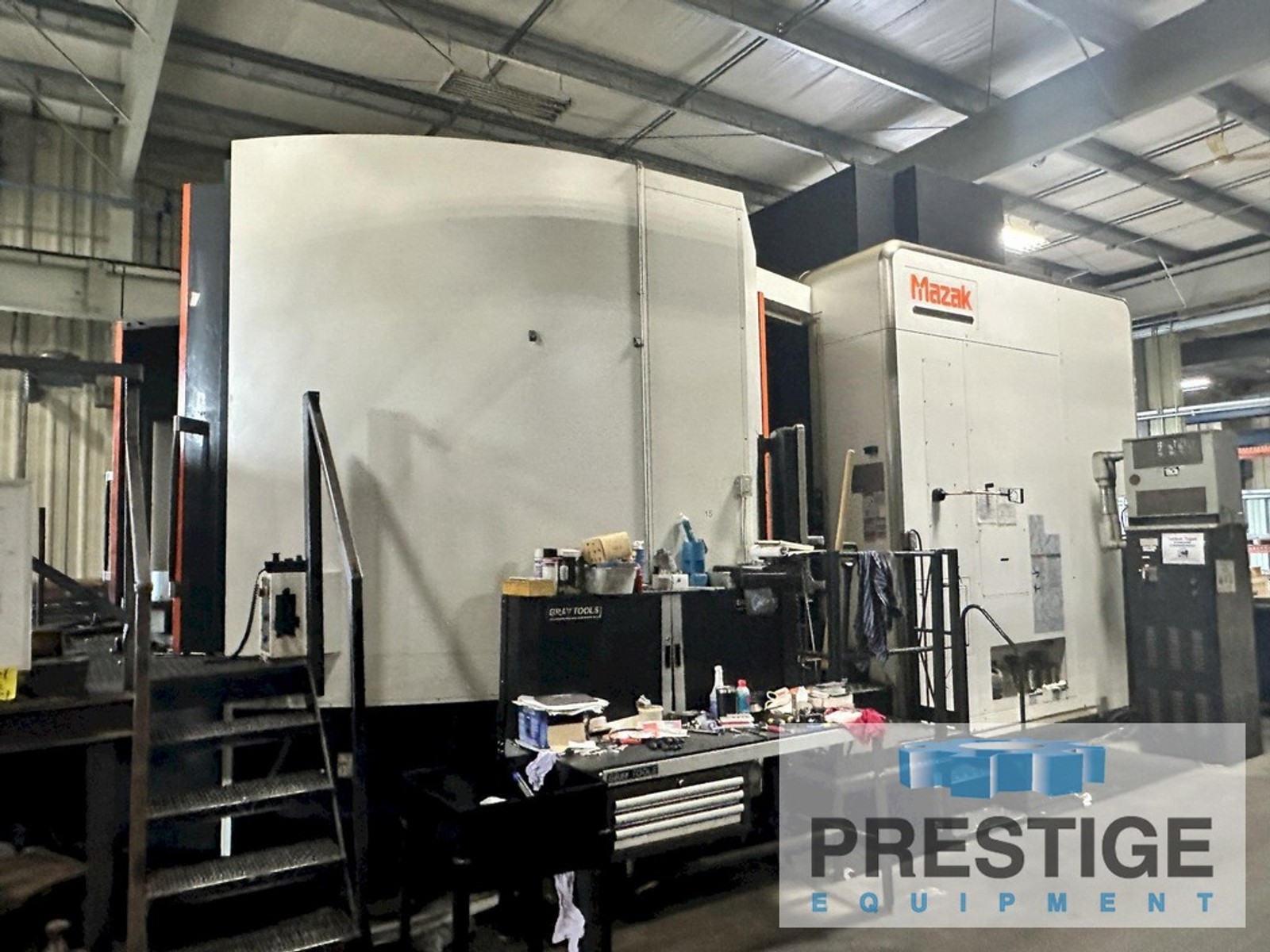

MAZAK Integrex e-1550V 5-Axis CNC Multitasking Machining/Turning Center w/ 2-Pallet Shuttle

FEATURES:

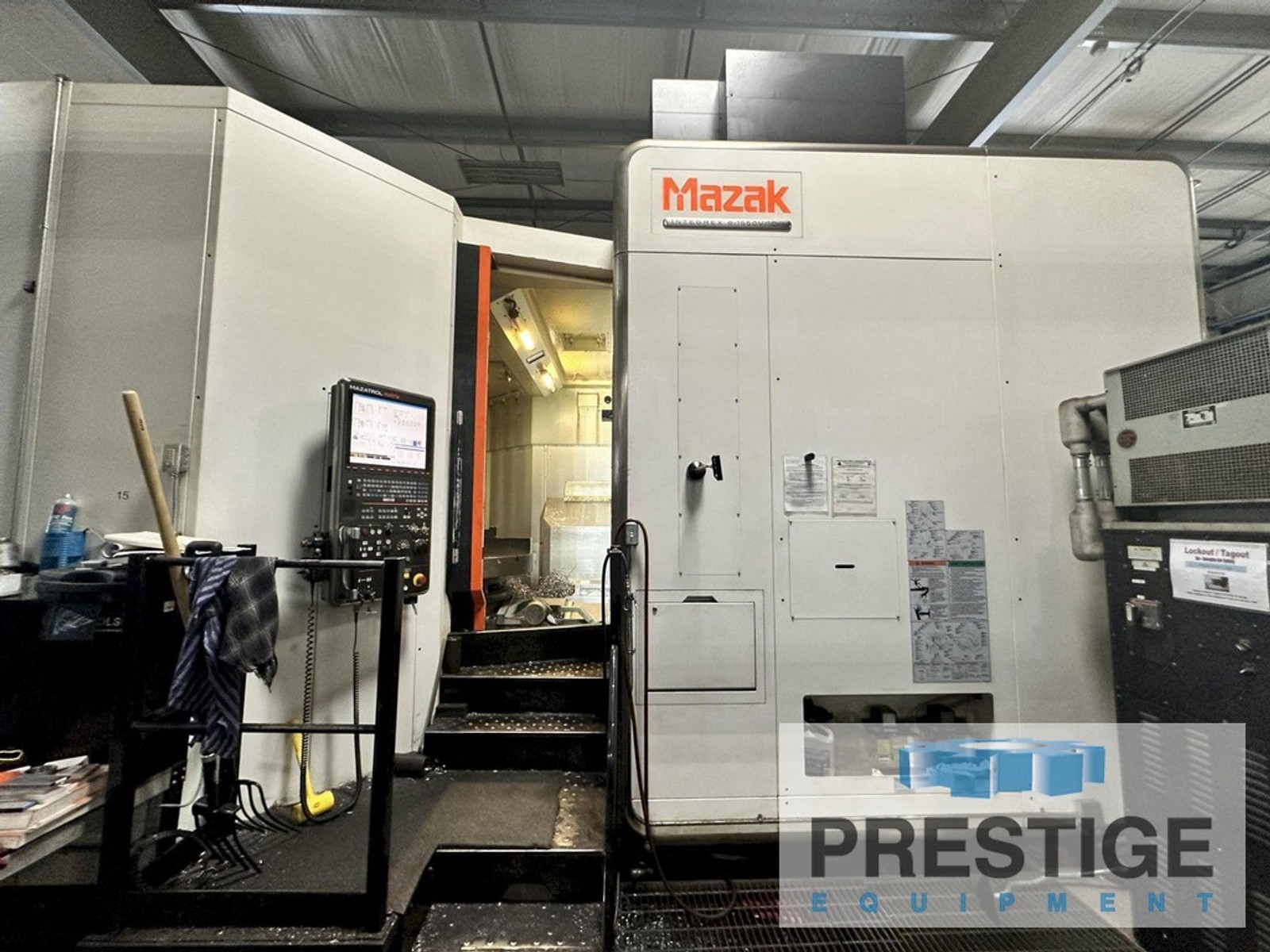

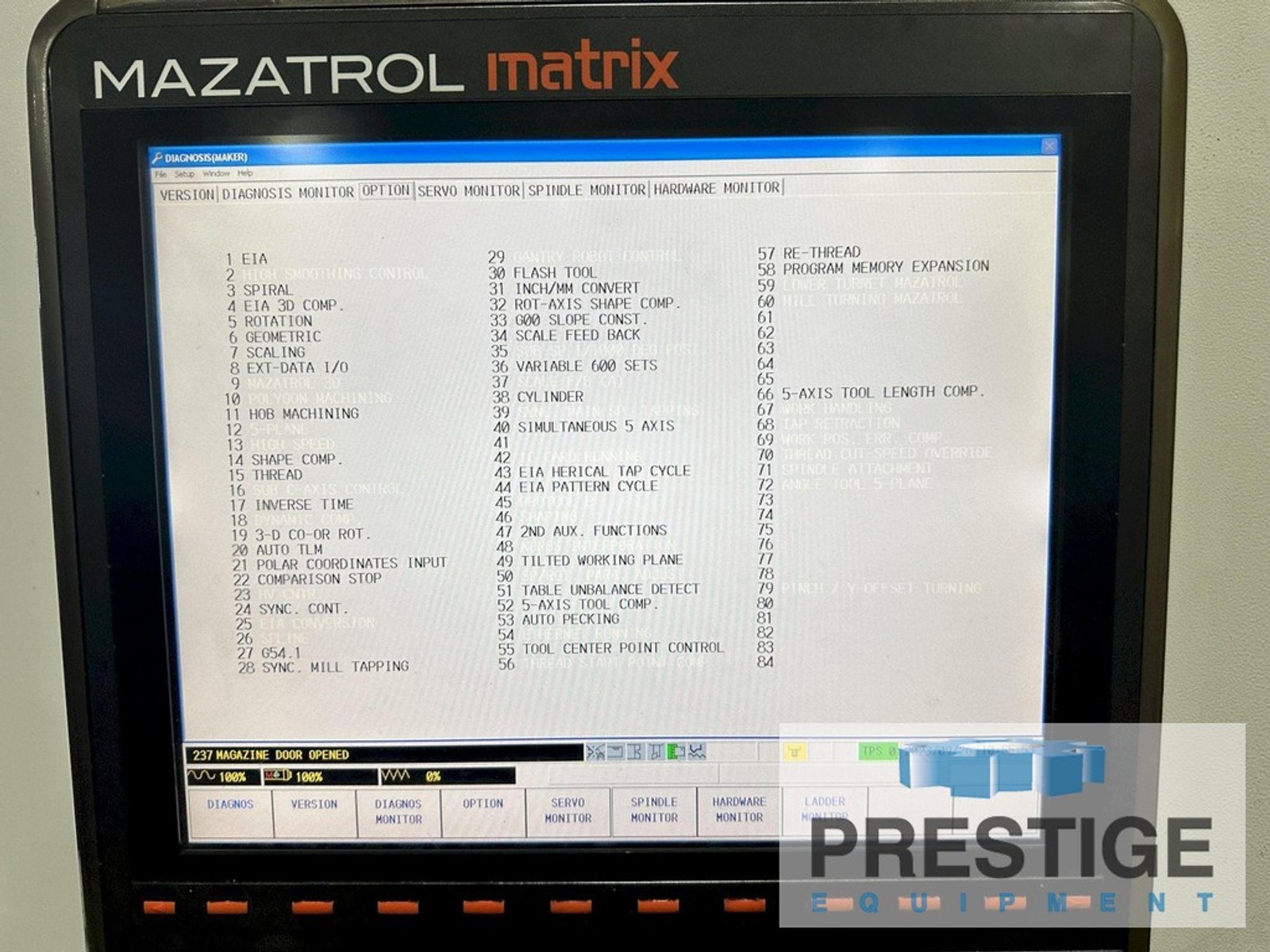

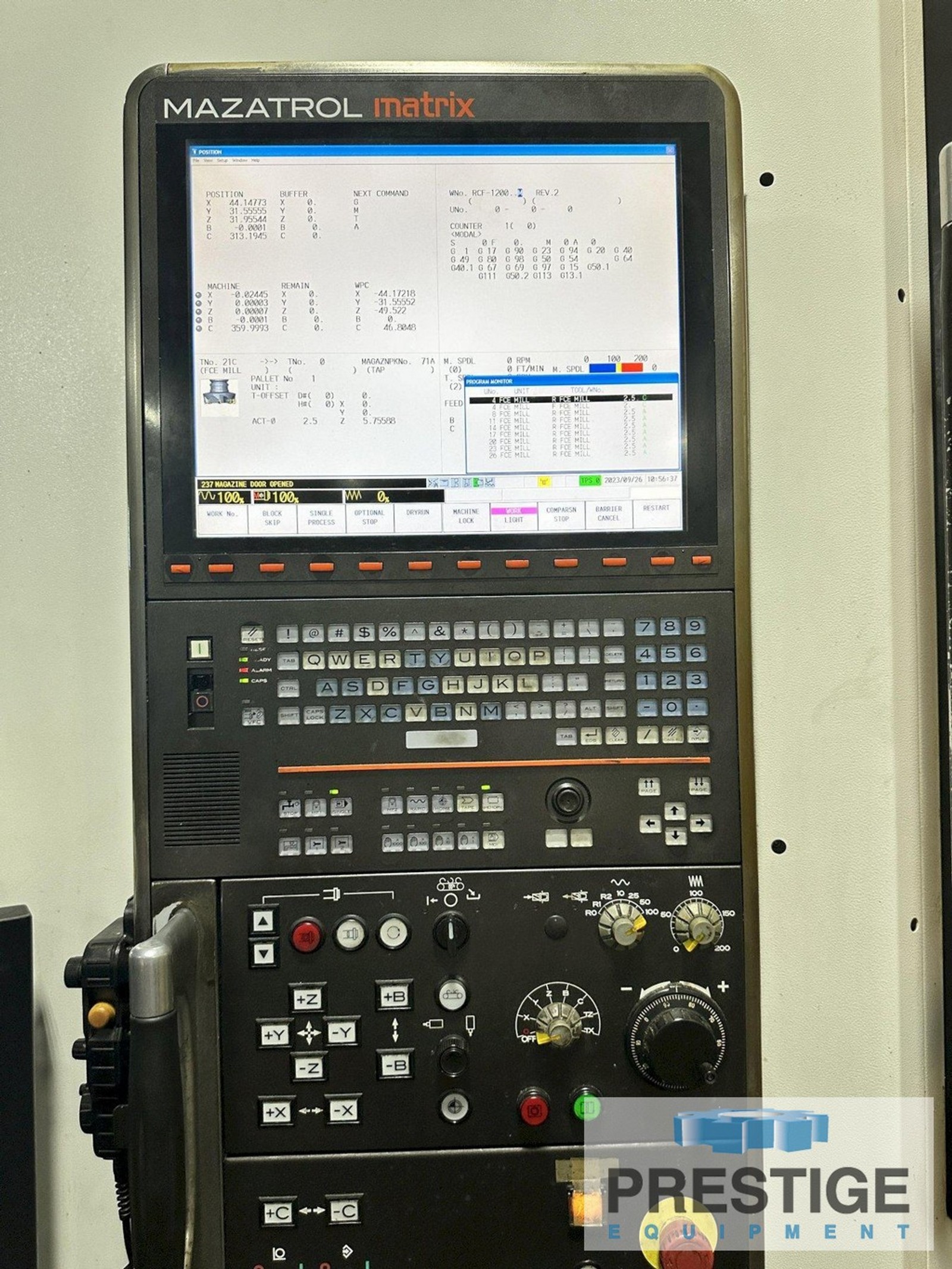

Mazak Mazatrol Matrix CNC Control

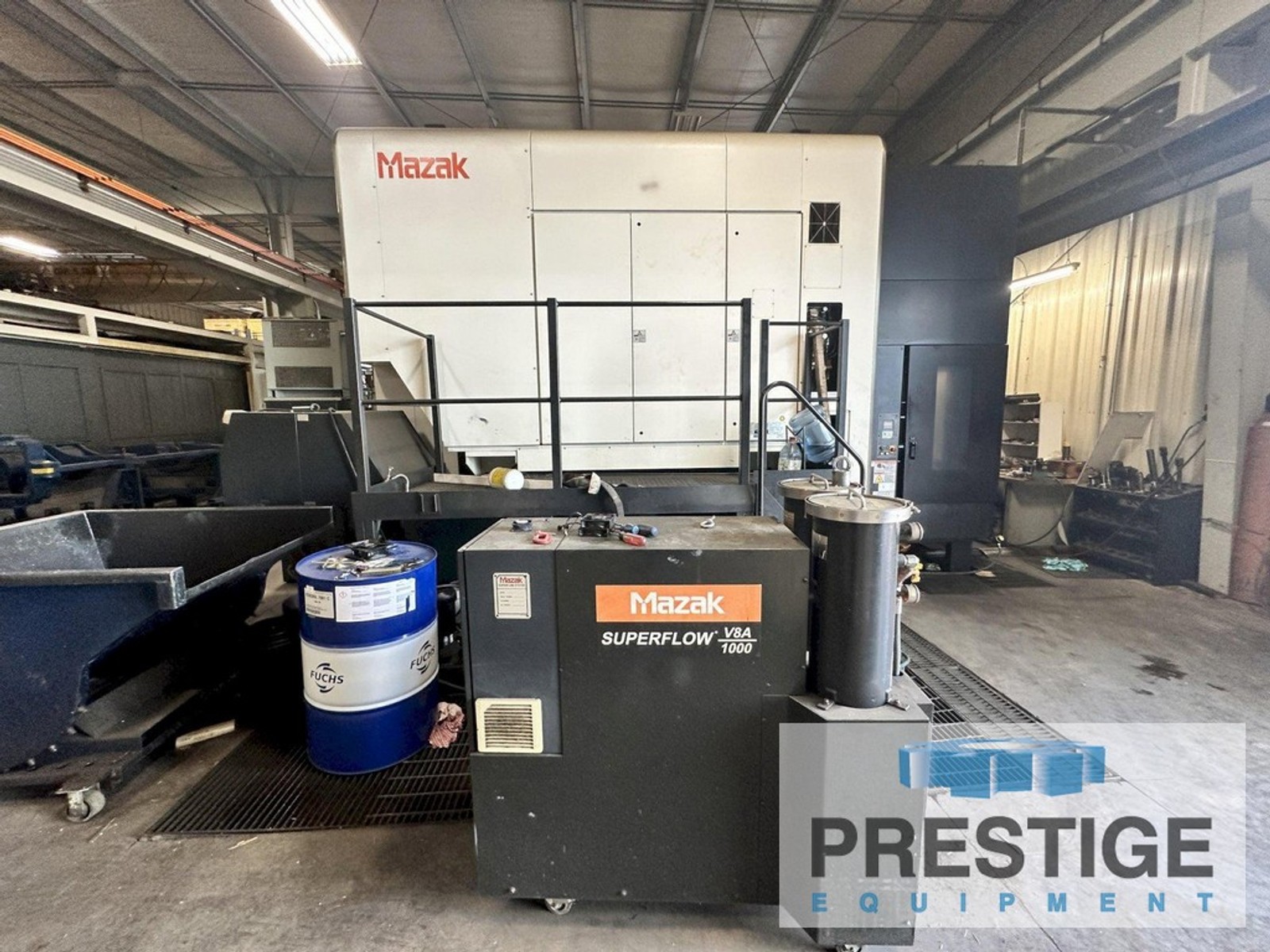

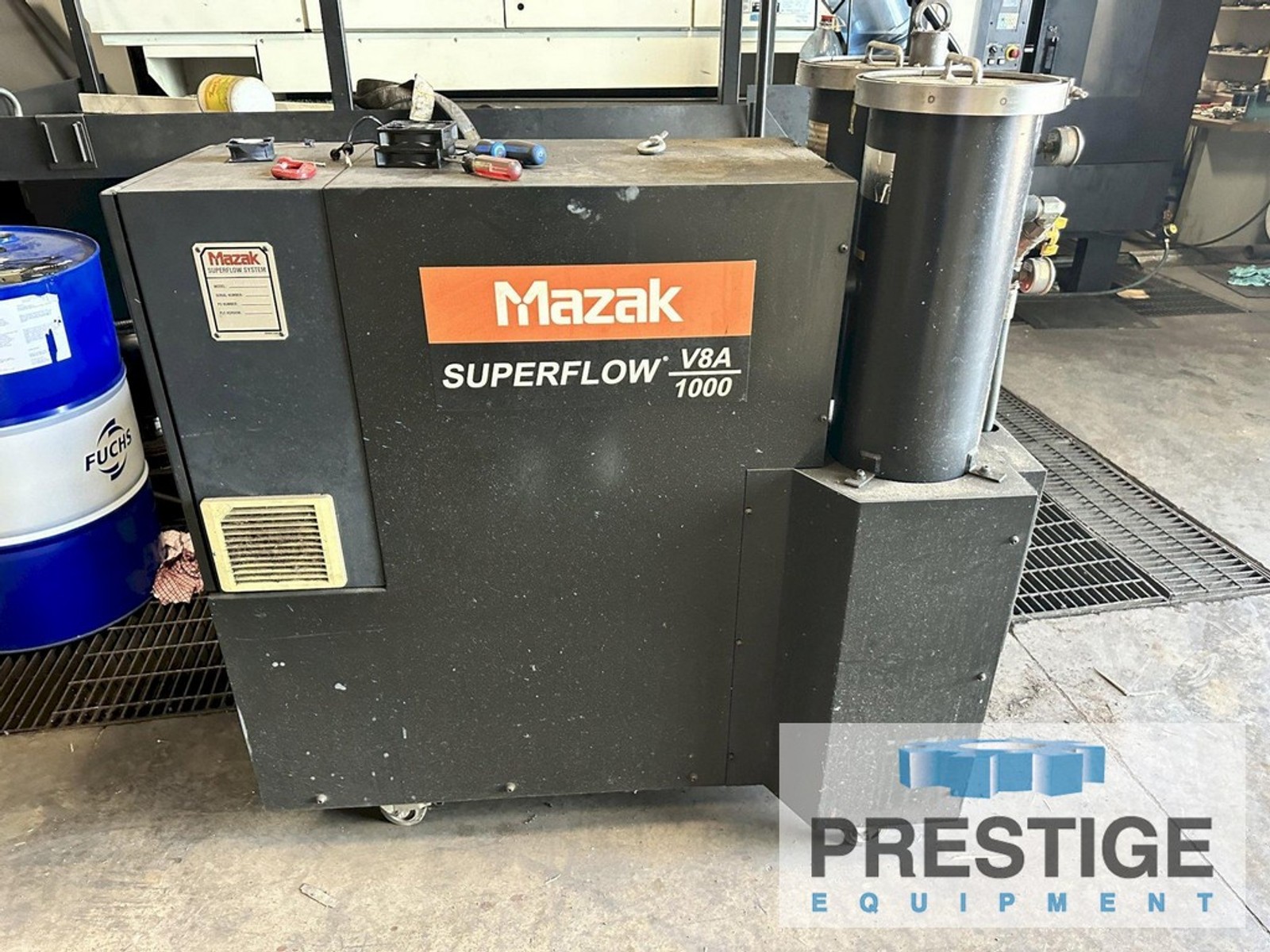

Mazak Superflow V8A/1000 High Pressure Coolant Thru
Chip Conveyor
Coolant Tank & Pumps
Hobbing Function
Flash Tool
Simultaneous 5-Axis Machining
Pallet Changer
Auto TLM
NC4 Laser Measurement

SPECIFICATIONS:
Maximum Machining Diameter ............ 78.74 inches
Maximum Machining Length .............. 57"

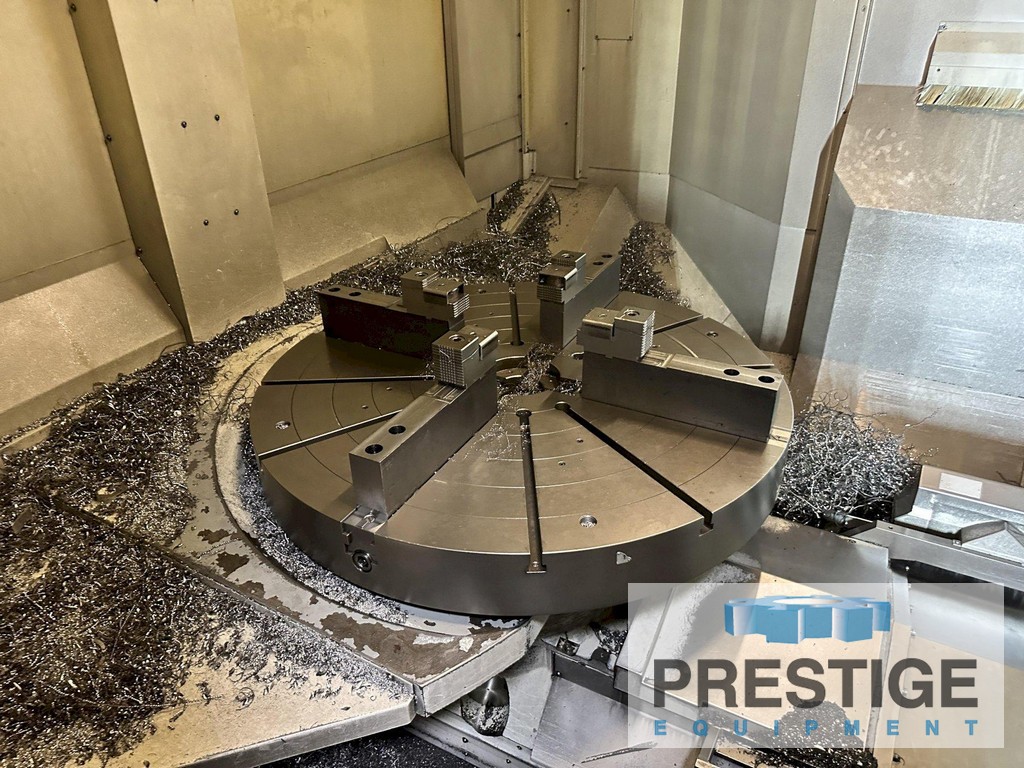

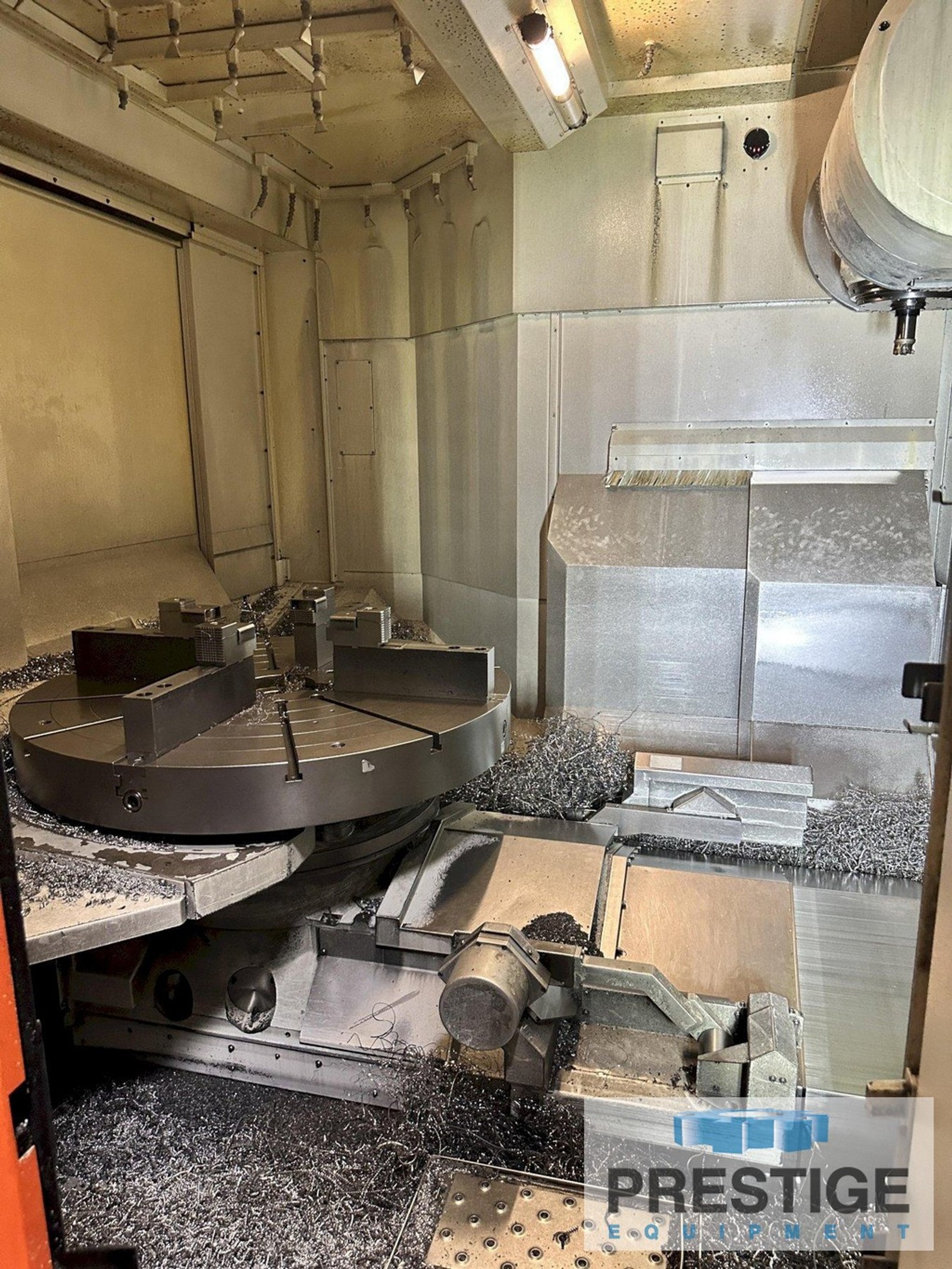

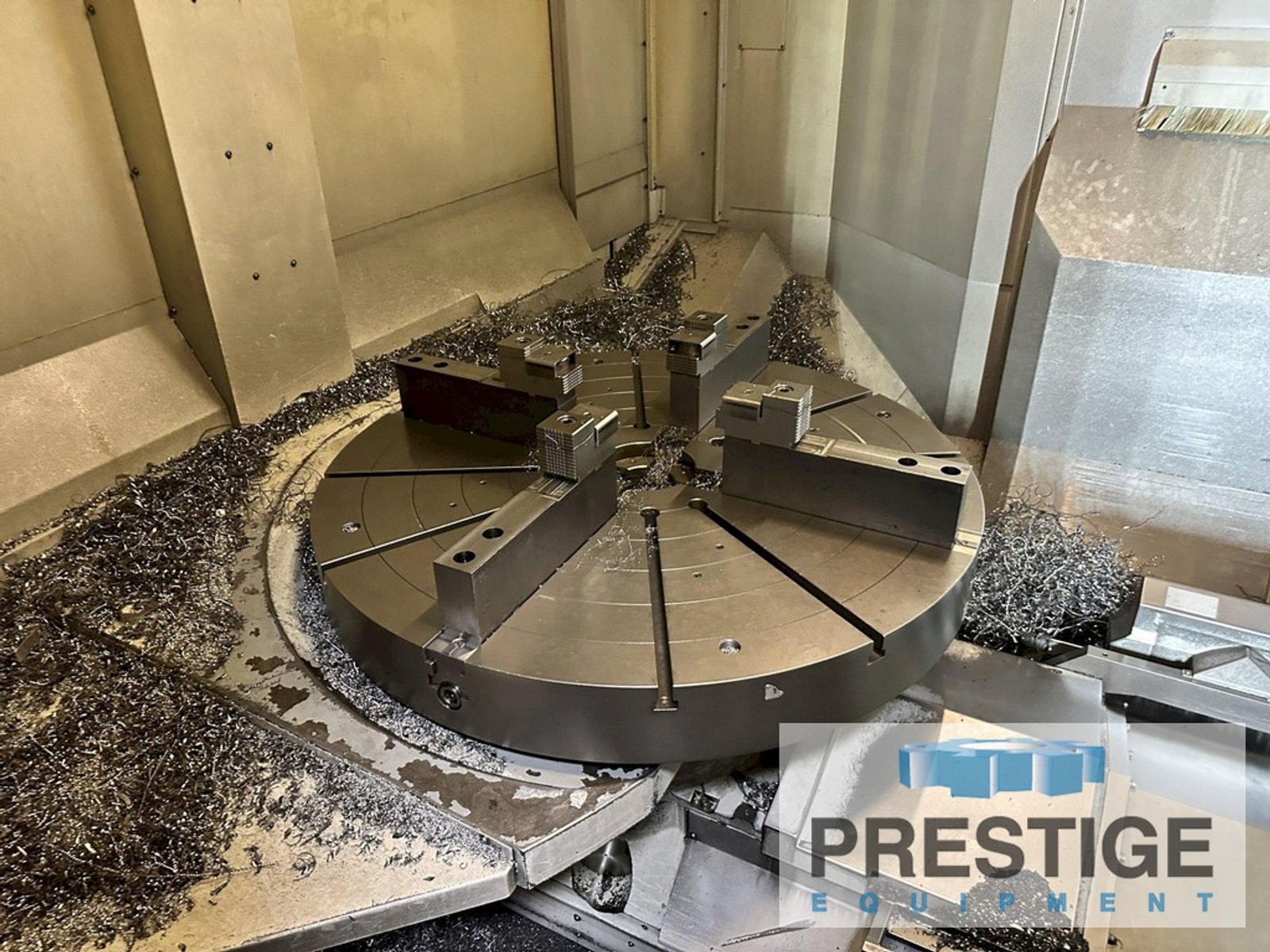

Chuck Size ............................ 55" 4-Jaw Manual
X-Axis Travel ......................... 73.82 inches
Y-Axis Travel ......................... 61.02 inches
Z-Axis Travel ......................... 52.95 inches

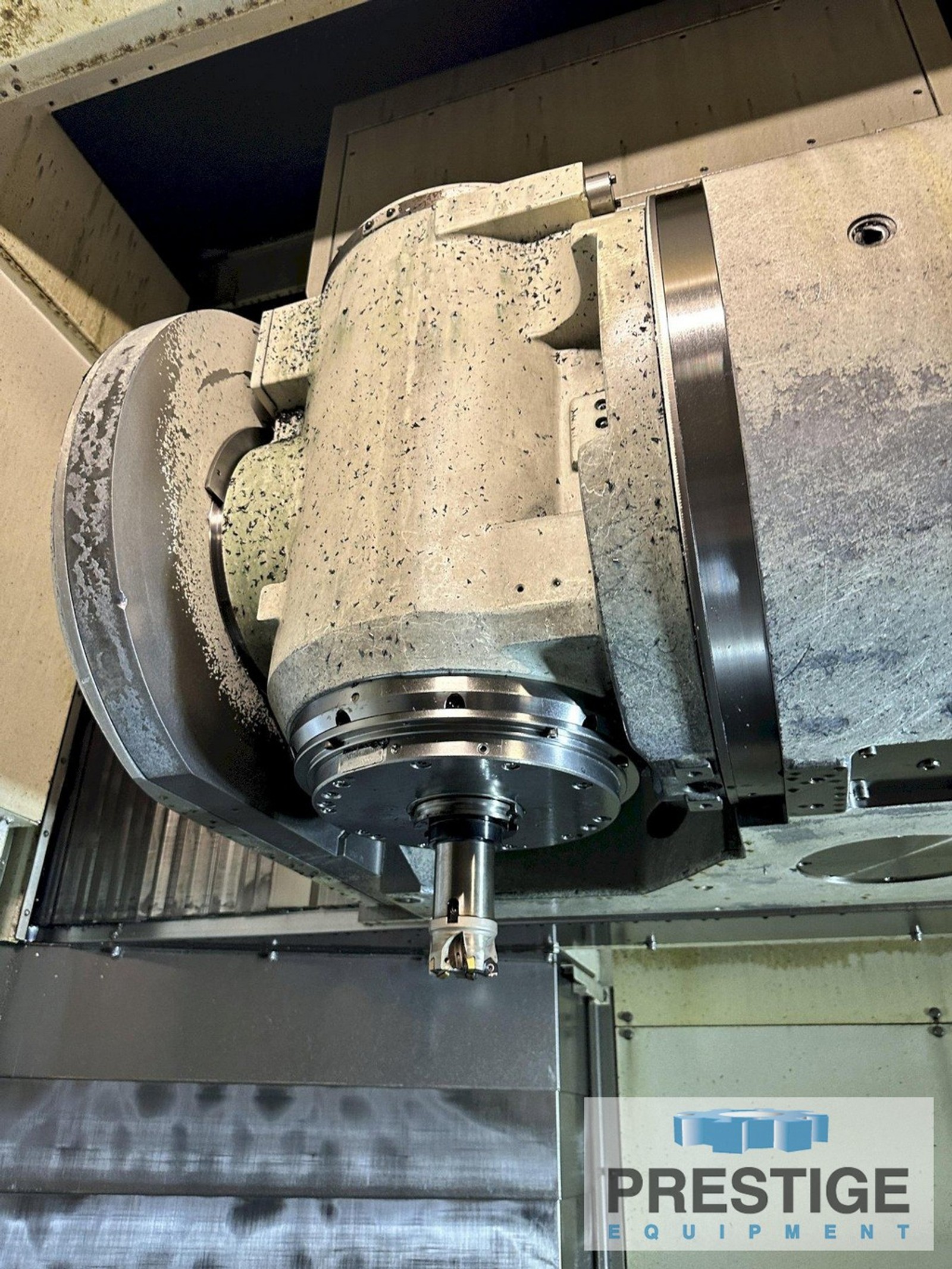

B-Axis Travel ......................... +120° to -30° (0.0001°)
C Axis Index .......................... 360° (0.0001°)
Rapid Traverse (X/Y/Z) ................ 1654 ipm
Milling Spindle Speed ................. 10,000 rpm
Main Motor ............................ 60 hp
Turning Spindle Speed ................. 300 rpm

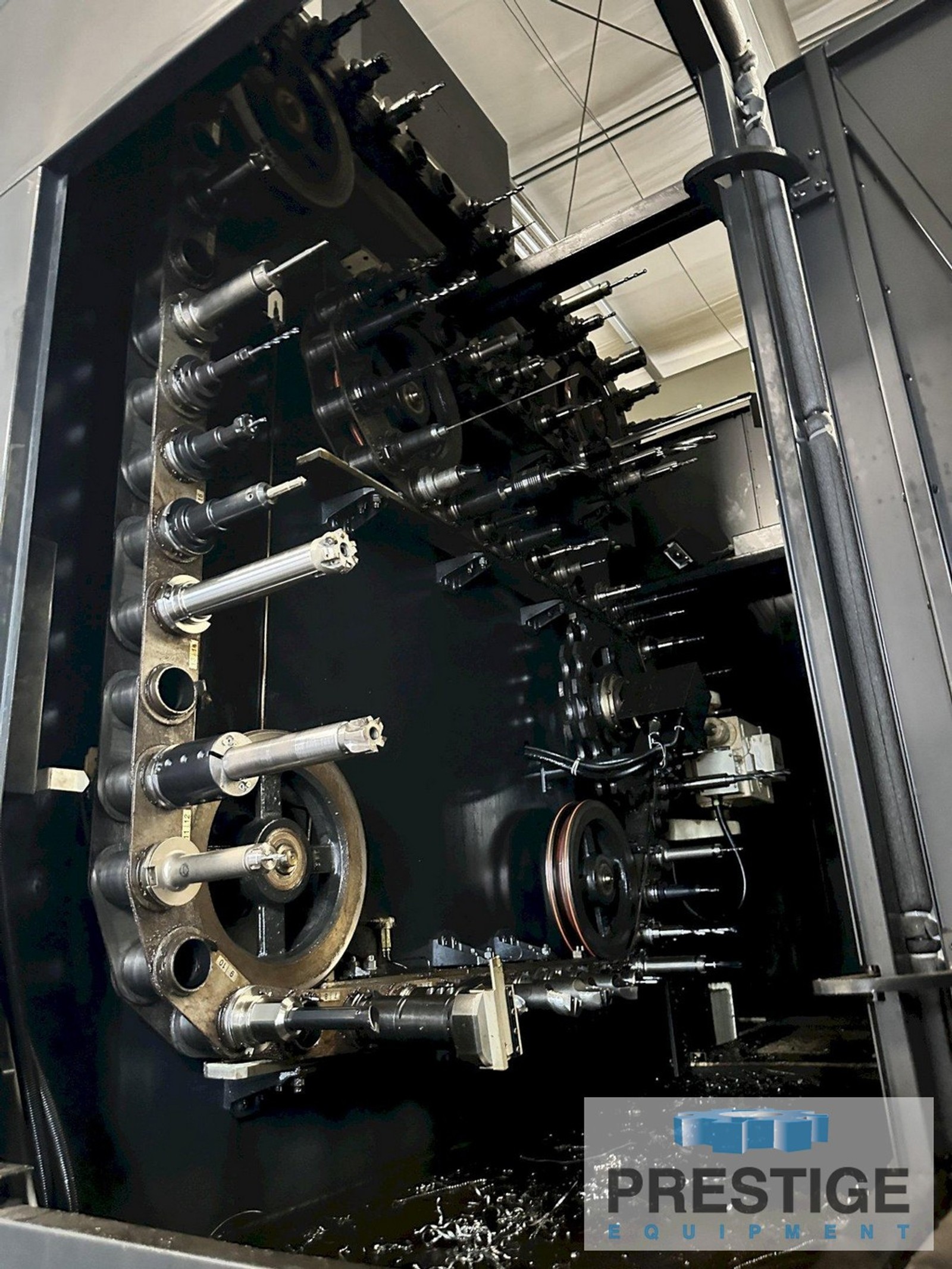

Tool Changer ......................... 80 Station
Coolant Thru Spindle .................. yes
Machine Weight ........................ 102,800 lbs

EQUIPPED WITH:
Mazak Mazatrol Matrix CNC Control
Mazak Superflow V8A/1000 High Pressure Coolant Thru
Chip Conveyor
Coolant Tank & Pumps
Hobbing Function
Flash Tool
Simultaneous 5-Axis Machining
Pallet Changer
Auto TLM
NC4 Laser Measurement
