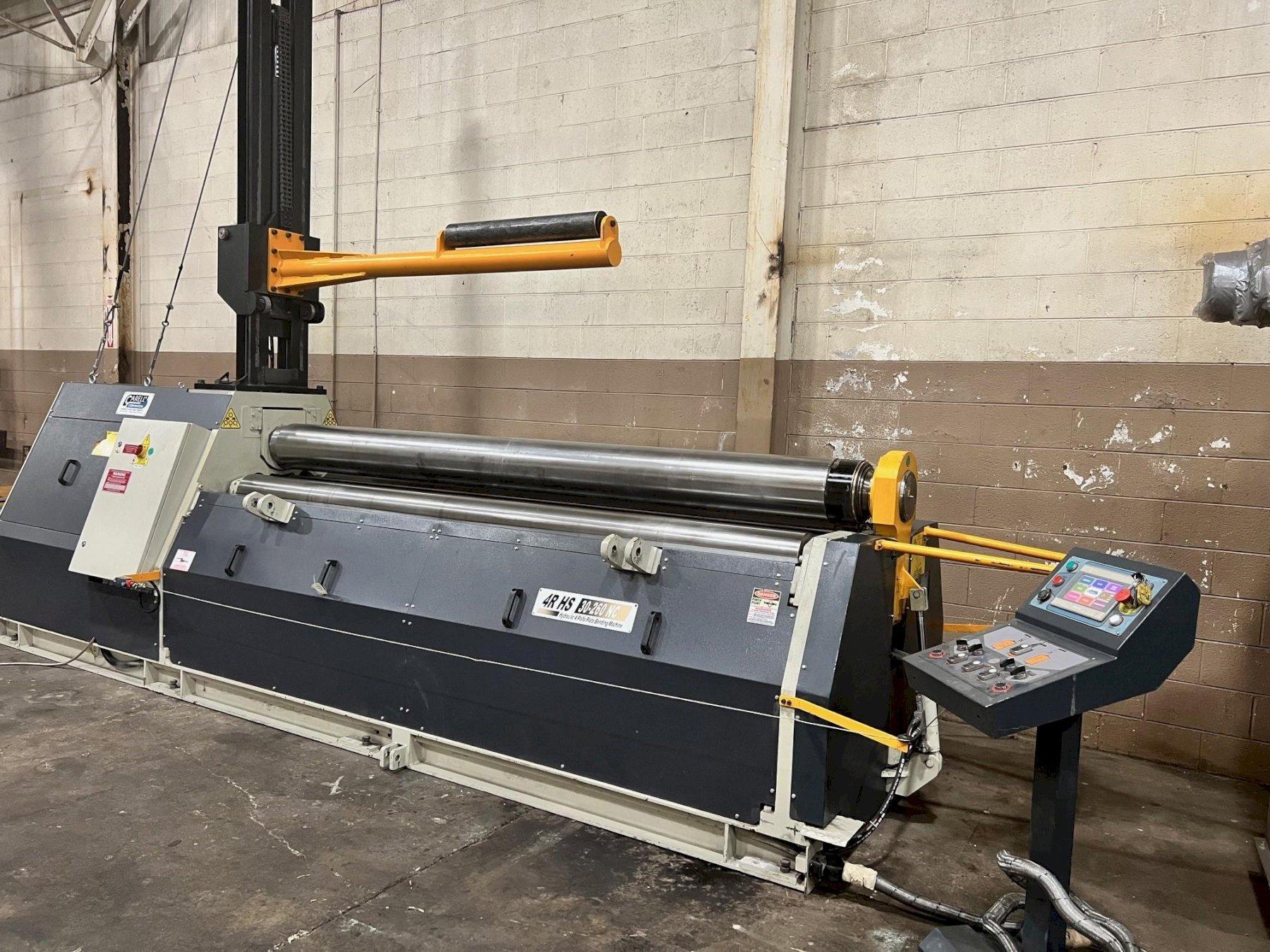

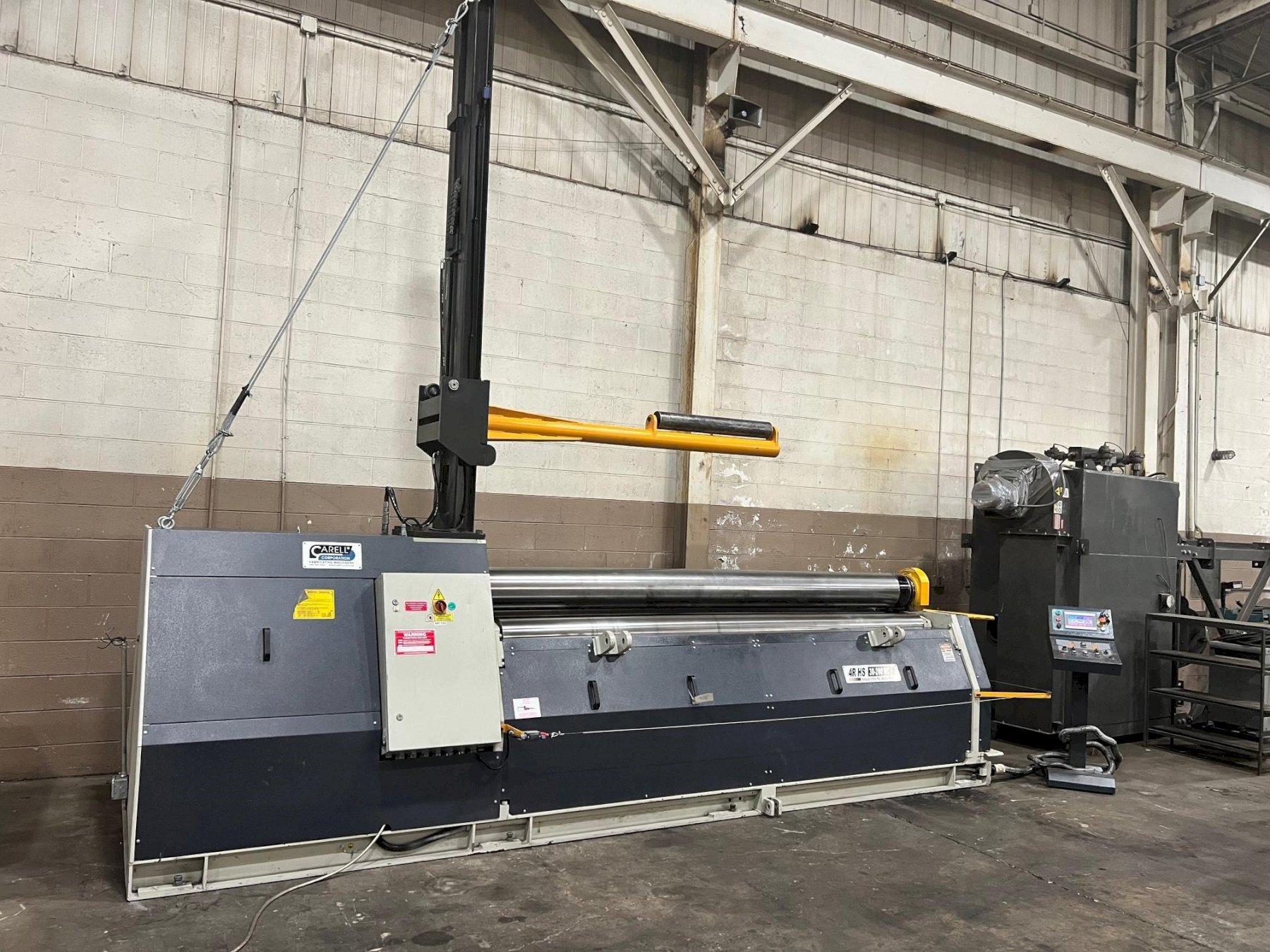

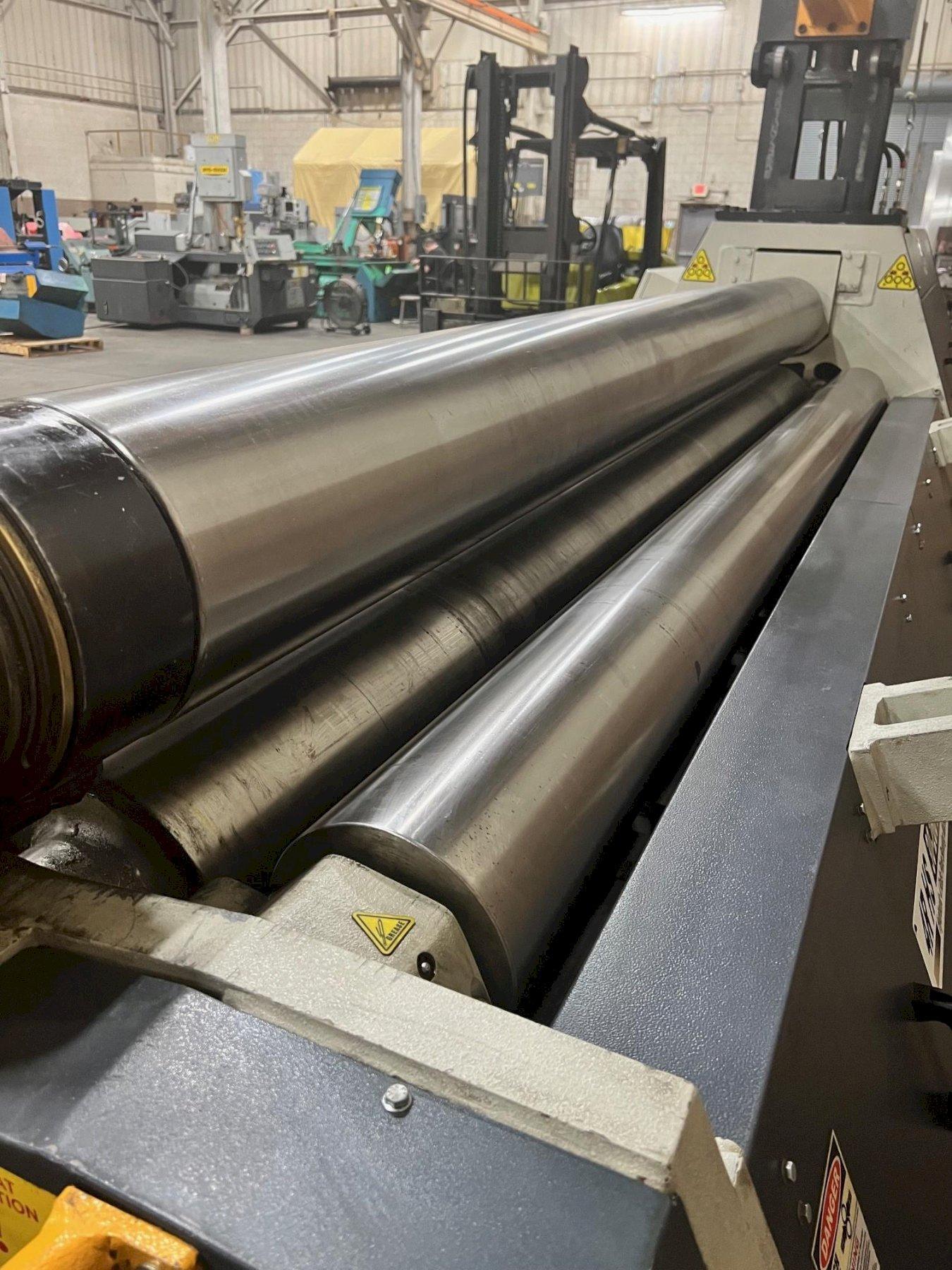

USED CARELL 10' X 3/8" 4-ROLL NC PLATE ROLL MODEL 4R HS 30X260NC, Stock# 11093, Year: 2019

Manufacturer

CARELL

Category

Fabricating Machines

Type

BENDING ROLLS

Stock

11093

Model

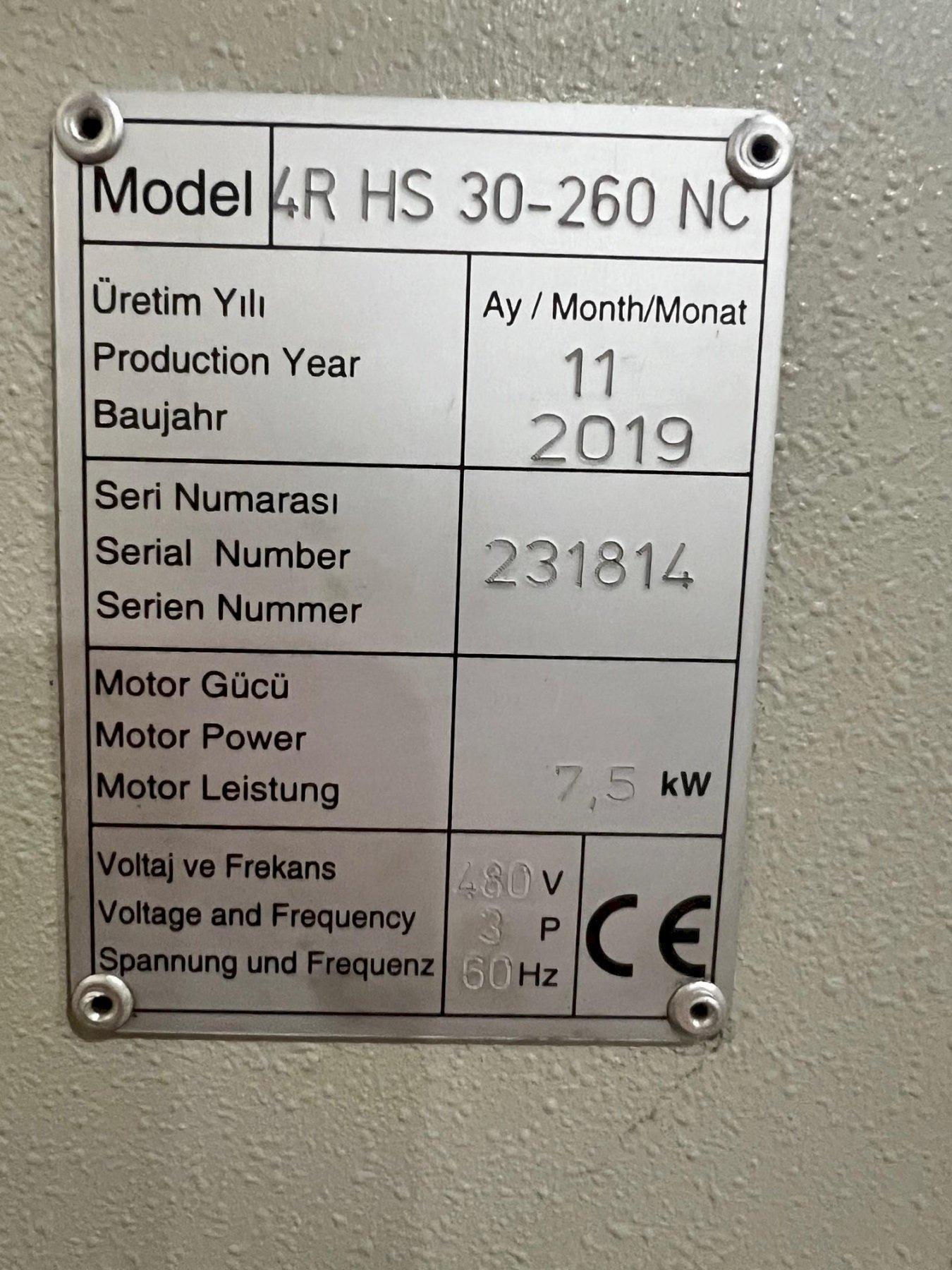

4R HS 30-260 NC

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Carell
Model: 4R HS 30-260 NC

Specifications:
Capacity @ 36,000 PSI
Rolling 5.0 > top roll OD: 3/8" x 10'
Rolling 1.5 > top roll OD: 5/16" x 10'
Pre-bending 5.0 > top roll OD: 5/16" x 10'
Pre-bending 1.5 > top roll OD: 1/4" x 10'
Capacity @ 50,000 PSI
Rolling 5.0 > top roll OD: 1/4" x 10'
Rolling 1.5 > top roll OD: 7/32" x 10'
Pre-bending 5.0 > top roll OD: 7/32" x 10'
Pre-bending 1.5 > top roll OD: 3/16" x 10'

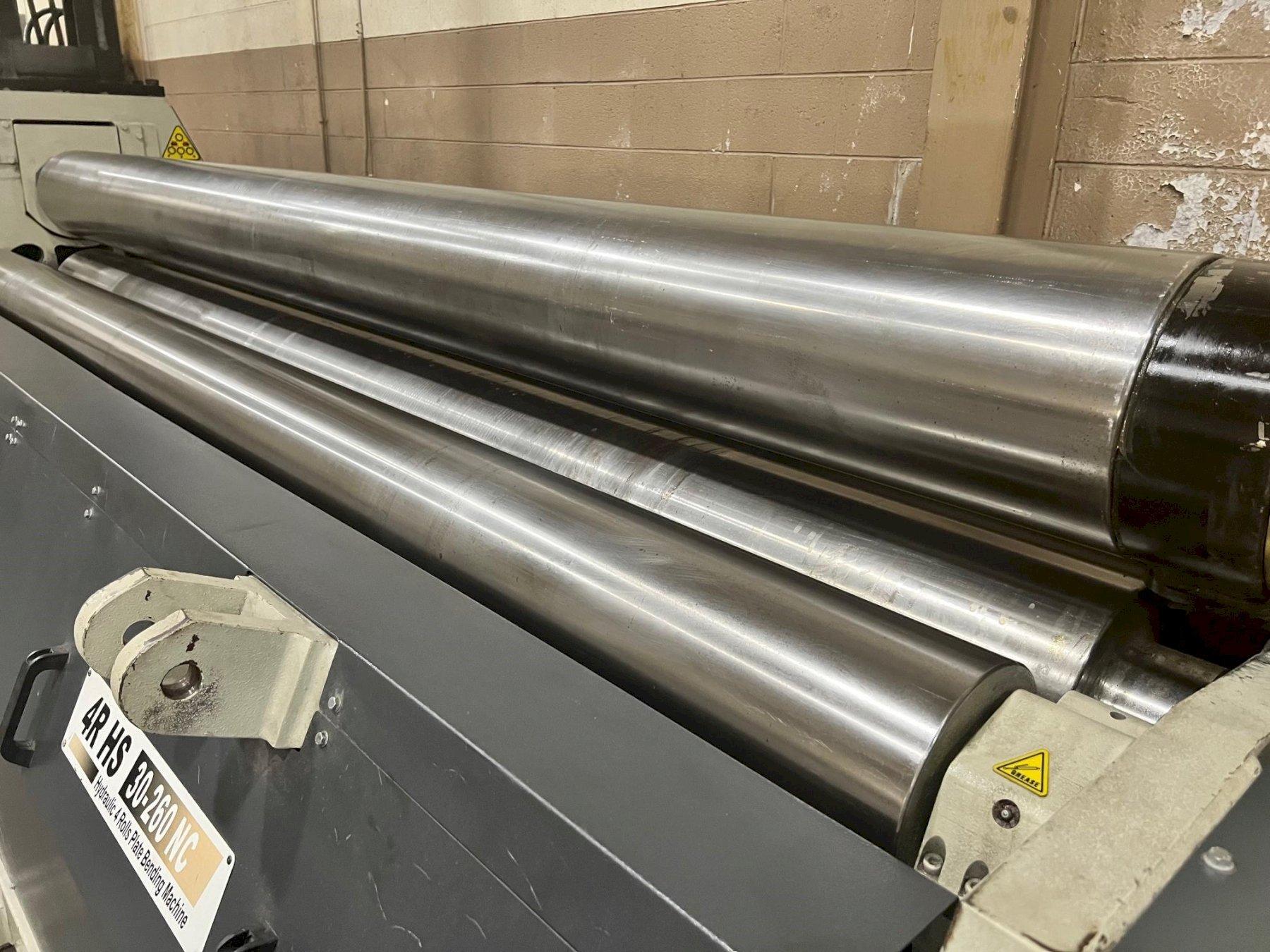

Upper roll diameter: 10.20"
Lateral rolls diameter: 7.87"
(2) rotation speeds: 5 / 18 FPM

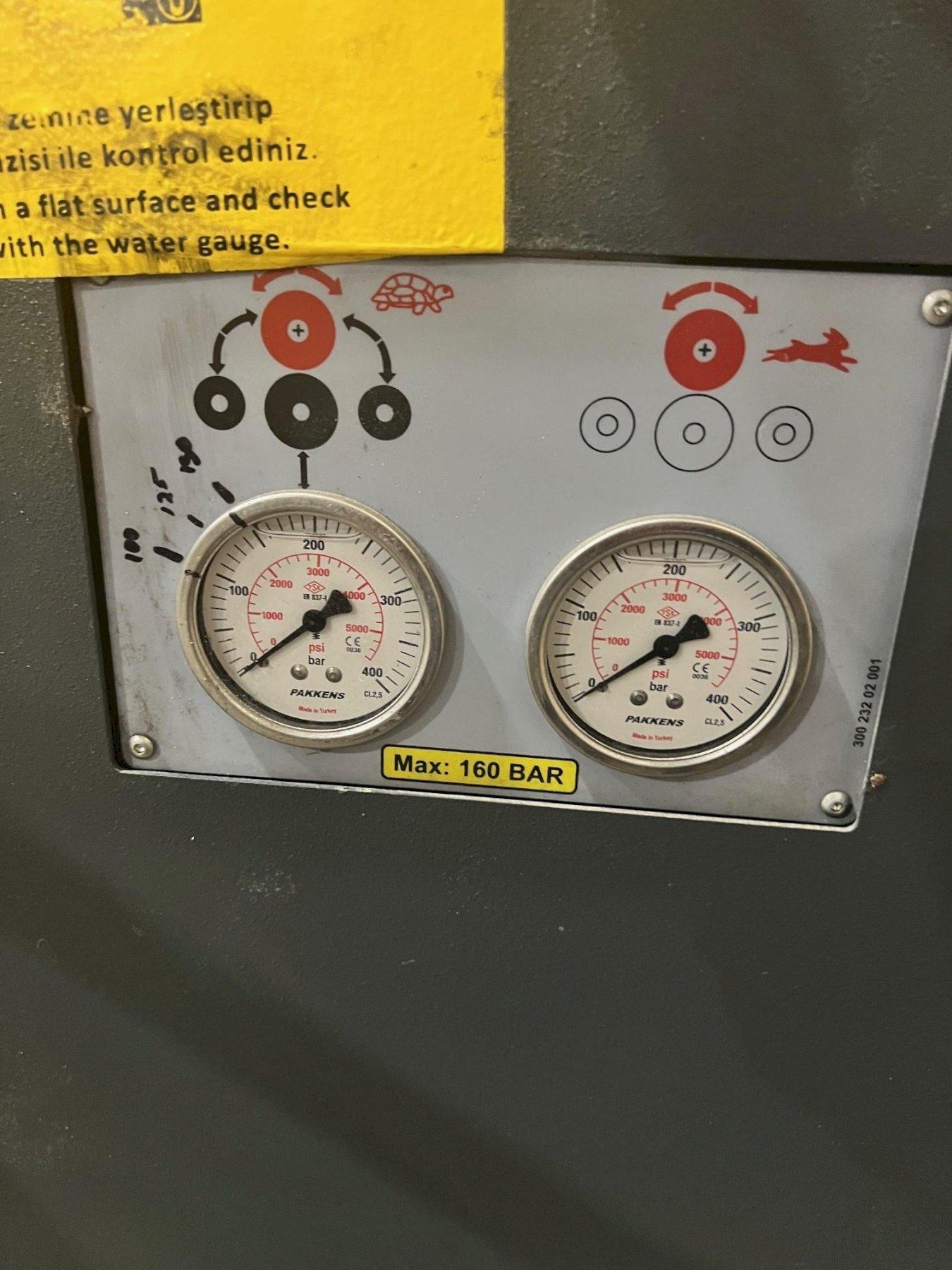

Hydraulic pump: continuous duty
Hydraulic motors: radial piston on top roll, high torque
Speed reduction: Planetary, continuous oil bath
Total power: 10 H.P.
Voltage: 440 volt 3 phase
Dimensions: 197" x 63" x 63"
Weight: 16,450 Lbs.

Equipped with:

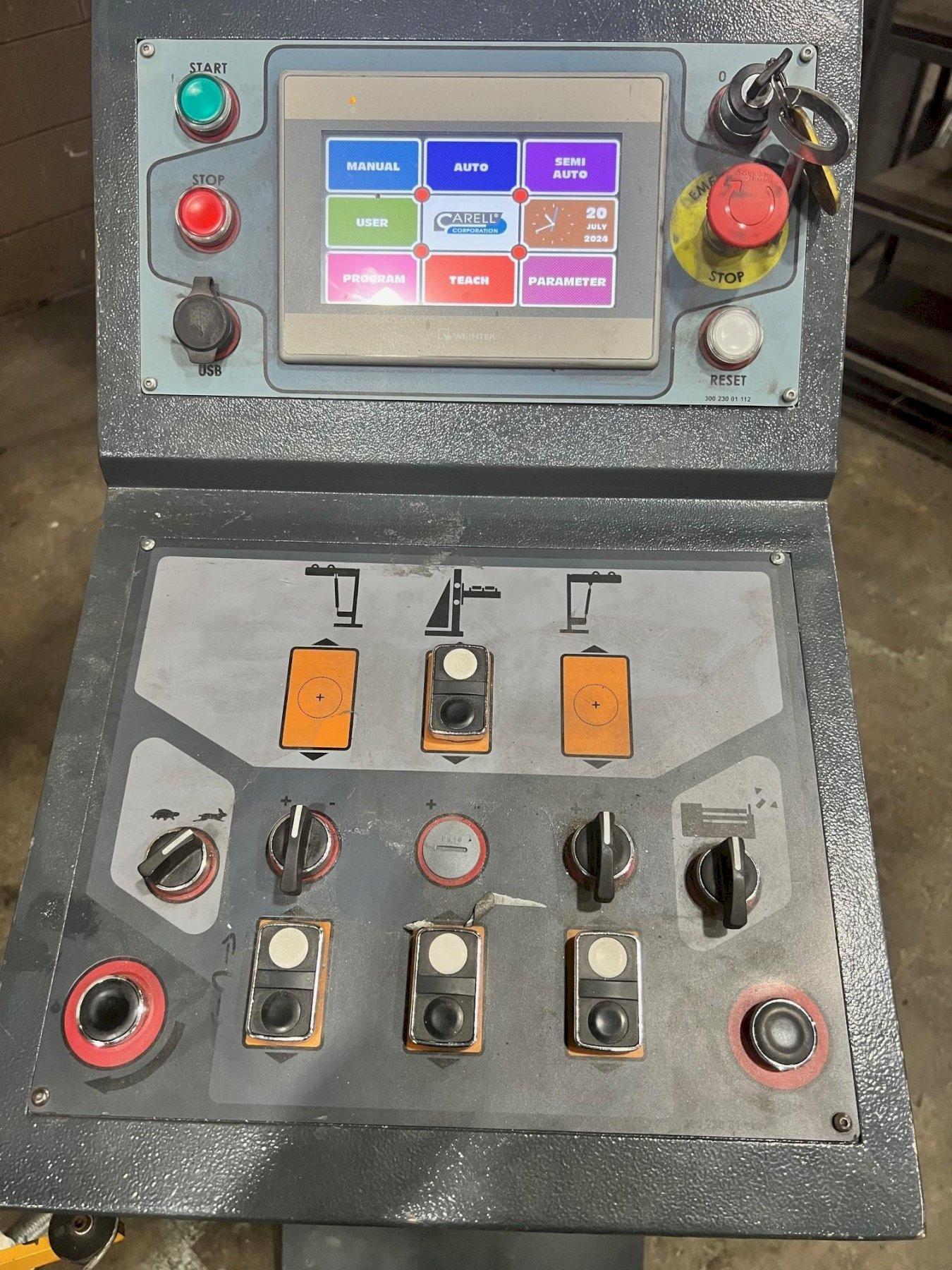

Portable NC color touchscreen control

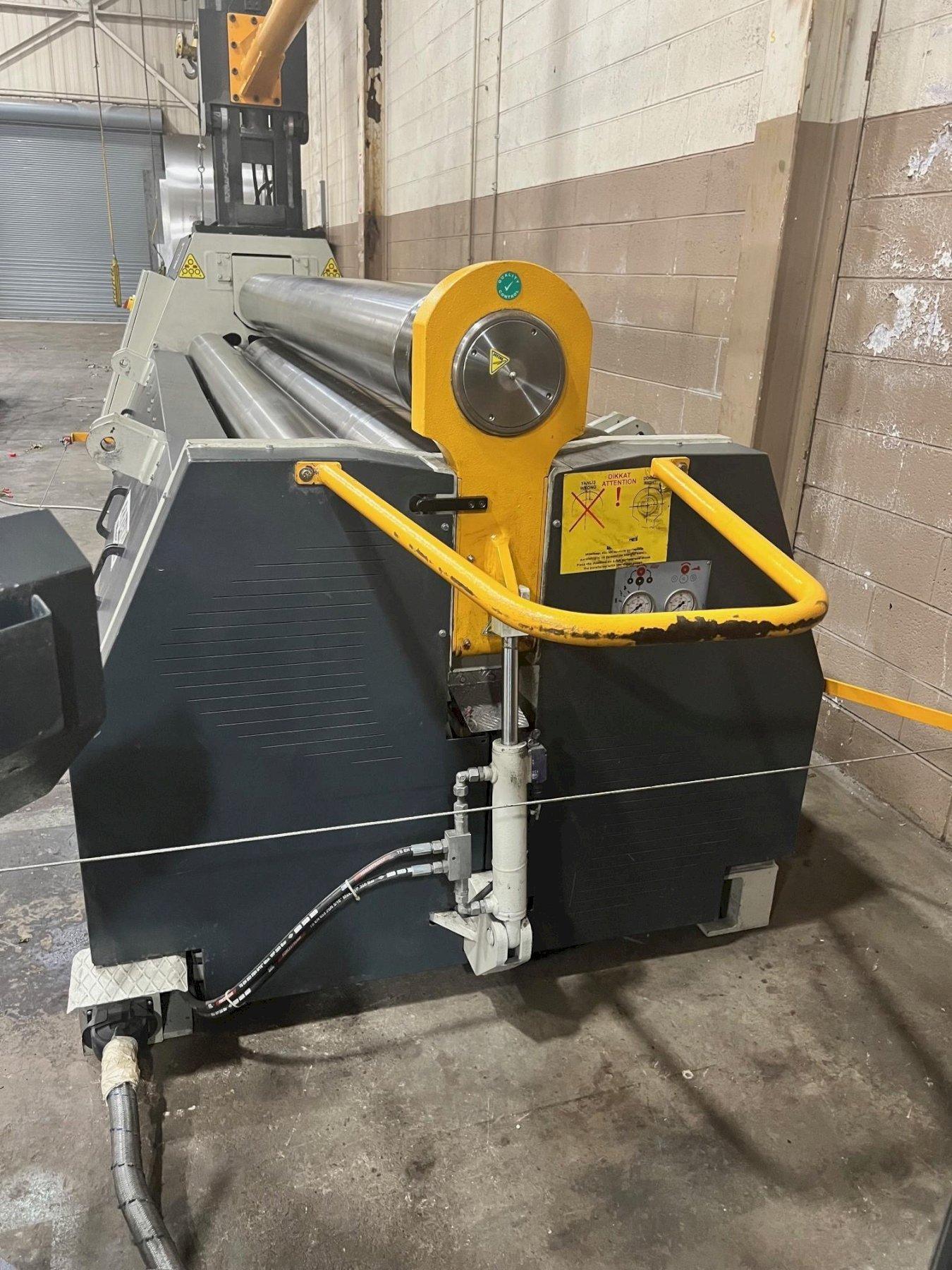

Hydraulic drop end
Bottom pinch roll hydraulically positioned

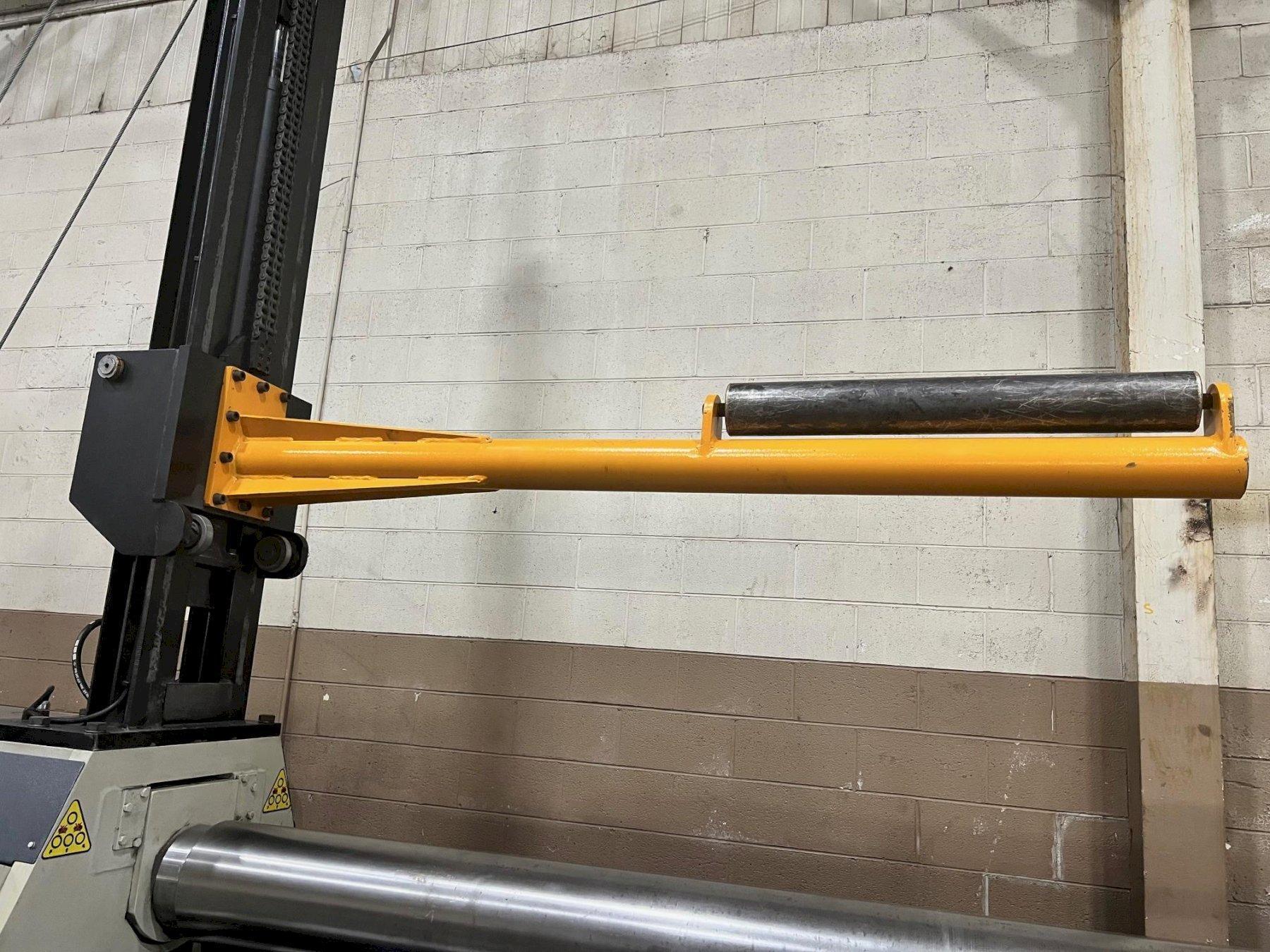

Mechanical overhead roll support
