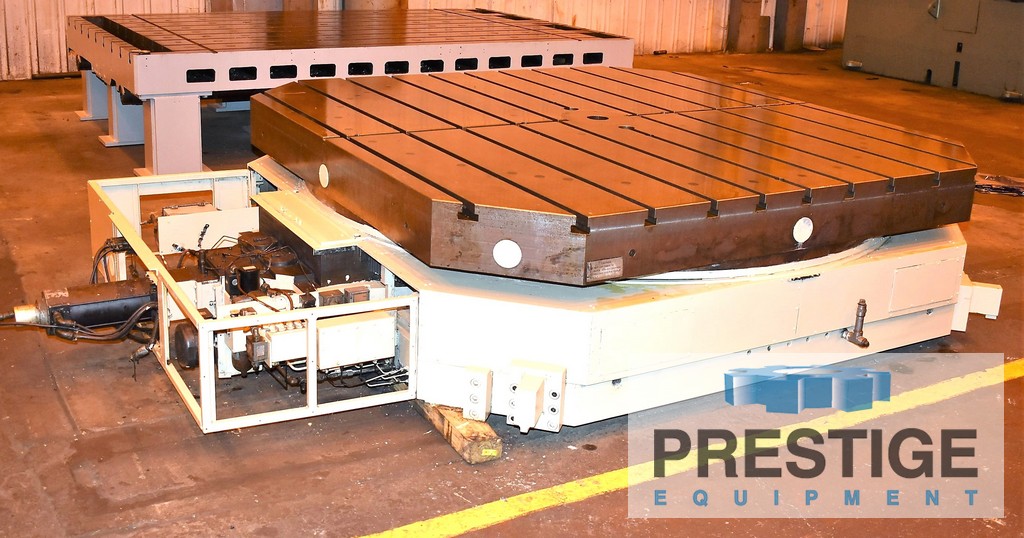

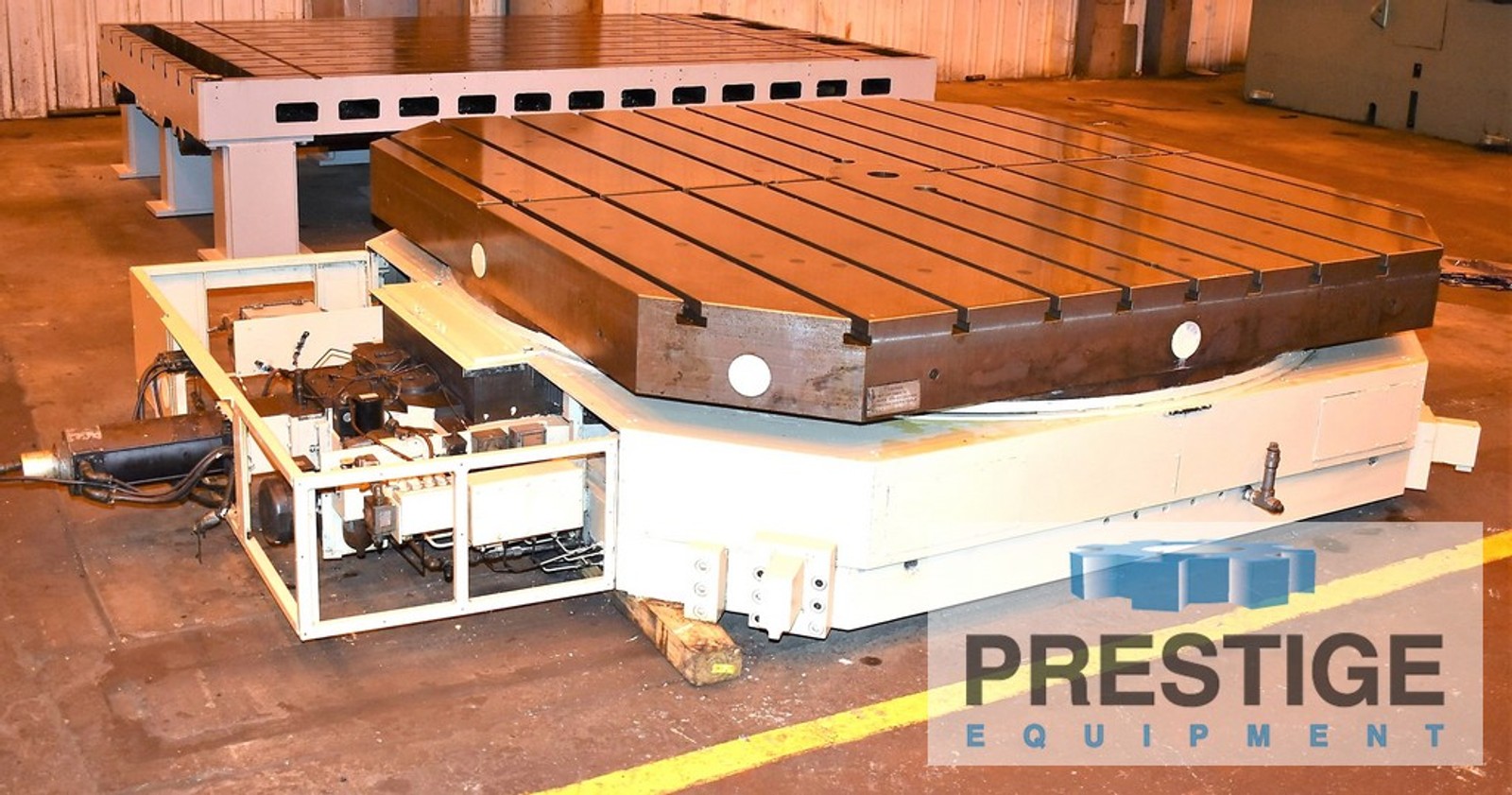

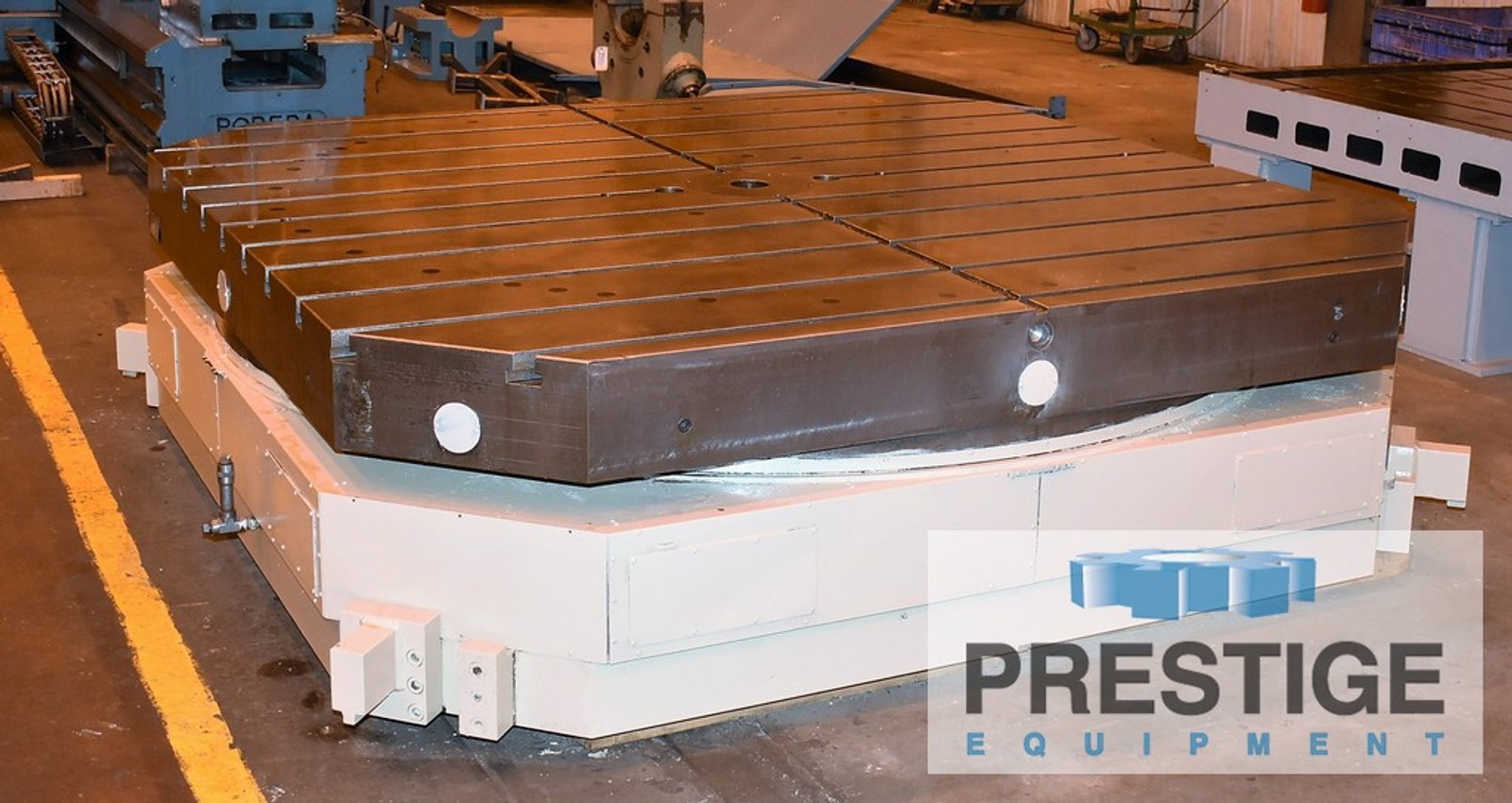

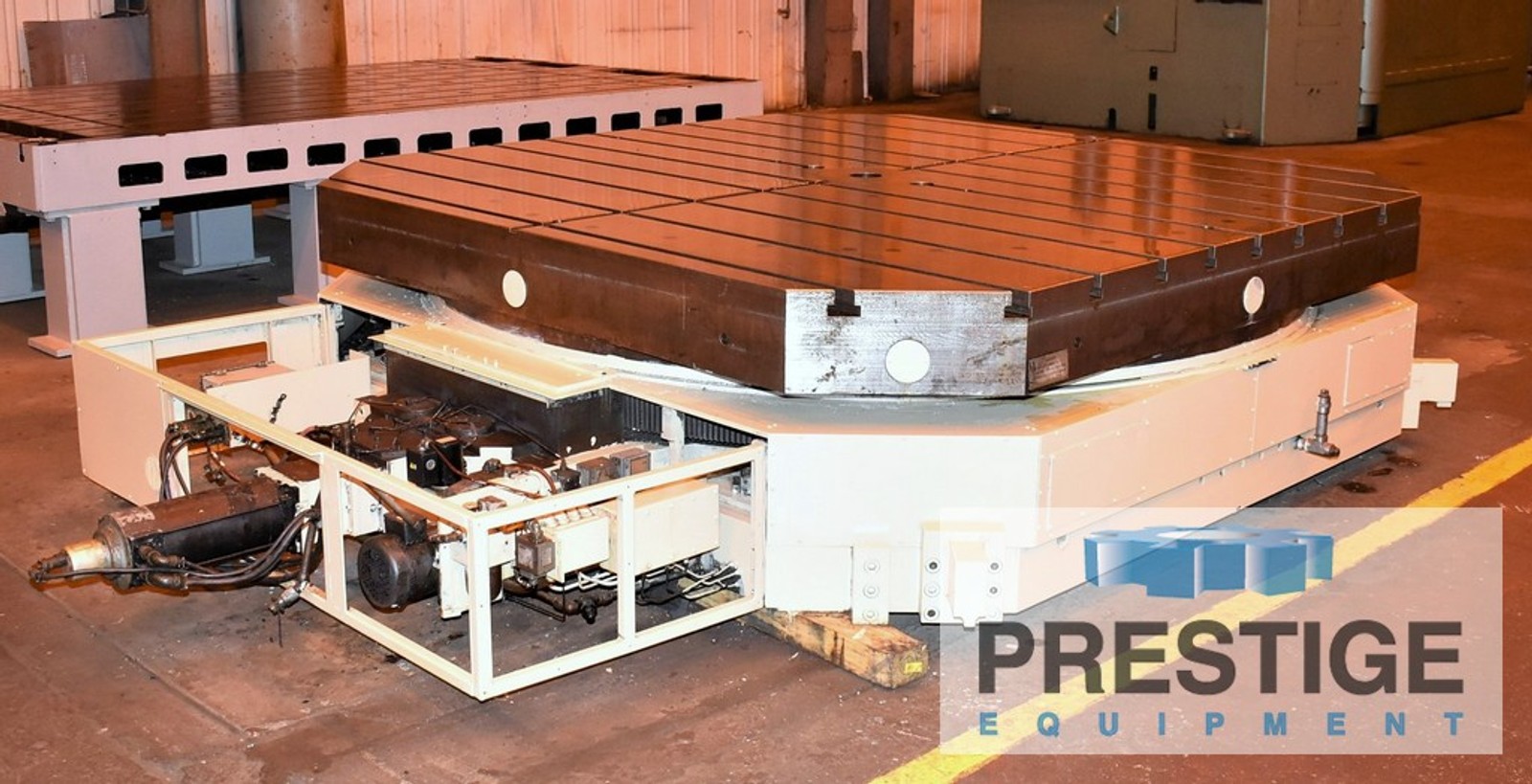

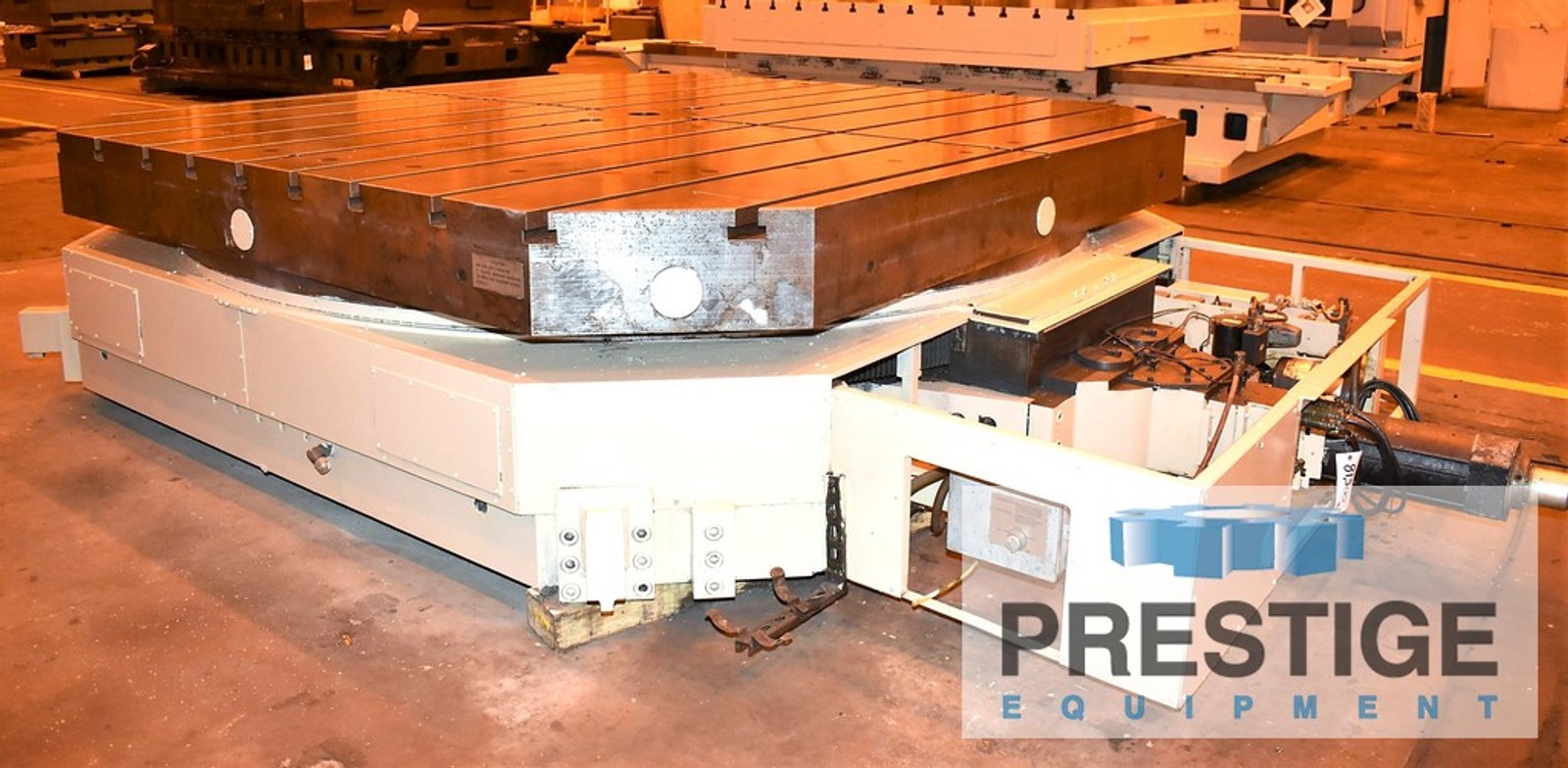

Giddings & Lewis 360C 120" x 120" CNC B-Axis Rotary Table, 75 Ton Capacity, #43427

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

43427

Model

360C B-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43427
Giddings & Lewis Model 360C 120" x 120" Infeeding B-Axis CNC Rotary Table

FEATURES:
75 Ton Table Weight Capacity
Full Contouring B-Axis
Rotary Indexing & Milling Capability

ROTARY TABLE SPECIFICATIONS:
Table Dimensions ...................... 120" x 120"
Table Weight Capacity ................. 75 Ton
Number of T-Slots ..................... 11
T-Slot Size .......................... 1-5/16" T-Slots
B-Axis Rotation ....................... 360,000 Positions
Table Height .......................... 37"
Approx. Base Dimensions ............... 96" x 90"
Approx. Table Weight .................. 81,000 Lbs

EQUIPPED WITH:
Rotary Indexing & Milling
Contouring & Positioning
Rotary Scale & Inductosyn Scale
Hydrostatic


NOTE:
Rebuilt by OEM in 2017
