Amada FO-4020, 4000 Watt, 80" x 160", Fanuc 160iL CNC Control, Dual Pallets, Chiller, Dust Collector, 2007, #43422

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

43422

Model

FO-4020NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43422

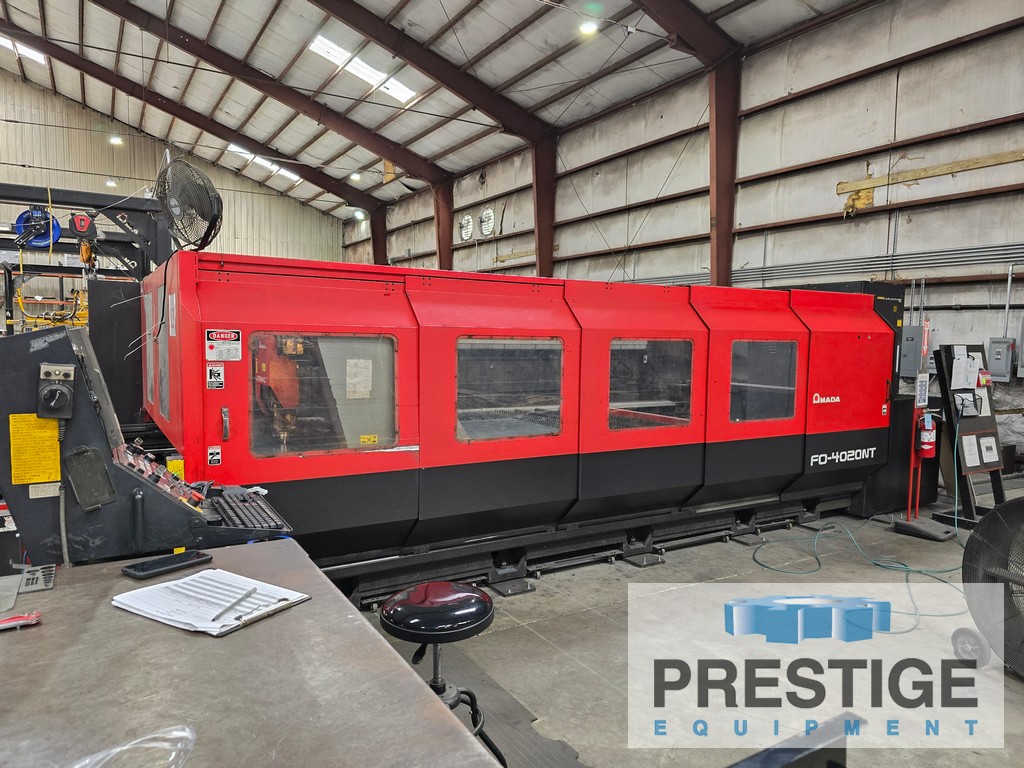

AMADA FO-4020NT 4000 Watt Flying Optic C02 CNC Laser

FEATURES:
Fanuc 160iL CNC Control
Dual Pallet Shuttle Tables
Torit Dust Collector
Chiller

CAPACITY:
Maximum Laser Output .................. 4000 Watt
X-Axis Travel ........................ 160"
Y-Axis Travel ........................ 80.7"
Z-Axis Travel ......................... 7.8"
Maximum Sheet Size ................... 80" x 160"
Cutting Feed Rate ..................... 0 - 780 IPM
Max. Positioning Speed (X & Y Axis).... 3,150 IPM
Max. Positioning Speed (Z Axis) ....... 2,362 IPM
Max. Material Weight .................. 3,4540 Lbs.

EQUIPPED WITH:
Fanuc 160iL CNC Control

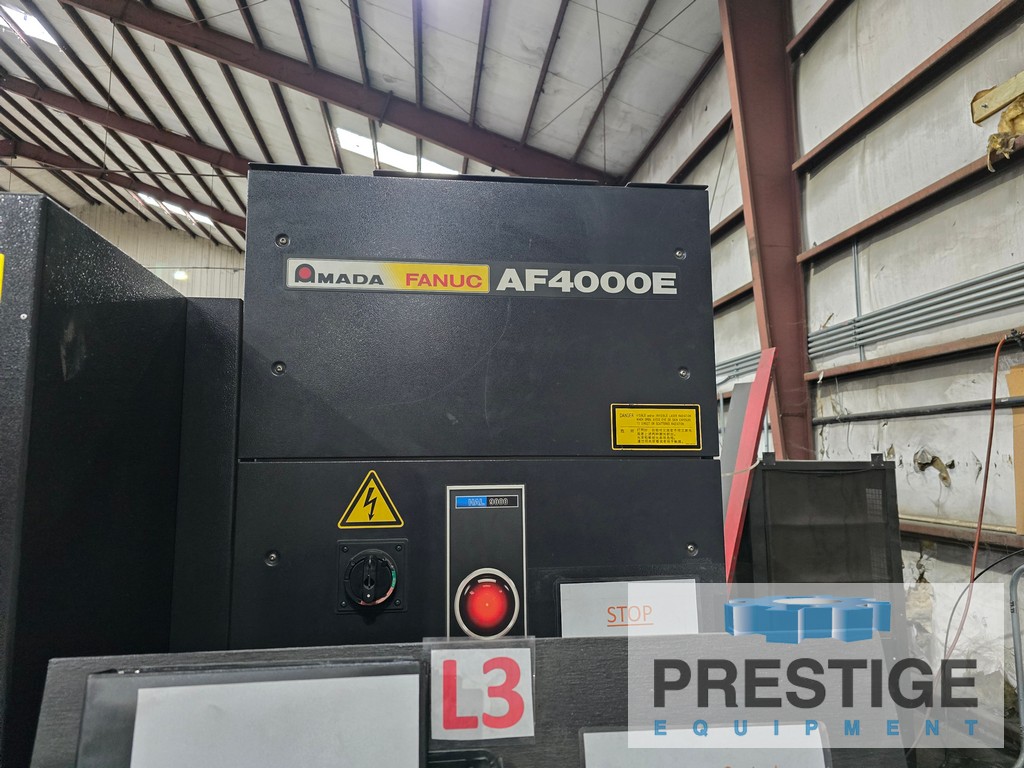

Fanuc AF4000E Resonator
Dual Pallet Shuttle Tables

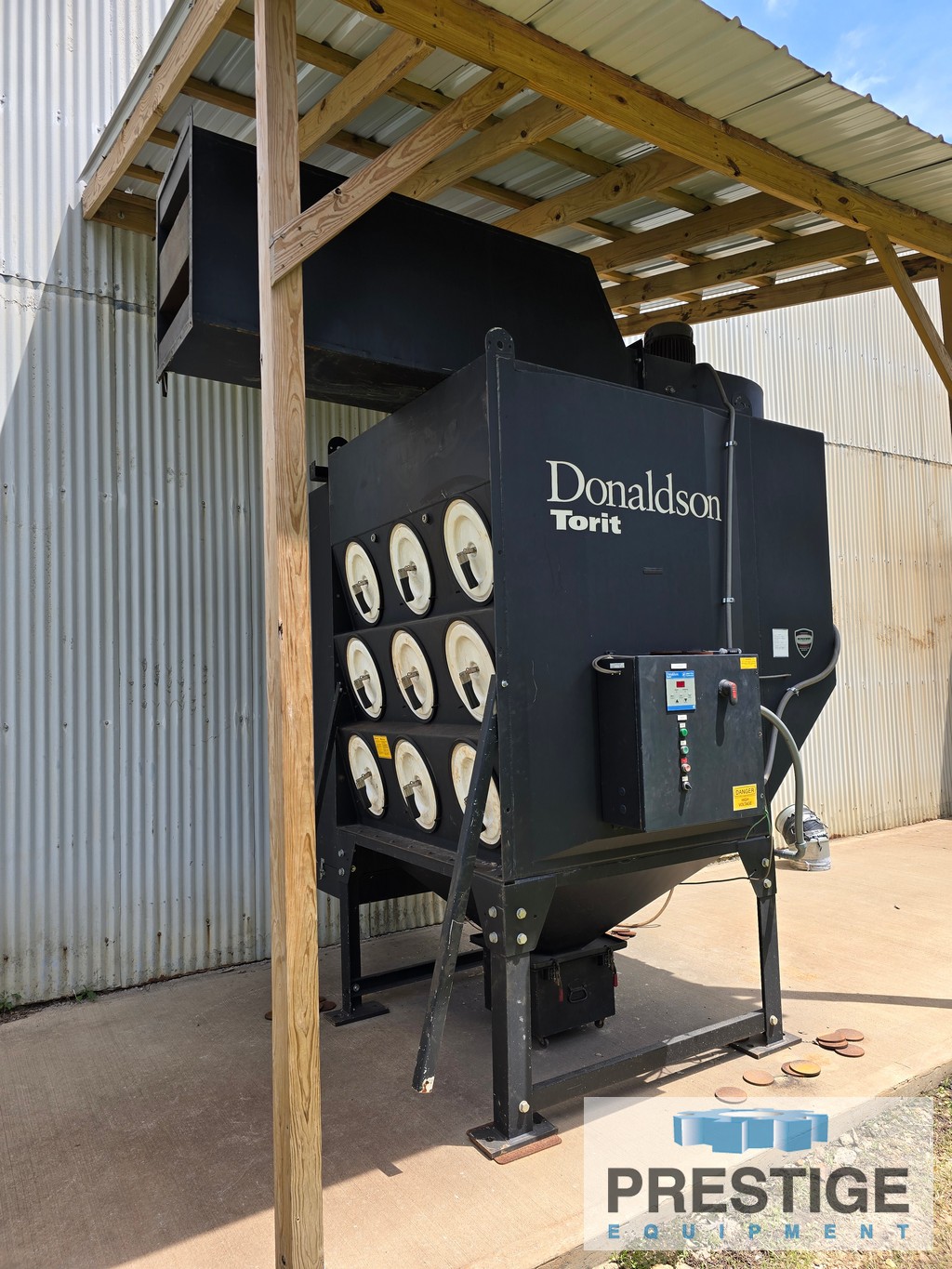

Donaldson Torit Dust Collector
Chiller


HOURS:

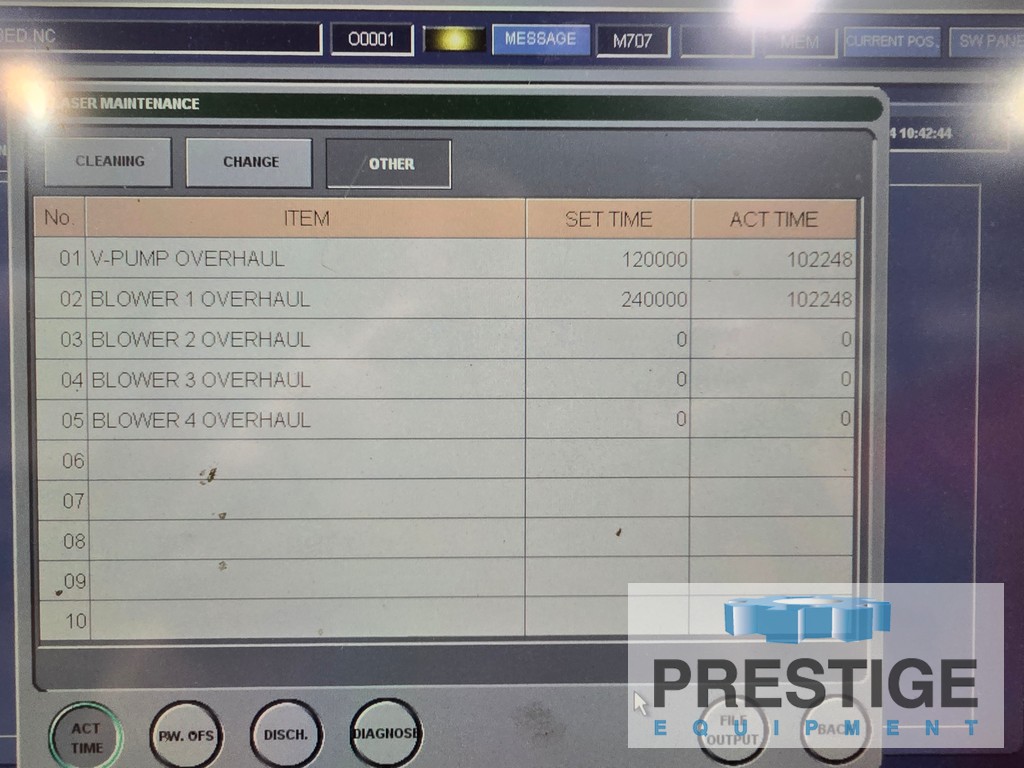

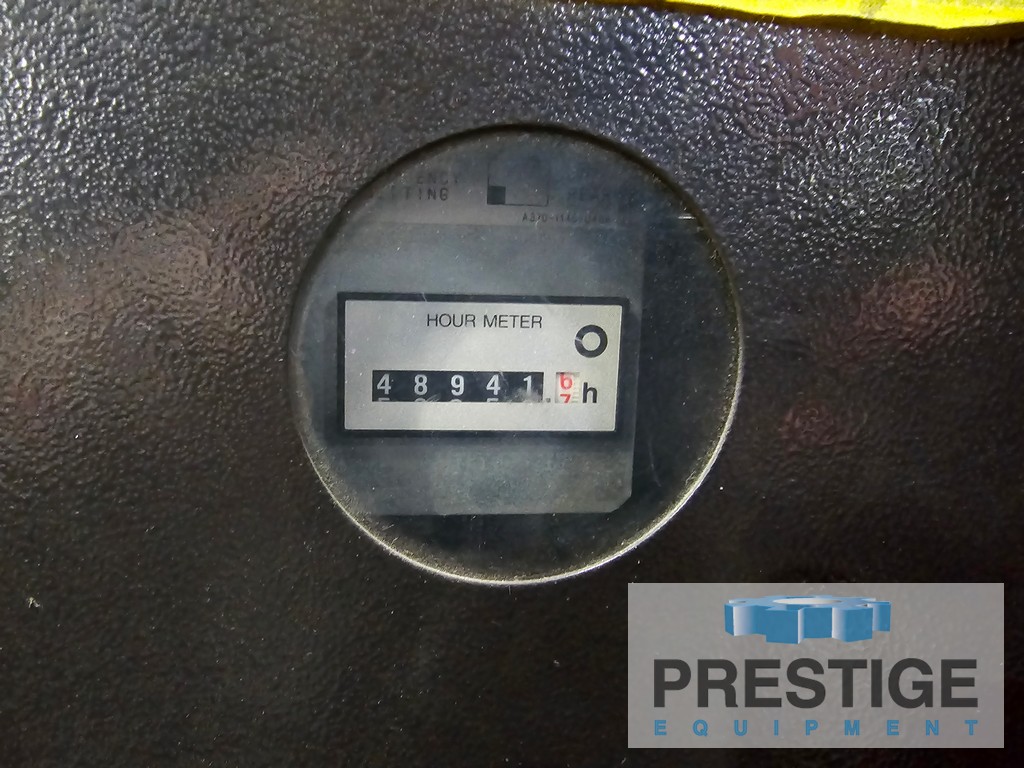

48,941 Total Hours (13,000 Hours remaining on 24,000 hour blower)

NOTE:
Inspect in Plant Under Power
