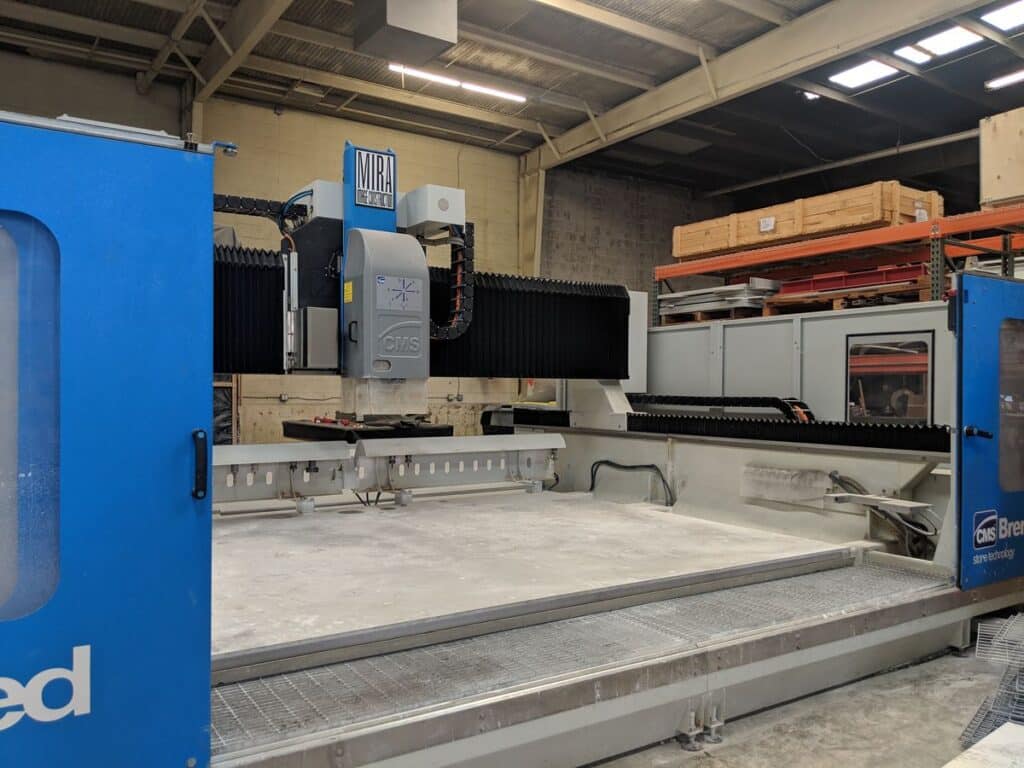

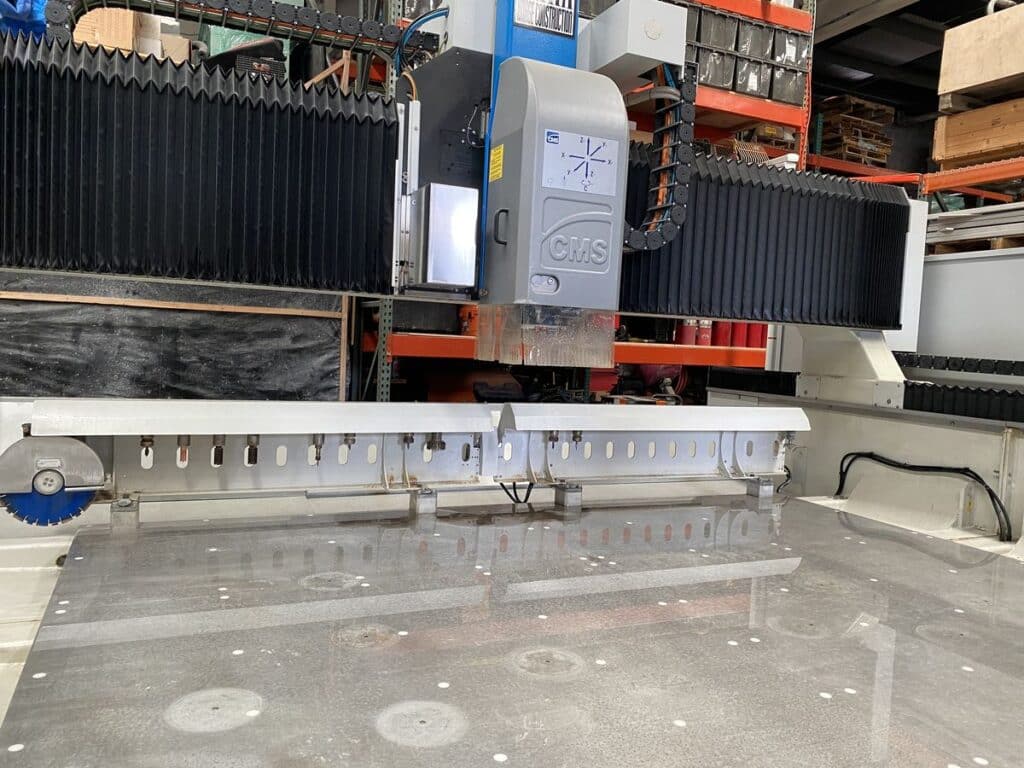

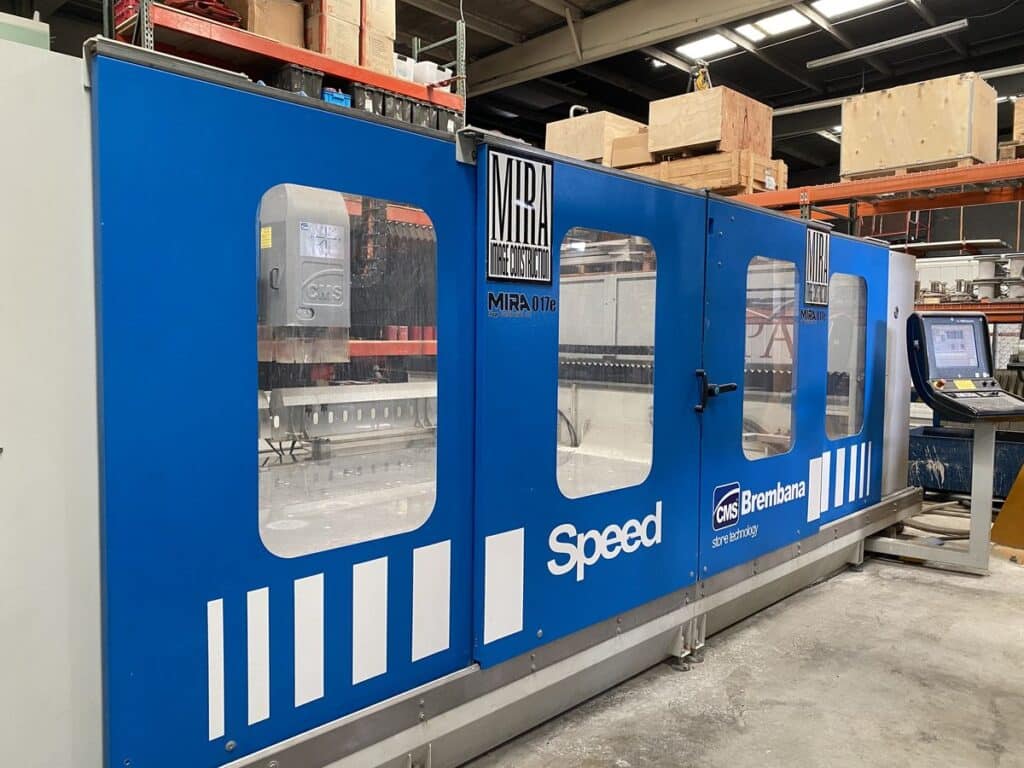

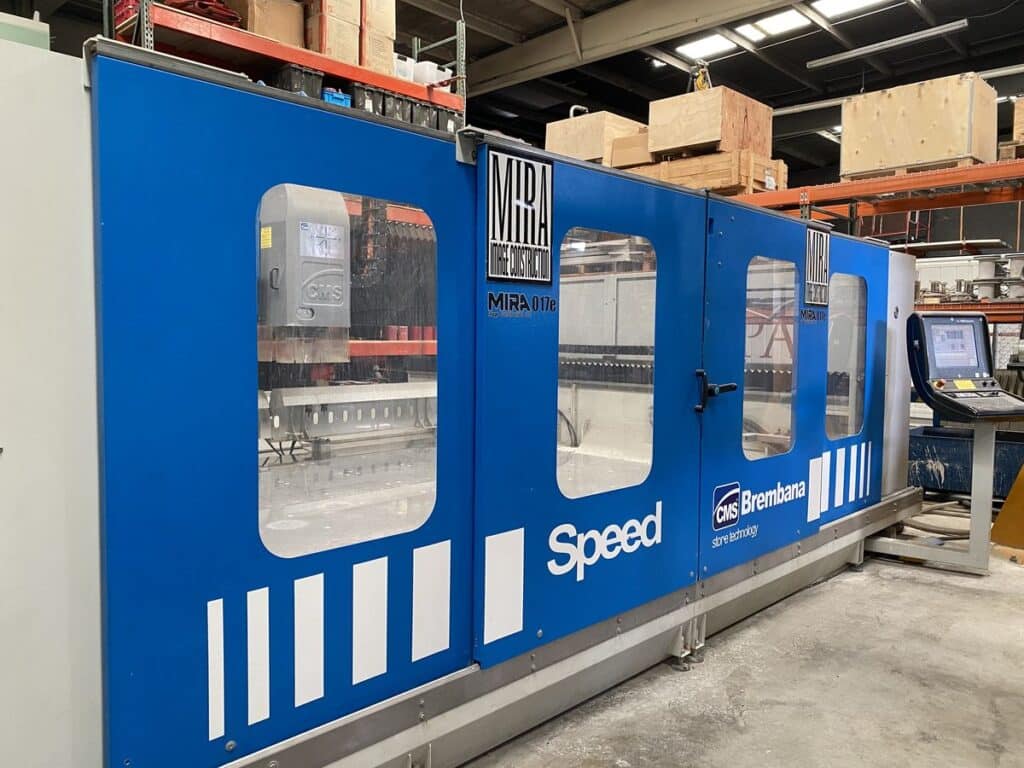

CMS Stone Technology Brembana SPEED MB-36 4-Axis Numerically Controlled Machining Center

Manufacturer

CMS Stone Technology

Category

Fabricating Machines

Type

FABRICATORS, CNC

Stock

171240014

Model

Brembana SPEED MB-36

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 171240014
  • Location: HI
  • Brand: CMS Stone Technology
  • Model: Brembana SPEED MB-36

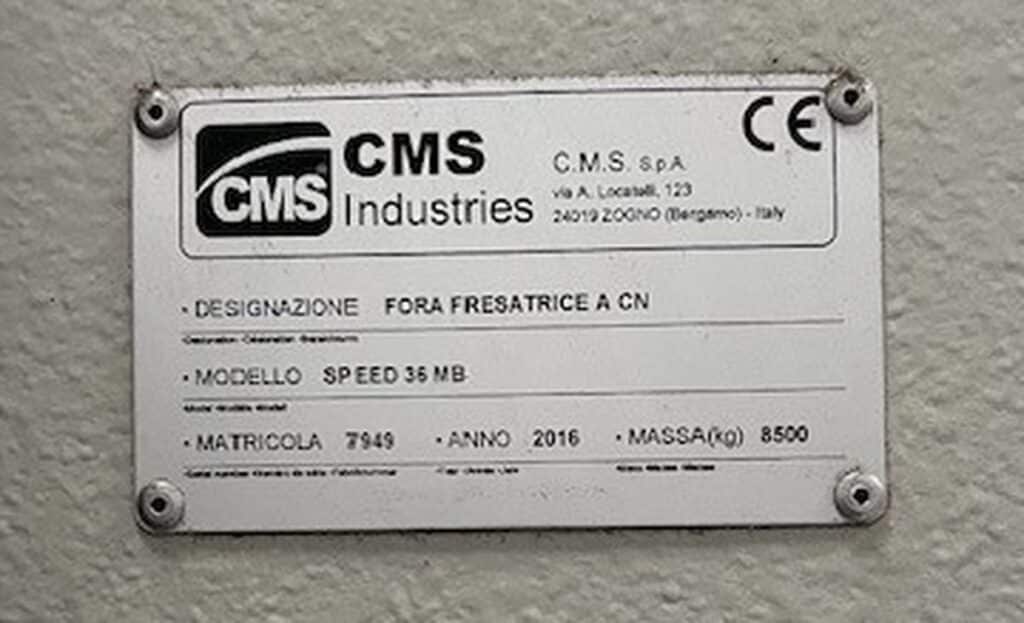

  • Serial #: 7949
  • Year: 2016
  • Approx. Shipping Weight: 18,000 Lbs.
  • Skidding Fee: Skidding Required
  • Loading Fee: Decommissioning / Rigging Required

Specifications

  • Workable Cube: 149″ x 106″ x h15″
  • X-Axis Stroke (Max): 149.6″
  • Y-Axis Stroke (Max): 94.5″
  • Z-Axis Stroke (Max): 23.5″
  • X-Axis Speed: (0÷177) ft/min
  • Y-Axis Speed: (0÷177) ft/min
  • Z-Axis Speed: (0÷41) ft/min

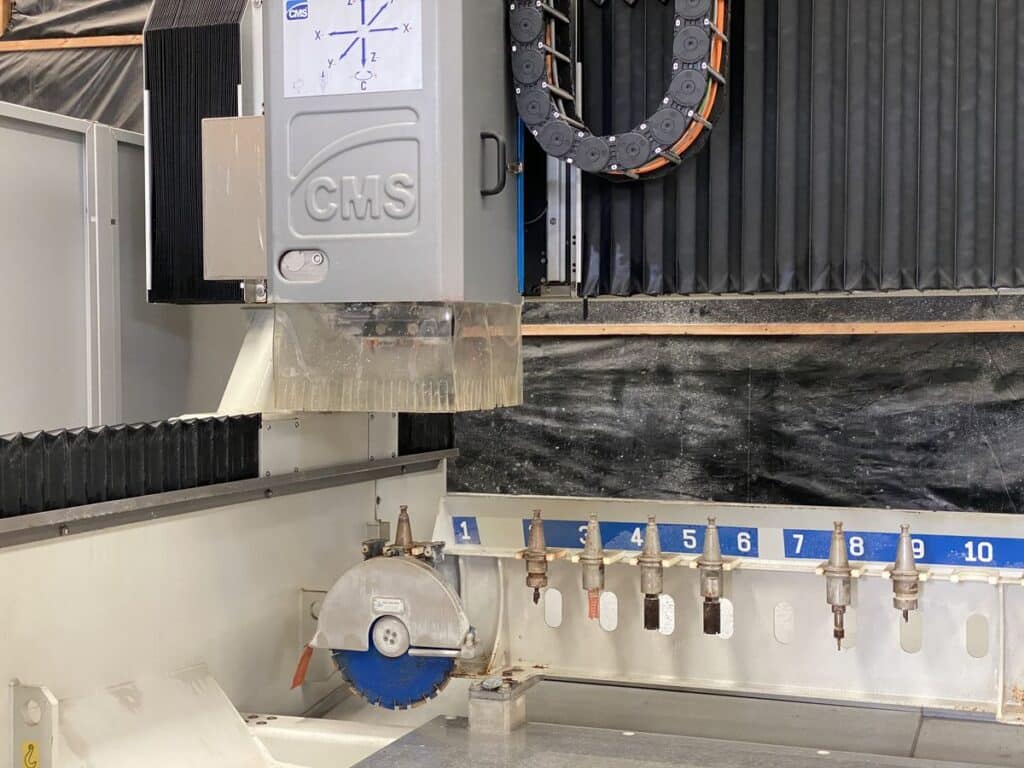

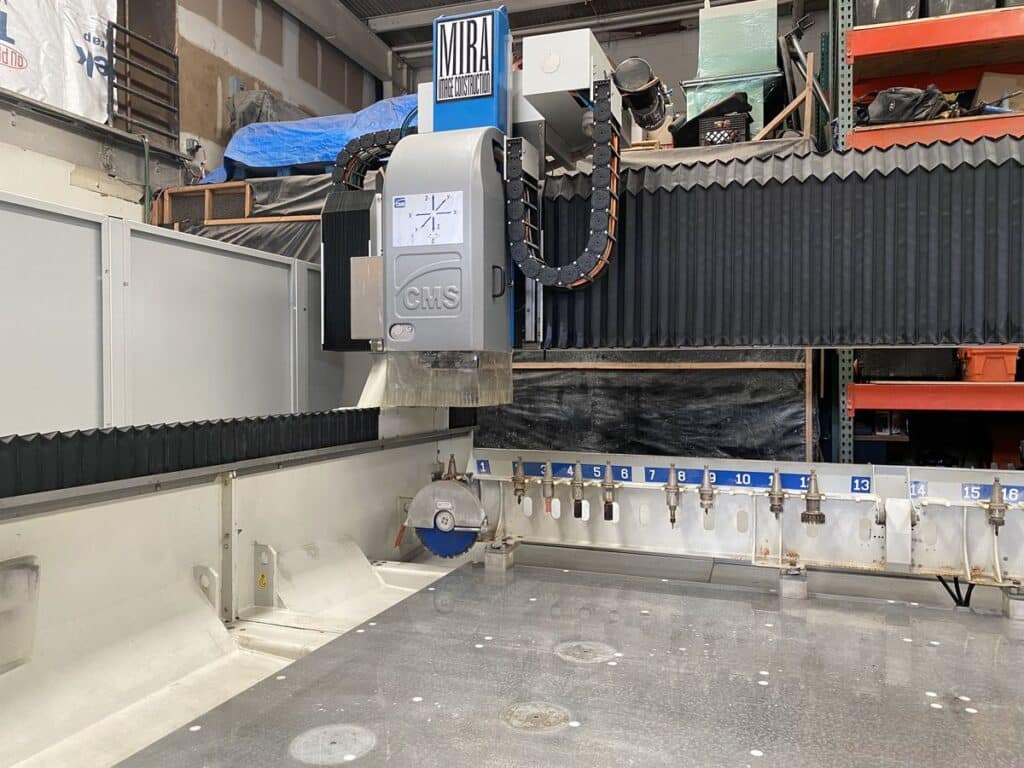

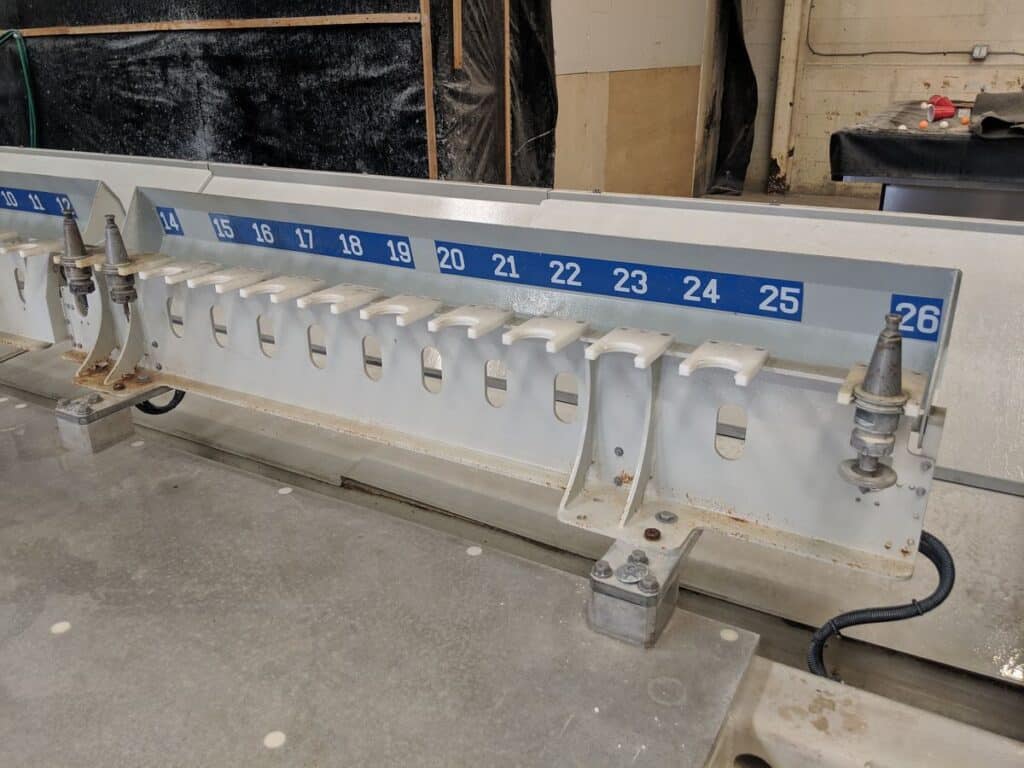

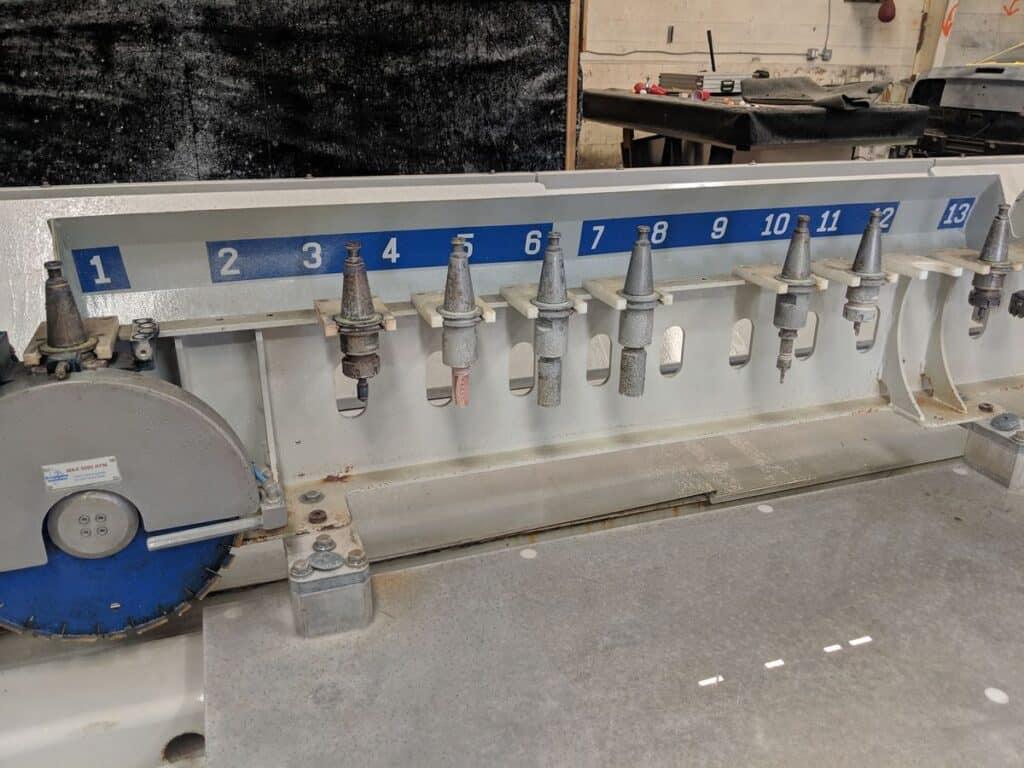

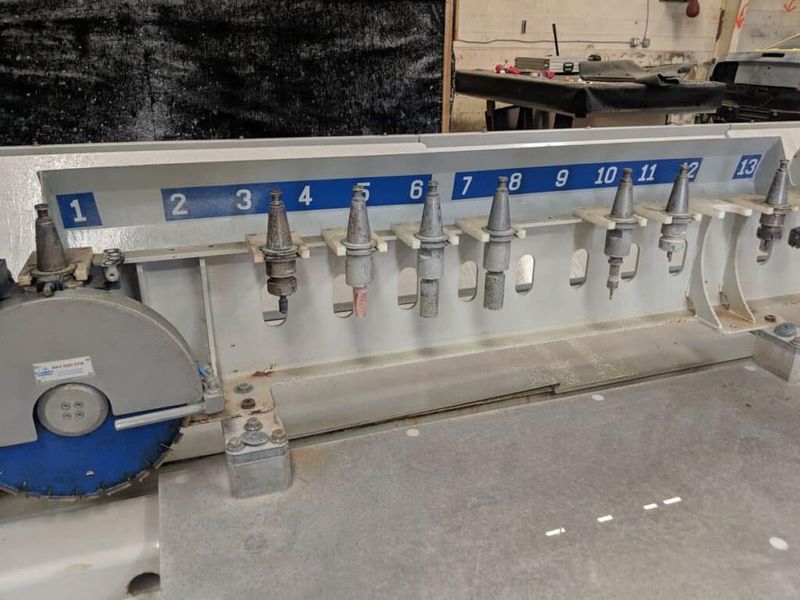

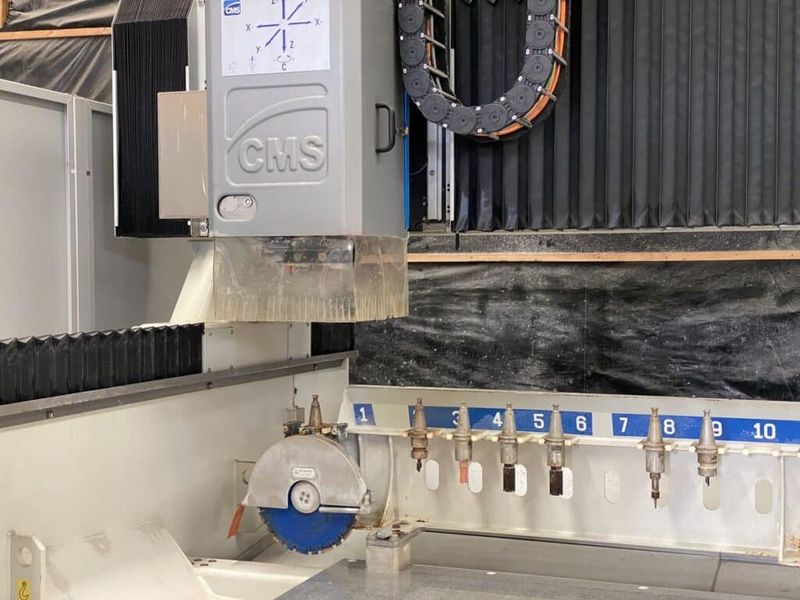

  • Tool Capacity: 26-Position Tool Crib Fixed to Frame
  • Tool Maximum Diameter: 5″
  • Electro Spindle Connection: ISO 40
  • Electro Spindle Power: 40 HP
  • Electro Spindle Speed: 12,000 RPM

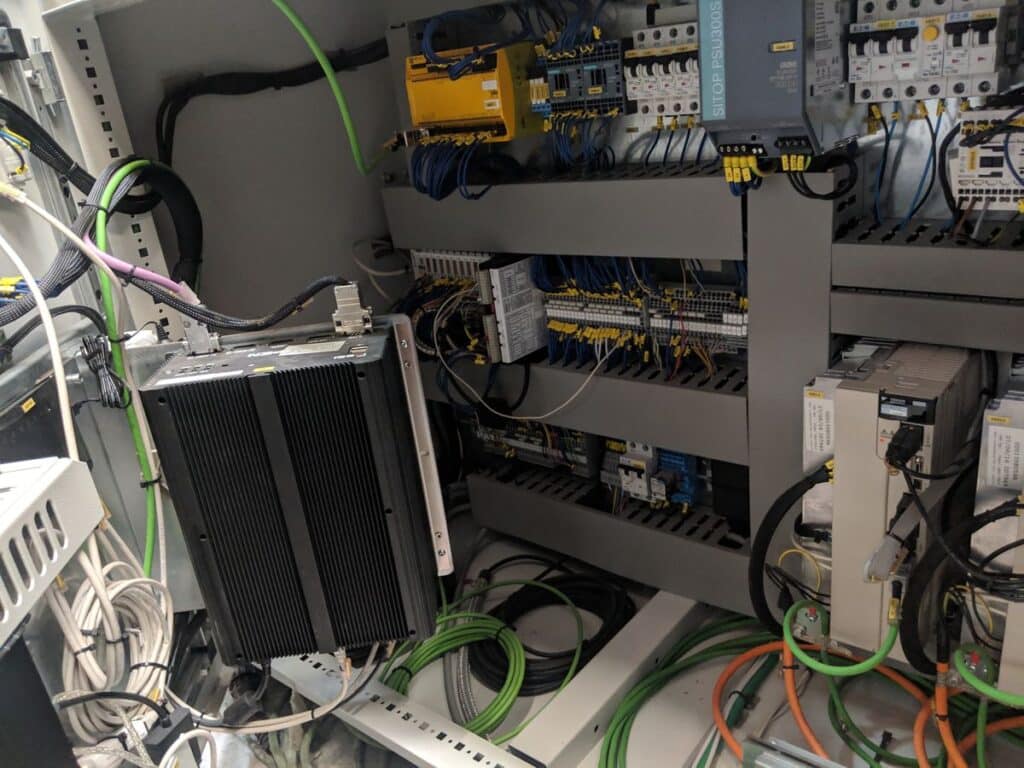

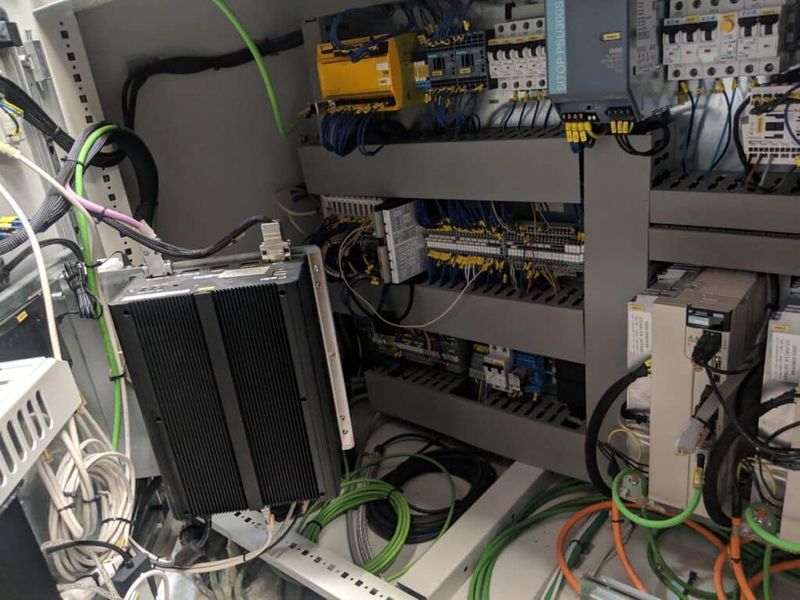

  • Control: Numerical Control OSAI Series 10/510i with Integrated PC
  • Software: EasySTONE CAD/CAM

Equipped With

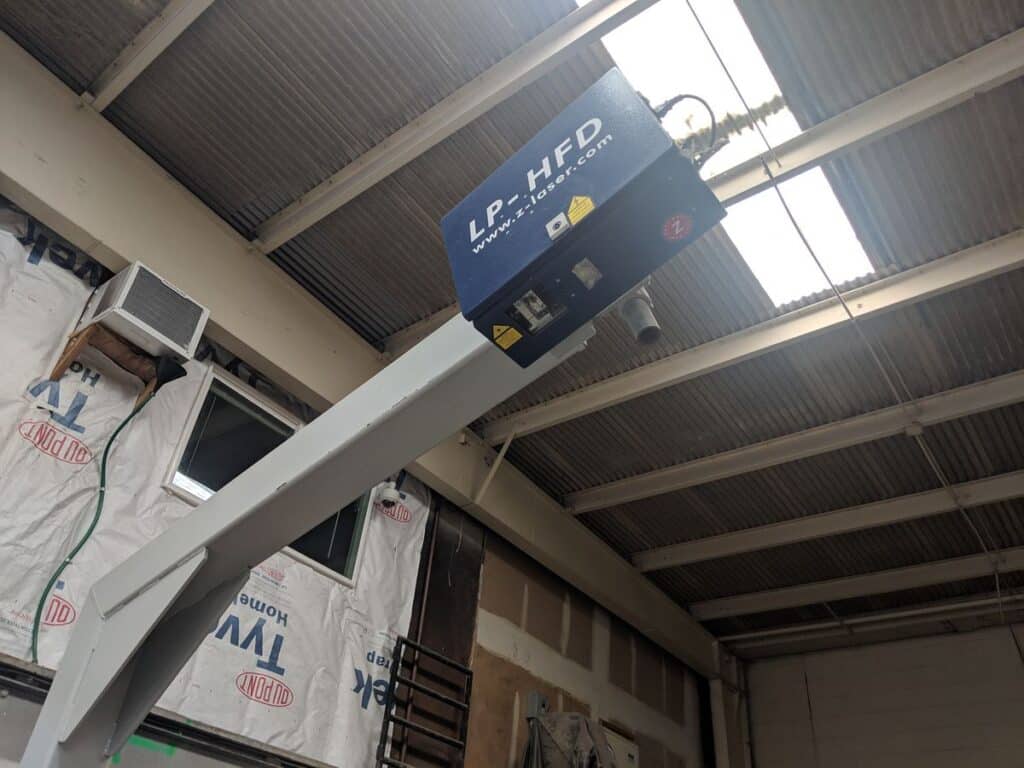

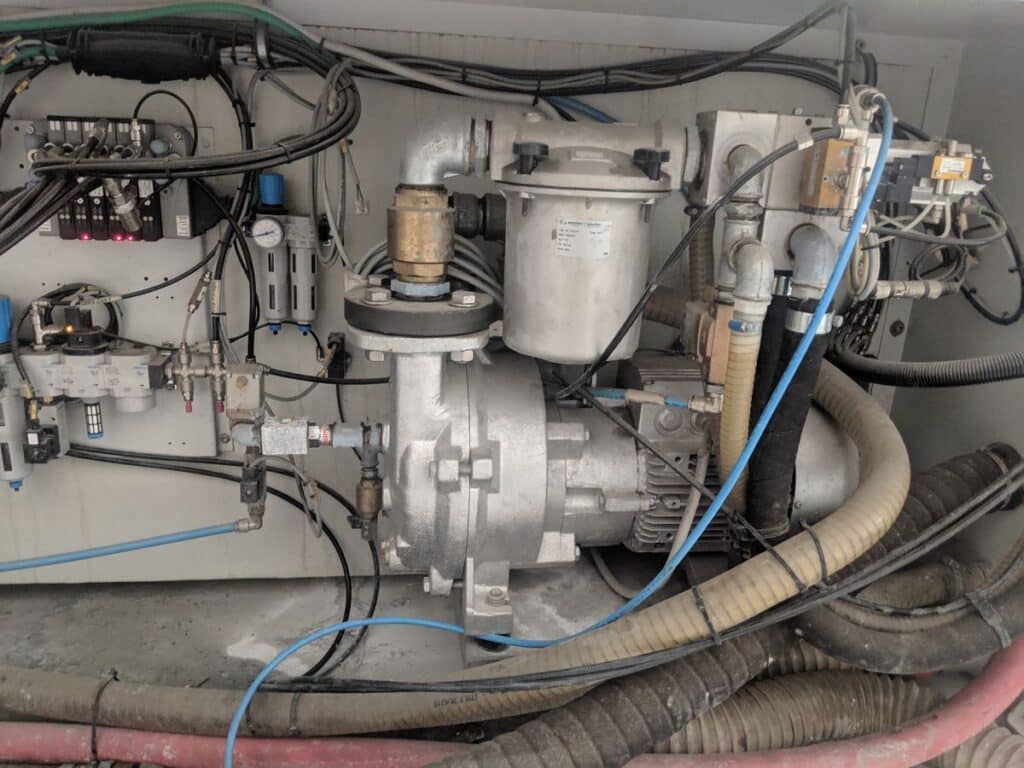

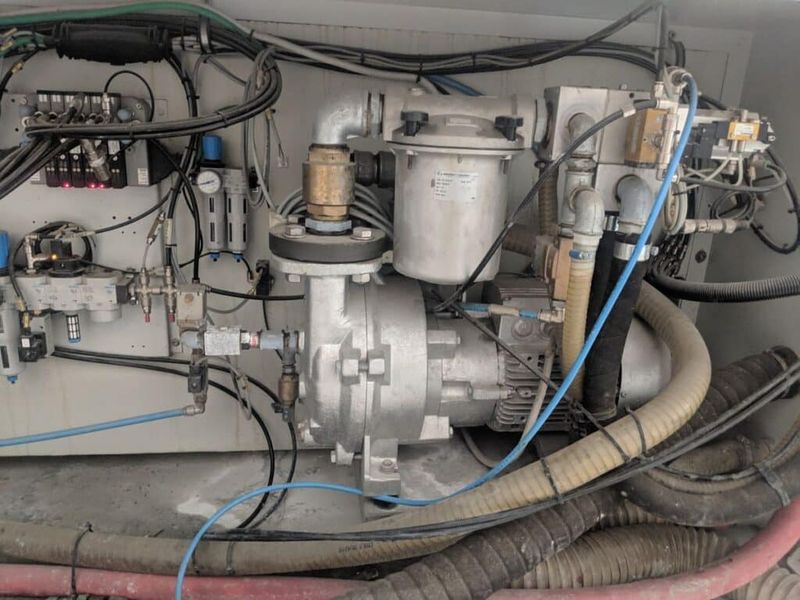

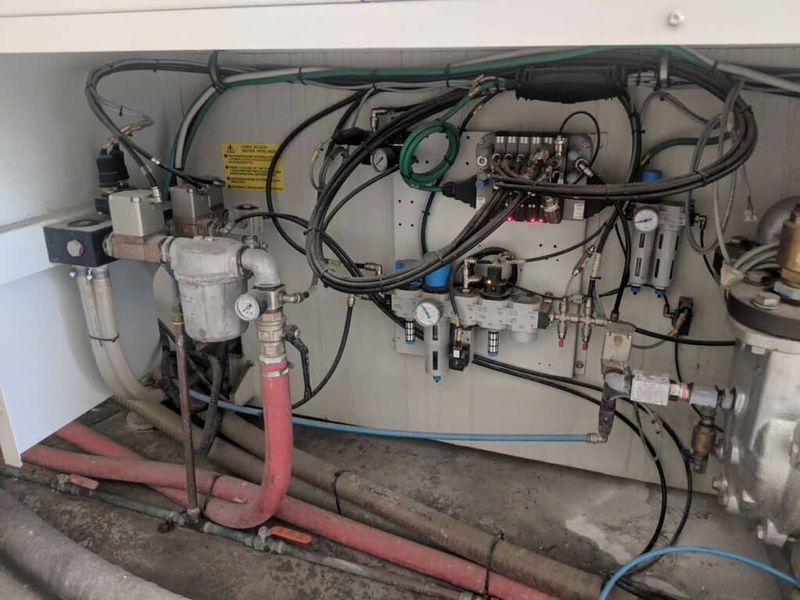

Tiger Track 1-Ton Heavy Duty Piller Base Plate Mounted Gantry/Job Crane (Harrington Hoists), Manzelli OPVEM1PPPN/200 Vacuum, Manzelli UPV40MC/H Pump, MW Watermark Vacuu Fill Pump Filtration System, Automatic Adjustment of Tool Feed/Stress, Remote Diagnostics, Touch Probe of Thickness for Working Center, Rotating C-Axis (4th Axis), 90° Saw Unit (350mm Saw Blade), Laser Presetter for Automatic Measuring of Tool Length & Diameter, Pre-Wiring for Mobile Lathe, Misc. ISO40 Toolholders, Electro-Spindle Cooling System Through Chiller Unit, OSAI Series 10/510i Numerical Control with Integrated PC, CMS Portable Keyboard, Laser Projector for Suction Cup Positioning

Additional Info

Machine is under power and available to demo.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.

No Video Available
