Asquith Butler, 5-Face Gantry, X-395", y-137", Z-47", 144" BC, Floor Plates, Universal Head, Fanuc 16i CNC, #32930

Manufacturer

Asquith Butler

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32930

Model

Gantry Mill CNC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32930

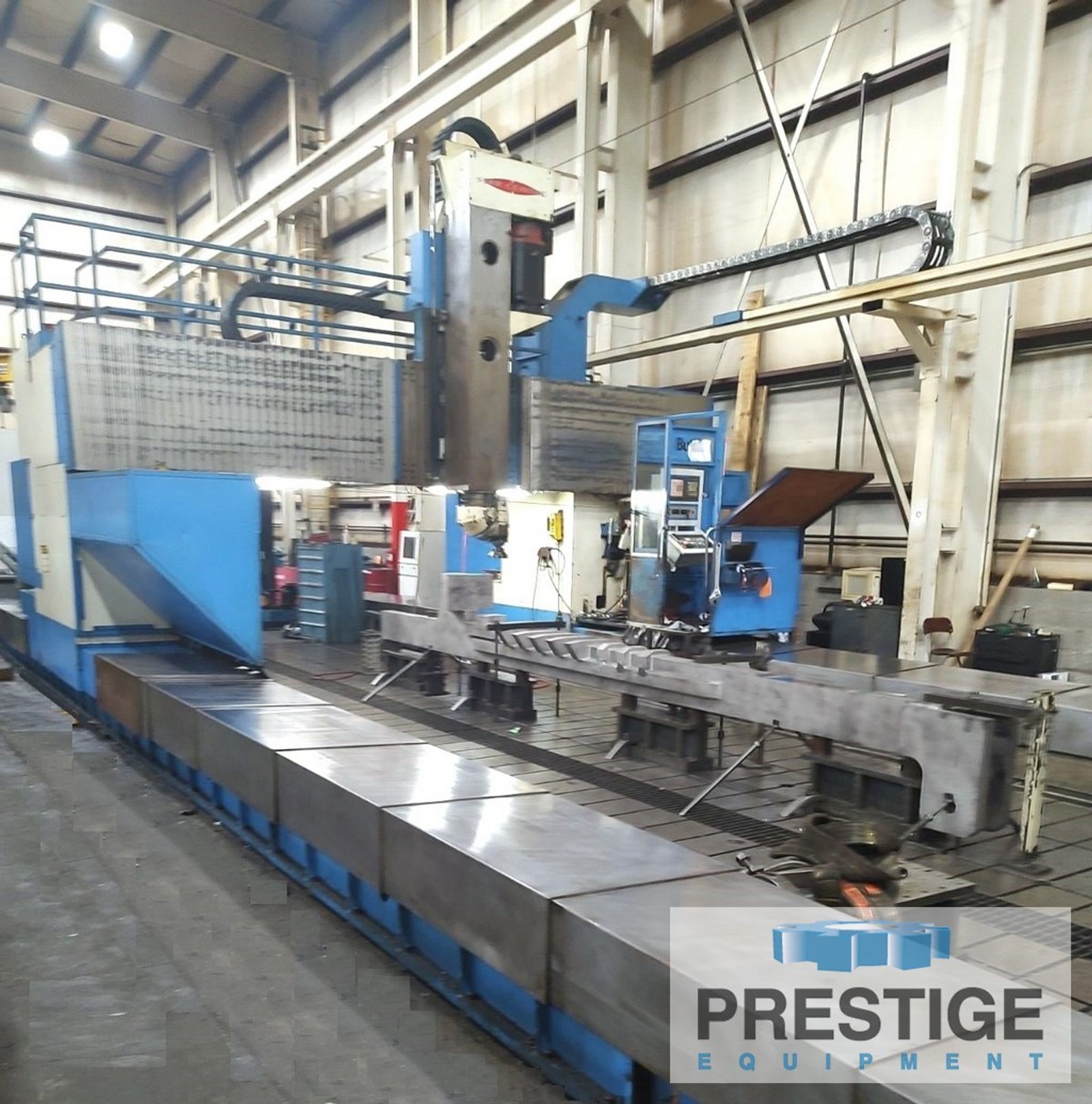

Asquith Butler CNC 5-Face Gantry Type Milling Machine

FEATURES:

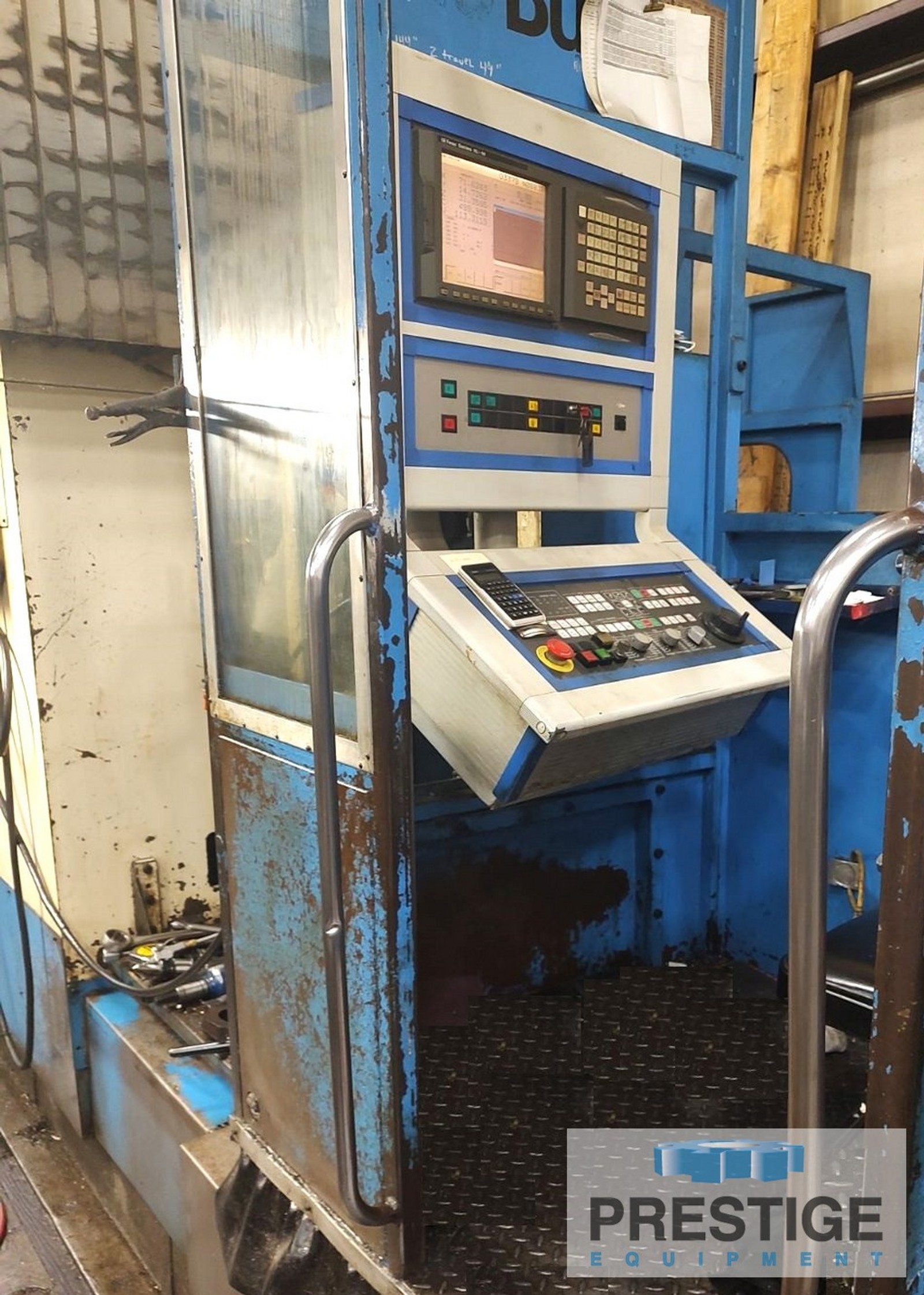

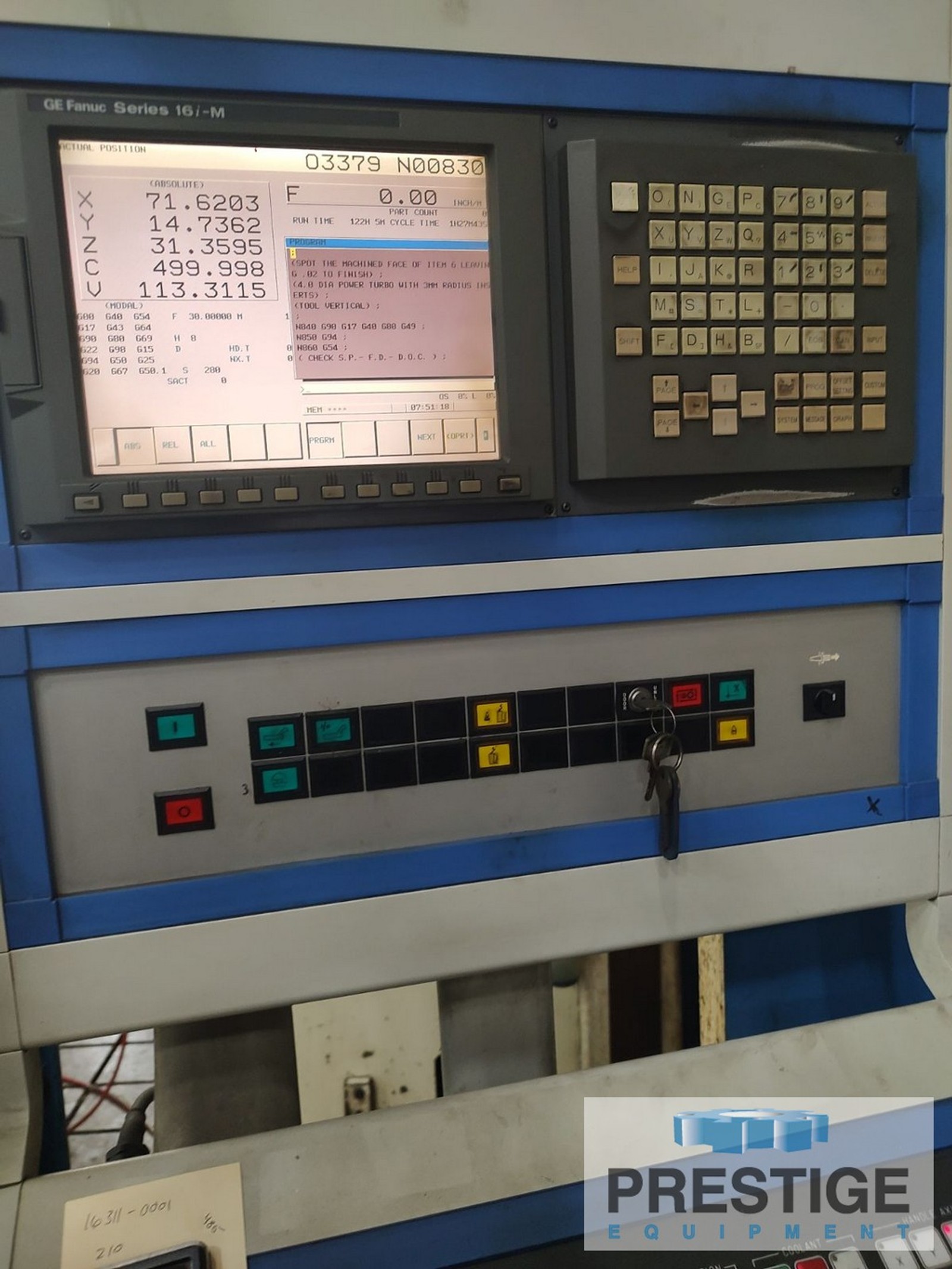

Fanuc 16iM CNC Control

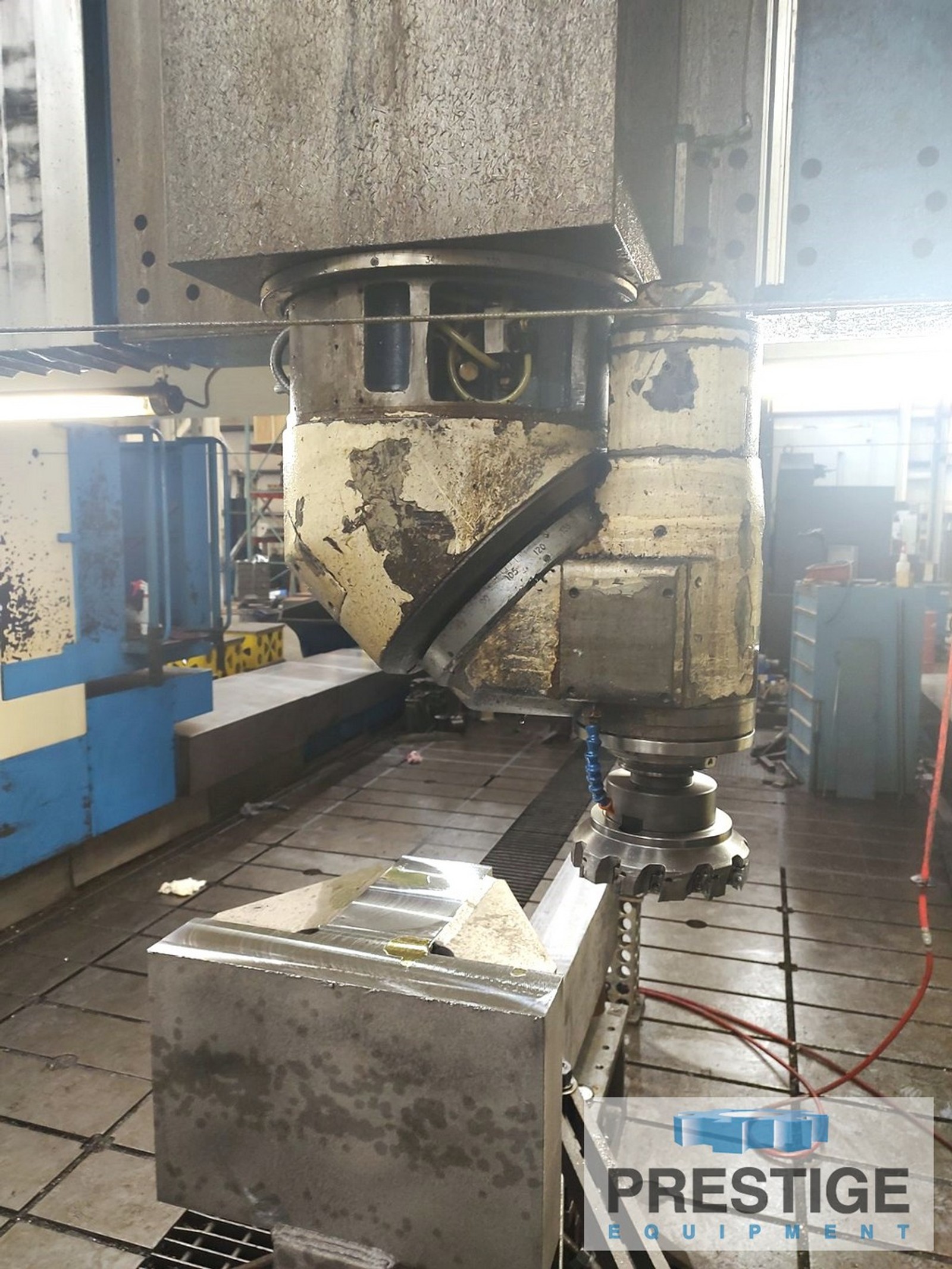

Universal Bi-Directional Head
40-Station Automatic Tool Changers

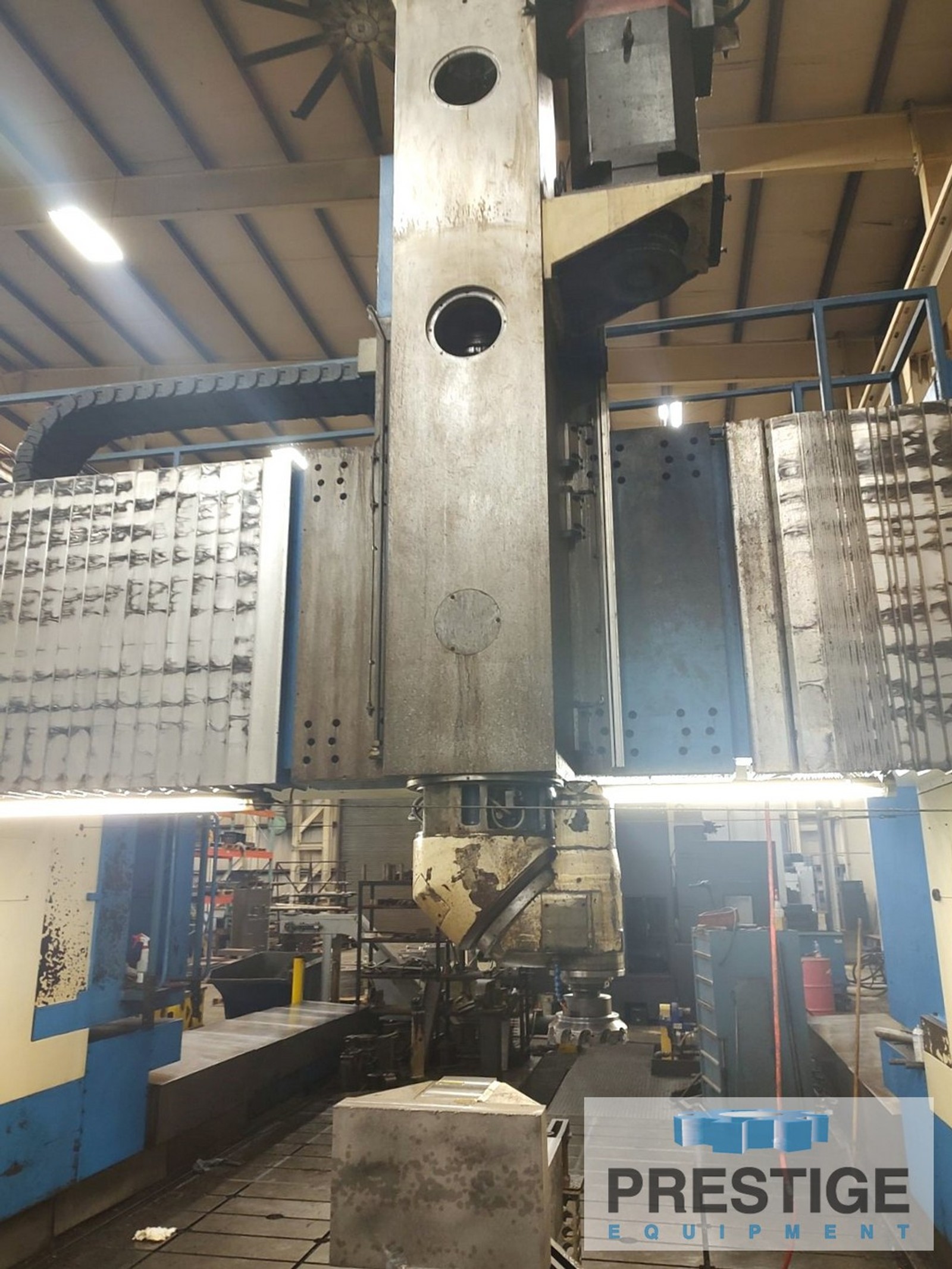

Traveling Column Design with Fixed Table
T-Slotted Floor Plates
Heidenhain Scales

SPECIFICATIONS:
X-Axis Gantry Travel .................. 395"
Y-Axis Head Travel .................... 137"
Z-Axis Vertical Head Travel ........... 47"
Distance Between Housings ............. 166"
Maximum Height Under Cross Rail ....... 84"
Max Height Under Vertical Spindle ..... 59"
Ram Cross Section ..................... 19" x 19"
Table Working Surface, Pad 1 .......... 84" x 576"
Table WOrking Surface, Pad 2 .......... 64" x 648"
Milling head Indexing, A-Axis ......... 90 Degrees
Milling head Indexing, B-Axis ......... 2.5 Degrees
Feeds ................................. 1-787 IPM
Spindle Drive Motor ................... 41 HP
Spindle Speeds (2-Ranges) ............. 10 to 3000 RPM
Spindle Taper ......................... #50

EQUIPPED WITH:
Fanuc 16iM CNC Control
40-Station Automatic Tool Changer
Universal Milling Head with Automatic Indexing
Traveling Column Design with Fixed Table
T-Slotted Floor Plates
Heidenhain Scales
Twin Synchronised
Steel Sliding Way Covers
Hardened & Ground Box Ways
Operators Manuals

NOTE:
Traveling Column Design Minimizes Floor Space


Being Offered at Auction June 18th
https://www.prestigeequipment.com/auction/june-consignment/
