6" Giddings & Lewis G60-FX, 80 ATC, X-396", Y-157", Z-48" TSC, 2500 RPM, 60 Ton Rotary Tbl. G & L 8000M, '92 #32228

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32228

Model

G60-FX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32228

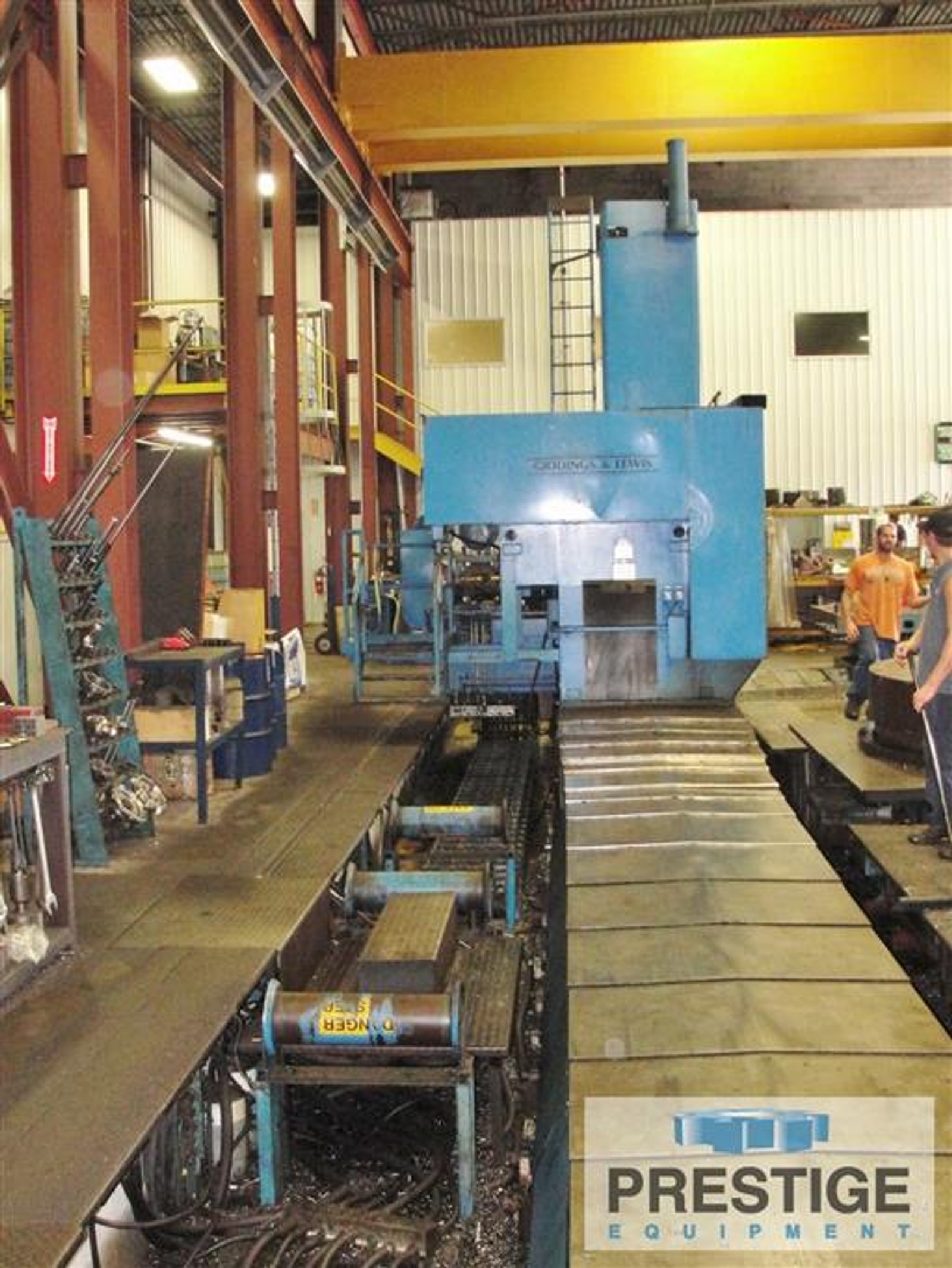

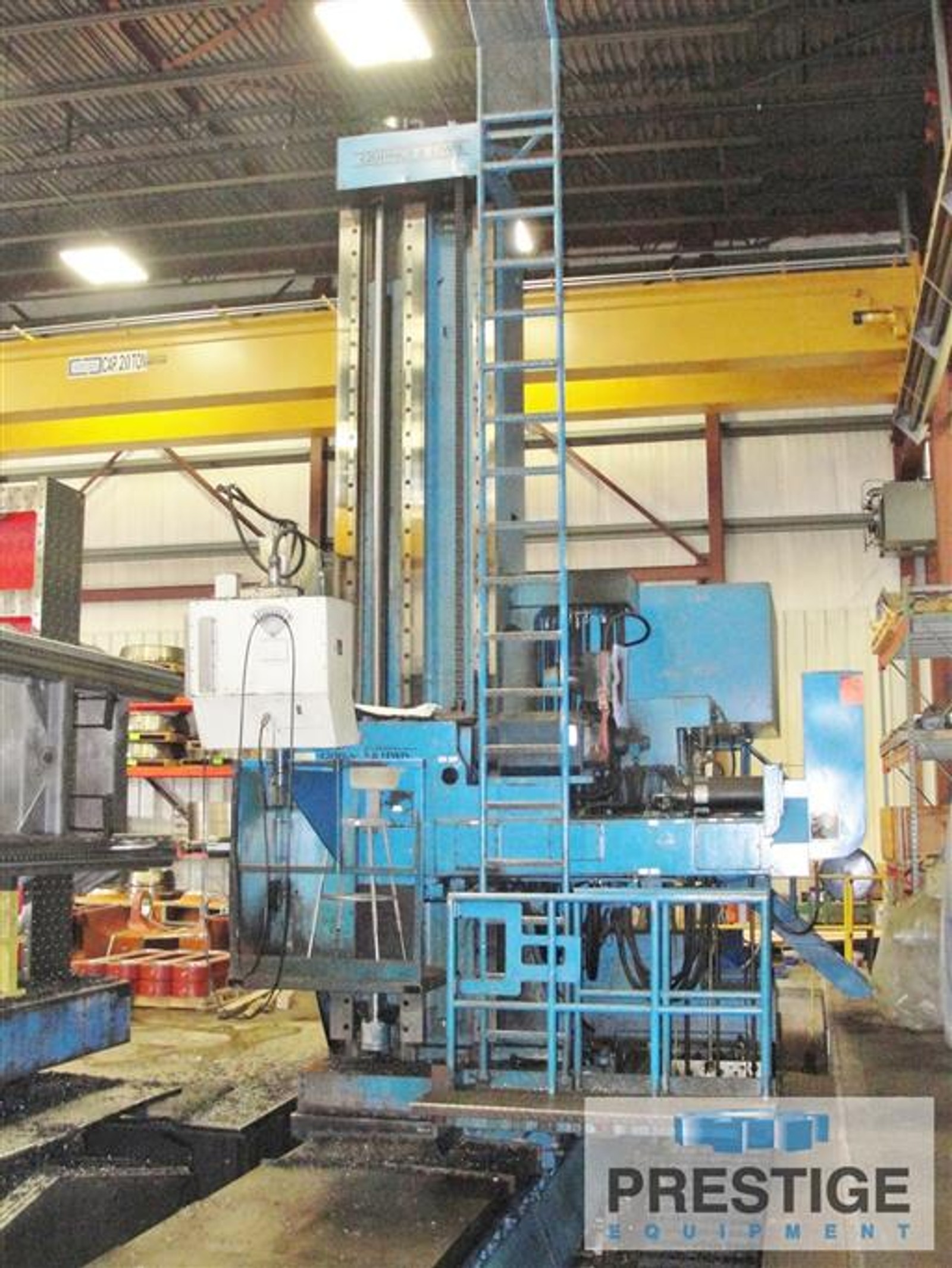

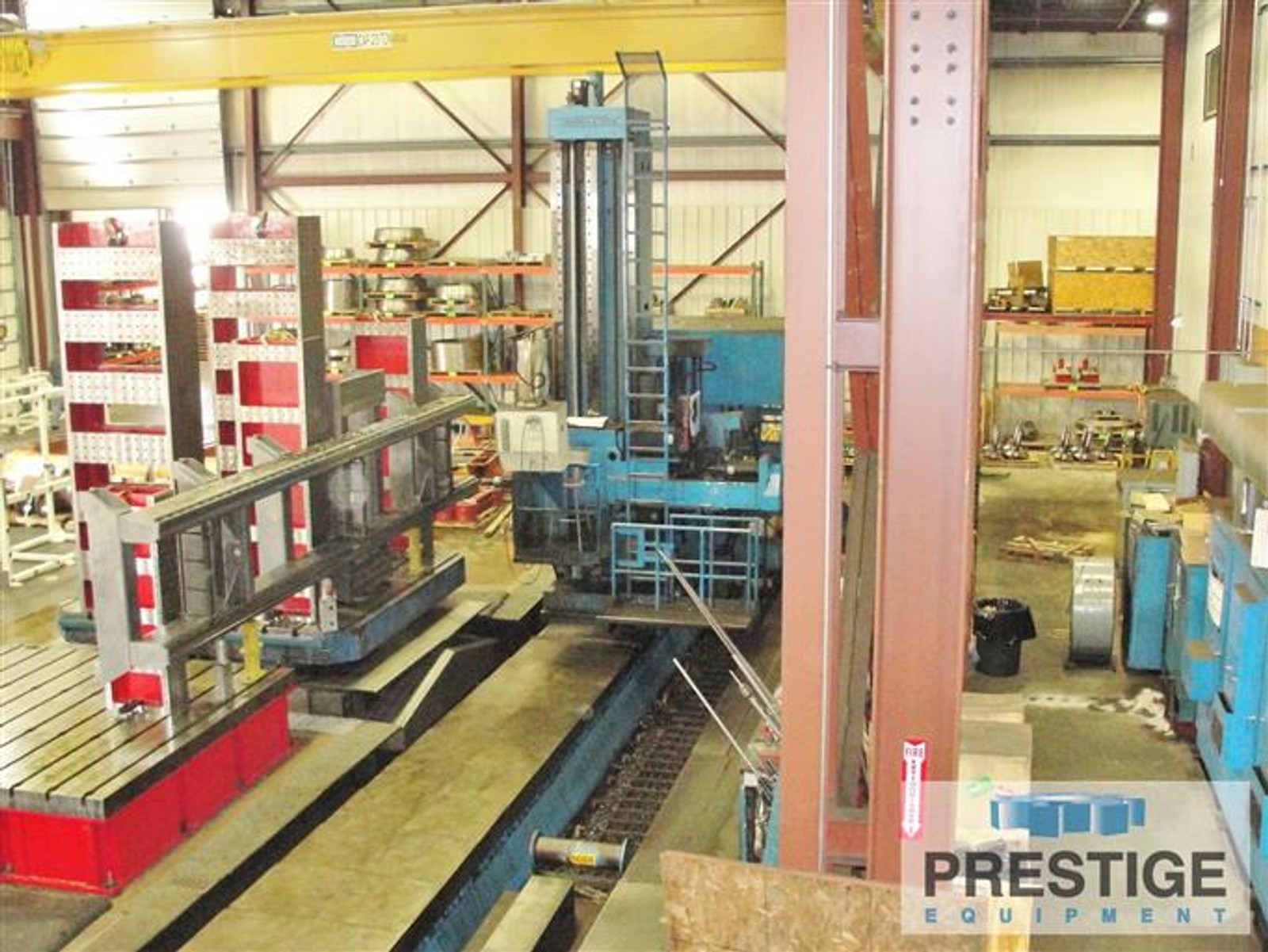

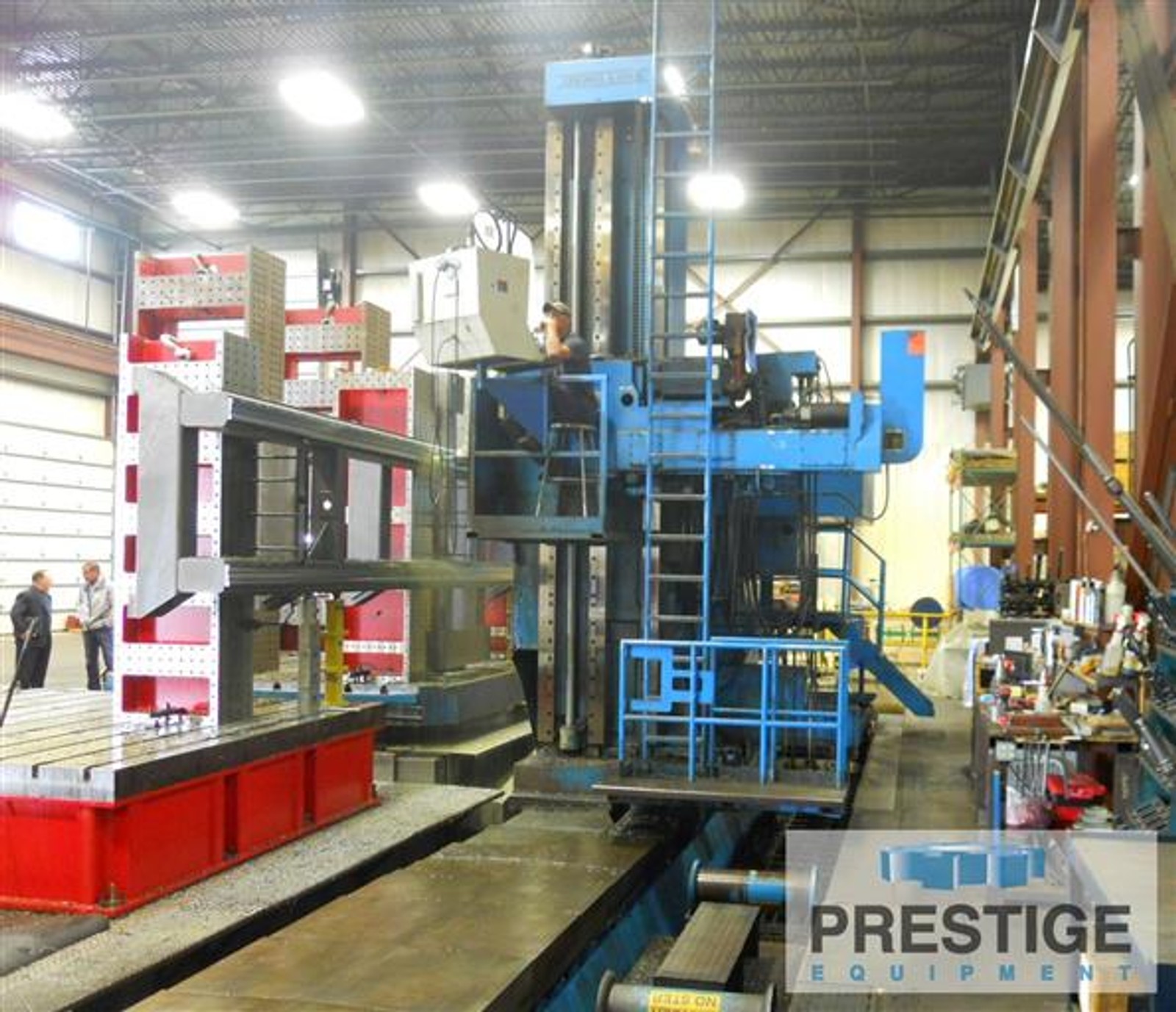

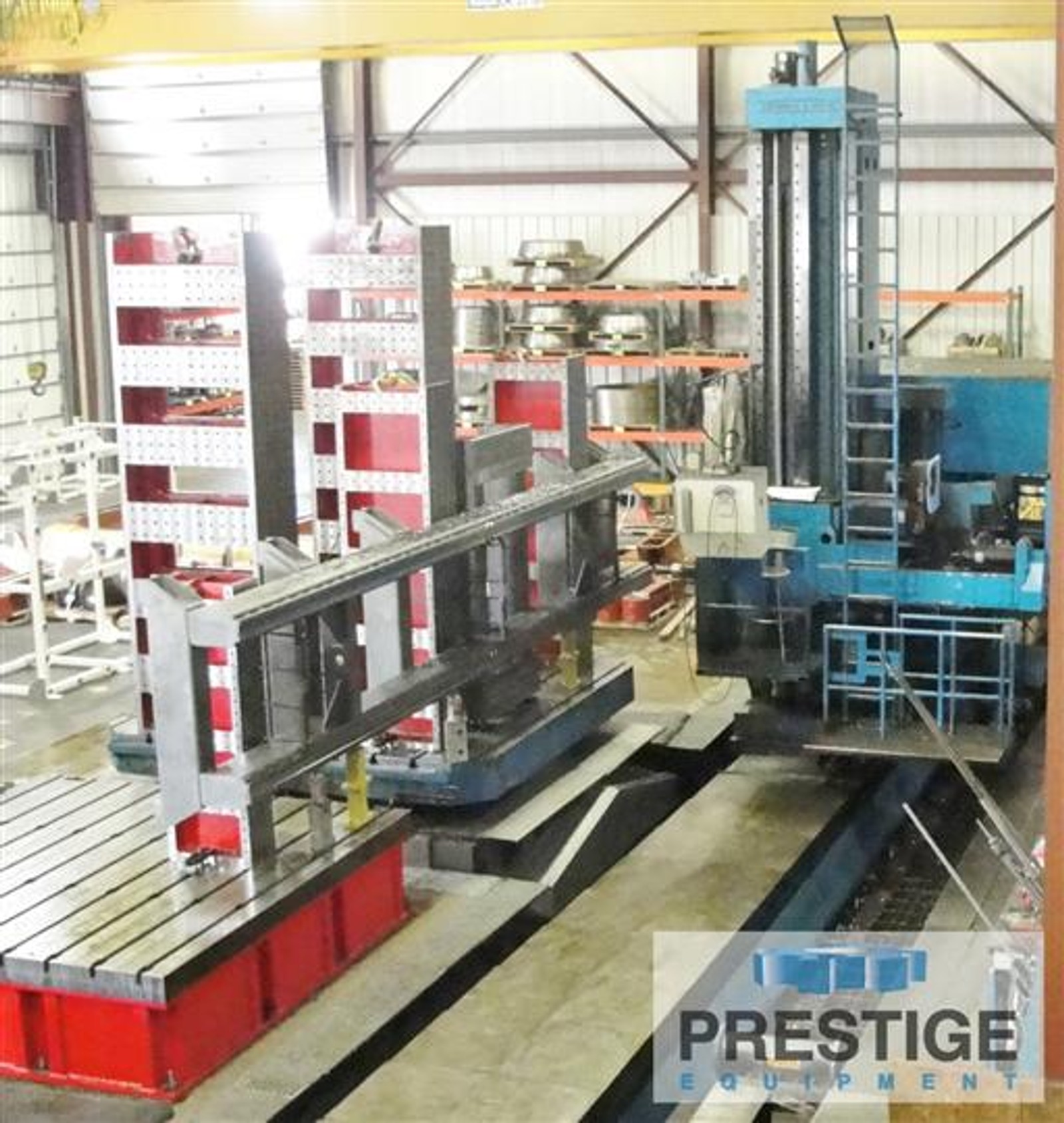

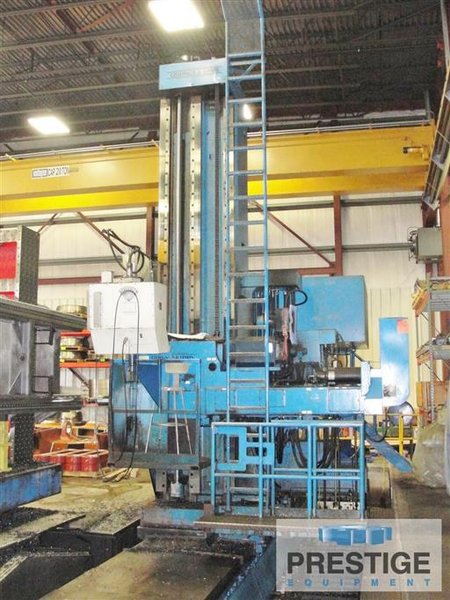

Giddings & Lewis G60-FX 6" CNC Floor Type Horizontal Boring Mill

FEATURES:

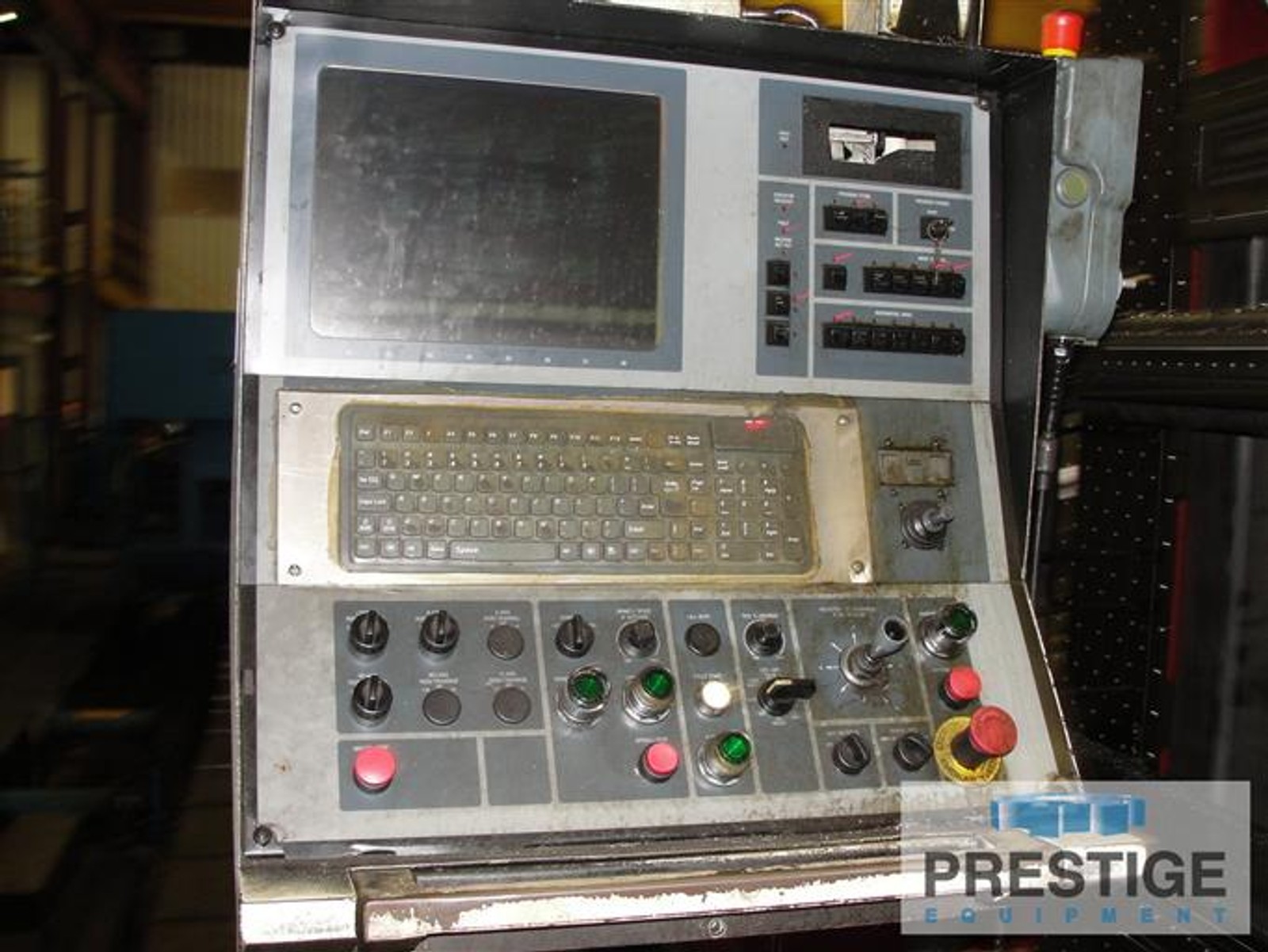

Giddings & Lewis 8000B CNC Control
80-Station Automatic Tool Changer
137" x 137" B-Axis 60 Ton Infeeding Rotary Table

SPECIFICATIONS:
Spindle Diameter ...................... 6"
Spindle Taper ......................... No.50 ANSI
Vertical Headstock Travel, Y-Axis ..... 156"
Column Travel, X-Axis ................. 396"
Spindle Travel, Z-Axis ................ 48.03"
Spindle Drive Motor ................... 50 HP
Spindle Speed Range, Inf.Variable ..... 12-2500 RPM
Traverse Rate, X-Axis ................. 400 IPM
Traverse Rate, Y-Axis ................. 450 IPM
Feed Rates, X, Y & Z Axes ............. 150 IPM
Axis Thrust, Z-Axis ................... 15,000 Lbs
Axis Thrust, X, Y & W Axes ............ 10,000 Lbs
Axis Feedback, X & Y Axes ............. Inductosyn Scales
Axis Feedback, Z-Axis ................. Resolver

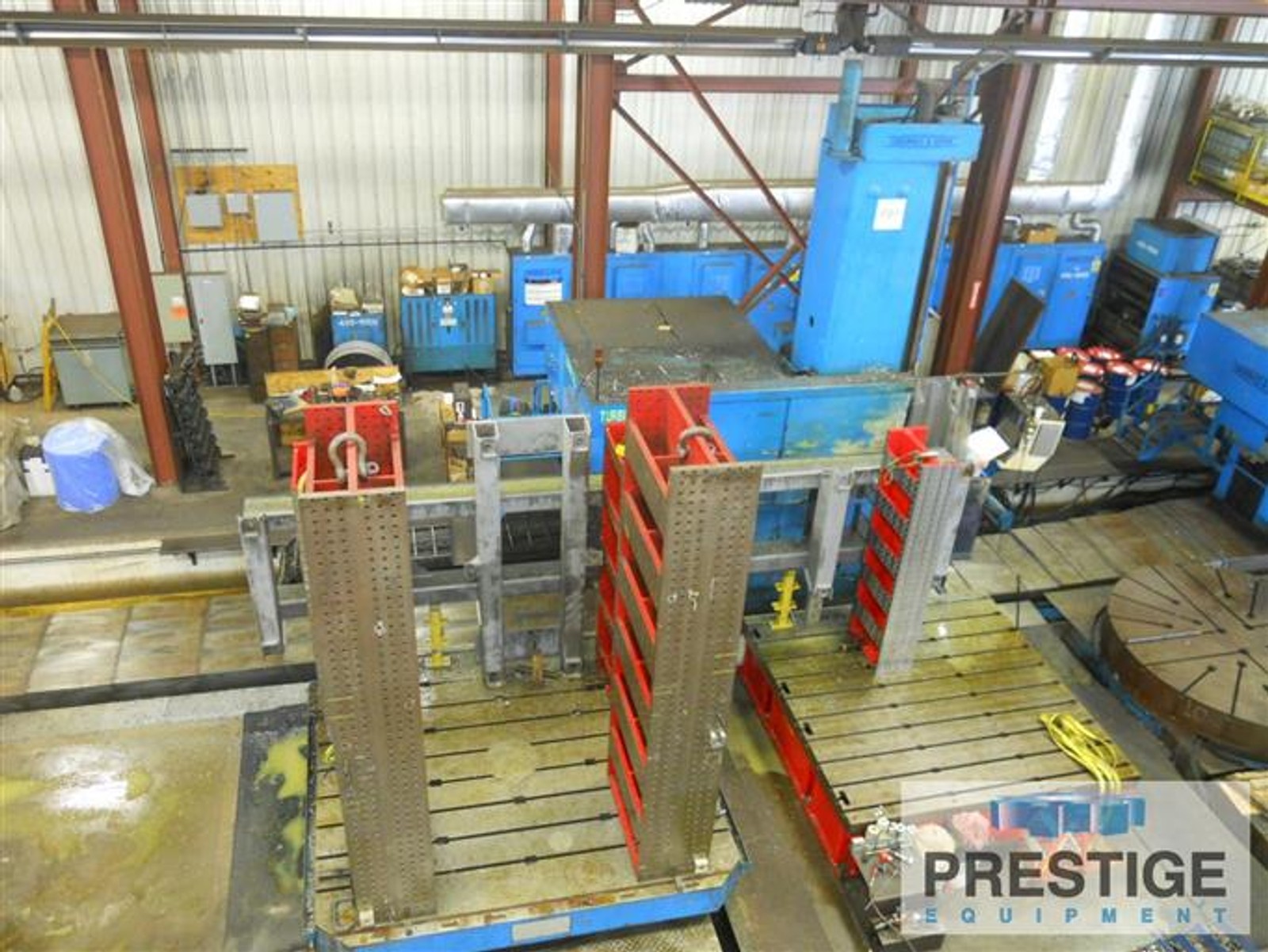

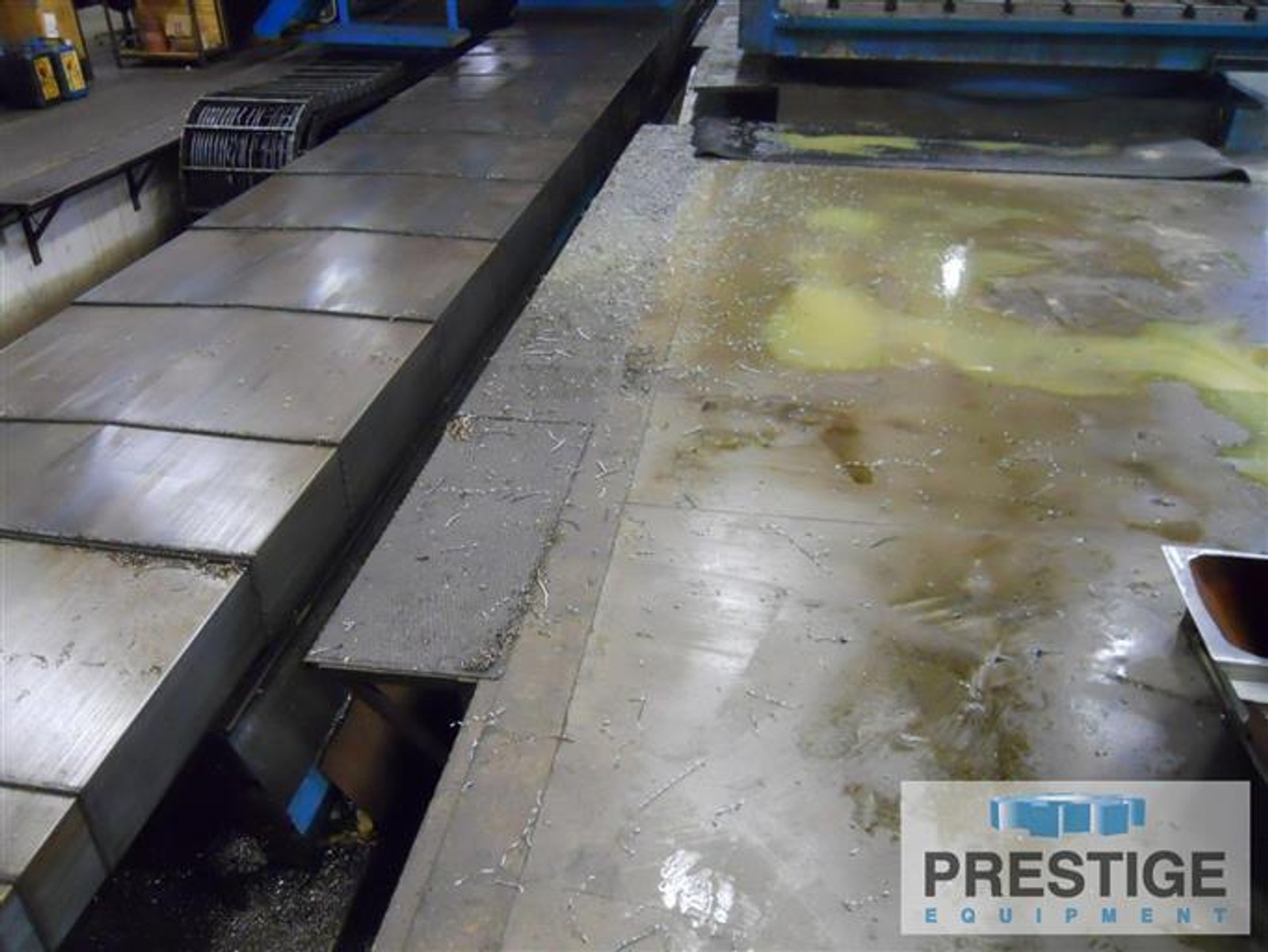

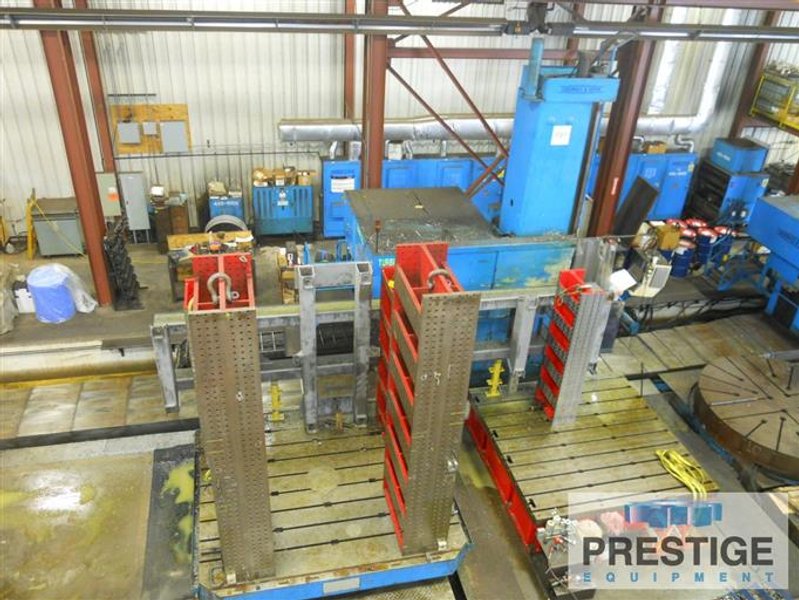

NOBLE & LUND CNC B-AXIS INFEEDING ROTARY TABLE, Age 1994:
Table Size ............................ 137" x 137"
Table Infeed, W-Axis .................. 47"
Table Weight Capacity ................. 60 Tons
Rotary Motion ......................... Infinitely Variable
Feed Ranges ........................... Infinitely Variable
Table Linear Motion ................... 157.48 IPM
Table Rotary Motion ................... to .5 RPM
Table Rotation, B-Axis Contouring ..... 360,000 Positions
Table Weight .......................... 60 Tons


EQUIPPED WITH:

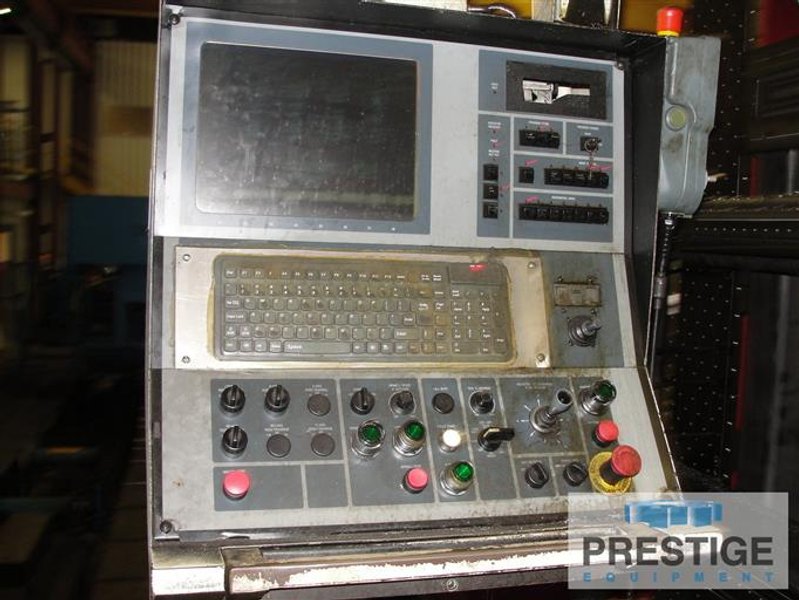

Giddings & Lewis 8000B CNC Control
80 Tool Automatic Tool Changer
Independent AC Electric Servo Feed Drives
Infinitly Variable Spindle Speeds
Chiller Unit for Control of Headstock Lube Oil Temp.
Adjustable Pendant Mounted CRT
Power Draw Bar, Collet Type
Chip Conveyor and Elevator
Operators Platform
Coolant Through Spindle
Heavy Duty Meehanite Casting Construction
Non-Metallic Way Liners
Double Motor Pinion Drive on X-Axis Rack
Automatic Lubrication of All Machine Ways
