Peddinghaus PCD1100/3B, 40" Beam Drill, Siemens CNC, In & Out Feed Conveyor, 2016 #43033

Stock

43033

Model

PCD1100/3B

Dealer Location

New York

Spec Sheet

Reference #43033

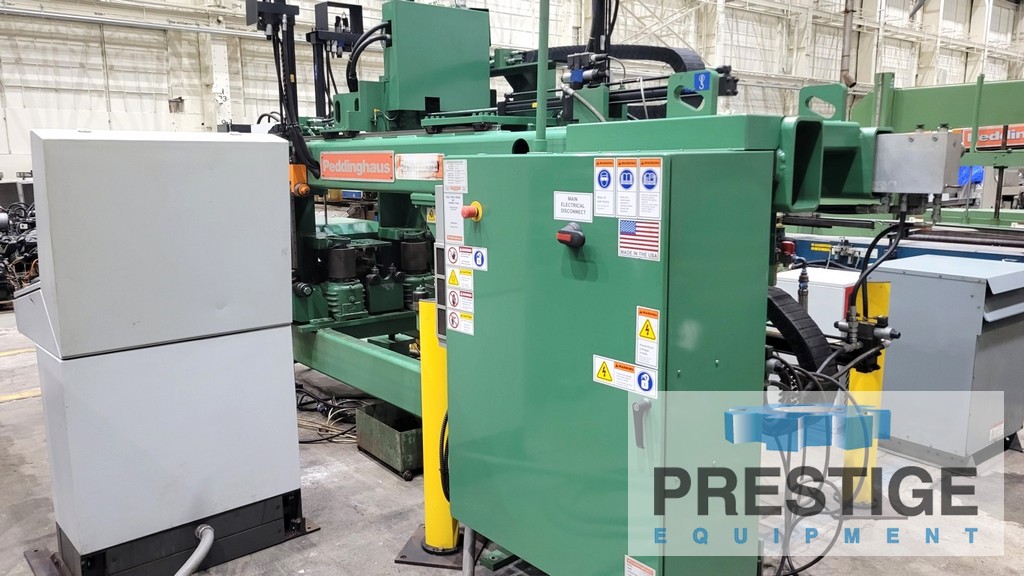

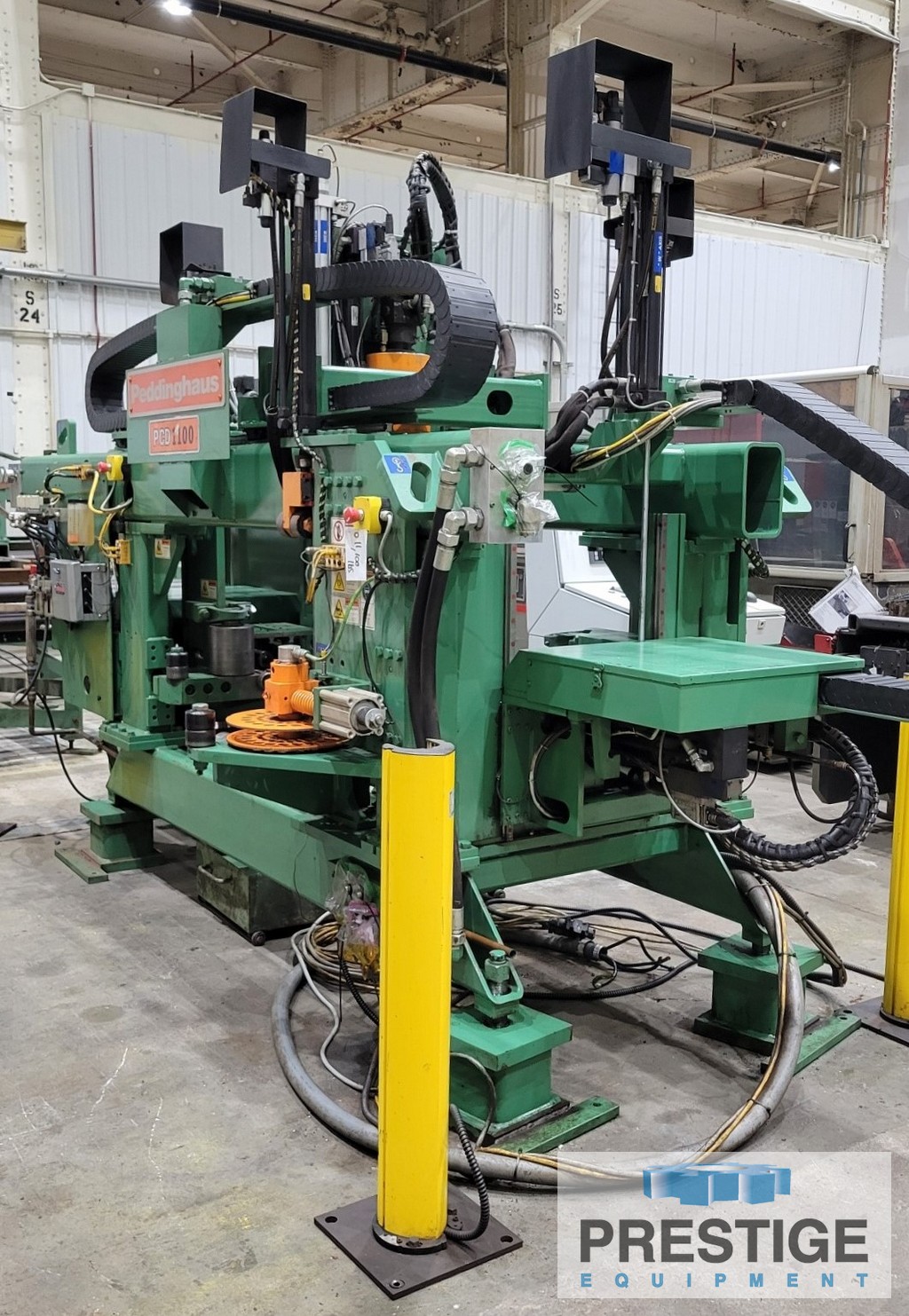

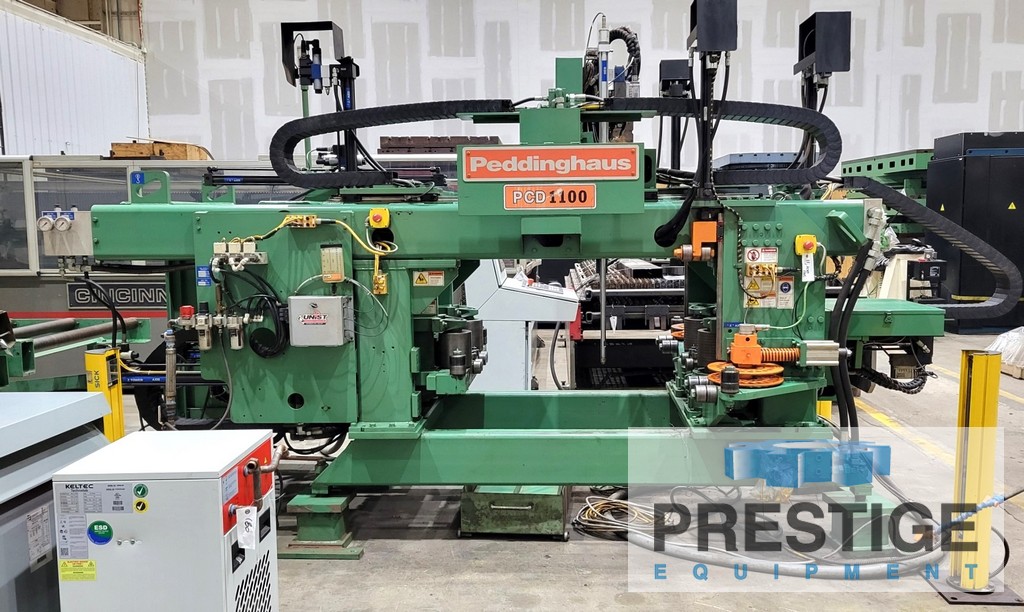

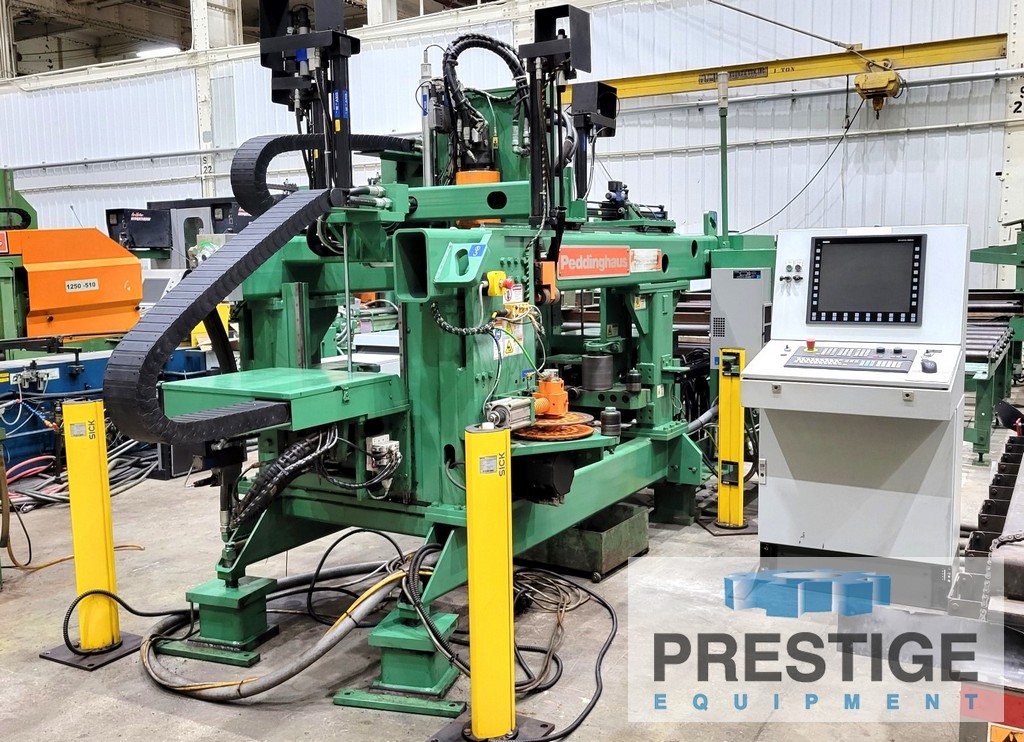

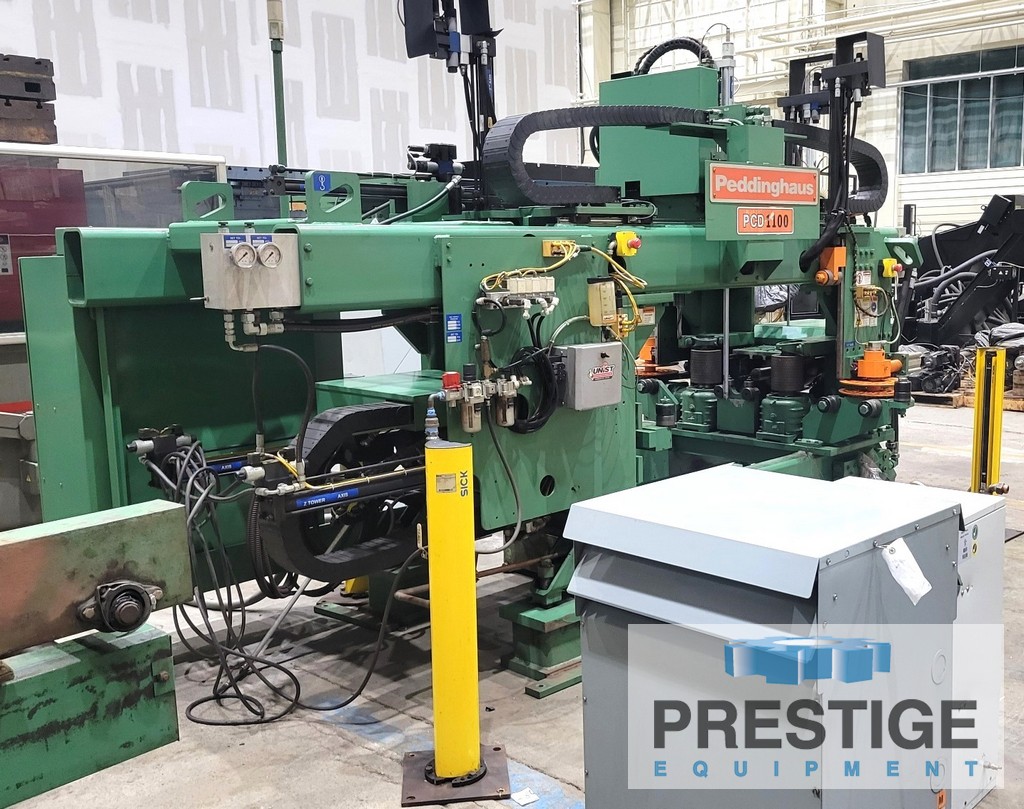

Peddinghaus PCD1100/3B Beam Drill & Conveyor

FEATURES:

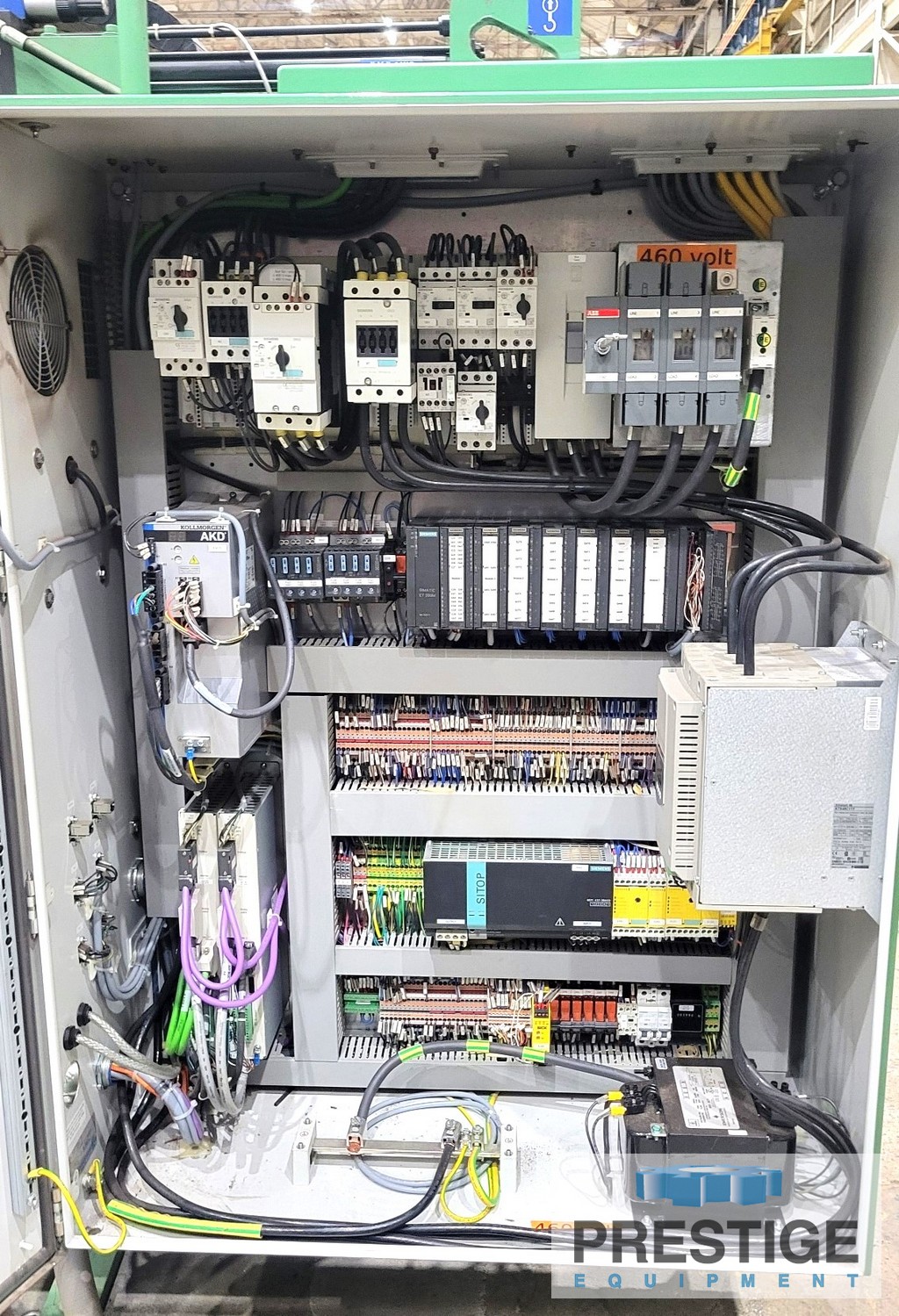

Siemens 840Di CNC Control
Unist MQL
Signoscript Part Marking

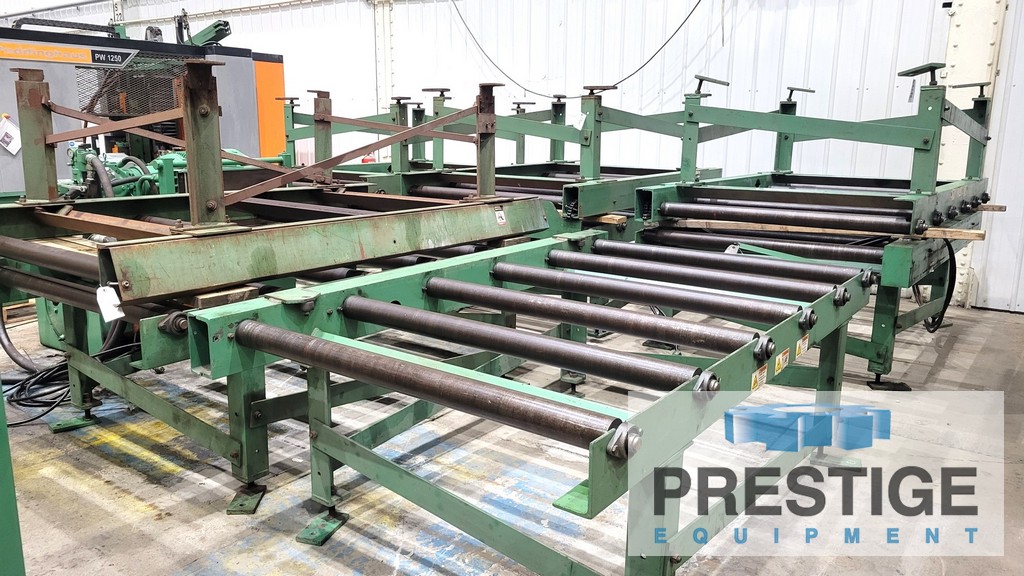

90' Roller Conveyor

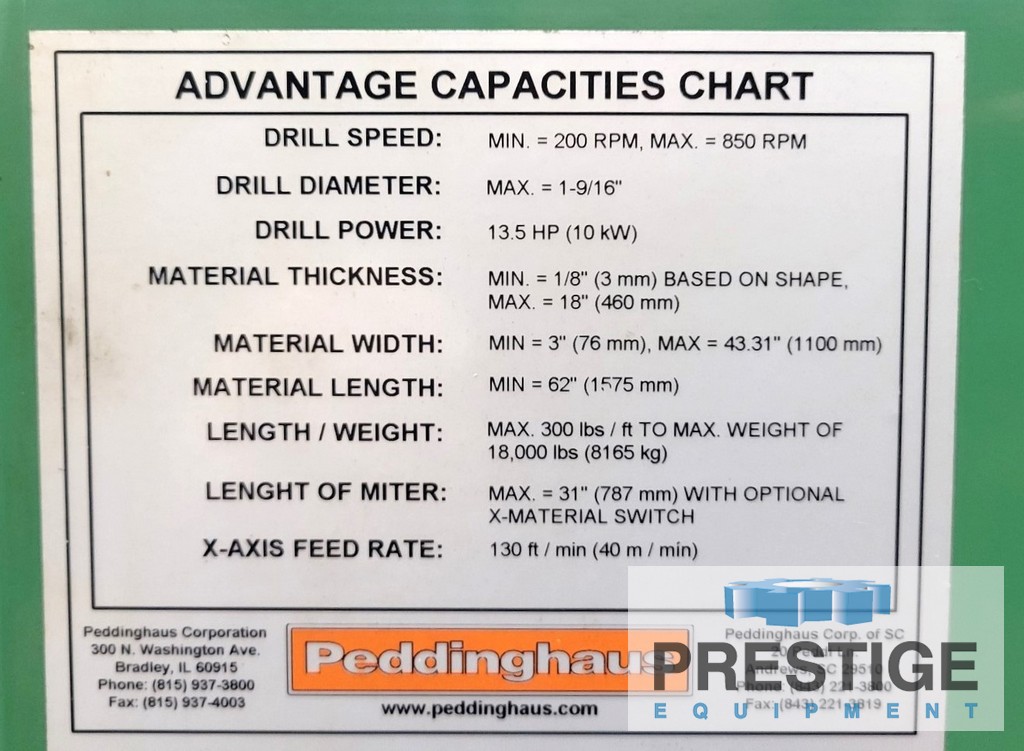

CAPACITY:
Maximum Machining Width ............... 43.31"
Maximum Machining Height .............. 18"
Minimum Machining Width ............... 3"
Minimum Length Piece Part ............. 62"
Minimum Bar Stock Thickness ........... 3/4"

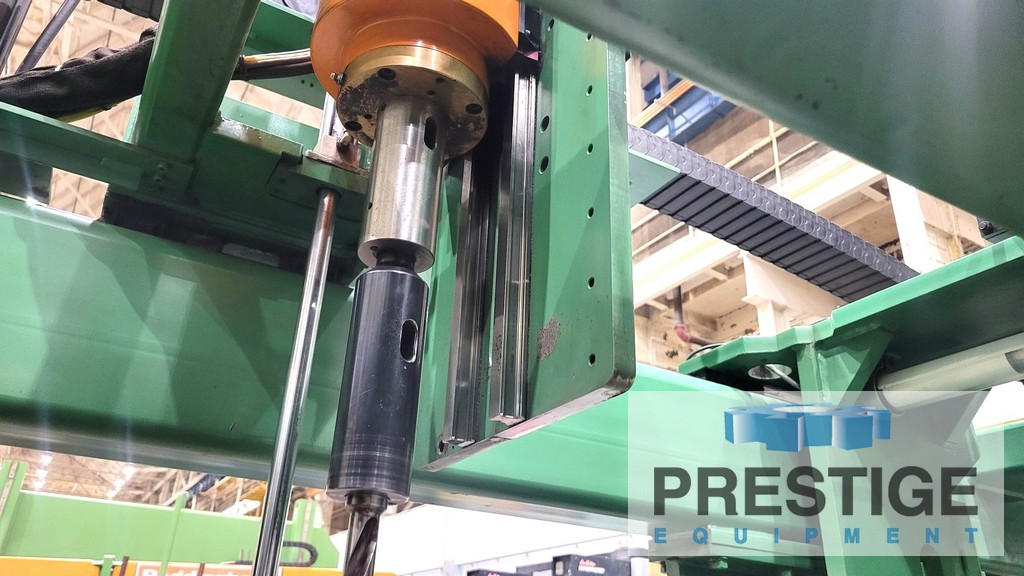

Number of Drill Spindles .............. 3
Drill Diameter ....................... 1-9/16"
Power per Spindle ..................... 13.5 HP
Spindle Speeds ........................ 200 - 850 RPM
Spindle Stroke ........................ 13"
Positioning Stroke on Flange Drills ... 0 - 18"
Positioning Stroke on Web Drill ....... 0 - 43.31"
X-Axis Feed ........................... 130 FPM
Maximum Work Piece Weight ............. 18,000 Lbs

EQUIPPED WITH:

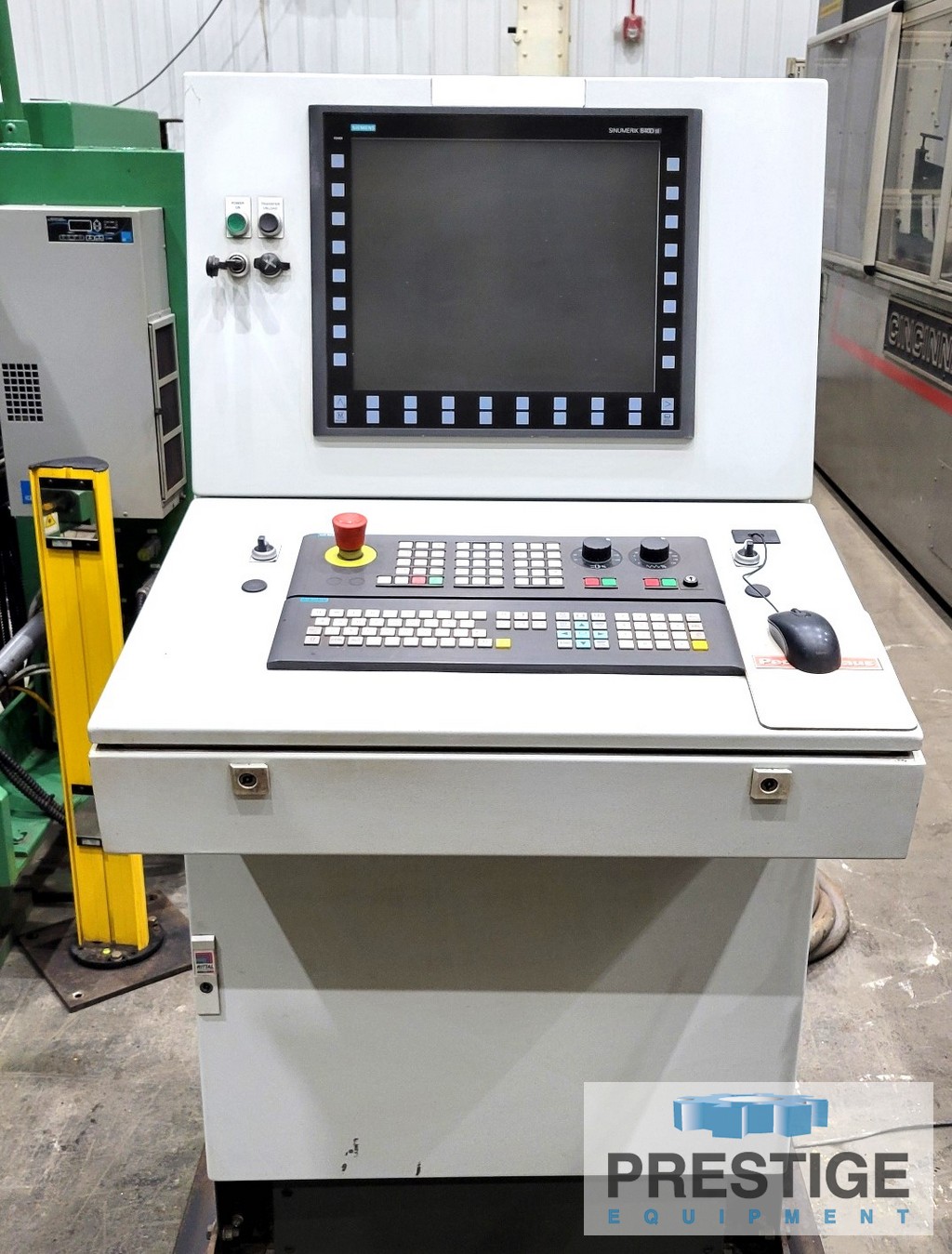

Siemens 840Di CNC Control
Programmable Spindle Feeds
Infinitely Variable Spindle Speeds
Signoscript Part Marking
Unist MQL (Minimum Quantity Lubrication)

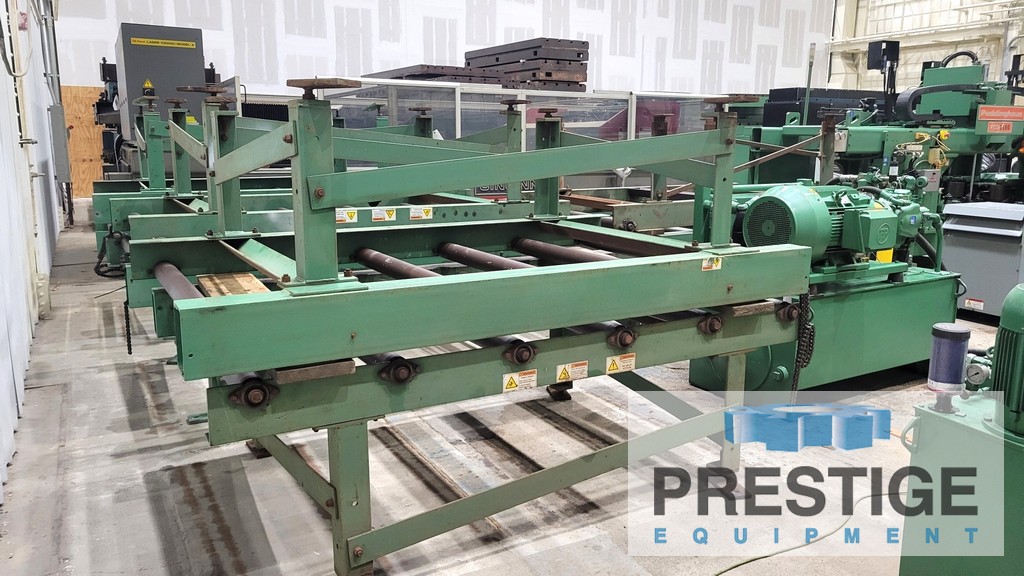

90'Of 54" Wide 300 Lbs/Ft Roller Conveyor

NOTE:
Inspect in Plant

No Video Available
